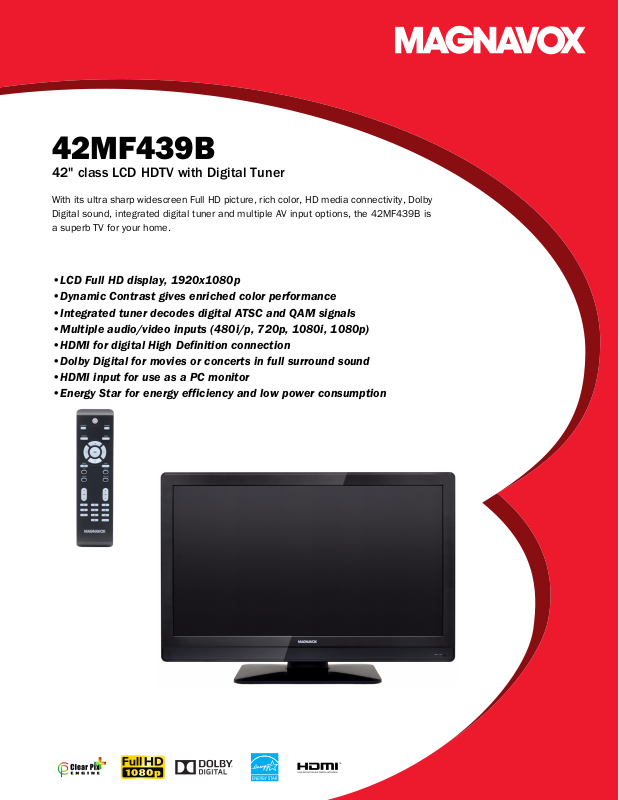

Page 1
42MF439B
42" class LCD HDTV with Digital Tuner
With its ultra sharp widescreen Full HD picture, rich color, HD media connectivity, Dolby
Digital sound, integrated digital tuner and multiple AV input options, the 42MF439B is
a superb TV for your home.
•LCD Full HD display, 1920x1080p
•Dynamic Contrast gives enriched color performance
•Integrated tuner decodes digital ATSC and QAM signals
•Multiple audio/video inputs (480i/p, 720p, 1080i, 1080p)
•HDMI for digital High Definition connection
•Dolby Digital for movies or concerts in full surround sound
•HDMI input for use as a PC monitor
•Energy Star for energy efficiency and low power consumption
Page 2
42MF439B/F7
42" class LCD HDTV with Digital Tuner
Product specifications
Picture/Display
• Aspect ratio: Widescreen
• Diagonal screen size: 42 inch / 106 cm
• Visible screen diagonal (inch): 42.02 inch
• Panel resolution: 1920x1080p
• Brightness: 500 cd/m²
• Contrast ratio (typical): 4000:1
• Dynamic screen contrast: 16000:1
• Picture enhancement: Clear Pix Plus Engine, 3/2 -
• Response time (typical): 6.5 ms
• Viewing angle: 176º (H) / 176º (V)
tion pull down, Progressive scan, 3D
2/2 mo
Combfilter, Digital Noise Reduction, Dynamic
contrast enhancement
Supported Display Resolution
Resolution Refresh rate
Computer formats
640 x 480 60Hz
720 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1440 x 900 60 Hz
Video formats
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz
Sound
• Sound System: Mono, Stereo, SAP, Dolby Digital
(AC-3)
• Output power (RMS): 2 x 10W
• Sound Enhancement: Virtual Surround Sound
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, PLL Digital Tuning,
Plug & Play
• User convenience: Sleep Timer
• Ease of Use: Auto Volume Leveller (AVL), On Screen
splay, Smart Picture, Smart Sound, Closed
Di
Captioning Full Text, Side Control
• Screen Format Adjustments: Widescreen, 4:3,
vie expand 14:9, Super Zoom, 16:9 subtitle
Mo
• Child Protection: Child Lock+Parental Control
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: ATSC, NTSC
• Cable: Unscrambled Digital Cable -QAM
• Video Playback: NTSC
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, CVBS in
• AV output: Audio (L/R) x1
• Audio Output - Digital: Coaxial (cinch)
• HDMI 1: Analog audio L/R in, HDMI v1.3
• HDMI 2: HDMI v1.3
• Front / Side connections: S-video in, CVBS in,
io L/R in, HDMI v1.3, Headphone Out
Aud
• HDMI-CEC: One touch play, Power status, System
dby
stan
Power
• Mains power: 120V/60Hz
• Power consumption: 262 W
• Standby power consumption: 0.5W
• Ambient temperature: 5 °C to 35 °C
Dimensions
• Set dimensions in inch (W x H x D):
40.4 x 26.2 x 4.9 inch
• Set dimensions with stand in inch (W x H x D):
4 x 28.6 x 12.3 inch
40.
• Box dimensions in inch (W x H x D):
3 x 32.6 x 10.7 inch
46.
LCD Full HD display 1920x1080p
This display has a resolution that is referred to as Full
HD. With state-of-the-art LCD screen technology it has
the full high-definition widescreen resolution of 1920
x 1080p. This is the highest resolution that HD
broadcast can transmit. It allows the best possible
picture quality from any format of HD input signal. It
produces brilliant flicker-free progressive scan
pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.
Dynamic Contrast
Special picture processing technology dynamically
and seamlessly delivers vibrant images in bright
scenes or reproduces a deep blacks and accurate
rendering of darker colors and shades in dark scenes.
You get the ultimate LCD picture: stable and clear
images with enriched color performance and excellent
contrast.
Integrated HDTV tuner
A built-in digital tuner receives and decodes ATSC
off-air and unscrambled cable signals directly, so you
can view digital high-definition TV programming
without an additional set-up box.
Multiple AV inputs plus 1080p
Multiple AV inputs are built-in connectors that
accommodate all major video device signals: CVBS,
S-video, HDMI (480i/p, 720p, 1080i and 1080p).
Component and HDMI can even process the highest
1080p signal from any HD source including Blu-ray
and HD DVD players, delivering maximum lines of
resolution and the best image quality in the HDTV
standard.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it delivers
an unblemished image. The non-degraded signal
reduces flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI input is
fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Dolby Digital
Dolby Digital, the world's leading digital multi-channel
audio standard, makes use of the way the human ear
naturally processes sound. With Dolby Digital you
experience superb quality surround sound audio with
realistic spatial cues.
Date of issue 2013-02-24
Version: 3.4.3
12 NC: 8670 000 53002
UPC: 6 09585 16400 0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
All Rights reserved.
www.magnavox.com
PC input via HDMI
With PC input you can use your TV as a PC monitor via
a HDMI-DVI cable/converter.
Energy Star
Energy Star-labeled home electrical products are
designed to use less energy - saving you money while
reducing environmental pollution. In fact, Energy
Star-compliant products consume less than 1 watt of
power while in standby mode. This is achieved by
having low standby power consumption through
innovatively designed standby circuitry and stringent
selection of components made with high efficiency
materials.
Page 3
42MF439B/F7
42" class LCD HDTV with Digital Tuner
Product specifications (continued)
• Product weight (lb): 53.0
• Product weight (+stand) (lb): 55.2 lb
• Weight incl. Packaging (lb): 64.0
• VESA wall mount compatible: 200 x 200 mm
Accessories
• Included accessories: Power cord, User Manual,
Quick start guide, Registration card, Remote
Control, Batteries for remote control, Table top
stand
Date of issue 2013-02-24
Version: 3.4.3
12 NC: 8670 000 53002
UPC: 6 09585 16400 0
