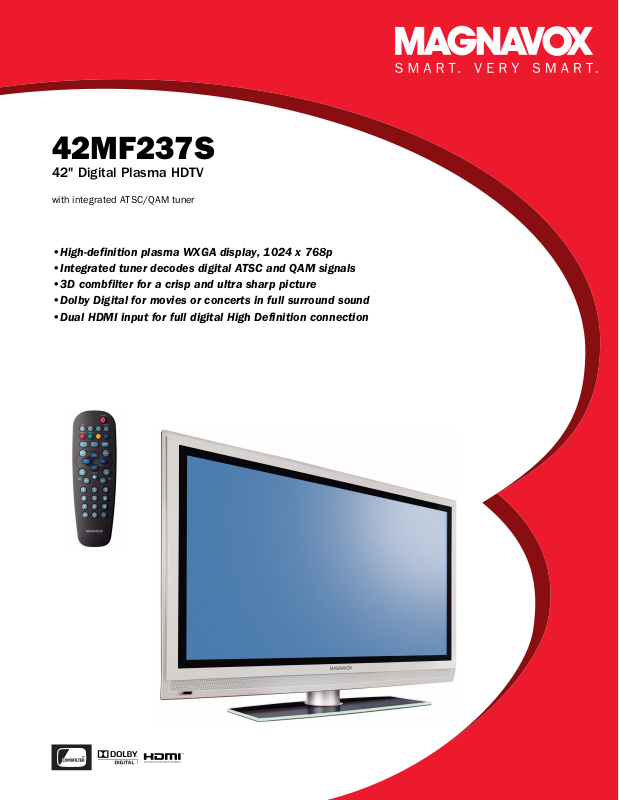

Philips 42MF237S User Manual

42MF237S

42" Digital Plasma HDTV

with integrated ATSC/QAM tuner

•High-definition plasma WXGA display, 1024 x 768p

•Integrated tuner decodes digital ATSC and QAM signals

•3D combfilter for a crisp and ultra sharp picture

•Dolby Digital for movies or concerts in full surround sound

•Dual HDMI input for full digital High Definition connection

42MF237S/37

42" Digital Plasma HDTV

Product specifications

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 1200 cd/m²

• Contrast ratio (typical): 10000:1

• Viewing angle (H / V): 160 / 160 degree

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1024 x 768p

• Picture enhancement: 3/2 - 2/2 motion pull down, Combfilter, Progressive Scan

• Screen enhancement: Anti ageing circuit

Supported Display Resolution

Resolution Refresh rate Video formats 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz

Sound

• Output power (RMS): 2 x 15W

• Sound System: Dolby Digital (AC-3), Virtual Dolby

rround

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display

• Ease of Installation: Autostore, PLL Digital Tuning,

ug & Play

• Ease of Use: On Screen Display, Side Control,

losed Captioning Full Text

• Remote Control: TV

• Screen Format Adjustments: 7 Widescreen Modes,

uto Format

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

Connectivity

• AV 1: Audio L/R in, CVBS in, YPbPr

• AV 2: Audio L/R in, YPbPr

• Front / Side connections: Audio L/R in, CVBS in, Hea

• Audio Output - Digital: Coaxial (cinch)

• Other connections: HDMI in 2x

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: AC 110 - 240 V, 50/60 Hz

• Power consumption: 400 W

• Standby power consumption: < 1 W (110V)

Dimensions

• Set dimensions in inch (W x H x D):

41.1 x 27.6 x 4.37 inch

• Set dimensions with stand in inch (W x H x D):

41.

• Product weight (lb): 91.27 (with stand), 75.83

without stand)

(

• Box dimensions in inch (W x H x D):

46.

• Weight incl. Packaging (lb): 103.6

Accessories

• Included Accessories: Table top stand, Power cord, Quick start guide, User Manual, Registration card, Remote Control

dphone out, S-video in

2 x 30.1 x 10.4 inch

4 x 32.2 x 12.9 inch

Plasma panel, 1024 x 768p

This state-of-the-art plasma screen technology gives you widescreen HD resolution of up to 1024 x 768 pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated HDTV tuner

A built-in digital tuner receives and decodes ATSC off-air and unscrambled cable signals directly, so you can view digital high-definition TV programming without an additional set-up box.

3D combfilter

A 3D combfilter is a device that performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information. It separates brightness and color signals better in the 3D domain to eliminate cross-color, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure.

Dolby Digital

Because Dolby Digital and DTS, the world's leading digital multi-channel audio standards, make use of the way the human ear naturally processes sound, you experience superb quality surround sound audio with realistic spatial cues.

Date of issue 2009-03-06

Version: 2.0.7

12 NC: 8670 000 34945 UPC: 6 09585 14499 6

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their

respective owners.

www.magnavox.com
