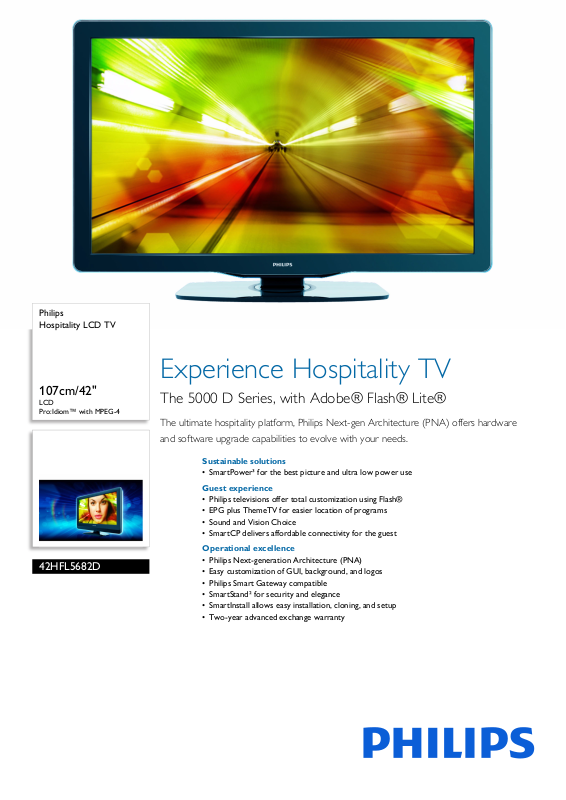

Philips
Hospitality LCD TV
Experience Hospitality TV
107cm/42"
LCD
Pro:Idiom™ with MPEG-4
42HFL5682D
The 5000 D Series, with Adobe® Flash® Lite®
The ultimate hospitality platform, Philips Next-gen Architecture (PNA) offers hardware
and software upgrade capabilities to evolve with your needs.
Sustainable solutions
• SmartPower³ for the best picture and ultra low power use
Guest experience
• Philips televisions offer total customization using Flash®
• EPG plus ThemeTV for easier location of programs
• Sound and Vision Choice
• SmartCP delivers affordable connectivity for the guest
Operational excellence
• Philips Next-generation Architecture (PNA)
• Easy customization of GUI, background, and logos
• Philips Smart Gateway compatible
• SmartStand² for security and elegance
• SmartInstall allows easy installation, cloning, and setup
• Two-year advanced exchange warranty
Hospitality LCD TV
107cm/42" LCD, Pro:Idiom™ with MPEG-4
Highlights
42HFL5682D/F7
Adobe® Flash® Lite®
Philips televisions equipped with Adobe®
Flash® Lite®
customization options. Relying on Flash®
Lite®-based applets, Philips televisions allow a
completely tailor-made GUI experience. In
addition, Philips TVs can support a wide variety
of applications to enhance the guest
experience, including a dynamic EPG, News,
Weather, Sports, Finance, Local Attractions,
and many more. Philips provides a software
development kit, however additional charges
apply if you require Philips to assist in the
custom Flash® programming.
Advanced exchange warranty
Philips offers unmatched commitment to
k
eeping your guest rooms in working order.
We have such confidence in the reliability of
our televisions that we offer a two-year
advanced exchange warranty with same day
ship. In the unlikely event that something does
go wrong we ship a replacement directly to
you. (Same day ship applies to calls received MF prior to 2 PM ET.)
Easy customization
Philips televisions make promoting your brand
e
asier than ever with customization options
that allow you to put your brand front and
center. Add a startup logo and GUI page logo
of your choice so the guest sees your brand.
Select the brand-appropriate color scheme for
the Graphical User Interface (GUI) from our
built in list of color skins. You can even add
your own background image to the GUI to
further identify your brand or property.
EPG plus ThemeTV
Philips hospitality televisions make it easier
th
an ever for your guests to locate content, via
a Flash-based EPG or our unique ThemeTV. A
fully interactive EPG can be offered, that not
only identifies where channels are located, but
also contains program data for now and next
programs allowing quick and easy evaluation of
program desirability and direct tuning. Because
EPG functionality requires a data stream which
offer a wide range of
will result in additional monthly costs, Philips
also continues to offer ThemeTV, the fast, free
way for guests to find desirable content based
on themes.
PSG compatible
This model is compatible with the Philips Smart
G
ateway (PSG). The PSG is a management
device that allows remote programming and
maintenence of your televisions, so you never
have to enter the room to make changes again!
With a PSG you can update and adapt channel
maps, change TV settings, and keep television
software up to date, saving substantially on the
cost of room visits. The PSG also allows real
time data updates for Adobe Flash Lite applets
running on select Philips commercial
televisions.
Philips Next-gen Architecture
PNA is a revolutionary way for your in-room
e
ntertainment to evolve. Philips televisions are
designed with a modular hardware update path
so they can easily be upgraded to offer
additional features as your needs change. Buy a
non-Flash® capable television now and update
it to offer Flash® Lite® applet capability later
without having to bear the full cost of new
televisions. Or add b-LAN™ two-way
communication for additional customization
and personalization options. Philips is also
working with a variety of content providers to
design additional modules that may offer
enhanced benefits.
SmartCP autosensing inputs
Our built-in autosensing connectivity panel
i
ncludes HDMI and VGA (with 3.5mm audio
in), as well as USB, CVBS and Audio L/R.
Guests can also plug their USB memory sticks
right into the set to play back music or photos
(.mp3 or .jpg files).
SmartInstall
Philips SmartInstall an easy to use installation
process
. SmartInstall consists of a simple to use
PC program that allows all features to be
configured and all channels to be mapped in a
fraction of the time it takes to do so on an
actual television with a remote. A guided
installation wizard is built into the television, so
even those without a PC get a better and faster
install. And with the addition of the Philips
Smart Gateway, the televisions can even
automatically clone all settings when plugged
in.
SmartPower³ with AutoSense
SmartPower³ allows the backlight intensity to
be
varied based on real time picture measures
and actual room lighting conditions to deliver
the best possible picture at the lowest possible
energy consumption.
SmartStand²
Philips unique SmartStand² is a complete
commerci
swivel that can be limited in either or both
directions to 30, 60, or 90 degrees. The stand
includes a securable mounting plate that can be
affixed either using security screws or non-drill
adhesive. In addition, all security hardware for
drill and non-drill mounting is included on
select models (check with your Philips
representative for specific models).
Sound and Vision Choice
Philips Sound and Vision Choice allows the
gu
video sources. Using our SmartWindow and
Smart Audio Select features, guests can watch
one source while listening to the audio from
another source, for example watching TV
while listening to their iPod. Guests can also
split the screen to combine an HDMI signal
with any other non HDMI source. Philips
televisions allow maximum flexibility with the
latest game and personal audio/video sources
as well as the latest generation of single cable
connectivity panels.
al solution, offering 180 degree
est to mix and match the latest audio and
MPEG 4 HD
decoder integrated
Hospitality LCD TV
107cm/42" LCD, Pro:Idiom™ with MPEG-4
Specifications
42HFL5682D/F7
Picture/Display
• Aspect ratio: 16:9, Widescreen
•Color cabinet: Black
• Brightness: 500 cd/m²
• Contrast ratio (typical): > 2000:1
• Dynamic screen contrast: 50000:1
• Diagonal screen size: 42.143 inch / 107.04 cm
• Picture enhancement: Progressive scan, 3/2 - 2/2
n pull down, 3D Combfilter, Dynamic
tio
mo
contrast enhancement, Contrast Plus, Digital
Noise Reduction, Jagged Line Suppression,
Luminance Transient Improver, Color Transient
Improvement, Automatic skin tone correction,
Color Enhancement, Motion adaptive deinterlacing, Active Control + Light sensor, 1080p
24/25/30Hz processing
• Screen enhancement: Anti-Reflection coated
re
en
sc
• Display screen type: LCD Full HD W-UXGA Act.
ix
matr
• Panel resolution: 1920x1080p
• Response time (typical): 5 ms
• Viewing angle: 178º (H) / 178º (V)
Supported Display Resolution
• Computer formats
olution Refresh rate
Res
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1366 x 768 60Hz
deo formats
• Vi
olution Refresh rate
Res
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 24, 25, 30, 50, 60Hz
Sound
• Sound System: Stereo, Dolby Digital (AC-3)
• Output power (RMS): 2 x 10W
• Sound Enhancement: Auto Volume Leveller
• Equalizer: 5-bands
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: PLL Digital Tuning, Program
Name, Advanced Hotel Mode, Cloning of TV
settings via USB, Cloning of TV settings via RF,
Keyboard lock-out, Security menu access,
Installation menu locking
• Ease of Use: Auto Volume
Picture, Smart Sound
• Screen Format Adjustments: 4:3, 7 Widescreen
Modes
• Comfort: Hotel Guest features, Sleep timer,
ch on channel, V
Swit
message
• User convenience: Closed captioning (digital),
hip
and parental lock
Vc
• Interactive hotel features: Connectivity panel
mpatible
co
• Other convenience: Kensington lock
• SmartFeatures: SmartAudioSelec
SmartInstall, SmartLogo, SmartPower, SmartRC,
SmartUpdate, SmartSecure, SmartCP, ThemeTV
Categories, SmartWindow
Leveller (AVL), Smart
olume limitation, Welcome
t
, SmartClone,
Tuner/Reception/Transmission
• Tuner bands: Hyperband, UHF, VHF
• TV system: ATSC, NTSC
•Video Playback: NTSC
• Number of Preset Channels: 250
• Cable: Unscrambled Digital Cable QAM
• Terrestrial: ATSC (8VSB)
• Aerial Input: 75 ohm F-type
Connectivity
• AV 1: Audio L/R in, CVBS in
• AV 2: Audio L/R in, YPbPr
• AV 3: HDMI (v1.3 with CEC)
• AV 4: HDMI (v1.3 with CEC)
• AV 5: HDMI (v1.3 with CEC)
• Front / Side connections: Audio L/R in, CVBS in,
HDMI v1.3
mm jack
• Other connections: Antenna F-type, RS232 Serial,
S/PD
• Connectivity Enhancements: RJ12 SmartPlug
co
, USB 2.0, VGA PC-In
IF
out (coaxial), Analog audio Left/Right out
nnector, External Loudspeaker connector
, PC audio in 3.5
Power
• Mains power: 110 - 240V, 50/60Hz
• Maximum Power Consumption: 130 W
• Standby power consumption: < 1 W
• Ambient temperature: 0 °C to 40 °C
Dimensions
• Set dimensions in inch (W x H x D):
40.3 x 25 x 3.6 inch
• Product weight (lb): 33.5
• Weight incl. Packaging (lb): 53.9
• VESA wall mount compatible: 200 x 200 mm
• Box dimensions in inch (W x H x D):
.2
x 29.5 x 10 inch
50
• Product weight (+stand) (lb): 40.3 lb
•Set dimensions with st
40.3 x 27.1 x 14.2 inch
and in inch (W
x H x D):
Issue date 2014-03-14
Version: 5.7.3
12 NC: 8670 000 70712
UPC: 6 09585 20212 2
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Accessories
• Included accessories: Warranty Leaflet, Quick
start guide, Power Cord (3m), Security Bolts
(Table Stand), Security Screws (Table Stand),
Swivel stand with anti-theft
• Optional accessories: Set up Remote RC2573GR,
un
ting brackets/ stands, Guest remote control
Mo
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: JPEG Still pictures, MP3,
Slidesho
w files (.alb)
Green Specifications
• Safety: Flame retardant housing
•Eco Designed
• Low Power Standby
• SmartPower Ultra
•
* Advanced Exchange warranty is valid in the United States only. Local
warranties govern sales in other countries.
* Dolby Digital is a registered trademark of Dolby Labs
* LodgeNet and b-LAN are trademarks of LodgeNet Interactive
Corporation
* Pro:Idiom is a registered trademark of the Zenith corporation.
* Adobe® Flash® Lite® is a trademark of Adobe Systems
Incorporated
