Philips 42HFL5107H/10 leaflet

Download

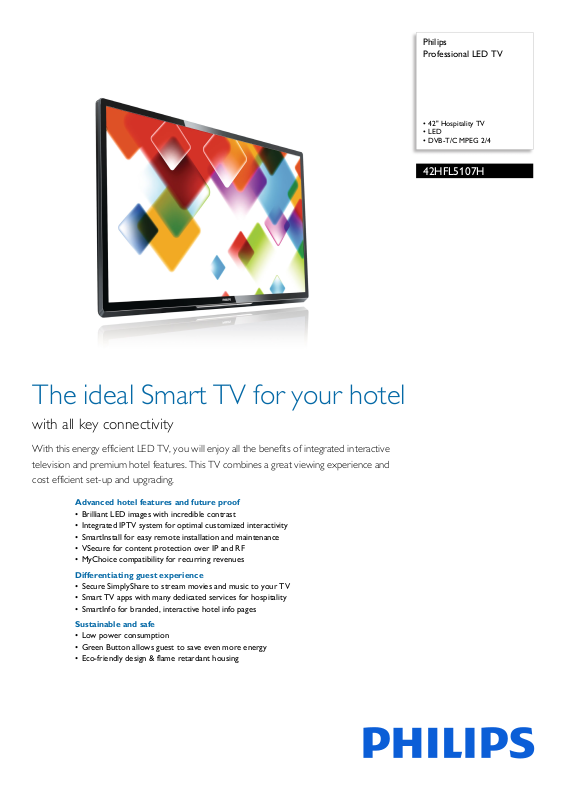

Page 1

Philips Professional LED TV

• 42" Hospitality TV

•LED

•DVB-T/C MPEG 2/4

42HFL5107H

The ideal Smart TV for your hotel

with all key connectivity

With this energy efficient LED TV, you will enjoy all the benefits of integrated interactive television and premium hotel features. This TV combines a great viewing experience and cost efficient set-up and upgrading.

Advanced hotel features and future proof

• Brilliant LED images with incredible contrast

• Integrated IPTV system for optimal customized interactivity

• SmartInstall for easy remote installation and maintenance

• VSecure for content protection over IP and RF

• MyChoice compatibility for recurring revenues

Differentiating guest experience

• Secure SimplyShare to stream movies and music to your TV

• Smart TV apps with many dedicated services for hospitality

• SmartInfo for branded, interactive hotel info pages

Sustainable and safe

• Low power consumption

• Green Button allows guest to save even more energy

• Eco-friendly design & flame retardant housing

Page 2

Professional LED TV

42" Hospitality TV LED, DVB-T/C MPEG 2/4

Highlights

42HFL5107H/10

MyChoice compatible

MyChoice offers a simple and low-cost way to o

ffer your guests premium TV channels. At the same time it delivers an additional revenue stream which allows you to recover your initial TV investment.

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

Full HD LED TV

The most advanced LED lighting technology in this Full HD LED TV combines an eye-catching minimalistic design with stunning image quality as well as the lowest power consumption in its

category. On top of that, LED lighting technology does not contain any hazardous materials. Thus, with LED backlight you can enjoy low power consumption, high brightness, incredible contrast, sharpness and vibrant colors.

Integrated IPTV

Safe costs and clutter. With our new Smart TVs yo

u can build your hotel system directly on the TV. Interactive channels, video-ondemand, interactive hotel menus and information as well as online ordering systems are all possible without an external box attached to the TV. Next to delivery of the content over coax TV cables, you can now also use your internet network to deliver your TV channels or VOD directly to the TV. Our partner network can make sure you get the customized portal you want.

Secure SimplyShare

Secure Simplyshare gives your customers the freedom wirelessly and without hassle. With our open system approach we serve iOS as well as Android users and continuously extend our compatibility. Our secure sharing makes this DLNA based system protected so your guests will not be disturbed by other people. Pictures, movies, music, all can be shared and enjoyed via SimplyShare on the TV!

Smart TV apps

Philips Smart TV apps consist of an ever grow YouTube to social networking apps and many

to enjoy their content on the big TV

ing choice of applications ranging from

more. The dedicated version is tailored for hospitality use and has several added benefits, such as making sure guest information is securely deleted after use and avoiding that illegal content can harm your business. With guests being able to use apps & catch-up TV even from their home country, Smart TV apps is leading in entertainment.

SmartInfo

SmartInfo allows you to provide hotel or city i

nformation to your guests through SmartUI. Your guests have access to this interactive hotel webpage even when the TV is not connected to your intranet or internet. You can change the information regularly and easily to keep your guests up to date with all the latest developments in your hotel.

SmartInstall

SmartInstall makes installation and mainte

nance of your TVs effortless. With a simple to use web tool, you can now remotely configure and install your TVs without visiting any rooms! This saves you time and makes sure your guests are not disturbed. Whether it is updating the hotel info pages or installing new channels, SmartInstall can handle all.

VSecure over IP and RF

To show HD premium content to the guest t

here is a need for strict content security precautions from the content industry. Philips developed VSecure over RF and IP (Marlin and Windows DRM) for content protection on your Hotel TV.

Full HD

LED

Page 3

Professional LED TV

42" Hospitality TV LED, DVB-T/C MPEG 2/4

Specifications

42HFL5107H/10

Picture/Display

• Display: LED Full HD

• Diagonal screen size: 42 inch / 107 cm

• Aspect ratio: 16:9

• Panel resolution: 1920x1080p

• Brightness: 400 cd/m²

• Viewing angle: 178º (H) / 178º (V)

• Picture enhancement: Pixel Plus HD

• Dynamic screen contrast: 500,000:1

• Color cabinet: High gloss black cabinet

Supported Display Resolution

• Computer inputs: up to 1920x1080 @ 60Hz

• Video inputs: 24, 25, 30, 50, 60 Hz, up to 20x1080p

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Digital TV: DVB-C MPEG4*, DVB-T MPEG4*,

DVB-C MPEG

•TV system: PAL, SECAM

• Video Playback: PAL, SECAM, NTSC

• IP Playback: IGMP Multicast

2*, DVB-T MPEG2*

Sound

• Output power (RMS): 20W (2 x 10W)

• Sound Enhancement: Auto Volume Leveller,

ncredible Surround, AmbiwOOx

Loudspeakers

• Built-in speakers: 2

Connectivity

• Number of USBs: 3

• Number of HDMI connections: 4

• Number of component in (YPbPr): 1

•Number of scarts (RGB/CVBS): 1

• EasyLink (HDMI-CEC): One touch play, System

andby

• Other connections: Antenna IEC75, Headphone t, PC-in VGA + Audio L/R in, Common Interface

ou Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (optical)

• Connectivity Enhancements: Power on scart,

SB2.0, WiFi via PTA01 (option)

Convenience

• Ease of Installation: Plug & Play, Advanced Hotel

Mode, Automatic Tuning System (ATS), PLL Digital Tuning, Automatic Channel Install(ACI), Program Name, Auto Program Naming, Autostore, Cloning of TV settings via USB, Installation menu locking, Security menu access, Keyboard lock-out

• Ease of Use: Auto Volume Leveller (AVL), 1

hannel list analog/digital, On Screen Display,

c Program List, Back Controls, Graphical User Interface

• Comfort: Hotel Guest featu

Green/Fast startup, Welcome message, Switch on channel, Volume limitation, Sleep timer

• Interactive hotel features: Connectivity panel

ompatible, ThemeTV, Block automatic channel

res, Auto power on,

update, Block over-the-air SW download, Vsecure, SmartInstall, MyChoice, SmartInfo Premium

• Prison mode: Txt, MHEG, USB, EPG, Sub block

• Clock: Sleep Timer

• Clock Enhancements: Synchro Time via TXT/DVB

• Teletext: 1000 page Hypertext

• Teletext enhancements: Fast text, Program rmation Line

info

• Electronic Program Guide: 8 day Electronic gram Guide, Now + Next EPG, IP EPG

Pro

• Screen Format Adjustments: Movie expand 16:9,

• Remote control type: 22AV1109A/10 (RC6)

• Remote Control: low battery detection, battery

• Firmware upgradeable: Firmware upgradeable via

• Other convenience: Kensington lock

een, Super Zoom, Auto Format

Widescr

nti-theft protection

B, Firmware upgradeable via RF, Firmware

US upgradeable via IP

Healthcare

• Control: Multi remote control

• Safety: Nurse call system compatible, Do

isolation Class II

uble

Multimedia Applications

• Multimedia connections: USB

• Video Playback Formats: H264/MPEG-4 AVC,

MPEG-1, MPEG-2,

• Music Playback Formats: AAC, MP3

• Picture Playback Formats: JPEG

MPEG-4

Power

• Mains power: 220-240V, 50/60Hz

• Eu Energy Label power: 46 W

• Energy Label Class: A+

• Annual energy consumption: 64 kW·h

• Standby power consumption: < 0.3W

• Ambient temperature: 5 °C to 40 °C

Green Specifications

• Safety: Flame retardant housing

• Low Power Standby

• SmartPower Eco

Dimensions

•Set dimensions (W x H x D): 977 x 589 x 43 mm

• Set dimensions with stand (W x H x D):

7 x 629 x 260 mm

•Box dimensions (W x H x D):

• Product weight: 13 kg

• Product weight (+stand): 15.5 kg

• Weight incl. Packaging: 18.3 kg

• VESA wall mount compatible: 400 x 400 mm

65 x

750 x 133 mm

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Power cord, Wall mounting bracket, Warranty Leaflet, SCART Adaptor

• Optional accessories: Set up remote 22AV8573/

, Swivel 22AV1047V, Wireless USB adaptor

00 (PTA01)

Smart TV Applications

• Net TV: Online apps, For HotelTV, configurable

• SimplyShare: SimplyShare Re Pairing

•Control: IXP control

•Other: HbbTV

•

ady, DMP, Secured

Issue date 2013-08-18

Version: 3.1.5

12 NC: 8670 000 97249 EAN: 87 12581 66677 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* Energy consumption in kWh per year, based on the power

consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.

* Typical on-mode power consumption measured according to

IEC62087 Ed 2.
