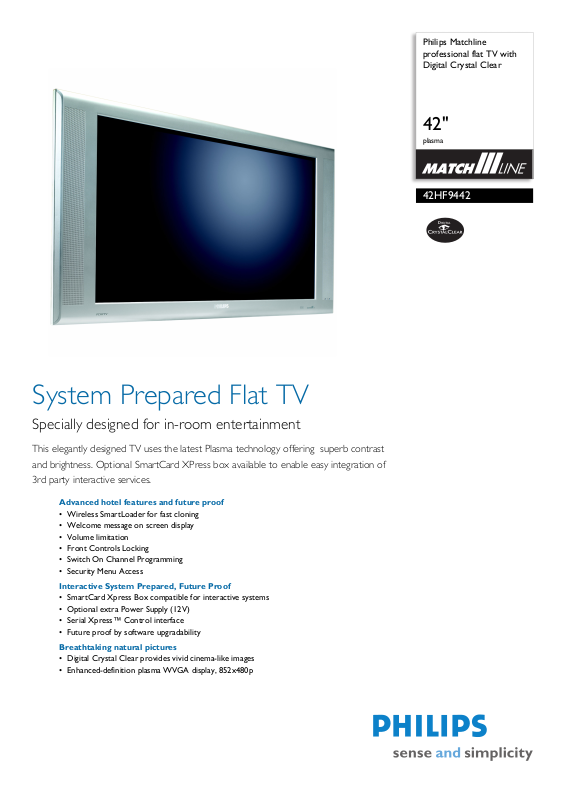

Philips 42HF9442 User Manual

Philips Matchline professional flat TV with Digital Crystal Clear

42"

plasma

42HF9442

System Prepared Flat TV

Specially designed for in-room entertainment

This elegantly designed TV uses the latest Plasma technology offering superb contrast and brightness. Optional SmartCard XPress box available to enable easy integration of 3rd party interactive services.

Advanced hotel features and future proof

• Wireless SmartLoader for fast cloning

• Welcome message on screen display

• Volume limitation

• Front Controls Locking

• Switch On Channel Programming

• Security Menu Access

Interactive System Prepared, Future Proof

• SmartCard Xpress Box compatible for interactive systems

• Optional extra Power Supply (12V)

• Serial Xpress™ Control interface

• Future proof by software upgradability

Breathtaking natural pictures

• Digital Crystal Clear provides vivid cinema-like images

• Enhanced-definition plasma WVGA display, 852x480p

Professional flat TV with Digital Crystal Clear

42" plasma

42HF9442/98

Specifications Product highlights

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 1000 cd/m²

• Contrast ratio (typical): 3000:1

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: WVGA Plasma panel

• Picture enhancement: Digital Crystal Clear, Progressive Scan, Comb Filter Digital, Active Control + Light sensor, 3/2 - 2/2 motion pull down, Widescreen Plus

• Screen enhancement: Anti ageing circuit, AntiReflection coated screen

• Viewing angle (h / v): 160 / 160 degree

• Panel resolution: 852 x 480p

• Response time (typical): 16 ms

Sound

• Sound Enhancement: Smart Sound

• Sound System: Virtual Dolby Surround

• Output power (RMS): 2 x 15W

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: PLL Digital Tuning

• Ease of Use: On Screen Display, Top Controls

• Remote control type: RC2887

• Teletext: 10 page Smart Text

• Screen Format Adjustments: 6 Widescreen Modes, Auto Format, Subtitle and Heading Shift

• Remote Control: TV

• Clock: Sleep Timer

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: NTSC, PAL, PAL I, PAL B/G, PAL D/ K, SECAM, SECAM B/G, SECAM D/K, SECAM L/ L'

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner Display: PLL

Connectivity

• Other connections: Analog audio Left/Right out, Antenna IEC75, HDMI, PC-in V GA + A udio L/R in

• AV 1: Audio L/R in, CVBS in, YPbPr(1Fh)

• AV 2: Audio L/R in, CVBS, S-Video Y/C

• Connectivity Enhancements: RJ12 connector, RJ45 connector

Power

• Power consumption: 450 (tbc) W

• Standby power consumption: < 2 W

• Mains power: AC 90 - 276V +/- 10%

• Ambient temperature: +5 -/+ 40 C

Dimensions

• Product weight: 42 kg

• Weight incl. Packaging: 47 kg

Accessories

• Included Accessories: Table top stand

• Optional accessories: Floor stand, Wall mounting bracket

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 56, 60, 72, 75,85Hz 1024 x 768 60Hz

•

Wireless SmartLoader

Provides the ability to copy easy and wireless all programmming settings from one TV set into other TV sets in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.

Welcome message

A welcome greeting is displayed each time the TV set is switched on.

Volume limitation

This feature predefines the volume range with which the TV set is allowed to operate, preventing excessive volume adjustments and avoiding disturbance of next door guests.

Front Controls Locking

Prevents unauthorised access to TV functions

Switch On Channel Programming

Perfect for in-house advertising or information channels as it allows to show a predefined channel when the TV is turned on.

Security Menu Access

Provides conditional access to installation and configuration settings via a special code or master remote control

SmartCard Xpress Box

The optional SmartCard Xpress Box can be mounted at th e r ear side o f t he TV set an d allow s t hird part y d ecoders and application cards to interface with the TV adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.

Extra Power Supply (opt)

The (optional) Extra Power Supply ensures operation of the Expansion Slot, the Clock Display and Wake-up Alarm when the TV set is switched off.

Serial Xpress™ Control

The Serial Xpress™ Control interface is compatible with all major premium entertainment services. The protocols enables the TV connection with external decoders, set-top boxes and PC based solutions. Support UART and RS232 protocols.

Upgradable software

The upgradable software architecture ensures that the TV is future proof and compatible with new technologies and developments, securing your investment.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema-like images.

Plasma WVGA panel, 852 x 480p

This WVGA display with state-of-the-art plasma screen technology has an enhanced widescreen resolution of 852 x 480p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide

Issue date 2007-11-09

Version: 2.0

12 NC: 8670 000 21847 EAN: 87 10895 85757 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

you with an enhanced viewing experience.

Active Control

Active Control ensure that noise and sharpness improvements are continuously made at a rate of 60 times per second. By continually adjusting picture setting over 3,000 times per minute, Active Control Plus ensures that the viewing experience is optimized.
