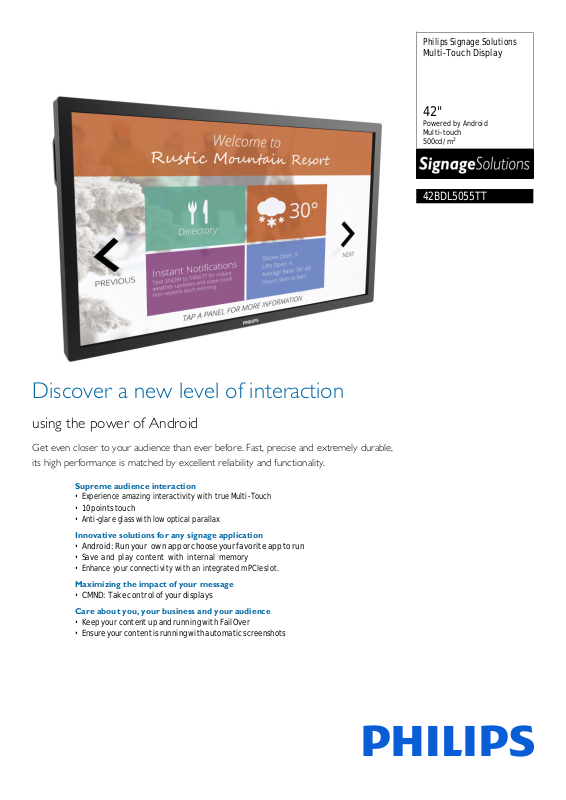

Page 1

Philips Signage Solution s Multi-Touch Display

42"

42BDL5055TT

Discover a new level of interaction

using the power of Android

Get even closer to your audience than ever before. Fast, precise and extremely durable,

its high performance is matched by excellent reliability and functionality.

Supreme audience interaction

• Experience amazing interactivity with true Multi-Touch

• 10 points touch

• Anti-glare glass with low optical parallax

Innovative solutions for any signage application

• Android: Run your own app or choose your favorite app to run

• Save and play content with internal memory

• Enhance your connectivity with an integrated mPCIe slot.

Maximizing the impact of your message

• CMND: Take control of your displays

Care about you, your business and your audience

• Keep your content up and running with FailOver

• Ensure your content is running with automatic screenshots

Page 2

Multi-Touch Display

42" Powered by Android, Multi-touch

42BDL5055TT

Highlights

Plug & Play Multi-Touch

A brand new level of in t eractivity is now available thanks to in tegrated touch technology. More flexibilit y and opt imu m simultaneous touch performance coupled with excellent operability opportunities to give you the ultimate in user interaction. The MultiTouch displays are enabled with automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.

Anti-glare glass

With this integrated touch display, the antiglare glass with low optical parallax allows for the most immersive touch experience. With little to no glare and low reflection on the display, images are crystal clear with pure color and great clarity.

With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly onto the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day. The auto orientation feature makes showing content in portrait or landscape as simple as turning the display.

FailOver

Keeping your content up and running is

critical

for demanding commercial

applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary

technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select

a primary input connection and a FailOver connection and you're ready for instant

protection.

Internal Memory

Save and play content with internal memory. Upload your media into the display and

playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when

streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

CMND

CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

PCI Slot

With an integrated PCI slot, you can connect a 4g LTE module, allowing for even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations for the customer to use, such as the ability to expand product features or signal-handling capability

OPS Insert

Proof of Play

Content is king, and with the automatic s

creenshot feauture, you can make sure

your content is up and running at all

that times. Screenshots are taken throughout the day, server. From there, the screenshots can be viewed no matter when, or where you are.

which are then stored in

the FTP

Plug & Play

Multi-

A robust display management platform,

CMND puts the power back into your hands. Update and manage content with CMND & Create and control your settings with CMND & Control. It's all possible with CMND.

Touch

Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

Page 3

Multi-Touch Display

42" Powered

Android,

Multi-touch

42BDL5055TT

Specifications

Picture/Display

• Diagonal screen size: 41.9 inch / 106.5 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1300:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.4833 x 0.4833 mm

• Display colors: 1.07 billion

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Co MA deinterlacing, Dynamic contrast enhancement, Progressive scan

mbfilter, Motion compens. deinterlacing, 3D

Connectivity

• Video input: DisplayPort (1.2), HDMI (x2), DVI-D, USB, VGA (via DVI)

• Video output: DisplayPort, DVI-I, VGA (via DVI-D)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External

• Other connections: mPCIe,

• External control: RJ45, RS232C (in/out) 2.5 mm

connector

speaker

USB power outlet (5 V. 2 amp), Built-in WiFi antennas, OPS

jack, IR (in/out) 3.5 mm jack

micro SD, micro USB,

Supported Display Resolution

• Computer formats Resolution 3840 X 2160 30Hz (Tiling) 1920 x 1080 60Hz 1440 x 900 1366 x 768 1360 x 768 1280 x 800 1280 x 768 1024 x 768 800 x 600 640 x 480

Refresh rate

60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 56, 60, 72, 75Hz 60, 67, 72, 75Hz

Dimensions

• Set dimensions (W x H x D): 983 x 575 x 77.7 mm

• Set dimensions in inch (W x H x D):

22.6 x 3.1 inch

38.7 x

• Bezel width: 22 mm

• Product weight: 55.2 lb

• Product weight: 25.1 kg

• VESA Mount: 200 x 200 mm, M6

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal Loop Through: DVI, VGA, RS232, IR

Loopthrough, DisplayPort

• Network controllable: RJ45, RS232, One Wire

(HDMI-CEC), HDMI (One Wire)

• Energy saving functions: Smart Power

• Screen saving functions: Pixel Shift, Low Bright

• Ease of installation: AC Out, Smart Insert

Power

• Standby power consumption: <0.4 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz•

Consumption (Typical): 85 W

• Consumption (EPA 7.0): 71.08 W

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• Altitude: 0 ~ 3000 m

• MTBF: 60,000 hour(s)

•

deo formats

Resolution Refresh rate 1080p 1080i 720p 576i 576p 480p 480i 60Hz

50, 60Hz 50, 60Hz 50, 60Hz 50Hz 50Hz 60Hz

Sound

Built-in speakers: 2 x 10W RMS

•

Accessories

•

Included accessories: Remote Control, Batteries

for remote control, Quick start guide, RS232 cable,

AC Power Cord

•

Optional accessories: Table top stand

Miscellaneous

On-Screen Display Languages: English, French,

• German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

•

Regulatory approvals: EnergyStar 7.0,

Class B, UL/cUL, CCC, C-Tick, RoHS, GOST, BSMI, CB, J-Moss, PSE, VCCI

Warranty: 3 year warranty

•

CE, FCC,

Internal Player

•

CPU: Octacore Cortex A53 1.5GHz GPU: PowerVR SGX6110

• Memory: 2GB DDR3

• Storage: 16GB EMMC

•

Multimedia Applications

USB Playback Audio: AAC, AIF, AIFF, M4A, MP3,

• WAV, WMA, ASF, LPCM, M3U, MP4 USB Playback Picture: BMP, GIF, JPEG, JPG, PDF

•

USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV

Issue date 2018-07-16

Version: 1.0

UPC: 685417534784

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
