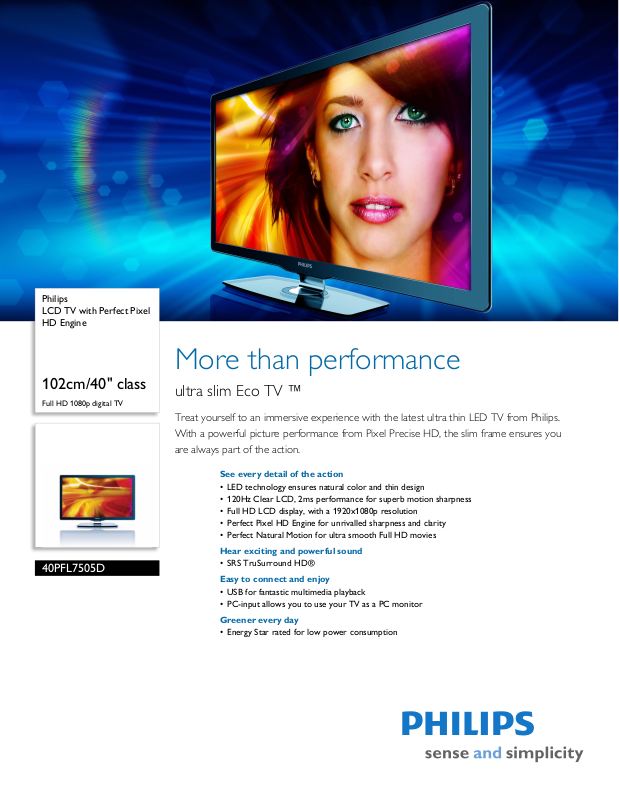

Page 1
Philips
LCD TV with Perfect Pixel
HD Engine
More than performance
102cm/40" class
Full HD 1080p digital TV
40PFL7505D
ultra slim Eco TV ™
Treat yourself to an immersive experience with the latest ultra thin LED TV from Philips.
With a powerful picture performance from Pixel Precise HD, the slim frame ensures you
are always part of the action.
See every detail of the action
• LED technology ensures natural color and thin design
• 120Hz Clear LCD, 2ms performance for superb motion sharpness
• Full HD LCD display, with a 1920x1080p resolution
• Perfect Pixel HD Engine for unrivalled sharpness and clarity
• Perfect Natural Motion for ultra smooth Full HD movies
Hear exciting and powerful sound
• SRS TruSurround HD®
Easy to connect and enjoy
• USB for fantastic multimedia playback
• PC-input allows you to use your TV as a PC monitor
Greener every day
• Energy Star rated for low power consumption
Page 2
LCD TV with Perfect Pixel HD Engine
102cm/40" class Full HD 1080p digital TV
Highlights
40PFL7505D/F7
LED
LED lighting technology is the most advanced
av
ailable. In this TV it combines an eye-catching
minimalistic design with stunning image quality,
as well as being the lowest power consumption
in its category. Another environmental benefit is
that LED lighting technology does not contain
hazardous materials. With an LED backlight you
can enjoy low power consumption, high
brightness, incredible contrast and sharpness
and vibrant colors.
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
reso
lution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution. It
produces brilliant flicker-free progressive scan
pictures with superb brightness and colors.
120Hz Clear LCD (2ms)
120Hz Clear LCD creates extreme motion
sharpn
ess for clear and vibrant images even with
fast on-screen motion. The Double Frame Rate
Insertion works with a high 120Hz refresh rate.
It increases the sharpness of motion
reproduction to more than twice that of
conventional LCD, resulting in a response time
of 2 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD
displays to an unprecedented level.
Perfect Pixel HD Engine
Experience unrivalled sharpness and clarity with
Perfect Pixel HD Engine. Each pixel of the
picture is enhanced to better match the
surrounding pixels, resulting in a more natural
picture. The result is a unique combination of
sharpness, natural detail, vivid colors superior
contrast and smooth natural motion whatever
you are watching. Clean and razor sharp images
result from artifact and noise detection and
reduction in all content sources - from
multimedia to standard TV.
Perfect Natural Motion
Enjoy the action without any judder. Perfect
Nat
ural Motion estimates motion in the picture
and corrects juddering movements in both
broadcast and pre-recorded movie material
(including 1080p movies and 24p True Cinema
on Blu-ray and DVD). The result is even
smoother and quieter pictures with excellent
sharpness. Enjoy motion performance that
surpasses cinema quality!
SRS TruSurround HD®
SRS TruSurround HD® creates an immersive,
feat
ure-rich surround sound experience from
two speakers, complete with rich bass, high
frequency detail and clear dialog.
USB (multimedia)
The USB connector allows access to jpeg
s, mp3 music and video files of most USBsticks (USB memory-class device). Plug the USB
into the slot at the side of the TV and access the
multimedia content using the easy on screen
content browser. You can now view and share
your videos, photos and music.
PC input (VGA)
With PC input you can connect your TV to a
computer b
PC monitor.
Energy Star
Energy Star-labeled home ele
are designed to use less energy - saving you
money while reducing environmental pollution.
In fact, Energy Star-compliant products consume
less than 1 watt of power while in standby mode.
As an Energy Star partner, Philips develops
products that meet the Energy Star guidelines
for energy efficiency. This is achieved by having
low standby power consumption through
innovatively designed standby circuitry and
stringent selection of components made with
high efficiency materials.
y a VGA cable and use the TV as a
ctrical products
Page 3
LCD TV with Perfect Pixel HD Engine
102cm/40" class Full HD 1080p digital TV
Specifications
40PFL7505D/F7
Picture/Display
• Aspect ratio: Widescreen
• Display screen type: LED Full HD Display
• Panel resolution: 1920x1080p
• Brightness: 450 cd/m²
• Contrast ratio (typical): 5000:1
• Dynamic screen contrast: 110,000:1
• Response time (typical): 2 ms
• Viewing angle: 178º (H) / 178º (V)
• Diagonal screen size: 40 inch / 102 cm
• Visible screen diagonal (inch): 40.0 inch
• Picture enhancement: Per
Perfect Natural Motion, 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control + Light sensor,
Dynamic contrast enhancement, Progressive scan,
120Hz LCD
fect Pixel HD Engine,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1400 x 1050 60Hz
1440 x 900 60 Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
deo formats
• Vi
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz
Sound
• Equalizer: 5-bands
• Sound System: Dolby Digital (AC-3), Stereo, SAP,
SRS TruSurround HD
• Output power (RMS): 20W
Loudspeakers
• Built-in speakers: 4
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: On main display, Sleep Timer
• Ease of Installation: Autostore
• Ease of Use: 4 favorite lists, Auto Volume Leveller
L), Channel list, Settings assistant Wizard, Side
(AV
Control
• Remote Control: TV
• Screen Format Adjustments: 4:3, Movie expand 14:9,
vie expand 16:9, Automatic, Super Zoom,
Mo
Widescreen, unscaled (1080p dot by dot)
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: MP3, JPEG Still pictures, MPEG2,
EG1, DivX, AVI
MP
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Tuner bands: UHF, VHF
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr, CVBS in
• Audio Output - Digital: Coaxial (cinch)
•HDMI 1: HDMI
•HDMI 2: HDMI
•HDMI 3: HDMI
•HDMI 4: HDMI
• Other connections: PC Audi
Service connector
• USB: USB
• EasyLink (HDMI-CEC): One touch play, Power
atus, System info (menu language), Remote control
st
pass-through, System audio control, System standby
o in, PC-In VGA,
Power
• Ambient temperature: 5°C to 35°C (41°F to 95°F)
• Mains power: 120V/60Hz
• Power consumption: 155 W
• Standby power consumption: < 0.1 W
Dimensions
• Set dimensions in inch (W x H x D):
38.19 x 23.46 x 1.57 inch
• Set dimensions with stand in inch (W x H x D):
.19 x 25.63 x
38
• Product weight (lb): 29.98
• Product weight (+stand) (lb): 38.36 lb
• Box dimensions in inch (W x H x D):
.43 x 29.29 x 9.84 inch
48
• Weight incl. Packaging (lb): 49.60
• VESA wall mount compatible: 400 x 400 mm
10.94 inch
Accessories
• Included accessories: Tabletop swivel stand, Power
cord, Quick start guide, User Manual, Registration
card, Remote Control
•
Issue date 2012-02-03
Version: 2.1.1
12 NC: 8670 000 60524
UPC: 6 09585 18627 9
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
