Philips 40PFL6655D/93 Leaflet

Download

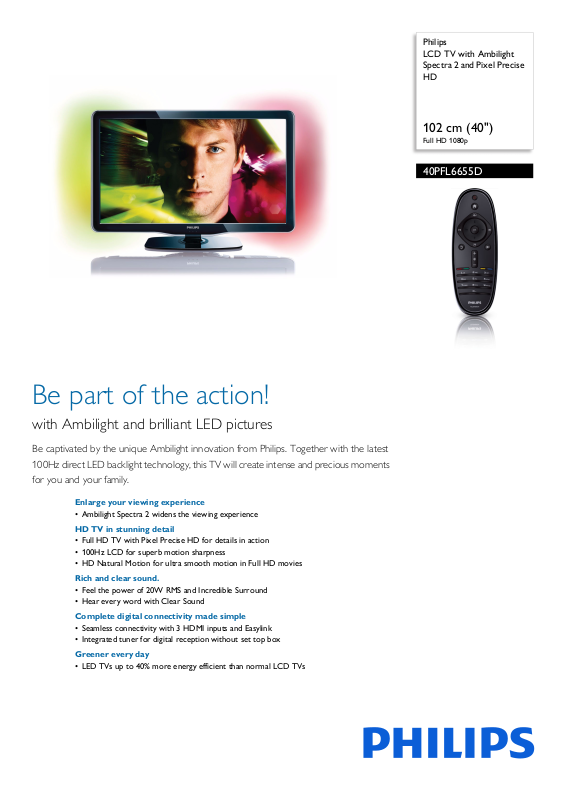

Page 1

Philips LCD TV with Ambilight Spectra 2 and Pixel Precise HD

102 cm (40")

Full HD 1080p

40PFL6655D

Be part of the action!

with Ambilight and brilliant LED pictures

Be captivated by the unique Ambilight innovation from Philips. Together with the latest 100Hz direct LED backlight technology, this TV will create intense and precious moments for you and your family.

Enlarge your viewing experience

• Ambilight Spectra 2 widens the viewing experience

HD TV in stunning detail

• Full HD TV with Pixel Precise HD for details in action

• 100Hz LCD for superb motion sharpness

• HD Natural Motion for ultra smooth motion in Full HD movies

Rich and clear sound.

• Feel the power of 20W RMS and Incredible Surround

• Hear every word with Clear Sound

Complete digital connectivity made simple

• Seamless connectivity with 3 HDMI inputs and Easylink

• Integrated tuner for digital reception without set top box

Greener every day

• LED TVs up to 40% more energy efficient than normal LCD TVs

Page 2

40PFL6655D/93

LCD TV

102 cm (40") Full HD 1080p

Highlights

Ambilight Spectra 2

Add a new dimension to your viewing experience with Ambilight Spectra 2. This patented Philips technology enlarges the screen by projecting a glow of light, on the 2 sides of the TV, from the back of the screen onto the surrounding wall. Ambilight adjusts automatically the colour and brightness of the light to match the picture, creating an immersive viewing experience. The wall adaptive function ensures that the color of the light always matches the picture, no matter what the color of your wall. With Ambilight Spectra 2 movies truly come to life!

Pixel Precise HD

Pixel Precise HD builds on the award winning Pixel

Plus foundation. It brings the high definition picture quality to the next level with 4 trillion colours. With Super Resolution, Pixel Precise HD now brings you the best HD TV picture quality whether you are watching a video from the internet or good quality Blu-ray movies.

100Hz LCD

refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD. This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

HD Natural Motion

Philips invented HD Natural Motion to minimize juddering effects that are visible with movie based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

20W RMS Incredible Surround

Feel the power of the music beat and the at

mosphere of the movies. The powerful 20W RMS (2x10W RMS) amplifiers create a lifelike sound stage. Incredible Surround allows you to experience total surround with greater depth and width of sound complementary to the rich viewing experience.

Clear Sound

comprehensibility of the voice, whether spoken or sung. It ensures you hear every word, so you can enjoy what you're watching to the fullest.

3 HDMI inputs with Easylink

HDMI is a single cable to carry both picture and audio signals from your devices to your TV, avoiding cable clutter. It carries uncompressed signals, ensuring the highest quality from source to screen. Together with Philips Easylink, you need only one remote control to perform most operations on your TV, DVD, BluRay, set top box or home theatre system.

Integrated digital tuner

The integrated digital tuner lets you receive digit

al cable and terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

Energy efficient LED

Using the latest LED backlight technology, LED-ba

cklit TVs are a more sustainable choice, with a longer life and far lower energy consumption than plasmas and conventional LCD TVs. Unlike CCFL backlights, LEDs do not use mercury in their manufacture. In addition, Philips TV designs have constantly improved, resulting in higher material efficiency and reduced energy usage without compromising on safety and well-being.

100Hz LCD creates extreme motion sharpness for clear and vibrant images even with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz

Clear Sound is an innovative audio technology that significantly increases the

Page 3

40PFL6655D/93

LCD TV

102 cm (40") Full HD 1080p

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Diagonal screen size: 40 inch / 102 cm

• Display: LCD Full HD, direct LED backlight

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel precise HD, Active nt

rol + Light sensor, 100Hz Clear LCD, Digital

Co Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, MPEG artifact reduction, HD Natural Motion, Color booster

• Screen enhancement: Anti-Reflection coated

Ambilight

• Ambilight Version: 2 sided

• Ambilight Features: Ambilight Spectra 2, Lounge

mode, Wall colour adaptive

light

• Dimming Function: Manual and via Light Sensor

• Ambilight light system: LED wide color

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30, 50, 60Hz

Sound

• Output power (RMS): 20W

• Sound Enhancement: Auto Volume Leveller, namic Bass Enhancement, Incredible Surround,

Dy Treble and Bass Control, Clear Sound

• Sound System: Mono, Nicam Stereo, Stereo

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Channel installation wizard, in

gs assistant wizard, Device connection

Sett wizard, Auto detect Philips devices, Auto Program Naming, Autoinstall, Fine Tuning, Program Name, Sorting

• Ease of Use: Smart Picture, Smart Sound,

nectivity assistant, Demo mode, EasyLink,

Co Favorite program selection, Mozaïc channel grid, One-stop experience button, One-stop Home button

• Electronic Program Guide: Now + Next EPG, 8day

onic Program Guide*

Elect

• Screen Format Adjustments: Auto Format, Super

, Movie expand 16:9, Widescreen, unscaled

Zoom (1080p dot by dot)

• Signal strength indication

• Firmware upgradeable: Firmware auto upgrade

, Firmware upgradeable via USB

wizar

• Multimedia: auto slideshow, USB auto

USB media browser

break-in,

Multimedia Applications

• Picture Playback Formats: JPEG

• Music Playback Formats: MP3, WMA (v2 up to

v9.2), AAC Video Playback Formats: Codec support:, H264/

•

MPEG-4 AVC, MPEG-1, MPEG WMV9/VC1, RealMedia (.rm, .rmvb, RV8-10), Containers: AVI, MKV

-2, MPEG-4,

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL B/G, PAL D/K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB-C MPEG4*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

• VGA-in: PC input, D-sub 15

•HDMI 1: HDMI v1.4 (Audi

•HDMI 2: HDMI v1.3

•Front / Side connections: HDMI v1.3, USB,

mmon Interface Slot (CI-CI+)

• EasyLink (HDMI-CEC): One touch play, System

info (menu language), Pixel Plus link (Philips),

Return Ch.)

mote control pass-through, System audio

trol, System standby

• Audio Output - Digital: Coaxial (cinch)

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: 220-240V~; 50-60Hz

• Power consumption (typical): 84 W

• Standby power consumption: < 0.15 W

• Power Saving Features: 0 Watt Power-off switch, gh

t sensor, Eco mode

Dimensions

•Set dimensions (W x H x D): 977 x 605 x 86 mm

• Set dimensions with stand (W x H x D):

x 649 x 236 mm

977

• Weight incl. Packaging: 19.2

• Product weight: 13.7 kg

• Product weight (+stand): 16.1 kg

•Box dimensions (W x H x D):

x 711 x 198 mm

• VESA wall mount compatible: 200 x 200 mm

Accessories

• Included accessories: Quick start guide, User

Manual, Warranty certificate, Remote Control, 2 x AAA Batteries, Software declaration

• User Manual: Simplified Chinese

•

Issue date 2019-06-28

Version: 2.1.4

12 NC: 8670 000 65717 EAN: 69 23410 70375 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* 8 days EPG, service not available in all countries * The TV supports DVB reception for 'Free to air' broadcast. Specific

DVB operators may not be supported. An up to date list can be found in the FAQ section of the Philips support website. For some operators Conditional Access and subscripction are required. Contact your operator for more information.
