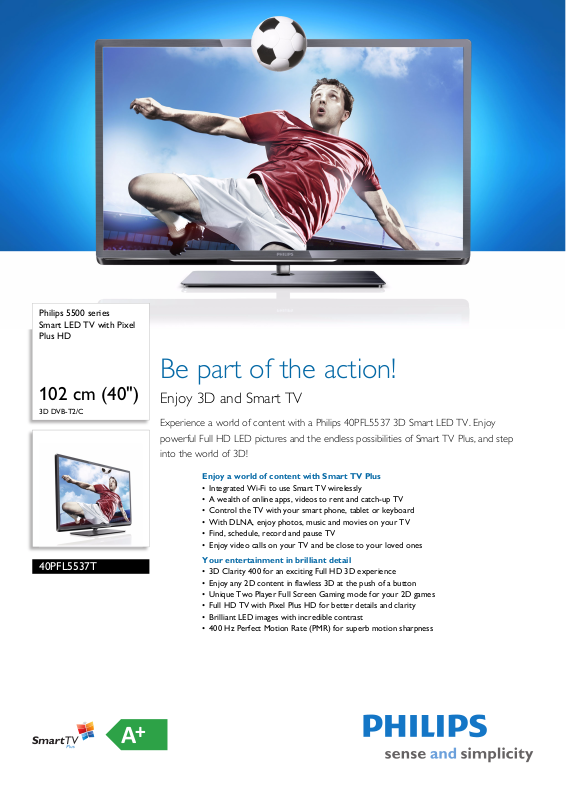

Page 1
Philips 5500 series
Smart LED TV with Pixel
Plus HD
Be part of the action!
102 cm (40")
3D DVB-T2/C
40PFL5537T
Enjoy 3D and Smart TV
Experience a world of content with a Philips 40PFL5537 3D Smart LED TV. Enjoy
powerful Full HD LED pictures and the endless possibilities of Smart TV Plus, and step
into the world of 3D!
Enjoy a world of content with Smart TV Plus
• Integrated Wi-Fi to use Smart TV wirelessly
• A wealth of online apps, videos to rent and catch-up TV
• Control the TV with your smart phone, tablet or keyboard
• With DLNA, enjoy photos, music and movies on your TV
• Find, schedule, record and pause TV
• Enjoy video calls on your TV and be close to your loved ones
Your entertainment in brilliant detail
• 3D Clarity 400 for an exciting Full HD 3D experience
• Enjoy any 2D content in flawless 3D at the push of a button
• Unique Two Player Full Screen Gaming mode for your 2D games
• Full HD TV with Pixel Plus HD for better details and clarity
• Brilliant LED images with incredible contrast
• 400 Hz Perfect Motion Rate (PMR) for superb motion sharpness
+
A
Page 2
Smart LED TV with Pixel Plus HD
Perfect Motion Rate
102 cm (40") 3D DVB-T2/C
Highlights
40PFL5537T/12
Integrated Wi-Fi
With integrated Wi-Fi in your Philips TV, you
can access a world of content with Smart TV
wirelessly at home.
TV Video Calls
Add a new dimension to your calls and contact
your fri
ends and relatives on the big screen.
Make video calls on your TV with the optional
Philips Home Theatre Systems or Philips Bluray Disc/DVD Player and a compatible TV web
camera. Enjoy HD video and excellent sound
quality from the comfort of your sofa and start
calling now!
3D Clarity 400
Enjoy exciting Full HD 3D on your Philips TV.
Using active
offers an unrivalled 3D viewing experience in
high resolution. You can even convert any 2D
content into vivid and flawless 3D.
3D Conversion
Watch your entire movie collection in vivid
and flawl
classics. Philips offers real-time high-quality
conversion of any 2D content at the push of a
button. It ensures that subtitles are shown at a
constant depth and that there are no errors
3D technology, 3D Clarity 400
ess 3D — even old black-and-white
such as the background appearing in the
foreground.
Two Player Full Screen Gaming
With Philips 3D glasses, your TV can deliver
th
e ultimate Two Player Full Screen Gaming
experience. In 2D two-player games, each
gamer usually sees their game on half of the
screen. Using 3D technology, each player can
now enjoy the game in 2D in full screen at the
same time, with just a click of a button on the
glasses.
Pixel Plus HD
Pixel Plus HD offers the unique combination of
ul
timate sharpness, natural detail, vivid colours
and smooth natural motion. Artefacts and
noise in any sources, from multimedia to
standard definition TV, and also in highly
compressed HD are detected and reduced,
ensuring that the picture is clear and razorsharp.
400 Hz Perfect Motion Rate
400 Hz Perfect Motion Rate (PMR) creates
ex
treme motion sharpness for clear and
vibrant images in fast action movies. The new
Philips PMR standard shows the combined
visible effect of the fastest panel refresh rate,
HD Natural Motion and unique processing
formula, for unprecedented motion sharpness.
Energy
For many years Philips has pro-actively been
w
orking on energy efficiency. As a result, most
Philips products have achieved green energy
labels. The greener the label, the lower the
energy consumption, the lower your energy
bill and the friendlier for the environment.
Smart TV Plus
A world of content for you. Control,
Pr
ogramme and Record—watch TV
however you want to.
Access a broad selection of apps easily.
Use online video stores and Catch-up TV
to watch your favourite movies. Browse
the open Internet or stay connected with
your friends via Facebook and Twitter.
Also, pause your TV programme easily —
simply connect a USB hard disk to your
TV and record digital TV broadcasts.
Philips MyRemote App
The Philips MyRemote App is a smart app
to
organise your TV viewing experience
around you.
Enjoy a great variety of possibilities:
bro
wse through the Programme Guide on
your tablet whilst watching TV. Additional
features like easy text entry, volume and
programme control as well as pushing
pictures, videos or music to your TV
really turn your smart devices into smart
remote controls. Download the
MyRemote App now from the iTunes App
Store or Android Market.
Page 3
Smart LED TV with Pixel Plus HD
REAR CONNECTORS
BOTTOM REAR CONNECTORS
SIDE CONNECTORS
VGA SCART
(RGB/CVBS)
USB 1(3) (2) (1) ARC
HDMI
TV ANTENNA
HDMI
SIDE
DIGITAL
AUDIO OUT
USB 3
USB 2
CI
NETWORK
L/R
Y/Pb/Pr SERV.U
AUDIO IN
DVI/VGA
102 cm (40") 3D DVB-T2/C
Specifications
40PFL5537T/12
Picture/Display
• Display: LED Full HD
• Diagonal screen size: 40 inch / 102 cm
• Panel resolution: 1920 x 1080p
• 3D: 3D Max Clarity 400, 2 Player Full Screen
a
ming*, 2D to 3D conversion, Auto 3D detection
G
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Dynamic screen contrast: 500,000:1
• Picture enhancement: Pixel Plus HD, 400 Hz
ec
t Motion Rate
Perf
Smart TV Applications
• Net TV: Catch-up TV, Online Video shops, Open
Internet browser, Online apps
• Control: MyRemote app (iOS
& Android), USB
Keyboard and Mouse support
• SimplyShare: DLNA media browser, USB media
ser
brow
• Programme: Pause TV, USB recording
Sound
• Output power (RMS): 28 W (2 x 14 W)
• Sound Enhancement: Ambi-wOOx, Auto Volume
ller, Clear Sound, Incredible Surround
Leve
Connectivity
• Number of HDMI connections: 4
• Number of components in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Number of USBs: 3
• Wireless connections: Wi-Fi Certified
• Other connections: Antenna IEC75, Common
n
terface Plus (CI+), Ethernet-LAN RJ-45, Digital
I
audio out (optical), PC-in VGA + Audio L/R in,
Headphone out, Service connector
• HDMI features: 3D, Audio Return Channel
• EasyLink (HDMI-CEC): Remote control pass-
rou
gh, System audio control, System standby,
th
Plug and play add to Homescreen, Auto subtitle
shift (Philips), Pixel Plus link (Philips), One touch
play
Multimedia Applications
• Video Playback Formats: Containers: AVI, MKV,
H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4,
WMV9/VC1
• Music Playback Formats: AAC, MP3, WMA (v2 up
v
9.2)
to
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920 x 1080 @ 60 Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x
1080p
Convenience
• PC network link: DLNA 1.5 certified
• Ease of Installation: Auto detect Philips devic
Device connection wizard, Network installation
wizard, Settings assistant wizard
me bu
• Ease of Use: One-stop Ho
tton, On-screen
User manual
• Screen Format Adjustments: Autofill, Autozoom,
Movie expa
nd 16:9, Super Zoom, Unscaled,
Widescreen
• Signal strength indication
• Teletext: 1200-page Hypertext
• Firmware upgradeable: Firmware auto upgrade
wizar
d, Firmwar
e upgradeable via USB, Online
firmware upgrade
e
• Electronic Programme Guid
: 8-day Electronic
Programme Guide
es,
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*, DVB-T2,
Freeview HD
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220 - 240 V 50/60 Hz
• Ambient temperature: 5°C to 40°C
• Energy Label Class: A+
• EU Energy Label power: 51 W
• Annual energy consumption: 71 kW·h
• Standby power consumption: < 0.15 W
ch-off timer, Eco
• Power Saving Features: Auto
swit
mode, Light sensor, Picture mute (for radio)
Dimensions
•Box dimensions (W x H x D):
1138.0 x 645.0 x 158.0 mm
•Set dimensions (W x H x D):
x 557.2 x 36.0 mm
929.0
• Set dimensions with stand (W x H x D):
x 600.0 x 240.0 mm
929.0
• Product weight: 11.65
kg
• Product weight (+stand): 14.2 kg
• Weight incl. Packaging: 17.3 kg
• Compatible wall mount: 200 x 200 mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Tabletop swivel stand,
Quick start guide, Legal and safety brochure,
SCART Adapter, Component cable adapter, Smart
TV Quick Guide, Warranty Leaflet
• Optional accessories: 3D Glasses PTA517, 3D
e
s PTA516, 3D Glasses PTA507, Philips Wall
glass
Mount SQM 6415
•
* Net TV: Visit www.philips.com/smarttv to discover the services
available in your country.
* DivX Certified® to play DivX® video up to HD 1080p, including
* Parents should monitor their children during 3D viewing and ensure
Issue date 2012-04-27
© 2012 Koninklijke Philips Electronics N.V.
* The TV supports DVB reception for 'Free to air' broadcast. Specific
All Rights reserved.
Version: 2.0.7
12 NC: 8670 000 90024
EAN: 87 12581 64401 7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* Energy consumption in kWh per year, based on the power
* 8 days EPG, service not available in all countries
ntent.
premium co
th
ey do not experience any discomfort as mentioned above.
Watching 3D is not recommended for children under 6 years of age
as their visual system is not fully developed yet.
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscription are required.
Contact your operator for more information.
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
