Philips 40HFL9561A/10 leaflet

Download

Page 1

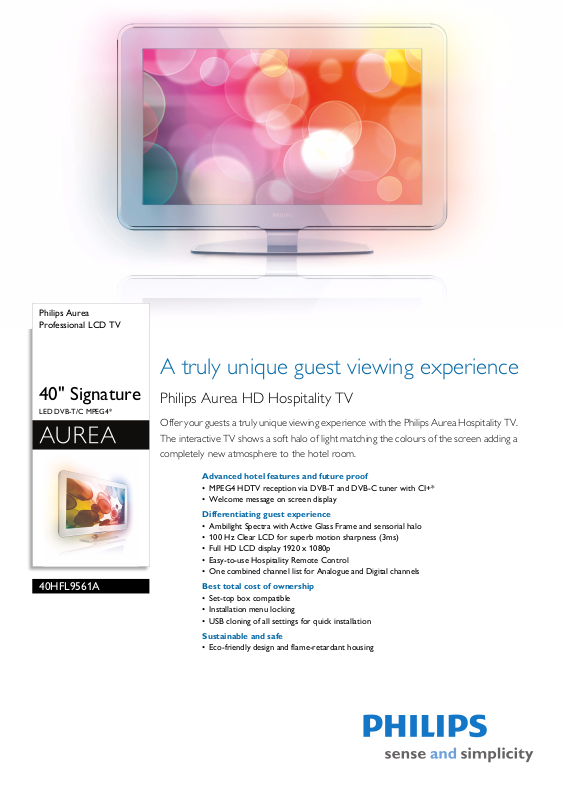

Philips Aurea Professional LCD TV

A truly unique guest viewing experience

40" Signature

LED DVB-T/C MPEG4*

40HFL9561A

Philips Aurea HD Hospitality TV

Offer your guests a truly unique viewing experience with the Philips Aurea Hospitality TV. The interactive TV shows a soft halo of light matching the colours of the screen adding a completely new atmosphere to the hotel room.

Advanced hotel features and future proof

• MPEG4 HDTV reception via DVB-T and DVB-C tuner with CI+*

• Welcome message on screen display

Differentiating guest experience

• Ambilight Spectra with Active Glass Frame and sensorial halo

• 100 Hz Clear LCD for superb motion sharpness (3ms)

• Full HD LCD display 1920 x 1080p

• Easy-to-use Hospitality Remote Control

• One combined channel list for Analogue and Digital channels

Best total cost of ownership

• Set-top box compatible

• Installation menu locking

• USB cloning of all settings for quick installation

Sustainable and safe

• Eco-friendly design and flame-retardant housing

Page 2

Professional LCD TV

40" Signature LED DVB-T/C MPEG4*

Highlights

40HFL9561A/10

MPEG4 DVB-T/c CI+

HDTV allows you to watch TV with the best po

ssible picture and sound quality, without an additional set-top box. Thanks to the built-in tuner that supports DVB-Terrestrial and DVBCable signals for both MPEG-2 and MPEG-4 formats, you receive high definition TV programmes in exceptional quality. Moreover, with Common Interface Plus (CI+) you benefit from premium high definition content direct to your TV.

Welcome message

A welcome greeting is displayed each time the TV set is swit

Ambilight Spectra

The sensorial halo of Ambilight Spectra e

xtends the light and atmosphere of the image seamlessly out of the screen. You feel fully immersed in the images and it adds a magical dimension to the viewing experience. The Aurea has a high quality design with a unique edge to edge front cut from a single piece of crystalline glass. The Active Frame transforms from a stylish design object into a lively sensation of colour and light. Over 250 power LEDs create a soft, multicoloured halo seamlessly enveloping the screen and flowing on to the wall.

ched on.

100 Hz Clear LCD

100 Hz Clear LCD creates extreme motion sharpness for clear and vibrant images even with fast on-screen motion. The Double Frame Rate Insertion works with a high 100 Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCDs, resulting in a response time of 3 milliseconds (measured in Perceived Blur-Edge-Width; BEW). This unique Philips technology brings the motion sharpness of LCD displays to an unprecedented level.

Full HD LCD 1920 x 1080p (PB)

This display has a resolution that is referred to as

Full HD. With state-of-the-art LCD screen technology it has the full high-definition widescreen resolution of 1920 x 1080p. This is the highest resolution that HD broadcast can transmit. It allows the best possible picture quality from any format of HD input signal. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide guests with an enhanced viewing experience.

Hospitality Remote Control

This TV comes with a stylish remote control th

at is specially designed for hospitality usage. For an easy-to-use experience for the guest, only the most essential buttons and functions are offered. In addition, low battery check and

anti-theft battery provisions are features that can contribute to efficient hotel operations.

One combined channel list

One integrated channel list for digital and an

alogue channels. This allows the guest to flick seamlessly between Analogue and Digital channels.

Set-top box compatible

This hotel TV can be connected to a set-top b

ox offering power on scart and the Serial

Express Lite protocol.

Installation menu locking

Prevents unauthorised access to installation an

d configuration settings, to ensure maximum guest convenience and avoid unnecessary reprogramming costs.

USB Cloning

Provides the ability to easily copy all p

rogramming and channel programming settings from one TV into other TV sets in less than a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.

Eco-friendly design

Sustainability is integral to the way Philips does b

usiness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

Page 3

Professional LCD TV

40" Signature LED DVB-T/C MPEG4*

Specifications

40HFL9561A/10

Ambilight

• Ambilight Features: Ambilight Spectra, Auto adaptive to video content

• Dimming Function: Manual and via Light Sensor, 10 steps with Au

• Ambilight light system: LED-wide colour

rea Navigator

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 80000:1

• Response time (typical): 1 (BEW equiv.) ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 40 inch / 102 cm

• Display screen type: LCD Full HD W-UXGA Act.

mat

• Panel resolution: 1920 x 1080p

• Picture enhancement: Perfect Pixel HD Engine, 3/2

2 mo

tion pull down, 3D Combfilter, Active

- 2/ Control + Light sensor, 100 Hz Clear LCD, Jagged Line Suppression, Progressive scan, 1080p 24/25/ 30 Hz processing, 1080p 50/60 Hz processing

• Screen enhancement: Anti-Reflection coated

• Colour cabinet: Precision Chrome and translucent

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1360 x 768 60 Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 50, 60 Hz 1080p 24, 25, 30 Hz

Tuner/Reception/Tr

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial*, DVB-T MPEG4*,

ansmission

DVB-C MPEG

•

Tuner bands: Hyperband, S-Channel, UHF, VHF

Sound

• Output power (RMS): 2 x 15 W

• Sound Enhancement: Auto Volume Leveller, Digital Signal Proc Graphic Equalizer, Smart Sound

• Sound System: Virtual Dolby Digital, BBE

essing, Dynamic Bass Enhancement,

Loudspeakers

• Built-in speakers: 6

• Loudspeaker types: 2 integrated subwoofers,

tweeter

Dome

Connectivity

•Number of Scarts: 2

• Number of HDMI connections: 4

• Ext 1 Scart: Audio L/R, RGB

• Ext 2 Scart: Audio L/R, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

andb

• Front/Side connections: HDMI v1.3, S-video in, CVBS in, Audio L

• Other connections: Analogue S/PDIF out (coaxial), Common Interface

• Connectivity Enhancements: Serial Xpress interface,

/R in, Headphone out, USB

audio Left/Right out,

USB2.0

Convenience

• Ease of Installation: Auto Programme Naming, Automatic Channel Install (ACI), Automatic Tuning System (ATS), Autostore, PLL Digital Tuning, Plug and Play, Cloning of TV settings via USB, Fine Tuning, Installation menu locking, Keyboard lock-out, Programme Name, Security menu access

• Ease of Use: Auto Volume Leveller (AVL),

• Electronic Programme Guide: Now + Next EPG

• Picture in Picture: Text dual screen

• Remote control type: RC4491

• Screen Format Adjustments: 4:3, Auto Format,

al User Interface, On-Screen Display,

phic

Gra Programme List, 1 channel list analogue/digital

vie expand 14:9, Mo

Mo and Heading Shift, Super Zoom, Widescreen,

vie expand 16:9, Subtitle

scaled (1080p dot by dot)

• Teletext: 1200-page Hypertext

• Teletext enhancements: Habit Watch, Programme

• Firmware upgradeable: Firmware upgradeable via

• Multimedia: Digital media reader (browser), USB

• Comfort: Auto power on, Hotel Guest features,

ion Line

rmat

info

cal upgrade total TV softw.

USB, Lo

eak-in

autobr

on channel, Volume limitation, Welcome

Switch message

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG ictures, MPEG1, MPEG2

Still p

Power

• Ambient temperature: 5°C to 35°C

• Mains power: AC 220-240 V +/- 10%

• Power consumption: 223 (tbc) W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D):

1004 x 645 x 111 mm

• Set dimensions with stand (W x H x D):

x 712 x 201 mm

1004

• Weight incl. Packaging: 34.7 kg

• Product weight: 30.6 kg

• Product weight (+stand): 33.5 kg

•Box dimensions (W x H x D):

x 845 x 300 mm

• VESA wall mount compatible: 300 x 300 mm

Accessories

• Included accessories: Tabletop swivel stand, Power

cord, Remote Control, Batteries for remote control, Warranty Leaflet

• Optional accessories: Set up Remote RC2573GR,

Wall mou

•

t (tilt) 22AV3200/10

Issue date 2011-06-21

Version: 3.2.3

12 NC: 8670 000 57603 EAN: 87 12581 51338 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* For information on DVB-T enrolled countries, please ask your

Philips contact.
