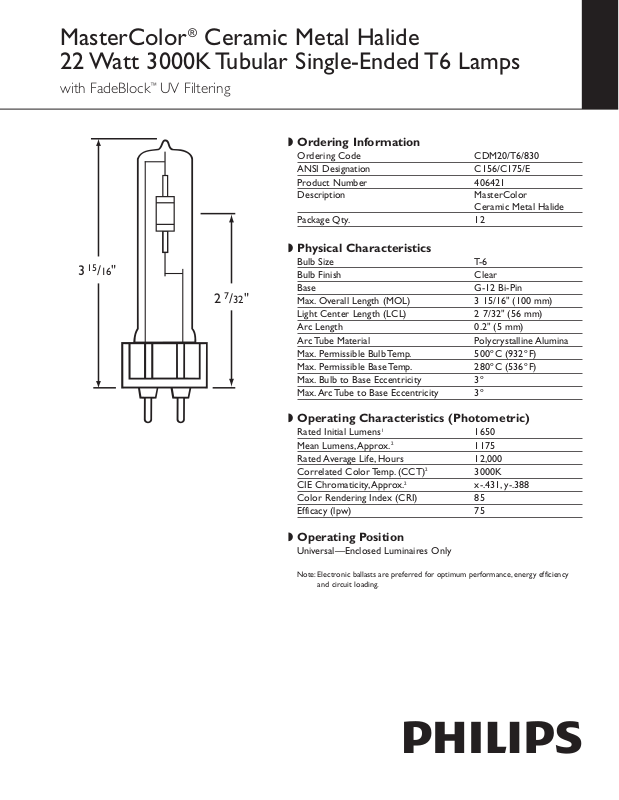

MasterColor®Ceramic Metal Halide
22 Watt 3000K Tubular Single-Ended T6 Lamps
with FadeBlock™UV Filtering
◗ Ordering Information
Ordering Code CDM20/T6/830
ANSI Designation C156/C175/E
Product Number 406421
Description MasterColor
Ceramic Metal Halide
Package Qty. 12
◗ Physical Characteristics
Bulb Size T-6
Bulb Finish Clear
Base G-12 Bi-Pin
Max. Overall Length (MOL) 3 15/16" (100 mm)
Light Center Length (LCL) 2 7/32" (56 mm)
Arc Length 0.2" (5 mm)
Arc Tube Material Polycrystalline Alumina
Max. Permissible Bulb Temp. 500º C (932º F)
Max. Permissible Base Temp. 280º C (536º F)
Max. Bulb to Base Eccentricity 3º
Max.Arc Tube to Base Eccentricity 3º
◗ Operating Characteristics (Photometric)
Rated Initial Lumens
Mean Lumens, Approx.
Rated Average Life, Hours 12,000
Correlated Color Temp. (CCT)
CIE Chromaticity,Approx.
Color Rendering Index (CRI) 85
Efficacy (lpw) 75
1
2
2
2
1650
1175
3000K
x-.431, y-.388
◗ Operating Position
Universal—Enclosed Luminaires Only
Note: Electronic ballasts are preferred for optimum performance, energy efficiency
and circuit loading.
![](/html/63/6391/6391e421a2bcee27febd00bb05ed67f377b0d68d47f14ea3ba260b965bce4f43/bg2.png)
Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
Division of Philips Electronics North America Corporation
A
pdated 3/09 TDS-406421
U
www.philips.com
Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
A Division of Philips Electronics Ltd.
MasterColor®Ceramic Metal Halide 22 Watt 3000K Tubular Single-Ended T6 Lamps with FadeBlock™UV Filtering
Electrical Data (
Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lamp Operating Voltage (rms) (Nominal)
Initial Lamp Voltage Range (rms)
Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 0.22
Lamp Current Crest Factor (Maximum) . . . . . . . . . . . . . . 1.8
Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . . 2 Minutes
Re-strike Time for Hot Lamp . . . . . . . . . . . . . . . . . . . . . . . . 4–8 Minutes
Ballast Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C156/C175/E
Ballast Open Circuit Voltage (Minimum). . . . . . . . . . . . . . . 250
Pulse Peak Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 Min., 4000 Max.
Pulse Width @ 90% Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Micro Second Min.
Pulse Repetition Rate (Minimum) . . . . . . . . . . . . . . . . . . . . 2 per Half Cycle
Minimum Operating Temperature . . . . . . . . . . . . . . . . . . . . -30ºC
1) Measured at 100 hours of life in ver tical position.
) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.
2
) Measured with the lamp operating at r ated watts.
3
INSTALLATION INFORMATION
MasterColor®Metal Halide T-6 lamps must be used in combination with appropriate ballast and ignitor or suitable full electronic ballast. For satisfactory operation
of the lamp, the supply voltage should not fluctuate more than ±5% from the rated voltage of the ballast (±10% for electronic ballast).
Subject to change without notice)
(2)
(3)
. . . . . . . . . . . . 100
. . . . . . . . . . . . . . . . . . . . 95–108
Warnings, Cautions and Operating Instructions
“WARNING: These lamps can cause serious skin burn and eye inflammation
R
from short wave ultraviolet radiation if outer envelope of the lamp is broken or
punctured. Do not use where people will remain for more than a few minutes unless
adequate shielding or other safety precautions are used. Certain lamps that will
automatically extinguish when the outer envelope is broken or punctured are
commercially available." This lamp complies with FDA radiation performance
standard 21 CFR subchapter J. (USA:21CFR 1040.30 Canada:SOR/DORS/80-381)
If the outer bulb is broken or punctured,turn off at once and replace
the lamp to avoid possible injury from hazardous short wave ultraviolet
radiation. Do not scratch the outer bulb or subject it to pressure as this
could cause the outer bulb to crack or shatter.A partial vacuum in the
outer bulb may cause glass to fly if the envelope is struck.
WARNING: The arc-tube of metal halide lamps are designed to operate under
high pressure and at temperatures up to 1000ºC and can unexpectedly rupture due
to internal or external factors such as a ballast failure or misapplication. If the
arc-tube ruptures for any reason, the outer bulb may break and pieces of extremely
hot glass might be discharged into the surrounding environment. If such a rupture
were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY
DAMAGE, BURNSAND FIRE.
Certain lamps that will retain all the glass particles should inner arc-tube
rupture occur are commercially available from Philips Lighting Company.
RELAMP FIXTURES AT OR BEFORETHE END OF RATED LIFE.
Allowing lamps to operate until they fail is not advised and may increase
the possibility of inner arc tube rupture.
This lamp contains an arc tube with a filling gas containing less than
10 nCi of Kr-85 and is distributed by Philips Lighting Company, a division
of Philips Electronics North America Corporation, Somerset,
New Jersey, 08875.
CAUTION: TO REDUCETHE RISK OF PERSONAL INJURY, PROPERTY
DAMAGE,BURNSAND FIRE RESULTING FROM AN ARC-TUBE RUPTURETHE
FOLLOWING LAMP OPERATING INSTRUCTIONS MUST BE FOLLOWED.
Lamp Operating Instructions:
1) RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.Allowing lamps
to operate until they fail is not advised and may increase the possibility of inner
arc tube rupture.
2) Use only in fully enclosed fixtures capable of withstanding particles of glass having
temperatures up to 1000º C. Lens/diffuser material must be heat resistant. Consult
fixture manufacturer regarding the suitability of the fixture for this lamp.
3) Do not operate a fixture with a missing or broken lens/diffuser.
4) Operate lamp only within specified limits of operating position.
5) Before lamp installation/replacement, shut power off and allow lamp and fixture to
cool to avoid electrical shock and potential burn hazards.
6) Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within
voltage limits recommended by ballast manufacturer.
A. Operate lamp only within specified limits of operation.
B. For total supply load refer to ballast manufacturer’s electrical data.
C. Operate CDM-T6 (G12 base) lamps only on thermally protected ballasts.
D. Operate CDM-TC lamps (G8.5 base), CDM-T6 Elite lamps, and CDM-T6
39W/842 lamps only on thermally protected electronic ballasts.
7) Periodically inspect the outer envelope. Replace any lamps that show scratches,
cracks or damage.
8)
If a lamp bulb support is used, be sure to insulate the support electrically to avoid
possible decomposition of the bulb glass.
9) Protect lamp base, socket and wiring against moisture, corrosive atmospheres and
excessive heat.
10) Time should be allowed for lamps to stabilize in color when turned on for the first
time.This may require several hours of operation, with more than one start. Lamp
color is also subject to change under conditions of excess vibration or shock and
color appearance may vary between individual lamps.
11) Lamps may require 4 to 8 minutes to re-light if there is a power interruption.
12) Take care in handling and disposing of lamps. If an arc tube is broken, avoid skin
contact with any of the contents or fragments.
