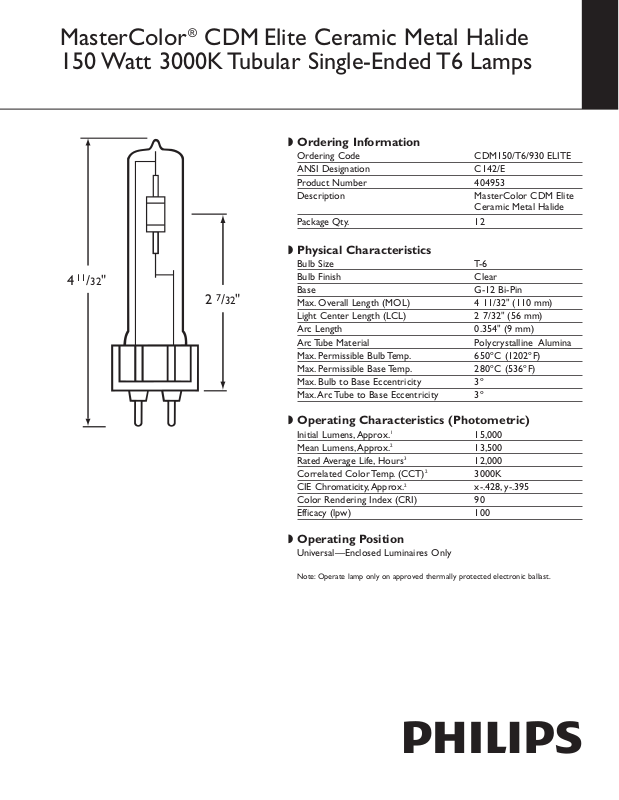

MasterColor®CDM Elite Ceramic Metal Halide

411/32"

/32"

150 Watt 3000K Tubular Single-Ended T6 Lamps

◗ Ordering Information

Ordering Code CDM150/T6/930 ELITE ANSI Designation C142/E Product Number 404953 Description MasterColor CDM Elite

Ceramic Metal Halide

Package Qty. 12

◗ Physical Characteristics

Bulb Size T-6 Bulb Finish Clear Base G-12 Bi-Pin Max. Overall Length (MOL) 4 11/32" (110 mm) Light Center Length (LCL) 2 7/32" (56 mm) Arc Length 0.354" (9 mm) Arc Tube Material Polycrystalline Alumina Max. Permissible Bulb Temp. 650ºC (1202ºF) Max. Permissible Base Temp. 280ºC (536ºF) Max. Bulb to Base Eccentricity 3º Max.Arc Tube to Base Eccentricity 3º

◗ Operating Characteristics (Photometric)

Initial Lumens, Approx. Mean Lumens, Approx. Rated Average Life, Hours Correlated Color Temp. (CCT) CIE Chromaticity,Approx. Color Rendering Index (CRI) 90 Efficacy (lpw) 100

15,000 13,500 12,000 3000K x-.428, y-.395

◗ Operating Position

Universal—Enclosed Luminaires Only

Note: Operate lamp only on approved thermally protected electronic ballast.

Philips Lighting Company 200 Franklin Square Drive P.O. Box 6800 Somerset, NJ 08875-6800 1-800-555-0050

Division of Philips Electronics North America Corporation

pdated 3/09 TDS-404953

www.philips.com

Philips Lighting 281 Hillmount Road Markham, Ontario Canada L6C 2S3 1-800-555-0050

A Division of Philips Electronics Ltd.

MasterColor®CDM Elite Ceramic Metal Halide 150 Watt 3000K Tubular Single-Ended T6 Lamps

Electrical Data (

Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Lamp Operating Voltage (rms) (Nominal)

Initial Lamp Voltage Range (rms)5. . . . . . . . . . . . . . . . . . . . . 82–94

Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 1.65

Lamp Current Crest Factor (Maximum) . . . . . . . . . . . . . . 1.8

Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . . 2 Minutes

Restrike Time for Hot Lamp. . . . . . . . . . . . . . . . . . . . . . . . . 4–8 Minutes

Ballast Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI M142/E

Ballast Open Circuit Voltage (Minimum). . . . . . . . . . . . . . . 198

Pulse Peak Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 Min., 4000 Max.

Pulse Width @ 90% Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Micro Second Min.

Pulse Repetition Rate (Minimum)

Minimum Operating Temperature . . . . . . . . . . . . . . . . . . . . -30ºC

1) Measured at 100 hr s. life. Approximate lumen values listed are for vertical operation of the lamp. ) Approximate lumen output at 40% of lamp rated average life.

) Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per star t. It is based on sur vival of at least 50%

of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.

4) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.

5) Measured with the lamp operating at rated watts.

6) Option-Pulse Width @ 90% Peak,1 micro second minimum with 2 pulses per half cycle.

INSTALLATION INFORMATION

MasterColor®Metal Halide T-6 lamps must be used in combination with appropriate ballast and ignitor or suitable full electronic ballast. For satisfactory operation of the lamp, the supply voltage should not fluctuate more than ±5% from the rated voltage of the ballast (±10% for electronic ballast).

Subject to change without notice)

. . . . . . . . . . . . . 88

. . . . . . . . . . . . . . . . . . . . 2 per Half Cycle

Warnings, Cautions and Operating Instructions

“WARNING: These lamps can cause serious skin burn and eye inflammation

from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured.Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available." This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21CFR 1040.30 Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured, turn off at once and replace the lamp to avoid possible injury from hazardous short wave ultraviolet radiation. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter. A partial vacuum in the outer bulb may cause glass to fly if the envelope is struck.

WARNING:The arc-tube of metal halide lamps are designed to operate under

high pressure and at temperatures up to 1000ºC and can unexpectedly rupture due to internal or external factors such as a ballast failure or misapplication. If the arc-tube ruptures for any reason,the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY

DAMAGE, BURNS AND FIRE. glass particles should an arc tube rupture occur.The following operating instructions are recommended to minimize these occurrences.

RELAMP FIXTURESAT OR BEFORETHE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

This lamp contains an arc tube with a filling gas containing less than 10 nCi of Kr-85 and is distributed by Philips Lighting Company, a division of Philips Electronics North America Corporation, Somerset, New Jersey, 08875.

These lamps are designed to retain all the

CAUTION: TO REDUCETHE RISK OF PERSONAL INJURY, PROPERTY

DAMAGE, BURNS AND FIRE RESULTING FROM ANARC-TUBE RUPTURETHE FOLLOWING LAMP OPERATING INSTRUCTIONS MUST BE FOLLOWED.

Lamp Operating Instructions:

1) RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

2) Use only in fully enclosed fixtures capable of withstanding particles of glass having temperatures up to 1000º C. Lens/diffuser material must be heat resistant. Consult fixture manufacturer regarding the suitability of the fixture for this lamp.

3) Do not operate a fixture with a missing or broken lens/diffuser.

4) Operate lamp only within specified limits of operating position.

5) Before lamp installation/replacement, shut power off and allow lamp and fixture to cool to avoid electrical shock and potential burn hazards.

6)Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within voltage limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation. B. For total supply load refer to ballast manufacturer’s electrical data. C. Operate CDM-T6 (G12 base) lamps only on thermally protected ballasts. D.Operate CDM-TC lamps (G8.5 base), CDM-T6 Elite lamps, and CDM-T6

39W/842 lamps only on thermally protected electronic ballasts.

7) Periodically inspect the outer envelope. Replace any lamps that show scratches, cracks or damage.

8) If a lamp bulb support is used, be sure to insulate the support electrically to avoid possible decomposition of the bulb glass.

9) Protect lamp base, socket and wiring against moisture, corrosive atmospheres and excessive heat.

10) Time should be allowed for lamps to stabilize in color when turned on for the

first time. This may require several hours of operation, with more than one start. Lamp color is also subject to change under conditions of excess vibration or shock and color appearance may vary between individual lamps.

11) Lamps may require 4 to 8 minutes to re-light if there is a power interruption.

12) Take care in handling and disposing of lamps. If an arc tube is broken, avoid

skin contact with any of the contents or fragments.
