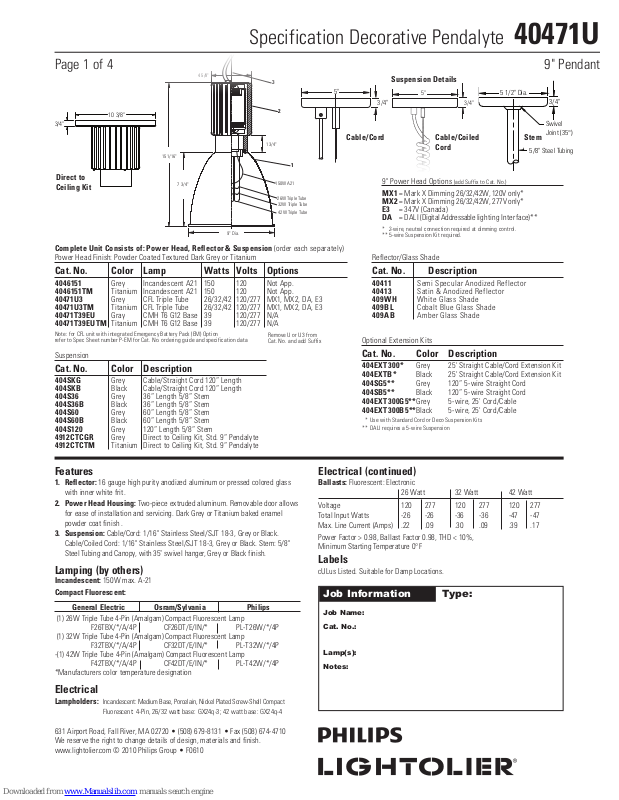

Specification Decorative Pendalyte 40471U

3/4"

4 5/8"

15 1/16"

1 3/4"

9" Dia.

150W A21

26W Triple Tube 32W Triple Tube

42W Triple Tube

7 3/4"

Page 1 of 4 9" Pendant

Suspension Details

3/4"

10 3/8"

Cable/Cord Cable/Coiled

Cord

5 1/2" Dia.

3/4"

Swivel Joint (35°)

Stem

5/8" Steel Tubing

Direct to Ceiling Kit

Complete Unit Consists of: Power Head, Reflector & Suspension (order each separately)

Power Head Finish: Powder Coated Textured Dark Grey or Titanium

Cat. No. Color Lamp Watts Volts Options

4046151 Grey Incandescent A21 150 120 Not App. 4046151TM Titanium Incandescent A21 150 120 Not App. 40471U3 Grey CFL Triple Tube 26/32/42 120/277 MX1, MX2, DA, E3 40471U3TM Titanium CFL Triple Tube 26/32/42 120/277 MX1, MX2, DA, E3 40471T39EU Gray CMH T6 G12 Base 39 120/277 N/A 40471T39EUTM Titanium CMH T6 G12 Base 39 120/277 N/A

Note: for CFL unit with inte grated Em ergency B attery Pack (EM) Opt ion refer to Spec She et number P -EM for Cat . No. order ing guide and specifica tion data

Remov e U or U3 fr om Cat. N o. and add Su ffix

Suspension

Cat. No. Color Description

404SKG Grey Cable/Straight Cord 120” Length 404SKB Black Cable/Straight Cord 120” Length 404S36 Grey 36” Length 5/8” Stem 404S36B Black 36” Length 5/8” Stem 404S60 Grey 60” Length 5/8” Stem 404S60B Black 60” Length 5/8” Stem 404S120 Grey 120” Length 5/8” Stem 4912CTCGR Grey Direct to Ceiling Kit, Std. 9” Pendalyte 4912CTCT M Titanium Direct to Ceiling Kit, Std. 9” Pendalyte

9" Power Head Options (ad d Suffix to Cat. No.)

MX1 = Mark X Dimming 26/32/42W, 120V only* MX2 = Mark X Dimming 26/32/42W, 277V only* E3 = 347V (Canada) DA = DALI (Digital Addressable lighting Inter face)**

* 2-wire, neutral c onnection required a t dimming con trol. ** 5- wire Suspen sion Kit req uired.

Reflector/Glass Shade

Cat. No. Description

40 411 Semi Spe cular Anodized Reflector 40 413 Satin & Anodized Re flec to r 40 9WH Whit e Glass Shade 40 9BL C ob alt Blue Glass Shade 40 9AB Amber Glas s Shade

Optional Extension Kits

Cat. No. Color Description

404EXT300* Grey 25' Straight Cable/Cord Ex tension Kit 404EXTB* Black 25' Straight Cable/Cord Extension Kit 404SG5** Grey 120” 5 -wire Straight Cord 404SB5** Black 120” 5-wire Straight Cord 404EXT300G5** Grey 5-wire, 25' Cord/Cable 404EXT300B5** Black 5-wire, 25' Cord/Cable

* U se with St andard Co rd or Deco S uspension K its ** DALI requi res a 5-wi re Suspensi on

Features

1. Reflector: 16 gauge high purity anodized aluminum or pressed colored glass

with inner white frit.

2. Power Head Housing: Two-piece extruded aluminum. Removable door allows

for ease of installation and servicing. Dark Grey or Titanium baked enamel

powder coat finish .

3. Suspension: Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black.

Cable/Coiled Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black. Stem: 5/8" Steel Tubing and Canopy, with 35˚ swivel hanger, Grey or Black finish.

Lamping (by others)

Incandescent: 150W max. A-21 Compact Fluorescent:

General Electric Osram/Sylvania Philips

(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P (1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P

-(1) 42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp F42TBX/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P *Manufacturers color temperature designation

Electrical

Lampholders: Incandescent: Medium Base, Porcelain, Nickel Plated Screw-Shell Compact

Fluorescent: 4-Pin, 26/32 watt base: GX24q-3; 42 watt base: GX24q-4

Electrical (continued)

Ballasts: Fluorescent: Electronic

26 Watt 32 Watt 42 Watt

Voltage 120 277 120 277 120 277 Total Input Watts -26 -26 -36 -36 -47 -47 Max. Line Current (Amps) .22 .09 .30 .09 .39 .17

Power Factor > 0.98, Ballast Factor 0.98, THD < 10%, Minimum Starting Temperature 0°F

Labels

cULus Listed. Suitable for Damp Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Page 2

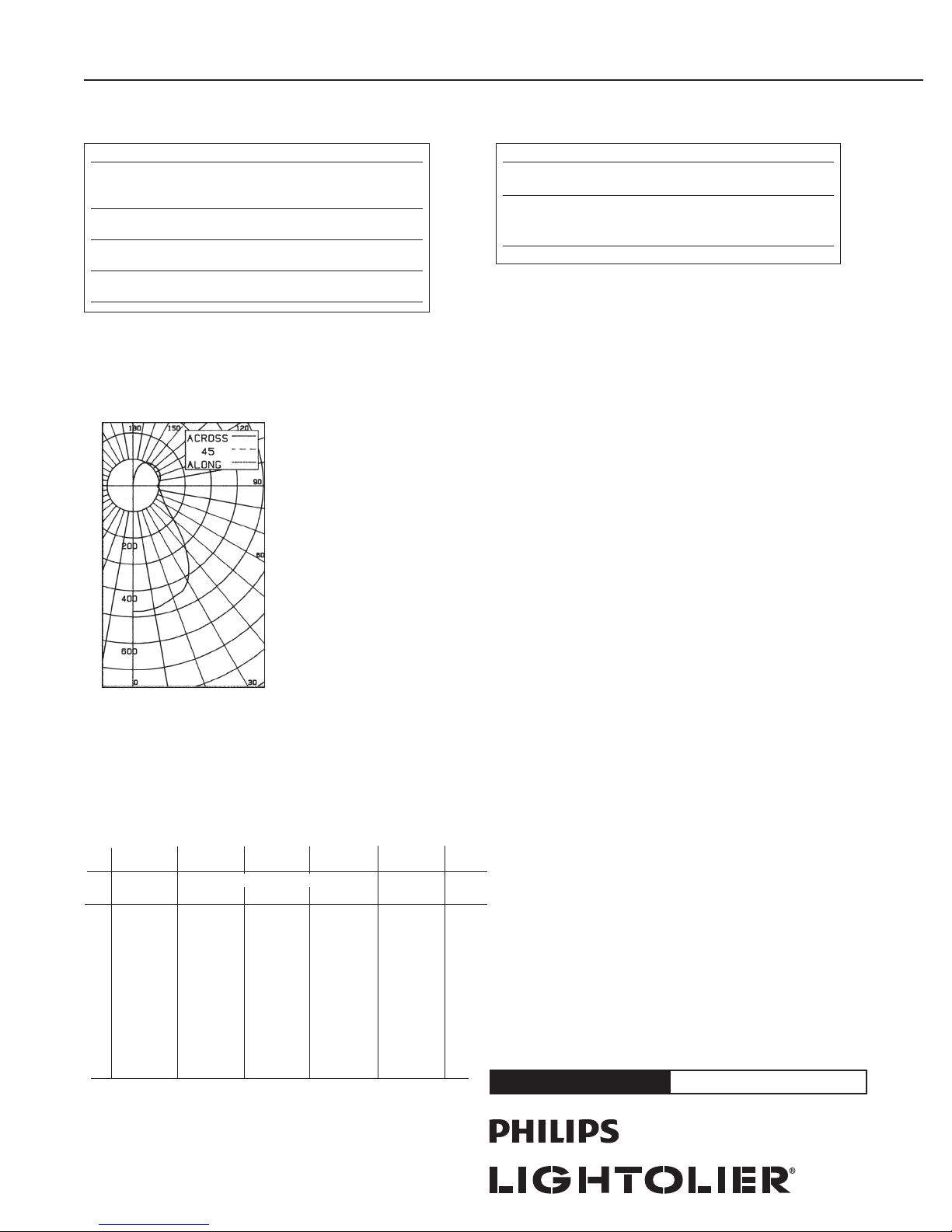

Specification Decorative Pendalyte 40471U

Page 2 of 4 9" Pendant

Application Data

Multiple Units (32W Triple Tube CFL)

Spacing Height Initial Watts

on to Lighted Foot- Per Center Plane candles Sq. Ft.

12' 43

12' 24

12' 15

Spacing Ratio = 1.9 32W Triple Tube CFL

6' 47

6' 26

6' 17

10'

1.00

0.56

0.36

Illuminance (FC) Multipliers

For Incandescent: For Compact Fluorescent:

100 Watt = 0.7 26 Watt = 0.7 150 Watt = 1.2 42 Watt = 1.3

Spacing Ratio = 2.1 150W A21 Incandescent

Coefficients Of Utilization 32W Triple Tube CFL

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

ROOM CAVITY RATIO

% WALL REFLECTION

20% FLOOR CAVITY REFLECTANCE

Coefficients Of Utilization 150W A21 Incandescent

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

ROOM CAVITY RATIO

% WALL REFLECTION

20% FLOOR CAVITY REFLECTANCE

Job Information Type:

Page 3

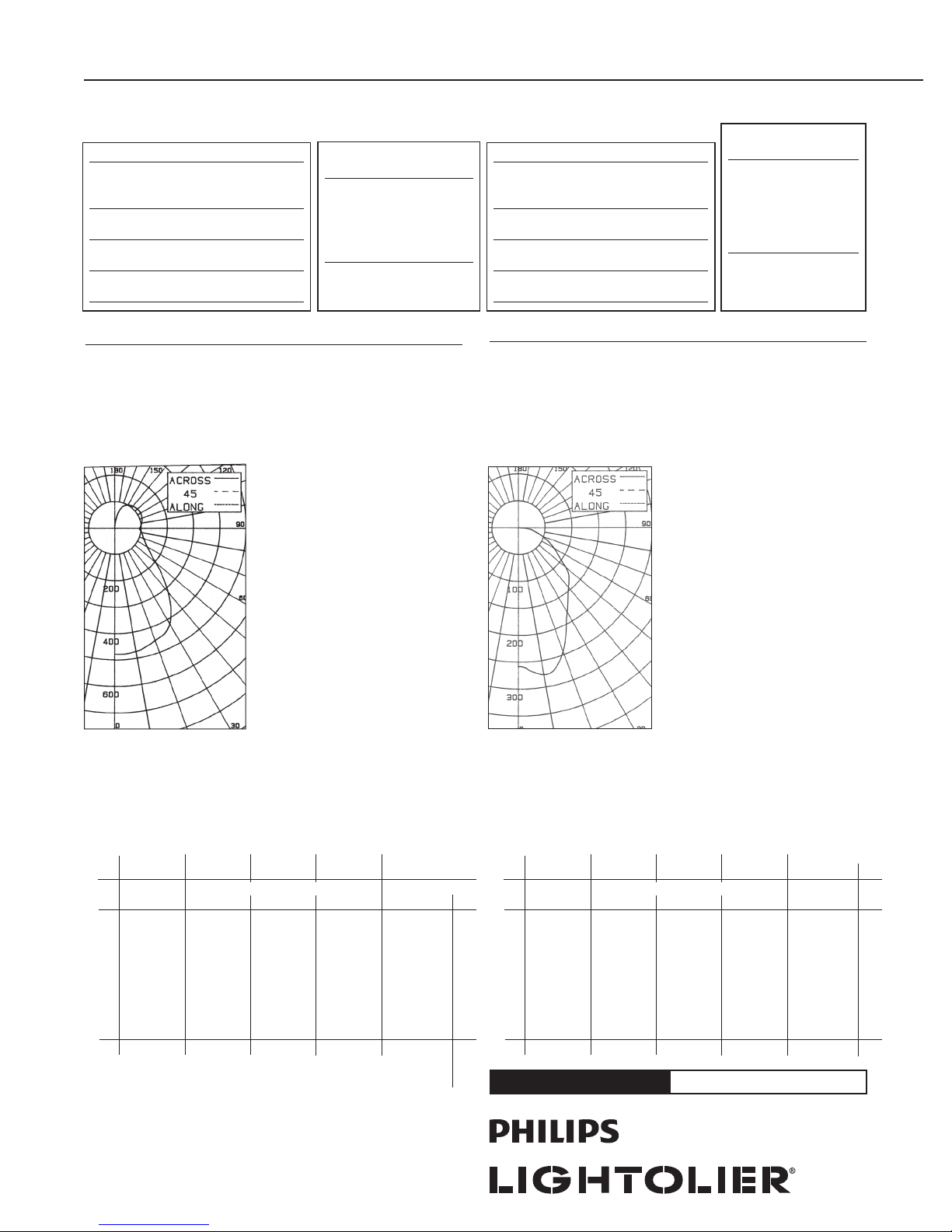

Specification Decorative Pendalyte 40471U

Page 3 of 4 9" Pendant

Application Data

Multiple Units (32W Triple Tube CFL)

Spacing Height Initial Watts on to Lighted Foot- Per Center Plane candles Sq. Ft. 6' 6' 53 12' 46 8' 6' 30 12' 26

6' 19

10'

12' 17

Based on 60” x 60” room with 80% ceiling cavity, 50% wall and 20% floor reflectances. Height is from bottom of fixture to lighted plane.

1.00

0.56

0.36

Illuminance (FC) Multipliers

For Incandescent:

100W = 0.7

150W = 1.2 For Compact Fluorescent: 26W = 0.7 42W = 1.3

Spacing Ratio = 1.9 32W Triple Tube CFL

CERTIFIED TEST REPORT NO. 1416FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER COMPACT FLUORESCENT PENDANT FIXTURE CAT. #4167U3CCWH 9” DIA. WHITE GLASS REFLECTOR 1-32W PLT TRIPLE TUBE PHILIPS LAMP. LUMEN RATING = 2400 LMS. MAGNETEK BALLAST CAT. #C2642UNVSE

CANDLEPOWER SUMMARY

ANGLE MEAN CP LMS. ANGLE MEAN CP LMS. 0 478 90 94

5 478 46 95 99 108 10 474 100 104

15 465 132 105 108 114 20 453 110 110 25 444 204 115 112 111 30 419 120 113 35 373 232 125 113 101 40 315 130 112 45 256 199 135 110 85 50 202 140 107 55 164 150 145 104 65 60 142 150 99 65 127 127 155 94 43 70 117 160 85 75 110 116 165 70 19 80 104 170 46 85 97 107 175 20 2 90 94 180 8

ZONAL LUMENS AND PERCENTAGES ZONE LUMENS % LAMP %LUMINAIRE

0-30 380 15.86 19.41 0-40 612 25.54 31.25 0-60 962 40.12 49.08

PREPARED FOR: LIGHTOLIER FALL RIVER, MA

DATE: MAY 8, 2001

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

77 73 70 73 69 66 64 62 59 57 55 53 49 48 47 43

67 62 57 63 58 54 56 52 49 49 46 44 43 41 39 36

59 53 48 56 50 45 50 45 41 44 40 37 38 36 33 30

53 46 40 50 44 39 44 39 35 39 35 32 35 31 29 26

47 40 35 45 38 34 40 35 31 35 31 28 31 28 25 23

42 36 31 40 34 29 36 31 27 32 28 25 29 25 22 20

39 32 27 37 30 26 33 28 24 29 25 22 26 23 20 18

35 29 24 33 27 23 30 25 21 27 23 20 24 21 18 16

32 26 22 31 25 21 28 23 19 25 21 18 22 19 16 15

30 24 19 28 23 19 26 21 18 23 19 16 21 17 15 13

ROOM CAVITY RATIO

0-90 1313 54.73 66.95 40-90 700 29.19 35.71 60-90 350 14.61 17.88 90-180 648 27.01 33.05 0-180 1961 81.74 100.00

** EFFICIENCY = 81.7 **

Illuminance (FC)

Multiple Units (32W Triple Tube CFL)

Spacing Height Initial Watts on to Lighted Foot- Per Center Plane candles Sq. Ft. 6' 6' 18 12' 16 8' 6' 10 12' 9

6' 7

10'

12' 6

Based on 60” x 60” room with 80% ceiling cavity, 50% wall and 20% floor reflectances. Height is from bottom of fixture to lighted plane.

1.00

0.56

0.36

Multipliers

For Incandescent:

100W = 0.7

150W = 1.2 For Compact Fluorescent: 26W = 0.7 42W = 1.3

Spacing Ratio = 1.9 32W Triple Tube CFL

CERTIFIED TEST REPORT NO. 1419FR COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER COMPACT FLUORESCENT PENDANT FIXTURE CAT. #4187U3CCWH 9” DIA. BLUE GLASS REFLECTOR, 12” ETCHED ACRYLIC DISK, 4” APERTURE 1-32W PLT TRIPLE TUBE PHILIPS LAMP. LUMEN RATING = 2400 LMS. MAGNETEK BALLAST CAT. #C2642UNVSE

CANDLEPOWER SUMMARY

ANGLE MEAN CP LMS. 0 258 5 267 25 10 277 15 269 75 20 244 25 211 98 30 182 35 161 102 40 145 45 133 102 50 115 55 92 84 60 76 65 62 62 70 49 75 35 38 80 25 85 14 15 90 2

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE 0-30 198 8.27 33.04 0-40 300 12.52 50.00 0-60 486 20.27 80.93 0-90 601 25.05 100.00

PREPARED FOR: LIGHTOLIER FALL RIVER, MA

DATE: MAY 8, 2001

40-90 300 12.52 50.00 60-90 114 4.78 19.07 90-180 0 .00 .00 0-180 601 25.05 100.00

** EFFICIENCY = 25.0% **

Coefficients Of Utilization 32W Triple Tube CFLCoefficients Of Utilization 32W Triple Tube CFL

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

.27 .26 .25 .26 .25 .24 .25 .24 .24 .24 .23 .23 .23 .23 .22 .22

.24 .22 .21 .23 .22 .21 .22 .21 .20 .22 .21 .20 .21 .20 .19 .19

.21 .19 .18 .21 .19 .18 .20 .19 .17 .19 .18 .17 .19 .18 .17 .16

.19 .17 .16 .19 .17 .16 .18 .17 .15 .18 .16 .15 .17 .16 .15 .14

.17 .15 .14 .17 .15 .14 .16 .15 .13 .16 .14 .13 .16 .14 .13 .13

.16 .14 .12 .15 .13 .12 .15 .13 .12 .15 .13 .12 .14 .13 .12 .11

.14 .12 .11 .14 .12 .11 .14 .12 .11 .13 .12 .10 .13 .11 .10 .10

.13 .11 .10 .13 .11 .10 .12 .11 .09 .12 .11 .09 .12 .10 .09 .09

.12 .10 .09 .12 .10 .09 .11 .10 .09 .11 .10 .08 .11 .09 .08 .08

.11 .09 .08 .11 .09 .08 .11 .09 .08 .10 .09 .08 .10 .09 .08 .07

ROOM CAVITY RATIO

% WALL REFLECTION% WALL REFLECTION

20% FLOOR CAVITY REFLECTANCE

TESTED ACCORDING TO IES PROCEDURE. TEST DISTANCE EXCEEDS FIVE TIMES

THE GREATEST LUMINOUS OPENING OF LUMINAIRE

20% FLOOR CAVITY REFLECTANCE

Job Information Type:

Page 4

Specification Decorative Pendalyte 40471U

Page 4 of 4 9" Pendant

Application Data

Multiple Units (32W Triple Tube CFL)

Spacing Height Initial Watts on to Lighted Foot- Per Center Plane candles Sq. Ft.

12' 21

12' 12

12' 8

6' 23

6' 13

6' 9

10'

1.00

0.56

0.36

Spacing Ratio = 1.9 32W Triple Tube CFL

CERTIFIED TEST REPORT NO. 1415FR COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER COMPACT FLUORESCENT PENDANT FIXTURE CAT. #4167U3CCAB 9” DIA. AMBER GLASS REFLECTOR 1-32W PLT TRIPLE TUBE PHILIPS LAMP. LUMEN RATING = 2400 LMS. MAGNETEK BALLAST CAT. #C2642UNVSE

CANDLEPOWER SUMMARY

ANGLE MEAN CP LMS. 0 345

5 344 33

10 345 15 344 97 20 341 25 339 155 30 320 35 281 175 40 232 45 180 140 50 130 55 94 87 60 71 65 54 55 70 41 75 28 30 80 18 85 7 9 90 0

ZONAL LUMENS AND PERCENTAGES ZONE LUMENS % LAMP %LUMINAIRE

0-30 285 11.88 36.50 0-40 460 19.18 58.91 0-60 687 28.65 87.99

Prepared For: LIGHTOLIER FALL RIVER, MA

DATE: MAY 8, 2001

0-90 781 32.56 100.00 40-90 321 13.38 41.09 60-90 93 3.91 12.01 90-180 0 .00 .00 0-180 781 32.56 100.00

** EFFICIENCY =32.6% **

Illuminance (FC) Multipliers

For Incandescent: For Compact Fluorescent:

100 Watt = 0.7 26 Watt = 0.7 150 Watt = 1.2 42 Watt = 1.3

Coefficients Of Utilization 32W Triple Tube CFL

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

.35 .34 .33 .34 .33 .32 .33 .32 .31 .32 .31 .30 .31 .30 .30 .29

.32 .30 .28 .31 .30 .28 .30 .29 .28 .29 .28 .27 .28 .27 .26 .26

.29 .27 .25 .28 .26 .25 .27 .26 .24 .26 .25 .24 .26 .24 .23 .23

.26 .24 .22 .26 .24 .22 .25 .23 .22 .24 .23 .21 .24 .22 .21 .20

.24 .21 .19 .23 .21 .19 .23 .21 .19 .22 .20 .19 .22 .20 .19 .18

.22 .19 .17 .21 .19 .17 .21 .19 .17 .20 .18 .17 .20 .18 .17 .16

.20 .17 .15 .19 .17 .15 .19 .17 .15 .18 .17 .15 .18 .16 .15 .14

ROOM CAVITY RATIO

.18 .16 .14 .18 .15 .14 .17 .15 .14 .17 .15 .14 .17 .15 .14 .13

.16 .14 .12 .16 .14 .12 .16 .14 .12 .16 .14 .12 .15 .13 .12 .12

.15 .13 .11 .15 .13 .11 .15 .12 .11 .14 .12 .11 .14 .12 .11 .10

% WALL REFLECTION

20% FLOOR CAVITY REFLECTANCE
