Philips 29PFL4908, 39PFL2908, 39PFL2608, 32PFL4908, 40PFL4908 Owner's Manual

...

www.philips.com/support

EN For further assistance, call the customer support service in your country.

•

To obtain assistance, contact Philips Customer Care Center;

In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands 1 866 309 5962 México D.F. and Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

ES Para obtener más información, llame al servicio de soporte al cliente de su país.

•

Para obtener asistencia, comuníquese con Centro de atención al cliente de Philips;

En los Estados Unidos, en Canadá, Puerto Rico o en las Islas Vírgenes de los Estados Unidos; 1 866 309 5962 México D.F. y Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

FR Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service

à la clientèle de votre pays.

• Pour obtenir de l’aide, communiquez avec le centre de service à la clientèle Philips au; Dans le États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines; 1 866 309 5962 México D.F. et Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

ENUser Manual



Manual del Usuario



Manuel d’Utilisation

50PFL3908 46PFL3908 46PFL3608 40PFL4908 39PFL2908 39PFL2608 32PFL4908 29PFL4908

English

1Notice 5

2Important 7

Positioning the TV 7 Regulatory notices 7 Environmental care 7

3Get started 8

Features 8 Supplied accessories 8 Symbols used in this User Manual 8 Stand assembly 9 Attaching the base 9 Managing cables 10 Installing the remote control batteries 10 Remote control 11 Control panel 12 Terminals 12 Connecting the antenna or the cable 13 Plugging in the AC power cord 13 Selecting your connection quality 14 Connecting your devices 14 Initial setup 18

Upgrading the software 41 Automatically check for latest software 41 Netflix deactivation 41 Netflix ESN 42 VUDU deactivation 42 YouTube deactivation 42 Hulu Plus deactivation 42 License 42 Philips Wirelessconnect 43 View photos, play music and watch videos using DLNA 43 Net TV 45 Enjoying vTuner 46

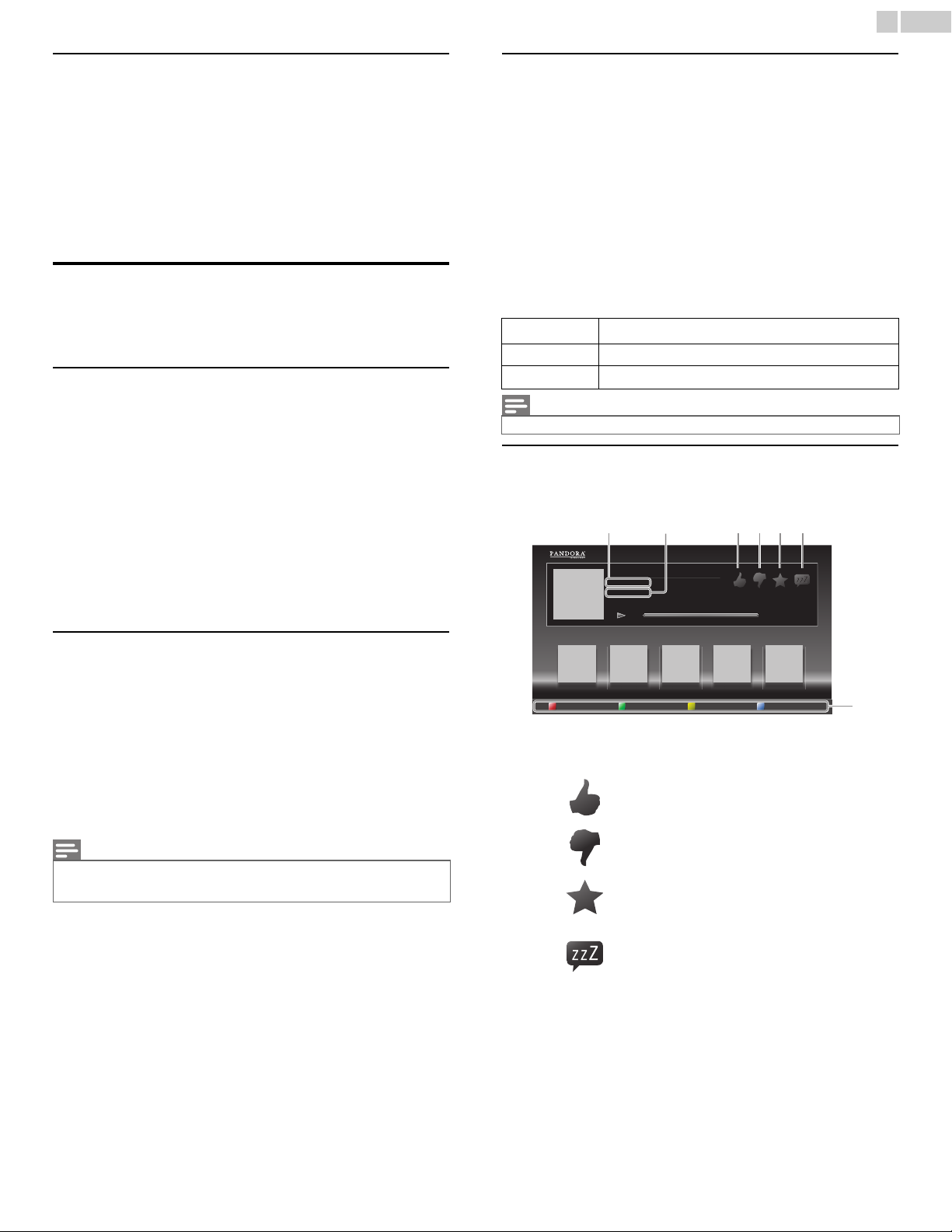

Pandora

operations 48

6 Useful tips 49

FAQ 49 Troubleshooting 50

7 Information 52

Glossary 52 Maintenance 52

8 Specifications 53

4Use your TV 20

Switching on your TV and putting it in Standby mode 20 Adjusting volume 20 Switching channels 20 Watching channels from an external device 21 Access the Home menu 21 Using auto mode 22 Create and use lists of favorite channels 22 Changing picture format 23 TV screen information 23 USB 24

5 Use more of your TV 26

Settings assistant 27 Picture 27 Sound 29 Features 30

Caption settings 30 Sleeptimer 31 Child and ratings lock 31 Change PIN 33

Installation 33

Language 33 Channel installation 34 Preferences 35 Use Philips EasyLink 35 Network 37 Return your settings to default values 40

Software 40

Checking your current software version 40 Preparing for the software upgrade 40

9 Warranty 54

License end of book

Registering your model with Philips makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once or visit at www.productrecords.com/phl to ensure:

Return your Product Registration Card or visit at

www.productrecords.com/phl today to get the very most from your purchase.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if

you have any doubts about your ability to safely mount your television.

• ALWAYS use a mount that has been recommended by the

television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the television and

mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you are

mounting the television is appropriate. Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

Visit our World Wide Web Site at www.philips.com/support

English

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

• The recommended Wall Mount Bracket Kit (sold separately) allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to the Wall Mount Instruction Book.

• P&F USA is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV Wall Mount Bracket or mount the TV onto the Bracket on your own.

• The Wall Mount Bracket must be installed by experts.

P&F USA is not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall Mount

Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall.

• Do not fasten the screws by excessive force. This may damage the product or cause the product to fall, leading to an injury.

• For safety reasons use 2 people to mount the TV onto a Wall Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket while your TV is plugged in or Turned On. It may result in an electrical shock injury.

When installing the unit on the wall, allow this much space.

Top: 11.8 inches (30cm) Left and right side: 5.9 inches (15cm) Bottom: 3.9 inches (10cm)

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Note to the CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in par ticular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC − National Electric Code

GROUND CLAMP

ANTENNA LEAD IN WIRE

GROUND CLAMPS

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ELECTRIC SERVICE EQUIPMENT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

Wall Mount Bracket Kit

PHILIPS

SANUS

Screw dimension

50PFL3908 / 46PFL3908 / 46PFL3608

40PFL4908 / 39PFL2908 / 39PFL2608

SQM6485

M6 x 1.614” (41mm)

with spacer

PHILIPS

SQM6435/17

M6 x 1.614” (41mm)

with spacer

SAN18B M4 x 0.472” (12mm)

32PFL4908 / 29PFL4908

Model #Brand

Important Safety Instructions

English

Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

P&F USA reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this User Manual is believed adequate for the intended use of the system. If the product or its individual modules or procedures are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. P&F USA warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.

P&F USA cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to P&F USA will be adapted and published on the P&F USA support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural proper ty of the display (within common industry standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Service Centers and official repair shops. Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this User Manual, any adjustments or assembly procedures not recommended or authorized in this User Manual shall void the warranty.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by Turning the equipment Off and On, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Declaration of Conformity

Trade Name : PHILIPS Responsible Party : P&F USA, Inc. Model :

50PFL3908, 46PFL3908, 46PFL3608, 40PFL4908, 39PFL2908, 39PFL2608, 32PFL4908, 29PFL4908

Address : PO Box 2248, Alpharetta, GA 30023-2248

U.S.A.

Telephone Number : 1 866 309 5962

Modifications

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the User Manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

Cables

Connections to this device must be made with shielded cables with metallic RFI / EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

CAN ICES-3 (B)/NMB-3 (B) Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7.

The following FCC/IC RSS-Gen is description of Wireless LAN adapter.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code Statement

For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that do not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided.

FCC Radiation Exposure Statement

This equipment is compliance with SAR for general population/ uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 2.5cm between the radiator & your body.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

English

1Notice

All other registered and unregistered trademarks are the proper ty of their respective owners.

ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

Consumer Notice:

This TV has been set to maximize energy efficiency while delivering the best possible picture using the factory installed home mode settings. Changing or enabling other features in this TV (e.g. brightened backlighting) will possibly increase energy consumption beyond the original ENERGY STAR

qualified limits.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

LED backlighting technology uses less energy when compared with a standard CCFL backlighting LCD television of the same screen size. Actual energy savings will vary depending on the screen size.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

is a trademark of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. SRS TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog.

VUDU

is a trademark of VUDU, Inc.

Netflix and the Netflix logo are trademarks or registered trademarks of Netflix, Inc.

YouTube and the YouTube logo are trademarks of Google Inc.

Film Fresh and the Film Fresh logo are registered trademarks of Film Fresh Inc.

CloudTV™ (CloudTV™ by ActiveVideo®) technology provided under license from ActiveVideo Networks, Inc. U.S. and Foreign Patents apply. CloudTV™ and the “CloudTV™” logo are proprietary trademarks of ActiveVideo Networks, Inc.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

vTuner is a trademark of Nothing Else Matters Software, Ltd.

* vTuner is supported in 50PFL3908, 46PFL3908, 40PFL4908, 39PFL2908,

32PFL4908, 29PFL4908 only.

* Film Fresh is supported in 50PFL3908, 46PFL3908, 40PFL4908, 39PFL2908,

32PFL4908, 29PFL4908 only.

Hulu, the Hulu logo, www.hulu.com, and other Hulu marks, graphics, logos, scripts, and sounds are trademarks of Hulu. None of the Hulu trademarks may be copied, downloaded, or otherwise exploited.

Portico, Portico TV and the Portico logo are service marks of Net2TV Corporation.

DLNA®, the DLNA Logo and DLNA CERTIFIED

are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

CinemaNow and the CinemaNow logo are trademarks of BestBuy Stores L.P. and BestBuy Canada LTD.

* CinemaNow is supported in 50PFL3908, 46PFL3908, 40PFL4908,

39PFL2908, 32PFL4908, 29PFL4908 only.

English

• Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

• Install the unit in a horizontal and stable position.

• Do not install the unit in direct sunlight or in a place subject to dust or strong vibration.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

• Avoid a place with drastic temperature changes.

• Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the

picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Do not insert the AC power cord into the power socket outlet before all the connections are made.

• Ensure that you always have easy access to the AC power cord or plug to disconnect the TV from the power.

• Before you move the TV, disconnect attached cables to prevent damage to connectors.

• Be sure to unplug the AC power cord from the AC outlet before moving or carrying the unit.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

Press to turn the unit on and go into standby mode. To completely turn Off the unit, you must unplug the AC power cord. Disconnect the AC plug to shut the unit off when trouble is found or not in use. The AC plug shall remain readily available.

Never use a gas duster on this TV. The gas trapped inside of this unit may cause ignition and explosion.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall not be

exposed to excessive heat such as sunshine, fire or the like.

WARNING: To prevent injury, this apparatus must be securely

attached to the furniture / wall in accordance with the instructions. Tipping, shaking, or rocking the unit may cause injury / death.

The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle the

packaging. For product recycling information, please visit -

www.recycle.philips.com

Philips pays a lot of attention to produce environment-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Disposal of used batteries

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.

End of life directives

AC plug

English

2Important

Positioning the TV

Environmental care

Regulatory notices

English

Note

AAA

Model Quantity Size

50PFL3908 / 46PFL3908 / 46PFL3608

8 M4 x 0.472”(12mm)

40PFL4908 / 39PFL2908 / 39PFL2608

3 M4 x 0.393”(10mm)

4 M4 x 0.787”(20mm)

32PFL4908 / 29PFL4908

3 M4 x 0.984”(25mm)

Digital TV operation

Analog/Cable TV operation

3Get started

Features

• DTV / TV / CATV

You can use your remote control to select channels which are broadcast in Digital format and conventional Analog format. Also, cable subscribers can access their cable TV channels.

• Information display

You can display the title, contents and other information of the current program on the TV screen.

•AutoProgram

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

•Net TV

This unit lets you enjoy Internet services. Use the remote control to browse the Net TV pages. You can play movies and much more, all from your TV screen.

• Child lock

This feature allows you to block children’s access to inappropriate programs.

• Closed Caption decoder

Built-in Closed Caption decoder displays text for Closed Caption supported programs.

• MTS / SAP tuner

Audio can be selected from the remote control.

• Auto Standby

If there is no Input signal and no operation for 15 minutes, the unit will go into Standby mode automatically.

•Sleep timer

You can set the unit to go into Standby mode after a specific amount of time.

• Choices for on-screen language

Select your on-screen language: English, Spanish or French.

• Stereo sound function

• PLL frequency synthesized tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point “•” buttons on the remote control.

• Various adjustment for picture and sound

Customizes image quality suitable for your room and sets your sound preference.

• EasyLink via HDMI link

EasyLink allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

• HDMI Input

• HDMI-DVI Input

If your video device has DVI Output jack, use an HDMI-DVI conversion cable to connect the unit.

• Component Video Input

• PC Input

•AV Input

•USB terminal

The picture (JPEG), music (MP3) and video files stored on a USB Memory Stick can be played back on this unit.

• Digital Audio Output

• Headphone Audio Output

Supplied accessories

User Manual Quick Start guide Registration card

Remote Control and

batteries

(AAA, 1.5V x 2)

• If you lose the screws, please purchase the above-mentioned Phillips head screws at your local store.

• If you need to replace these accessories, please refer to the part name or No. with the illustrations and call our toll free customer support line found on the cover of this User Manual.

TV base and screws

50PFL3908 / 46PFL3908 / 46PFL3608 / 40PFL4908 / 39PFL2908 / 39PFL2608

32PFL4908 / 29PFL4908

Screws packed with this unit.

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the instruction book accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

Symbols used in this User Manual

The following is the description for the symbols used in this User Manual. Description refers to:

• If neither symbol appears, the operation is applicable to both.

Stand assembly

50PFL3908 / 46PFL3908 / 46PFL3608 / 40PFL4908 / 39PFL2908 / 39PFL2608

× 4 [50PFL3908 / 46PFL3908 / 46PFL3608]

3 [40PFL4908 / 39PFL2908 / 39PFL2608:

M4 x 0.393”(10mm)]

32PFL4908 / 29PFL4908

× 2

50PFL3908 / 46PFL3908 / 46PFL3608 / 40PFL4908 / 39PFL2908 / 39PFL2608

× 4 [50PFL3908 / 46PFL3908 / 46PFL3608]

4 [40PFL4908 / 39PFL2908 / 39PFL2608:

M4 x 0.787”(20mm)]

Note

32PFL4908 / 29PFL4908

× 1

English

Attaching the base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction. For large screen TVs, at least 2 people are required for these steps.

• Make sure to use a table which can suppor t the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

• When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of the base is downward.

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• To remove the base from this unit, unscrew the Phillips head screws in step 2. Be careful not to drop the base when you remove it.

Managing cables

Note

Route your antenna cable and all other cables through the cable management tie* at the back of the TV. The holder helps keep your cables tidy and easily manageable.

1 Attach the cable management tie as illustrated below.

2 Pass cables through the cable management tie to avoid tangles.

English

* The cable management tie is not supplied with your TV. If you would

like this part, please call our toll free customer support line found on the cover of this User Manual, and it will be sent to you for free of charge.

Installing the remote control batteries

Slide the battery cover off the back of the remote control.

1 2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

• Remove the batteries if not using the remote control for an extended period of time.

English

Remote control

a (POWER)

Turns the TV On from Standby or Off to Standby.

b VUDU

Access to VUDU directly.

c EasyLink(HDMI CEC) buttons

E / D Searches Backward or Forward through the disc. ►F Starts, pauses or resumes playback. C Stops the Disc playback.

FORMAT

Adjusts the Picture size on the TV screen.

e (MENU)

Displays the main menu.

f INFO

Displays Information about the current program.

g OK

Press to decide the command of setting when the Home menu is displayed.

h ▲▼◄► (NAVIGATION buttons)

Moves the cursor, Selects the On-screen Menu items.

i OPTIONS

Displays a list of menu items applicable to the highlighted object or screen.

j SOURCE

Selects Connected devices.

k CH + / −

Selects a Channel.

l Apps (APP1 / APP2 / APP3 / APP4) buttons

Works as direct access to user specified net apps.

m 0 − 9 (NUMBER buttons)

Used to enter a Channel / Program number.

• (DOT) Use with 0-9 to select digital channels. For example, to enter 2.1, press

PREV.CH Returns to the previously viewed Channel.

n (MUTE)

Turns the Sound On and Off.

o VOL + / −

Adjusts the Volume.

p BACK

Returns to the previous Menu operation.

q NET TV

Access to Net TV menu directly.

r CC

Displays the audio portion of programming as text superimposed over the video.

s NETFLIX

Access to Netflix directly.

50PFL3908 / 46PFL3908 / 46PFL3608

edcba

fgh

*Keys on Rear.

Control Keys are located on the Rear side of the TV

* When seen from the front.

40PFL4908 / 32PFL4908 / 29PFL4908

edc

* 40PFL4908 only

39PFL2908 / 39PFL2608

edcba

English

Control panel

Te r m i n a l s

i j

k l m

a VOL ◄/►

Adjusts the Volume. In the Menu screen, moves the Cursor Left (◄) / Right (►). VOL ◄ : Volume Down VOL ► : Volume Up

b CH ▲/▼

Selects a Channel. In the Menu screen, moves the Cursor Up (▲) /Down (▼).

c MENU

Opens the Main On-screen Menu.

d SOURCE

Selects Connected devices.

e (POWER)

Turns the TV On and Off.

f Remote Control Sensor

Receives IR signal from Remote control.

g Power On / Standby Indicator

(On : lights in white, Standby : no light)

h Ambient Light Sensor

Alters the brightness of the TV screen automatically by detecting your room lighting level. Do not block this Light Sensor window to allow proper operation.

i Ethernet port

For Internet connection using an Ethernet cable with an RJ-45 connector.

j Digital Audio Output jack

Digital Audio (S/PDIF) Output to home theaters and other Digital Audio systems.

k PC Input jack

VGA cable connection for PC.

l Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks

for VIDEO

Composite Video Input (VIDEO) jack is a shared jack with Component Video Input (Y) jack.

m Analog Audio (L/R) Input jacks

Connect Analog Audio signals from; – HDMI-DVI / Analog Audio (L/R) jacks signal – Component Video / Analog Audio (L/R) jacks signal – Composite Video / Analog Audio (L/R) jacks signal – PC Connection / Analog Audio (L/R) jacks signal with Stereo

mini 3.5mm plug Audio cable on PC

n HDMI Input jack(s)

Digital audio and video Input from high definition Digital devices such as DVD / Blu-ray disc players, cable / satellite set-top boxes, PC’s.

For HDMI 1 only In addition to normal HDMI and HDMI-DVI functionality, it outputs TV Audio to an HDMI-ARC-compliant device, such as a home theater system.

o USB terminal

Data Input from USB Memory Stick only. Do not connect any device to this terminal such as; Digital camera, keyboard, mouse, etc.

p 75 ohm Cable / Antenna connection

Signal Input from an antenna or cable / satellite set-top boxes.

q Headphone Audio Output jack

Headphone 3.5mm stereo jack for personal listening.

INININ

OUT

cable

RF cable

antenna

INININ

OUT

antenna

RF cable

set-top box

RF cable

INININ

OUT

RF cable

set-top box

HDMI cable

OUTOUTOUT

ININ

OUT

OUTOUT

Component (Y/Pb/Pr) video cables

Audio (L/R) cables

set-top box

RF cable

Note

Caution

Note

INININ

OUT

OUTOUT

OUT

OUTOUT

ININ

OUT

set-top box

Blu-ray disc/DVD recorder

RF cable

Audio (L/R) + Video cables

Audio (L/R) +

Video cables

RF cable

cable

English

Connecting the antenna or the cable

Be sure your antenna or other device is connected properly before plugging in the AC power cord.

If you connect to an antenna through RF cable

Any DTV programs that are broadcasted in your area can be received for free through an antenna connection.

If you connect a set-top box through RF cable

If the TV is connected to a cable / satellite set-top box via a coaxial connection, set the TV to channel 3, 4 or the channel specified by the service provider.

Connecting a set-top box, Blu-ray disc / DVD recorder via composite connectors and Analog Audio

Do not place your recorder too close to the screen because some recorders can be susceptible to signals.

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters) for HDTV signal. The minimum RF bandpass on these devices is 2,000MHz or 2GHz.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna Input jack before moving the unit.

• If you did use an antenna to receive Analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set-top box or inside antenna.

• To Turn On your reception source easily between antenna and cable, install an antenna selector.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

If you connect a set-top box through HDMI

If the TV is connected to a cable / satellite set-top box via HDMI, make sure you select the correct Source by using SOURCE.

If you connect a set-top box through Component Video Input

If the TV is connected to a cable / satellite set-top box via Component Video Input, make sure you select the correct Component Video Source

by using SOURCE.

Plugging in the AC power cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are made.

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V).

• Connecting the AC power cord to a power supply outside of this range may result in fire, smoke, unit failure or electrical shock.

• Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction.

Note

INININ

OUT

set-top box

Blu-ray disc player

HD game console

HDMI cable

INININ

OUT

ININ

OUT

HDMI-DVI

conversion cable

Audio (L/R) cables

cable receiver or

satellite box with the

DVI Ou tp ut jac k

English

No supplied cables are used with these connections:

• Please purchase the necessar y cables at your local store.

Before you connect AC power cord:

Be sure other devices are connected properly before plugging in the AC power cord.

Selecting your connection quality

HDMI - Highest quality

Supports high-definition Digital signals and gives highest picture and sound quality. Video and audio signals are combined in one cable. You must use HDMI for full high-definition video and to enable Philips EasyLink (HDMI CEC).

• Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is a form of Digital Rights Management that protects high definition content in Blu-ray discs or DVDs.

• The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows output of TV Audio to an HDMI-ARC-compliant device.

Connecting your devices

HDMI Digital connection

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition Digital video and multi-channel Digital Audio through a single cable.

HDMI-DVI connection

This unit can be connected to your device that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires audio cable for Analog Audio signal as well.

Component (Y Pb Pr) - High quality

Supports high-definition Analog signals but gives lower picture quality than HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue video cables with red / white audio (L/R) cables. Match the cable colors when you connect to the TV.

Composite - Basic quality

For analog connections. Composite Video / Audio Analog cable usually combine a yellow video cable with red / white audio (L/R) cables. With this unit, yellow cable must be connected to Y (green) jack of Component Video Input jacks.

• Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

For HDMI connection

• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz / 44.1kHz and 48kHz of audio signals.

• This unit accepts 2 channel Audio signal (LPCM) only.

• This unit accepts only signals in compliance with EIA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

Continued on next page.

Note

HDMI ARC

HDMI cable

Digital home theater

amplifier

HDMI 1 IN only

OUTOUTOUT

ININ

OUT

OUTOUT

Audio (L/R) cables

set-top box

Blu-ray disc/DVD

recorder

Component (Y/Pb/Pr) Video cables

Note

OUTOUTOUT

ININ

DVD pl aye r

Audio (L/R) + Video cable

Network provisioning

equipment

Ethernet cable

Internet

English

HDMI-ARC connection

HDMI-ARC allows you to use EasyLink to output TV Audio directly to a connected Audio device, without the need for an additional Digital Audio cable.

OUT

HDMI ARC

• The HDMI 1 connector is HDMI Audio Return Channel (ARC) compliant. Use it to output Digital Audio to an HDMI home theater system.

• Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected to the device using an HDMI cable attached to HDMI-ARC connectors.

Component Analog Video Connection

Component Analog Video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks, connect Analog Audio cables to the Analog Audio (L/R) Input jacks.

Composite Analog Video Connection

Composite Analog Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Composite Video (Y/VIDEO) Input jack, connect audio cables to the Audio (L/R) Input jacks. When the Audio is monaural, then only connect to the Audio L Input jack.

• With this unit, yellow cable must be connected to Y (green) jack of Component Video Input jacks.

• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks connected, it may cause of an unstable picture.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

Connecting the TV to the Internet using an Ethernet cable

• The unit accepts 480i / 480p / 720p and 1080i of video signals for this connection.

LAN

• Please purchase shielded Ethernet cables at your local store and use them when you connect to network equipment.

• After connecting an Ethernet cable, set up necessar y network settings. Network ➟

p.37

• Do not insert any cable other than an Ethernet cable to the Ethernet por t to avoid damaging the unit.

• If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.

• If your telecommunications equipment (modem, etc.) has broadband router functions but there is no vacant port, use a hub.

• For a broadband router, use a router which supports 10BASE-T / 100BASE-TX.

• Do not connect your PC directly to the Ethernet por t of this unit.

Continued on next page.

Note

WLAN

LAN

Broadband router

Ethernet cable

Network provisioning

equipment

Internet

INININ

OUT

OUTOUT

Digital home theater

amplifier

Digital Audio coaxial cable

INININ

OUT

HDMI cable

OUT

ININ

OUT

INININ

HDMI-DVI

conversion cable

Stereo mini 3.5 mm plug Audio cable

VGA cable

English

Connecting the TV to the Internet using a wireless LAN

• After you made the wireless connection, set up necessary network settings. Network ➟ p.37

• Use a Wireless LAN Access Point (AP) (e.g. wireless router) which suppor ts IEEE

802.11 b/g/n. (n is recommended for stable operation of the wireless network.)

• This unit does not suppor t Ad-hoc mode.

• Other radio devices or obstacles may cause interference to the wireless network connection.

Digital Audio Output Connection

PC connection

HDMI connection

This unit can be connected to your PC that has a HDMI terminal. Use an HDMI cable for this Digital connection.

HDMI-DVI connection

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this Video Digital connection and it requires Stereo mini 3.5mm plug Audio cable for Analog Audio signal as well.

If you connect this unit to an external Digital Audio device, you can enjoy multi-channel audio like 5.1ch Digital broadcasting sound. Use a Digital Audio coaxial cable to connect the unit to external Digital Audio devices.

VGA connection

This unit is equipped with a PC Input jack. If you connect this unit to your PC, you can use this unit as a PC monitor. Use a VGA cable for this Video connection and it requires a Stereo mini

3.5mm plug Audio cable for Analog Audio signal as well.

OUT

Continued on next page.

The following video signals can be displayed:

Note

Format Resolution Refresh rate

VGA 640 x 480

SVGA 800 x 600

XGA 1,024 x 768

WXGA

1,280 x 768

1,360 x 768

60Hz

FHD* 1,920 x 1,080

Other formats or non-standard signals will not be displayed correctly. * 50PFL3908 / 46PFL3908 / 46PFL3608 / 40PFL4908 / 39PFL2908 /

39PFL2608 only.

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise. – Attach a ferrite core to the AC power cord of your PC. – Unplug the AC power cord and use the built-in battery of your PC.

• Use an HDMI cable with the HDMI logo (a cer tified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

USB Memory Stick

English

This unit offers easy playback of picture (JPEG), music (MP3) and video files. Insert the USB Memory Stick into the USB terminal shown below.

USB ➟ p.24

• The unit recognizes only a USB Memory Stick.

• Do not use a USB hub or an extension cable to connect an external hard disk drive to the unit. (Not supported.)

• A USB Memory Stick is always inserted to this unit directly.

• A USB Memory Stick is not supplied with this unit.

• We do not guarantee that all USB Memory Sticks can be supported by this unit.

• Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.

• To protect your USB Memor y Stick files from being erased place the write protect sliding tab in the protect position.

• When you are ready to remove a USB Memory Stick, set the unit to go into Standby mode to avoid any damage to your data and the unit.

• A USB Memory Stick that requires its own driver or the device with a special system such as fingerprint recognition are not suppor ted.

• This unit is not allowed to use the USB Memory Stick which requires an external power supply (500mA or more).
