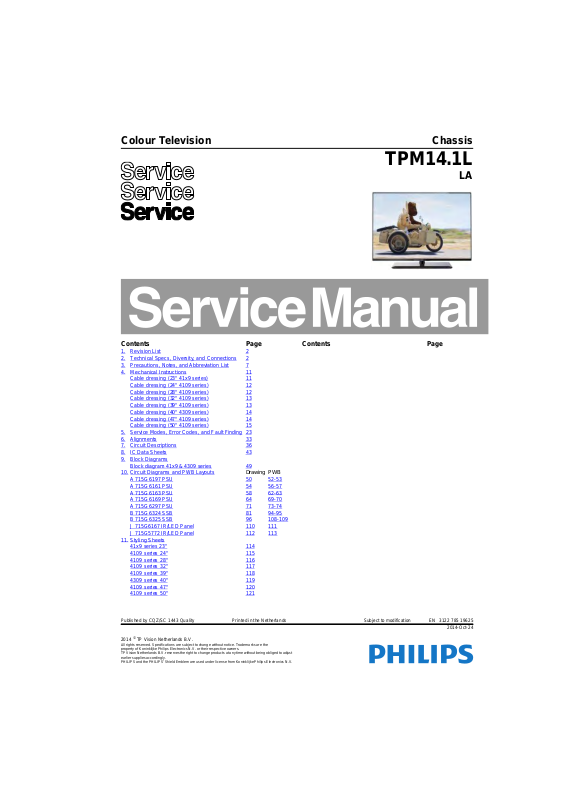

Philips 40PFG4109/78, 39PFG4109/77 Schematic

Colour Television Chassis

TPM14.1L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 7

4. Mechanical Instructions 11 Cable dressing (23" 41x9 series) 11 Cable dressing (24" 4109 series) 12 Cable dressing (28" 4109 series) 12 Cable dressing (32" 4109 series) 13 Cable dressing (39" 4109 series) 13 Cable dressing (40" 4309 series) 14 Cable dressing (47" 4109 series) 14 Cable dressing (50" 4109 series) 15

5. Service Modes, Error Codes, and Fault Finding 23

6. Alignments 33

7. Circuit Descriptions 36

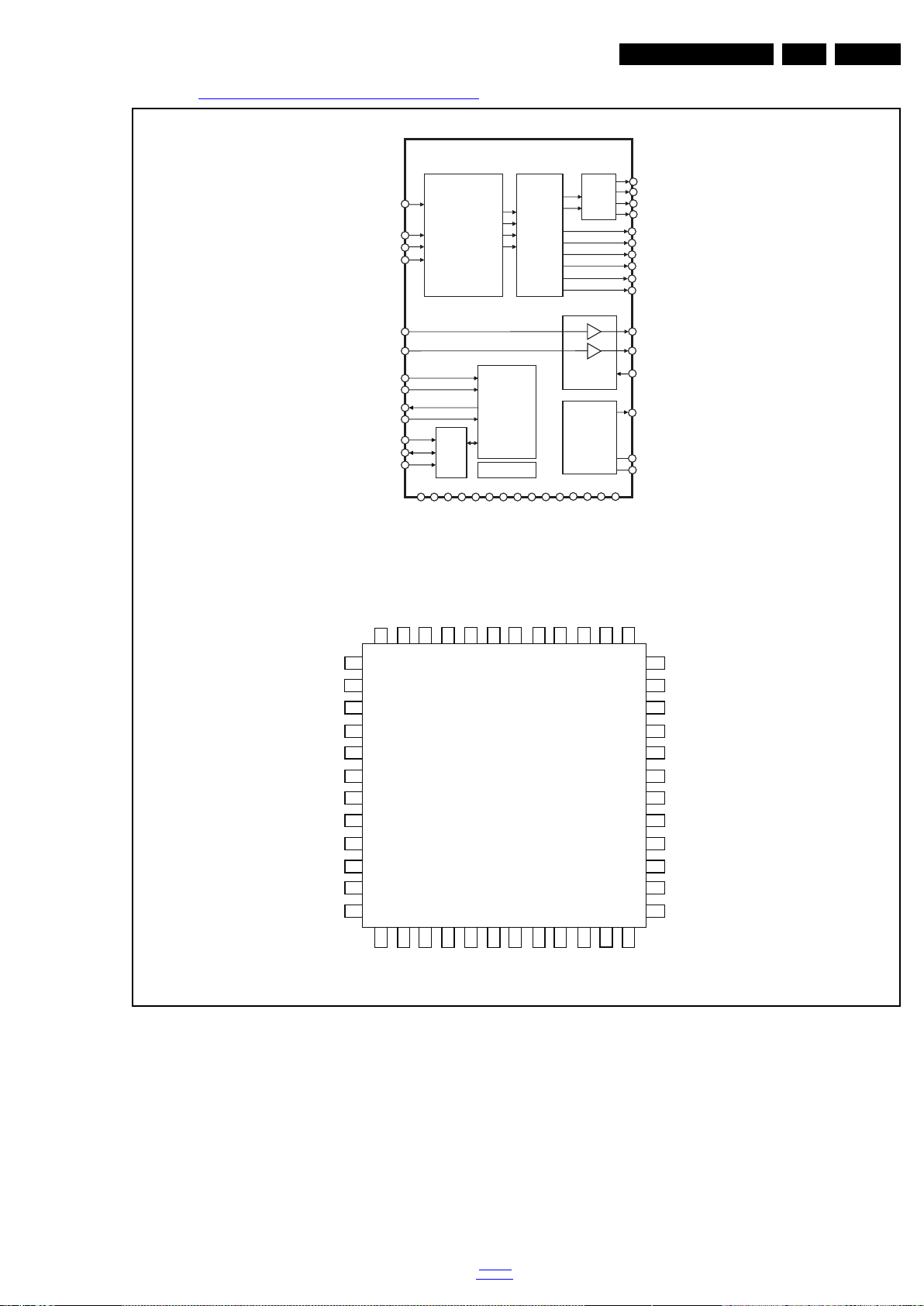

8. IC Data Sheets 43

9. Block Diagrams Block diagram 41x9 & 4309 series 49

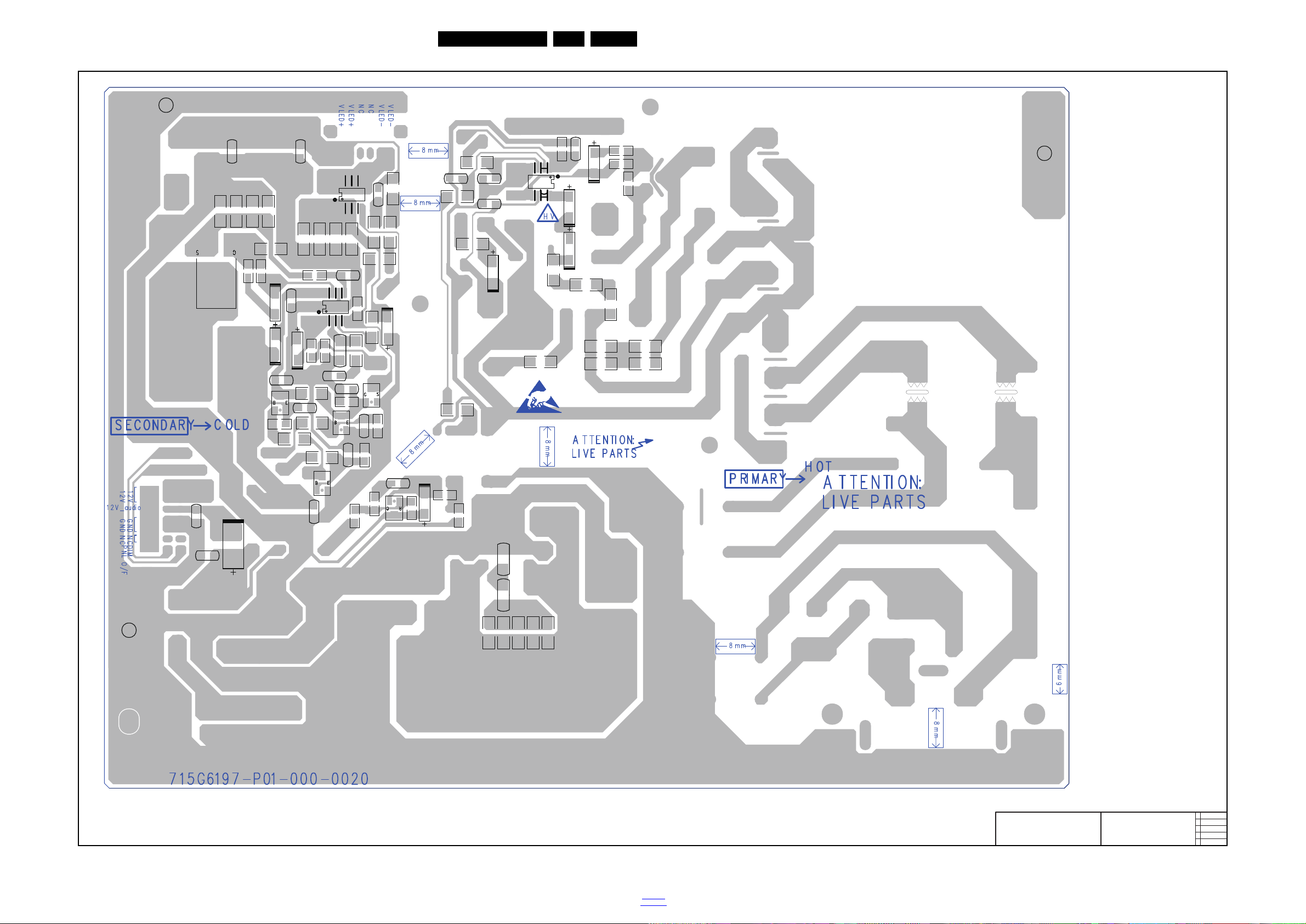

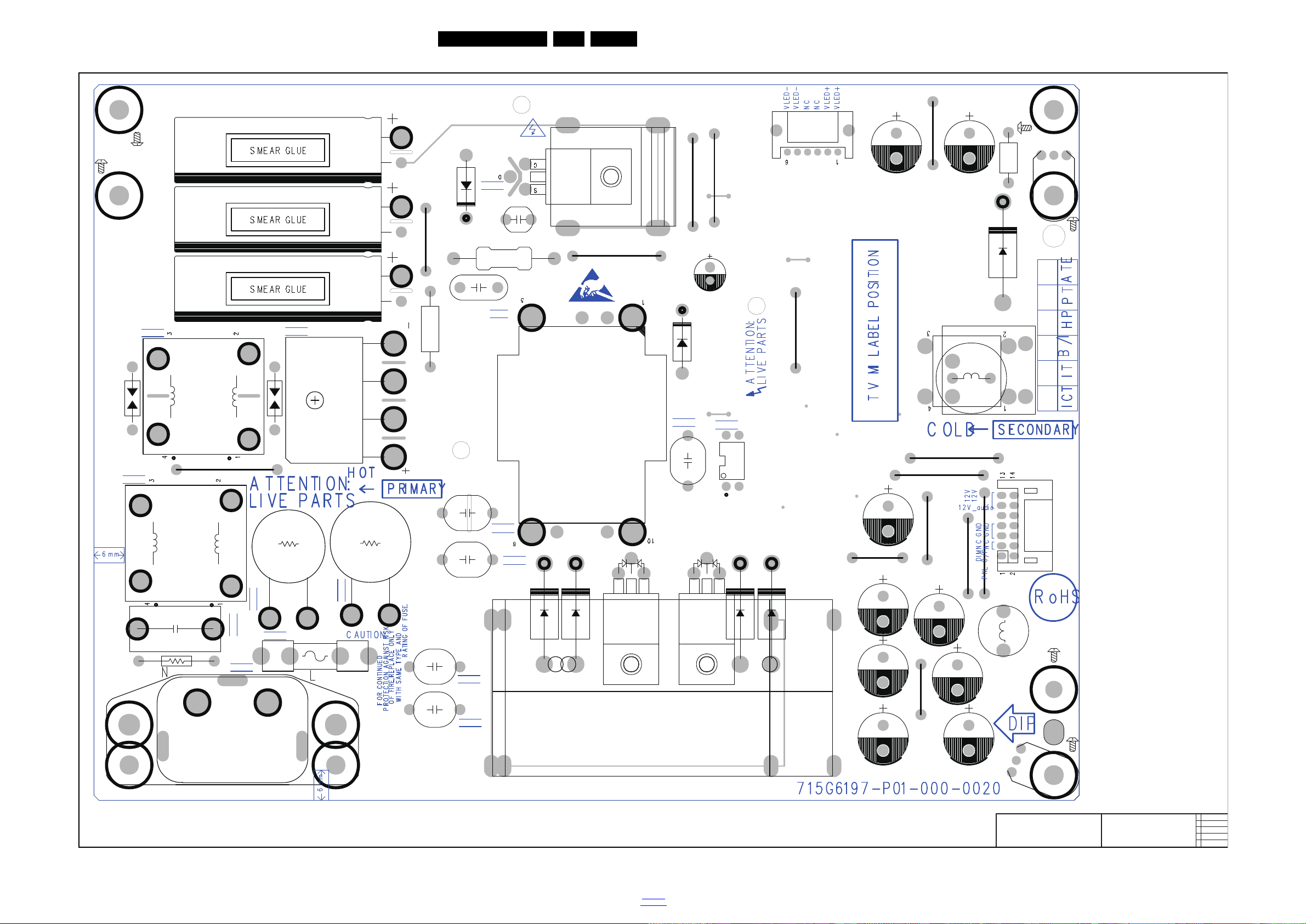

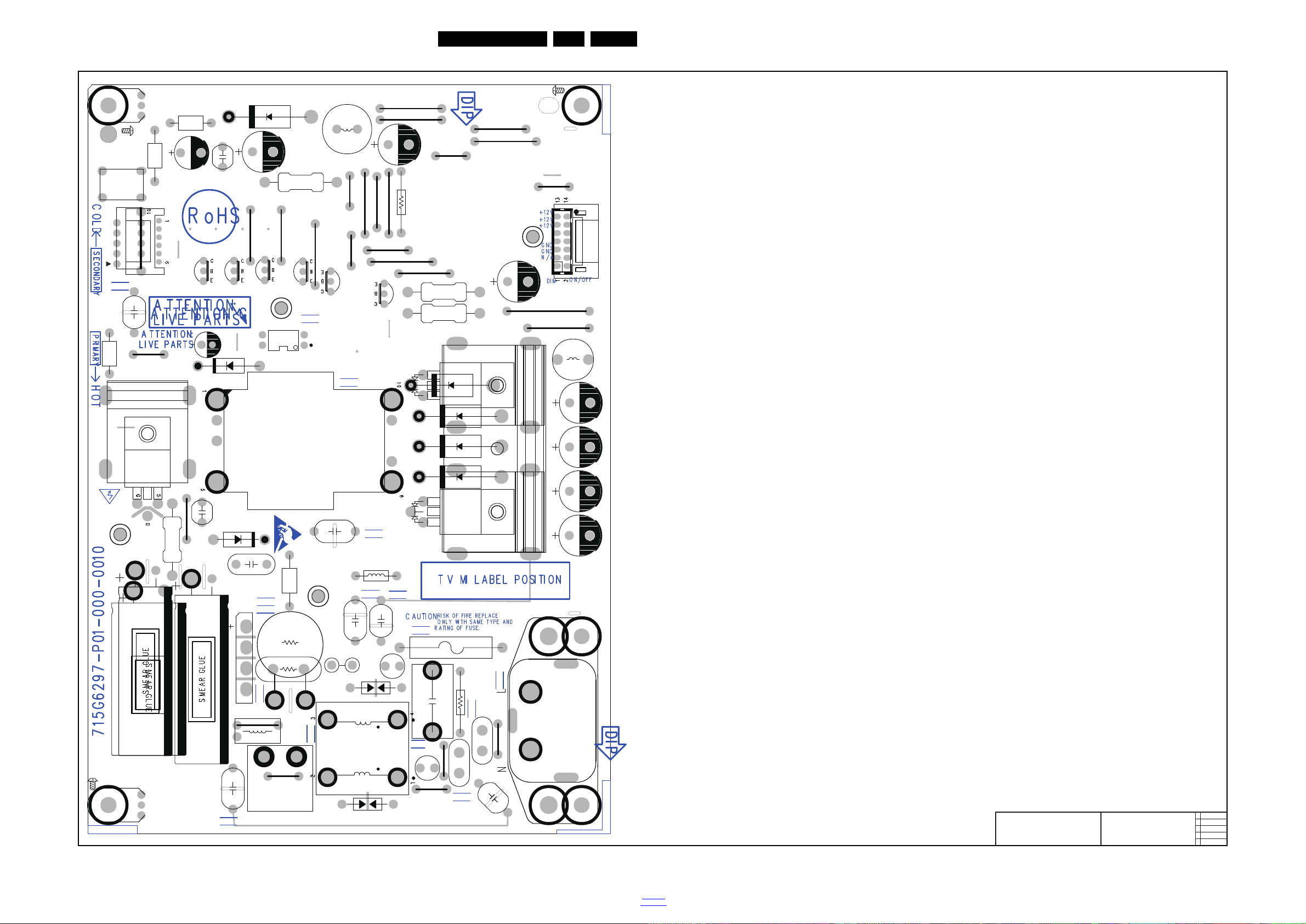

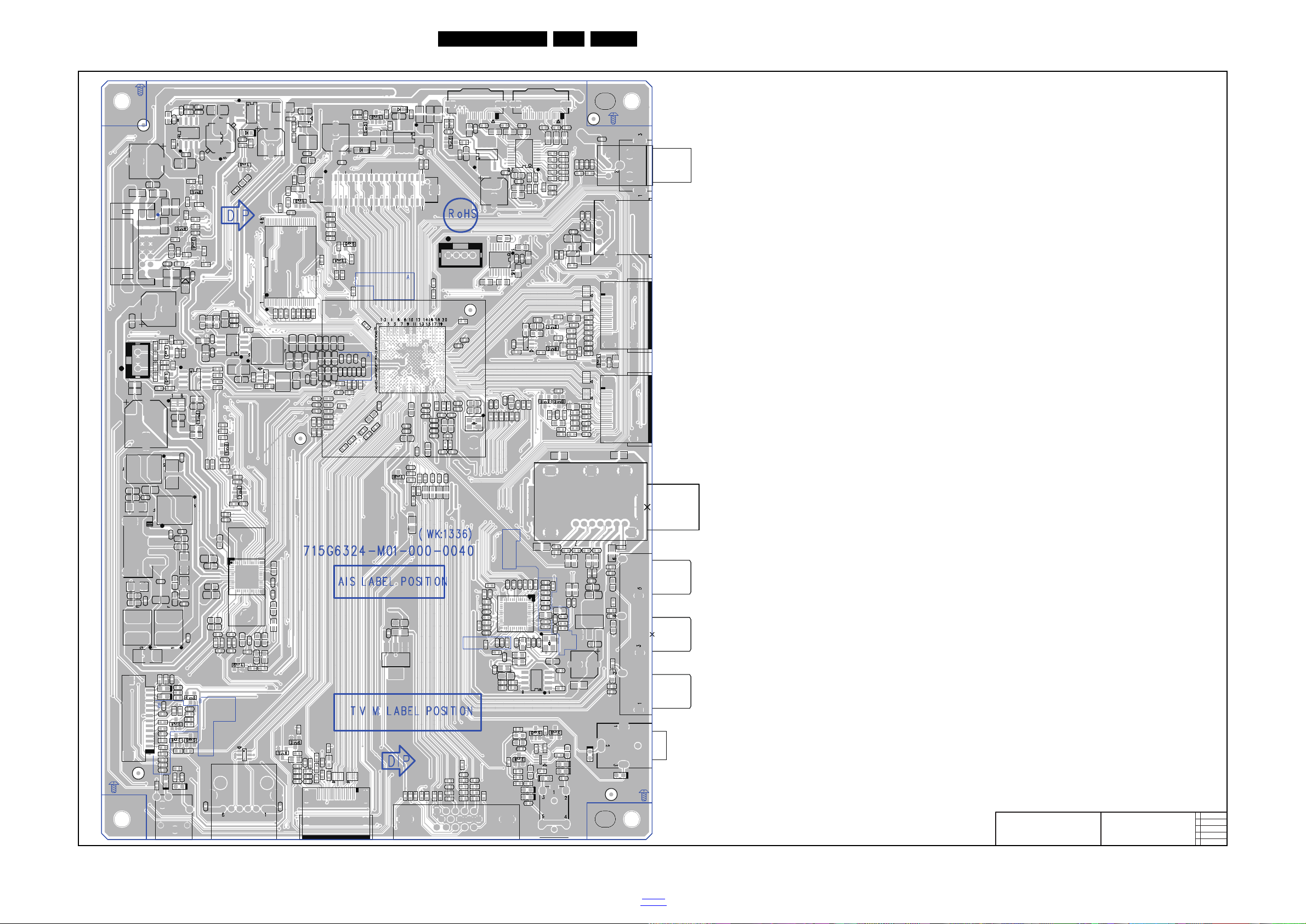

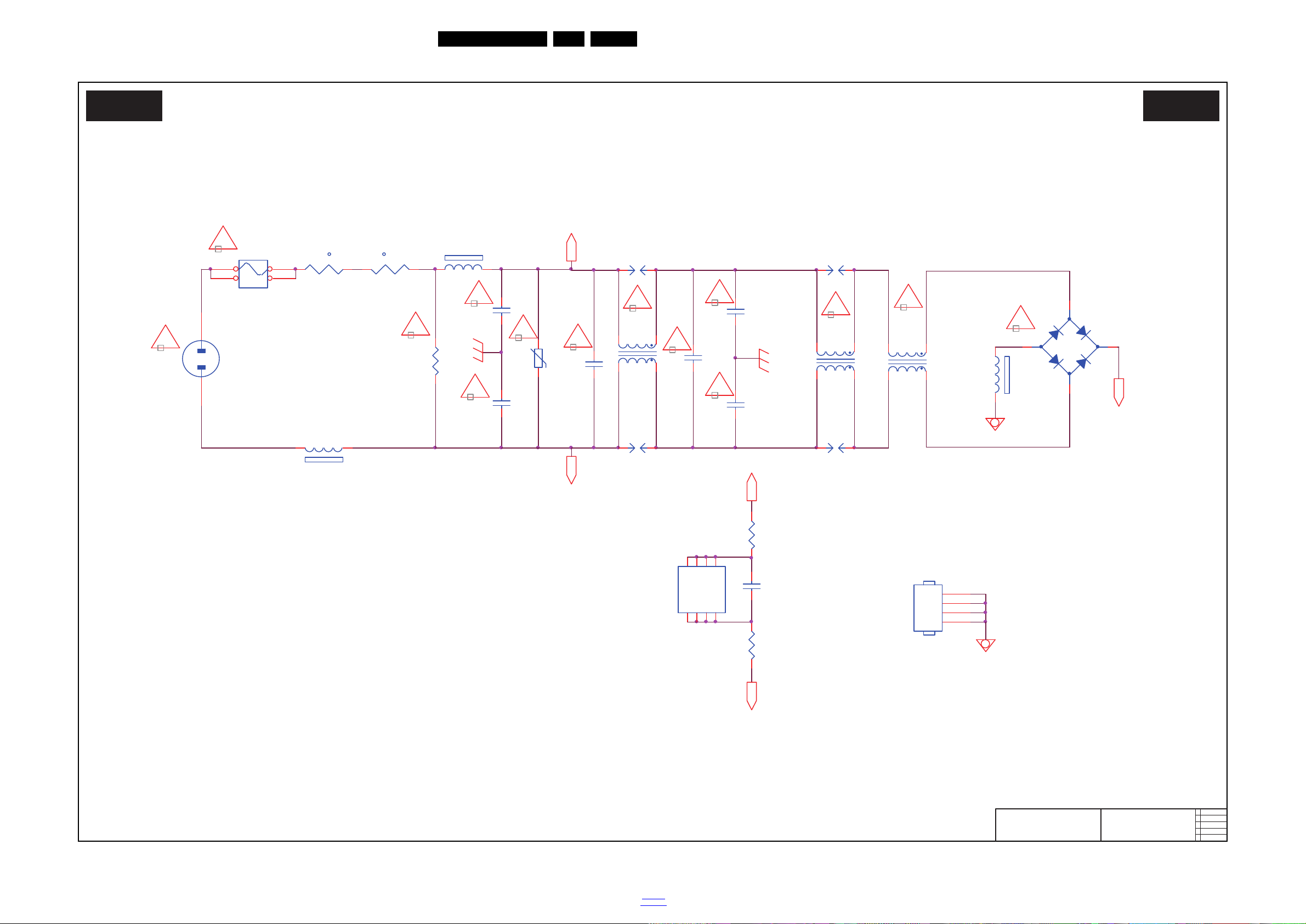

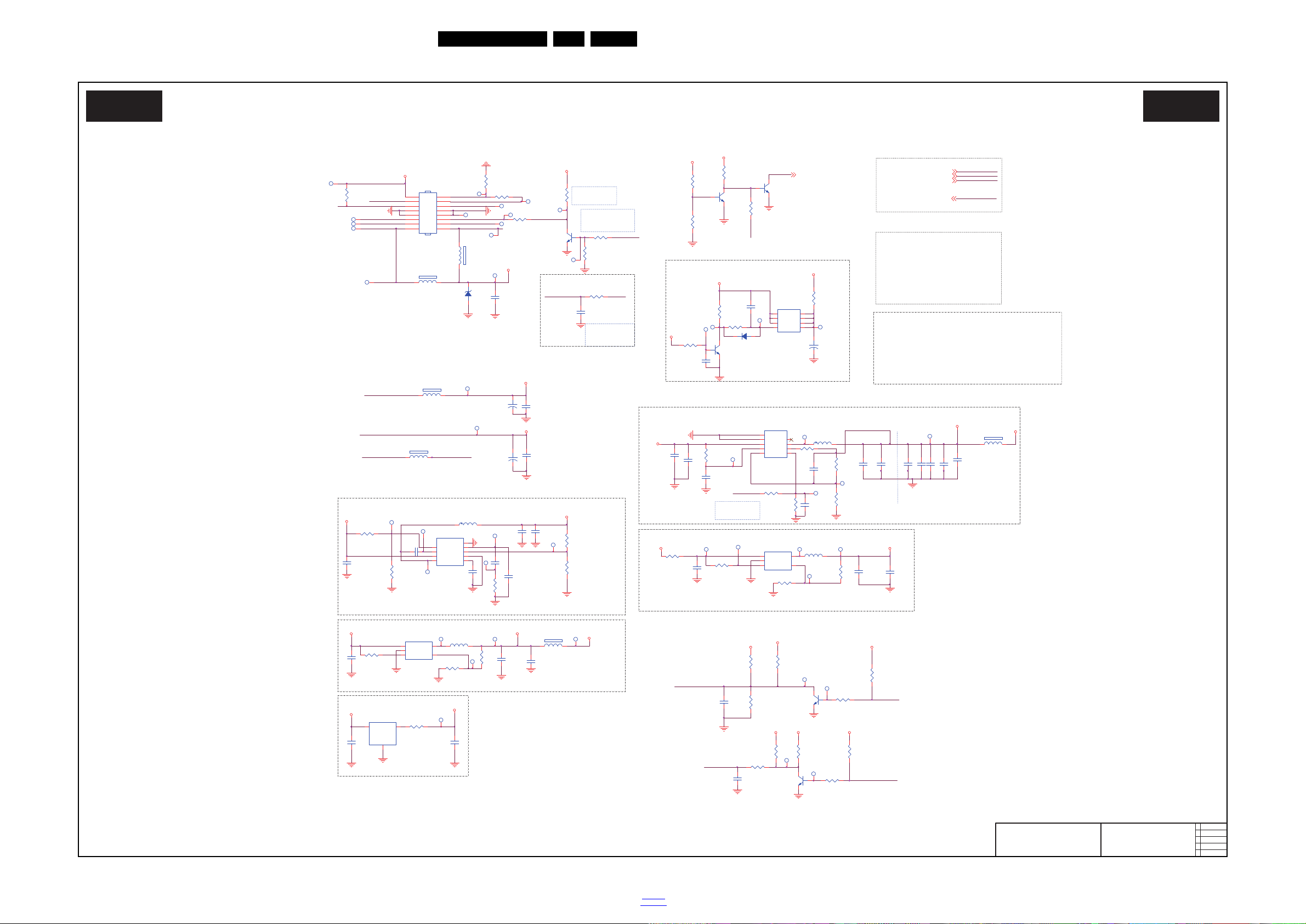

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G6197 PSU A 715G6161 PSU 54 56-57 A 715G6163 PSU 58 62-63 A 715G6169 PSU 64 69-70 A 715G6297 PSU 71 73-74 B 715G6324 SSB 81 94-95 B 715G6325 SSB 96 108-109 J 715G6167 IR/LED Panel 110 111 J 715G5772 IR/LED Panel 112 113

11. Styling Sheets 41x9 series 23" 114 4109 series 24" 115 4109 series 28" 116 4109 series 32" 117 4109 series 39" 118 4309 series 40" 119 4109 series 47" 120 4109 series 50" 121

50 52-53

Published by CQZ/SC 1443 Quality Printed in the Netherlands Subject to modification EN 3122 785 19625

2014-Oct-24

2014 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM14.1L LA1.

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications and added section 2.4 Connections ( for

23"/24"/28"PHG41x9 & 40"PFG4309).

• Chapter 4: Added figure 4-2 Cable dressing (24" 4109

series), 4-3 Cable dressing (28" 4109 series) and section

4.4 Assembly/Panel Removal ( for 23"/24"/28"PHG41x9/7x series).

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-3 Power Architecture table 7-1 Connector overview

layout cells (top view) (for 23"/24"/28"PHG41x9 & 40"PFG4309) and 7-5 DC/DC converters (for

23"/24"/28"PHG41x9 & 40"PFG4309).

• Chapter 8: Added sections 8.2 Diagram 10-7-8

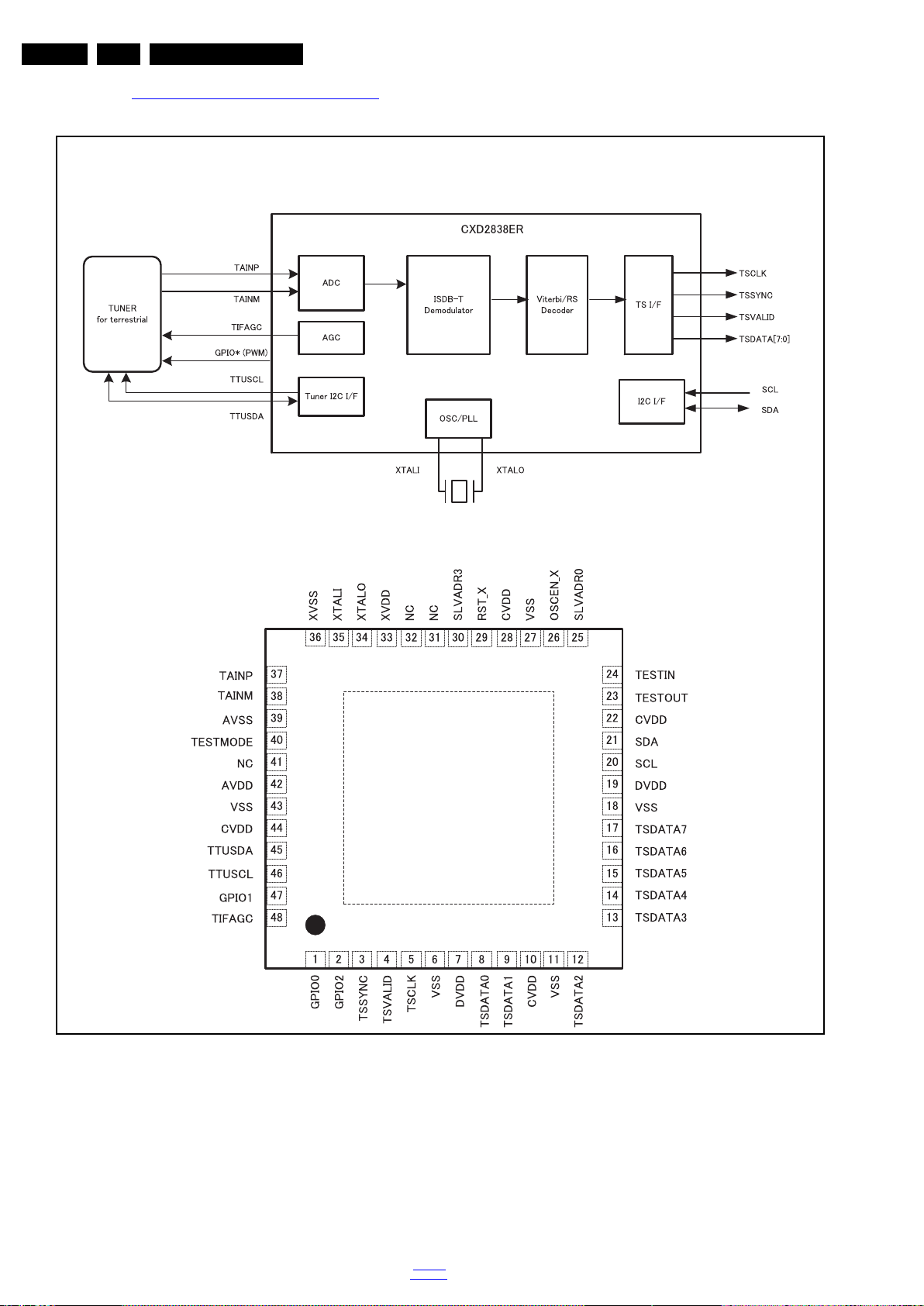

DEMODULATOR_CXD2838, B11, CXD2838ER-T4 (IC U101) and 8.3 Diagram 10-8-10 Audio AMPILIFER_STA381BW, B11, STA381BWTR (IC U601).

• Chapter 10: Added circuit diagrams 10.5 A 715G6297

PSU, 10.8 B 715G6325 SSB and 10.10 J 715G5772 IR/LED Panel.

• Chapter 11: Added styling sheets 11.2 4109 series 24" and 11.3 4109 series 28"

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

.

, added figures 7-2 SSB

.

Revision List

,

.

and

.

• Chapter 4: Added figure 4-1 Cable dressing (23" 41x9

series).

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

• Chapter 11: Added styling sheets 11.1 41x9 series 23"

.

Manual xxxx xxx xxxx.3

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 4: Added figure 4-6 Cable dressing (40" 4309

series) and section 4.5 Assembly/Panel Removal ( for 40PFG4309/78), updated 4-4 Cable dressing (32" 4109 series), 4-5 Cable dressing (39" 4109 series), 4-7 Cable dressing (47" 4109 series) and 4-8 Cable dressing (50" 4109 series).

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

• Chapter 7: Updated figure 7-3 Power Architecture

7-1 Connector overview

, and 7-5 DC/DC converters (for

.

, table

23"/24"/28"PHG41x9 & 40"PFG4309).

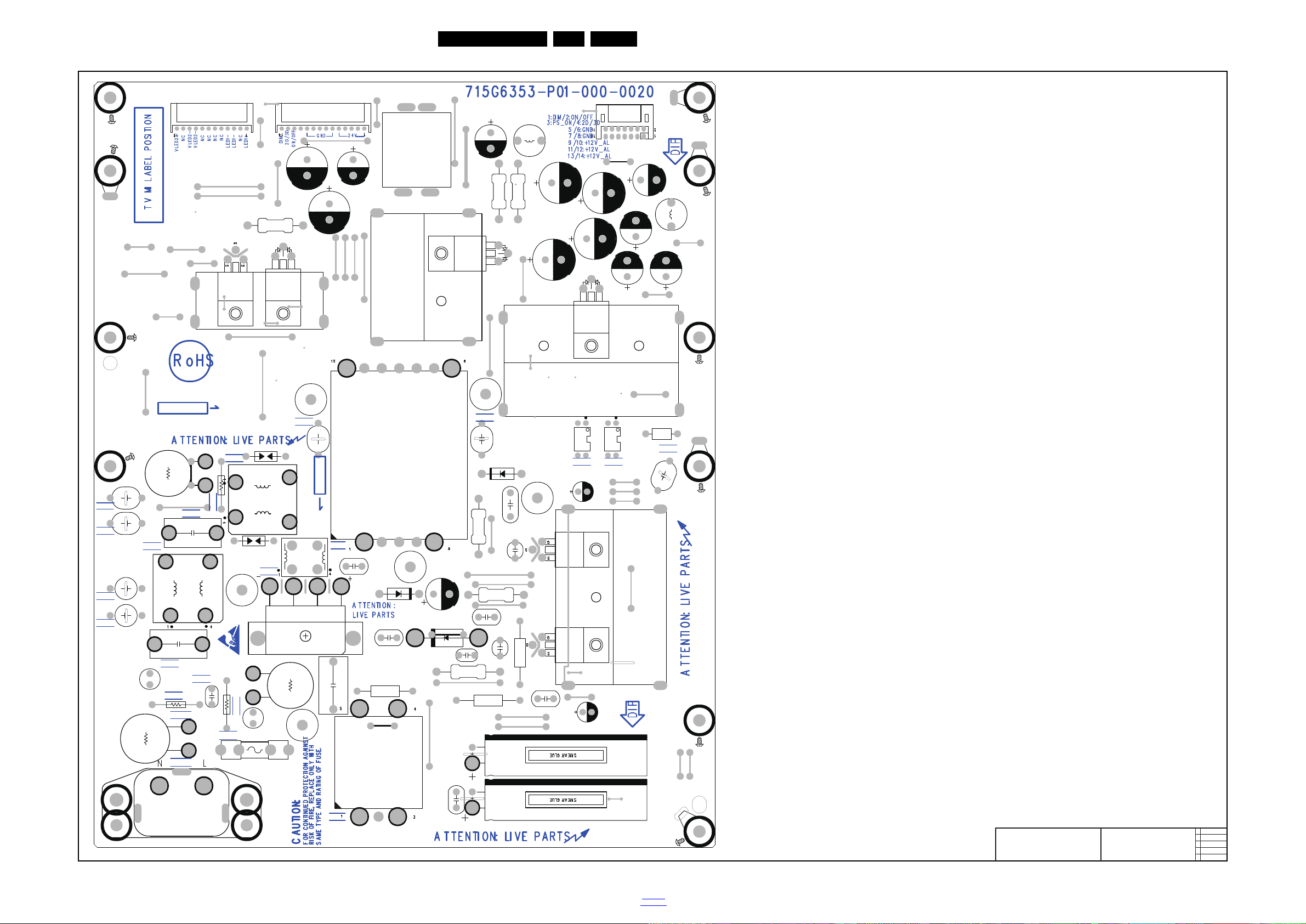

• Chapter 10: Added circuit diagrams 10.6 A 715G6353

PSU, and updated 10.9 J 715G6167 IR/LED Panel.

• Chapter 11: Added styling sheets 11.6 4309 series 40"

.

Manual xxxx xxx xxxx.4

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

Manual xxxx xxx xxxx.5

• Chapter 6: Updated table 6-3 Display code overview

.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections ( for 32"/39"/40"/42"/47"/50"PxG4109)

2.4 Connections ( for 23"/24"/28"PHG41x9 & 40"PFG4309)

2.5 Chassis Overview

Notes:

Table 2-1 Described Model Numbers and Diversity

24 910 11

CTN

23PHG4109/78 2-5 4-1 4-13 - 4-14 9.1 10.5 10.8 10.10 11.1 23PHG4119/78 2-5 4-1 4-13 - 4-14 9.1 10.5 10.8 10.10 11.1 24PHG4109/77 2-5 4-2 4-13 - 4-14 9.1 10.5 10.8 10.10 11.2 28PHG4109/77 2-5 4-3 4-13 - 4-14 9.1 10.1 10.8 10.10 11.3 32PFG4109/77 2-1 4-4 4-9 4-11 4-12 9.1 10.1 10.7 10.9 11.4 32PFG4109/78 2-1 4-4 4-9 4-11 4-12 9.1 10.1 10.7 10.9 11.4 32PHG4109/77 2-1 4-4 4-9 4-11 4-12 9.1 10.1 10.7 10.9 11.4 32PHG4109/78 2-1 4-4 4-9 4-11 4-12 9.1 10.1 10.7 10.9 11.4 39PFG4109/77 2-1 4-5 4-9 4-11 4-12 9.1 10.2 10.7 10.9 11.5 39PFG4109/78 2-1 4-5 4-9 4-11 4-12 9.1 10.2 10.7 10.9 11.5 40PFG4109/78 2-1 4-7 4-9 4-11 4-12 9.1 10.3 10.7 10.9 11.7

Mechanics

Connection Overview

Wire Dressing

Rear Cover Removal

Speakers Removal

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Schematics

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED panel)

Styling

2014-Oct-24

back to

div. table

Technical Specs, Diversity, and Connections

TV ANTENNA

LR

USB

SPIDF OUT

HDMI2 ARC

SERV.U

CVBS

HDMI 1

ARC

19620_001_140109.eps

140109

4

3

2

1

5

8

7

9

10

Side Connectors

Rear Connectors

6

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

24 910 11

Mechanics

Schematics

EN 3TPM14.1L LA 2.

CTN

40PFG4309/78 2-1 4-7 4-9 4-11 4-12 9.1 10.6 10.8 10.9 11.6 47PFG4109/77 2-1 4-7 4-9 4-11 4-12 9.1 10.3 10.7 10.9 11.7 47PFG4109/78 2-1 4-7 4-9 4-11 4-12 9.1 10.3 10.7 10.9 11.7 50PFG4109/77 2-1 4-8 4-9 4-11 4-12 9.1 10.4 10.7 10.9 11.8 50PFG4109/78 2-1 4-8 4-9 4-11 4-12 9.1 10.4 10.7 10.9 11.8

2.2 Directions for Use

Directions for use can be downloaded from the following

Connection Overview

Wire Dressing

Rear Cover Removal

Speakers Removal

SSB Removal

Block Diagram

Power Supply

http://www.philips.com/support http://www.p4c.philips.com

websites:

2.3 Conne ctions ( for 32"/39"/40"/42"/47"/50"PxG4109)

SSB

J (IR/LED panel)

Styling

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

2 - USB2 2.0

Figure 2-2 USB (type A)

1-+5V k

/ 75 W kq

PP

2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3- HDMI 2: Digital Video - In, Digital Audio with ARC - In/Out

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j

back to

div. table

Figure 2-3 HDMI (type A) connector

2014-Oct-24

EN 4 TPM14.1L LA2.

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

4- TV ANTENNA - In

Signal input from an antenna, cable or satellite.

5 - Audio - In: Right, VGA

Bu -Audio L/R in 0.5 V

/ 10 k jq

RMS

6 - Audio - In: Left, VGA

Bu -Audio L/R in 0.5 V

/ 10 k jq

RMS

7 - Video CVBS

Ye -Video - CBVS 1 V

/ 75 W jq

PP

8 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

2.3.2 Rear Connections

9 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

10- Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2014-Oct-24

back to

div. table

Technical Specs, Diversity, and Connections

USB

TV ANTENNA

LRCVBS

SERV.U

AUDIO IN

VGA/D VI

HDMI 1

SPIDF OUT

HDMI 2

ARC

19621_001.eps

1

2

3

4

5

6

8

7

9

10

11

Side Connectors

Rear Connectors

VGA

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

2.4 Connections ( for 23"/24"/28"PHG41x9 & 40"PFG4309)

EN 5TPM14.1L LA 2.

Figure 2-5 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.4.1 Side Connections

1 - Power Button

Turn on/off the TV.

2 - USB2 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3- HDMI 2: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-6 USB (type A)

Figure 2-7 HDMI (type A) connector

7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2.4.2 Rear Connections

5 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

6 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j

back to

div. table

Figure 2-8 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j

2014-Oct-24

EN 6 TPM14.1L LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

7 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

8 - Audio - In: Left / Right, VGA

Bu -Audio L/R in 0.5 V

/ 10 kW jq

RMS

9 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

10 - PC IN:VGA

Figure 2-9 VGA connector

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

11 - EXT: Video YPbPr - In, Audio - In

Gn - Video - CBVS 1 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

2.5 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2014-Oct-24

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 7TPM14.1L LA 3.

-6

),

-12

).

2014-Oct-24

EN 8 TPM14.1L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2014-Oct-24

back to

div. table

Precautions, Notes, and Abbreviation List

EN 9TPM14.1L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19622_100.eps

CN701

CN403

CN401

CN9904

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN401

ECN403

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal ( for 32"/39"/40"/47"/50"PxG4109/7x series)

4.4 Assembly/Panel Removal ( for 23"/24"/28"PHG41x9/7x series)

4.1 Cable Dressing

Mechanical Instructions

4.5 Assembly/Panel Removal ( for 40PFG4309/78)

4.6 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 11TPM14.1L LA 4.

Figure 4-1 Cable dressing (23" 41x9 series)

back to

div. table

2014-Oct-24

EN 12 TPM14.1L LA4.

19621_100.eps

CN701

CN403

CN401

CN9904

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN403

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

19621_101.eps

CN701

CN403

CN401

CN9101

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN403

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

Mechanical Instructions

Figure 4-2 Cable dressing (24" 4109 series)

2014-Oct-24

Figure 4-3 Cable dressing (28" 4109 series)

back to

div. table

Mechanical Instructions

19620_100_140109.eps

140109

CN601

CN701

CN403

CN8101

CN9101

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN403

ECN701

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

CN001

19620_101_140109.eps

140109

CN601

CN701

CN403

CN8501

CN9101

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN701

ECN403

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

CN001

EN 13TPM14.1L LA 4.

Figure 4-4 Cable dressing (32" 4109 series)

Figure 4-5 Cable dressing (39" 4109 series)

back to

div. table

2014-Oct-24

EN 14 TPM14.1L LA4.

19623_100.eps

CN701

CN403

CN401

CN9101

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN403

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN001

19620_102_140109.eps

140109

CN601

CN701

CN403

CN9101

CN8501

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN403

ECN701

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

CN001

Mechanical Instructions

Figure 4-6 Cable dressing (40" 4309 series)

2014-Oct-24

Figure 4-7 Cable dressing (47" 4109 series)

back to

div. table

Mechanical Instructions

19620_103_140109.eps

140109

CN601

CN701

CN403

CN9301

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN403

ECN701

ECN601

ECN401

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN8101

IR/LED BOARD

(1056)

J

CN001

EN 15TPM14.1L LA 4.

Figure 4-8 Cable dressing (50" 4109 series)

back to

div. table

2014-Oct-24

EN 16 TPM14.1L LA4.

19620_104_140108.eps

140108

1

M4 × 10

Q3× 8

1

2

M3 × 6

3

1 1

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal ( for 32"/39"/40"/47"/50"PxG4109/7x series)

Instructions below apply to the 39PFG4109/78, but will be similar for other 32"/39"/40"/47"/50"PxG4109/7x series models.

4.3.1 Rear Cover

Refer to Figure 4-9 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-9

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

2014-Oct-24

Figure 4-9 Rear cover removal [1]

back to

div. table

Mechanical Instructions

19620_105_140108.eps

140108

Q3 × 8

2

EN 17TPM14.1L LA 4.

4.3.2 Speakers

Refer toFigure 4-10

and Figure 4-11 for details.

1. Remove fixation screws [2] that secure the speakers cover, Refer to Figure 4-10

for details.

2. Gently lift the speakers cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

3. Remove the fixation screws [1] that secure the speakers. Refer to Figure 4-11

for details.

4. Gently take the cable [2] out from the snap.

5. Gently take the speakers out.

When defective, replace the whole unit.

Figure 4-10 Rear cover removal [2]

back to

div. table

2014-Oct-24

EN 18 TPM14.1L LA4.

19620_106_140108.eps

140108

1

2

19620_107_140108.eps

140108

2

1

3

Mechanical Instructions

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-12 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-12

for details.

Figure 4-11 Speakers removal

Figure 4-12 SSB removal

2014-Oct-24

4.3.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

back to

div. table

Mechanical Instructions

19621_102.eps

3

2

1

2

EN 19TPM14.1L LA 4.

4.3.5 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.6 IR/LED panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.3.7 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, IR/LED panel from the LCD panel and put it aside.

Warning:Cause the panels of 32"/39"/40"/47"/50"PxG4109/7x series are bolt-on panels, the panel could not release from bezel.

When defective, replace the whole unit.

4.4 Assembly/Panel Removal ( for 23"/24"/28"PHG41x9/7x series)

Instructions below apply to the 28PHG4109/77, but will be similar for other 23"/24"/28"PHG41x9/7x series models.

4.4.1 Rear Cover

Refer to Figure 4-13 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2] that secure the rear cover. Refer to Figure 4-13 for details.

2. At the indicated areas [3] the cover is secured by clips. Be

very careful with releasing those.

3. Gently lift the rear cover from the TV. Make sure that wires

and cables are not damaged while lifting the rear cover from the set.

for details.

4.4.2 Small Signal Board (SSB)

Refer to Figure 4-14 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS [1] connector that connect with the SSB. Caution: be careful, as these are very fragile connectors!

for details.

Figure 4-13 Rear cover removal

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.Refer to

Figure 4-14

for details.

back to

div. table

2014-Oct-24

EN 20 TPM14.1L LA4.

19621_103.eps

2

1

3

Mechanical Instructions

4.5.1 Rear Cover

Figure 4-14 SSB removal

4.4.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

Refer to Figure 4-15 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-15

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.4.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.5 Stand bracket

1. Remove all fixation screws of t he bracket.

2. Lift the bracket from the set.

4.4.6 IR/LED panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.4.7 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the stand bracket as described earlier.

4. Remove the IR/LED as described earlier.

5. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

6. Remove all other metal parts not belonging to the panel.

7. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.5 Assembly/Panel Removal ( for 40PFG4309/78)

2014-Oct-24

Instructions below apply to the 40PFG4309/78.

back to

div. table

Mechanical Instructions

19623_101.eps

1

M4 × 12

M3× 8

1

2

M3 × 6

3

1

19623_102.eps

2

1

3

EN 21TPM14.1L LA 4.

Figure 4-15 Rear cover removal

4.5.2 Small Signal Board (SSB)

Refer to Figure 4-16 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-16

for details.

Figure 4-16 SSB removal

4.5.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

back to

div. table

2014-Oct-24

EN 22 TPM14.1L LA4.

4.5.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.5.5 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.5.6 IR/LED panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.5.7 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the stand bracket as described earlier.

4. Remove the IR/LED as described earlier.

5. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

6. Remove all other metal parts not belonging to the panel.

7. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-8

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

2014-Oct-24

back to

div. table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPM140L x.yy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

EN 23TPM14.1L LA 5.

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

back to

div. table

2014-Oct-24

EN 24 TPM14.1L LA5.

Service Modes, Error Codes, and Fault Finding

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home/Menu” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00057 This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM144L_002.004.000.00 1” See paragraph Software Identification, Version, and Cluster

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “001 224 032 000 038 137 220

OP2 e.g. “159 255 127 045 011 017 000

Clear Codes Press [OK] to clean the Error

Options OP#1-OP#8 e.g. “001” Option code Alignments Warm R Gain To align the White Tone. See

NVM editor NVM editor NVM-editor will function as in the past: Address and Value

Upload to USB Channel List To upload several settings from the TV to an USB stick

Codes immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Service Data Edit and display the applicable service data by using the displayed key pad

NVM Copy Readable info EDID Copy

015”

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

field is a decimal value via digit entry

for the software name

2014-Oct-24

back to

div. table

Service Modes, Error Codes, and Fault Finding

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Channel List To download severa l se ttings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

NVM Copy EDID Copy

immediately

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

EN 25TPM14.1L LA 5.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture,

1 PANEL_ID see Table 6-3

2 ERR Code: xxx xxx xxx xxx

xxx 3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the

5 NVM VALUE 0 Displays the value at the NVM address of item 5 6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted

8 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The

9 CLR_TEMP_R 128 87 124 124 128 128 128 128 Red colour temperature setting 10 CLR_TEMP_G 120 97 128 102 118 122 97 122 Green colour temperature setting 11 CLR_TEMP_B 128 128 123 128 95 117 61 90 Blue colour temperature setting 12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar ( col ou r bar),

13 ADC_GAIN_R 0 Red ADC gain 14 ADC_GAIN_G 128 128 199 128 128 128 128 128 Green ADC gain 15 ADC_GAIN_B 128 128 197 128 128 128 128 128 Blue ADC gain

000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation,

Description23" 24" 28" 32" 39" 40" 47" 50"

BL Dimming, Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

Displays and changes the Panel ID with the left and right cursor ; be careful changing this, it can result in not correct displaying the screen!

according to table 5-4 Error code table

correct NVM address

USB memory stick. The TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. U ploading i s of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

TV will save the two files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

any timing.

back to

div. table

2014-Oct-24

EN 26 TPM14.1L LA5.

Default value

Item Item value

16 ADC_OFFSET_R 255 255 255 255 255 255 255 255 Red ADC offset 17 ADC_OFFSET_G 255 255 255 255 255 255 255 255 Green ADC offset 18 ADC_OFFSET_B 255 255 255 255 255 255 255 255 Blue ADC offset 19 VIRGING_MODE off Use this to return the set to virgin mode. Dep ends whether the set ha s been

20 E_Fuse on E-fuse mode 21 ORT_MODE off ORT mode 22 AGEING MODE off Use this for aging a new LCD panel 23 RESET_PBS_PWD Press OK Use this to reset the Child Lock 24 VIDEO_PWM_MEDIUM 0 VIDEO PWM Medium value 25 VIDEO_PWM_MINIIMUN 0 VIDEO PWM Minimum value 26 VIDEO_PWM_MAXIMUN 0 V IDEO PWM Maximum value 27 PWM_RATIO_BEST_PICTURE0 PWM ratio best picture

28 PWM_RATIO_STD_TOP 0 PWM ratio standard top 29 PWM_RATIO_STD_BOTTOM 0 PWM ratio standard bottom 30 PWM_RATIO_BEST_POWER0 PWM ratio best power

31VIDEO_STD_TH_HIGH 0022400000VIDEO standard threshold high 32 VIDEO_STD_TH_LOW 0 VIDEO standard threshold low 33 YPBPR_PHASE InValid Not available for this chassis 34AUD_GAIN_LINEIN 000000-30Line-in audio gain 35AUD_GAIN_HDMI -1-1-1-1-1-1-4-1HDMI audio gain 36AUD_GAIN_ATV 00000070Analogue TV audio gain 37 AUD_GAIN_DTV -8 -8 -8 -8 -8 -8 3 -8 Digital TV audio gain 38AUD_GAIN_USB 00000-1-90USB audio gain 39ESTICKER NVM1 00770880ESTICKER value 40ESTICKER NVM2 00000000ESTICKER value 41 ESTICKER NVM3 0 0 213 213 0 238 238 0 ESTICKER value 42ESTICKER NVM4 00660550ESTICKER value 43 ESTICKER NVM5 0 ESTICKER value 44 ESTICKER NVM6 0 ESTICKER value 45 ESTICKER NVM7 0 ESTICKER value 46 ESTICKER NVM8 0 ESTICKER value 47 ESTICKER NVM9 0 ESTICKER value 48 ESTICKER NVM10 0 ESTICKER value 49 ESTICKER NVM11 0 0 16 16 0 16 16 0 ESTICKER value 50 ESTICKER NVM12 0 0 31 31 0 31 31 0 ESTICKER value 51ESTICKER NVM13 00110330ESTICKER value 52 ESTICKER NVM14 0 ESTICKER value 53 ESTICKER NVM15 0 ESTICKER value 54 ESTICKER NVM16 0 ESTICKER value 55 ESTICKER NVM17 0 ESTICKER value 56 ESTICKER NVM18 0 ESTICKER value 57 ESTICKER NVM19 0 ESTICKER value 58 ESTICKER NVM20 0 ESTICKER value 59 ESTICKER RESET Press OK ESTICKER reset 60 DIM_LIB RESET Press OK Reset the Dimming 61 SRC_METER-RESET Press OK Reset the Source meter 62 AMBLIGHT RESET Press OK AMBLIGHT RESET 63 ACFG RESET Press OK REST ACFG 64AQ_INDEX 33311422Audio Quality index 65 AUDIO TEST MODE off Used for audio testing during production 66 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system 67 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test pa tterns can

68 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 69 TCON_GAMMA_UPDATE Invalid TCON gamma update 70 DUMP FQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT forma tted

71 LOAD FQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 72 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted

73 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 74 PANEL FLIP OFF ON OFF OFF ON OFF OFF OFF Flip panel 75 CVI_SOURCE OFF OFF OFF OFF OFF OFF OFF OFF Enable/Disable CVI source 76 VGA_SOURCE ON ON ON ON OFF ON OFF OFF Enable/Disable VGA source 77 HDMI2 OFF Enable/Disable HDMI2 source 78 HDMI SIDE ON Enable/Disable HDMI SIDEsource 79 RESET_OPTION_CODE Press OK Reset Option Code 80 EXIF_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description23" 24" 28" 32" 39" 40" 47" 50"

used already.

be chosen

USB memory stick

How to Exit the Factory mode

Use one of the following methods:

2014-Oct-24

back to

div. table

• Select EXIT_FACTORY from the menu and press the “OK” button.

Service Modes, Error Codes, and Fault Finding

EN 27TPM14.1L LA 5.

Note: When the TV is switched “off” by a power interrupt, or

normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel table structure.

• 2.9 Error Codes Detects and displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active,it

is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 a Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 Bootloader ID ID of Bootloader.

NVM version Detects and displays NVM version.

• 2.5

• 2.6 Flash ID ID of flash model.

back to

div. table

2014-Oct-24

EN 28 TPM14.1L LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2014-Oct-24

Figure 5-1 Stepwise Start-up

back to

div. table

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 29TPM14.1L LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

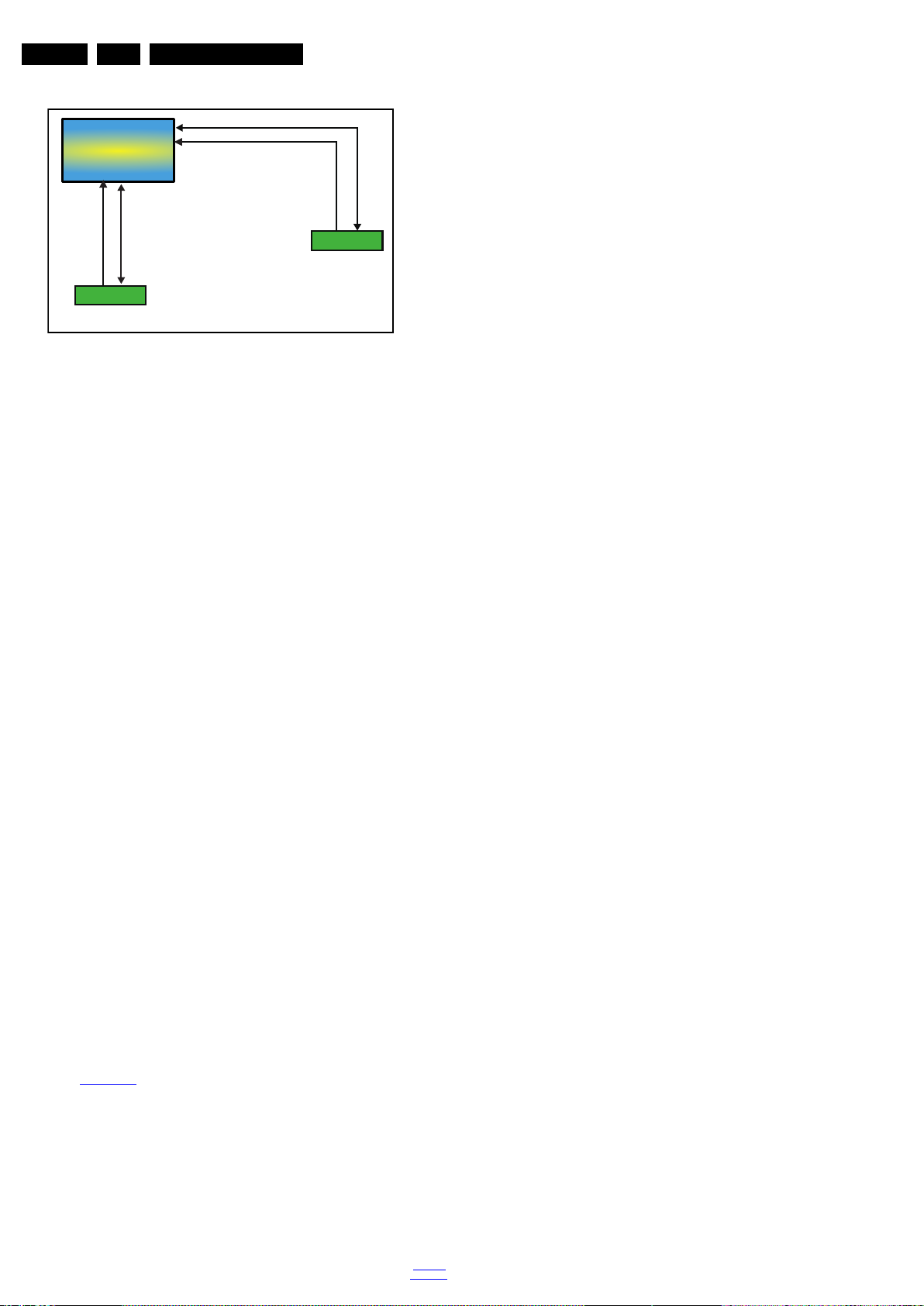

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div. table

.

2014-Oct-24

EN 30 TPM14.1L LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes, Error Codes, and Fault Finding

• FUS_clustername_version.zip: Contains the file downloaded which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended al ignments SDM Service default Mode

19080_208_110324.eps

110324

CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories MT5561LVNT can be

NVM-Editor in SAM NVM-editor wi ll function as in the past: Address an d Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

done via USB. The main SW can be upgraded via the ZIP file downloaded.

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

110324

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

2014-Oct-24

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 31TPM14.1L LA 5.

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

2014-Oct-24

EN 32 TPM14.1L LA5.

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

Service Modes, Error Codes, and Fault Finding

2014-Oct-24

back to

div. table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignm en t Co nd it io n s

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

EN 33TPM14.1L LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 23PHG4109/78 128 120 128

23PHG4119/78 127 119 128 24PHG4109/77 87 96 125 28PHG4109/77 124 126 120 32PFG4109/77 128 102 105 32PFG4109/78 127 100 103 32PHG4109/77 126 101 110 32PHG4109/78 125 96 102 39PFG4109/77 128 115 95 39PFG4109/78 126 110 92 40PFG4109/78 126 97 60 40PFG4309/78 128 122 117 47PFG4109/77 128 95 61 47PFG4109/78 125 90 60 50PFG4109/77 125 120 90 50PFG4109/78 123 118 86

Colour temperature

Red Green Blue

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

back to

div. table

2014-Oct-24

EN 34 TPM14.1L LA6.

Alignments

Colour temperature

Picture mode Screen size

Cool (11000K) 23PHG4109/78 109 109 128

23PHG4119/78 108 109 126 24PHG4109/77 128 113 120 28PHG4109/77 103 120 125 32PFG4109/77 124 88 75 32PFG4109/78 120 85 70 32PHG4109/77 128 85 76 32PHG4109/78 120 83 72 39PFG4109/77 127 120 111 39PFG4109/78 123 116 103 40PFG4109/78 128 105 94 40PFG4309/78 120 121 128 47PFG4109/77 125 108 92 47PFG4109/78 123 100 91 50PFG4109/77 121 123 90 50PFG4109/78 128 128 93

Warm (6500K) 23PHG4109/78 128 82 65

23PHG4119/78 127 81 63 24PHG4109/77 99 1 03 124 28PHG4109/77 117 120 79 32PFG4109/77 123 85 76 32PFG4109/78 122 84 75 32PHG4109/77 125 84 73 32PHG4109/78 124 82 70 39PFG4109/77 128 91 48 39PFG4109/78 125 90 45 40PFG4109/78 128 110 108 40PFG4309/78 128 106 75 47PFG4109/77 128 111 109 47PFG4109/78 126 109 106 50PFG4109/77 121 105 50 50PFG4109/78 128 110 53

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

23PHG4109/78 LTA230AN01 C01 161 23PHG4109/78 LTA230AN01-001 171 23PHG4119/78 LTA230AN01-001 171 24PHG4109/77 TPM236H3-BJ1L02 157 24PHG4109/77 TPM236H3-BJ1L03 164 24PHG4109/77 TPM236H3-BJ1L01 177 28PHG4109/77 TPT275B5-A014 158 32PFG4109/77 TPT315B5-EUJFFA 154 32PFG4109/78 TPT315B5-EUJFFA 154 32PHG4109/77 TPT315B5-DXJSFE 151 32PHG4109/78 TPT315B5-DXJSFE 151 39PFG4109/77 T PT390J1-HJ1L02 153 39PFG4109/77 T PT390J1-HVN04 165 39PFG4109/78 T PT390J1-HJ1L02 153 39PFG4109/78 T PT390J1-HVN04 165 40PFG4109/78 T PT400LA-HM06 160 40PFG4309/78 T PT400LA-J6PE1 166 47PFG4109/77 TPT470H1-DUJFFE 155 47PFG4109/78 TPT470H1-DUJFFE 155 50PFG4109/77 T PT500J1-HVN04 159 50PFG4109/78 T PT500J1-HVN04 159

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5561 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

. After resetting the Display

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For

2

C

this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

2014-Oct-24

back to

div. table

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code Make sure when replacing an SSB the SSB identification codes match the replacement panel.

Alignments

EN 35TPM14.1L LA 6.

back to

div. table

2014-Oct-24

EN 36 TPM14.1L LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5561LVNT/B PBGA-329

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM14.1L LA is a new chassis launched in LATAM in

2014. The whole range is covered by MT5561. The major deltas versus its predecessor support NTSC; PAL-M; PAL-N AND ISDB-T with also multi-media, CEC, ARC, SPDIF functionality.

The TPM14.1L LA chassis comes with the following stylings:

• series xxPFG4109xx

• series xxPHG41x9xx

• series xxPHG4309xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5561LVNT/B PBGA-329 for LA 4100 series

• TUNER BRAZIL SUT-RA231ZN

• DECODER CXD2838ER-T4 VQFN-48.

• AUDIO STA381BWTR 20W VQFN-48 for Audio Amplifier

7.1.2 TPM14.1L LA Architecture Overview

For details about the chassis block diagrams refer to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

2014-Oct-24

back to

div. table

7.1.3 SSB Cell Layout

19620_200_140109.eps

140109

DDR

HDMI

TUNER

SPDIF OUT

DC/DC

MT5561

USB

Headphone

SERVICE CONNECTOR

HDMI

ANALOG I/O

Circuit Descriptions

EN 37TPM14.1L LA 7.

Figure 7-1 SSB layout cells (top view) (for 32"/39"/40"/42"/47"/50"PxG4109/7x)

back to

div. table

2014-Oct-24

EN 38 TPM14.1L LA7.

19621_200.eps

TUNER

DC/DC

MT5561

DDR

Power Button

Analog Input

USB

Headphone

HDMI

ANALOG I/O

SPDIF

OUT

AUDIO IN

7.1.4 SSB Cell Layout

Circuit Descriptions

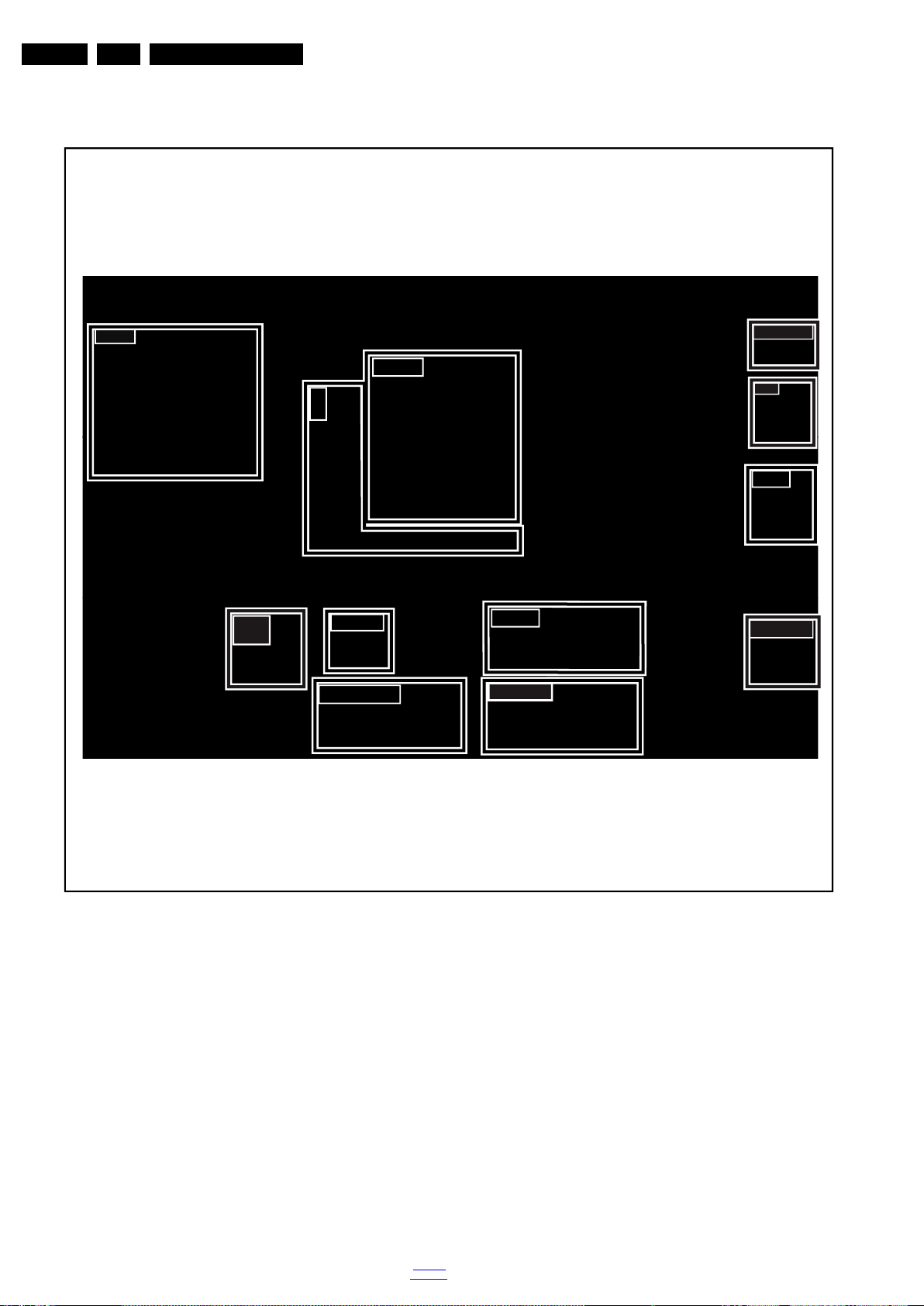

Figure 7-2 SSB layout cells (top view) (for 23"/24"/28"PHG41x9 & 40"PFG4309)

2014-Oct-24

back to

div. table

7.2 Power Supply

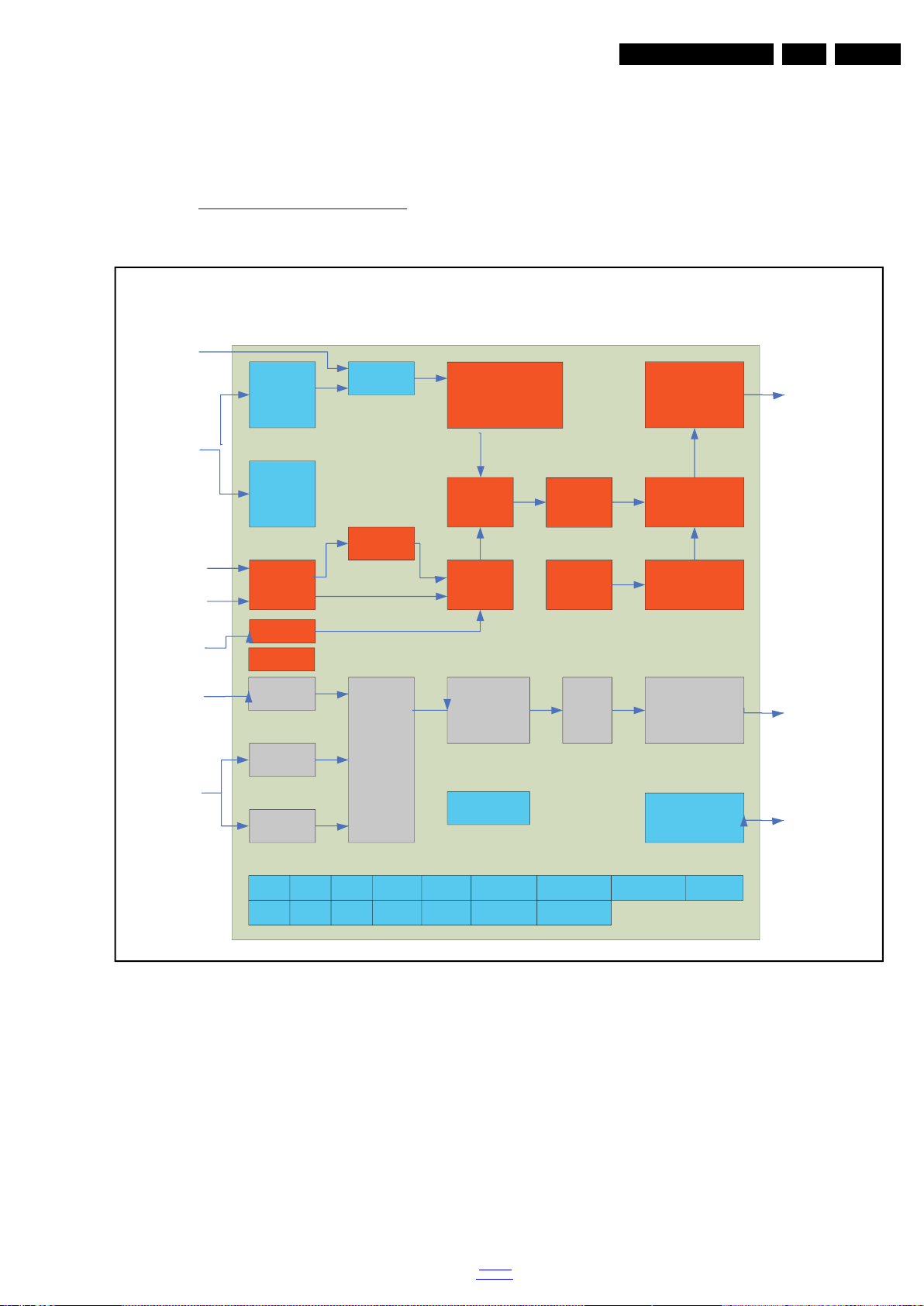

19620_201_140111.eps

140111

Display power

Platform MT5561

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

CN8101(FOR 715G6169/715G6197/715G6297/715G6353) CN8501(FOR 715G6161/715G6163)

DIM

12V

12V-Audio

12V

+12V-AL

CN701

AMP

12V

Refer to figure Figure 7-3 for the power architecture of this platform.

Circuit Descriptions

EN 39TPM14.1L LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the TPM14.1L LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+12V) (audio power) (on-mode)

• +12V (bolt-on power) (on-mode)

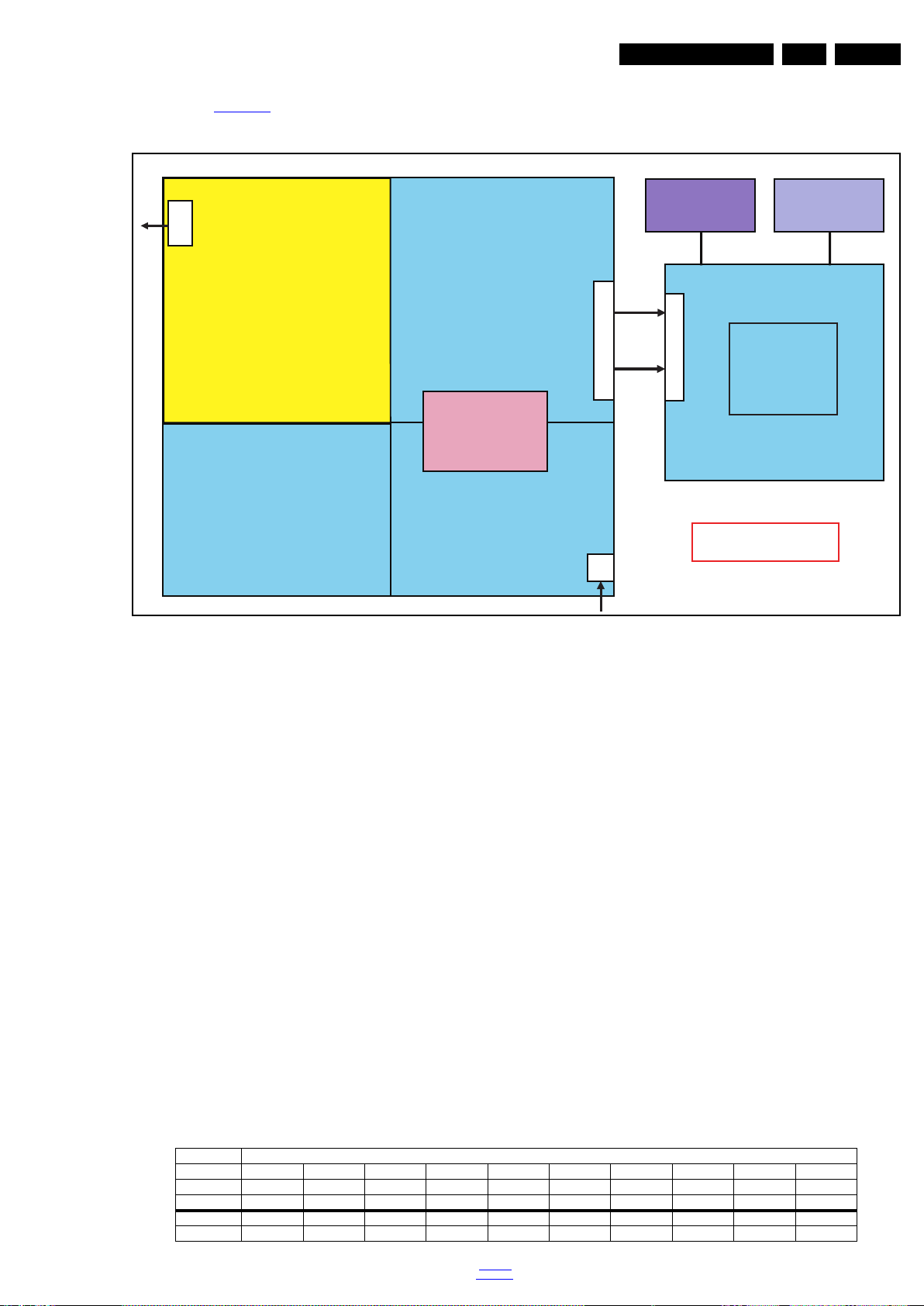

Figure 7-3 Power Architecture

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Connector Number CN9101 CN9101 CN9301 CN9904 CN9101 CN8101 CN8101 CN8501 CN8501 CN8101 Description to SSB to SSB to SSB to SSB to SSB to panel to panel to panel to panel to panel Pin1414141414128 8 1212

1 DIM DIM DIM DIM DIM VLED+ LED1 VLED+ LED1+ VLED_1+ 2 On/off On/off On/off ON/OFF On/off n.c. LED2 VLED+ n.c. n.c.

back to

div. table

2014-Oct-24

EN 40 TPM14.1L LA7.

19620_202_140111.eps

140111

Q401

A04449-7A

AMP STA381BWTR

Q711

PANEL_VCC

PVDD

12V

Circuit Descriptions

Connector

Number CN9101 CN9101 CN9301 CN9904 CN9101 CN8101 CN8101 CN8501 CN8501 CN8101 Description to SSB to SSB to SSB to SSB to SSB to panel to panel to panel to panel to panel Pin1414141414128 8 1212

3 n.c. PS_ON PS_ON n.c. PS_ON VLED- VLED+ n.c. LED1- VLED_14 n.c. n.c. n.c. n.c. 2D/3D VLED- VLED+ n.c. LED1- VLED_15 GND GND GND GND GND n.c. LED3 VLED- n.c. n.c. 6 GND GND GND GND GND n.c. LED4 VLED- n.c. n.c. 7 GND GND GND GND GND n.c. n.c. n.c. n.c. n.c. 8 GND GND GND GND GND n.c. n.c. n.c. n.c. n.c. 9 +12V-AUDIO +12V-AUDIO +12V-AUDIO +12V-AUDIO +12V-AUDIO VLED- - - LED1- VLED_210 +12V-AUDIO +12V-AUDIO +12V-AUDIO +12V-AUDIO +12V-AUDIO VLED- - - LED1- VLED_211 +12V +12V +12V +12V +12V n.c. - - n.c. n.c. 12 +12V +12V +12V +12V +12V VLED- - - LED1+ VLED_2+ 13 +12V_AL +12V_AL +12V_AL +12_AL +12V_AL - - - - 14 +12V_AL +12V_AL +12V_AL +12_AL +12V_AL - - - - -

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls.

• +3V3, supply voltage for Keyboard

• +12V, input from the power supply for the panel common(active mode)

• +12V, input from the power supply for the AMP

• +1V2, from the power supply for the scaler IC MT5561

• +1V5, supply voltage for DDR2 ( diagram B03B)

• +3V3, genenal supply voltage

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for the USB Power

• +3V3 from the power supply for the scaler IC NT72567

• +3V3-DVBS, clean voltage for DVB-S2 channel decoder

• +1.1V, clean voltage for Demod channel decoder

Figures gives a graphical representation of the DC/DC converters with its current consumptions :

2014-Oct-24

Figure 7-4 DC/DC converters (for 32"/39"/40"/42"/47"/50"PxG4109/7x)

back to

div. table

Circuit Descriptions

1.95A(Max) 120mA(Max)

LDO

Q702

1A

+5V_SW

MT5561 IO Power

DDRV(1.5V)

G5695T11UAO4449

AVDD3V3

MT5561 DRAM Power

U705

CVDD (1.1V)

FB704

375mA(Max)

300mA(Max)

Demod Power

MOS

1A

DVDD3V3

DC-DC

U705

DC-DC

U411

G9661

G5695T11U

TBD

G1117-33

G5250M1T1U

USB Power

TUNER3.3V

FB101

USB_PWR_EN0

U112

195mA

USB_PWR_OCP0

Tuner Power

DC-DC

U402

1A

+12VSB_PRE

DC-DC

G5759F11U

4A

MS5561 Core Power/Analog Power

+5VSB

5A

DC-DC

uP1734PSW8

VCCK AVDD1V2+12V

FB702

FB703

G903T63UF

600mA

LDO

PS_ON

3V3SB

U702

U703

U706

19621_201.eps

Q401

A04449-7A

AMP STA381BWTR

Q711

PANEL_VCC

PVDD

12V AMP

12V

IF

X

IF_AGC

RF_AGC

MT5561

IF_AGC

SUT-RA231ZN

I2C

I

2

C

19620_203_140113.eps

140113

IF

IF-AGC

TS DATA

XRF_AGC

RF_AGC

MT5561

DECODER

CXD2838ER-T4

IF_AGC

SUT-RA231ZN

I2C

I

2

C

19620_204_140113.eps

140113

EN 41TPM14.1L LA 7.

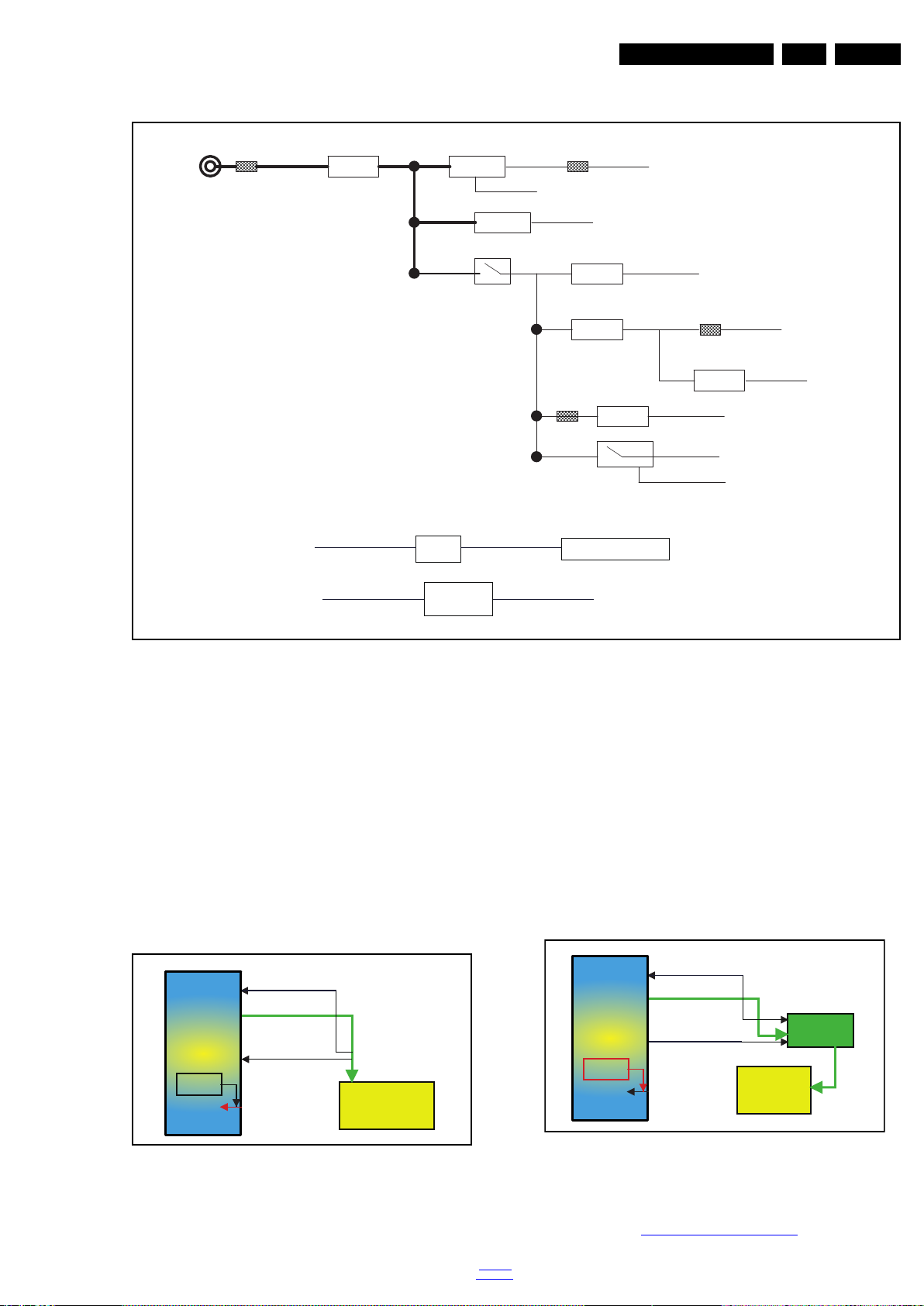

Figure 7-5 DC/DC converters (for 23"/24"/28"PHG41x9 & 40"PFG4309)

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for analogue tuner consist of the following key components:

• TUNER BRAZIL SUT-RA231ZN(NTSC, PAL-M, PAL-N

and ISDB-T)

• SCALER MT5561LVNT/B PBGA-329

Below find a block diagram of the front-end application for analogue part.

7.4.2 DTV part

The Front-End for DVT part consist of the following key components:

• TUNER BRAZIL SUT-RA231ZN (NTSC,PAL-M, PAL-N

and ISDB-T)

• SCALER MT5561LVNT/B PBGA-329

• DECODER CXD2838ER-T4 VQFN-48

Below find a block diagram of the front-end application for DTV part.

Figure 7-6 Front-End Analogue block diagram

7.5 HDMI

back to

div. table

Figure 7-7 Front-End DVB-T2 DTV block diagram

Refer to figure 7-8 HDMI input configuration for the application.

2014-Oct-24

EN 42 TPM14.1L LA7.

19620_205_140113.eps

140113

MT5561

HDMI Side

REAR HDMI

CN502

CN504

RX

I2C

I

2

C

Figure 7-8 HDMI input configuration

The following HDMI connector can be used:

• HDMI Side: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input/ARC

• Rear HDMI: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• Embedded EDID

• HPD control

• Sync detection

• TMDS output control

• CEC control

Circuit Descriptions

7.6 Video and Audio Processing -

MT5561LVNT/B

PBGA-329

The MT5561LVNT/B is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG 1-2, H.264, MPEG-4)

•

A transport de-multiplexer

• A muti-standard video decoder

• Rich format audio codec

• HDMI 1.4a receiver with 3D support

• 2D/3D converter

• Local dimming (LED backlight)(0ption)

• Panel overdrive control

• Two-link LVDS

The MT5561LVNT/B combines front-end video processing

functions, such as ATSC,DVB-T/T2,DVB-C,DVB-S2 channel decoding, MPEG 1-2/H.264 decode, analog video decode and HDMI reception, with advanced back-end video picture improvements. It also includes next generation Motion Accurate

Picture Processing High flat panel screen resolutions and refresh rates are supported with formats including 1360 × 768 @ 60Hz and 1920 x 1080 @ 60Hz.It integrates high-quality

HDMI 1.4a, USB 2.0 receiver, Ethernet MAC+PHY, Single core CPU. Professional error-concealment provides stable, smooth and mosaic-free video quality

For a functional diagram of the MT5561LVNT/B, refer to Figure 8-1

.

2014-Oct-24

back to

div. table

IC Data Sheets

19620_300_140111.eps

140111

Block diagram

MT5561LVNT

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-7-2 MT5561 VCCK&DD RV, B02,MT5561LVNT (IC U401J)

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI Input/

MHL

Demod

NTSC/

PAL/

SECAM

ATD

Video

ADC

HDMI Rx

MHL Rx

TS

Demux

TV

Decoder

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders (option)

De-

interlace

Video Input

Vplane

scaler

Grapihc

LVDS/min-LVS/

EPI

OD, TCON

(option)

2D/3D Converter

Post Processing

(option)

OSD

scaler

EN 43TPM14.1L LA 8.

Panel

SIF

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

JTAG IrDA

PCR

I2C

Smart

RTC UART SDIO

Card

Audio DSP

Audio

Input

ARM

USB2.0 PWM

Watchdog Serial Flash

Ethernet

Figure 8-1 Internal block diagram

Audio

I/F

NAND Flash

Servo ADC

Audio DAC

DDR3

Controller

T8032

SPDIF Out, I2S

ADAC L/R x 2

16-bit

Embedded

DDR3

back to

div. table

2014-Oct-24

EN 44 TPM14.1L LA8.

19620_301_140111.eps

140111

Pinning Information

MT5561LVNT

33229

11

22

33

44

55

66

77

88

99

110

AA

DVSS

AO0P AOCKP AE1P DVSS CI_A3

BB

GPIO0

AO0N AOCKN AE1N CI_D0 CI_REG#

CC

TCON4

TCON2

AO1P

AO2P

AO3P

AE0P

AE2P

AE3P

CI_A1

CI_MOVAL

DD

TCON5

TCON7

AO1N

AO2N

AO3N

AE0N

AE2N

AE3N

CI_A0

CI_A4

EE

TCON3

TCON0

GPIO1

OPWM0

CI_MDO1

CI_MDO2

CI_A12

CI_A5

FF

TCON8

TCON1

TCON6

OSCL1

OSDA1

DVSS

CI_CD2#

CI_D2

CI_A2

GG

PDD6

PDD0

PDD3

PDD1

OPWM1

OPWM2

DVSS

HH

PDD4

GPIO4

GPIO3

DVSS

JJ

POOE #

POCE1#

PDD7

POCE0#

POWE#

PDD5

DVSS VCCK

DVSS

KK

PACLE

PAALE

PDD2

PARB#

VCCK

DVSS

LL

VCCK

DVSS

MM

DVSS

VCCK

DVSS

NN

DDRV

DVSS

VCC3IO

PP

DDRV REF

ZQ

AOLRC K

OSDA0 DVSS

ADIN1

VCC3IO

RR

AOBC K

AOMCLK

AOSDAT A0

ASPDIF O

OSCL0

DVSS ADIN7

AVDD33_E TH

AVDD33_HD MI

TT

OPWRSB

OIRI

AOSDAT A1

DVSS

ADIN6

ADIN0

ADIN4

UU

U0TX

U0RX

OPCTRL 0

OPCTRL 4

ADIN5

ADIN3

HDMI_0_SCL

ADIN2

HDMI_0_R X_1B

HSYNC

VV

OPCT RL3

OPCTRL1

OPCTRL 2

VGA_SD A

VGA_SCL

HDMI_0_S DA

HDMI_0_RX_ 0B

HDMI_0_RX_0

HDMI_0_R X_1

VSYNC

WW

RXVN

RXVP

REXT_E TH

HDMI_0_HPD

HDMI_0_RX_ CB

HDMI_0_R X_2B

ORESETB

YY

TXVN

TXVP

DVSS

AVDD12 _ETH

AVDD12_HDM I_0

HDMI_0_RX_ C

HDMI_0_R X_2

AVDD10_LD O

11

22

33

44

55

66

77

88

99

110

IC Data Sheets

Figure 8-2 Internal pin configuration [1/2]

2014-Oct-24

back to

div. table

IC Data Sheets

19620_303_140111.eps

140111

Pinning Information

MT5561LVNT

111

112

113

114

115

116

117

118

119

220

AA

CI_MCLKO

CI_MDI4

CI_A14

CI_MDI0

CI_IORD#

CI_A10

FSRC_WR

BB

CI_A6

CI_MIVAL

CI_WE#

CI_A13 CI_A11

CI_CE1#

CI_D7

CC

CI_WAIT#

CI_RESET

CI_MDI3

CI_MDI2

CI_MDI1

CI_A8

CI_A9

CI_OE#

CI_MDO7

CI_MDO6

DD

CI_MOSTRT

CI_A7

CI_D1

CI_MCLKI

CI_MISTRT

CI_IOWR#

CI_D6

CI_MDO5

CI_D5

EE

CI_MDO0

CI_MDI5

CI_MDI7

CI_MDO3

CI_D3

CI_CD1#

CI_D4

CI_MDO4

FF

CI_IREQ#

CI_MDI6

ASPDIFI

GPIO5

CI_PWR_EN

USB_DP1

DVSS

GG

GPIO2

DVSS

USB_DM1

HH

DVSS

DVSS DVSS USB_DP0

USB_DM0

AVDD12_ HDMI_1

JJ

DVSS

HDMI_2_SDA

IF_AGC

HDMI_2_HPD_CBUS

HDMI_2_SCL

HDMI_1_SCL

HDMI_2_RX_2

HDMI_2_RX_2B

KK

DVSS

DVSS HDMI_1_SDA

MHL_SENCE

HDMI_CEC

HDMI_2_RX_0

HDMI_2_RX_1

HDMI_2_RX_1B

LL

DVSS

DVSS AVDD33_CAP

RF_AGC

HDMI_1_HPD

HDMI_2_RX_0B

MM

DVSS

AVDD33_AADC

AVDD33_ADAC

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_1_RX_2

HDMI_1_RX_2B

NN

DVSS

AVSS33_CLN

DVSS

HDMI_1_RX_1

HDMI_1_RX_1B

PP

DVSS

DVSS DVSS AR0_ADAC

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_C

HDMI_1_RX_CB

RR

DVSS

DVSS AL0_ADAC

AIN_R1

AIN_R3

AIN_R2

AIN_R0

TT

AVSS33_RGB

DVSS

AVSS33_VIDEO

DVSS

VMID_AADC

AVDD33_ REG_S TB

AL1_ADAC

AIN_L3

AIN_L2

UU

SOG

SOY1

COM1

Y0

PB0

DVSS

AVDD33_ VIDEO_STB

AR1_ADAC

AIN_L0

VV

BP

RP

Y1

SOY0

COM0

DVSS

AVDD33_ RGB_S TB

CVBS0

XTALI

AIN_L1

WW

GP PB1 PR0

VDAC_OUT

ADCINP_DEMOD

DVSS

XTALO

YY

COM PR1 CVBS_COM

CVBS1 ADCINN_DEMOD

AVDD12_ DEMOD

111

112

113

114

115

116

117

118

119

220

EN 45TPM14.1L LA 8.

Figure 8-3 Internal pin configuration [2/2]

back to

div. table

2014-Oct-24

EN 46 TPM14.1L LA8.

19621_300.eps

Block diagram

Pinning information

IC Data Sheets

8.2 Diagram 10-7-8 DEMODULATOR_CXD2838, B11, CXD2838ER-T4 (IC U101)

Exposed-Pad

Figure 8-4 Internal block diagram and pin configuration

2014-Oct-24

back to

div. table

IC Data Sheets

19621_301.eps

Block diagram

Pinning information

8.3 Diagram 10-8-10 Audio AMPILIFER_STA381BW, B11, STA381BWTR (IC U601)

STA381BW

OUT 1A

4

MCLK

LRCKI

BICKI

SDI

2.1 Channel

Audio Processor

TM

STAudioFx

Parametric EQ

Volume

Bass and Treble

TM

STSpeakerSafe

Speaker Compensation

Stereo Widening

TM

FFX

Modulator

Binary

Ternary

Half

Bridges

OUT 1B OUT 2A OUT 2B

FFX3A FFX3B FFX4A

FFX4B F3XL F3XR

EN 47TPM14.1L LA 8.

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

LINEINL

LINEINR

TESTMODE

PWDN

INTLINE

RESET

SDA

SCL

1

2

3

4

5

6

7

8

9

10

11

12

SA

VDDDIG2 48

2 x GND

TESTMODESASCL

GNDDIG2 47

46

Control logic

Protections

IIC

2 x VCC

VDD_REG

GNDPSUB

GND_REG

2 x VDDDIG

45

44

STA381BW

SDA 43

PLL

&

2 x GNDDIG

VREGFILT

INTLINE 42

AGNDPLL

VCC_REG

PWDN 41

Headphone

(2Vrms)

Negative

Charge

Pump

REG_M3

VSS_REG

SDI

RESET 40

39

-3.3V

T

F3X_FIL

VDD3V3CHP

GNDA

LRCKI

38

LINEHPOUT_L

LINEHPOUT_R

SOFT_MUTE

CPVSS

CPP

CPM

BICKI

37

36

35

34

33

32

31

30

29

28

27

26

25

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

F3XL

F3XR

LINEINL

F3X_FILT

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

CPM

CPVSS

VDD3V3

Figure 8-5 Internal block diagram and pin configuration

back to

div. table

2014-Oct-24

EN 48 TPM14.1L LA8.

Personal Notes:

10000_012_090121

110

IC Data Sheets

2014-Oct-24

back to

div. table

9. Block Diagrams

19620_400_140113.eps

140113

RC

VGA IN

MT5561LVNT

RGB

HDMI1

UART

NAND FLASH 1Gb( BZ) 2G b (AG)

HDMI2

LVDS (50/ 60 Hz)

ATV

HD& FHD LCD PANEL

KEY

A

udio in

USB 2.0 (MM&service port)

DeM od CXD2838ER

SUT-RA231TN /VT SUT-RA231ZN /RA

Headphone

L/R

AUDIO AMP

STA3 81 BW

3W/5W/10W SPK

CVBS

R/L IN

SPDIF out put

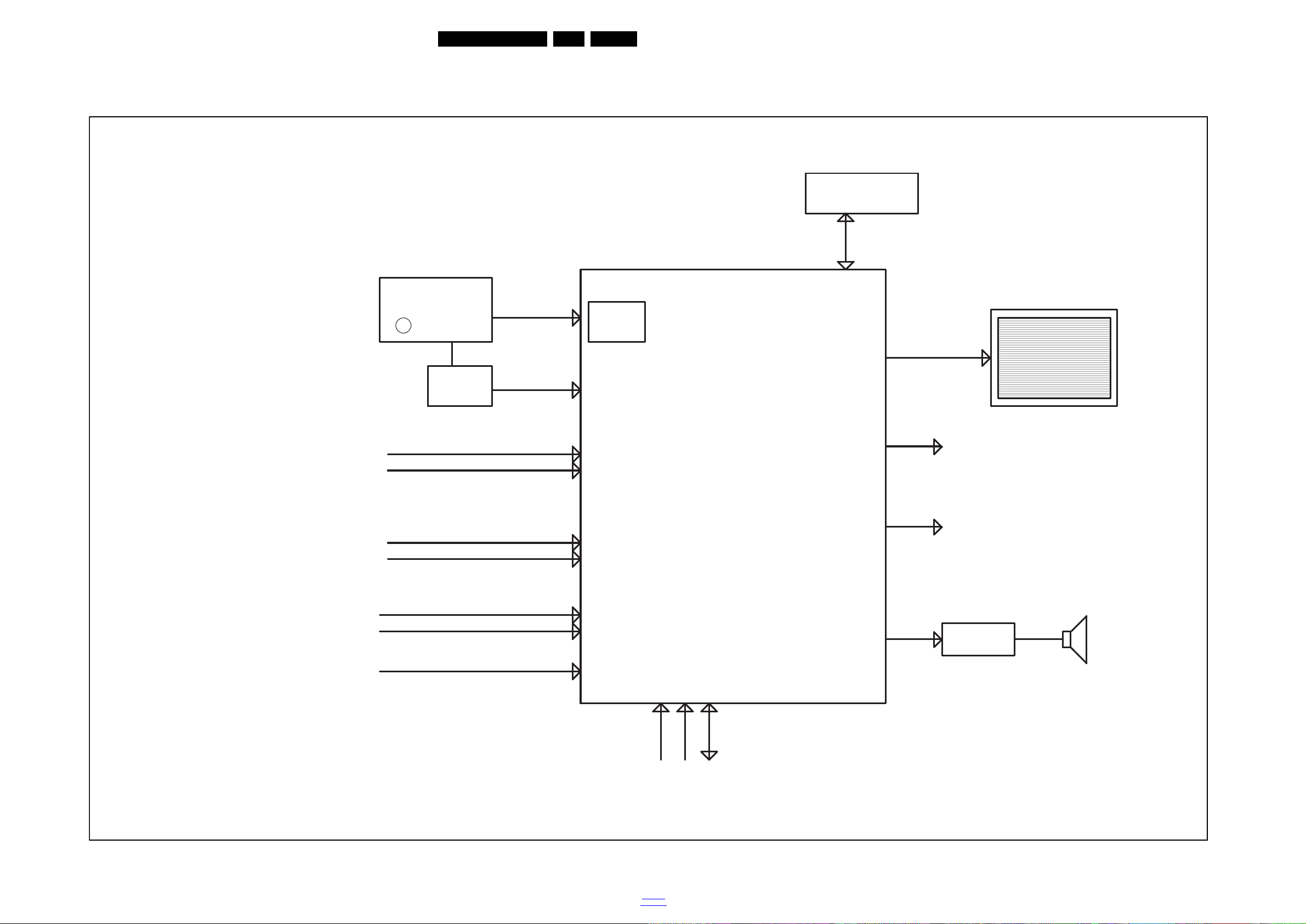

9.1 Block diagram 41x9 & 4309 series

Block Diagrams

EN 49TPM14.1L LA 9.

2014-Oct-24

back to

div.table

Circuit Diagrams and PWB Layouts

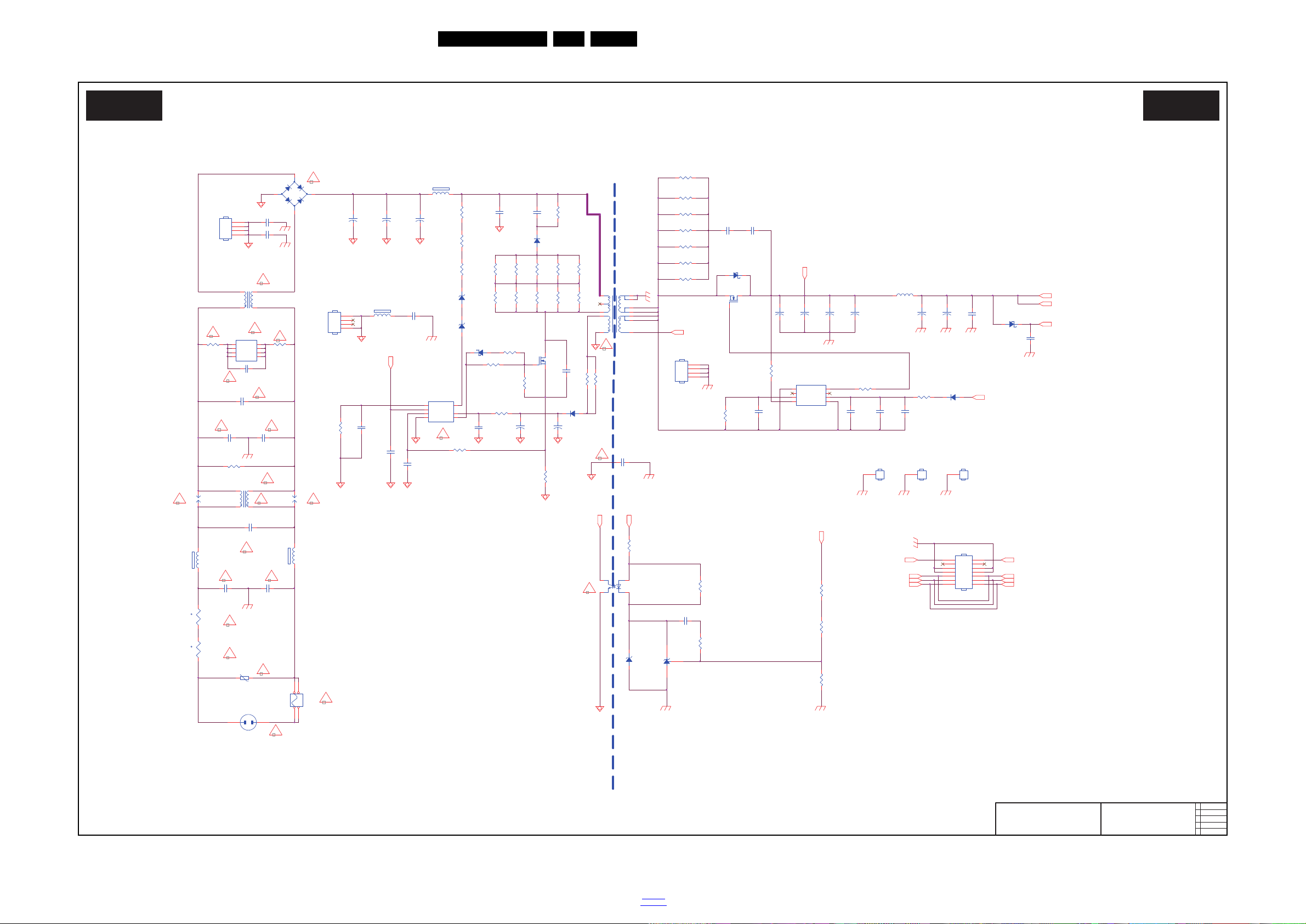

19620_500_140110.eps

140110

Power

A01 A01

2013-10-19

3

715G6197

POWER

12

NR9901

NTCR

1 2 3 4

HS9102 HEAT SINK

+

C9113

330UF 25V

+12V_AL

L9102

3.5uH

R9104

100K 1/4W

+12V

C9907

220PF 250V

1 2

D9106 SK34A

1 2

ZD9106

BZT52-B15

R9105

100K 1/4W

R9103

6.8K 1/4W

R9102

6.8K 1/4W

R9101

6.8K 1/4W

R9106

100K 1/4W

C9103

2.2NF

!

C9120

100N 50V

HOT COLD

COLD

HOT

R9111 10K 1/8W

R9132

1M 1/2W

R9107

100K 1/4W

C9903

470pF 250V

!

RV9901

680V

!

R9122

2.2K

+

C9128

330UF 25V

C9107

NC/100PF

C9904

470pF 250V

D9104

1N4148W

R9125

13K 1/8W 1%

C9108

2N2 500V

R9124

10K OHM +-5% 1/8W

12

43

IC9102

PS2561DL1-1

1

2

3

D9102 MBRF10100C T

C9104

100N 50V

C9117

220N 50V

1 2

ZD9105

BZT52-B36

1

2

4

3

L9902

18MH

1 2

ZD9104

BZT52-B36

!

R9113

220R

D9103

FR107

R9118 100R

+12VA

D9105 FR107

C9111

2N2 500V

R9109

10R 1/8W 5%

IC9103

AS431AN-E1

+

C9101

56UF 450V

+12V_audio

+12V_AL

+12V

R9112

0.24R

+12VA

+

C9118

330UF 25V

+

C9123

330UF 25V

C9115

100N 50V

R9110

22 OHM 1/8W

+

C9102

56UF 450V

SG9902

NC/DSPL-501N-A21F

2

1

3

4

+

BD9101

TS6K80-02

SG9901

NC/DSPL-501N-A21F

Q9101 TK8A65D

2 4 6 8 10 12 14

1 3 5 7

9 11 13

CN9101

CONN

R9121

1K

R9119 100R

!

C9109

10N 50V

R9120 100R

+

C9105

56UF 450V

1

2

CN9901

SOCKET

1

2

4

3

L9901

18MH

C9110

NC/47N 50V

1

2

3

D9108 MBRF10100C T

R9127

NC/ 100 OH M 1/4W

1

2

D9109

NC/SR810-05

1

2

ZD9107

NC/BZT52-B15

R9128

100KOHM +-5% 1/8W

C9906

220PF 250V

1

2

3

4

5

6

7

9

10

T9101

POWER X'FMR

1 2

D9110

NC/SR810-05

1 2 3 4

HS9101 HEAT SINK

1

2

FB9901

BEAD

1

2

D9111

NC/SR810-05

!

R9126

3.3KOHM +-1% 1/8W

R9123

100R

+

C9127

47UF 50V

DIM

+12V_audio

Panel ON/OF F

1 2

D9112

NC/SR810-05

R9129 100R

+

C9116

330UF 25V

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9101

PF6200

!

C9905

470pF 250V

C9106

470P 50V

1 2 3 4

HS9103

HEAT SINK

!

!!

!

C9901

470nF 275V

R9108

3.3 OHM 1/4W

1 2

3 4

F9901

FUSE

!

+

C9122

330UF 25V

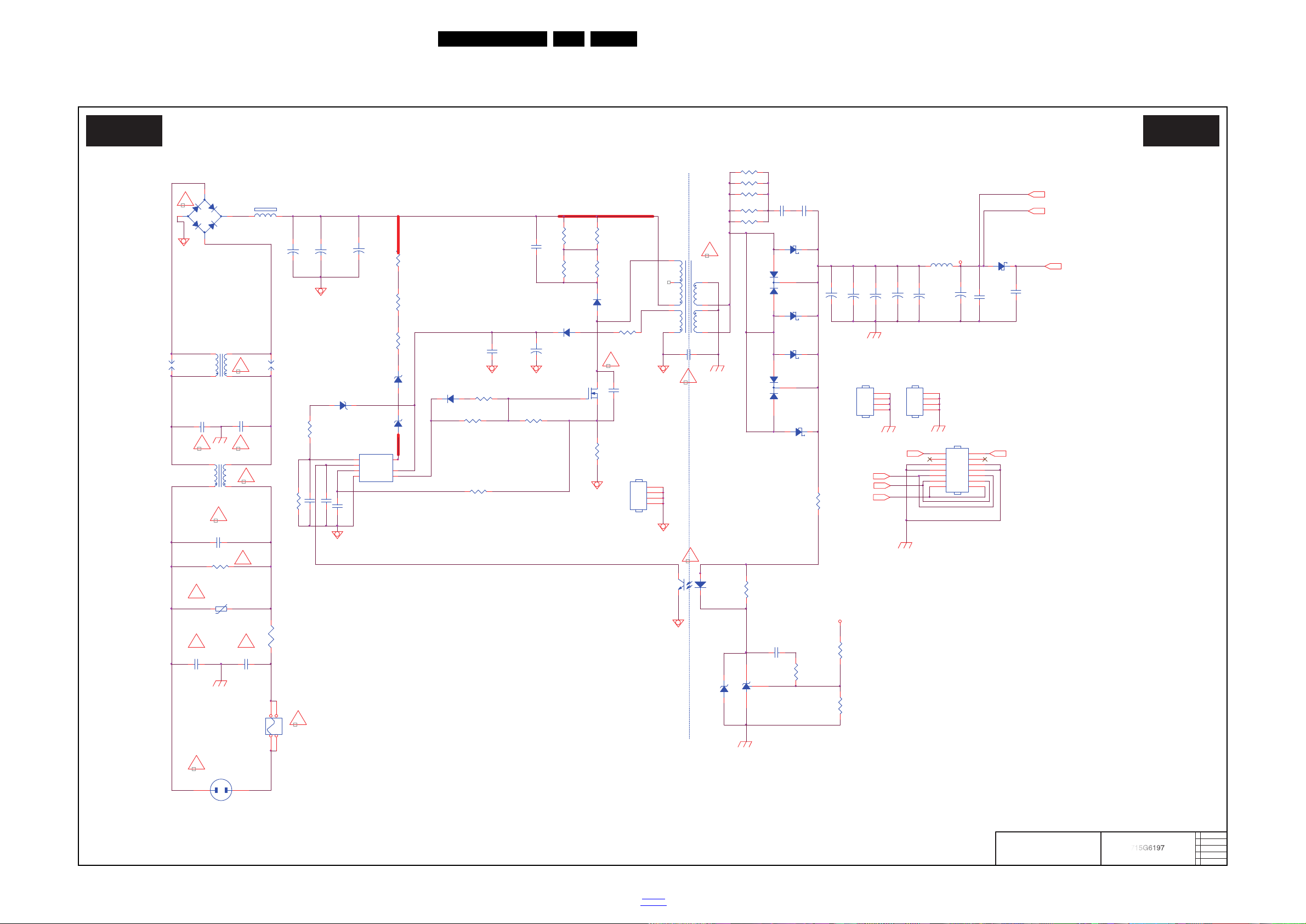

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6197 PSU

10-1-1 Power

EN 50TPM14.1L LA 10.

2014-Oct-24

back to

div.table

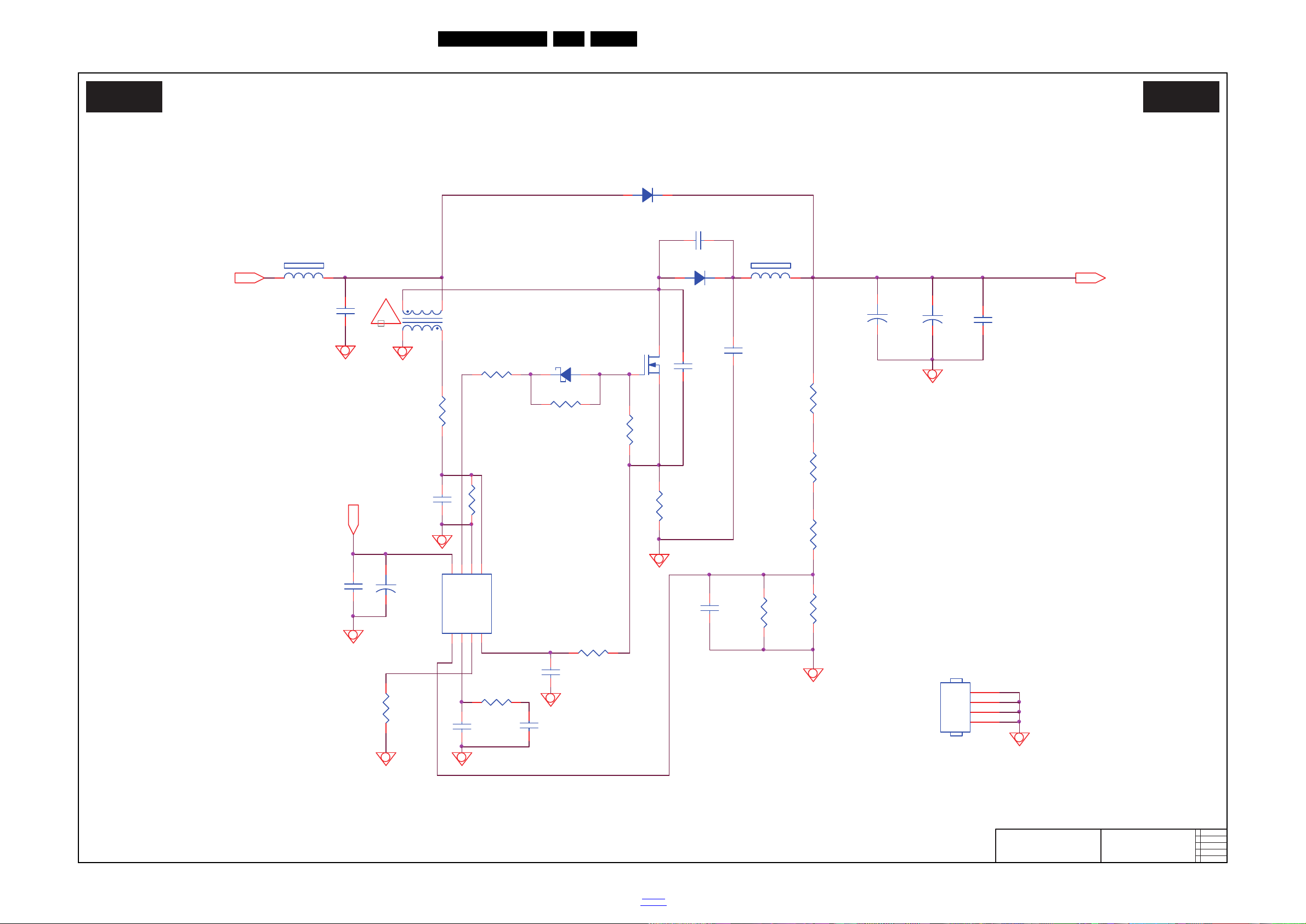

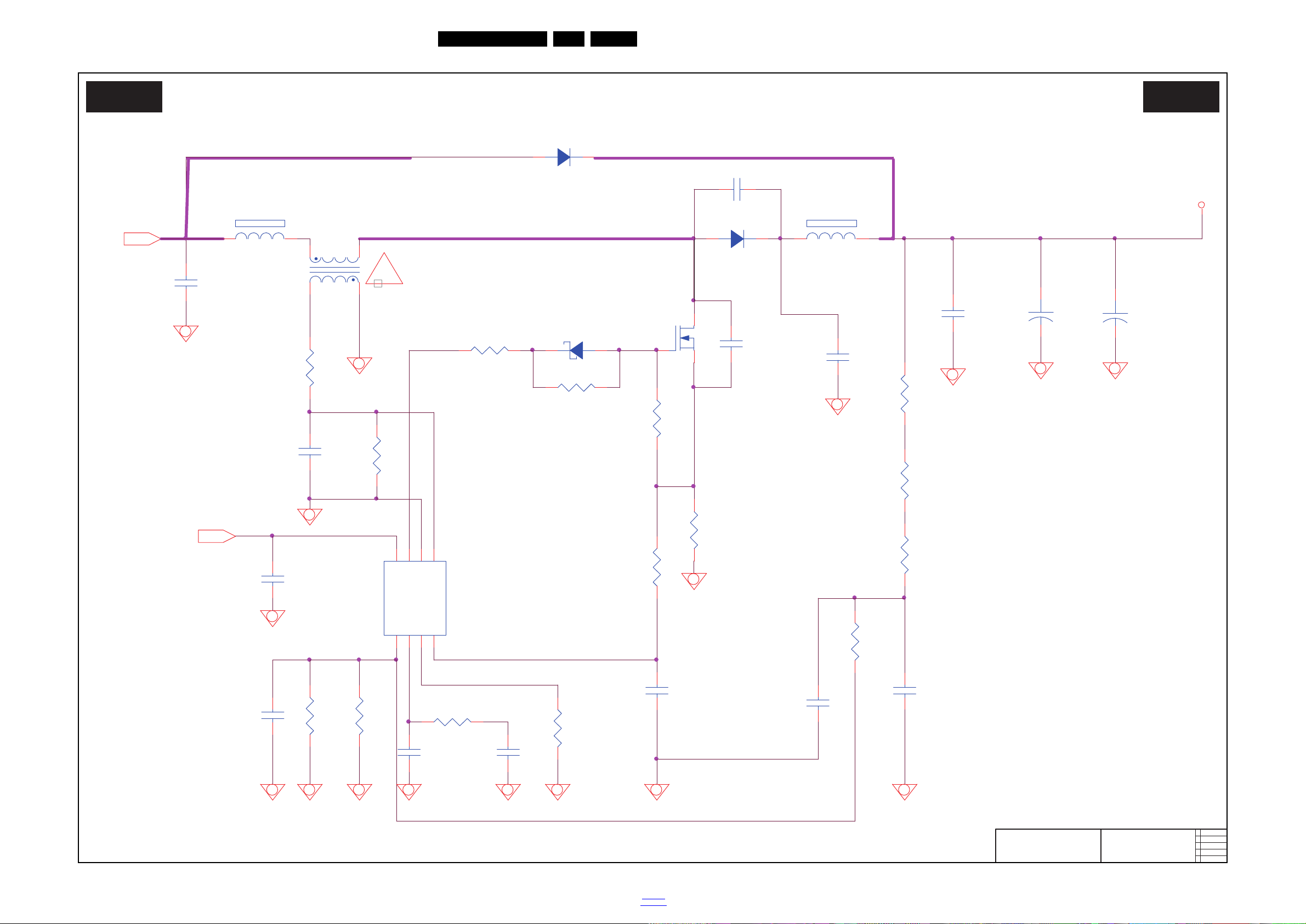

Circuit Diagrams and PWB Layouts

19620_501_140110.eps

140110

LED DRIVER

A02 A02

2013-10-09

3

715G6197

LED DRIVER

L8101

NC/33uH

R8128

100 OHM 1/8W

C8114

10N 50V

C8119

2.2uF 25V

C8104

2.2uF 25V

C8120

NC / 2. 2uF 25V

R8134

100K 1/8W 1%

R8125

1R 1%

Q8106

PMBT3906

R8132 51K 1/4W

R8131 15K 1% 1/8W

Q8107 PMBS3904

R8133

33K

FB

R8116

36KOHM +-1% 1/4W

R8135

36KOHM +-1% 1/4W

+

C8112

330UF 25V

DIMOUT

1

GM

2

FB

3

OVP/DIM

4

CS

5

GND

6

OUT

7

VCC

8

IC8501

PF7903BS

C8117 NC/1uF

R8129

10K OHM +-5% 1/ 8W

R8104

47 OHM

R8121

NC/100K 1% 1/4W

R8120

33K

VLED+

Q8103 2N7002

Q8105

PMBT3904

FB

R8117

6.2K OHM +-1% 1/8W

1 2

ZD8102

NC/BZT52-B22

+12V

C8111

100PF 50V

S1S2S3G

4

D8D7D6D

5

Q8101

MTB55N10Q8-0-T1-G

C8122

100N 50V

1

2

3

4

5

6

7 8

CN8101

CONN

VCC1

1 2

ZD8101

NC/BZT52-B4V7

D8103

1N4148W

2

4

L8103 33UH

R8124

1R 1%

C8121

1uF

C8123

1uF

+

C8105

330UF 35V

+

C8113

NC/330UF 35V

R8105

10K OHM

R8130

330K 1/8W 5%

R8118

10K OHM

R8108

330R 1/ 8W 5%

C8108 100N 50V

R8119

10K OHM +-5% 1/8W

C8118

NC/ 47nF 50V

R8126

1.2 OHM

R8110

0.2oH M 1% 1/4W

Q8104

P2806BD

R8123

1R 1%

GND

1

GND

2

GND

3

GND801

GND

VCC1

12.5*12

VLED-

12.5*12

DIM

C8107 100N 50V

R8111

0.2oH M 1% 1/4W

C8110

1NF

R8112

0.2oH M 1% 1/4W

VLED+

R8113

0.2oH M 1% 1/4W

R8109

10R 1/8W 5%

8

1

L8102

NC/33uH

GND

1

GND

2

GND

3

GND802

GND

Panel ON/ OF F

R8122

47K +-1% 1/4W

D8102

1N4148W

D8101 SR506

R8127

1K

1

2

FB8101

BEAD

EN 51TPM14.1L LA 10.

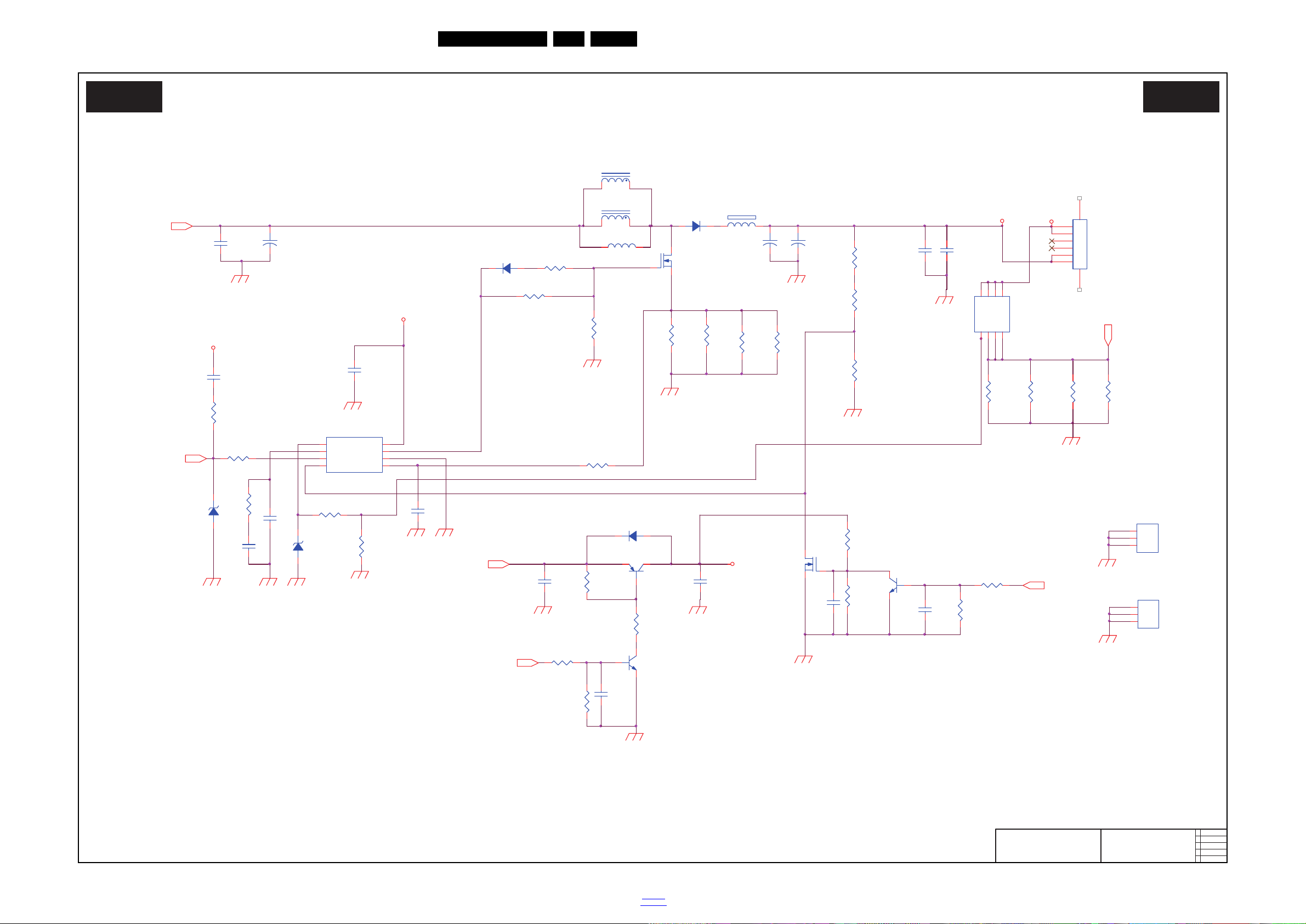

10-1-2 LED DRIVER

2014-Oct-24

back to

div.table

10-1-3 Power layout top

19620_522_140110.eps

140110

2013-09-06

3

715G6197

Power layout top

D8101

IC9102

L9102

J9906

J9902

J9907

J9908

J9904

J9905

J9910

J9909

J9901

J9911

J9912

J9913

D9109

D9110

D9111

D9112

J9903

C9127

J9914

D9105

C9113

C9105

D9103

C9107

C9101

C9102

C9103

R9112

T9101

H5

H7

SL1

SL2

SL3

H11

H8

SL5

H6

C8112

C9116

C9118

C9122

C9123

C9128

C9906

C9907

CN8101

CN9901

L8102

Q9101

R9132

SG9901

SG9902

HS9101

NR9901

HS9102

L8103

C9905

BD9101

F9901

L9901

L9902

GND802

GND801

M2

M1

M5

M4

M3

M6

C9903

C9904

C9901

RV9901

C8105

C8113

HS9103

FB9901

L8101

CN9101

FB8101

D9102D9108

Circuit Diagrams and PWB Layouts

EN 52TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-1-4 Power layout bottom

19620_523_140110.eps

140110

2013-09-06

3

715G6197

Power layout bottom

SG2

Q8105

Q8106

Q8107

RJ9901

RJ9902

IC8501

Q8101

RJ9903

C8118

R8112

R8113

R8116

R8118

R8120

R8123

R8124

R8125

R8126

R8127

R9107

R8121

R8122

R9129

C9115

C8121

C8123

C8117

C8119

C8120

C8122

C9106

C9117

C9120

R8117

R8119

R8128

R8129

R8130

R9128

IC9103

C8108

R8108

C8107

R8135

R8133

R8134

R8131

R8132

Q8103

C8104

C8110

C8111

R8110

R8104

R8109

R8111

R8105

R9121

R9122

R9123

C8114

R9124

R9125

C9104

R9120

R9105

R9111

C9110

C9108

C9109

C9111

R9113

R9104

R9106

R9101

R9102

R9103

R9108

R9110

R9118

R9126

R9127

R9109

R9119

SG1

Q8104

IC9101

D9106

FD5

FD6

FD7

ZD9106

D8102D8103

D9104

ZD8101

ZD8102

ZD9104ZD9105

ZD9107

Circuit Diagrams and PWB Layouts

EN 53TPM14.1L LA 10.

2014-Oct-24

back to

div.table

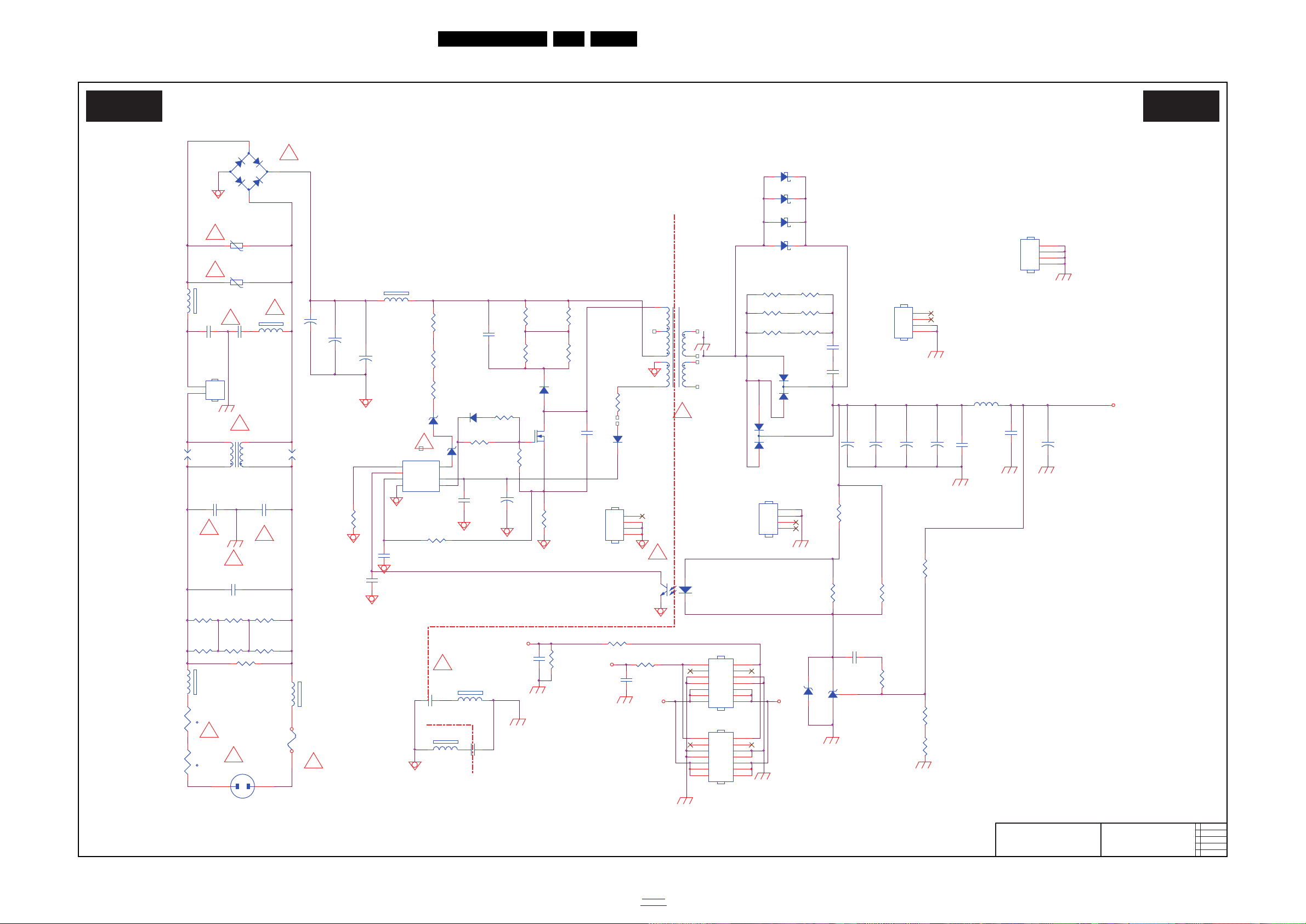

10.2 A 715G6161 PSU

19620_502_140110.eps

140110

Power

A01 A01

2013-10-21

3

715G6161

Power

1 2

D9114

SK54BL

C9161

220NF 50V

C9905

220PF 250V

R9107 10K 1/8W 1%

C9256

3.3NF 500V

C9906

220PF 250V

R9120 22R

FB_1

!

C9131 1NF

C9912

220PF 250V

!

R9112

1R

C9104

2.2NF

C9913

470pF 250V

1 2

FB9903

127R

R9106

10ohm +/-1% 1/8W

C9914

470pF 250V

C9911

220PF 250V

+12V_audio

IC9151

AS431AN-E1

1 2

t

NR9902

1.5R

R9150

2K4 1%

+12V1

R9119

1R

C9133

1uF

1 2

t

NR9901

1.5R

+

C9154

470UF 25V

!

R9152

220R 1%

2

1

3

4

+

BD901

TS6K80-01

!!

R9104

10ohm +/-1% 1/ 8W_NC

R9901

390K_NC

R9114

100K 1%_NC

NC

!

C9119 47PF

C9106

0.1UF 50V

!

R9154

300K 1/8W 5%

+

C9101

68uF 450V

L9201

3.5uH

1 2 3 4

HS9101 HEAT SINK

1 2

FB9902 BEAD

!

+

C9155 470UF 25V

R9115

56R 1%

+

C9102

68uF 450V

D9106

SMA/DO-214AC

2 4 6 8 10 12 14

1 3 5 7

9 11 13

CN9101

CONN

Vaux

R9118

56R 1%

!

R9903

390K_NC

C9132 100N 50V

C9907 47pF_NC

+

C9103

68uF 450V

R9145

1.5K OHM

C9901

470nF 275V

R9113

5.1R 1%

C9257

3.3NF 500V

R9108

56R 1%

SG902

DSPL-501N-A21F

C9134 100N 50V

C9902

470nF 275V

R9116

56R 1%

NEW

R9110

56R 1%

R9148

10ohm +/-1% 1/ 8 W

!

SG901

DSPL-501N-A21F

1 2

ZD9101 BZT52-B36

!

R9117

56R 1%

!!

C9255 1uF

R9105 82KOHM +-5% 2WS

C9105

2.2NF

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

IC9901 CAP004DG-TL_NC

D9101 SARS01-V1

C9111

100N 50V

R9127

56R 1%

12

D9102

SS0520_R1_NC

Vaux

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9101

LD7752

C9910

220PF 250V

R9126

56R 1%

1 2 3 4

HS9103

HEAT SINK

!

+12V

R9256

68R

Q9101

TK11A 65D

!

FB_1

C9110

47nF 50V

R9128

56R 1%

1 2 3 4

HS9102

HEAT SIN K

+

C9156

470UF 25V

+

C9152

470UF 25V

!

+12V1

R9129

56R 1%

C9108

470PF 50V

R9149

4R7 +-5% 1/8W

+

C9112

47UF 50V

+

C9151

470UF 25V

C9109

1NF 50V

1

GND1

GND

1

2

FB9904

BEAD

1

GND2

GND

+12V_AL

!

R9257

68R

+

C9107 22UF 50V_N C

1

GND3

GND

124

3

L9902

18mH

1 2

ZD9102 BZT52-B36

R9147

1K 1/8W 1%

R9258

68R

ON/OFF

DIM

5

4

3

2

1

11

8

7 6 9

12

10

T9101 350uH

1 2

3 4

F9901

FUSE

1

243

L9901

18mH

PGND

1

EN

2

LL

3

VD4VSS

5

VDD

6

NC

7

VG

8

IC9104

MP6902DS-C530 LF Z

ǂǂ

!

R9259

68R

T3.15AH/250V

+12V_AL

+12V

1 2

ZD9152 BZT52-B15

Q9102

AOTF4126

R9260

68R

+12V_AL

+12V_audio

1 2

FB9901 BEAD

12

CN9901 AC SOKET

R9261

68R

R9101

6.8K OHM

+

C9153

470uF 25V

!

1 2

D9113

SR510-22

!

D9103

FR107G-A0

R9904

1MOHM +-5% 1/2W

R9103

6.8K OHM

1

2

3

4

IC9102

PC123Y 82FZ9F

+12V

R9109

220R 1%

R9153

1K 1/8W 1%

+12V_audio

R9102

6.8K OHM

R9151

9.1K 1% 1/8W

+12V

RV9901

680V

R9146

1K5 +-1% 1/8W

R9111

0.2R

C9909

470pF 250V

10-2-1 Power

Circuit Diagrams and PWB Layouts

EN 54TPM14.1L LA 10.

2014-Oct-24

back to

div.table

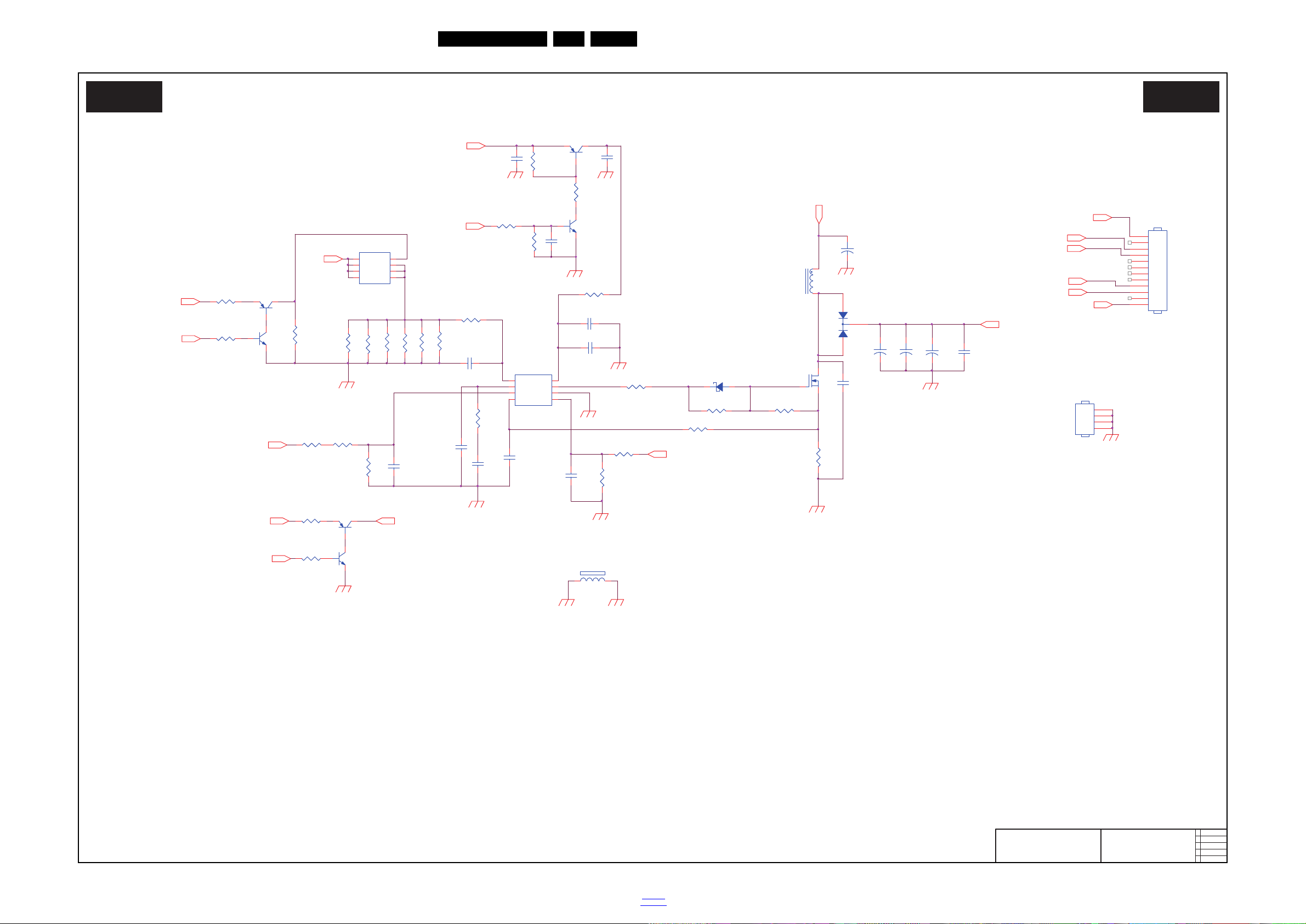

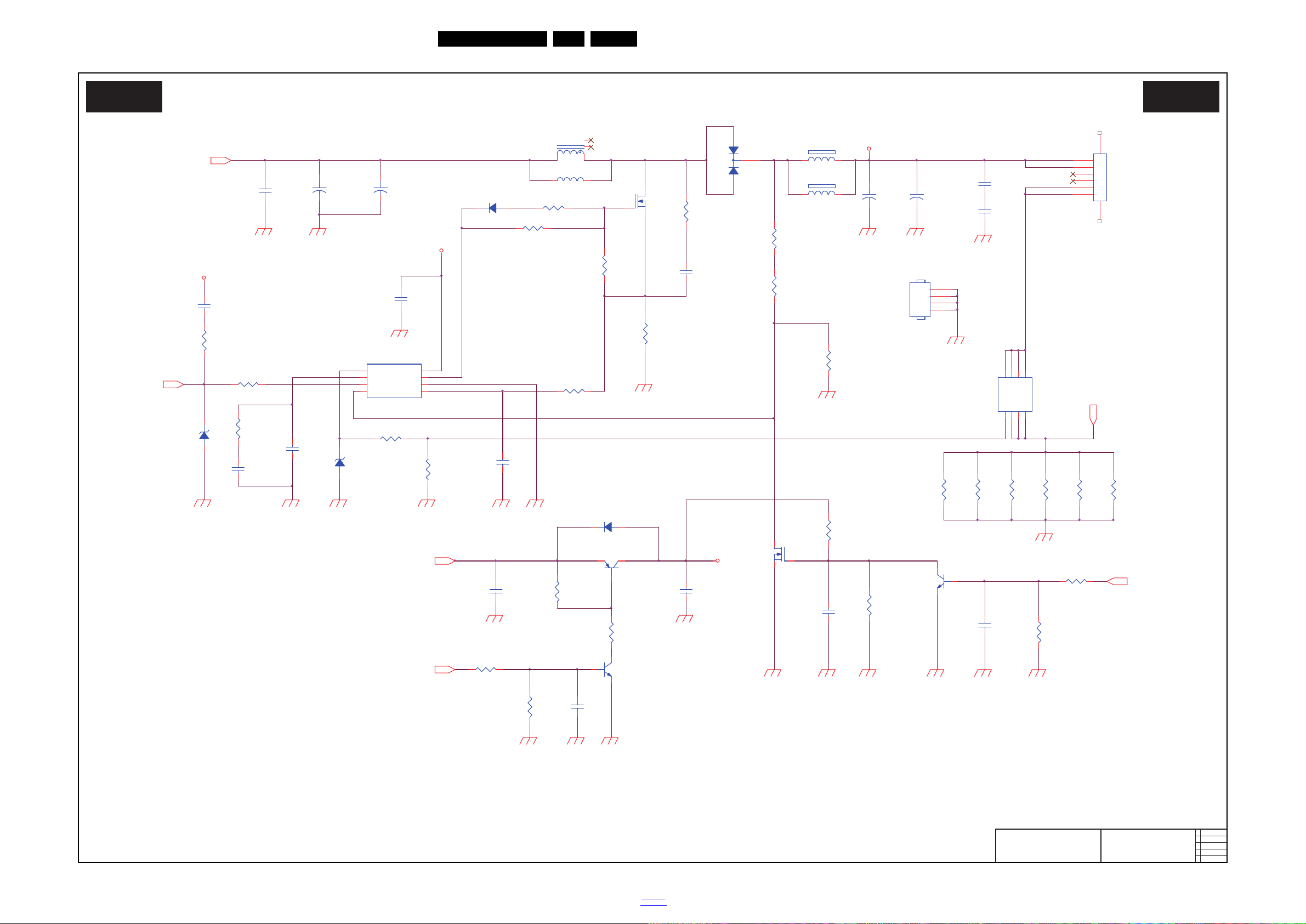

10-2-2 LED DRIVER

19620_503_140110.eps

140110

LED Drive

A02 A02

2013-10-21

3

715G6161

LED Drive

R8520

10K 1/8W 1%

R8506

0.05R

C8518

1N 50V

R8525

330K 1% 1/8W

R8510

10K 1/8W 1%

VLED+

+

C8517 470UF 25V

1

2

3

D8501

MBRF20100CT

DIMOUT

1

GM

2

FB

3

OVP/DIM

4

CS

5

GND

6

OUT

7

VCC

8

IC8501

PF7903BS

+

C8502 470UF 25V

Q8506 PMBT3904

C8514 10N 50V

C8512

2.2uF 25V

C8508 100N 50V

R8528

100K 1/8W 1%

C8513

2.2uF 25V_NC

R8522 15K 1% 1/8W

FB

R8502 51K 1/4W

R8504 51K 1/4W

1

2

FB9905

BEAD

C8507

1uF_NC

VLED+

R8524

33K 1/8W 1%

R8515 100K 1% 1/8W_N C

Q8504 2N7002

FB

1 2

ZD8502 BZT52-B22_NC

C8515

100pF 50V

C8516

100N 50V

S1S2S3G

4

D8D7D6D

5

Q8502

AO4486

VCC1

1 2

ZD8501

BZT52-B4V7_NC

D8503

1N4148W_NC

C8506

1uF

C8505

1uF

+

C8503 330UF 50V

+

C8504

330UF 50V

1 2

FB9906

BEAD

R8521 10K OHM

C8511

100N 50V

C8509

1NF 50V_N C

VCC1

1 2 3 4 5 6

78

CN8501

CONN

C8501

100N 50V

C8510

1NF 50V

R8501 NC

D8502

NC

DIM

1

2

3

Q8503

PMBT3906

+12V1

+12V

ON/OF F

R8517

330 OHM +-1% 1/8W

R8529

0.91R 1%

R8511

0.91R 1%

R8512

0.91R 1%

R8516

100R 1%

R8513

0.91R 1%

R8514

0.91R 1%

1 2 3 4

HS8501

HEAT SINK

R8530

0.82R 1%

L8502

33uH

R8526

51K 1/8W 1%

R8519

100 OHM 1%

R8507

10 OHM 1/4W

DVT --> EIT NC

Q8505

PMBT3904

R8527

33K 1/8W 1%

8

1

4

6

L8501

33uH

R8505

10K 1/8W 1%

Q8501

AOTF4126

R8503

22R 1/8W 1%

R8518

10K 1/8W 1%

R8523

10K 1/8W 1%

Circuit Diagrams and PWB Layouts

EN 55TPM14.1L LA 10.

2014-Oct-24

back to

div.table

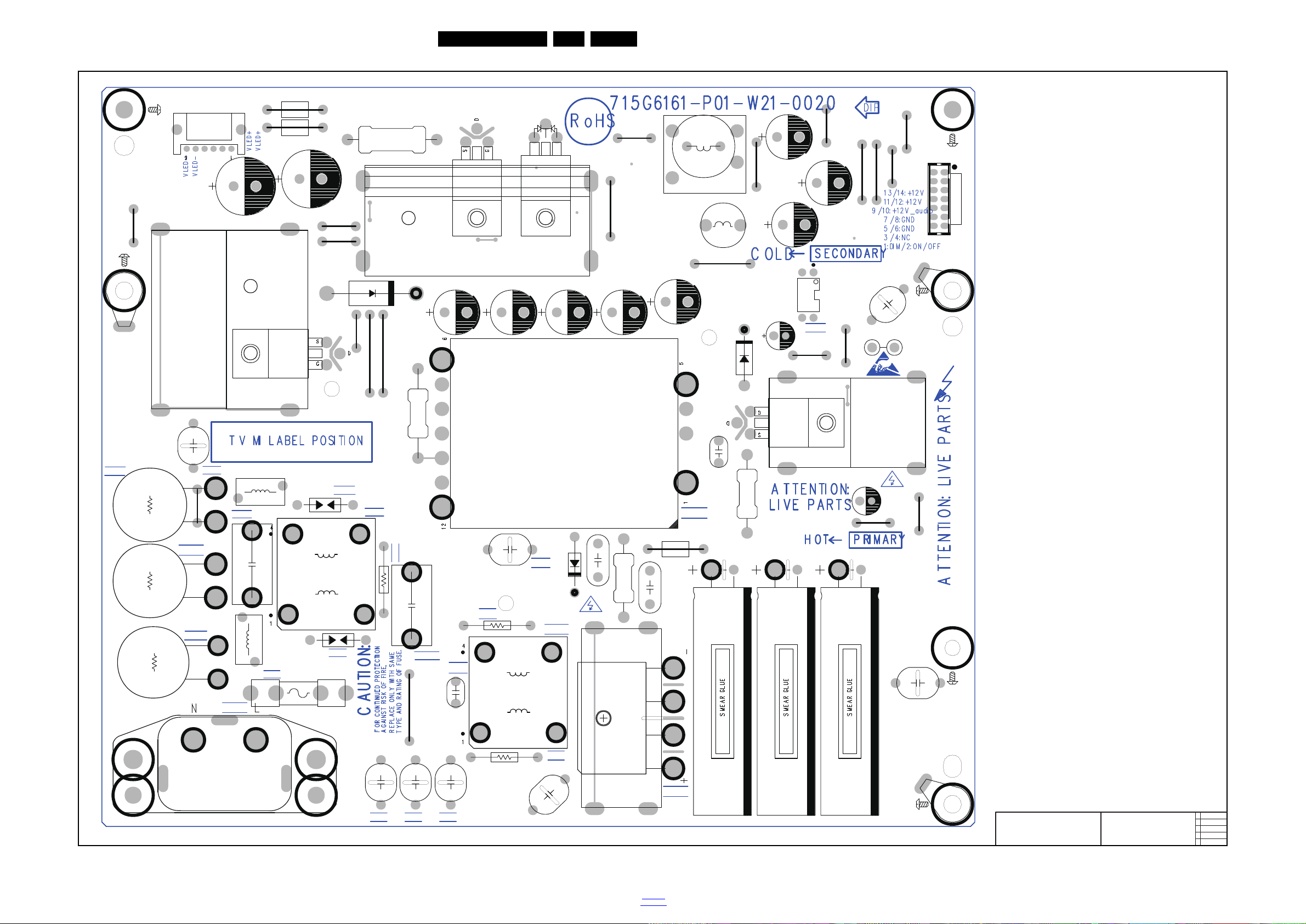

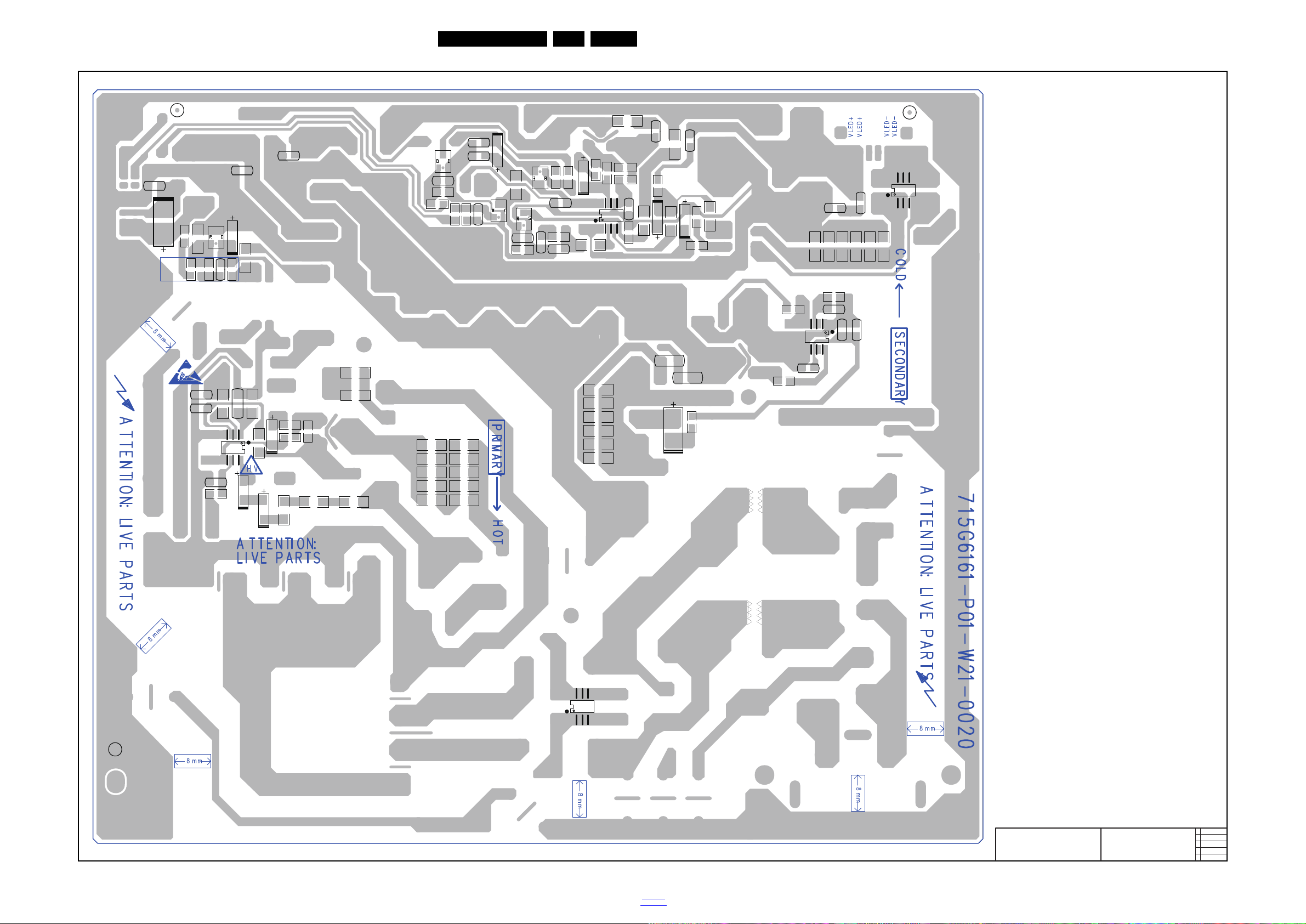

19620_524_140110.eps

140110

2013-12-05

3

715G6161

Power layout top

C9119

IC9102

L9201

J9904

J9911

J9902

J9901

J9908

J9917

J9909

J9912

J9907

J9903

J9905

J9916

J9914

J9906

J9915

R8506

J9918

J9919

J9920

J9921

D9113

J9922

J9923

J9924

J9910

J9913

C9104

C9105

R9120

H1

H2

H3

H4

D9103

R9105

R9111

C9107

C9112

C9101 C9102 C9103

T9101

H5

MH3

MH4

MH5

SI2

H8

H12

SEN21

SEN22

SEN23

DR1

DR2 DR3 DR4

DR5

DR6

DR7

DR8

C9907

CN9901

D9101

F9901

Q9101

R9901

SG901

SG902

C8504

RV9901

C8503

CN8501

R9904

Q8501

Q9102

FB9902

FB9901

R9903

HS9101

C9152

C9151

C8502

HS9103

L9901

L9902

L8501

HS9102

C9905

C9906

C9911

C9912

H6

H7

CN9101

L8502

C9901

C9902

NR9901

NR9902

C9910

HS8501

C9909

C9913

C9914

BD901

D8501

FB9903

FB9904

FB9905

FB9906

GND1

GND2

GND3

C9153 C9154 C9155 C9156

C8517

10-2-3 Power layout top

Circuit Diagrams and PWB Layouts

EN 56TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-2-4 Power layout bottom

19620_525_140110.eps

140110

2013-12-05

3

715G6161

Power layout bottom

RJ9101

SEN1

SEN2

Q8502

IC8501

IC9104

C9256

RJ8501

SEN9

C8512

C8506

C8515

C8508

C8510

C8514

C9161

C9255

C8507

C9133

C8516

C8505

C8509

C8513

C8501

C8511

C9106

C9134

C8518

R8528

R8522

R8518

R8520

R8503

R8501

R9148

R8525

R8523

R8515

R9154

R8505

R8510

R8519

R9107

R9151

R9152

R8524

R9149

R9153

R8526

R8527

R8517

Q8506

Q8505

Q8503

R8516

R9256 R9257

R9258

R8511

R8512

R8513

R8514

R9150

R8529

R8530

R9259 R9260 R9261

R9128R9129

R8504

R8502

R8521

RJ8502

IC9151

Q8504

C9257

R8507

IC9901

C9110

C9108

C9109

C9111

C9132

C9131

R9113

R9146

R9104

R9106

R9147

R9101R9102

R9103

R9108

R9110

R9112

R9115

R9116

R9117

R9118

R9126 R9127

R9109

R9114

R9145

R9119

SG1

SG2

IC9101

D9114

D9106

D8503

D9102

ZD9101

ZD9102

ZD9152

D8502

ZD8501

ZD8502

Circuit Diagrams and PWB Layouts

EN 57TPM14.1L LA 10.

2014-Oct-24

back to

div.table

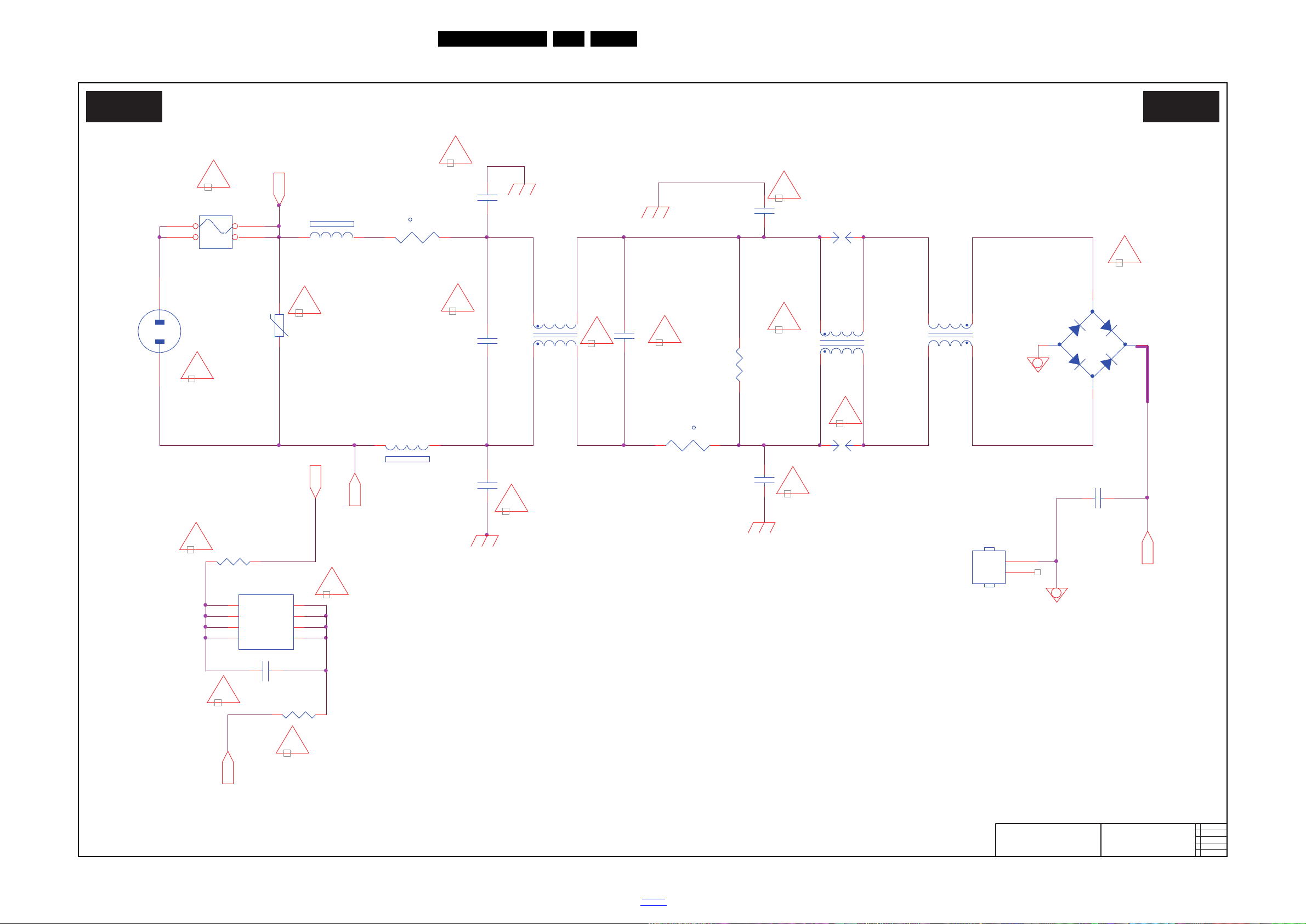

10.3 A 715G6163 PSU

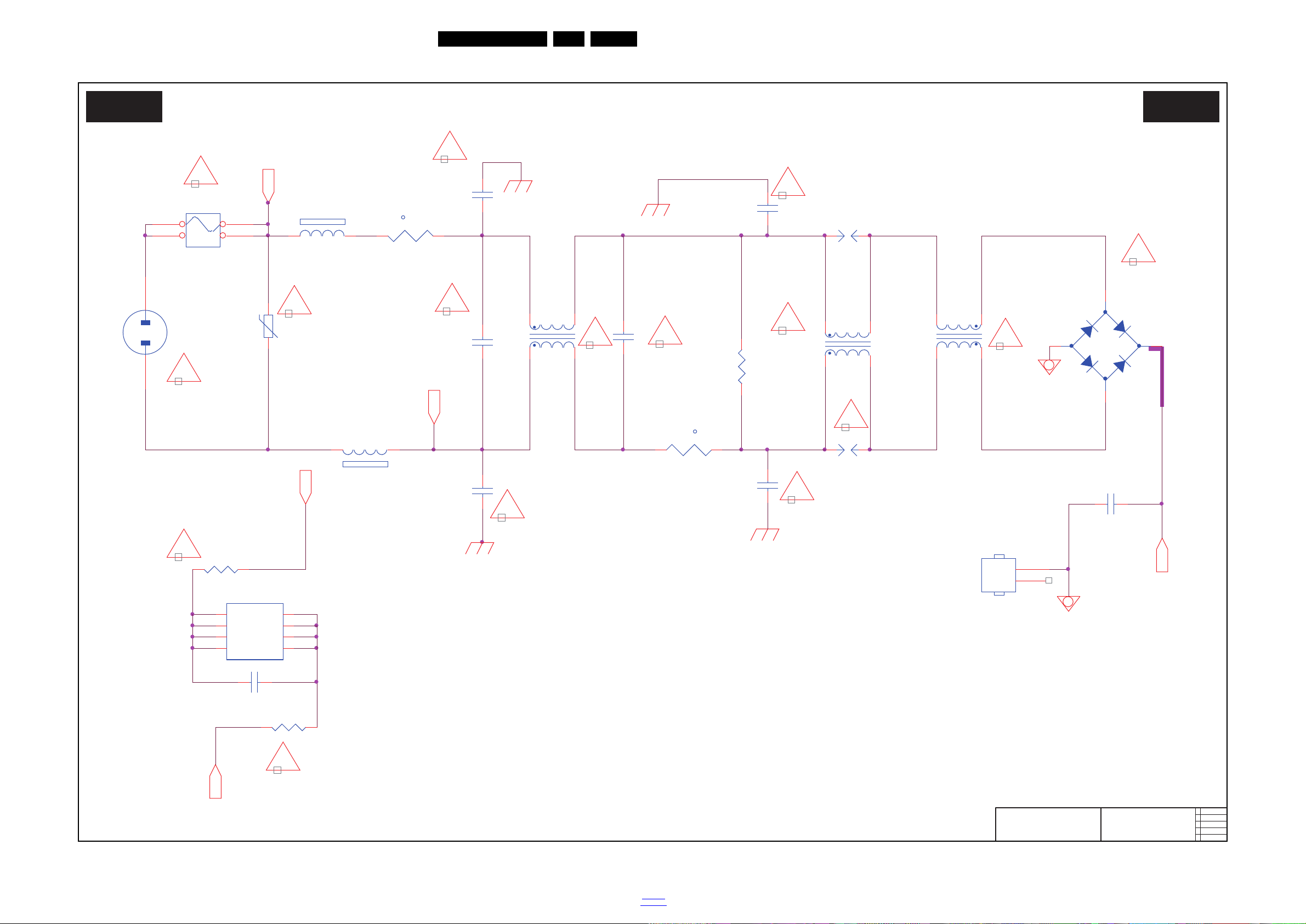

19530_500_130722.eps

130722

AC input

A01 A01

2013-06-20

3

715G6163

AC input

!

F9901

FUSE

1 2

3 4

!

C9901

1NF

C9909

330PF 250V

!

R9907

1MOHM +-5% 1/2W

L9903

0.25mH

1

2

4

3

-

+

BD9901

TS6K80-02

2

1

3

4

R9908

NC/510K

IC9901 NC/CAP004DG

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

R9909

NC/510K

C9907 NC/47PF

VXB

C9906

470NF 275V

VXA

SG9902

DSPL-501N-A21F-NC

!

C9910

330PF 250V

!

Vsin

t

NR9901

2.5R

12

!

CN9901

SOCKET

12

!

t

NR9902

2.5R

1 2

C9905

470NF 275V

SG9901

DSPL-501N-A21F-NC

FB9901

BEAD

1 2

!

HS9102

HEAT SINK

1 2

C9903

NC/100PF 250V

C9904

NC/100PF 250V

FB9902 BEAD

12

L9901

12mH

1

2

4

3

L9902

12mH

1

2

4

3

VXB

VXA

RV9901

680V

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 58TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-3-2 PFC

19530_501_130722.eps

130722

PFC

A02 A02

2013-06-20

3

715G6163

PFC

C9804 47P 50V

R9814

4.7K 1/8W

C9817

NC/47PF

Vsin

HV

R9806

10K OHM +-5% 1/8W

C9806

100N 50V

D9801 IN5408G-04

R9823

NC

C9812 NC/100P 50V

D9802 MUR460-28

R9818

18.7K 1/8W 1%

C9811 220pF 50V

FB9805 BEAD

1 2

L9801

300uH

5

43

1

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT

7

VCC

8

+

C9814 68UF 450V

C9807

470PF 50V

FB9802

BEAD

1 2

Q9801

TK15A60U

R9815

200K 1/8W 1%

VCC_ON

+

C9815

68UF 450V

FB9803

BEAD

1 2

!

C9818

NC/47PF

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813 10K OHM +-5% 1/8W

R9810

470 OHM 1/4W

R9805

47K 1/4W

R9812 24K 1/8W 1%

C9810

0.47UF 50V

C9808

NC/100P 50V

C9809 47N 50V

R9808

0.15R

C9802 1NF

FB9804

BEAD

1 2

C9801

1UF 450V

D9803 RB160M

12

R9807 1MOHM +-1% 1/4W

R9809 750K 1%

R9804 1MOHM +-1% 1/4W

C9803 1NF

Circuit Diagrams and PWB Layouts

EN 59TPM14.1L LA 10.

2014-Oct-24

back to

div.table

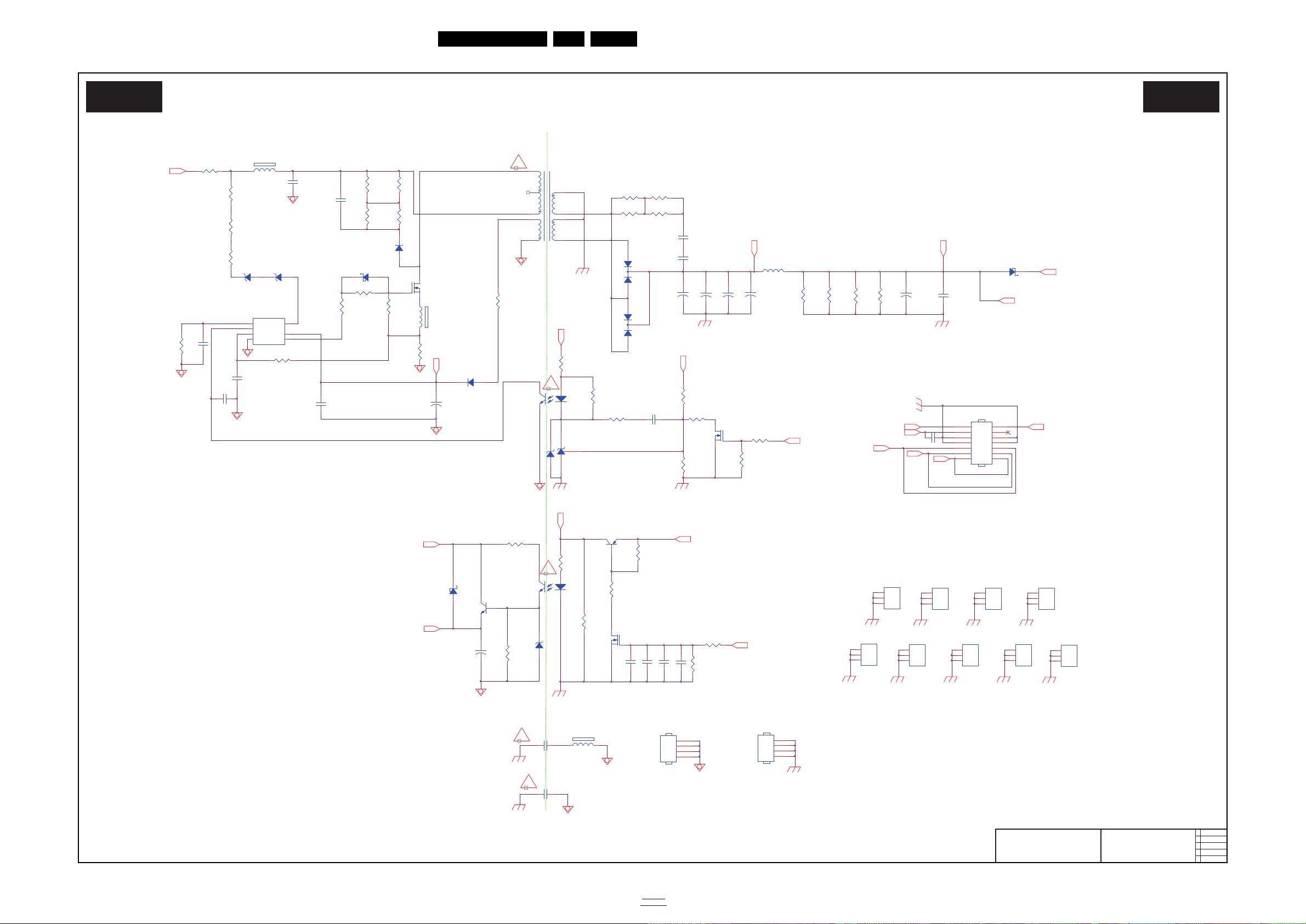

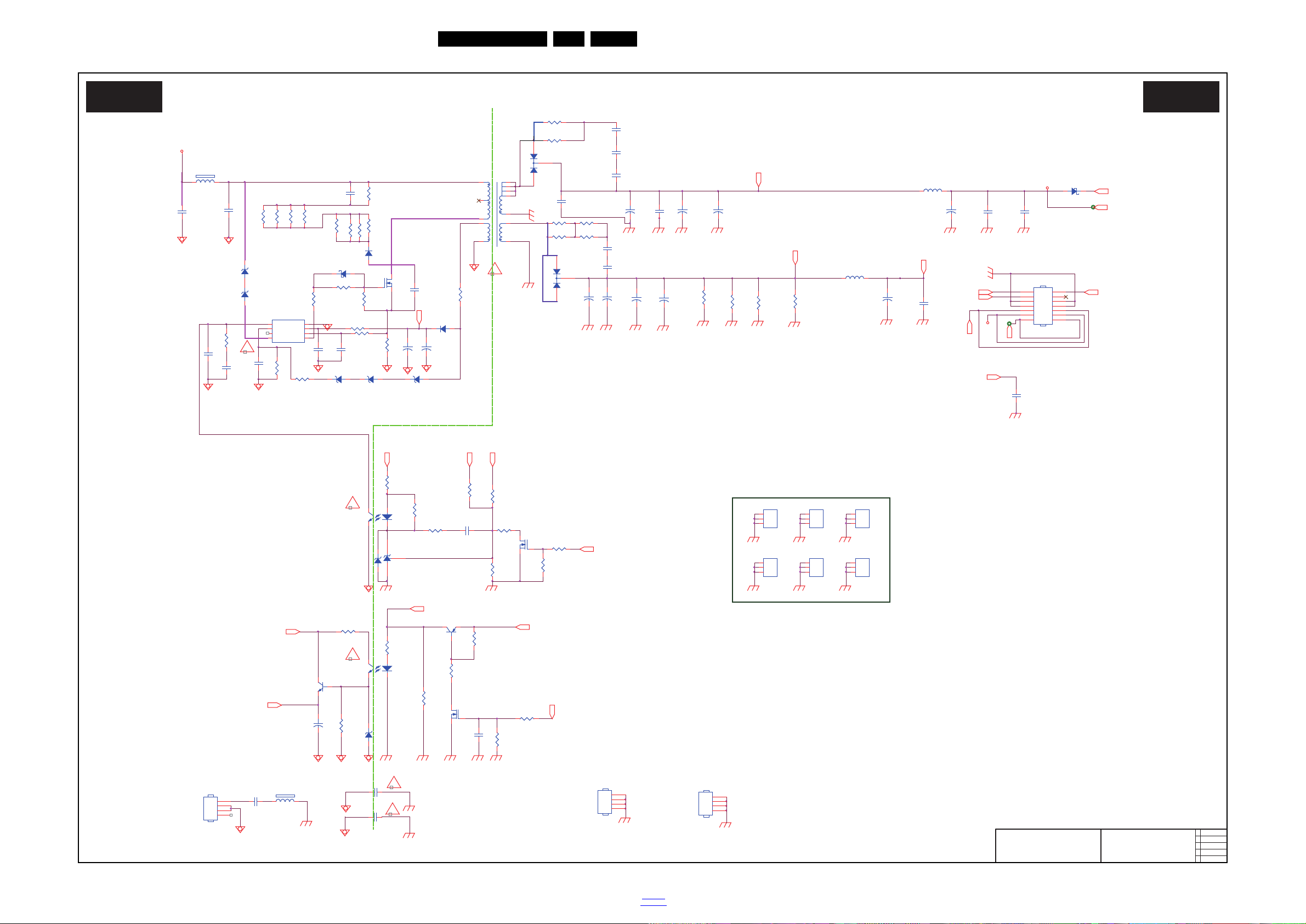

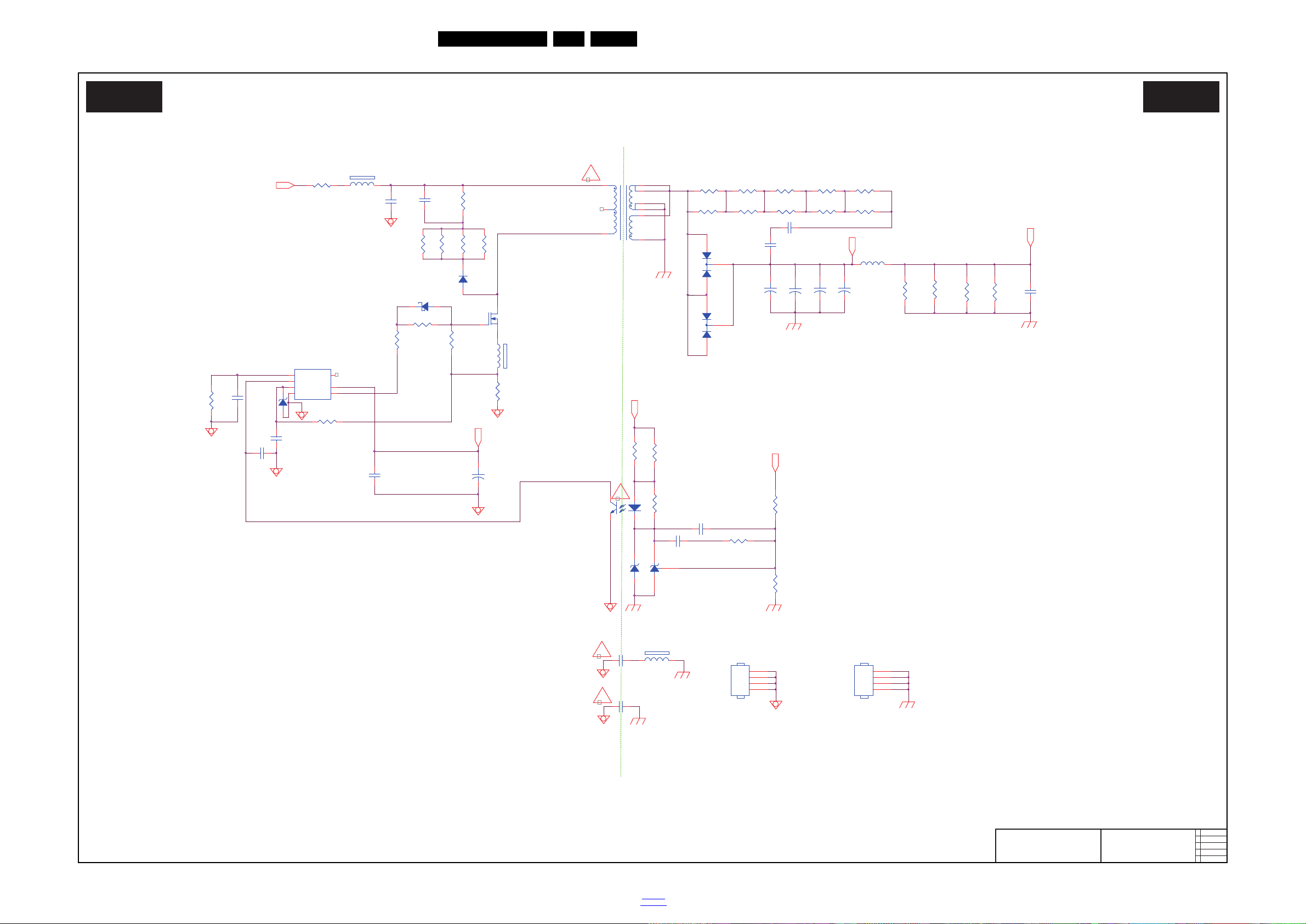

10-3-3 Main Power

19530_502_130722.eps

130722

Main Power

A03 A03

2013-06-20

3

715G6163

Main Power

FB9102

BEAD

1 2

+

C9112

10UF 50V

C9913 1NF 250V

+

C9116

100UF 50V

R9339

5.1KOHM +-1% 1/8W

C9138 1uF

+

C9137 470UF 25V

R9163 51 OHM 1/4W

L9103 3UH

C9403

100N 50V

Q9401

BTC4672M3

R9113

100 OHM 1/4W

R9125 5K1 +-5% 1/8W

C9139 330P 50V-NC

C9104

2.2NF

R9149

51 OHM 1/4W

R9107 10KOHM

+

C9108

330UF 50V

R9111

0.15R

D9103 PR1007

HS9103

HEAT SINK

1 2

3

4

R9408 330K 1% 1/8W

+

C9109

330UF 50V

Q9101

STF24NM65N

R9129 3K3 1/8W 1%

R9106

22 OHM 1/4W

C9103

330P 50V

R9104 82KOHM +-5% 2WS

D9106 FMEN-220A

1

2

3

L9102 3UH

D9105 FMXA-2202S

1

2

3

R9140

100 OHM 1/4W

+

C9110

100UF 50V

!

C9147

1uF

GND4

GND

1

GND

2

GND

3

+

C9136 470UF 25V

R9159

NC

ZD9102

BZT52-B39

12

R9341 100K 1/8W 1%

R9164

51 OHM 1/4W

R9402 2Kohm 1/4W +/-5%

GND6

GND

1

GND

2

GND

3

C9105

100N 50V

GND5

GND

1

GND

2

GND

3

R9146

100 OHM 1/4W

C9142

220P 50V

Q9403 2N7002K

C9119 47PF

R9118 51 OHM 1/4W

R9162 51 OHM 1/4W

R9109

1K

R9142

0 OHM 1/4W

R9147

51 OHM 1/4W

R9139

100 OHM 1/4W

C9123

100N 50V

R9308 10K 1/8W 1%

ZD9105

BZT52-B39

12

IC9103 AS431AZTR-E1

R9114

100 OHM 1/4W

D9102 RB160M

12

IC9102

PS2561DL1-1

12

43

CN9101

CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

R9160

NC

ZD9401

BZT52-B16

1 2

HS9105

HEAT SINK

1 2

3

4

T9101 POWER X'FMR

7

10 12

5

4

3

2

1

9

6

11

8

R9105 10 OHM

+

C9111

100UF 50V

R9127

9.1K 1%

R9340

10K OHM +-5% 1/8W

C9118 220N 50V

IC9401

PS2561DL1-1

12

43

R9178 10K 1/4W

R9401

2Kohm 1/4W +/-5%

+

C9120

NC/470UF 25V

R9145

100 OHM 1/4W

Q9301 2N7002K

ZD9104

BZT52-B30

1 2

C9127

100PF 500V

R9126 1K 1/8W 1%

R9407

10K OHM

Q9305 MMBT3906 PNP

R9124

2K 1/8W 1%

R9108 47K

R9148

51 OHM 1/4W

+

C9135 470UF 25V

R9161

NC

R9128

100KOHM +-1% 1/4W

R9110

13K 1/8W 1%

+

C9402

10UF 50V

R9135 5.1 OHM 1/4W

C9143

220P 50V

ZD9106

BZT52-B16

1 2

HS9101

HEAT SINK

1 2

3

4

C9114 1NF

R9165 51 OHM 1/4W

ZD9101

BZT52-B30

1 2

+

C9107

47UF 50V

C9113

10N 50V

D9101 SARS01-V1

IC9101SSC1S311

FB/OLP

1

BD

2

NC

3

ST4DRV

5

OCP

6

VCC

7

GND

8

R9166

NC

R9405

100K 1/8W 1%

ZD9107

BZT52-B16

12

C9126

100PF 500V

R9112

10 OHM 1/4W

C9911 1NF 250V

R9307 10K OHM

C9141

220P 50V

C9106

100N 50V

VCC

12V

PS_ON

+24VS

VCC

DV5

12V

DV5

12V

ON/OFF

+12V_AUDIO

DIM

+12V_AL

+24VS

!

+24V

12V

PS_ON

VCC_ON

!

HV

!

+12V

HV

PS_ON

C9140 1uF

C9144

1uF

D9104

NC/S510B

1 2

FB9101

BEAD

1 2

+12V_AUDIO

+12V_AL

HOT COLD

FOR D9105

FOR Q9101 Q9801

FOR D9106

C9912 470pF 250V

C9117 1NF

GND2

GND

1

GND

2

GND

3

GND3

GND

1

GND

2

GND

3

GND1

GND

1

GND

2

GND

3

C9145

1uF

Circuit Diagrams and PWB Layouts

EN 60TPM14.1L LA 10.

2014-Oct-24

back to

div.table

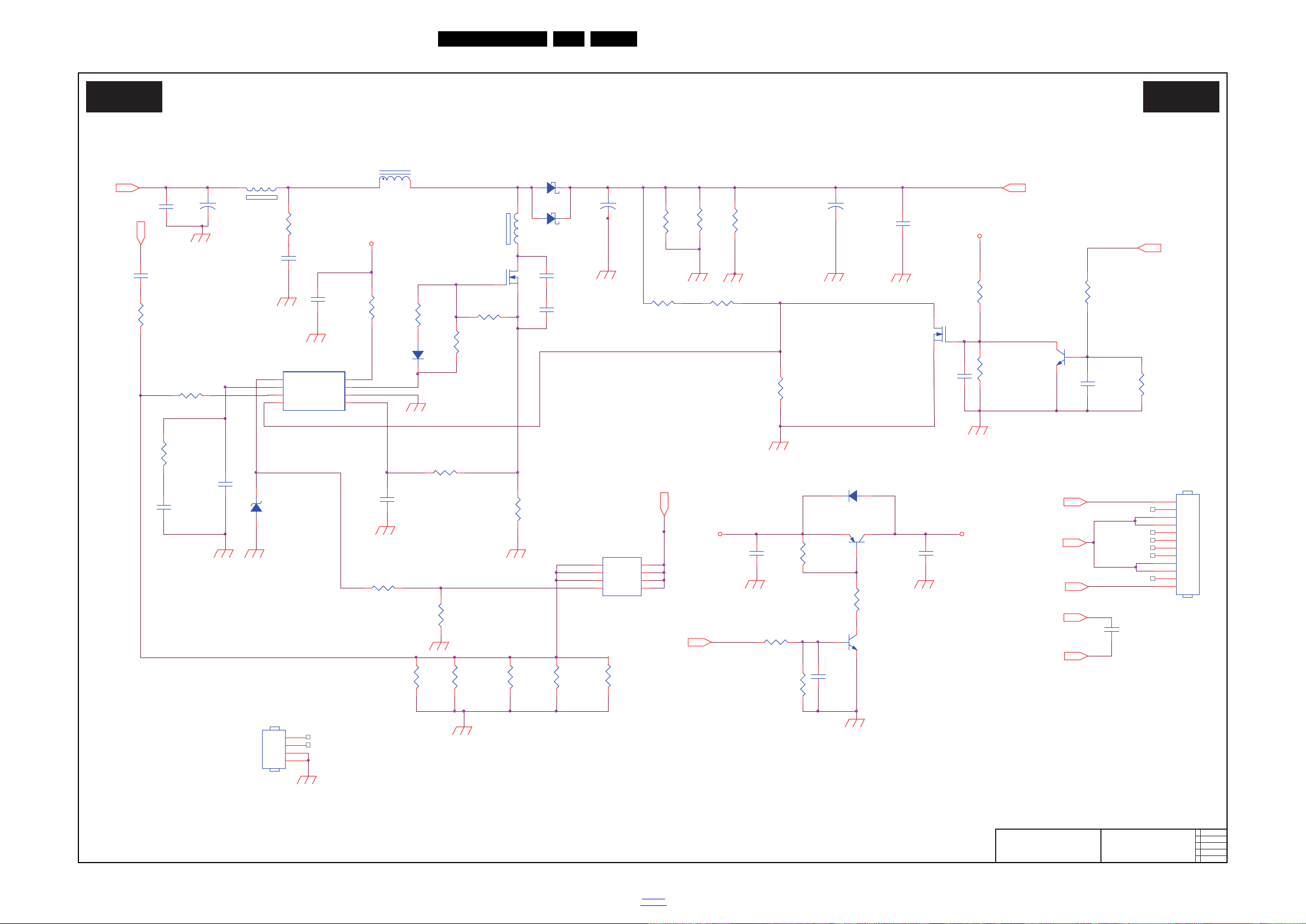

10-3-4 LED Driver

19530_503_130722.eps

130722

LED Driver

A04 A04

2013-06-20

3

715G6163

LED Driver

D8101

SR510-22

1 2

D8105 NC/SR510-22

1 2

+24V

CN8501

CONN

1

2

3

4

5

6

7

8

9

10

11

12

LED1+

ON/OFF

R8154 NC/100K

R8155 NC/100K

R8156 NC/100K

LED1-

C8109 NC/100PF 200V

C8116 NC/100PF 200V

LED1-

HS8101

HEAT SINK

1 2

3

4

FOR Q8104

R8136

6R2 1%

LED1+

LED1-

LED1+

C8121 NC/100PF 200V

R8106

NC/10 OHM

C8123

NC/100PF 500V

C8115

NC/1000pF 630V

FB8102

BEAD

12

Q8104

AOTF4126

Q8107 PMBS3904

R8122

100K 1/10W 5%

+

C8113

100UF 63V

+

C8105

100UF 63V

R8116

82KOHM +-1% 1/8W

R8125

1.5R

R8127

1K 1/10W 5%

R8109

NC

R8130

220K 1/10W 5%

Q8101

AO4486

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R8134

100K 1/10W 1%

D8103

1N4148W

R8126

0.47R 1%

R8138

0 OHM +-5% 1/8W

C8104

2.2uF 25V

R8135

82KOHM +-1% 1/8W

+

C8112

100UF 50V

R8123

1.3R 1%

C8108

100N 50V

C8118

NC

Q8106

MMBT3906 PNP

Q8105

PMBT3904

R8129

10K 1/10W 5%

R8132

10K 1/10W

C8110

1nF

IC8501

PF7903BS

DIMOUT

1

GM

2

FB

3

OVP/DIM4CS

5

GND

6

OUT

7

VCC

8

R8121

NC/100K

R8117

7K5 1/8W +/-1%

C8119

2.2uF 25V

R8120

10K 1/10W 5%

R8119

10K 1/10W 5%

R8131

15K

R8105

10K 1/10W 5%

R8110

0.05R

FB8101

BEAD

1 2

R8118

10K 1/10W 5%

R8104

10 OHM

D8102

NC

ZD8102

NC/BZT52-B22

1 2

C8107 100N 50V

R8128

100R 1/10W 5%

C8114

10N 50V

R8108

1K 1/10W

R8133

33K

L8102

33uH

2

1

R8124

1.5R

C8122

100N 50V

Q8103 2N7002

C8120

NC/2.2uF 25V

C8111

100pF 50V

C8117 NC/1uF

VCC1

+12V

DIM

Circuit Diagrams and PWB Layouts

EN 61TPM14.1L LA 10.

2014-Oct-24

back to

div.table

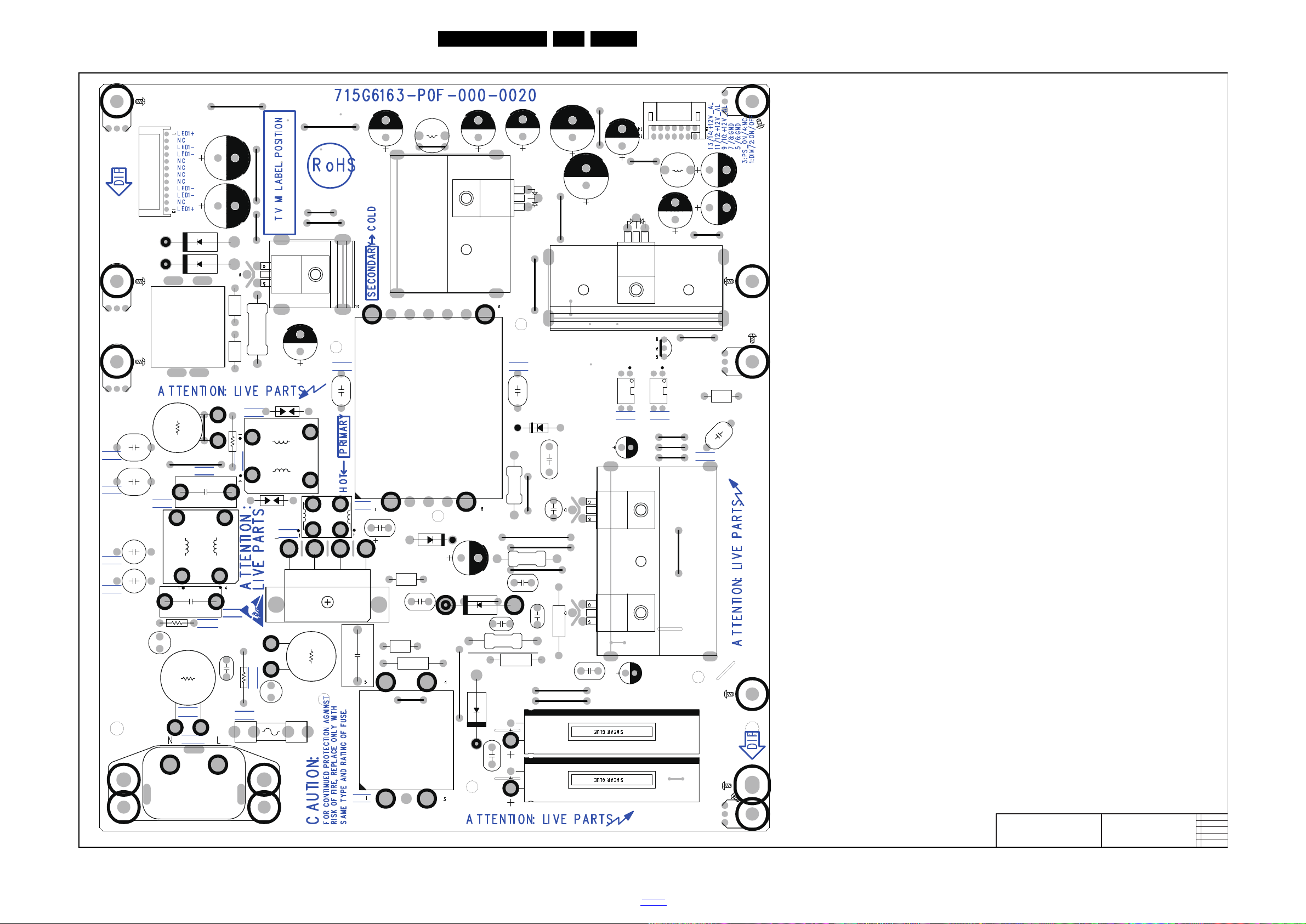

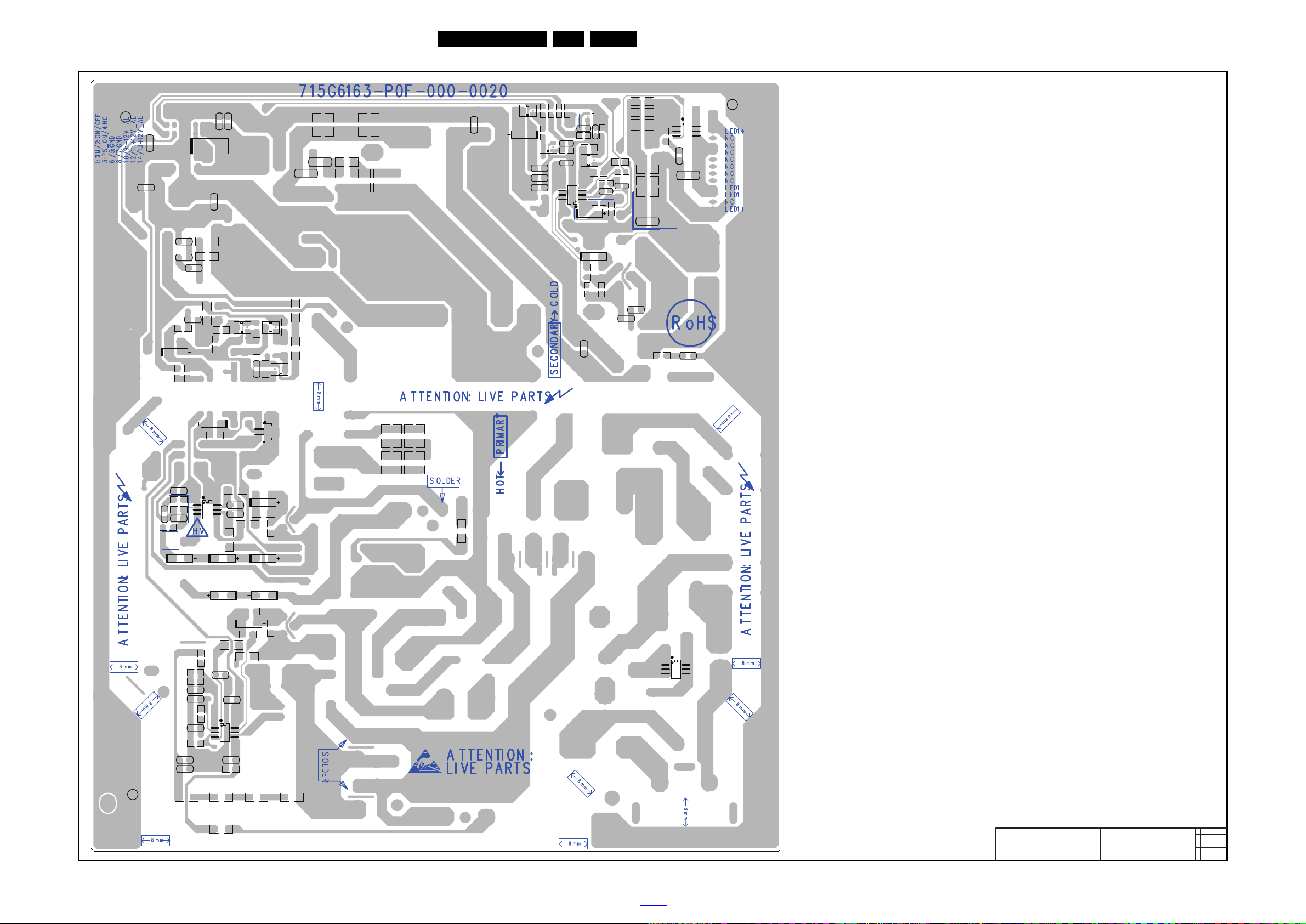

10-3-5 Power layout top

19530_504_130723.eps

130723

2013-06-14

3

715G6163

Power layout top

J9909

C9402

C9817

C9818

D9103

D9801

D9802

IC9102

IC9103

IC9401

R9104

R9111

T9101

J9907

J8501

C9907

D8101

D8105

J9901

J9908

J9910

J9920

J9902

J9916

J9918

J9911

J9913

J8502

J8506

J8505

J8504

J9915

C9112

J9922

J9917

J9904

J9912

J8503

J9903

J9906

J9921

R9808

J9914

J9919

J9923

J2

J1

MH9

MH15

J3

J4

H3

H6

H7

H4

H1

H2

MH2

C9104

C9107

C9108

C9117

C9120

C9135

C9136

C9137

C9801

C9903

C9904

C9911

D9101

D9105

D9106

F9901

FB9803

HS9101

L9103

NR9901

Q9101

Q9801

SG9902

C8112

CN9901

L9102

CN8501

C9905

C9906

C9815

C9814

L8102

HS8101Q8104

C9111

R8110

HS9105

C9109

C9110

R9907

R9908

SG9901

C9116

L9901

L9902

HS9102

NR9902

RV9901

C9114

C9802

C9803

C9901

GND1

GND2

GND3

C8113

C8105

FB9901

FB9902

CN9101

FB9101

L9801

C9119

BD9901

MH1

MH4

MH6

MH3

MH7

MH8

MH10

MH5

HS9103

FB8101

FB9804

C9913

FB8102

FB9805

L9903

FB9102

R9909

FB9802

GND4GND5GND6

C9909

C9910

C9912

Circuit Diagrams and PWB Layouts

EN 62TPM14.1L LA 10.

back to

div.table

2014-Oct-24

10-3-6 Power layout bottom

19530_505_130723.eps

130723

2013-06-20

3

715G6163

Power layout bottom

C8107

C8104

C9113

C9103

C9106

C9118

C9126

C9127

C9138

C9139

C9141

C9142

C9143

C9147

C9403

C9804

C9806

C9807

C9808

C9809

C9810

C9811

C9812

Q9301 Q9305

Q9403

R8123

R9105

R9106

R9107

R9112

R9113

R9114

R9118

R9124

R9125

R9126

R9127

R9129

R9139

R9140

R9145

R9146

R9147

R9148

R9149

R9159

R9160

R9161

R9162

R9163

R9164

R9165

R9166

R9178

R9307

R9308

R9339

R9340 R9341

R9401

R9402

R9405

R9407

R9408

R9802

R9803

R9804

R9805

R9806

R9807R9809

R9810

R9812

R9813

R9814

R9815

R9818

R9823

C8119

C8120

RJ902

R9128

C9123

RJ904

R8126

R8125

RJ901

R8124

SM5

SM6

SM7

R8133

R8131

IC9901

C8108

C8110

C8111

C8114

C8118

C8122

C8117

R8105

R8108

R8118

R8119

R8120

R8122

R8127

R8128

R8129

R8130

R8132

R8134

R8104

R8109

R8116

R8117

R8121

R8135

R8138

R9108

Q8105

Q8106

Q8107

Q8103

C8115

R8154

R8155

R8156

C9105

R9109

R9110

R9135

R9142

Q8101

IC9801

IC8501

IC9101

C9144

C9145

R8136

C8109

C8116

C8121R8106

C8123

C9140

D9102

D9803

Q9401

ZD9101

ZD9102

ZD9106

ZD9401

D8102

D8103

ZD8102

ZD9104

ZD9105ZD9107

D9104

Circuit Diagrams and PWB Layouts

EN 63TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10.4 A 715G6169 PSU

19620_504_140110.eps

140110

AC input

A01 A01

2013-10-14

3

715G6169

AC input

!

1

2

4

3

L9902 14mH

R9902

1MOH M +-5% 1/2W

C9903

NC

C9904

NC

1 2

FB9901 BEAD

R9901 NC

R9903 NC

SG9901 DSPL-501N-A21F

1 2 3 4

HS9901 HEAT SINK

C9902

470nF 275V

C9901

470nF 275V

1 2 3

4

F9901 FUSE

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

IC9901

NC

C9908

NC

C9905 470pF 250V

For BD9901

1

2

4

3

L9901 14mH

B

Vsin

A

B

12

FB9903

127R

1

2

4

3

L9903

0.25mH

!

SG9903 DSPL-501N-A21F

SG9904 DSPL-501N-A21F

2

1

3

4

+

BD9901 TS10P06G-04

12

FB9902 BEAD

SG9902

DSPL-501N-A21F

12

CN9901 SOCKET

1

2

t

NR9902

2OHM

1

2

t

NR9901

2OHM

RV9901

680V

T4.0AH, 250V~

!

C9906

470pF 250V

10-4-1 AC input

Circuit Diagrams and PWB Layouts

EN 64TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-4-2 PFC

19620_505_140110.eps

140110

PFC

A02 A02

2013-10-14

3

715G6169

PFC

R9804 20K 1/8W 1%

Vsin

R9814

680K 1%

R9807

10 OHM

R9808 47OHM

C9801

1UF 450V

D9801

IN5408G-04

R9809

10K 1/8W

B+

C9803

100N 50V

C9814 47PF

1

2

FB9801 BEAD

C9813

100PF

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

IC9801 LD7591T

Q9801 TK18A60V

VCC_ON

C9808 NC

D9802 FMNS-1106S

For Q9801,D9802

1 2 3 4

HS9801 HEAT SINK

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

+

C9804

10UF 50V

R9811

0.1R

C9809

100P 50V

C9812

NC

1 2

FB9802 BEAD

R9812

24K 1/8W

C9806

0.47uF 50V

R9806 2K4 1/8W

+

C9810

68uF 450V

+

C9811

68uF 450V

C9807 1nF 50V

1

3 4

5

L9801 240uH

C9802

NC

C9805

100N 50V

R9802

1MOHM +-1% 1/ 4W

R9803 1MOHM +-1% 1/ 4W

R9801

1MOHM +-1% 1/4W

12

D9803 SS1060FL

!

Circuit Diagrams and PWB Layouts

EN 65TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-4-3 Main Power 12V

19620_506_140110.eps

140110

Main Power 12V

A03 A03

2014-1-3

3

715G6169

Main Power 12V

!

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9301 LD7752B

!

C9303

220N 50V

R9311

10 OHM

1 2 3 4

HS9302 HEAT SINK

For D9305,D9306

+

C9307 100UF 50V

C9304 1nF 50V

!

R9312 51OHM +-5% 1/8W

R9316 5R1 1%

1

2

3

D9305 FMEN-220A

1 2 3 4

HS9301 HEAT SINK

For Q9301

1

2

3

D9306 FMEN-220A

R9314

0R36 5% 2W

Q9332 PMBT3906

C9309 1NF 500V

C9316 100PF 250V

C9310 1NF 500V

R9318 47 OHM 1/4W

R9319

47 OHM 1/4W

R9320

47 OHM 1/4W

R9321

47 OHM 1/4W

C9318 680PF 250V

R9331

10K OHM

IC9342 AS431AZTR-E1

D9302 FR107

Q9341

NC

1

2

ZD9302 BZT52-B30

+

C9311

330UF 25V

R9334 10K OHM

L9301 3UH

12

43

IC9341

PS2561DL1-1

D9303 FR107

12

ZD9301

BZT52-B30

R9306

0.1R

2 4 6 8 10 12 14

1 3 5 7

9 11 13

CN9301 CONN

R9342 NC

+

C9312

330UF 25V

C9333 100N 50V

R9348

1K 1/8W 1%

1 2

ZD9340

BZT52-B16

R9333

10K 1/8W 1%

R9303

6.8K 1/ 4W

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/ 4W

R9346 2K 1/8W 1%

+

C9313

330UF 25V

R9315

220 OHM 1/4W

R9336

2Kohm 1/4W

R9347 5K1 +-5% 1/8W

R9338

100K 1/8W 1 %

+12V_AUDIO

R9335

10K 1/4W

+

C9317

330UF 25V

R9332 330K 1% 1/8W

12

43

IC9331

PS2561DL1-1

R9341

NC

Q9331

2N7002K

R9301

6.8K 1/ 4W

C9301 10NF 1K V

12

FB9303 BEAD

C9315

100N 50V

+12V_AL

+12V_AUDIO

+12V_AL

C9341 220N 50V

+

C9314 270UF 25V

Q9333

BTC4672M3

C9305 220P 50V

1 2

D9331 SS1060FL

PS_ON

C9308 100N 50V

R9313 10K 1/8W

DV5

VCC

DV5

+12"V

VCC

+12"V

ON/OFF

Q9301

STF24NM65N

PS_ON

B+

DIM

C9331

100N 50V

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR

1

2

D9301

SS1060FL

1

2

D9307 SK54BL

HOT

COLD

R9322

NC

R9323

NC

R9324NCR9325

NC

GND

1

GND

2

GND

3

GND10

GND

1

GND

2

GND

3

GND9

GND

1

GND

2

GND

3

GND12

GND

1

GND

2

GND

3

GND11

GND

R9305

NC

+

C9332

10UF 50V

VCC_ON

+12V

R9343 9K53 1%

R9345

NC

R9344

2.43K OHM 1%

+12V

C9302

2.2NF

1

2

FB9302 BEAD

R9307 75K 1/4W

C9336

NC

GND

1

GND

2

GND

3

GND8

GND

1

GND

2

GND

3

GND4

GND

R9308 75K 1/4W

R9309

75K 1/4W

R9310

75K 1/4W

C9334NCC9335

NC

1

2

FB9301

127R

GND

1

GND

2

GND

3

GND2

GND

1

GND

2

GND

3

GND1

GND

1

GND

2

GND

3

GND3

GND

1 2

ZD9330

BZT52-B16

Circuit Diagrams and PWB Layouts

EN 66TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-4-4 Flyback 24V

19620_507_140110.eps

140110

Flyback 24V

A04 A04

2013-10-14

3

715G6169

Flyback 24V

1 2

ZD9141

BZT52-B27

R9109

10 OHM

C9115 NC

C9107

1NF 5 00V

R9110 51OHM +-5% 1/8W

1

2

3

D9103

FME-220B

1

2

FB9102 BEAD

1

2

3

D9104 FME-220B

R9102

100 OHM 1/ 4W

R9103

100 OHM 1/ 4W

R9104

100 OHM 1/ 4W

R9105

100 OHM 1/ 4W

R9112

0.24 oH M 2W

C9103

NC

R9113 18R 1%

R9124 18R 1%

R9114 18R 1%

R9122 18R 1%

R9125

18R 1%

C9141

47nF 50V

R9126 18R 1%

R9123 18R 1%

R9127 18R 1%

R9115

18R 1%

R9116 18R 1%

For Q9101

C9108

2.2NF

R9121 82KOHM +-5% 2WS

12

FB9103 BEAD

+

C9109

330UF 35V

Q9101

STF24NM65N

D9101 SARS01-V1

+

C9110

NC

+

C9111

330UF 35V

!

+

C9112

330UF 35V

1

2

D9102

SS1060FL

COLD

HOT

C9142 220N 50V

C9132 100N 50V

1 2 3 4

HS9102 HEAT SINK

R9147 7K5 1/8W +/ -1%

R9145

7K5 1/8W +/ -1%

R9146 5K1 +-5% 1/8W

L9101 3UH

R9143

1K 1/8W 1%

C9101 10NF 1 KV

R9108

220 OHM 1/4W

1 2 3 4

HS9101 HEAT SINK

12

43

IC9141

PS2561DL1-1

3

5

4

7

8

10

11

6 12

T9101 POWER X'FMR

C9114

1.5NF 250V

VCC_ON

R9101

0.1R

+

C9131 10UF 5 0V

C9113 100N 50V

R9111 10K 1/8W

!

C9105

220P 50V

IC9142

AS431AZTR-E1

C9104

10N 50V

+24V

+24"V

+24V

B+

For D9103,D9104

R9106

100KOHM

C9102

2.2NF

PT

1

FB

2

CS

3

GND

4

OUT

5

VCC

6

HV

8

IC9101

PF6200

1

2

FB9101

127R

R9142

2K4 +/-1% 1/ 8W

R9141 21K +-1% 1/8W

R9117

NC

R9118

NC

R9119

NC

1 2

ZD9101

NC

R9120

NC

!

Circuit Diagrams and PWB Layouts

EN 67TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-4-5 LED Driver

19620_508_140110.eps

140110

LED Driver

A05 A05

2013-10-14

3

715G6169

LED Driver

For D9101,Q8101

VLED-

VLED+

R8132 82K +-1% 1/8W

R8147

1.8R

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q8143

MTB55N10Q8-0-T1-G

R8148

1.5R

2

1

L8101 33uH

+24V

1 2 3 4

HS8101 HEAT SINK

R8102 33R 1/8W

+

C8113

82uF 100V

C8115

1uF 50V

1 2 3 4 5 6 7 8

9 10 11 12

CN8101 CONN

R8111

10K 1/8W 1%

C8109

0.47uF 5 0V

C8108 470PF 50V

1

2

FB8101

BEAD

R8106 10K OHM

R8108

5K1 1/8W 1%

C8114

2.2NF

R8150

20K 1% 1/4W

R8107 300K 1/8W 5%

C8110 NC

1

2

D8102

SS1060FL

R8135

10ohm +/-1% 1/ 8W

Q8142 DTA144WN3/S

R8143

10K 1/8W 1%

R8131

33K 1/8W 1%

C8141

100P 50V

C8104

NC

R8103 10K 1/8W 1%

R8149

1.5R

Q8141

DTC144WN3/S

R8145

1.8R

+

C8103

82uF 100V

R8146

1.8R

C8111 1nF 50V

C8107 100P 50V

1

2

3

D8101 FMEN210A

R8142 5K1 1/8W 1%

+

C8112

NC

R8105

470R 1%

R8141 10K 1/8W 1%

R8144

1.8R

C8132

100N 50V

Q8101

AOTF4126

Q8102 PMBT3906

R8133 15K 1/8W 1%

C8131

100N 50V

R8104

0.05R

R8110

130K 1/8W

R8101

10 OHM

ON/OFF

DIM'

+

C8101 330UF 35V

R8109

150K 1/8W

R8134

10K 1/8W

C8106

100N 50V

C8133

NC

FB

1

COMP

2

OVP

3

CS4DIM

5

GND

6

DRV

7

VCC

8

IC8101 LD5861

Q8103

PMBS3904

Q8145

DTA144WN3/S

Q8144

DTC144WN3/S

ON/OFF

DIM

+12V

R8152 10K 1/8W

R8151 10K 1/8W

DIM'

VLED+

+12V

VLED-

Circuit Diagrams and PWB Layouts

EN 68TPM14.1L LA 10.

2014-Oct-24

back to

div.table

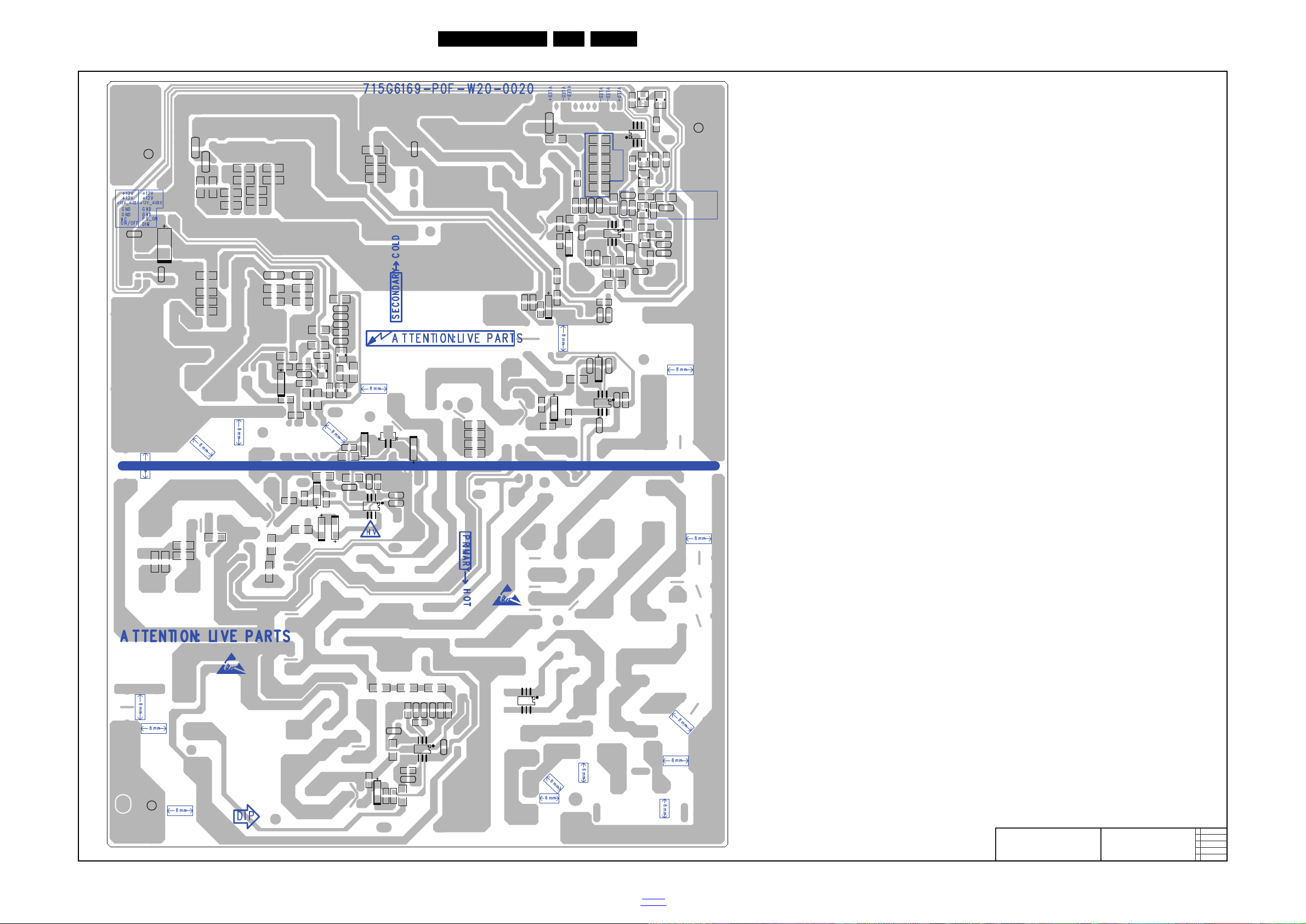

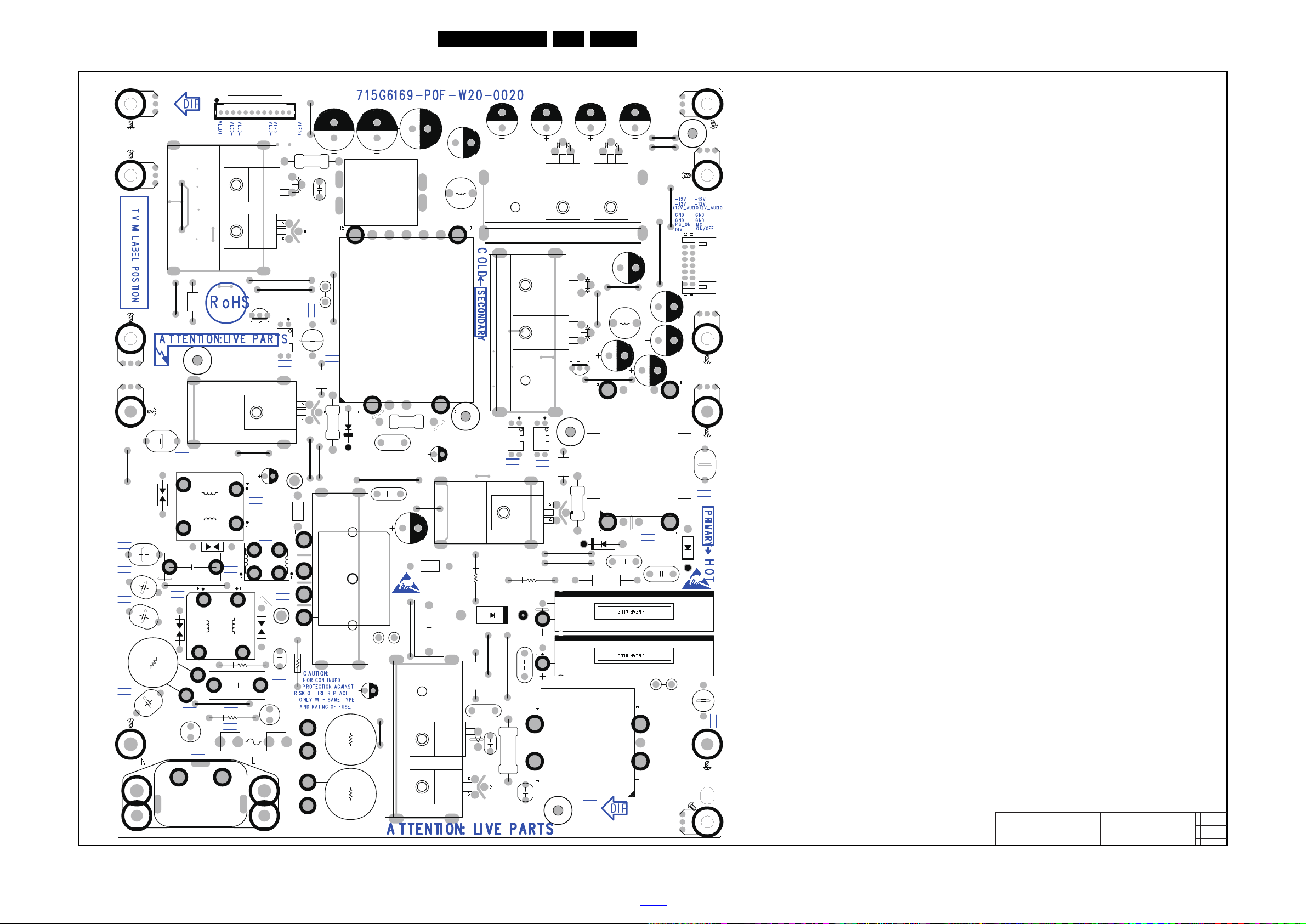

10-4-6 Power layout top

19620_526_140110.eps

140110

2013-09-12

3

715G6169

Power layout top

D9303

D9302

R9314

J9116

J9120

J9119

J9117

IC9331

IC9141

IC9142

IC9341

IC9342

C8104

R8104

J9108

J9109

J9123

J9105

J8104

J8103

J9101

J9102

R9121

J9121

SU1

J8105

J8101

SU3

T9301

D9801

J9103

J9104

J9113

J9114

J9111

SU2

GND6

GND7

J8102

SU7

J9122

SU4

J9106

J9107

J9118

J9115

J9110

C9814

D9103

C9110

C9112

C9101

C9102

C9109

C9111

C9131

R9101

R9112

T9101

MH1

MH2

MH3

MH4

MH5

MH6

MH7

MH17

DR3

DR4

DR5

DR6

DR10

DR9

DR8

DR7DR6

DR12

SU5

SU6

DR13

DR11

DR2

DR7

DR1

C9307

C9810

C9811

C9902

CN9901

F9901

Q9801

L9901

L9902

HS9901

HS9101

C9905

C9903

C9904

C9901

C9908

C9301

C9808

D9802

C9804

FB9802

R9902

R9306

R9811

SG9901

SG9902

R9901

R9903

C9311

C9312

C9313

C9314

L9101

L8101

HS9301

HS8101

C9114

D8101

D9104

D9305

D9306

L9301

Q8101

C8103

C9317

C8112

C8113

D9101

BD9901

C9801

C9302

C9332

Q9101

Q9301

HS9801

HS9102

HS9302

MH18

MH16

GND2

GND4GND3

GND1

CN9301

RV9901

NR9901

NR9902

CN8101

C8101

GND8

GND9

GND10

GND11GND12

FB9801

FB9902

L9903

C9812

FB9903

FB9102

FB9302

MH24

MH19

FB9901

C9316

C9318

C9813

FB9101

FB9301

L9801

SG9904

SG9903

C9115

C9906

FB8101

FB9103

FB9303

Circuit Diagrams and PWB Layouts

EN 69TPM14.1L LA 10.

2014-Oct-24

div.table

back to

10-4-7 Power layout bottom

19620_527_140110.eps

140110

2013-09-12

3

715G6169

Power layout bottom

C9303

C9305

C9802

C9807

C9805

C9806

C9809

R9303

R9307

R9308

R9309

R9310

R9807

R9808

R9805

R9809

R9810

R9812

R9813

R9806

R9804

MH12

MH13

C9304

R9302

C9308

R9305

R9313

R9301

R9315

R9316

R9801 R9802 R9803

IC9801

C8109

C8108

C8133

C9113

R8146

R8107

R8108

R9336

R8143

R9322

R8144

MH23

R9337

C8106

C8132

C8107

C8131

C9141

C9142

C9315

C9331

C9341

C9309C9310

R8102 R8103

R8141

R8135

R8133

R8134

R8131

R8132

R9142

R9143

R9332

R9333

R9338

R9341

R9342

R9344 R9345

R9347

R8147

R8150

R8145

R9318

R9319

R9320

R9321

R9323

R9324

R9325

R9331

R9343

Q8102

Q8103

Q9332 Q9331

Q9341

C8141

C8110

C8111

R8148 R8149

R8110

R8109

R8111

R8142

R8101

R8105

R8106

Q8142

R9141

R9334

R9335

R9346

R9348

IC8101

C9803

JR8102

JR8101

JR8103

JR9101

JR8104

JR9103

R9311

R9312

R9814

R9122

R9123

JR9104

Q8143

R8151

R8152

Q8145

C9333

C8114

R9124

R9125

C8115

C9334

C9335

C9336

C9104

C9105

R9120

IC9901

R9105

R9111

C9107

C9103

C9108

C9132

R9113

R9146

R9104

R9106

R9147

R9102

R9103

R9108

R9110

R9115

R9116

R9117

R9118

R9126

R9127

R9109

R9114

R9145

R9119

D9803

D9301

ZD9301

ZD9302

IC9301

ZD9330

D8102

D9102

ZD9141

ZD9340

IC9101

Q9333

Q8141

D9331

D9307

Q8144

ZD9101

Circuit Diagrams and PWB Layouts

EN 70TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10.5 A 715G6297 PSU

19531_500_130826.eps

130826

POWER

A01 A01

2013-07-30

3

715G6297

POWER

FB9910 NC

1 2

R9144

NC

!

R9125 9K1 1/8W 1%

D9101

NC

1

2

3

C9908

100PF 250V

FB9909 BEAD

12

FB9904 BEAD

12

R9102

6.8K 1/4W

!

R9119

330 OHM 1/4W

+

C9109

330UF 25V

ZD9106 BZT52-B36

1 2

!

IC9102 PS2561DL1-1

12

43

FB9908 JUMPER

1 2

R9104 82K OHM 1%

R9120

330 OHM 1/4W

!

t

NR9902 NC

12

!

R9109 18R 1/8W

+

C9122

330UF 25V

R9103

6.8K 1/4W

R9101

6.8K 1/4W

HS9105 NC

1 2 3 4

!

T9101

POWER X'FMR

1

2

3

4

5

6

7

9

10

R9111 10K OHM +-5% 1/8W

R9901

1MOHM +-5% 1/2W

HS9102 HEAT SINK

1 2 3 4

!

ZD9104

BZT52-B15

1 2

R9114

100KOHM +-5% 1/8W

+12V

+

C9127 NC

R9124 1K OHM +-5% 1/8W

R9127

0R05 1/4W

+

C9113

330UF 25V

CN9901

SOCKET

12

!

R9105 82K OHM 1%

R9128

0R05 1/4W

CN9904 CONN

2 4 6 8 10 12 14

1 3 5 7

9 11 13

!

C9901

0.47uF 275V

R9129

0R05 1/4W

C9114 NC

!

R9136

NC

R9135

NC

R9137

NC

C9103

2.2NF 10% 1KV

R9134

NC

R9132NCR9133

NC

CN9903 NC

2

4

6

8

10

12

14

1

3

5

7

9

11

13

R9106 82K OHM 1%

+12V

C9104 100N 50V

C9906 220PF 250V

+12V

ON/OFF

C9120 NC

DIM

R9142

0 OHM +-5% 1/8W

C9107 1NF 500V

C9115 NC

C9904

2.2NF 250V

R9110

75R 1/8W 5%

T3.15AH/250V

R9145 NC

+

BD9101

GBL408-C

2

1

3

4

R9107 82K OHM 1%

D9105

FR107

D9106 SR510-22

1 2

IC9103

AS431AN-E1

SG9901

NC

HS9103 HEAT SINK

1 2 3 4

R9121

1.5K 1/4W

!

R9126 0 OHM +-5% 1/8W

C9907 NC

Q9101 TK6A65D

L9901

30MH

124

3

+

C9110

330UF 25V

D9108 SR510-22

1 2

R9122 3K3 1/8W 1%

C9124 10N 50V

D9109 SR510-22

1 2

R9141 2K4 1/8W 1%

D9103

FR107

CN9902

NC

1

2

L9102

3UH

D9110 SR510-22

1 2

FB9906

BEAD

1 2

SG9902

NC

ZD9105 BZT52-B36

1 2

C9902

470PF 250V

C9125

NC

D9104

1N4148W

+

C9101 47UF 450V

C9106 220P 50V

R9143

0R05OHM1/8W

R9118

330 OHM 1/4W

t

NR9901

3R 15% 2.4W

12

+

C9116

330UF 25V

HS9101 NC

1 2 3 4

IC9101

PF6200

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9113

220 OHM 1/4W

!

FB9903 60R

1 2

F9901 FUSE

C9903

NC

!

RV9901

680V 10%

FB9901

BEAD

12

RV9902

NC

HV

C9126

100PF

C9117

470NF 50V

+

C9105

47UF 50V

R9108 4R7 1/4W 5%

C9108 1NF 500V

+

C9102 47UF 450V

D9102

NC

1

2

3

R9112

0.39R

!

10-5-1 POWER

Circuit Diagrams and PWB Layouts

EN 71TPM14.1L LA 10.

2014-Oct-24

back to

div.table

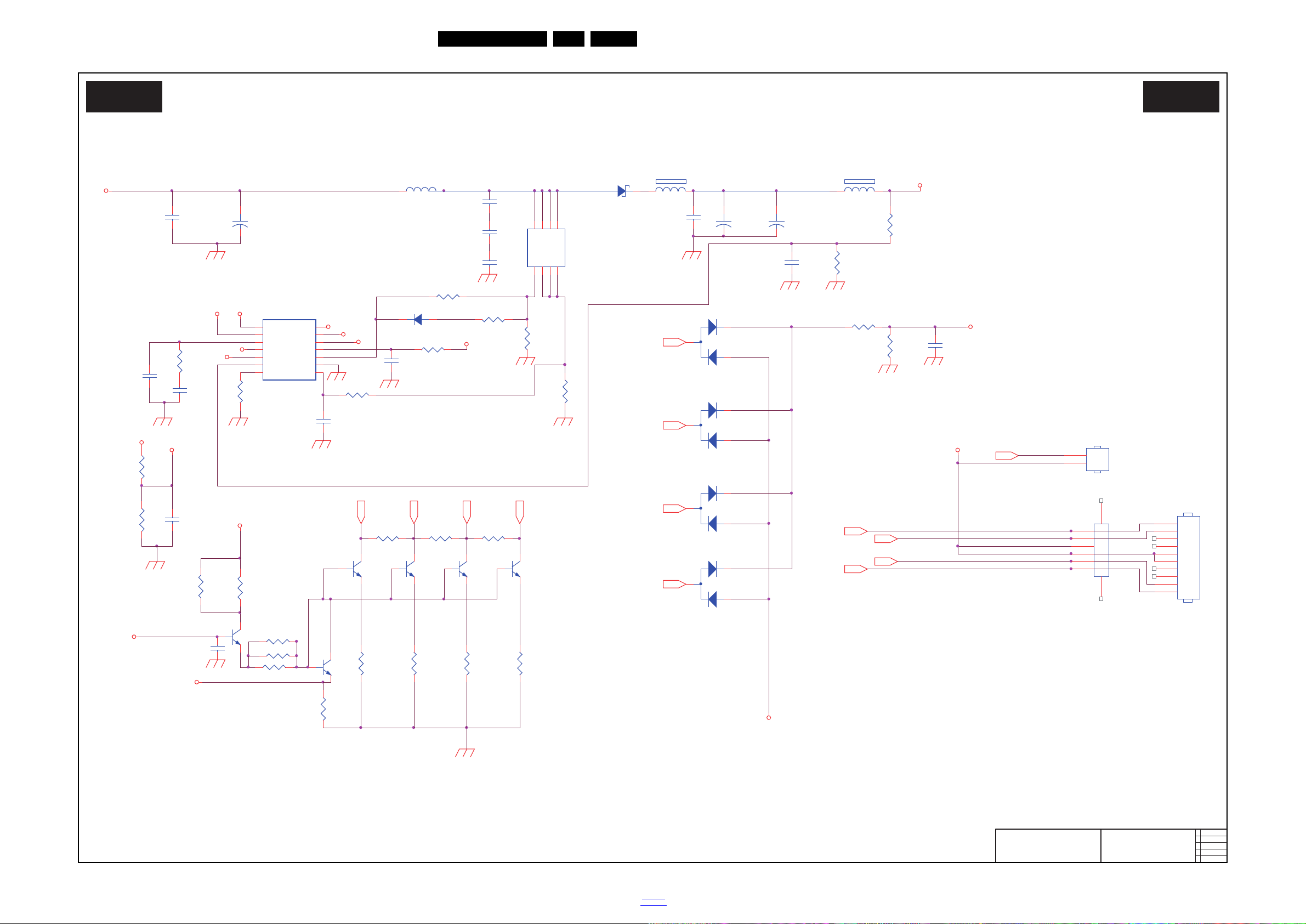

10-5-2 LED DRIVER

19531_501_130826.eps

130826

LED DRIVER

A02 A02

2013-08-01

3

715G6297

LED DRIVER

R8106

10K OHM +-5% 1/8W

R8104

22OHM +-5% 1/8W

R8108

200OHM +-5% 1/8W

CN8102 NC

1

2

VLED+

LED1

FB9905

BEAD

1 2

R8105

2R2 +-5% 1/8W

LED4

LED3

LED2

LED1

ON/OFF

DIM

L8102 47uH

VFB

+

C8102 33UF 100V

VSET

+

C8101

330UF 25V

Q8106

2N3904

R8107

0R1 5% 2W

C8109

100N 50V

D8103

BAV99

3

1

2

R8116 100K 1%

R8110 100K 1%

R8118

1M 1/6W 5%

R8119

150K 1/8W 5%

D8101

SR310-29

1 2

C8110 470P 50V

C8105 NC

D8104

BAV99

3

1

2

D8105

BAV99

3

1

2

D8106

BAV99

3

1

2

CN8104 NC

1 2 3 4 5 6 7 8 9

10

R8133 150R

CN8101

CONN

1

2

3

4

5

6

7 8

VBJT

VADJ

R8121 10R5 1%

VFB

+12V

D8102 1N4148W

+12V

VADJ

VBJT

SLP

C8108

10N 50V

R8101

51K 1/8W 1%

R8122 10R5 1%

R8114

100R 1%

R8115 100R 1%

R8123 10R5 1%

R8124 10R5 1%

VLED+

R8125 10R5 1%

Q8103

2N3904

Q8102

2N3904

R8103

0 OHM +-5% 1/8W

C8106 NC

LED1

R8129 NC

R8131 NC

LED2

LED3

Q8101 MTD55N10Q8

S1S2S3G

4

D8D7D6D

5

LED4

FB9907

JUMPER

1 2

R8111 18K 1/8W 1%

R8130 NC

C8104 100N 50V

+12V

C8103

100N 50V

VSET

+12V

R8132 150R

IC8501

PF7001S

EN

1

DIM

2

GM

3

VFB

4

VSET

5

OVP

6

RT

7

CS

8

GND

9

VMOS

10

VCC

11

VBJT

12

VADJ

13

SLP

14

R8117 3K9 1/8W 1%

C8116 NC

C8107 NC

Q8104

2N3904

Q8105

2N3904

Q8107

2N3904

R8113 100R 1%

LED2LED1 LED4LED3

SLP

R8102 180K +-1% 1/8W

C8112 NC

C8114

10N 50V

C8111

NC

C8115 NC

+

C8113 NC

Circuit Diagrams and PWB Layouts

EN 72TPM14.1L LA 10.

2014-Oct-24

back to

div.table

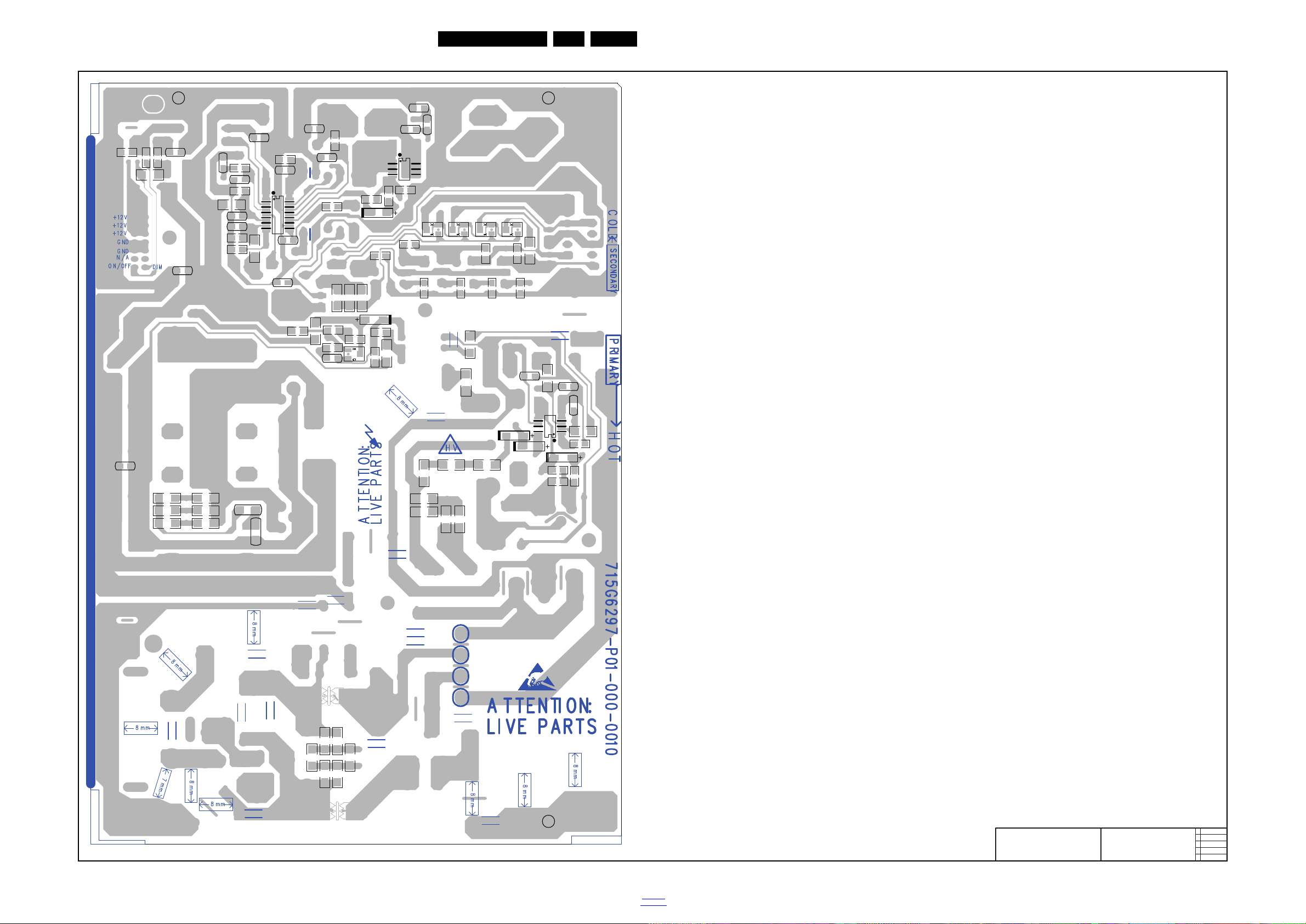

10-5-3 Power layout top

19531_502_130826.eps

130826

2013-07-30

3

715G6297

Power layout top

CN8102

D8101

D9103

IC9102

R9112

J917

J911

C9113

C9122

J924

J925

J923

J922

J914

J912

J903

C8106

L9102

R8107

J905

J902

R8118

D9105

J929

C9105

J916

J904

J926

J919

J921

J920

MH1

C9101

C9102

C9103

C8102

J915

J918

J931

J932

J933

R8132

BD9101

T9101

D9106

D9108

D9109

D9110

R8133

J901

H5

H1

H2

H4

J907

J908

MH4

H6

MH11

MH7

H11

H10

MH22

H9

H7

H8

H12

H13

H14

C9116

R9901

C8101

D9101

Q9101

L8102

SG9901

SG9902

FB9905

C8113

Q8105

Q8104

Q8106Q8107

Q8102

Q8103

C9126

CN8101

D9102

NR9901

F9901

CN9902

FB9906

CN9901

MH8

C9127

C9906

C9907

C9908

C9902

C9903

C9904

NR9902

FB9907

GND2

MH31

GND1

MH32

C9901

FB9908

FB9904

FB9909

FB9901

RV9901

RV9902

C9109

HS9102

HS9103

CN9903

CN9904

HS9101

C9110

CN8104

L9901

HS9105

FB9910

FB9903

Circuit Diagrams and PWB Layouts

EN 73TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-5-4 Power layout bottom

19531_503_130826.eps

130826

2013-07-30

3

715G6297

Power layout bottom

JR901

Q8101

MH18

JR902

C9108

IC9103

MH3MH6

JR903

JR904

C9107

JR905

R8115

R9101

R9102 R9103

R9104

R9105

R9106

R9107

R9108

R9113

R9118

R9119

R9120

R8116

R8110

R9132

R9133

R9134

R9135

R9137

R9136

R8113

R9129

R8114

R9121

R9127

R9128

C8112

C8103

C8104

C8108

C8109

C8110

C8111

C9104

C9106

C9114

C8105

C9117

C9120

C9124

C9115

C8114

C8107

C8116

C9125

C8115

R8119

R9124

R8106

R8101

R8104

R8105

R8108

R8111

R8117

R8122

R8123

R8124

R8125

R8129

R8130

R8131

R9109

R9110

R9111

R9122

R9125

R9126

R9114

R8102

R8103

R9141

R9142

R9143

R9144

R8121

R9145

MH30

MH29

D9104

IC9101

IC8501

ZD9104

D8103 D8104 D8105 D8106

D8102

ZD9105

ZD9106

Circuit Diagrams and PWB Layouts

EN 74TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10.6 A 715G6353 PSU

19610_507.eps

AC input

A01 A01

2013-11-04

4

715G6353

AC input

!

1 2 3 4

F9901

FUSE

!

C9901

1NF

C9909

330PF 250V

T5.0AH/250V

!

R9907

1MOHM +-5% 1/2W

1

2

4

3

L9903

0.25mH

2

1

3

4

-

+

BD9901

KBJ608G-FUC

R9908

NC/510K

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

IC9901 NC/CAP004DG

R9909

NC/510K

C9907 NC/47PF

VXB

C9906

470NF 275V

VXA

SG9902

DSPL-501N-A21F-NC

!

C9910

330PF 250V

!

Vsin

!

12

t

NR9901

2.5R

!

1

2

CN9901

SOCKET

!

1 2

t

NR9902

2.5R

C9905

470NF 275V

!

SG9901

DSPL-501N-A21F-NC

1 2

FB9901

BEAD

1 2

HS9102

HEAT SINK

C9903

NC / 100PF 250V

C9904

NC / 100PF 250V

12

FB9902 BEAD

1

2

4

3

L9901

14mH

1

2

4

3

L9902

14mH

VXB

VXA

RV9901

680V

10-6-1 AC input

Circuit Diagrams and PWB Layouts

EN 75TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-6-2 PFC

19610_508.eps

PFC

A02 A02

2013-11-04

4

715G6353

PFC

C9804 47P 50V

R9814

4.7K 1/ 8W

C9817

NC/47PF

Vsin

HV

R9806

10K OHM +-5% 1/8W

C9806

100N 50V

D9801

S8KC

R9823

NC

C9812 NC/100P 50V

D9802 MUR460-28

R9818

18.7K 1/8W 1%

C9811 220pF 50V

1

3

4

5

L9801

300uH

INV

1

COMP

2

RAMP

3

CS

4

ZCD

5

GND

6

OUT

7

VCC

8

IC9801

LD7591T

+

C9814 68UF 450V

C9807

470PF 50V

1 2

FB9802

BEAD

Q9801

TK 15A60U

R9815

200K 1/8W 1%

VCC_ON

+

C9815

68UF 450V

1 2

FB9803

BEAD

!

C9818

47PF

R9802

10R 1/ 8W 5%

R9803

33R 1/8W 5%

R9813 10K OH M +-5% 1/8W

R9810

470 OHM 1/4W

R9805

47K 1/4W

R9812 24K 1/8W 1%

C9808

NC / 100P 50V

C9810

0.47UF 50V

C9809 47N 50V

R9808

0.15 O MH 2W S

C9802 1NF

C9801 1UF 450V

12

D9803 RB160M

R9807 1MOHM +- 1% 1/ 4W

R9809 750K 1%

R9804 1MOHM +- 1% 1/ 4W

C9803 1NF

Circuit Diagrams and PWB Layouts

EN 76TPM14.1L LA 10.

2014-Oct-24

back to

div.table

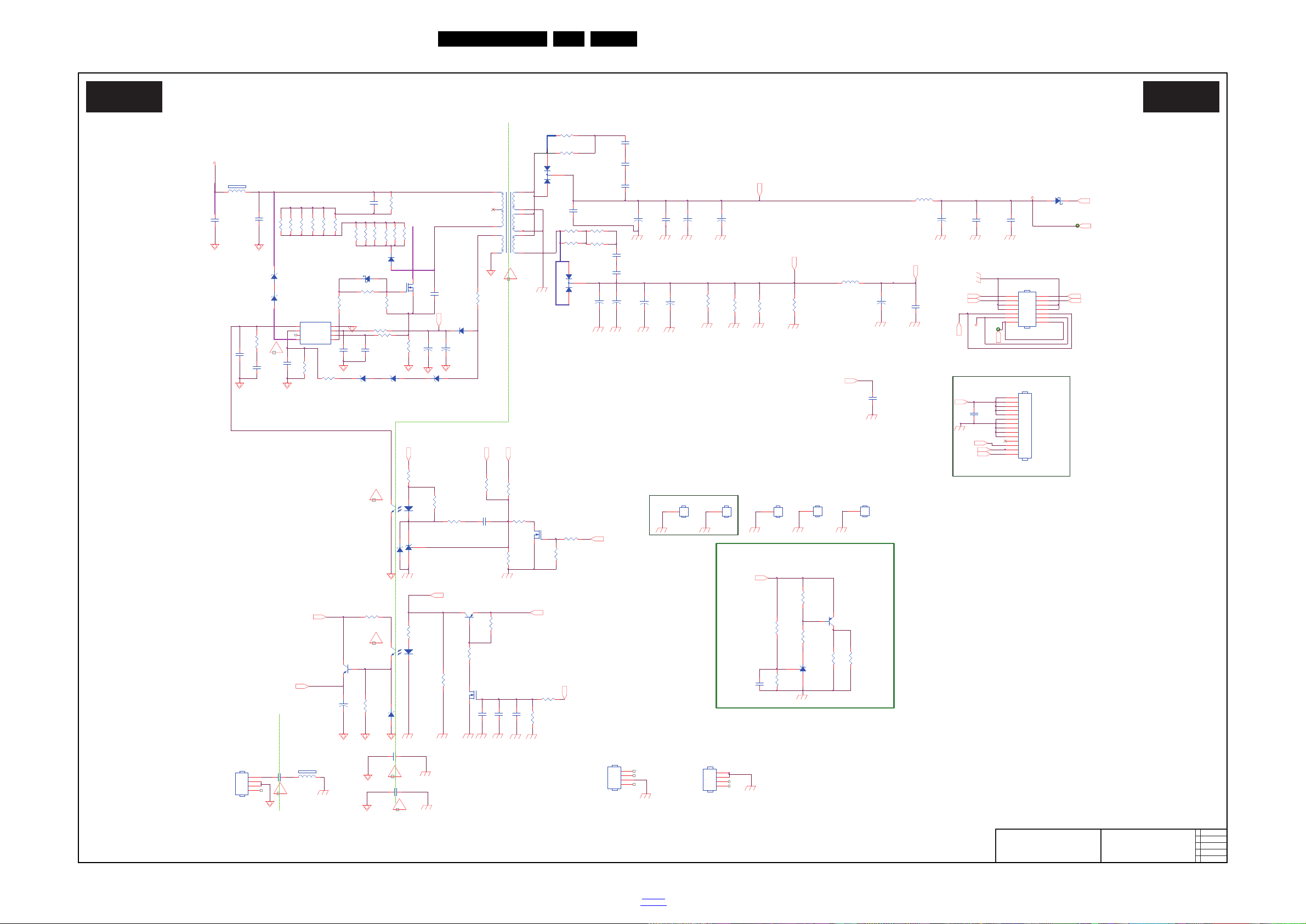

10-6-3 Main Power

19610_509.eps

Main Power

A03 A03

2013-11-04

4

715G6353

Main Power

COLD

+

C9112 10UF 50V

R9167

NC

R9168

NC

2D/3D

C9404

NC/100N 50V

1 2

3

4 5 6 7

8

9 10 11 12 13 14

CN9102

NC/CONN

+24V

ON/OFF

DIM

1 2

FB9103

BEAD

+

C9116

100UF 50V

C9913 470pF 250V

1

GND5

GND

1

GND4

GND

R9339

6.2K OHM +-1% 1/8W

C9138 1uF

+

C9137 470UF 25V

R9163

NC

L9103 3UH

Q9401

BTC4672M3

C9403

NC/100N 50V

R9113

100 OHM 1/4W

R9125 5K1 +-5% 1/8W

C9139 330P 50V-NC

C9104

2.2NF

R9149

0 OHM 1/4W

R9107 10KOHM

+

C9108

330UF 50V

R9111

0.15 OMH 2WS

D9103 PR1007

1 2

3

4

HS9103

HEAT SINK

R9408 330K 1% 1/8W

+

C9109

330UF 50V

Q9101

TK13A65U

R9129 3K 1/8W +/-1%

R9106

22 OHM 1/4W

C9103

330P 50V

1

2

3

D9106 FMEN-220A

R9104 82K 2W

10/23 эǂ

L9102 3UH

1

2

3

D9105 FMXA-2202S

+

C9110

330UF 50V

R9140

100 OHM 1/4W

+

C9136 470UF 25V

C9147

1uF

12

ZD9102

BZT52-B39

R9159

NC

R9164

0 OHM 1/4W

R9341 100K 1/8W 1%

C9105

100N 50V

R9402 2Kohm 1/4W +/-5%

R9146

100 OHM 1/4W

C9142

220P 50V

Q9403 2N7002K

C9119 47PF

R9118

NC

R9109

1K

R9162

NC

R9142

0 OHM 1/4W

R9147

NC

C9123

100N 50V

R9139

100 OHM 1/4W

12

ZD9105

BZT52-B39

R9308

10K 1/8W 1%

R9114

100 OHM 1/4W

IC9301

AS431AN-E1

1243

IC9102

EL817M(X)

12

D9102 RB160M

2 4 6

8

10 12 14

1

3

5

7

9 11 13

CN9101

CONN

R9160

NC

1

2

ZD9401

BZT52-B16

1 2

3

4

HS9105

HEAT SINK

1

2

3

4

5

7

8

9

10

11

12

T9101

POWER X'FMR

+

C9111

330UF 50V

R9105 10 OHM

R9340

10K OHM +-5% 1/8W

R9127

9.31K +-1% 1/8W

12

43

IC9401

EL817M(X)

C9118 220N 50V

R9401

2Kohm 1/4W +/-5%

R9178 10K 1/4W

R9145

100 OHM 1/4W

+

C9120

470UF 25V

1

2

ZD9104

BZT52-B30

Q9301 2N7002K

C9127

100PF 500V

R9126 1K 1/8W 1%

R9407

10K OHM

Q9305 MMBT3906 PNP

R9124

2K 1/8W 1%

R9108 47K

R9148

NC

+

C9135 470UF 25V

R9161

NC

R9128

100KOHM +-1% 1/4W

R9110

13K 1/8W 1%

+

C9402

10UF 50V

R91355.1 OHM 1/4W

C9143

220P 50V

1 2

ZD9106

BZT52-B16

1 2

3

4

HS9101

HEAT SINK

R9165

NC

C9114 1NF

+

C9107

47UF 50V

1 2

ZD9101

BZT52-B30

D9101 1N4007

C9113

10N 50V

R9166

NC

FB/OLP

1

BD

2

NC

3

ST4DRV

5

OCP

6

VCC

7

GND

8

IC9101SSC1S311

12

ZD9107

BZT52-B16

R9405

100K 1/8W 1%

R9112

10 OHM 1/4W

C9126

100PF 500V

R9307 10K OHM

C9911 1NF 250V

C9106

100N 50V

C9141

220P 50V

VCC

12V

PS_ON

+24VS

VCC

DV5

12V

DV5

12V

ON/O FF

+12V_AUDIO

DIM

+12V_AL

+24VS

!

+24V

12V

PS_ON

VCC_ON

!

HV

!

+12V

HV

C9146 1uF

2D/3D

C9144

1uF

C9405

100N 50V

!

1 2

D9104

SK54BL

1 2

FB9101

BEAD

+12V_AU DIO

+12V_AL

HOT COLD

C9140 1uF

PS_ON

R9150

NC

R9151

NC

Q9104

NC/BTB1424AM3

R9152

NC/27K 1/8W 1%

C9912 1NF 250V

R9169

NC/2K 1/8W 5%

R9156

NC/1K OHM

R9154

NC/20K 1/4W

R9153

NC/2K43 1/8W 1%

R9157

NC/1K OHM

IC9106

NC/AS431AN-E1

C9134 NC/1N 50V

+24VS

C9117 1NF

1

GND2

GND

1

GND1

GND

1

GND3

GND

HOT

C9145

1uF

Circuit Diagrams and PWB Layouts

EN 77TPM14.1L LA 10.

2014-Oct-24

back to

div.table

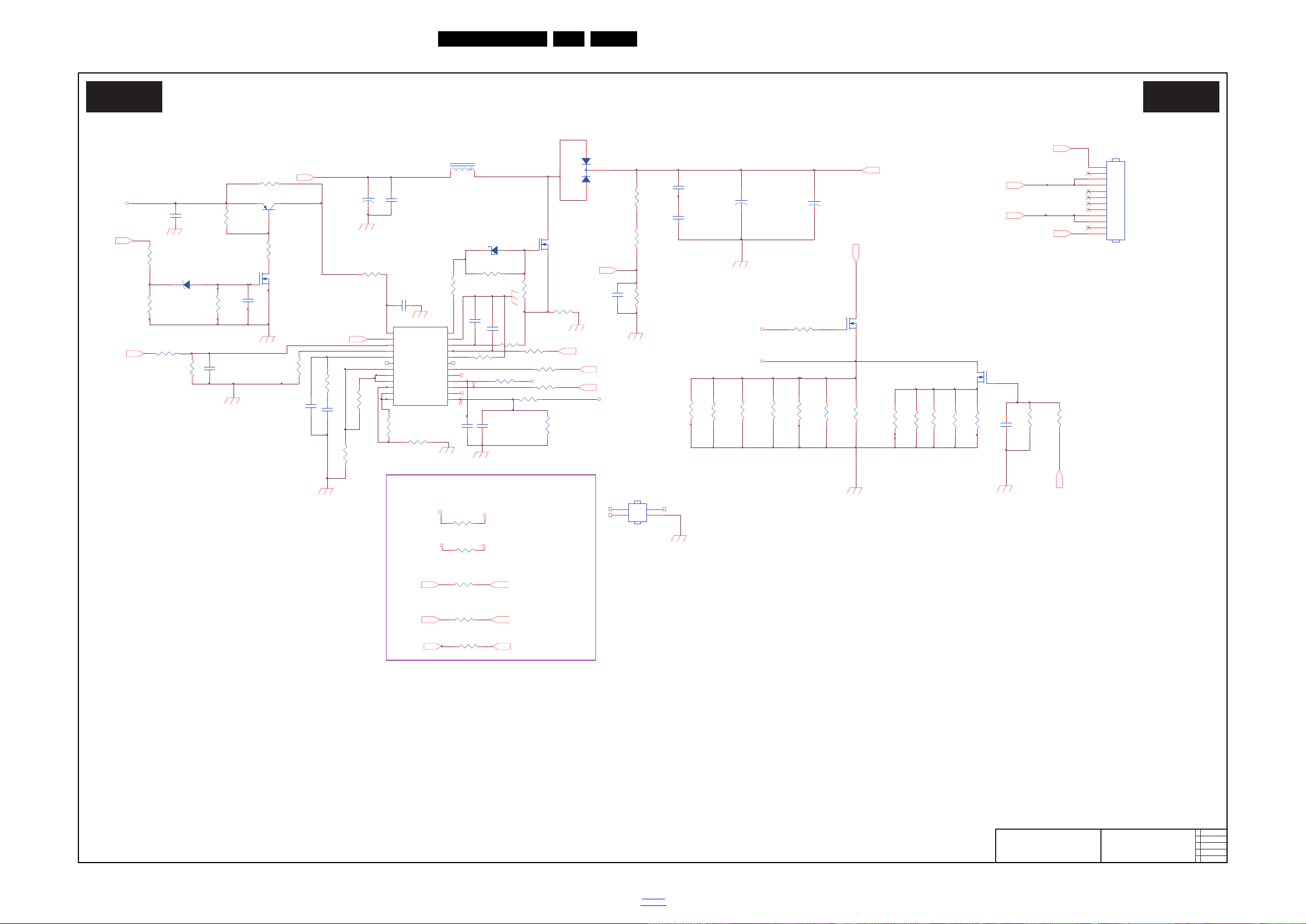

10-6-4 LED Driver for A3D

19610_510.eps

LED Driver for A3D

A04 A04

2013-11-04

4

715G6353

LED Driver for A3D

R8137

NC/20K

R8108

330K 1% 1/8W

C8131

100N 50V

R8111

150K 1/4W +/- 1%

R8141

0R05 1/ 4W

C8132

100N 50V

R8115

820K OHM

R8113

10.5K OHM 1%

R8152

0R05OHM1/8W

R8102 33 OHM

C8107

100P 50V

C8144

NC/100N 50V

R8155

200K 1/8W 1%

R8110

240KOH M

R8134

NC/4.7K 1/8W

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATU S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

R8133 NC/4.7K 1/8W

3

4

1 2

HS8101

HEAT SINK

Q8103 NC/2N7002K

R8104

0.1R 2W

1 2

3

4 5 6 7

8

9 10 11 12

CN8101 CONN

R8101

2.2 OHM 1/ 8W

R8143

NC/ 10K 1/ 8W 1%

R8131

33K OHM 1%

+

C8101

100UF 50V

R8135

10ohm +/-1% 1/8W

2

1

L8101

33uH

C8108 100N 50V

Q8101

EMD60N10F

C8109

1uF

C8143

100P 50V

R8146

2 OHM 1%

R8150

0R05OHM1/8W

R8112

150K 1/4W +/ -1%

R8109

100K 1/8W 1%

R8114

820K OHM

R8106

10K 1% 1/4W

R8142

NC/100KOH M

C8141

NC/100p

12

D8102

NC/SS1060FL

R8147

NC/1R 1%

C8104

220nF50V

C8133

NC/1NF

R8132

100KOHM +-5% 1/8W

R8105

470R 1%

Q8145

NC/AO3414

R8136

NC/30K OHM

C8110

0.1uF 50V

R8144

1.8R

Q8102

NC/PMBT3906

R8145

NC/1.5R

Q8143 MTBA5N10J3

R8148

0R051/8W

C8106

1uF

R8107

510 OHM

R8149

20K

C8105

220nF50V

R8103

10K 1% 1/8W

1

2

3

D8101 FME-220B

C8142

NC/100P

R8161

NC/1R 1%

VLED_1+

VLED_2-

VLED_1-

ON/OFF

DIM

VLED_1+

VLED_2+

VLED_1-

OVP_L

+24V

VLED_2-

SENSE3

S4

S3

G4

G3

FB3

R8116

240KOHM

R8162

NC/1R 1%

R8151

100K 1/8W

R8159

NC/1.2R

R8153

240K 1/8W

2D/3D

option LED 1 ch or 2 ch

R8166

NC/0R05 1/4W

VLED_1-

R8117

100K 1/8W 1%

R8158

NC/1.8R

+

C8111

82uF 100V

330K

VLED_2+

G3

S3

R8163

2 OHM 1%

R8164

2 OHM 1%

12

ZD8101

NC/BZT52-B9V1_R1_00001

VLED_1-

R8156

1.8R

VLED_2-

R8157

1.8R

+

C8112

82uF 100V

R8165

0R05 1/ 4W

VLED_1+

R8139

0R05 1/4W

VLED_2+

+24V

R8138

NC/ 10K O H M

+12V

C8114

10N 50V

Circuit Diagrams and PWB Layouts

EN 78TPM14.1L LA 10.

2014-Oct-24

back to

div.table

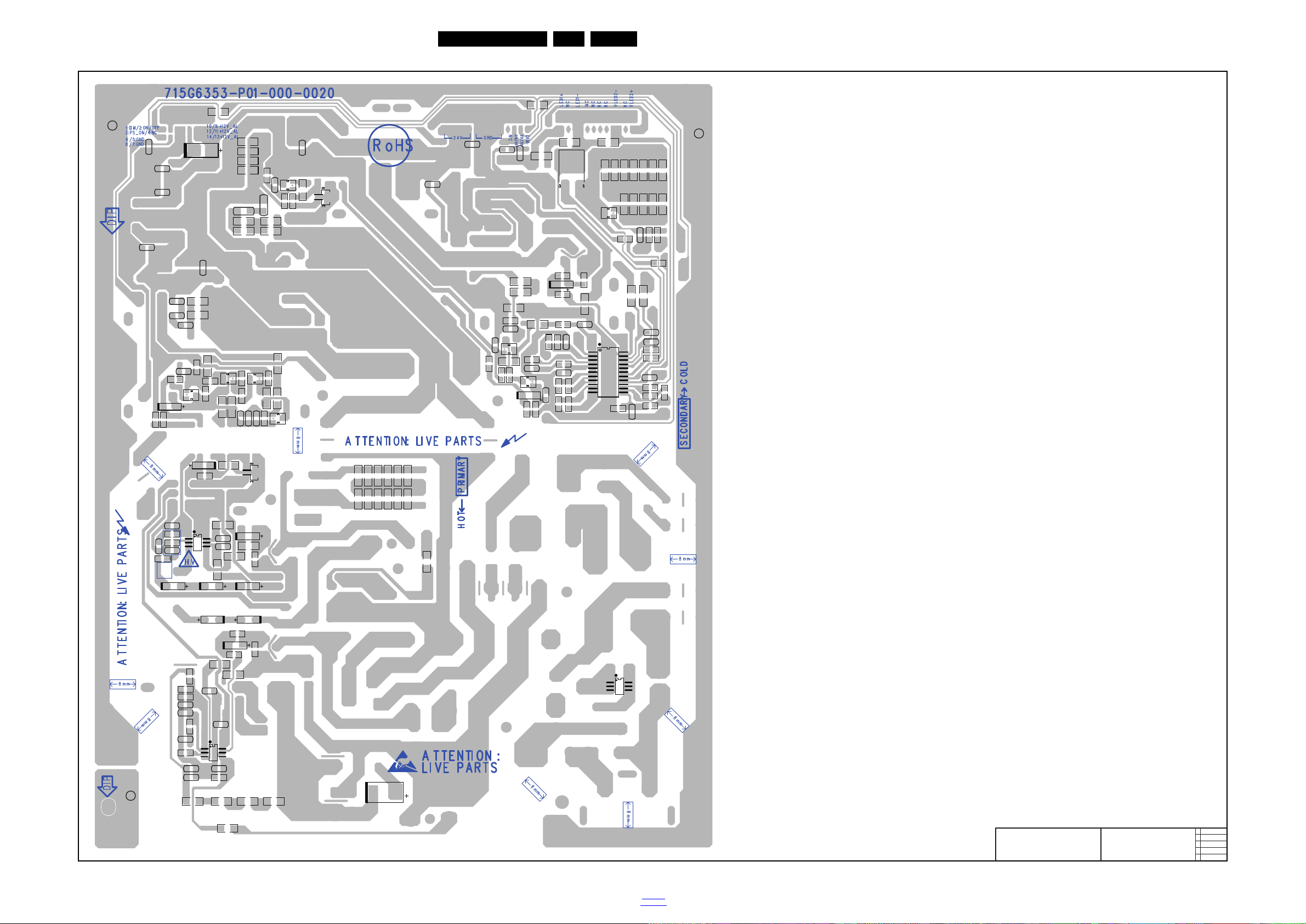

10-6-5 Power layout top

19610_511.eps

2013-11-04

4

715G6353

LAYOUT TOP

SU2

J9909

C9402

C9817

D9103

IC9401

T9101

J9907

C9907

J9901

J9908

J9910

J9920

J9902

J9916

J9918

J9915

C9112

J9917

J9904

J9912

J9903

J9906

J9921

J9914

J9919

J9905

J8813

J8810

J9911

J8812

J8806

J8804

J8811

J9913

J9922

J8814

J8815

J8807

J8808

J8809

J8803

J8805

J8817

J9923

J8816

J8818

J9924

SU7

R9156

R9157

J8801

J8802

J9925

D9101

J9927

J9926

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9802

C9803

D9105

IC9102

R8104

R9104

R9111

R9808

C9120

C9107

D9802

SU5

SU4

SU1

SU3

GND1

SLT9

SLT8

SLT10

SLT1

SLT2

SLT3

SLT4SLT5SLT6

SLT7

H1

MH18

C9135

C9136

C9137

C9801

C9903

C9904

D9106

F9901

FB9803

HS9101

L9103

NR9901

Q9101

Q9801

SG9902

CN9901

L9102

CN8101

C9905

C9906

C9815

C9814

HS9105

R9907

R9908

R9909

SG9901

HS9102

NR9902

L9903

C9114

C9901

FB9901

FB9902

CN9101

FB9101

FB9802

C9119

BD9901

MH1

MH6

MH3

MH7

MH8

MH10

MH5

L8101

MH9

MH15

HS9103

HS8101

Q8101

C8111

C8112

D8101

C9909

C9910

FB9103

C9913

MH17

CN9102

C9911

C9912

C9818

L9901

L9902

GND2

GND3

GND4

GND5

RV9901

C8101

L9801

Circuit Diagrams and PWB Layouts

EN 79TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-6-6 Power layout bottom

19610_512.eps

2013-11-04

4

715G6353

LAYOUT BOTTOM

Q9301 Q9305

Q9403

JR901

JR801

JR902

SM5

SM6

SM7

IC9101

R9339

R9340

R9405

R9408

R9818

R9823

R8131

C9106

C9118

C9138

C9139

C9141

C9142

C9143

C9147

C9403

C9804C9808

C9810

C9811

C9812

C9123

C9105

C9144

C9145

R9105

R9118

R9145

R9146

R9147

R9148

R9149

R9159

R9160

R9161

R9162

R9163

R9164

R9165

R9166

R9178

R9401

R9402

R9407

R9135

R9142

R8141

R8117

R8158

R8159

R8162

R8163

R8132

R8150

C8141

C8142

JR803

R8114

JR802

JR804

R8151

R8152

R8153

R8165

R8166

JR903

C9404

C9405

R9150

R9151

R9167

R9168

JR805

C9134

C9140

R9152

R9153

R9169

R9154

IC9106

IC9301

C9146

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9103

C9126

C9127

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111 R8112

R8113

R8115

R8116

R8133

R8142

R8148

R8149

R9106

R9107

R9108 R9109

R9113

R9129

R9125

R9126

R9127

R9139 R9140

R9307

R9308

R9341

R9802

R9803

R9804

R9805

R9806

R9807R9809

R9810

R9812

R9813

R9814

R8143

R9114

R9128

Q8145

R9124

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9110

R9112

D9801

R8109

R8161

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

Q8102

Q9104

Q8103

R8134

Q8143

R8144

R8145

R8146

R8147

R8156

R8157

D9102

D9803

ZD9101

ZD9102

ZD9106

ZD9401

ZD9104

ZD9105ZD9107

D9104

D8102

IC8101

ZD8101

Q9401

Circuit Diagrams and PWB Layouts

EN 80TPM14.1L LA 10.

2014-Oct-24

back to

div.table

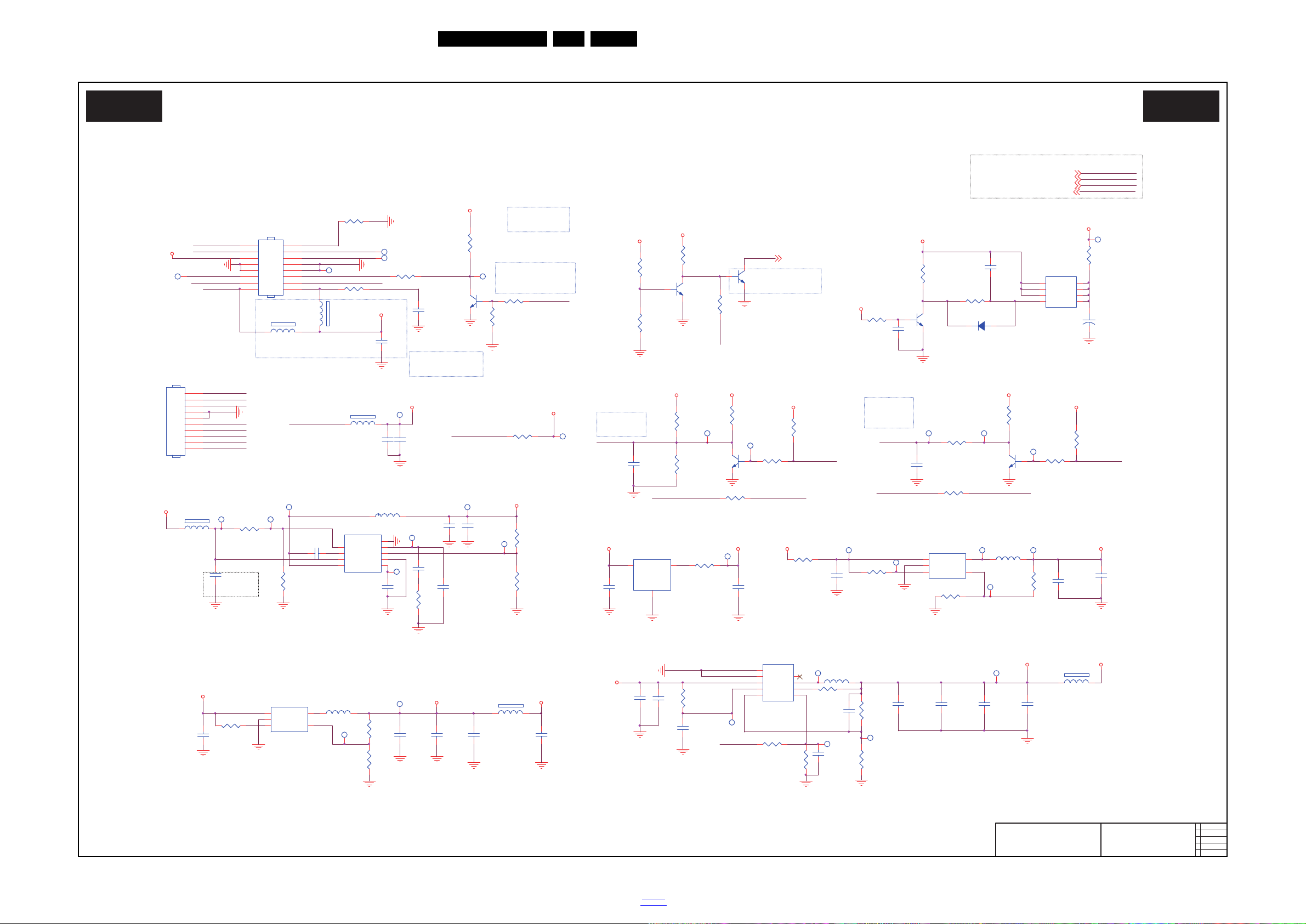

10.7 B 715G6324 SSB

19620_109_140110.eps

140110

System Power

B01 B01

2013-10-23

3

715G6324

System Power

+

C757 100UF 16V

R731

100K 1/16W 5%

C736

100NF 25V

R778

4.7K

R777

4.7K

12V_Amp

C426

22UF 20% 6.3V

DVDD3V3

BL_DIMMING

056G 563149

L703 15UH

+

C750

100uF 35V

R719

4.7K 1/16W

AC Detect

AC _ D E T

L = > AC_OFF_DET

H = > AC_ON

+12V_AL _PRE

+12VSB_PRE

Q708

PMBT3904

STANDBY

1 2

FB703120R 6A

+12VSB_PRE

BRIGHT ADJUST

R732

18Kohm 1/16W +/-1%

C733 100N 16V

C737

10UF 25V

R734

24.9K 1%

Vout = 0.6x(R1+R2)/R1

L = > DC_OFF

C732

22UF 16V

R735

3.3K 1%

C739

NC/22PF 50V

TP712

CORE POWER DV1.2

C738

1.5nF 50V

R2

25mil

C735

0.1uF 25V

TP1

PS_ON contro l

TP2

80mil

R1

H = > POWER_ON

TP3

TP5

R775

NC/0R051/8W

+5VSB

+12V

TP6

+

C752

220UF 25V

TP7

AC_DET

C717

22UF 20% 6 . 3V

12V_Amp_PRE

AC_DET#

AC_DET

C789

22UF 20% 6 . 3V

R776

0R051/8W

VIN

1

GND

2

EN3VFB

4

LX

5

U411

G5695T11U

1

2

FB799NC /120R/6000mA

+12VSB_PRE

12V_Amp_PRE

C790

22UF 20% 6. 3 V

TP390

+5VSB

C722

22uF 6.3V

R773 0R05 4A 1/4W

90mil

+5V Switch

90mil

3V3SB

R728

0R05 1/16W

OPWRSB

R714

10 OHM 1/10W

DVDD3V3

VIN3VOUT

2

GND

1

U702

R779

1K

DVDD3V3

BL_ON/OFF

1 2

FB702

220R/2000mA

C712

10UF 10V

R765

NC/1M 1/16W

C731 100N 16V

BL_ON/OFF9

C713 100N 16V

BL_DIMMING

12V_Amp_PRE

R772

51K 1/16W 5%

PS_ON

+5VSB

R709

22K 1/16W 5%

+5V_SW

R768

NC/10K

1 2

ZD713

NC/BZT52-C5V6

NC/4.7UF 10V

C762

+5V_SW

R764 NC/1K

R766 4. 7K

R729 82K 1%

R730

18Kohm 1/16W +/-1%

R771

1K 1/16W

AVDD3V3

C718 10UF 6. 3V 20%

VCCK

C753

100N 50V

TP1044

C721

2.2UF

C711 100N 16V

Q766

MMBT3904

R767

1K

C761

NC/10N 50V

C716 100N 16V

VIN

1

GND

2

EN

3

VFB

4

LX

5

U705

G5695T11U

R769

NC/10K

TP1047

TP1049

Q703

PMBT3904

TP1045

TP1051

+5VSB

C427

100N 16V

+5VSB

TP1059

+5V_SW

AVDD1V2

DVDD3V3

+5V_SW

TP1060

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q702

AO4449 -7A/-30V

TP1063

OPWRSB9

INVERTER_ON_OFF

TP1061

VCCK

C791

22UF 20% 6.3V

TP1062

D712

NC/BAS316

C751

100N 50V

Q707

MMBT3904

L701

2.2UH

C715 22UF 20% 6 . 3V

TP1066

BL_DIMMING9

3V3SB

TP1072

TP1071

BL_ON/OFF

TP1070

TP1073

C704

NC/100N 16V

TP1079

12

FB706

NC 120R / 600 0m A

TP1075 TP1076

AC_DET#

TP1077

TP1078

TP1074

TP1067

TP1064

TP1069

TP1068

TP1065

TP1053

TP1057

TP1054

C710

10uF 10V

TP1055

TP1048

C709

1uF 10V

TP25

NC

1

LX

2

POK

3

EN4FB

5

VDD

6

VIN

7

GND

8

GND

9

U703

uP1734PSW8

TP26

TP27

TP28

Backlight Control

C754

NC 100N 16V

Q704

PMBT3904

INVERTER ON/OFF

INVERTER_ON_OFF

R761 4.7K

Q705 PMBT3904

+12V_AL_PRE

R713

NC/22K 1/16W 5%

1

2

FB704

120R 6A

1 2

FB705

NC 120R / 6 000m A

C758 1uF 10V

+12V

AC_DET

C756

NC/4.7UF 10% 10V

L702

2.2uH

ORESET# 5

R710

150K 1/16W 5%

BRIGHT_ADJ

DRAM POWER DDRV 1.5V

Vout = 0.6x(1+R1/R2)=1.5V

45mil

R1

R2

R741

4.7K 1/16W

R774

NC/0R051/8W

R711

10K 1/16W 5%

R712

22K 1/16W 5%

BOOST_PWM

BRIGHT_ADJ

TP710 TP711

+12V

(Standby)

C428

2.2UF

+12VSB_PRE

R704

100R 1/16W 5%

R456

33K 1/16W 1 %

R460 22K 1/16W 1%

L401

2.2UH

EN

1

BS

2

IN

3

LX4VCC

5

GND

6

FB

7

COMP

8

E-PAD

9

U706

G5759F11U

LO = > POWER_ON HI = > POWER_ OFF

10mil

Main power On/Off control

PS_ON /STANDBY

100mil

V_out = 0.8 x (1+R1/R2)

12V TO 5VSB-->VCCK 3V3SB MHL1V2 MH L V BUS

L = > DC_OFF

R2

H = > POWER_ON

R1

C705 100N 16V

DDRV

R453 0R05 4A 1/4W

90mil

DVDD3V3

+5V_SW

2 4 6

8 10 12 14 16

1 3 5 7 9 11 13 15

CN701

CONN

AC_DET10

R454

0R05 1/16W

R733

47K 1/16W 5%

R799

100R 1/10W 5%

R1

45mil

R2

40mil

(Amp)

25mil

Vout = 0.6x(1+R1/R2)=3.3V

45mil

20mil

R703

0 OHM +-5% 1/8W

PS_ON

OPWRSB

Control Interface

2D/3D_EN

ADD 2013 0206

R739

4.7K 1/16W

3V3SB

R705

1K 1/16W 5%

R738

4.7K 1/16W

12V_Amp_PRE

R780

NC 100K 1/ 16W 5%

C714

NC/22pF 50V

R717

12K 1/10W 1%

TP380

R718

11.8K 1%

10-7-1 System Power

Circuit Diagrams and PWB Layouts

EN 81TPM14.1L LA 10.

back to

div.table

2014-Oct-24

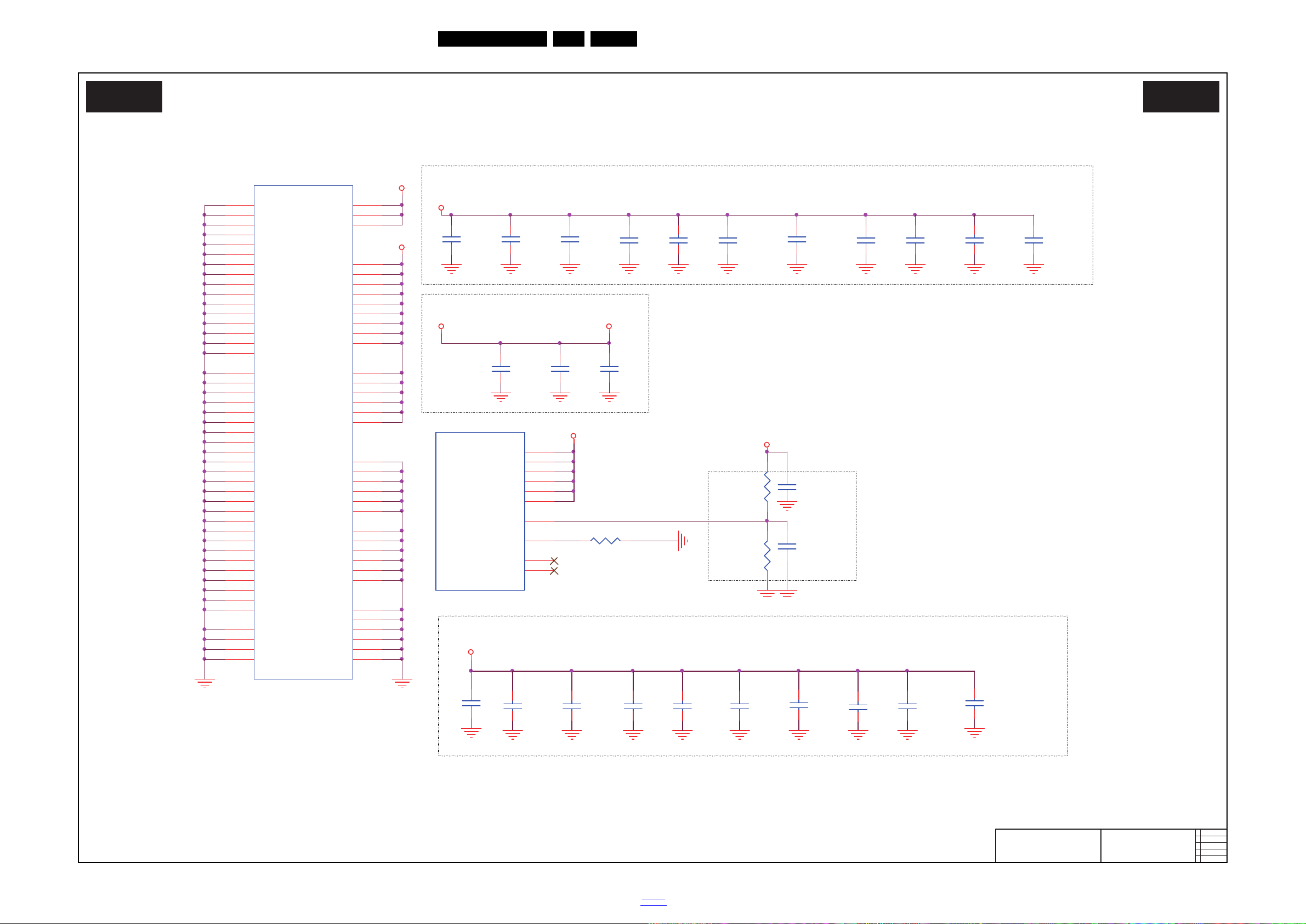

10-7-2 MT5561 VCCK&DDRV

19620_510_140110.eps

140110

MT5561 VCCK & DDRV

B02 B02

2013-10-21

3

715G6324

MT5561 VCCK & DDRV

C451

10UF 6. 3V 20%

C456

10UF 6. 3V 20%

C447

10N 50V

VCCK

K6

VCCK

K5

VCCK

J9

VCCK

L1

VCCK

L2

VCCK

L3

VCCK

L4

VCCK

L5

VCCK

L6

DVSS

H9

DVSS

H10

DVSS

H12

DVSS

A1

DVSS

J10

DVSS

J11

DVSS

J12

DVSS

K9

DVSS

K10

DVSS

K11

VCC3IO

P9

VCC3IO

N10

VCC3IO

P10

DVSS

R13

DVSS

M9

DVSS

L12

DVSS

M11

DVSS

M13

DVSS

M12

VCCK

K7

VCCK

K8

VCCK

L7

VCCK

L8

VCCK

M7

VCCK

M8

DVSS

K12

DVSS

A8

DVSS

F6

DVSS

F20

DVSS

G7

DVSS

G18

DVSS

H13

DVSS

H11

DVSS

J13

DVSS

L9

DVSS

L11

DVSS

L13

DVSS

M1

DVSS

M2

DVSS

L10

DVSS

M3

DVSS

R6

DVSS

M4

DVSS

M5

DVSS

M6

DVSS

N8

DVSS

N13

DVSS

N11

DVSS

N12

DVSS

N15

DVSS

T13

DVSS

N16

DVSS

P7

DVSS

P11

DVSS

P12

DVSS

P14

DVSS

R11

DVSS

R12

DVSS

R14

DVSS

T5

DVSS

W19

DVSS

Y3

DVSS

G8

DVSS

H16

DVSS

J7

DVSS

M10

DVSS

N7

DVSS

N9

DVSS

T15

DVSS

U16

DVSS

V16

DVSS

H14

U401J

MT5561LVNT

C459 100N 16V

C448

10N 50V

C458 100N 16V

C460 100N 16V

C453 1UF 25V

C452 1UF 25V

C446

1UF 25V

C454

4.7U F 10% 10V

C450

10UF 6. 3V 20%

C457

100N 16V

VCCK

VCC3IO

DVDD3V3

VCCK

VCC3IO

CORE POW ER DV1.2

C430

10UF 6. 3V 20%

C449

22UF 20% 6.3V

3.3V IO Power

C436 100N 16V

RVREF

ZQ

R461

1K 1/16W 1%

C435

1UF 25V

C433 100N 16V

C429

NC/100N 16V

C438 100N 16V

DDRV

N1

DDRV

N2

DDRV

N3

DDRV

N4

DDRV

N5

DDRV

N6

DDRVREF

P1

ZQ

P2

TN_MEMPLL

H8

TP_MEMPLL

J8

U401A

MT5561LVNT

C440

4.7U F 10% 10V

R455

1K 1/16W 1%

R457 240R 1% 1/16W

C441

1UF 25V

C434 100N 16V

C432 100N 16V

C425

NC / 100N 16V

C437 100N 16V

DRAM Power 1.5V

DDRV

Circuit Diagrams and PWB Layouts

EN 82TPM14.1L LA 10.

2014-Oct-24

back to

div.table

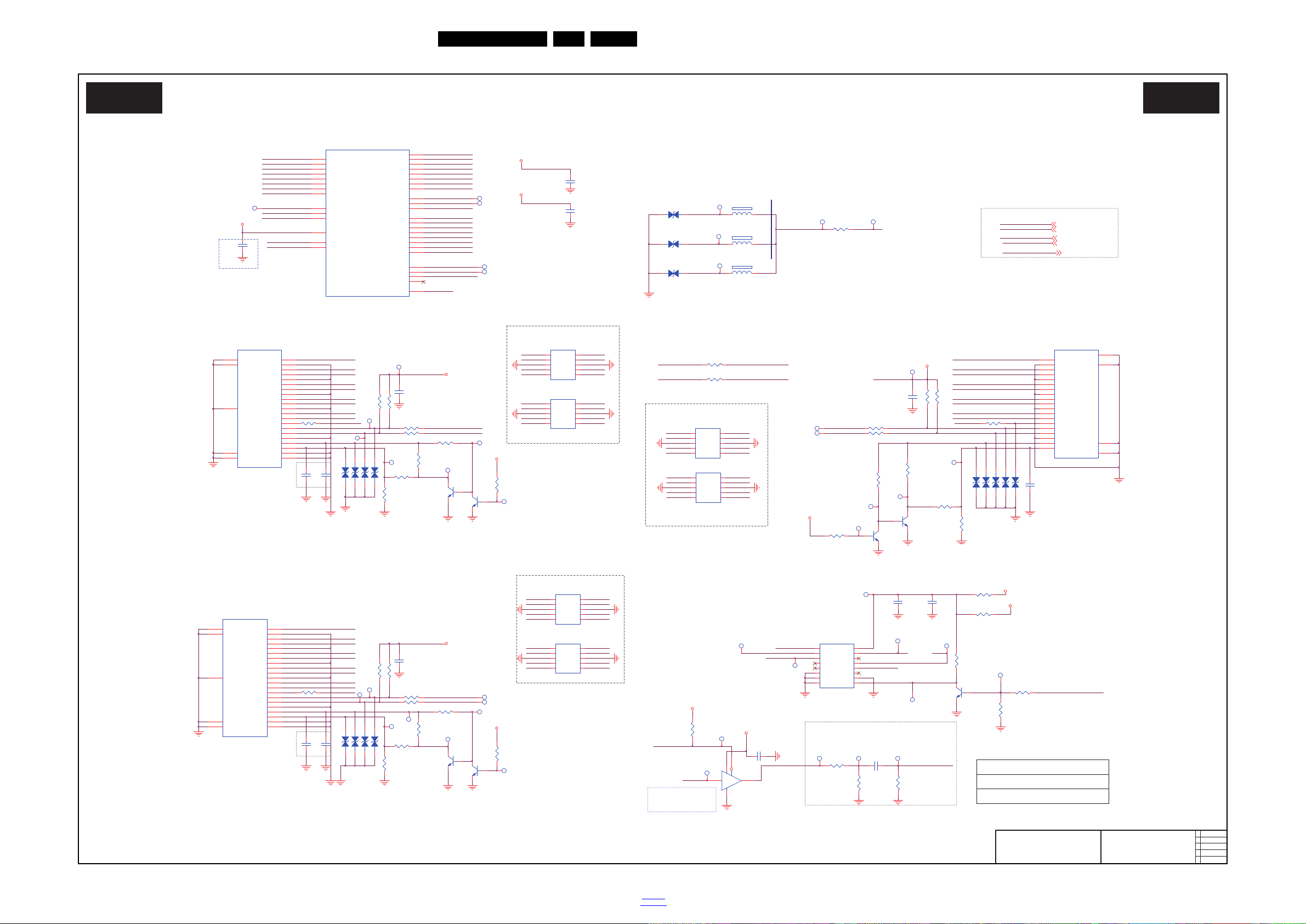

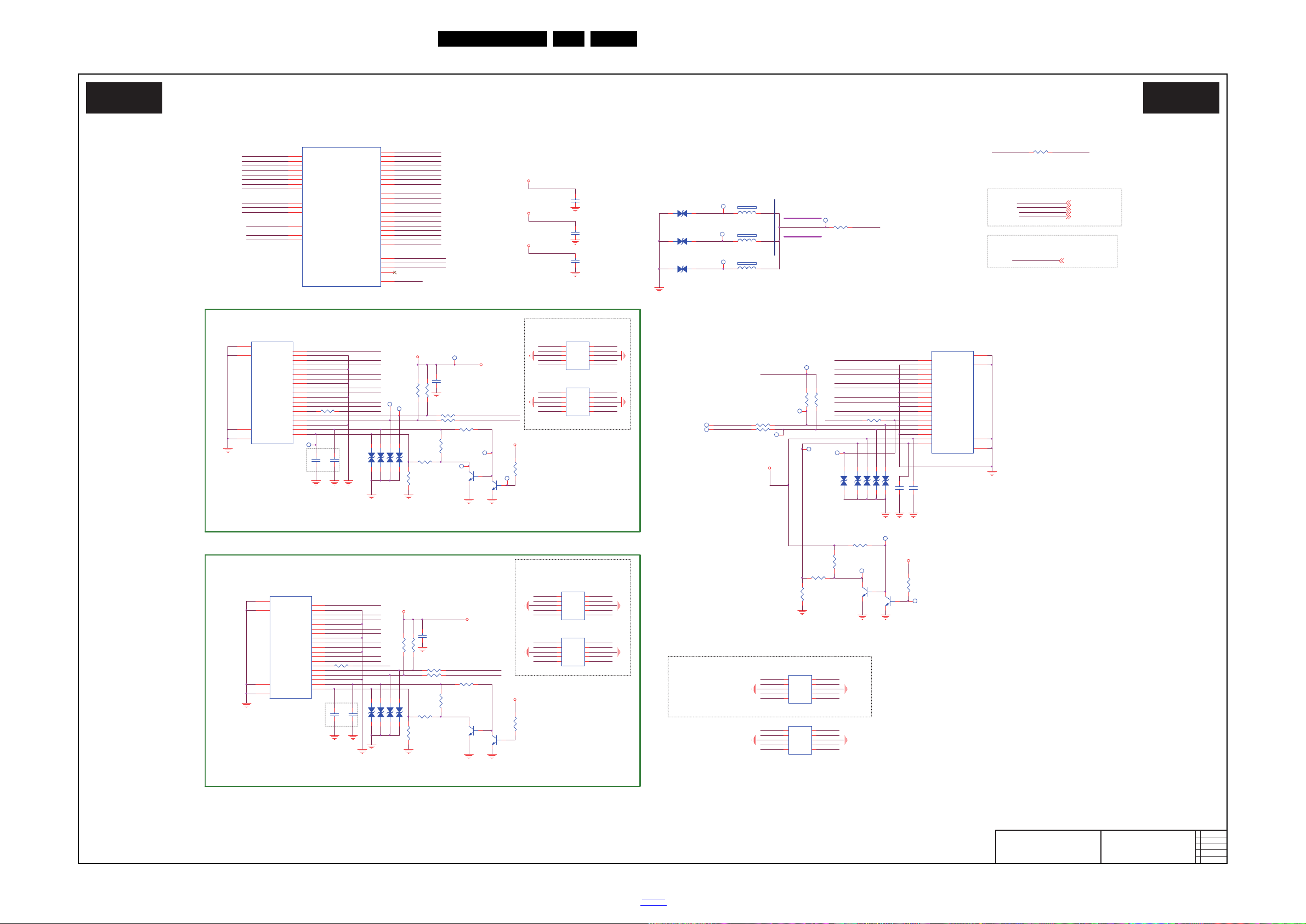

10-7-3 HDMI

19620_511_140110.eps

140110

HDMI

B03 B03

2013-10-21

3

715G6324

HDMI

10mil

OPWR5V

RX_0_2B

RX_0_1

RX_0_0B

RX_0_1B

RX_0_CB

RX_0_0

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U507

NC/AOZ8804DI

RX_0_CB

RX_0_1B

RX_0_1

RX_0_2

RX_0_0

RX_0_0B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U506

NC/AOZ8804DI

RX_0_2

RX_0_2B

RX_0_C

15mil

RX_2_0

RX_2_1B

RX_2_C RX_2_CB

RX_2_2B

RX_2_2

RX_2_0B

RX_2_1

10mil

15mil

FAST MODE

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD 0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN502

HDMI

I2C & UART Interface

Control Interface

HDMI_0_RX_CB

W7

HDMI_0_RX_C

Y7

HDMI_0_RX_0B

V7

HDMI_0_RX_0

V8

HDMI_0_RX_1B

U9

HDMI_0_RX_1

V9

HDMI_0_RX_2B

W9

HDMI_0_RX_2

Y9

HDMI_0_SCL

U7

HDMI_0_SDA

V6

HDMI_0_HPD

W5

AVDD33_HDMI

R10

AVDD12_HDMI_0

Y5

HDMI_1_RX_CB

P20

HDMI_1_RX_C

P19

HDMI_1_RX_0B

P18

HDMI_1_RX_0

P17

HDMI_1_RX_1B

N18

HDMI_1_RX_1

N17

HDMI_1_RX_2B

M20

HDMI_1_RX_2

M19

HDMI_2_RX_CB

M18

HDMI_2_RX_C

M17

HDMI_2_RX_0B

L18

HDMI_2_RX_0

K18

HDMI_2_RX_1B

K20

HDMI_2_RX_1

K19

HDMI_2_RX_2B

J20

HDMI_2_RX_2

J19

HDMI_CEC

K16

HDMI_2_SCL

J17

HDMI_2_SDA

J14

MHL_ SEN CE

K15

HDMI_2_HPD_CBUS

J16

HDMI_1_SCL

J18

HDMI_1_SDA

K14

HDMI_1_HPD

L17

AVDD12_HDMI_1

H20

U401E

MT5561LVN T

UART_SEL

R513 NC 0R05 1/16W

HDMI_SC L0

HDMI_SDA0

HDMI_0M_HPD

CEC

RX_1_CB

RX_1_1

RX_1_2B

RX_1_C

HDMI_SDA1_IN

RX_1_2

CEC_A1

RX_1_0B

HDMI_SCL1_IN

RX_1_0

RX_1_1B

HDMI_CEC

HDMI_SDA1

HDMI_SCL1

C520 100N 16V

C521 100N 16V

1 2

ZD510

MLVG0402

Q502

NC/BC847C

C505 NC/100N 16V

UART_SEL

R522

NC/4 7K 1/ 16W 5%

R501

100R 1/16 W 5%

R514 0R05 1/16W

1 2

ZD511

MLVG0402

Q503

NC/BC847C

R520 NC/100R 1/16W 5%

C503 100N 16V

1 2

ZD508

MLVG0402

R515 47K 1/16W 5%

1 2

FB501

1 2

ZD505

NC/MLVG0402

C504

NC 100N 16V

C501 100N 16V

R525

NC/4K7

R528

NC/100K1/16W

1 2

ZD501

MLVG0 402

1 2

ZD509

MLVG0402

1 2

ZD507

NC/MLVG0402

R524 NC/910R 1/ 10W 5%

1 2

ZD506

NC/MLVG0402

R516 47K 1/16W 5%

R511 NC/10K 1/16W 5%

R523 100R 1/ 16W 1%

C502 100N 16V

1 2

ZD504

NC/MLVG0402

R519 NC/100R 1/16W 5%

C506 NC/100N 16V

R510 NC/10K 1/16W 5%

R521 100R 1/ 16W 1%

HD MI_2M_H PDHDMI_2_HPD

CH1

1

CH2

2

VN

3

CH3

4

CH4

5

NC

6

NC

7

VN

8

NC

9

NC

10

U505

NC AOZ8804DI

HD MI_1M_H PD

HPWR1

3V3SB

OPWR1_5V

AVDD1V2

AVDD3V3

UART_SEL 17

HD MI_0M_H PD

CEC_A2

REAR HDMI

OPWR5V

R542 NC/75R 1/16W 1%

ESD protcetion

UART_SEL

TP1086

TP1096

TP1099

TP1101

TP1102

TP1090

TP1088

ESD protcetion

R532 75R 1/16W 1% R538

100K1/16W

R536

4K7 1/16W 5 %

3V3SB

R526

47K 1/16W 5 %

Q505

BC847C

HDMI_2_HPD

Q501

BC847C

R530 910R 1/10W 5%

RX_0_1

RX_0_C RX_0_0B

RX_0_1B

RX_0_CB

RX_0_0

RX_0_2B RX_0_2

Analog Power

RX_2_C

RX_2_0

RX_2_0B

RX_2_C

RX_2_0

RX_2_0B

RX_2_CB

R540

0R05 1/16W

TP1082

RX_2_CB

Merged Analog Power

CEC_A2

TP1084

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U503

NC/AOZ8804DI

CEC_A1

TP1085

CEC_A0

1

2

FB502

1 2

ZD502

NC/MLVG0402

TP1083

TP1087

TP1092 TP1093

TP1091

TP1095

HDMI CEC

EMI

TP1100

Grounding

RX_1_0B RX_1_0

RX_1_CB

RX_1_2B

RX_1_1

RX_1_1B

UART_SEL

RX_1_0B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U502

NC AOZ8804DI

RX_1_2

RX_1_1B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U501

NC AOZ8804DI

RX_1_C

RX_1_0

RX_1_2B

RX_1_1

RX_1_2

RX_1_CB

RX_1_C

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN504

HDMI

RX_2_2B RX_2_2B

RX_2_1B

RX_2_2

HDMI_2M_HPD

AVDD12_HDMI_0

AVDD33_H DMI

AVDD12_HDMI_1

RX_2_1RX_2_1

RX_2_2

RX_2_1B

RX_0_2

C510 100N 16V

HDMI_SDA0

TP1098

C511 100N 16V

RX_0_0B

Q509

BC847C

3V3SB

C509 100N 16V

TP1103

OPWR0_5V

1 2

ZD512

MLVG0402

RX_0_1

TP1104

RX_0_C

TP1105

HDMI_SC L2 17

HDMI_SCL2/RX 17

HDMI_SDA2 17

HDMI_SDA2/TX

HDMI_SDA2/TX 17

HDMI_SC L2/RX

HDMI_SCL2 HDMI_SDA2

HPWR0

R551 100R 1/16W 5%

R556

100K1/16W

RX_0_2B

HDMI_SDA2/TX

HDMI_SCL2/RX

Q508

BC847C

R549 10K 1/16W 5%

HDMI_SCL0

R553

910R 1/10W 5% R554 75R 1/16W 1%

OPWR0_5V

R550 100R 1/16W 5%

R552

47K 1/16W 5%

RX_0_1B

1 2

ZD515

MLVG0402

RX_0_CB

1 2

ZD514

MLVG0402

R555

4K7 1/16W 5%

HDMI_SDA0_IN

RX_0_0

R548 10K 1/16W 5%

HDMI_SCL0_IN

1 2

ZD513

MLVG0402

CEC_A0

HDMI_SCL2

1 2

ZD503

MLVG0402

HDMI_SDA2

R517

0R05 1/16W

RX_1_2

RX_1_1 RX_1_2B

RX_1_0 RX_1_1B

RX_1_C

RX_1_CB RX_1_0B

RX_2_1

RX_2_1B

RX_2_CB

RX_2_2

RX_2_0B

RX_2_2B

RX_2_C RX_2_0

AVDD33_HDMI

AVDD12_HDMI_1

AVDD12_HDMI_0

HDMI_SDA1

HDMI_1M_HPD

HDMI_SCL1

SIDE HDMI (Embedded EDID)

ESD protcetion

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD 2-

3

TMDSD1+

4

DSHLD1

5

TMDSD 1-

6

TMDSD0+

7

DSHLD2

8

TMDSD 0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN501

NC/HDMI

CEC

1 2

ZD516

MLVG0 402

1

2

FB503

OPWR1_5V

OPWR5V

REAR HDMI

Circuit Diagrams and PWB Layouts

EN 83TPM14.1L LA 10.

2014-Oct-24

back to

div.table

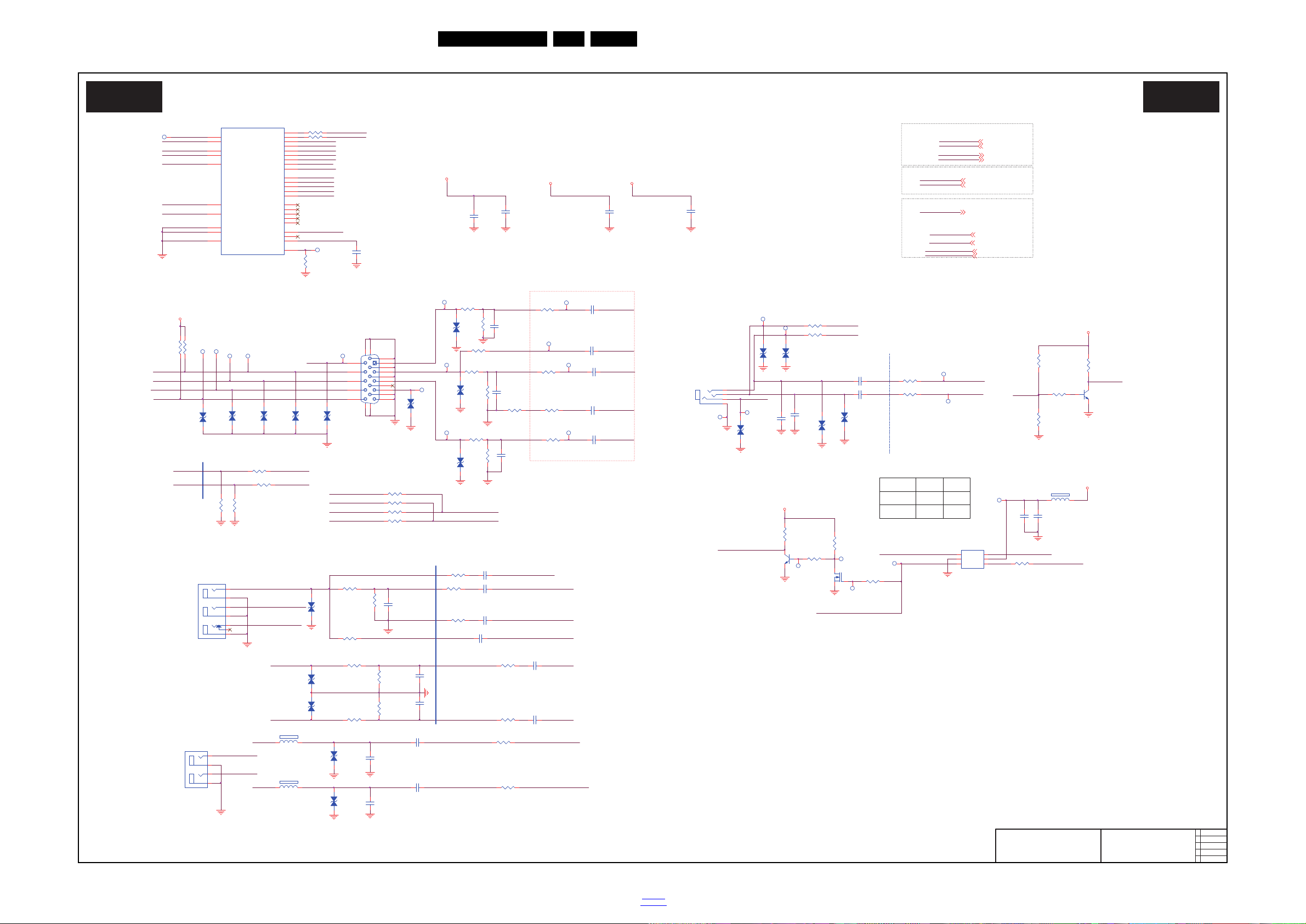

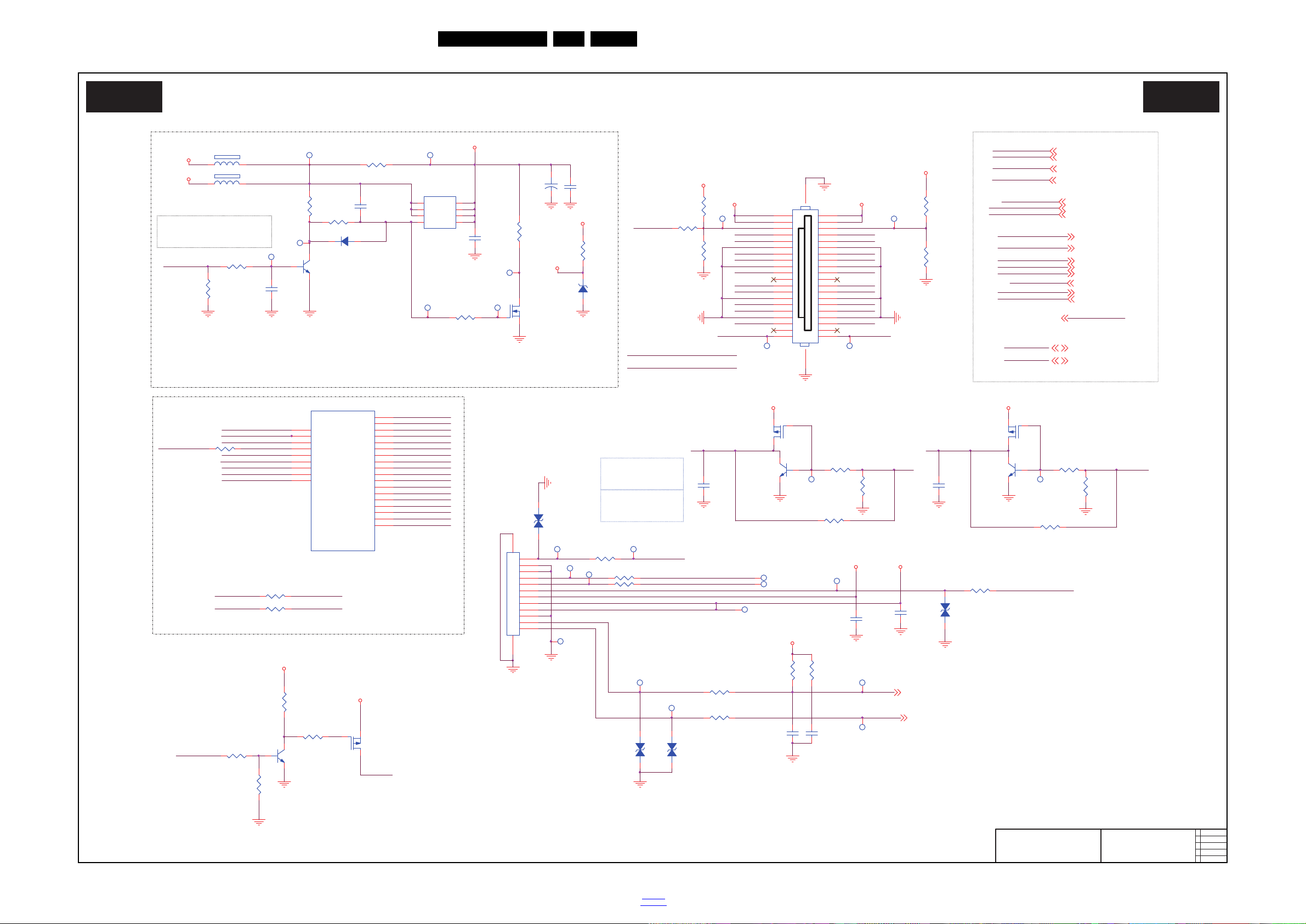

10-7-4 Video/VGA/Hotel

19620_512_140110.eps

140110

Video/VGA/Hotel

B04 B04

2013-10-21

3

715G6324

Video/VGA/Hotel

Q1005 NC/2N7002K

TP463

TP464

TP466 TP465

C481 NC/100N 16V

NO

1

GND

2

NC3COM

4

V+

5

IN

6

U415

NC/TS5A3157DCKRE4

1 2

FB4002

NC/120R/600mA

R116

NC/0.05R

C482 NC/10UF

R117

NC/0.05R

C121

NC/100N 16V

R119

NC/0.05R

TP173

TP174 TP17 5

VGA_RIN

TP176

C124

NC/1.5nF 50V

R4004 NC/10K

TP177

DET_IR_CON

12

ZD131

NC/MLVG0402

C122

NC/100N 16V

TP178

TP179

C128

NC/100N 16V

TP180

12

ZD106 MLVG0402

TP181

VGACOM

C126

NC/10PF 50V

C125

NC/10PF 50V

C127

NC/10PF 50V

TP182

VGA_R

TP183

VGA_G

AVDD33_RGB_STB

12

ZD107 MLVG0402

TP185

VGA_B

TP184

IR_OUT

VGA_SOG

12

ZD108 MLVG0402

R118

NC/0.05R

12

ZD132

NC/MLVG0402

AVDD33_VID EO_STB

VGA_SDA

VGA_VSYNC

VGA_HSYNC

VGA_SCL

R1001

0R05 1/10W

12

ZD133

NC/MLVG0402

Q1006

NC/MMBT3904

R1002

100R 1/16W 5%

PR1_DET

PR1_DET 10

C1003 2.2uF 10V

C1004 2.2uF 10V

12

ZD134

NC/MLVG0402

R4008

NC/22K 1/ 16W 5%

R4009

NC/22K 1/ 16 W 5%

ADCINP_DEMOD

ADCI NN_D EMOD

12

ZD135

NC/MLVG0402

R1003

75R 1/16W 1%

C1001 47pF 50V

ADCINP_DEMOD

Analog 1.2V Power

R115

NC/0.05R

Q4004 NC/PMBS3904

AV_CVBS_I N

IR_OUT

12

ZD136

NC/MLVG0402

DET_IR_CON

VGA_RX

088G353GFF1ACL

12

ZD139

NC/MLVG0402

VGA IN

2 1 4 3

5

6

A

B

C

CN102

RCA JACK

AV_R_In

CVBS0P

CVBS_L_IN

CVBS_R_IN

CVBS_L_IN

12

ZD138

NC/MLVG0402

R132

NC/100R 1/ 16W 5%

R484 NC/ 0.05R

OIRI

R134

NC/100R 1/ 16W 5%

12

ZD137

NC/MLVG0402

CVBS_R_IN 13 CVBS_L_IN 13

VGA_IN_R

TP407TP

1 2

ZD607

NC/VPOR T0603100KV05

C1098 330pF 50V

C1099 330pF 50V

10mil

1 2

ZD605

NC/VPOR T0603100KV05

H = > Pr Plug-in (YPbPr)

For Component/Composite Detect

L = > Pr Pl u g-out (AV )

R101

NC/75R 1%

VGA_RIN

ADCI NN_D EMOD

R120 NC/100 O H M

For cross talk optional

VGA_GIN

R136 NC/2K2 1/ 16W 5%

SOG0

VGA_BIN

C105 1uF 10V

CVBS0P

R102

NC/75R 1%

VGA_HS

VGA_VS

VGA_SDA

VGA_SCL

C123

NC/100N 16V

R103

NC/75R 1%

R105

NC/100 OHM

VGA_TX

R137

NC/2K2 1/ 16W 5%

3V3_SW

C103 1uF 10V

C101

NC/100N 16V

VGA_IN_L

C102 100N 16V

VGA_SCL

V5

VGA_SDA

V4

VSYN C

V10

HSYNC

U10

BP

V11

SOG

U11

GP

W12

COM

Y12

RP

V12

SOY1

U12

Y1

V13

COM1

U13

PB1

W14

PR1

Y14

SOY0

V14

Y0

U14

COM0

V15

PB0

U15

PR0

W16

VDAC_OUT

W17

CVBS1

Y17

CVBS0

V18

ADCINP_DEMOD

W18

ADCINN_DEMOD

Y19

AVDD33_RGB_STB

V17

AVDD33_VIDEO_STB

U17

AVDD12_DEMOD

Y20

AVSS33_CLN

N14

CVBS_COM

Y16

AVSS33_RGB

T12

AVSS33_VIDEO

T14

IF_AGC

J15

RF_AGC

L16

U401D

MT5561LVNT

NC/470pF 50V

C611

NC/470pF 50V

C610

R1005 0R05 1/16W

1 2

ZD604

NC/VPOR T0603100KV05

C104 100N 16V

R133 33R

PC Audio_in shared with hotel mode

1 2

ZD603

NC/VPOR T0603100KV05

TP522

AVDD1V2

3V3SB

R606

NC/30K 1/16W

R607

NC/30K 1/16W

ADCIN N_DEMOD 11

R135 33R

ADCINP_DEMOD 11

IFAGC_Scaler 11

VGACOM

R106

NC/100 OHM

R611

NC/0.05R

IR_IN2

CVBS_COM

1 2

ZD601

NC/VPOR T0603100KV05

IR_SW_IN

R610

NC/0.05R

Control Interface

R104 NC/100 OHM

IF Interface

CVBS Audio Input

20mil20mil

1

2

4

5

3

CN605

NC/PHONE JACK

4/29

C699 NC/2.2uF 10V

AVDD12_DEMOD

1 7 2 8 3 9 4 10 5

11 12 13 14 15

1716

6

CN101

NC/D-SUB 15P

YPbPr_NC 2013-0426

20mil

IR_RC

R1

NC/10K 1/ 16W

AV_AudioRIN

R2 NC/10K 1/16W

+5VSB

R1140

NC/100R 1/16W 5%

DET_IR_CON

VGA_IN_L 13

VGA_IN_R 13

YES

IR_IN

H

R4006

NC/33K 1/ 16W 5%

YES

To IR board connector

L

H:NO-COM L:NC-COM

AV_AudioLIN

IR_OUT

IR SWITCH

VGA_IN_L

VGA_IN_R

IFAGC_Scaler

4/29

C698

NC/2.2uF 10V

TP405

3V3SB

VGA_HS

VGA_VSYNC

R1007

NC/75R 1/ 16W 1%

VGA_HSYNC

VGA_VS

TP245

R1137 NC/10K

R1138 NC 10K 1/16W 5%

AVDD33_VID EO_STB

TP247

R1139 NC/1K

AVDD33_RGB_STB

TP248

AVDD12_DEMOD

IFAGC_Sc aler

AVSS33_CLN AVSS33_RGB

AVSS33_VIDEO

IR_SW_IN

TP1107

PR1_DET

TP110 6

VGA_BIN

SOG0

VGA_GIN

IR_RC 10

OIRI

OIRI 9,10

IR_RC

C1002

47nF 16V

TP110 8

Merged Analog 3.3V Power

TP1110

TP111 8

TP1111

TP1121

TP112 3

TP1119

TP1122

AV_L_In

TP1120

TP1112

TP1114

TP1115

TP1109

TP1117

R121 47K 1/16W 5%

IR_IN2

R1004

30K 1/16W

R1006

30K 1/16W

Circuit Diagrams and PWB Layouts

EN 84TPM14.1L LA 10.

2014-Oct-24

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

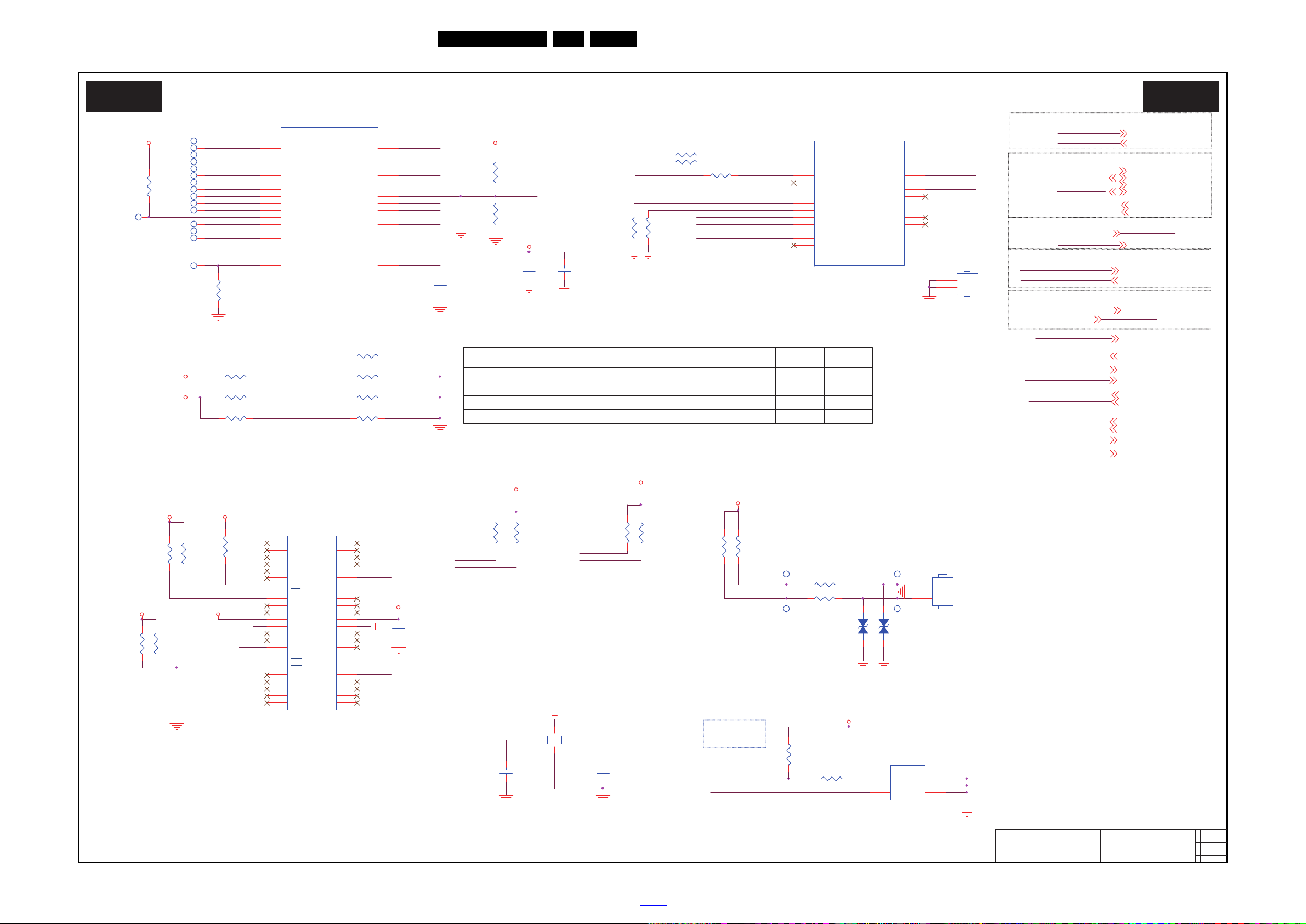

19620_513_140110.eps

140110

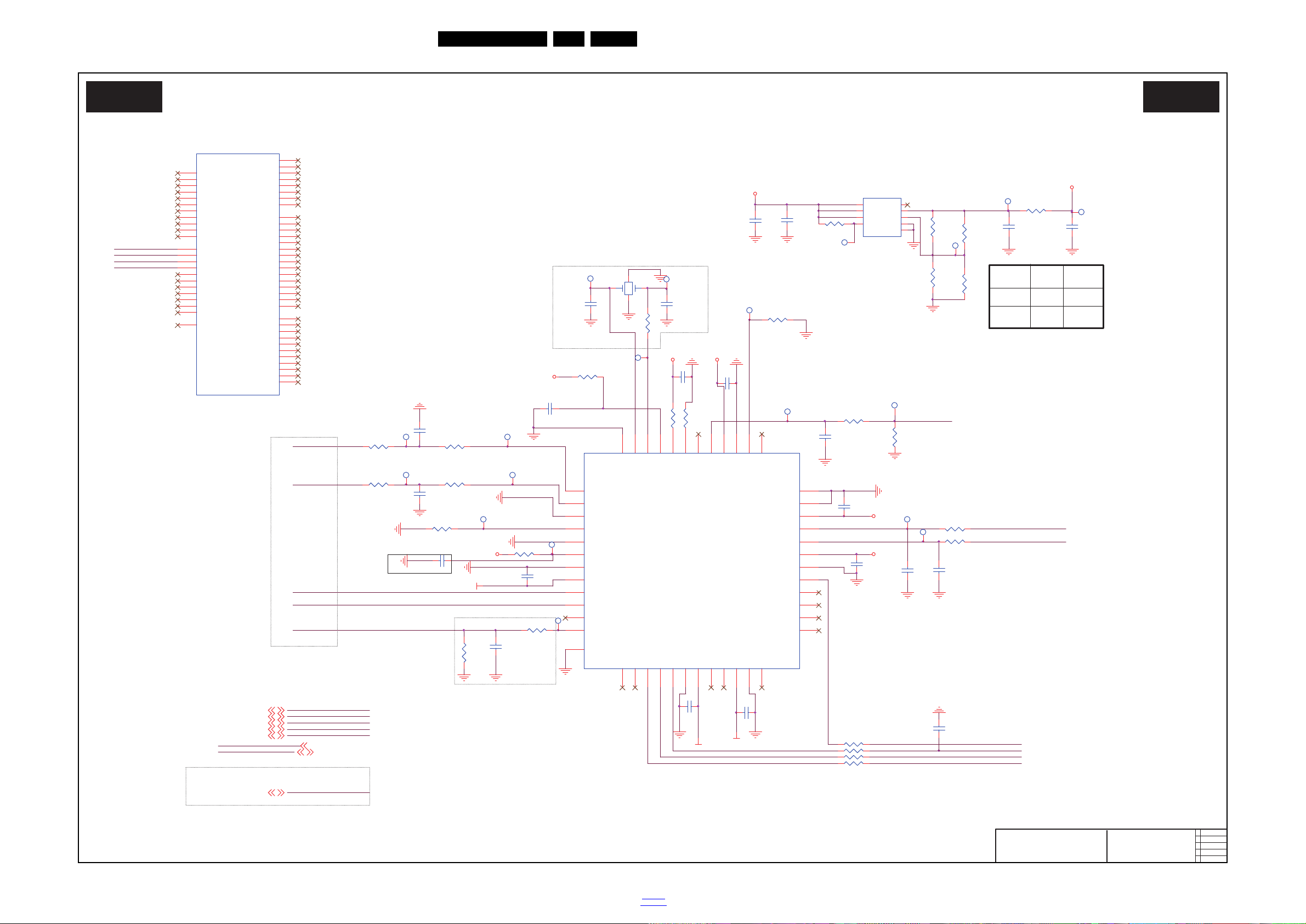

Peripheral

B05 B05

2013-10-21

3

715G6324

Peripheral

1

24

3

X401

24MHZ

RESET Circuit

USB_PWR_OCP0

C462

100N 16V

3V3SB

R477 16K 1%

Flash_WP#

R479

22K 1/16W 1%

TP1137

TP1128

TP1141

TP1146

PACLE

TP1148

OPWRSB

TP1155 TP1158

TP1156 TP1159

3V3SB

TP1161

PARB#

TP1166

TP1164

TP1172

TP1168

SPDIF_OUT

POWE#

TP1135

TP1136

OSDA1 11,12

OSCL1 11,12

OSDA1

OSCL1

C407

15pF 50V

X90G8014 1

C406 15pF 50V

OSDA1

OSCL1

AMP_MUTE

LED_POWER _RED

TP1160 TP1162 TP1163 TP1165

TP1169 TP1171 TP1173 TP1176

3V3SB

XTALO

R422

4.7K 1/16W

OSCL0

R423

4.7K 1/16W

DVDD3V3

OSDA0

OPCTRL1

OPCTRL0

R473

0R05 1/16W

ORESET#5

R474 0R05 1/16W

BL_ON/OFF

TP1170

NAND Flash

R110 0.05R R111 0.05R

Light_Sensor 10

Light_Sensor

R108

NC 4.7K

POOE#

R107 NC 4.7K

LED_POWER_RED LED_PWR_GREEN

U0RX

POCE1#

Light_Sensor

Q406

NC 2N7002

Q407

NC 2N7002

OSCL0 OSDA0

R114

NC 4.7K

R109 NC 4.7K

15mil

R619 0R05 1/16W

TP1154

TP1153

TP1133

TP1134

TP1125

AVDD10_LDO

R181

4.7K 1/16W

R182

4.7K 1/16W

R448

10K 1/16W 5%

TP12

12

ZD408 MLVG0402

TP11

12

ZD409

MLVG0402

TP10

TP13

TP14

TP17

TP1124

TP1130

I2C & UART Interface

3V3SB

TP1157

TP1174

DVDD3V3

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

U406

AT24C128C-SSHM-T

PDD2 PDD0

PDD1

PDD3

PDD5

PDD6 PDD4

PDD7

AVDD33_REG_STB

TP15

R411

4.7K

TP1167

R412

4.7K

UART Port

U0TX

U0RX 17

U0TX 17

U0RX

TP16

PSU GPIO

R476

NC 4.7K 1/16W

Ambigrow GPIO

DVDD3V3

H = > Pr ot e ct

15mil

SYSTEM EEPROM

L = > Enable

TP1139

TP1142

LVDS_PWR_EN

LED_PWR_GREEN

TP401

TP1144

USB_PWR_EN0

TP1145

TP1149

Audio GPIO

FSRC_WR

OSDA1

AMP_MUTE

BL_ON/OFF

LVDS_PWR_EN

BL_DIMMING

TXC

USB_PWR_EN0

24MHz CRYSTAL

SYS_EEPROM_WP

KEY_UP_DN_DCSW

KEY_MENU_L_R_SOURCE

USB_PWR_OCP0

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC

24

NC

25

NC

26

NC

27

NC

28

I/O0

29

I/O1

30

I/O2

31

I/O3

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O4

41

I/O5

42

I/O6

43

I/O7

44

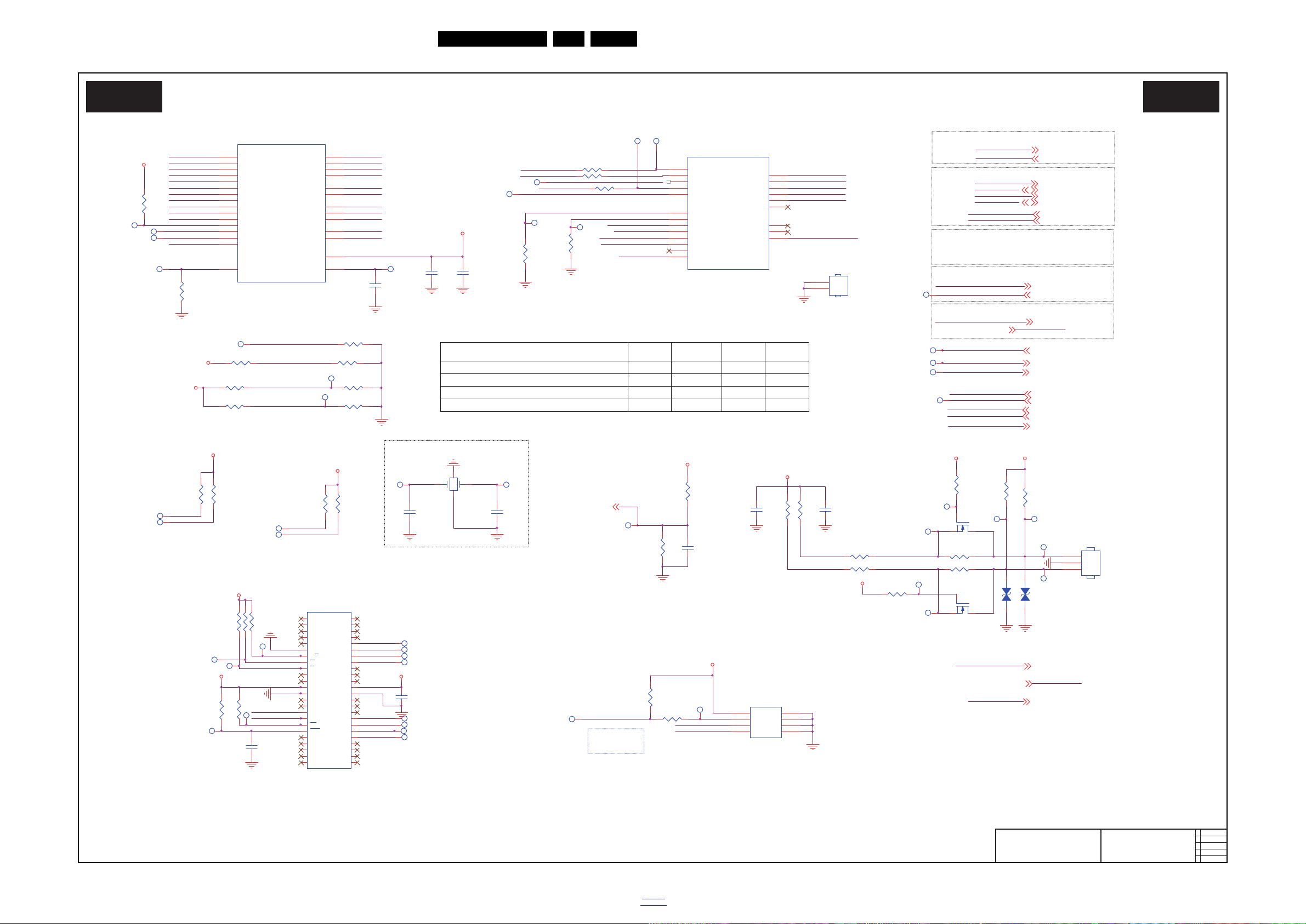

NC

45

NC

46

NC

47

NC

48

U405

K9F1G08U0D-SIB0

1

2

HS401

HEAT SINK

UR_Sense

OSCL0

AMB_12V_EN15

UR_Sens e 17

OSDA0

UR_Sense

AMB_12V_EN

LED_DRV_OE# 15

SYS_EEPROM_WP

LED_DRV_OE#

BL_DIMMING

LED_DRV_OE#

GPIO Interface

XTALI

R418 10K 1/16W 5%

R419 NC / 10K 1/ 16W 5%

R414 10K 1/16W 5%

C402

4.7UF 10% 10V

KEY_UP_DN_DCSW KEY_MENU_L_R_SOURCE

C405 100N 16V

R425

0R05 1/16W

R415 10K 1/16W 5%

R407

4.7K 1/16W

C401

100N 16V

C404 100N 16V

R421

4.7K 1/16W

PDD0

G2

PDD1

G4

PDD2

K3

PDD3

G3

PDD4

H3

PDD5

J6

PDD6

G1

PDD7

J3

PARB#

K4

POOE#

J1

POCE1#

J2

POCE0#

J4

PACLE

K1

PAALE

K2

POWE#

J5

OSDA1

F5

OSCL1

F4

OSCL0

R5

OSDA0

P5

ORESETB

W10

OPWRSB

T2

OIRI

T3

U0RX

U2

U0TX

U1

XTALO

W20

XTALI

V19

AVDD10_LDO

Y10

AVDD33_REG_STB

T17

FSRC_WR

A20

U401B

MT5561LVN T

C403

100N 16V

R420 10K 1/16W 5%

R402 4.7K 1/16W

R417 N C 1 0K 1/ 16W 5%

R403 4.7K 1/16W

R404 4.7K 1/16W

R401 4.7K 1/16W R405 4.7K 1/16W

R416 NC / 10K 1/16W 5%

1 2 3

CN402

CONN

C480 NC 100N 16V

C479 NC 100N 16V

DVDD3V3

OPWRSB 5

3V3SB

OSCL0 10,14,15

OSDA0 10,14,15

OIRI 8,10

1

OPCTRL1

0

X

1X

0

ICE moce + 27M + ROM to Nand boot

ICE mode + 24M + serial boot

BGA Strapping

X

ICE mode + 27M + serial boot

ICE moce + 24M + ROM to Nand boot

X

1

0

OPCTRL0

0

XTALO

0

STRAPPING

OPWRSB

0

PACLE

R112

100OHM

U0TX

ORESET#

U0RX U0TX

XTALI

PACLE PAALE

POCE1#

POOE#

PDD2

PDD0

PARB#

POWE#

PDD6

OPWRSB

PDD3 PDD5 PDD7

PDD4

PDD1

OIRI

OPWRSB

+12V

PACLE

ORESET#

PAALE

POCE0#

OSCL1

R4480

10K 1/16W 5%

OPCTRL1

OIRI

OPCTRL0

GPIO0

B1

GPIO1

E5

OPWM0

E6

OPWM1

G5

OPWM2

G6

OPCTRL1

V2

OPCTRL2

V3

OPCTRL3

V1

OPCTRL4

U4

ADIN7

R8

ADIN6

T6

ADIN5

U5

ADIN4

T8

ADIN3

U6

ADIN2

U8

ADIN1

P8

ADIN0

T7

GPIO2

G17

GPIO3

H5

GPIO4

H4

GPIO5

F17

OPCTRL0

U3

U401I

MT5561LVNT

LVDS_PWR_EN 10

Height

BL_ON/OFF 5

USB_PWR_EN0 16

BL_DIMMING 5

LED_PWR_GREEN

AMP_MUTE 14

LED_POWER_RED 10

USB_PWR_OCP0 16

KEY_UP_DN_DCSW 10

OSDA0

SPDIF_OUT13

KEY_MENU_L_R_SOURCE 10

OSCL0

R113

100OHM

EN 85TPM14.1L LA 10.

10-7-5 Peripheral

2014-Oct-24

back to

div.table

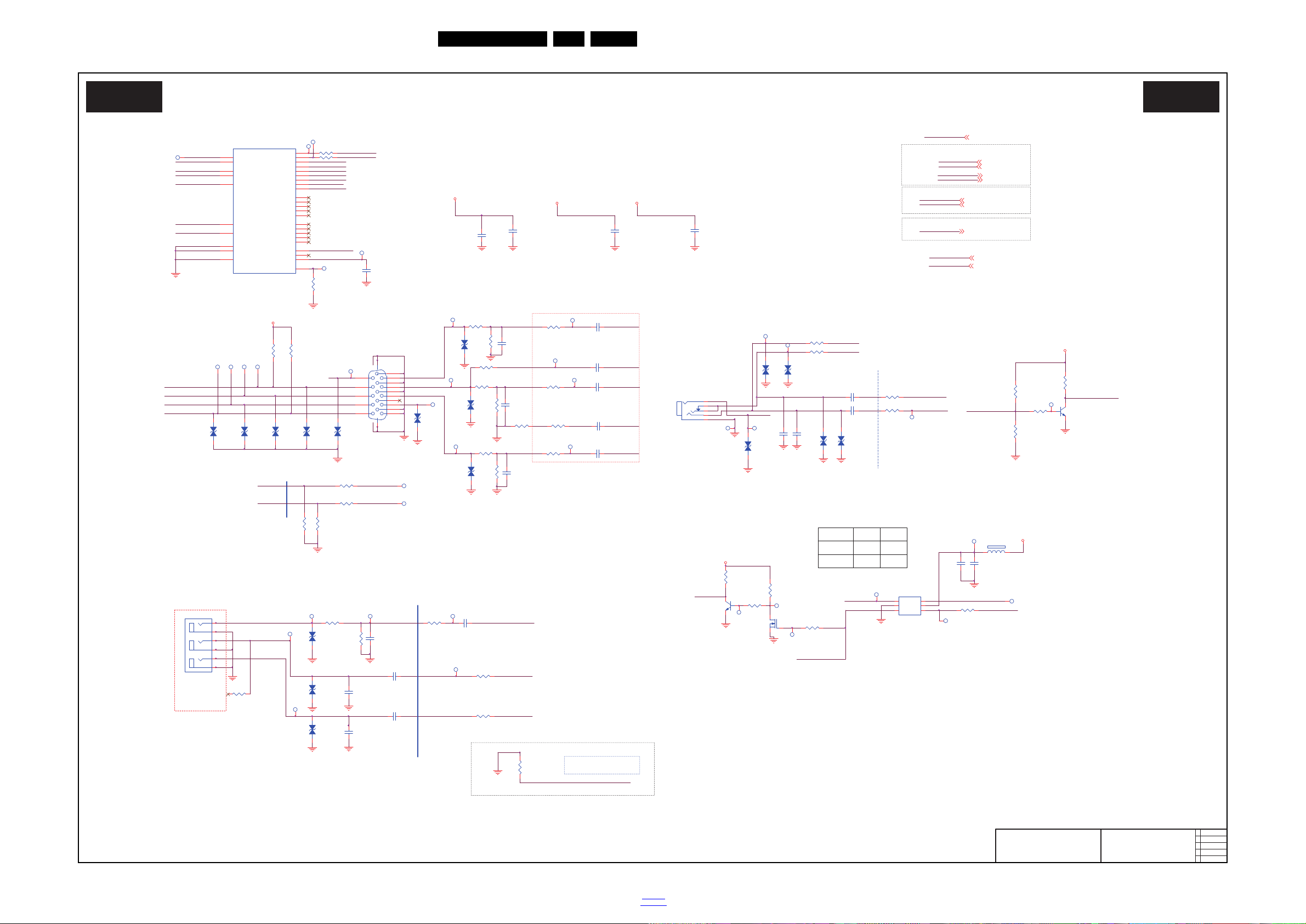

10-7-6 LVDS_Keypad_IR

19620_514_140110.eps

140110

LVDS_Keypad_IR

B06 B06

2013-10-21

3

715G6324

LVDS_Keypad_IR

R4083

0R05 OH M

12

ZD4001

MLVG0402

1 2 3 4 5 6 7 8 9 10 11 12

1314

CN401 CONN

PCTLVDD

Light_Sensor

MEMC_SDA

MEMC_SCL

KEY_MENU_L_R_SOURCE

LVDS_PWR_EN

AC_DET

TP271

TP273

TP272

LED-R

TP275

TP274

LED-B

TP276

OIRI

TP278

TP279

TP280

TP281

R489 NC/0R05 1/16W

OSDA0

R491 NC 0R05 1/16W

OSCL0

MEMC_SCL MEMC_SDA

HP_AC_MUTE

DEMOD_RST

ARC_on/of f

HP_Mute INT_LINE

HP_DET#

PR1_DET

PR1_DET 8

PR1_DET

GPIO Interface

12

ZD4003

VPORT0603100KV05

12

ZD4004

VPORT0603100KV05

R4050

1.2K 1/ 16W

R4054

NC/10K

Reserve for MEMC control

R447

NC 4. 7K 1/ 16W

Q421

NC/BC847C

LED_POWER_RED

Light_Sensor 9

Light_Sensor

+

C409

100uF 35V

HP_AC_MUTE

ARC_on/of f

HP_DET#

HP_Mute

DEMOD_RST

INT_LINE

3V3SB

1 2

ZD402

NC/LUDZS3.3BT1G

TX_AO2N

TX_AOC KP

TX_AO2P

TX_AO0P

LVDSVDD

TX_AO0N

TX_AOC KN

TX_AO3P

TX_AO1P

TX_AE2P

TX_AE3P

TX_AE0P TX_AE1P

TX_AEC KP

TX_AECKN

TX_AE2N

TX_AE0N

R445

NC 4. 7K 1/ 16W

R446

NC 4. 7K 1/ 16W

TX_AE3N

TX_AE1N

C4091

100NF 16 V

TX_AO1N

TX_AO3N

AC_DET5

AC_DET

C4118

100NF 16 V

+5VSB

Panel Connector

TX_AOC KN TX_AECKN

TX_AEC KPTX _AOC KP

Panel_Select

TP003

OSDA0

OSDA0 9,14,15

OSCL0

OSCL0 9,14,15

3D_enable

H = > Pow e r ON

H = > Standby

LED_POWER_RED

L = > Power ON

IR/KEY BOARD

L = > Standby

LVDSVDD

R4051 0R05 OH M

LED_PW R_GREEN

LED-R

Q422

BC847C

3V3SB

LED_PWR_Blue

R4052

1.2K 1/16 W

TP344

LED-B

C496 1NF 50V

R4053 NC/0R05 OHM

R4055

NC/10K

Q409

NC/AO3401

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39

41

2 4 6

8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40

42

CN403 CONN

C4090 100NF 1 6V

PCTLVDD

R4088 20K 1%

C4092 100NF 16V

1 2

ZD4002 MLVG0402

R4087 20K 1%

3V3SB

TP087

TP088

3V3SB

TP219

Q6004

NC/AO3401

Q6005

NC/BC847C

MEMC_ACK

R6064

NC/10K

R6063

NC/10K

R6061

NC/ 47K 1/ 16W 5%

R6062

NC/2.2K 1/16W

TP1180

MEMC_ACK

TP1181

KEY_UP_DN_DCSW

LED_PWR_GREEN OIRI

LED_POWER_RED

TP1185

KEY_MENU_L_R_SOURCE 9

TP1187

TP1186

TP1183

TP1184

D401

NC/BAS316

Q403

2N7002K

R440

NC/470R 1/10 W 1%

C495 1NF 50V

C410 100N 16V

C412

100N 16V

R436

47K 1/16W 5%

R438 100R 1/ 16W 1%

R441

4.7K 1/16W

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q401

AO4449 -7A/-30V

R444

NC/1K 1/16W 1%

R435 100R 1/16W 5%

R427

NC/1K 1/16W

R432

47K 1/16W 5%

C411 470nF 16V

R429

NC/ 0R05 4A 1/4W

C413

NC/100N 16V

R437 100R 1/ 16W 1%

R451 0R05 1/16W

1

2

FB404 220R

1

2

FB402 NC/220R

AE3P

C8

AE3N

D8

AE2P

C7

AE2N

D7

AE1P

A6

AE1N

B6

AE0P

C6

AE0N

D6

AO3P

C5

AO3N

D5

AOCKP

A4

AOCKN

B4

AO2P

C4

AO2N

D4

AO1P

C3

AO1N

D3

AO0P

A2

AO0N

B2

TCON0

E4

TCON1

F2

TCON2

C2

TCON3

E3

TCON4

C1

TCON5

D1

TCON6

F3

TCON7

D2

TCON8

F1

U401G

MT5561LVNT

R439

2.2K 1/ 16W

Q402

PMBT3904

R428 NC/0R05 1/16W

+12V

LVDSVDD

+5V_SW

PCTLVDD

LVDS_PWR_EN 9

KEY_MENU_L_R_SOURCE 9

KEY_UP_DN_DCSW 9

OIRI 8,9

LED_POWER_RED 9

HP_AC_MUTE 14

LED_PWR_GR EEN 9

DEMOD_RST 12

ARC_on/of f 17

HP_Mute 14 INT_LINE 14

HP_DET# 14

KEY_UP_DN_DCSW 9

IR_RC 8

IR_RC

TX_AOCKP TX_AOCKN

L = > LV DS P OW ER OFF

LVDS POWER Control

DVDD3V3

H = > LVDS P O WER O N

TX_AO1P TX_AO2P

TX_AO2N

LVDS_PWR_EN

R6060

100R 1/ 16W 5%

3D_enable

TX_AO0N

TX_AO3P

TX_AO0P

TX_AO1N

TX_AO3N

R433 100R 1/16W 5%

LVDSVDD

R434 100R 1/16W 5%

IR_RC

TX_AE0P TX_AE1P

TX_AE1N

MEMC_ACK

TX_AE3P

TX_AE2N TX_AE3N

TX_AE2P

TX_AE0N

TP132

Q408

NC/AO3401

TP133

TP134

TP135

Circuit Diagrams and PWB Layouts

EN 86TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-7-7 TUNER

19620_515_140110.eps

140110

TUNER

B07 B07

2013-10-21

3

715G6324

TUNER

GND

1

VCC

2

IF_N

5

SDA

3

SCL

4

IF_P

6

AGC

7

TH1

8

TH2

9

TH3

10

TH4

11

TH5

12

TH6

13

TU101

SUT-RA231ZN

ANT PWR

ANT_PWR

R150

0R05 1/16W

CXD2828AD-

CXD2828AD+

OSDA1

OSCL1

IFOUT1N

TUNER3.3V

IFOUT1P IFAGC

T_SCL

SONY Silicon Tuner SUT-RA231ZN (NEW)

T_SDA

NC

4.7K

1uF 0R

R168

SA

C160

0R

C159

NC

R156

C156

100R

R166

R155

R1029

R167

Tuner

0R

150R

Tuner/IFAGC/I2C/DIF table

R160

100R

22pF

0R

1uF

C161

NC

0R

NC

22pF

R169

R163

C158

C167

R157

R1030

C141

10UF 10V

SOT23 1.0A/3.3V

Control Interface

IF Interface

C161 22PF 50V

C160

22PF 50V

TUNER_SCL TUNER_SDA

CXD2828AD-

CXD2828AD+

TP1192

TP1195

ANT_PWR

TP1196 TP1197

TP1204

TP1207

TP1193

IFAGC

IFAGC_demod

TP1190

TP1191

IFAGC_demod

TP1194

IFAGC_Scaler

TP1200

TP1198

TP1202

IFOUT2P

TP1205

IFOUT2N

TP1203

TP1206

TP1199

TUNER_SCL

TP1201

TUNER_SDA

TP1209

TP1214

TP1210

TP1215

TP1211

TP1216

TP1212

TP1217

FAT_IN+

FAT_IN-

To DEMOD CXD2828

IFOUT1P

1 2

FB106 120R

IFOUT1N

1 2

FB105 120R

IFOUT1P

IFOUT1N

R160

4.7K 1/ 16W

R149

10K 1/16W 5%

C148 1UF 25V

C159 NC/47pF 50V

VI

3

VO

2

GND14

4

U402

G1117-33T63Uf

R162 200R 1/ 1 0W 5%

C142 100N 16V

1

2

FB103

120R

C139 1UF 25V

R168 0R05 1/16W

R156 150R 1/16W 1%

1 2

FB101

220R

R166 NC/0R05 1/16W

R157

100R 1/ 16W 1%

R1029 0R05 1/16W

C155 22PF 50V

R167 0R05 1/16W

R155

100R 1/ 16W 1%

C156 1uF 10V

C143

47nF 16V

C154

22PF 50V

C157 1uF 10V

1

2

FB104

120R

C151 NC/47pF 50V

C140

1UF 25V

R151

10K 1/16W 5%

R163 NC/0R05 1/16W

R165 200R 1/ 1 0W 5%

C158

NC/47pF 50V

R1030 0R05 1/16W

C149 1UF 25V

C144

47nF 16V

C150

NC/47pF 50V

R159

4.7K 1/ 16W

+5V_SW

TUNER3.3V

TUN ER3.3V

ADCINP_DEMOD 8

OSCL1 9,12

ADCINN_DEMOD 8

IFAGC_Scaler 8

OSDA1 9,12

TUNER_SCL12

IFAGC_demod12

CXD2828AD-12

CXD2828AD+12

TUNER_SDA12

FAT_IN-

IFAGC_Scaler

OSDA1

OSCL1

T_SDA

FAT_IN+

T_SCL

+

C759

100UF 16V

R195

R299R196

R298

R169 0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 87TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-7-8 DEMODULATOR_CXD2838

19620_516_140110.eps

140110

DEMODULATOR_CXD2838

B08 B08

2013-10-21

3

715G6324

DEMODULATOR_CXD2838

R1039

0R05 1/10W

C196 100N 16V

OSDA1

OSCL1

DEMOD_TSVAL DEMOD_TSSYNC

DEMOD_TSCLK

DEMOD_TSDATA0

DEMOD_RST

TUN ER_SCL

IFAGC_demod

CXD2828AD-

DEMOD_TSSYNC

R197

0R05 1/10W

DVDD3V3

DEMOD_TSDATA0

R186 0R05 1/10W

R177 47R 1/16W 5%

R173

470R 1/16W 5%

1

24

3

X101

41.0MHz

C189

47nF 16V

NC Mount

R187

1K8 1/16W 1%

R175

10K 1/16W 5%

R1

NC

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

U102

G9661

R171

0R05 1/10W

R2

R187 R190

C188 100N 16V

20mil

C178

18pF 50V

C183

22PF 50V

C185 100N 16V

R190

4K7 1/16W 1%

C191

100N 16V

C182

22PF 50V

R198 R199

CXD2828AD+

R192 22R 1/16W 5%

C194

100N 16V

C1085 NC/100N 16V

R1

R2

CXD2840 (1.2V)

CVDD

R178 47R 1/16W 5%

C190 1UF 25V

R188

22K 1/16W 5%

R174

0R05 1/10W

C186 22PF 50V

C181

100N 16V

Mount

C179

18pF 50V

C184 100N 16V

R191 22R 1/16W 5%

C187 22PF 50V

R184 47R 1/16W 5%

R193 22R 1/16W 5%

CXD2838 CXD2837(1.1V)

R176 0R05 1/16W

C180 100N 16V

C192 10UF 10V

R179 47R 1/16W 5%

R194 22R 1/16W 5%

R172 0R05 1/16W

R180 47R 1/16W 5%

R185

10K 1/16W 5%

R183 47R 1/16W 5%

C195

10PF 50V

GPIO1

47

TSDATA4

14

TSVALID4TSCLK

5

TSDATA6

16

VSS2

18

TESTOUT

23

RST_X

29

OSCEN_X

26

AVDD

42

NC

41

NC

32

XTALO

34

XVSS

36

VSS3

43

TTUSDA

45

NC

31

XVDD

33

SCL

20

SDA

21

TESTMODE

40

TAINM

38

TAINP

37

CVDD4

44

TTUSCL

46

TSDATA5

15

TESTI N

24

XTALI

35

AVSS

39

TSDATA7

17

CVDD3

28

GPIO0

1

TSDATA3

13

TSDATA212CVSS111CVDD110TSDATA19TSDATA08DVDD17VSS1

6

TIF AGC

48

GPIO22TSSYNC

3

DVDD2

19

CVDD2

22

SLVADR0

25

CVSS3

27

SLVADR3

30

E-Pad

49

U101

CXD2838ER

C193 NC/100N 16V

C177 100N 16V

R189

10K 1/16W 5%

DVDD3V3

CVDD

DVDD3V3

CVDD

DEMOD_RST10

DVDD3V3

TUNER_SDA11 IFAGC_demod11 CXD2828AD+11 CXD2828AD-11

TUNER_SCL11

OSDA1 9,11

OSCL1 9,11

PIN41 GND by sony FAE

DEMOD_TSVAL

TUNER_SDA

OSDA1

OSCL1

C1086

100N 16V

DEMOD_TSCLK

TP1228

TUN ER_SDA

TP1230

TP1231

TP1229

TP1232

TP1235

TP1236

TP1219

TP1218

TP1221

TP1220

TP1227

DEMOD_RST

TP1224

TP1226

TP1223TP1222

TP1225

TP1233

TP1234

R198

NC/1K5 1%

R199

NC/3K 1/16W 1%

CI_CD1#

E18

CI_D3

E17

CI_MDO3

E16

CI_MDO4

E20

CI_D4

E19

CI_D5

D20

CI_MDO5

D19

CI_A1

C9

CI_MDO6

C20

CI_D6

D18

CI_D7

B20

CI_MDO7

C19

CI_CE1#

B19

CI_A10

A19

CI_IORD#

A18

CI_OE#

C18

CI_A11

B18

CI_IOWR#

D17

CI_MISTRT

D16

CI_A9

C17

CI_A8

C16

CI_MDI0

A16

CI_MDI1

C15

CI_A13

B16

CI_A14

A15

CI_MDI2

C14

CI_MDI3

C13

CI_WE#

B15

CI_IREQ#

F11

CI_MDI4

A13

CI_MDI5

E12

CI_MIVAL

B13

CI_MCLKI

D14

CI_MDI6

F12

CI_MDI7

E13

CI_A12

E9

CI_A7

D12

CI_MCLKO

A12

CI_RESET

C12

CI_A6

B12

CI_A5

E10

CI_WAIT#

C11

CI_A4

D10

CI_A3

A10

CI_REG#

B10

CI_MOVAL

C10

CI_A2

F10

CI_MOSTRT

D11

CI_MDO0

E11

CI_A0

D9

CI_MDO1

E7

CI_MDO2

E8

CI_PWR_EN

F18

CI_D0

B8

CI_D1

D13

CI_D2

F9

CI_CD2#

F7

U401H

MT5561LVNT

CXD2828AD-

CXD2828AD+

R1038 NC/0R05 1/10W

TUNER_SCL

CXD2838

10mil

TUNER SIDE

10mil

GPIO Interface

CXD2838

10mil10mil

10mil

CXD2838

10mil

Circuit Diagrams and PWB Layouts

EN 88TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-7-9 Audio&SPIDF

19620_517_140110.eps

140110

Audio & SPIDF

B09 B09

2013-10-21

3

715G6324

Audio & SPIDF

R1039

0R05 1/10W

C196 100N 16V

OSDA1

OSCL1

DEMOD_TSVAL DEMOD_TSSYNC

DEMOD_TSCLK

DEMOD_TSDATA0

DEMOD_RST

TUN ER_SCL

IFAGC_demod

CXD2828AD-

DEMOD_TSSYNC

R197

0R05 1/10W

DVDD3V3

DEMOD_TSDATA0

R186 0R05 1/10W

R177 47R 1/16W 5%

R173

470R 1/16W 5%

1

24

3

X101

41.0MHz

C189

47nF 16V

NC Mount

R187

1K8 1/16W 1%

R175

10K 1/16W 5%

R1

NC

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

U102

G9661

R171

0R05 1/10W

R2

56A379-92 2.0A/1.1V

R187 R190

C188 100N 16V

C178

18pF 50V

C183

22PF 50V

C185 100N 16V

R190

4K7 1/16W 1%

C191

100N 16V

C182

22PF 50V

R198 R199

CXD2828AD+

R192 22R 1/16W 5%

C194

100N 16V

C1085 NC/100N 16V

R1

R2

CXD2840 (1.2V)

CVDD

R178 47R 1/16W 5%

C190 1UF 25V

R188

22K 1/16W 5%

R174

0R05 1/10W

C186 22PF 50V

C181

100N 16V

Mount

C179

18pF 50V

C184 100N 16V

R191 22R 1/16W 5%

C187 22PF 50V

R184 47R 1/16W 5%

R193 22R 1/16W 5%

CXD2838 CXD2837(1.1V)

R176 0R05 1/16W

C180 100N 16V

C192 10UF 10V

R179 47R 1/16W 5%

R194 22R 1/16W 5%

R172 0R05 1/16W

R180 47R 1/16W 5%

R185

10K 1/16W 5%

R183 47R 1/16W 5%

C195

10PF 50V

GPIO1

47

TSDATA4

14

TSVALID4TSCLK

5

TSDATA6

16

VSS2

18

TESTOUT

23

RST_X

29

OSCEN_X

26

AVDD

42

NC

41

NC

32

XTALO

34

XVSS

36

VSS3

43

TTUSDA

45

NC

31

XVDD

33

SCL

20

SDA

21

TESTMODE

40

TAINM

38

TAINP

37

CVDD4

44

TTUSCL

46

TSDATA5

15

TESTI N

24

XTALI

35

AVSS

39

TSDATA7

17

CVDD3

28

GPIO0

1

TSDATA3

13

TSDATA212CVSS111CVDD110TSDATA19TSDATA08DVDD17VSS1

6

TIF AGC

48

GPIO22TSSYNC

3

DVDD2

19

CVDD2

22

SLVADR0

25

CVSS3

27

SLVADR3

30

E-Pad

49

U101

CXD2838ER

C193 NC/100N 16V

C177 100N 16V

R189

10K 1/16W 5%

DVDD3V3

CVDD

DVDD3V3

CVDD

DEMOD_RST10

DVDD3V3

TUNER_SDA11 IFAGC_demod11 CXD2828AD+11 CXD2828AD-11

TUNER_SCL11

OSDA1 9,11

OSCL1 9,11

DEMOD_TSVAL

TUNER_SDA

OSDA1

OSCL1

C1086

100N 16V

DEMOD_TSCLK

TP1228

TUN ER_SDA

TP1230

TP1231

TP1229

TP1232

TP1235

TP1236

TP1219

TP1218

TP1221

TP1220

TP1227

DEMOD_RST

TP1224

TP1226

TP1223TP1222

TP1225

TP1233

TP1234

R198

NC/1K5 1%

R199

NC/3K 1/16W 1%

CI_CD1#

E18

CI_D3

E17

CI_MDO3

E16

CI_MDO4

E20

CI_D4

E19

CI_D5

D20

CI_MDO5

D19

CI_A1

C9

CI_MDO6

C20

CI_D6

D18

CI_D7

B20

CI_MDO7

C19

CI_CE1#

B19

CI_A10

A19

CI_IORD#

A18

CI_OE#

C18

CI_A11

B18

CI_IOWR#

D17

CI_MISTRT

D16

CI_A9

C17

CI_A8

C16

CI_MDI0

A16

CI_MDI1

C15

CI_A13

B16

CI_A14

A15

CI_MDI2

C14

CI_MDI3

C13

CI_WE#

B15

CI_IREQ#

F11

CI_MDI4

A13

CI_MDI5

E12

CI_MIVAL

B13

CI_MCLKI

D14

CI_MDI6

F12

CI_MDI7

E13

CI_A12

E9

CI_A7

D12

CI_MCLKO

A12

CI_RESET

C12

CI_A6

B12

CI_A5

E10

CI_WAIT#

C11

CI_A4

D10

CI_A3

A10

CI_REG#

B10

CI_MOVAL

C10

CI_A2

F10

CI_MOSTRT

D11

CI_MDO0

E11

CI_A0

D9

CI_MDO1

E7

CI_MDO2

E8

CI_PWR_EN

F18

CI_D0

B8

CI_D1

D13

CI_D2

F9

CI_CD2#

F7

U401H

MT5561LVNT

CXD2828AD-

CXD2828AD+

R1038 NC/0R05 1/10W

TUNER_SCL

CXD2838

10mil

TUNER SIDE

10mil

GPIO Interface

CXD2838

10mil10mil

10mil

CXD2838

10mil

Circuit Diagrams and PWB Layouts

EN 89TPM14.1L LA 10.

2014-Oct-24

back to

div.table

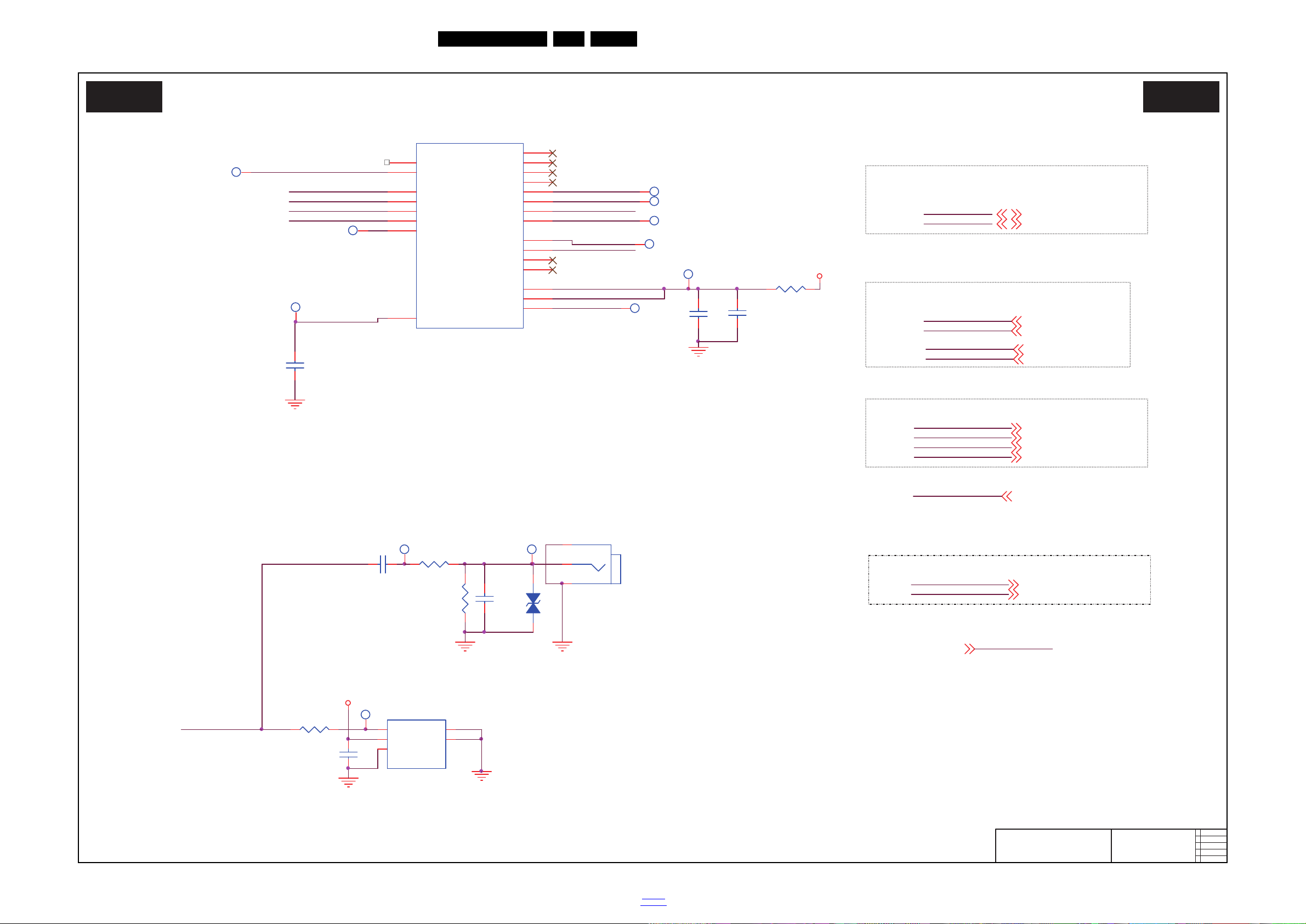

10-7-10 Audio AMPILIFER_STA381BW

19620_518_140110.eps

140110

Audio AMPILIFER_STA381BW

B10 B10

2013-10-21

3

715G6324

Audio AMPILIFER_STA381BW

C608

1UF 25V

I2C & UART Interface

U0TX U0RX

OPTICAL/ Ri ght angle

Audio Input Interface

I2S Interface

C677 100N 16V

R656

33R 1/16W 5%

+5V_SW

SPDIF_OUT

CVBS_L_IN

CVBS_R_IN

AIN_L0

U20

AIN_L1

V20

AIN_L2

T20

AIN_L3

T19

AIN_R0

R20

AIN_R1

R17

AIN_R2

R19

AIN_R3

R18

AL0_ADAC

R16

AR0_ADAC

P16

AL1_ADAC

T18

AR1_ADAC

U19

ASPDIFI

F16

ASPDIFO

R4

AOMCLK

R2

AOBCK

R1

AOLRCK

P3

AOSDATA0

R3

AOSDATA1

T4

VMID_AADC

T16

AVDD33_ADAC

M16

AVDD33_AADC

M14

AVDD33_CAP

L15

U401C

MT5561LVNT

AOLRCK 14 AOSDATA0 14

AOMCLK 14 AOBCK 14

U0TX 9,17 U0RX 9,17

ARC_SPDIF 17

AR0O 14 AL0O 14

1 2

ZD602

NC/MLVG0402

R624

100R 1/16W 5%

C685

NC/100N 16V

HP Output

C686

NC/33P 50V

TP603

R654

NC / 180ohm 1/ 16W +/ -5%

SPDIF OUT

CVBS_L_IN 8

CVBS_R_IN 8

SPDIF_OUT

CVBS_R_IN CVBS_L_IN

3

1

2

CN604

NC/CONN

AR0O AL0O

SPDIF_OUT

GND

1

VCC

2

VIN

3

TH1

4

TH2

5

CN603

CONN

R678

0R05 1/16W

AVDD3V3

TP404

TP403

ARC_SPDIF

C684

22uF 6.3V

SPDIF_OUT

4/29

VGA_IN_R VGA_IN_L

VGA_IN_L

VGA_IN_R 8 VGA_IN_L 8

VGA_IN_R

4/29

AVDD33_AADC

SPDIF OUT

TP1237

TP1240

TP1238

TP1241

AOLRCK

AOMCLK AOBCK

TP1243

AOSDATA0

AVDD33_ADAC

TP1245 TP1246

TP1247

TP1244

VMID_AADC

AR0O AL0O

AOLRCK

AOMCLK

AOBCK

AOSDATA0

AVDD33_CAP

C607

100N 16V

Circuit Diagrams and PWB Layouts

EN 90TPM14.1L LA 10.

2014-Oct-24

back to

div.table

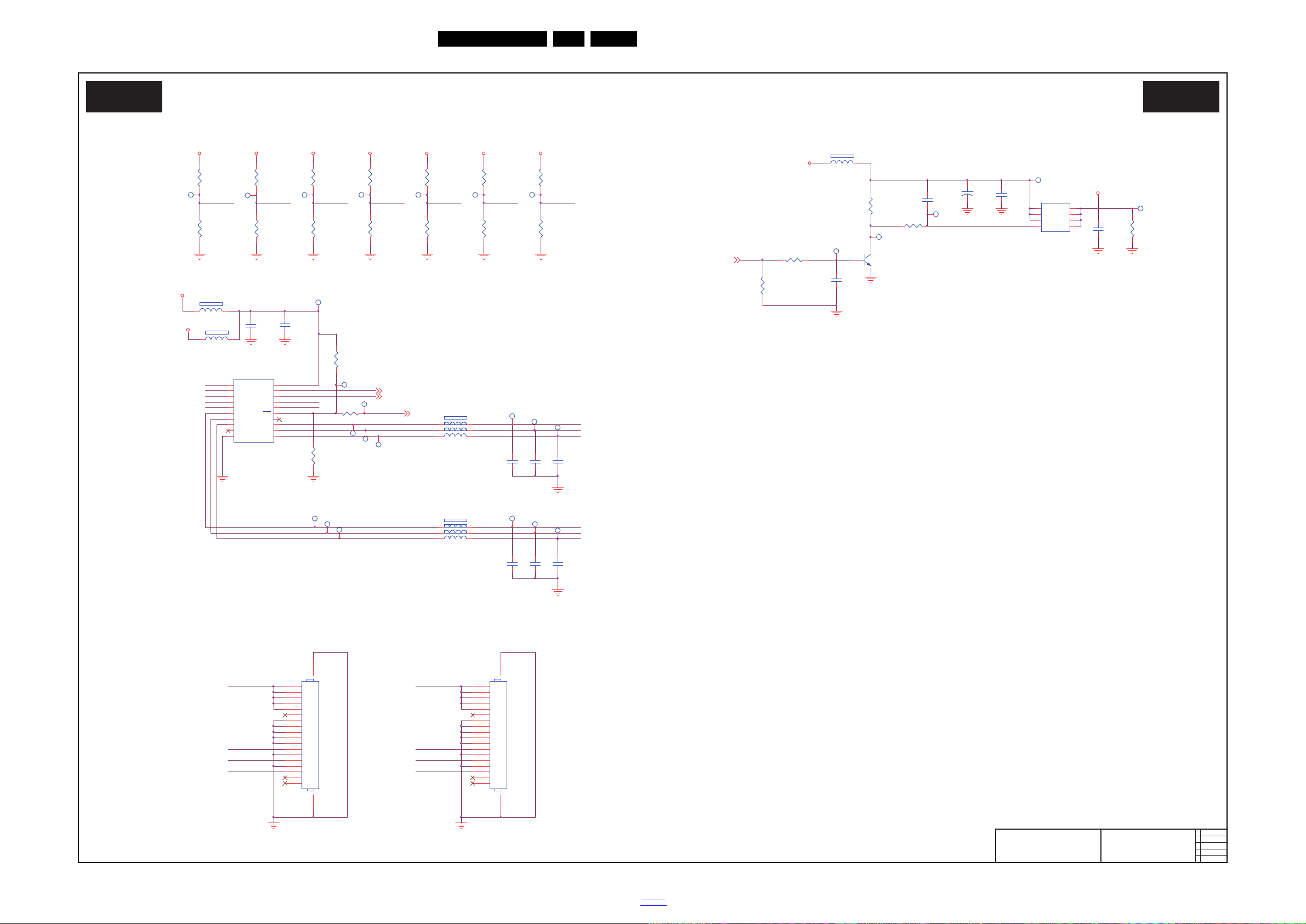

10-7-11 Ambient Glow

19620_519_140110.eps

140110

Ambient Glow

B11 B11

2013-10-21

3

715G6324

Ambient Glow

C806

NC/1N 50V

C807

NC/1N 50V

C808

NC/1N 50V

R_G

R821 NC/0.05R

LED_DRV_OE#

1

2

FB807

NC/60R

3V3SB

1

2

FB808

NC/60R

+3.3V_LED

R_B

TP1282

TP1275

TP1281

TP1276 TP1277

TP1278

TP1279

TP1280

TP1283

A0

A2

A0

TP1284

1 2FB801 NC 600R/ 300m A

A1

DVDD3V3

TP1288

TP1289

TP1290

TP1285

TP1286

TP1287

TP1291

C810

NC/1N 50V

C809

NC/1N 50V

TP1295

TP1293

C811

NC/1N 50V

1

2

FB805 NC/600R

1 2FB804 NC/600R 1 2FB806 NC/600R

TP1292

TP1294

TP1296

C805 NC/ 100P 50V

R804

NC/10K

R803 NC/10K

TP804

C803

NC/100N 16V

+

C801 NC/100UF 16V

TP802

AMB_12V_EN9

+12V

C802

NC/1UF16V

Q802 NC/MMBT3904

TP801

R802

NC/10K

R805 NC/ 10K

R801 NC/47K

1

2

FB809NC/300R

TP805

C804

NC/100N 16V

TP803

LED_PWR

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q801

NC/ AO4449 -7A/ -30V

C827

NC/ 100N 16V

1

2FB802 N C 600R/300m A

1 2

FB803 NC/600R/300mA

L_B

A1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 20

CN801

NC/CONN

A3

R_B

R_G R_R

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 20

CN802

NC/CONN

L_R

A6

A2

A4

L_G

A3

A6

C812

NC/ 1uF 25V

A4

LED_PWR

LED_DRV_OE# 9

A5

R820 NC/10K 1/16W 5%

L_R L_B

L_G

R813

NC/ 4K7 1/ 16W 5%

R811

NC/ 4K7 1/16W 5%

R806 NC/10K 1/16W 5%

R815

NC/ 4K7 1/ 16W 5%

R822 NC/10K 1/16W 5%

R808 NC/10K 1/16W 5%

R810 NC/10K 1/16W 5%

R819

NC/4K7 1/16W 5%

A0

1

A1

2

A2

3

A3

4

A4

5

LED0

6

LED1

7

LED2

8

LED3

9

Vss

10

LED4

11

LED5

12

LED6

13

LED7

14

OE

15

A5

16

A6

17

SCL

18

SDA

19

VDD

20

U801

NC/PCA9634PW

R812 NC/10K 1/16W 5%

R818 NC/10K 1/16W 5%

R816 NC/10K 1/16W 5%

R807

NC/4K7 1/16W 5%

R814 NC/10K 1/16W 5%

A5

R809

NC/ 4K7 1/ 16W 5%

R817

NC/ 4K7 1/16W 5%

+3.3V_LED

+3.3V_LED +3.3V_LED

+3.3V_LED

OSCL0 9,10,14

OSDA0 9,10,14

LED_PWR

R_R

Circuit Diagrams and PWB Layouts

EN 91TPM14.1L LA 10.

2014-Oct-24

back to

div.table

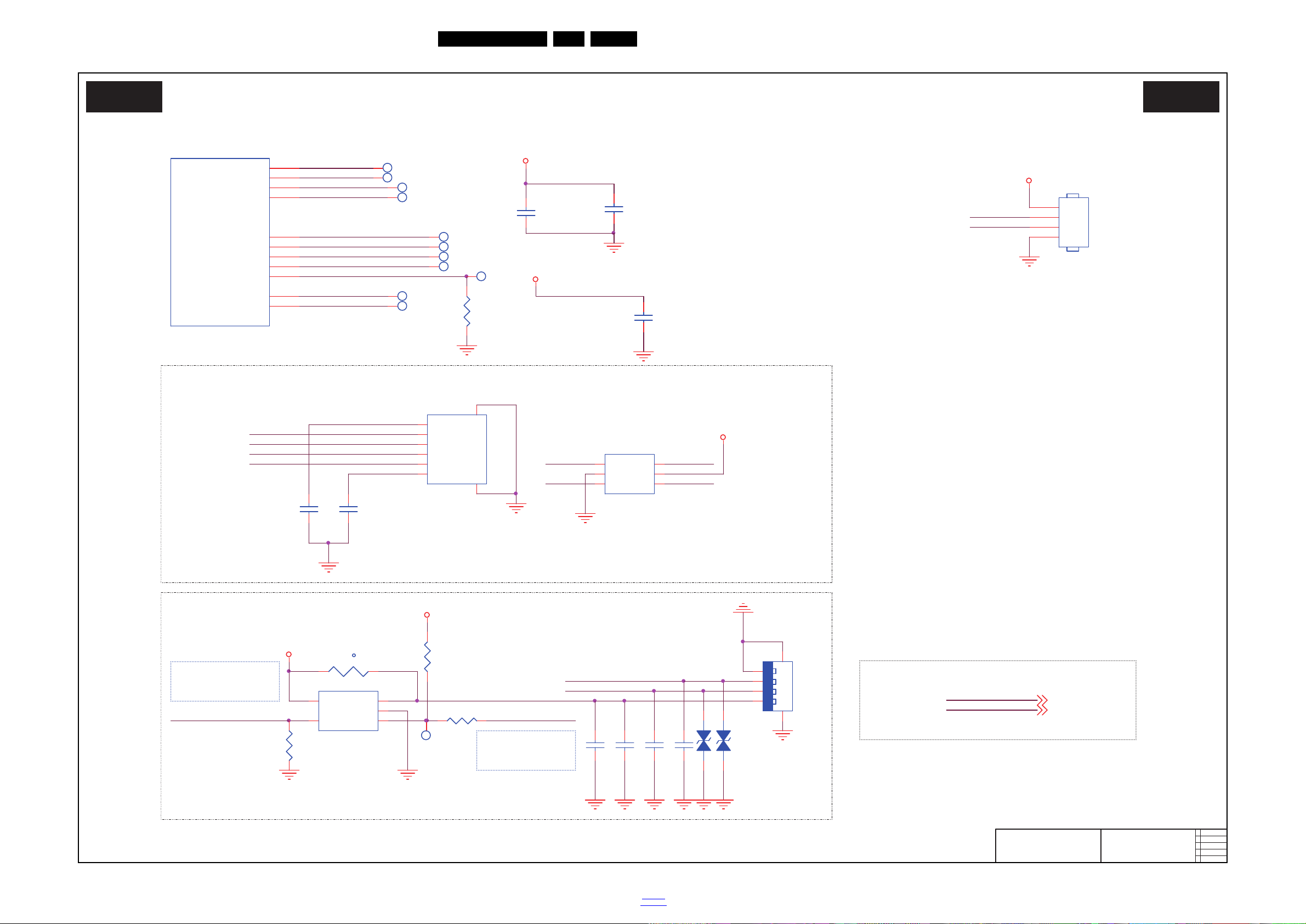

10-7-12 USB/ETHERNET

19620_520_140110.eps

140110

USB/ ETHERNET

B12 B12

2013-10-21

3

715G6324

USB/ ETHERNET

8.5 mm

HI = > NORMAL LO => OC

LO = > POWER OFF

HI = > POWER ON

USB_DP_P1

USB_DM_P1

TP471 TP472

ESD Solution

TXVN_0

RXVP_1 TXVP_0

RXVN_1

TP1297 TP1298

C1083

10N 50V

TC T P 1

1

TD + P 2

2

TD - P 3

3

RD+ P4

4

RD- P5

5

RCT P6

6

TH1

7

TH2

8

CN160

NC/RJ45 CONN

C171

NC/100N 16V

C170 1UF 25V

C172

NC/100N 16V

REXT

AVDD33_ETH

C1084

10N 50V

AVDD3V3

DVDD3V3

AVDD1V2

TP1302

TP1299 TP1301

TP1300

TP1303

TP1304 TP1305

40mil

TP1307

1

2

t

TH101

PTCR

1

2

3

4

CN703

NC/CONN

10mil

RJ45

RXVN_1 RXVP_1 TXVP_0

RXVN_1 TXVN_0

RXVP_1

USB

TXVN_0TXVP_0

USB_PWR_OCP0

I/O1

1

GND

2

I/O23I/O3

4

VDD

5

I/O4

6

U412

NC/AOZ8105CI

R1025

0R05 1/16W

USB_DP_P0

USB_DM_P0

USB_PWR_EN0

USB_DP_P1

USB_PWR_OCP0

USB_DM_P1

USB_DM0

H19

USB_DP0

H18

USB_DM1

G19

USB_DP1

F19

RXVN

W2

RXVP

W3

TXVN

Y1

TXVP

Y2

AVDD33_ETH

R9

AVDD12_ETH

Y4

REXT_ETH

W4

U401F

MT5561LVNT

R1024

10K 1/16W 5%

C174 100N 16V

R1026

4.7K 1/16W

1 2

ZD118 MLVG0402

1

2

3

4

65

1234

CN103 USB CONN

R1027 24K 1%

C173 10UF 10V

C176 NC/10P 50V

1 2

ZD119 MLVG0402

C175 NC/10P 50V

OUT

1

GND

2

OC

3

EN

4

IN

5

U112

NC/G5250M1T1U

+5V_SW

DVDD3V3

USB_PWR_OCP0 9 USB_PWR_EN0 9

Control Interface

AVDD12_ETH

AVDD33_ETH

USB_DM_P0 USB_DP_P0

JTAG

+5V_SW

AVDD12_ETH

USB_PWR_EN0

Circuit Diagrams and PWB Layouts

EN 92TPM14.1L LA 10.

2014-Oct-24

div.table

back to

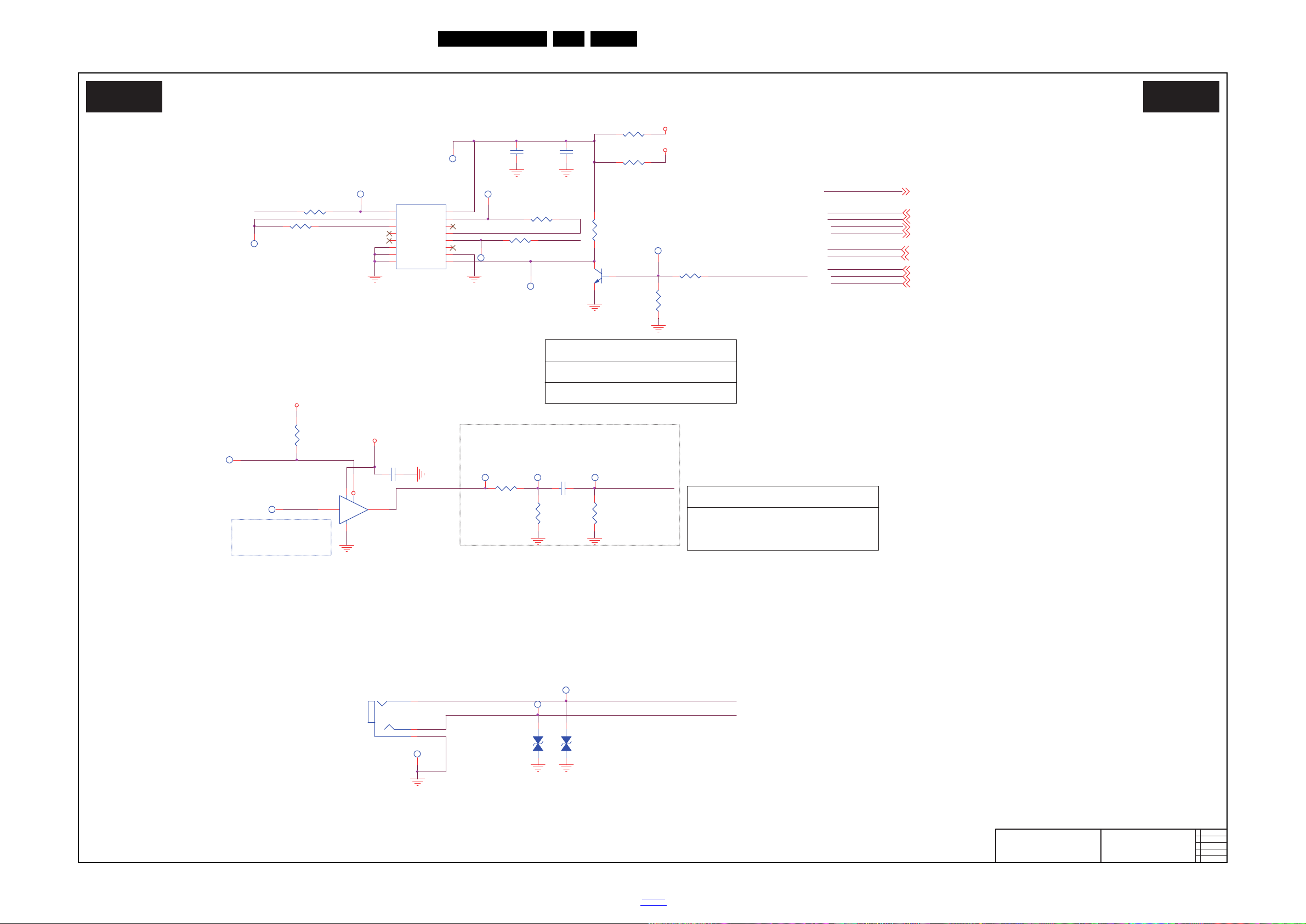

10-7-13 FACTORY DEBUG PORT

19620_521_140110.eps

140110

FACTORY DEBUG PORT

B13 B13

2013-10-21

3

715G6324

FACTORY DEBUG PORT

3V3SB

OPWR5V

R6058

0R05 1/10W

R6059 NC

U0TX_U

U0RX_U

ARC_on/off

TP1326

U0TX_U

1 2

ZD125

TVM1G5R5M100R

D0603

1 2

ZD124

TVM1G5R5M100R

D0603

UART_SEL

U0RX_U

ARC_on/off

HDMI pin14

Debug mode

L

CHANNEL

HDMI function

+12V

H

S0

NC/ARC

For ARC

L :ON-state

TP1312

HDMI function

H

S1

NC/ARC

H

CHANNEL

L

S0

ARC on /off enab le control

H :OFF-s tate

Debug mode

HDMI pin14

+12V

TP1323

UART_SEL

TP1322

TP1321

TP1319

U0TX U0RX

ARC_SPDIF

TP1320

HDMI_SCL2

HDMI_SDA2

UR_Sense 9

UR_Sense

TP1043

TP-0.9

TP1041

TP-0.9

2Y0

1

2Y2

2

2-COM

3

2Y3

4

2Y1

5

INH

6

GND

7

GND

8

B

9

A

10

1Y3

11

1Y0

12

1-COM

13

1Y1

14

1Y2

15

VCC

16

U408

NC/74HC4052PW

ARC_SPDIF UART_SEL

HDMI_SDA2/TX

HDMI_SCL2/RX

U0TX

HDMI_SCL2

U0RX

HDMI_SDA2

HDMI_SDA2/TX

HDMI_SCL2/RX

1

2

3

CN166

CONN

R488

0R05 1/10W

R4890 0R05 1/10W

R498

0R05 1/10W

R499 0R05 1/10W

TP1308

TP1340

TP1309

TP1324

TP1311

UR_Sense

2 4

5

1

3

U410 74LVC1G125GV

R467

NC/40.2K 1/16W 1%

R468 10K 1/16W 5%

Q404

NC/PMBT3904

R470

180R 1/10W 1%

C445

100N 16V

R466

NC/60.4K 1%

C444

1UF 25V

R471 82R 1/10W 1%

R472 100K1/16W

C442

100N 16V

TP1037

TP-0.9

C443 100N 16V

R464

NC/10K 1/16W 5%

DVDD3V3

HDMI_SDA2 7

HDMI_SDA2/TX 7

UART_SEL 7

HDMI_SCL2 7

U0RX 9

U0TX 9

ARC_on/off 10

HDMI_SCL2/RX 7

ARC_SPDIF 13

Circuit Diagrams and PWB Layouts

EN 93TPM14.1L LA 10.

2014-Oct-24

back to

div.table

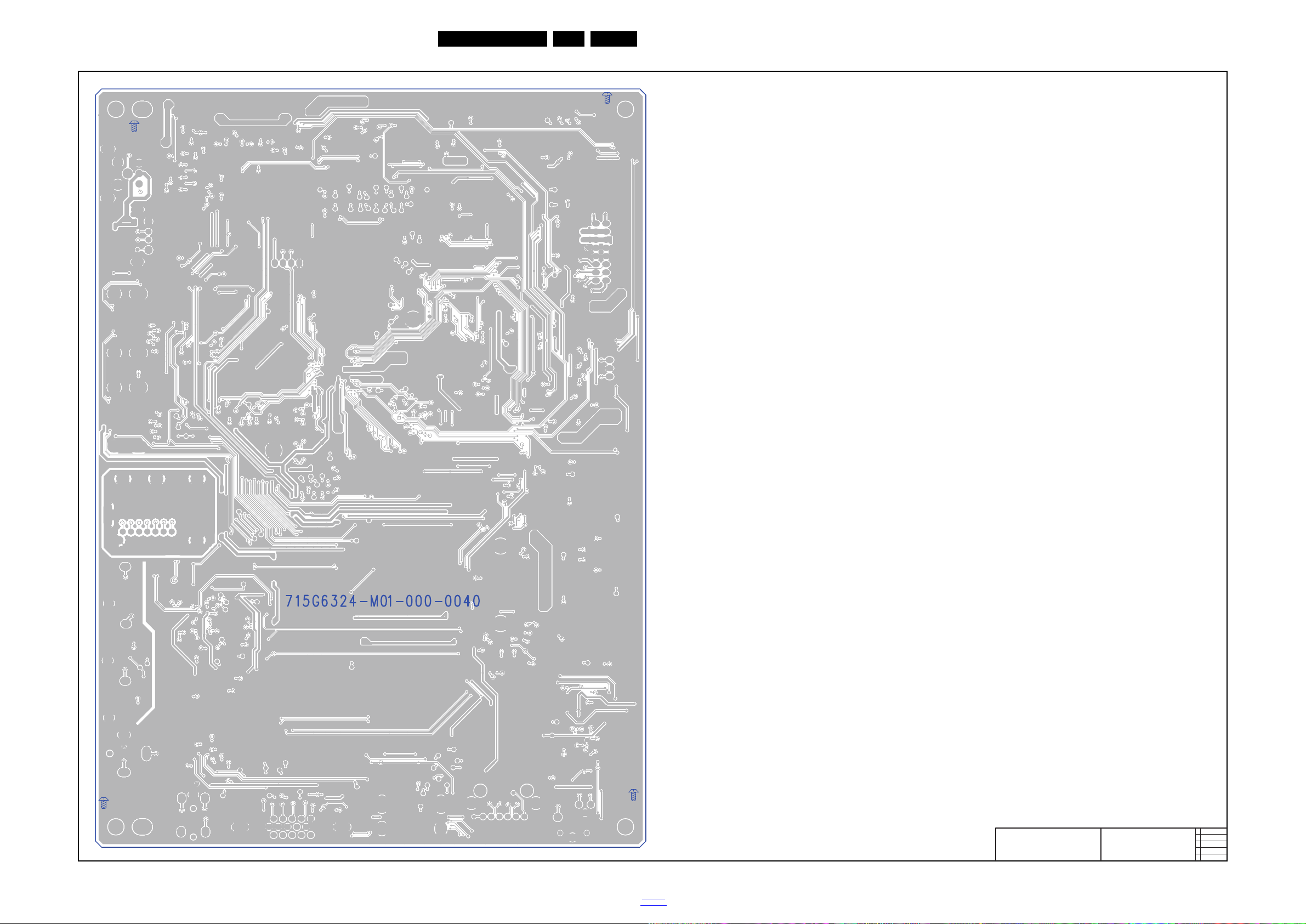

19620_528_140110.eps

140110

2013-09-09

3

715G6324

Power layout top

R790

C148

C149

C173

C402

C406 C407

C428

C435

C6003

C440

C441

C444

C446

C450

C451

C452

C453

C454

C456

C6022

C6017

C6018

C6025

C6024

C6019

C6055

C734

C753

C712

C715

C718

C721

C722

C192

C190

D712

R429

R453

R773

X401

C756

X101

C426

C608

C141

C430

C449

C139

C170

C684

C482

C1003

C1004

R703

C6002

C732

C737

R162

R165

R440

R466

R470

R471

R530

R714

R717

R718

R734

R171

R174

R186

R524

R1038

R1001

R1039

R197

R553

R1006

R198

R551

R552

R554

C6027

C6029

C6034

C6035

C6043 C6044

C6052

C6053

C6054

C650

C742

C802

C751

C6026

C6028

C6033

C6039

R123

R124 R125

R126

R805

R774

R775

R776

R6025

R6026 R6052

R6053

C409

C757

R104

R105

R106

R120

C698

C699

C812

C801

R195

R196

R298

R299

C710

C789

C717

C714

C790

C791

C761

C762

R799

C411

R4890 R488

R499

R498

R6058

R6059

TH101

D401

C759

ZD402

M4M5

M1

M12

FB101

FB103

FB104

FB402

FB404

FB501

FB6003

FB702

L401

L701

Q402

Q403

Q404

Q6002

Q6003

Q703

U112

U402

U411

U505

U702

U703

U705

HS401

FB105

FB106

FB502

U501 U502

Q502 Q503

Q508

Q509

Q708

FB703

FB704

U506 U507

U412

ZD511

ZD131

ZD132

ZD133

ZD134

ZD118 ZD119

ZD501

ZD503

ZD508

ZD509

ZD510

ZD502

ZD504

ZD505

ZD506

ZD507

ZD106

ZD107

ZD108

ZD512 ZD513

ZD514

ZD515

ZD516

C101

C102

C104

C142

C143

C144

C150 C151 C154C155

C174

C175 C176

C158

C159

C401

C403

C404

C405

C410

C412

C413

C686

C1001

C425

C427

C429

C432

C433

C434

C505

C437

C438

C442

C443

C447

C448

C457

C458

C459

C460

C462

C501

C502

C503

C603

C604

C605

C606

C607

C645

C4118

C479

C601

C602

C709

C711C713

C716

C731

C733

C758

C735

C196

C739

C177

C178

C156

C157

C179

C180

C181

C182 C183

C184

C185

C186

C187

C188

C189

C191

C193

C194

C195

C736

C6008

C445

C504

C506

C171

C160C161

C1002

C1083

C1084

C1085

C509

C510 C511

C705

C704

C436

R102

R1024

R1025

R1026

R1027

R1029

R103

R1030

R149

R151

R155

R156

R157

R159

R160

R163

R166

R401

R402

R403

R404

R405

R407

R806

R411

R412

R818

R414

R415

R416

R417

R418

R419

R420

R421

R422

R423

R425

R427

R428

R4087

R4088

R432

R433

R434

R435

R436

R438

R439

R441

R4054

R4055

R444

R555

R448

R454

R455

R456

R457

R460

R461

R464

R467

R468

R472

R473

R474

R476

R477

R479

R121

R501

R804

R515

R516

R521

R523

R532

R807

R809R808

R811

R536

R802

R803

R1007

R601

R602

R603

R604

R822

R619

R6033

R445

R6021R6010

R6057

R738

R709

R772

R771

R719

R769

R728

R729 R730

R731

R732

R765

R540

R735

R167 R168

R172

R173

R175

R176

R177

R178

R179

R180

R181

R182

R183

R184

R185

R187

R188

R189

R190

R191

R192

R193

R194

R510

R511

R519

R520

R522

R525

R528

R542

R169

R451

R150

R733

R1002

R1003

R1004

R1005

R199

R548

R549 R550

R556

R704

R705

R739

R4083

R678

U102

U706

Q401

Q702

R489

R491

CN502

CN103

CN160

M2

M3

C1086

C103

C105

SCREW1

SCREW2

CN603

CN601

CN403

CN501

CN504

CN102

C6023

CN701

C6009

R6030

R6020

C806

C611

C610

C121

C122

C123

C124

C172

C480

C481

C644

C643

C647

C648

C646

C6016

C6020 C6021

C6030

C495

C6036

C6037

C6038

C6051

C6057

C6058

C6059

C677

C754

ZD135

ZD136

ZD137ZD138

ZD139

ZD601

ZD603

ZD6001

ZD6002

Q711

FB6004

FB705

FB809

R101

R607

R606

R816

R810

R117

R132

R133

R134

R135

R812

R446

R6005

R6006

R6007

R6008

R6009

R617

R618

R615

R622

R623

R620

R6017

R6018

R6028

R6029

R6031

R638

R639

R656

R6019

R6054

ZD713

Q6001

Q710

U601

CN166

TU101

ZD124

ZD125

FB503

CN605

C4090

CN401

C125

L703

CN604

C126

C127

C128

C4091

C4092

C685

ZD4001

ZD4002

ZD408 ZD409

ZD602

ZD4003

ZD4004

ZD604 ZD605

ZD607

FB4002

R107R108

R109

R110

R111

R112

R113

R1137

R1138

R1139

R114

R1140

R115R116

R118

R119

R4004

R4006

R4008

R4009

R4050

R4051

R4052

R4053

R437

R484

R610

R611

R624

R654

U415

Q4004

Q421

Q422

Q1006

Q1005

Q406 Q407

CN703

CN801

C520

C808

C809

C807

Q801

C752

R819

R814 R815

U801

Q501

Q802

CN802

C521

C803

C804

C805

C810C811

C827

FB801FB802 FB803

FB804

FB805

FB806

FB807 FB808

R526

R538

R801

R813

R817

R820

R821

U503

Q505

R2

CN1

C496

FB6098

FB6099

FB799

R1

R4480

Q408

Q409

U406

U405

C1098

C1099

L6001

L6002

L6003

L6004

L702

CN402

R761

R764

R766 R767

R768

Q707

Q766

R777

R778

R779

U101

U401

U408

C738

R741

M10

M8

M11

M7

R137

R136

R780

FB706

R513

R514

R517

C6001

R447

R710

R711

R712

R713

Q704

Q705

U410

R6060

R6061

R6062

R6063

R6064

Q6005

Q6004

C750

10-7-14 SSB layout top

Circuit Diagrams and PWB Layouts

EN 94TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-7-15 SSB layout bottom

19620_529_140110.eps

140110

2013-09-09

3

715G6324

Power layout bottom

TP712

TP1037

TP1041

TP1043

TP522

TP463

TP464

TP465

TP466

TP802

TP801

TP803

TP804

TP805

TP344

TP219

TP27

TP26

TP25

TP28

TP1069

TP401

TP403

TP404

TP405

TP471TP472

TP407

TP603

TP056

TP057

TP058

TP059

TP060

TP061

TP062

TP063

TP064

TP065

TP066

TP067

TP068

TP069

TP070

TP071

TP072

TP073

TP074

TP075

TP076 TP077

TP078

TP1

TP132

TP133

TP134

TP135

TP173

TP174

TP175

TP176

TP177

TP178 TP179

TP180

TP181

TP182

TP183

TP184

TP185

TP2

TP3

TP304

TP305

TP306

TP307

TP318

TP319

TP348

TP371

TP372

TP373

TP374

TP380

TP390

TP5

TP6

TP7

TP710

TP711

TP003

TP087

TP088

TP10

TP11

TP12

TP13

TP14

TP15

TP16

TP17

TP245

TP247

TP248

TP271

TP272

TP273

TP274

TP275

TP276

TP278

TP279

TP280

TP281

TP1044

TP1045

TP1047

TP1048

TP1049

TP1051

TP1053

TP1054

TP1055

TP1057

TP1059

TP1060

TP1061

TP1062

TP1063

TP1064

TP1065

TP1066

TP1067

TP1068

TP1070

TP1071

TP1072

TP1073

TP1074

TP1075

TP1076

TP1077

TP1078

TP1079

TP1082

TP1083

TP1084

TP1085

TP1086

TP1087

TP1088

TP1323

TP1090

TP1091

TP1092

TP1093

TP1095

TP1096

TP1098

TP1099

TP1100

TP1101

TP1102

TP1103

TP1104

TP1105

TP1106

TP1107

TP1108

TP1109

TP1110

TP1111

TP1112

TP1114

TP1115

TP1117

TP1118

TP1119

TP1120

TP1121

TP1122

TP1123

TP1124

TP1125

TP1128

TP1130

TP1133

TP1134

TP1135

TP1136

TP1137

TP1139

TP1141

TP1142

TP1144

TP1145

TP1146

TP1148

TP1149

TP1153

TP1154

TP1155

TP1156

TP1157

TP1158

TP1159

TP1160

TP1161

TP1162

TP1163

TP1164

TP1165

TP1166

TP1167

TP1168

TP1169

TP1170

TP1171

TP1172

TP1173

TP1174

TP1176

TP1180

TP1181

TP1183

TP1184

TP1185

TP1186

TP1187

TP1190

TP1191

TP1192

TP1193

TP1194

TP1195

TP1196TP1197

TP1198

TP1199

TP1200

TP1201

TP1202

TP1203

TP1204

TP1205

TP1206

TP1207

TP1209

TP1210

TP1211

TP1212

TP1214

TP1215

TP1216

TP1217

TP1218

TP1219

TP1220

TP1221

TP1222

TP1223

TP1224

TP1225

TP1226

TP1227

TP1228

TP1229

TP1230 TP1231

TP1232

TP1233

TP1234

TP1235

TP1236

TP1237

TP1238

TP1240

TP1241

TP1243

TP1244

TP1245

TP1246

TP1247

TP1249

TP1250

TP1251

TP1252

TP1254

TP1255

TP1256

TP1257

TP1258

TP1259

TP1260

TP1261

TP1263

TP1264

TP1265

TP1266

TP1267

TP1268

TP1269

TP1270

TP1271

TP1272

TP1273

TP1274

TP1275

TP1276

TP1277

TP1278

TP1279

TP1280

TP1281

TP1282

TP1283

TP1284

TP1285

TP1286

TP1287

TP1288

TP1289

TP1290

TP1291

TP1292

TP1293

TP1294

TP1295

TP1296

TP1297

TP1298

TP1299

TP1300

TP1301TP1302

TP1303

TP1304

TP1305

TP1307

TP1309

TP1324

TP1312

TP1340

TP1319

TP1320

TP1321

TP1322

TP1308

TP1311

TP1326

Circuit Diagrams and PWB Layouts

EN 95TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10.8 B 715G6325 SSB

19620_528_140121.eps

140121

System Power

B01 B01

2013-10-21

3

715G6325

System Power

+

C757

100UF 16V

R731

100K 1/16W 5%

C736

100NF 25V

R778

4.7K

R787

4.7K

C426

22UF 20% 6. 3V

DVDD3V3

+12VSB_PRE

+5V_SW

L703 15UH

C776

1uF 10V

10/21

C775

1uF 10V

R719

4.7K 1/16W

R777 NC 1K

+12V_AL_PRE

BL_ON/OFF

+12VSB_PRE

STANDBY

1

2

FB703 120R

+12VSB_PRE

SOT223 0.6A/3.3V

25mil

20mil

BL_DIMMING

Max:3.3V Min: 0V

BRIGHT ADJUST

R732

18Kohm 1/16W +/-1%

C733

100N 16V

1 2

FB710

120R

C737

10UF 25V

C732

22UF 16V

R735

3.3K 1%

C739

NC 22PF 50V

TP712

Low active

C738

1.5nF 50V

TP488

R775

NC/0R051/8W

TP94

+12V

+5VSB

AC_DET

R788 4.7K

Q706

MMBT3904

C717

22UF 20% 6.3V

+12V_Amp

R776

NC 0R 051/ 8W

For 2K14 PSU

VIN

1

GND

2

EN3VFB

4

LX

5

U411

G5695T11U

TP29

12

FB706

NC 120R

TP30

+5VSB

C722

22uF 6.3V

R773 0R05 4A 1/4W

90mil

+5V Switch

90mil

TP1067

BRIGHT_ADJ

R723

NC 100R 1/16W 5%

3V3SB

BL_DIMMING

R728

0R05 1/16W

OPWRSB

R714

10 OHM 1/10W

DVDD3V3

VIN3VOUT

2

GND

1

U702

AC _ D E T

NC

1

LX

2

POK

3

EN

4

FB

5

VDD

6

VIN

7

GND

8

GND

9

U703

uP1734PSW8

H = > AC_ON L = > AC_OFF_DET

AC Detect

DVDD3V3

TP32

BL_ON/OFF

1 2

FB702

220R/2000mA

C712

10UF 10V

INVERTER_ON_OFF

C704

NC/100N 16V

C731

100N 16V

BL_ON/OFF9

C713

100N 16V

BL_DIMMING

R722

NC 0R05 1/16W

BL_DIMMING

+12V_Amp

R772

51K 1/16W 5%

BL_ON/OFF

PS_ON

DVDD3V3

+5VSB

R709

22K 1/16W 5%

+5V_SW

NC/4.7UF 10V

C726

+5V_SW

R779 1K

R729

82K 1%

R730

18Kohm 1/16W +/ -1%

R771 1K 1/16W

AVDD3V3

C718

10UF 6. 3V 20%

TP33

VCCK

C721

2.2UF

TP34

C711

100N 16V

TP35

TP36

R724

NC 10K 1/16W 5%

R786

1K

C725

NC 10N 50V

TP37

C716

100N 16V

TP38

VIN

1

GND

2

EN3VFB

4

LX

5

U705

G5695T11U

Q703 PMBT3904

+5VSB

C427

100N 16V

TP39

+5VSB

AVDD1V2

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q702

AO4449 -7A/-30V

40mil

L702

2.2uH

45mil

R1

R2

OPWRSB9

INVERTER_ON_OFF

VCCK

D712

NC/BAS316

C751

100N 50V

45mil

IO P OWER_ 3.3V

Q704

MMBT3904

L701

2.2UH

C715

22UF 20% 6.3V

BL_DIMMING9

3V3SB

TP1065TP1064

TP40

TP1069

TP41

TP1068

TP42

R766

NC 1 00K 1/16W 5%

TP43 TP44

TP45

1

2

3

4

5

6

7

8

9

10

CN110

CONN

C709

1uF 10V

TP25

TP26

TP27

TP28

C754

100N 16V

AC_DET

Q707

PMBT3904

INVE R TER ON / OF F H: ON L: OFF

INVERTER ON/OFF

INVERTER_ON_OFF

Low active

TP46

TP121

R780 4.7K

Q705

PMBT3904

+12V_AL_PRE

R713

NC / 22K 1 / 16W 5%

1 2

FB704

120R 6A

GPIO

For 2K13 PSU

1 2

FB705

NC 120R

C750

22UF 16V

C758

1uF 10V

TP89

+12V

AC_DET

TP92

C756

NC/ 4. 7U F 10% 10V

ORESET# 9

R710

150K 1/16W 5%

R717 12K 1/10W 1%

+12V_AL_PRE +12VSB_PRE +12V_Amp

2D/3D_EN

BRIGHT_ADJ

INVERTER_ON_OFF GPIO STANDBY

DRAM POWER DDRV 1.5V

45mil

R1

R2

R736

4.7K 1/16W

C735

100N 16V

5/20 BOM Change

R734

24.9K 1%

C710

10uF 10V

R711

10K 1/16W 5%

25mil80mil

PS_ON co n tr ol

R712

22K 1/16W 5%

L = > DC_OFF

80mil

R2

SOP-8 5.0A/1.2V

CORE POWER DV1.2

H = > POWER_ON

BRIGHT_ADJ

R1

TP710

+12V

C428

2.2UF

+12VSB_PRE

R704

NC 100R 1/16W 5%

R456

33K 1/16W 1%

R460 22K 1/16W 1%

L401

2.2UH

EN

1

BS

2

IN

3

LX4VCC

5

GND

6

FB

7

COMP

8

E-PAD

9

U706

G5759F11U

DVDD3V3

LO = > POWER_ON HI = > POWER_OFF

10mil

Main power On/Off co ntrol

PS_ON /STANDBY

12V TO 5VSB

L = > DC_OFF

R2

H = > POWER_ON

R1

C705

100N 16V

DDRV

R453 0R05 4A 1/4W

90mil

+5V_SW

2 4 6

8 10 12 14 16

1 3 5 7 9 11 13 15

CN701

CONN

AC_DET10

R454

0R05 1/16W

R733

47K 1/16W 5%

R785

100R 1/10W 5%

(Standby)

R703 0 OHM +-5% 1/8W

PS_ON

OPWRSB

R765

NC/1M 1/16W

Control Interface

2D/3D_EN

R739

4.7K 1/16W

3V3SB

R705 1K 1/16W 5%

Q708

PMBT3904

R738

4.7K 1/16W

BRIGHT_ADJ

C714

NC/22pF 50V

R718

11.8K 1%

+12V_Amp

10-8-1 System Power

Circuit Diagrams and PWB Layouts

EN 96TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-8-2 MT5561 VCCK&DDRV

19620_529_140121.eps

140121

MT5561 VCCK & DDRV

B02 B02

2013-10-21

3

715G6325

MT5561 VCCK & DDRV

C451

10U F 6.3V 20%

C456

10UF 6. 3V 20%

C447

10N 50V

VCCK

K6

VCCK

K5

VCCK

J9

VCCK

L1

VCCK

L2

VCCK

L3

VCCK

L4

VCCK

L5

VCCK

L6

DVSS

H9

DVSS

H10

DVSS

H12

DVSS

A1

DVSS

J10

DVSS

J11

DVSS

J12

DVSS

K9

DVSS

K10

DVSS

K11

VCC3IO

P9

VCC3IO

N10

VCC3IO

P10

DVSS

R13

DVSS

M9

DVSS

L12

DVSS

M11

DVSS

M13

DVSS

M12

VCCK

K7

VCCK

K8

VCCK

L7

VCCK

L8

VCCK

M7

VCCK

M8

DVSS

K12

DVSS

A8

DVSS

F6

DVSS

F20

DVSS

G7

DVSS

G18

DVSS

H13

DVSS

H11

DVSS

J13

DVSS

L9

DVSS

L11

DVSS

L13

DVSS

M1

DVSS

M2

DVSS

L10

DVSS

M3

DVSS

R6

DVSS

M4

DVSS

M5

DVSS

M6

DVSS

N8

DVSS

N13

DVSS

N11

DVSS

N12

DVSS

N15

DVSS

T13

DVSS

N16

DVSS

P7

DVSS

P11

DVSS

P12

DVSS

P14

DVSS

R11

DVSS

R12

DVSS

R14

DVSS

T5

DVSS

W19

DVSS

Y3

DVSS

G8

DVSS

H16

DVSS

J7

DVSS

M10

DVSS

N7

DVSS

N9

DVSS

T15

DVSS

U16

DVSS

V16

DVSS

H14

U401J

MT5561LVNT

C459 100N 16V

C448

10N 50V

C458 100N 16V

C460 100N 16V

C453 1UF 25V

C452 1UF 25V

C446

1UF 25V

C454

4.7U F 10% 10V

C450

10UF 6.3V 20%

C457

100N 16V

VCCK

VCC3IODVDD3V3

VCCK

VCC3IO

CORE POWER DV1.2

C430

10UF 6.3V 20%

C449

22UF 20 % 6.3 V

3. 3V IO Power

C436

100N 16V

TP47

RVREF

ZQ

R461

1K 1/16W 1%

C435

1UF 25V

C433

100N 16V

C429

NC/100N 16V

C438

100N 16V

DDRV

N1

DDRV

N2

DDRV

N3

DDRV

N4

DDRV

N5

DDRV

N6

DDRVREF

P1

ZQ

P2

TN_MEMPLL

H8

TP_MEMPLL

J8

U401A

MT5561LVNT

C440

4.7U F 10% 10V

R455

1K 1/16W 1%

R457 240R 1% 1/16W

C441

1UF 25V

C434

100N 16V

C432

100N 16V

C425

NC / 100N 16V

C437

100N 16V

DRAM Power 1.5V

DDRV

Circuit Diagrams and PWB Layouts

EN 97TPM14.1L LA 10.

2014-Oct-24

back to

div.table

10-8-3 HDMI

19620_530_140121.eps

140121

HDMI

B03 B03

2013-10-21

3

715G6325

HDMI

TP161

10mil

C521 100N 16V

C585

100N 16V

OPWR5V

RX_0_2B

RX_0_1

RX_0_0B

RX_0_1B

RX_0_CB

RX_0_0

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U507

NC/AOZ8804DI

RX_0_CB

RX_0_1B

RX_0_1

RX_0_2

RX_0_0

RX_0_0B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U506

NC/AOZ8804DI

RX_0_2

RX_0_2B

RX_0_C RX_0_C

RX_2_0

RX_2_1B

RX_2_C RX_2_CB

RX_2_2B

RX_2_2

RX_2_0B

RX_2_1

AddΛǂ75ohmǂ⾜U401ǂᱫESDň

㞨

10mil

15mil

L

CHANNEL

HDMI pin14

+12V

S0

HDMI function

NC/ARC

S1

H

Debug mode

H

SHLD0

20

SHLD1

21

TMDSD 2+

1

DSHLD0

2

TMDSD 2-

3

TMDSD 1+

4

DSHLD1

5

TMDSD 1-

6

TMDSD 0+

7

DSHLD2

8

TMDSD 0-

9

TMDSC +

10

CSHLD0

11

TMDSC -

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN502

HDMI

R529

75R 1/16W 1%

R527

910R 1/10 W 5%

Q504

BC847C

R530

47K 1/16W 5%

R539 100K1/16W

R526

4.7K 1/16W

Q505

BC847C

HDMI_0_RX_CB

W7

HDMI_0_RX_C

Y7

HDMI_0_RX_0B

V7

HDMI_0_RX_0

V8

HDMI_0_RX_1B

U9

HDMI_0_RX_1

V9

HDMI_0_RX_2B

W9

HDMI_0_RX_2

Y9

HDMI_0_SCL

U7

HDMI_0_SDA

V6

HDMI_0_HPD

W5

AVDD33_HDMI

R10

AVDD12_HDMI_0

Y5

HDMI_1_RX_CB

P20

HDMI_1_RX_C

P19

HDMI_1_R X_0B

P18

HDMI_1_RX_0

P17

HDMI_1_R X_1B

N18

HDMI_1_RX_1

N17

HDMI_1_R X_2B

M20

HDMI_1_RX_2

M19

HDMI_2_RX_CB

M18

HDMI_2_RX_C

M17

HDMI_2_R X_0B

L18

HDMI_2_RX_0

K18

HDMI_2_R X_1B

K20

HDMI_2_RX_1

K19

HDMI_2_R X_2B

J20

HDMI_2_RX_2

J19

HDMI_CEC

K16

HDMI_2_SCL

J17

HDMI_2_SDA

J14

MHL_SE NCE

K15

HDMI_2_H PD_CBUS

J16

HDMI_1_SCL

J18

HDMI_1_SDA

K14

HDMI_1_HPD

L17

AVDD12_HDMI_1

H20

U401E

MT5561LVNT

HDMI_SCL0 HDMI_SDA0

Control Interface

HDMI_0M_HPD

CEC

RX_1_1

RX_1_2B

RX_1_CB

RX_1_C

HDMI_SDA1_IN

RX_1_2

CEC_A1

RX_1_0 RX_1_0B

RX_1_1B

HDMI_SDA1

HDMI_SCL1

HDMI_SCL2

HDMI_SCL2/RX

HDMI_SDA2

HDMI_SDA2/TX

1 2

ZD510

MLVG0402

Q502

NC BC847C

C505 NC 100N 16V

R522

NC 47K 1/ 16W 5%

R501

100R 1/16 W 5%

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

CN501

NC HDMI

1 2

ZD511

MLVG0402

Q503

NC BC847C

R520 N C 100R 1/16W 5%

C503

100N 16V

1 2

ZD508

MLVG0402

R515 47K 1/16W 5%

1

2

FB501

120R

1 2

ZD505

NC MLVG0402

C504

NC 100N 16V

C501

100N 16V

R525

NC 4. 7K 1/ 16W

R528

NC 100K1/16W

1 2

ZD509

MLVG0402

1 2

ZD501

MLVG0402

1 2

ZD507

NC MLVG0402

R524 NC 910R 1/10W 5%

1 2

ZD506

NC MLVG0402

R516

47K 1/16W 5%

R511 NC 10K 1/16W 5%

R523 100R 1/ 16W 1%

R498 0R05 1/10W

R499 0R05 1/10W

C502

100N 16V

1 2

ZD504

NC MLVG0402

R519 NC 100R 1/16W 5%

C506 NC 100N 16V

R510 NC 10K 1/16W 5%

R521 100R 1/ 16W 1%

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U505

NC AOZ8804DI

OPWR2_5V

HDMI_1M_HPD

3V3SB

OPWR1_5V

AVDD3V3

AVDD1V2

CEC_A2

ARC_on/of f

R513 NC 0R05 1/16W

UART_SEL

R514 0R05 1/16W

UART_SEL

R542 NC 75R 1/16W 1%

TP104

TP153

HDMI_SDA2

3V3SB

HDMI_SCL2

UART_SEL

Q404

NC/PMBT3904

OPWR5V

HDMI_SCL2/RX

C445

100N 16V

2Y0

1

2Y2

2

2-COM

3

2Y3

4

2Y1

5

INH

6

GND

7

GND8B

9

A

10

1Y3

11

1Y0

12

1-COM

13

1Y1

14

1Y2

15

VCC

16

U408

NC/74HC4052PW

HDMI_SDA2/TX

R493 NC

UART_SEL

UR_Sense

TP158

10mil

R466

NC/60.4K 1%

R492

0R05 1/10W

C442

100N 16V

UART_SEL

TP105

R464

NC/10K 1/16W 5%

R467

NC/40.2K 1/16W 1%

TP1326

U0RX

TP159

OPWR5V

TP152

10mil

RX_2_0

RX_2_C

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U504

NC AOZ8804DI

RX_2_CB

RX_2_0B

RX_2_CB

RX_2_0

RX_2_0B

ESD protcetion

TP48

TP49

TP51

TP52

TP54

TP102

TP103

TP111

ESD protcetion

TP112

TP113

U0RX

U0TX

TP114

TP115 TP116

U0TX

TP119 TP120

TP117

ARC_SPD IF

RX_0_1

RX_0_C RX_0_0B

RX_0_1B

RX_0_CB

RX_0_0

RX_0_2B RX_0_2

Analog Power Merged Analog Power

1 2

ZD502

MLVG0402

1 2

FB502

120R

HDMI CEC

EMI

ESD protcetion

RX_1_0B RX_1_0

RX_1_CB

RX_1_2B

RX_1_1

RX_1_1B

RX_1_0B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U502

NC AOZ 8804D I

RX_1_2

RX_1_1B

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U501

NC AOZ 8804D I

UR_Sense 9

UR_Sense

RX_1_C

RX_1_0

RX_1_2B

RX_1_1

RX_1_2

RX_1_CB

RX_1_C

RX_2_2B

RX_2_1B

RX_2_2

HDMI_2M_HPD

AVDD12_HDMI_0

AVDD33_HDMI

AVDD12_HDMI_1

RX_2_1RX_2_1

RX_2_1B

RX_2_2

RX_0_2

C510 100N 16V

HDMI_SDA0

C511 100N 16V

RX_0_0B

Q509

BC847C

3V3SB

C509

100N 16V

OPWR0_5V

1 2

ZD512

MLVG0402

RX_0_1

RX_0_C

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

CN504

HDMI

R551 100R 1/16W 5%

R556

100K1/16W

HDMI_0M_HPD

RX_0_2B

HDMI_SDA2/TX

HDMI_SCL2/RX

Q508

BC847C

R549 10K 1/16W 5%

R471 82R 1/10W 1%

HDMI_SCL0

C444

1UF 25V

R553

910R 1/10 W 5% R554 75R 1/16W 1%

2

4

5

1

3

U410 74LVC1G125GV

OPWR0_5V

DVDD3V3

R550 100R 1/16W 5%

R468 10K 1/16W 5%

R552

47K 1/16W 5%

RX_0_1B

1 2

ZD515

MLVG0402

DVDD3V3

RX_0_CB

R470

180R 1/10W 1%

1 2

ZD514

MLVG0402

R555

4.7K 1/16W

HDMI_SDA0_IN

RX_0_0

R548 10K 1/16W 5%

R472 100K1/16W

HDMI_SCL0_IN

C443 100N 16V

1 2

ZD513

MLVG0402

CEC_A0

TP107

HDMI_SCL2

1 2

ZD503

MLVG0402

HDMI_SDA2

ARC_SPDIF

TP106

TP110

TP108

R517 0R05 1/16W

TP109

HDMI_2M_HPD

RX_1_2

RX_1_1 RX_1_2B

RX_1_0 RX_1_1B

RX_1_C

RX_1_CB RX_1_0B

RX_2_1

RX_2_1B

RX_2_CB

RX_2_2

RX_2_0B

RX_2_2B

RX_2_C RX_2_0

AVDD12_HDMI_1

AVDD12_HDMI_0

ARC_on/of f

HDMI_SDA1

HDMI_1M_HPD

HDMI_SCL1

TP149

TP125

CEC_A2

TP124

SIDE HDMI (with ARC)

CEC_A1

TP123

CEC_A0

TP122

CEC

1 2

ZD516

MLVG0402

1 2

FB503

120R

OPWR1_5V

TP390

TP147

TP146

For ARC

10mil

L :ON-state H :OFF-state

AR C on/o ff enable control

TP150 TP156

U0TX 8,9 U0RX 8,9

ARC_SPDIF 13

ARC_on/ of f 10

TP148

TP151

TP157

TP154

TP160

HDMI_SCL1_IN

TP155

Circuit Diagrams and PWB Layouts

EN 98TPM14.1L LA 10.

back to

div.table

2014-Oct-24

10-8-4 Analog Video/Hotel

19620_531_140121.eps

140121

Analog Video/Hotel

B04 B04

2013-10-21

3

715G6325

Analog Video/Hotel

Q1005

NC 2N7002K

1 2

FB6005 30R/600mA

TP463

TP464

TP466 TP4 65

C481 NC 100N16V

Pr_in

NO

1

GND

2

NC3COM

4

V+

5

IN

6

U415

NC TS5A3157DCKRE4

1 2

FB4002

NC 120R

R116

0.05R

C482 NC 10UF

R117

0.05R

C121

100N 16V

R119

0.05R

TP173

TP174

TP175

VGA_RIN

TP176

C124

1.5nF 50V

VGA_TX

R4004 NC 10K

TP177

DET_IR_CON

12

ZD131

MLVG04 02

C122

100N 16V

TP178

TP179

C128

100N 16V

TP180

12

ZD106 MLVG04 02

TP18 1

VGACOM

C126

10PF 50V

C125 10PF 50V

C127

10PF 50V

TP182

VGA_R

TP183

1

2 3 4

CN605

PHONE J AC K

AVDD33_RGB_STB

12

ZD107 NC MLVG0402

TP185

TP184

IR_OUT

VGA_SOG

12

ZD108 NC MLVG0402

R118

0.05R

12

ZD132

MLVG04 02

AVDD33_VIDEO_STB

VGA_SDA VGA_HSYNC VGA_VSYNC

VGA_SCL

12

ZD133

MLVG0402

Q1006

NC MMBT3904

R1002

100R 1/ 16W 5%

C1003 2.2uF 10V

C1004 2.2uF 10V

AV_AudioRIN

12

ZD134

MLVG0402

AV_AudioLI N

Pb_in

R4008

NC 22K 1/16W 5%

Pb_in

R4009

NC/22K 1/16W 5%

ADCIN P_DEMOD

ADCIN N_DEMOD

12

ZD135

NC/MLVG0402

R1003

75R 1/16W 1%

C1001 47pF 50V

ADCIN P_DEMOD

Anal og 1.2V Power

R115

0.05R

Q4004 NC PMBS3904

12

ZD136

NC/MLVG0402

DET_IR_CON

088G353GFF1ACL

VGA_SDA

Pb_in

12

ZD139

MLVG04 02

VGA IN (V/T)

AV_R_In

CVBS0P

CVBS_L_IN

CVBS_R_IN

CVBS_L_IN

CVBS_R_IN

12

ZD138

MLVG04 02

R137

4.7K

R136

4.7K

+5VSB

R484 NC 0.05R

OIRI

12

ZD137

MLVG0402

AV_L_In

R6063

75R 1/16W 1%

CVBS_R_IN 13 CVBS_L_IN 13

TP40 7

1 2

ZD607

VPORT0603100KV05

C1098 330pF 50V

C1099 330pF 50V

1 2

ZD605

VPORT0603100KV05

R101

75R 1%

VGA_RIN

COM1

SOY1

PB1P

Y1P

PR1P

ADCIN N_DEMOD

R120 100 OHM

VGA_GIN

R138 2K2 1/16W 5%

SOG0

VGA_BIN

C105 1uF 10V

CVBS0P

R102

75R 1%

VGA_HS

VGA_VS

VGA_SDA

VGA_SCL

C123

100N 16V

R131 NC/33R

R130 NC/33R

VGA_RX

R103

75R 1%

R105 100 OHM

R132 100R

R129 NC 33R

VGA_TX

R128 NC 33R

VGA_RX

U0TX U0RX

U0TX 7,9 U0RX 7,9

U0RX

U0TX

R139

2K2 1/16W 5%

C103 1uF 10V

R606 30K 1/16W

C106 2.2uF 10V

R607 30K 1/16W

C101

NC/100N 16V

C107 2.2uF 10V

TP521

VGA_IN_L

C102

100N 16V

VGA_SCL

V5

VGA_SDA

V4

VSYNC

V10

HSYNC

U10

BP

V11

SOG

U11

GP

W12

COM

Y12

RP

V12

SOY1

U12

Y1

V13

COM1

U13

PB1

W14

PR1

Y14

SOY0

V14

Y0

U14

COM0

V15

PB0

U15

PR0

W16

VDAC_OUT

W17

CVBS1

Y17

CVBS0

V18

ADCIN P_DEMOD

W18

ADCIN N_DEMOD

Y19

AVDD33_RGB_STB

V17

AVDD33_VIDEO_STB

U17

AVDD12_DEMOD

Y20

AVSS33_CLN

N14

CVBS_COM

Y16

AVSS33_RGB

T12

AVSS33_VIDEO

T14

IF_AGC

J15

RF_AGC

L16

U401D

MT5561LVNT

470pF 50V

C611

470pF 50V

C610

1 2

ZD604

VPORT0603100KV05

C104

100N 16V

IR_SW_IN

R133 33R

PC Audio_in shared with hotel mode

R6064 75R 1/16W 1%

1 2

ZD603

VPORT0603100KV05

TP522

AVDD1V2

3V3SB

R134 100R

ADCIN N_DEMOD 11

R135 33R

ADCIN P_DEMOD 11

IFAGC_Scaler 11

VGACOM

R106 100 OHM

IR_IN

YES

2 1 4 3

A

B

CN803

NC/CONN

R611

NC/0.05R

H

H:NO-COM L:NC-COM

IR_IN2

CVBS_COM

L

YES

IR_OUT

1 2

ZD601

VPORT0603100KV05

DET_IR_CON

IR_SW_IN

R610

NC/0.05R

Control Interface

R104 100 OHM

IF Interface

CVBS Audio Input

IR_OUT

2 1 4 3

6 5

7

A

B

C

CN102

RCA JACK

AVDD12_DEMOD

VGA_SCL

IR_RC

VGA_IN_R

R1140

NC 100R 1/ 16W 5%

VGA_IN_L 13

VGA_IN_R 13

R4006

NC 33K 1/16W 5%

VGA_IN_L

VGA_IN_R

R6060 NC 10R 1/16W 1%

IFAGC_Scaler

R1001 0R05 1/10W

R6066

100R 1/16W 5%

PB1P

R6059

NC 100R 1/ 16W 5%

C6065

10PF 50V

R6061 NC 0R05 1/10W

PR1P

Y1P

C6062

1.5nF 50V

Pr_in

SOY1

1 2

FB6006 30R/600mA

Pr_in

COM1

VGA_G

R6062 100R 1/ 16W 5%

C6066 10N 50V

R6058 NC 100R 1/ 16W 5%

C6060 10N 50V

R6065

NC 0R05 1/10W

12

ZD6003 MLVG04 02

12

ZD6004 MLVG04 02

C6061 10N 50V

C6064

10PF 50V

C6063 10N 50V

TP405

AV_AudioLIN

TP93

3V3_SW

3V3SB

AV_AudioRIN

VGA_VSYNC

VGA_HSVGA_HSYNC

VGA_VS

TP245

R1137 NC 10K

R1138 NC 10K 1/16W 5%

TP246

AVDD33_VIDEO_STB

TP247

R1139 NC 1K

AVDD33_RGB_STB

TP248

AVDD12_DEMOD

1

6

2

7

3

8

4

9

5

11 12 13 14 15

10

1716

18 19

CN101

D-SUB 15P

R127

75R 1%

AVSS33_CLN

IFAGC_Scaler

AVSS33_RGB AVSS33_VIDEO

VGA_BIN

SOG0

VGA_GIN

IR_RC 10

OIRI

OIRI 9,10

IR_RC

C1002

47nF 16V

Merged Analog 3.3V Power

IR_IN2

R1004 30K 1/16W

R1006 30K 1/16W

YPbPr Video Input

Circuit Diagrams and PWB Layouts

EN 99TPM14.1L LA 10.

2014-Oct-24

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

19620_532_140121.eps

140121

Peripheral

B05 B05

2013-10-21

3

715G6325

Peripheral

RESET Circuit

USB_PWR_OCP0

C462

100N 16V

3V3SB

R477 16K 1%

R479 22K 1/16W 1%

OPCTRL0

PACLE

OPWRSB

SPDIF_OUT

DVDD3V3

OSDA1 11,12

OSCL1 11,12

OSCL1 OSDA1

X90G8014 1

OSCL1 OSDA1

AMP_MUTE

LED_POWER_RED

POCE1#

1

24

3

X401

24MHZ

3V3SB

XTALO

R422

4.7K 1/16W

OSCL0

R423

4.7K 1/16W

OSDA0

OPCTRL1

OPCTRL0

R473

0R05 1/16W

R474 0R05 1/16W

BL_ON/OFF

DVDD3V3

TP297

1 2 3

CN402

CONN

TP298

Light_Sensor 10

PARB#

Light_Sensor

POOE#

LED_POWER_RED LED_PWR_Blue

LVDS_PWR_EN

U0RX

OPCTRL1

Light_Sensor

OSCL0 OSDA0

R619 0R05 1/16W

AVDD10_LDO

R181

4.7K 1/16W

TP414 TP415

R182

4.7K 1/16W

PACLE

TP416 TP417 TP418 TP419 TP420 TP421 TP413

12

ZD408 MLVG0402

TP422

12

ZD409

MLVG0402

TP423

TP424

TP398 TP425

20mil

L = > Enable

H = > Prote ct

SYSTEM EEPROM

DVDD3V3

NAND Flash

Flash_WP#

I2C & UART Interface

3V3SB

POWE#

ORESET#

ORESET# 5

ORESET#

PDD0

PDD1

PDD3 PDD2

PDD6 PDD5

PDD7

PDD4

AVDD33_REG_STB

TP15

R411

4.7K

311GW200G03BAL

FOR CODE DOWNLOAD A ND DEBUG

TP399

PAALE

R412

4.7K

PAALE

UART Port

U0TX

U0RX 7,8

U0TX 7,8

U0RX

TP16

PSU GPIO

R476

NC 4. 7K 1/ 16W

POCE0#

Ambigrow GPIO

DVDD3V3

USB_PWR_EN0

LED_PWR_Blue

TP401

Audio GPIO

FSRC_WR

OSDA1

AMP_MUTE

BL_ON/OFF

LVDS_PWR_EN

BL_DIMMING

USB_PWR_EN0 SYS_EEPROM_WP

DVDD3V3

KEY_UP_DN_DCSW KEY_MENU_L_R_SOURCE

DVDD3V3

USB_PWR_OCP0

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

U406

AT24C128C-SSHM-T

1

2

HS401

HEAT SINK

OSCL0

AMB_12V_EN15

OSDA0

AMB_12V_EN

LED_DRV_OE# 15

UR_Sense

SYS_EEPROM_WP

R448

10K 1/16W 5%

BL_DIMMING

LED_DRV_OE#

GPIO Interface

UR_Sense 7

UR_Sense

XTALI

R418 10K 1/16W 5%

R419 NC/10K 1/ 16W 5%

R414 10K 1/16W 5%

C402

4.7U F 10% 10V

KEY_UP_DN_DCSW KEY_MENU_L_R_SOURCE

C405

100N 16V

C406 15pF 50V

R425

0R05 1/16W

R415 10K 1/16W 5%

R481

10K 1/16W 5%

C401

100N 16V

R407

4.7K 1/16W

C404

100N 16V

C407 15pF 50V

R421

4.7K 1/16W

PDD0

G2

PDD1

G4

PDD2

K3

PDD3

G3

PDD4

H3

PDD5

J6

PDD6

G1

PDD7

J3

PARB#

K4

POOE#

J1

POCE1#

J2

POCE0#

J4

PACLE

K1

PAALE

K2

POWE#

J5

OSDA1

F5

OSCL1

F4

OSCL0

R5

OSDA0

P5

ORESETB

W10

OPWRSB

T2

OIRI

T3

U0RX

U2

U0TX

U1

XTALO

W20

XTALI

V19

AVDD10_LDO

Y10

AVDD33_REG_STB

T17

FSRC_WR

A20

U401B

MT5561LVNT

C403

100N 16V

R420 10K 1/16W 5%

R402

4.7K 1/16W

R417 NC/10K 1/ 16W 5%

R403

4.7K 1/16W

R404

4.7K 1/16W

R401

4.7K 1/16W

R405

4.7K 1/16W

R416 N C / 10K 1/16W 5%

DVDD3V3

OPWRSB 5

3V3SB

OSCL0 10,14,15

OSDA0 10,14,15

OIRI 8,10

1

OPCTRL1

0

X

1X

0

ICE moce + 27M + ROM to Nand boot

ICE mode + 24M + serial boot

BGA Strapping

X

ICE mode + 27M + serial boot

ICE moce + 24M + ROM to Nand boot

X

1

0

OPCTRL0

0

XTALO

0

ST RAPPING

OPWRSB

0

PACLE

R112

100OHM

U0TX

CLE

16

I/O0

29

R/B1

7

VSS

13

VDD

12

VDD

37

VSS

36

ALE

17

I/O1

30

I/O2

31

I/O3

32

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

NC

10

NC

11

NC

14

NC

15

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

NC

33

NC

34

NC

35

NC

38

NC

39

NC

40

NC

45

NC

46

NC

47

NC

48

RE

8

CE1

9

WE

18

WP

19

U405

TC58NVG0S3ETAI0

XTALI

U0TX

U0RX

PDD2

POWE#

PACLE

PARB#

PDD0

POOE# POCE1#

PDD5

PDD3

PDD1

OPWRSB

PDD4 PDD6

PDD7

OIRI

OPWRSB

OSCL1

OIRI

GPIO0

B1

GPIO1

E5

OPWM0

E6

OPWM1

G5

OPWM2

G6

OPCTRL1

V2

OPCTRL2

V3

OPCTRL3

V1

OPCTRL4

U4

ADIN7

R8

ADIN6

T6

ADIN5

U5

ADIN4

T8

ADIN3

U6

ADIN2

U8

ADIN1

P8

ADIN0

T7

GPIO2

G17

GPIO3

H5

GPIO4

H4

GPIO5

F17

OPCTRL0

U3

U401I

MT5561LVNT

LVDS_PWR_EN 10

BL_ON/OFF 5

USB_PWR_EN0 16

BL_DIMMING 5

LED_PWR_Blue 10

AMP_MUTE 14

LED_POWER_RED 10

USB_PWR_OCP0 16

KEY_UP_DN_DCSW 10

OSDA0

SPDIF_OUT13

KEY_MENU_L_R_SOURCE 10

OSCL0

TXC

R113

100OHM

EN 100TPM14.1L LA 10.

10-8-5 Peripheral

2014-Oct-24

back to

div.table

Philips 40PFG4109/78, 39PFG4109/77 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

Table 2-1 Described Model Numbers and Diversity

2.2 Directions for Use

2.3 Conne ctions ( for 32"/39"/40"/42"/47"/50"PxG4109)

2.3.1 Side Connections

Figure 2-1 Connection overview

1 - Cinch: Digital Audio - Out

2 - USB2 2.0

Figure 2-2 USB (type A)

3- HDMI 2: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-3 HDMI (type A) connector

4- TV ANTENNA - In

5 - Audio - In: Right, VGA

6 - Audio - In: Left, VGA

7 - Video CVBS

8 - Service / UART

2.3.2 Rear Connections

9 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-4 HDMI (type A) connector

10- Head phone (Output)

2.4 Connections ( for 23"/24"/28"PHG41x9 & 40"PFG4309)

Figure 2-5 Connection overview

2.4.1 Side Connections

1 - Power Button

2 - USB2 2.0

3- HDMI 2: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-6 USB (type A)

Figure 2-7 HDMI (type A) connector

4 - Head phone (Output)

2.4.2 Rear Connections

5 - TV ANTENNA - In

Figure 2-8 HDMI (type A) connector

7 - Service / UART

8 - Audio - In: Left / Right, VGA

9 - Cinch: Digital Audio - Out

10 - PC IN:VGA

Figure 2-9 VGA connector

11 - EXT: Video YPbPr - In, Audio - In

2.5 Chassis Overview

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (23" 41x9 series)

Figure 4-2 Cable dressing (24" 4109 series)

Figure 4-3 Cable dressing (28" 4109 series)

Figure 4-4 Cable dressing (32" 4109 series)

Figure 4-5 Cable dressing (39" 4109 series)

Figure 4-6 Cable dressing (40" 4309 series)

Figure 4-7 Cable dressing (47" 4109 series)

Figure 4-8 Cable dressing (50" 4109 series)

4.2 Se rvice Positions

4.3 Assembly/Panel Removal ( for 32"/39"/40"/47"/50"PxG4109/7x series)

4.3.1 Rear Cover

Figure 4-9 Rear cover removal [1]

4.3.2 Speakers

Figure 4-10 Rear cover removal [2]

4.3.3 Small Signal Board (SSB)

Figure 4-11 Speakers removal
