Philips 39HFL3008D Schematic

Colour Television Chassis

TPM10.1HE

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9 Cable dressing (22" 3008 series) 9 Cable dressing (24" 3008 series) 10 Cable dressing (26" 3008 series) 10 Cable dressing (32" 3008 series) 11 Cable dressing (39" 3008 series) 11

5. Service Modes, Error Codes, and Fault Finding 18

6. Alignments 28

7. Circuit Descriptions 30

8. IC Data Sheets 35

9. Block Diagrams Block diagram 3008 series 43

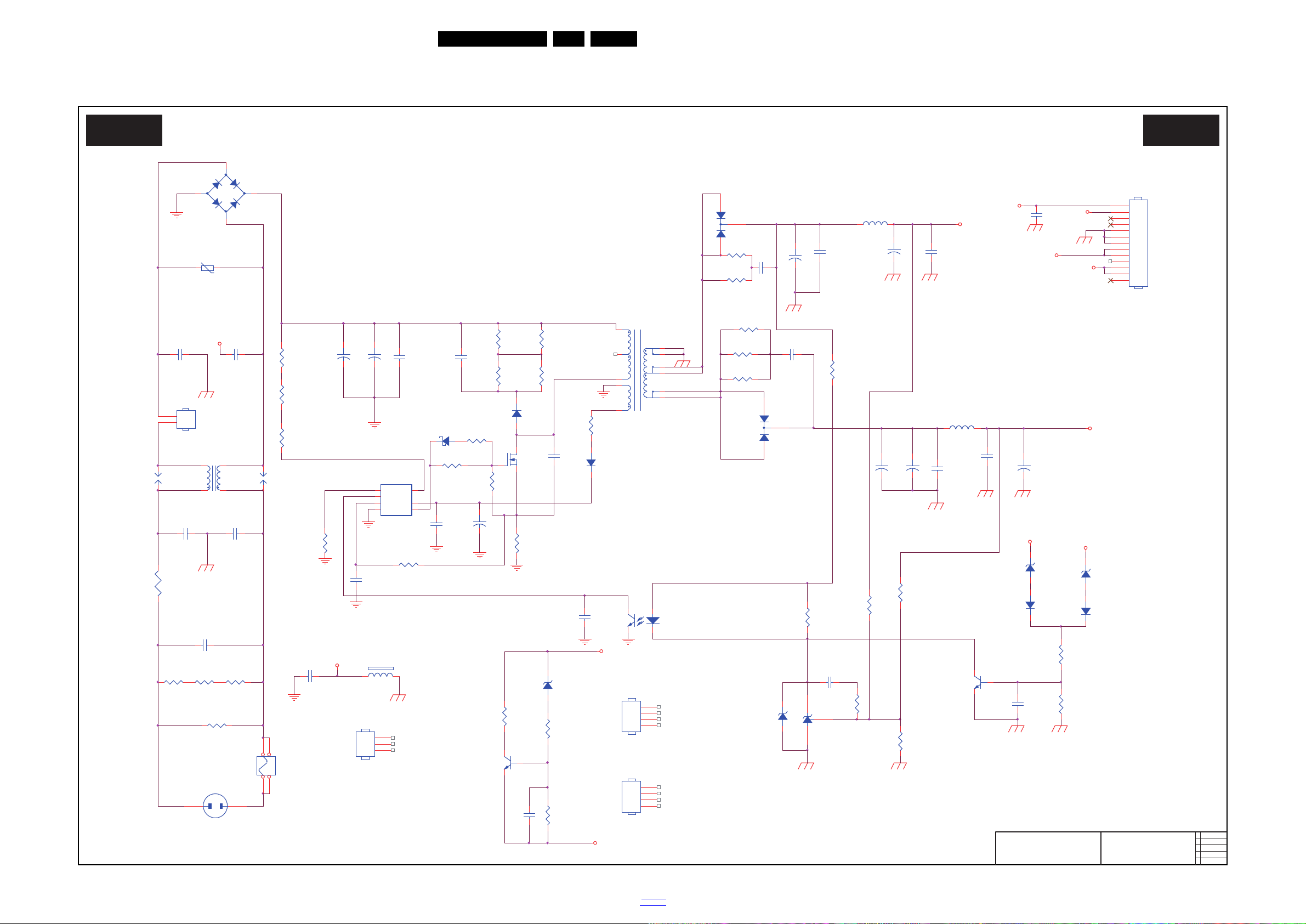

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G5309 PSU A 715G5793 PSU 48 50-51 A 715G5804 PSU 52 54-55 A 715G6050 PSU 56 59-60 A 380GLP30029DE0 PSU 61 62 B 715G5675 SSB 63 76-77 J 715G5230 IR/LED panel 78 79 J 715G5772 IR/LED Panel 80 81 E 715G5252 Keyboard control panel 82 83 E 715G5771 Keyboard control panel 84 85 E 715G5869 Keyboard control panel 86 87

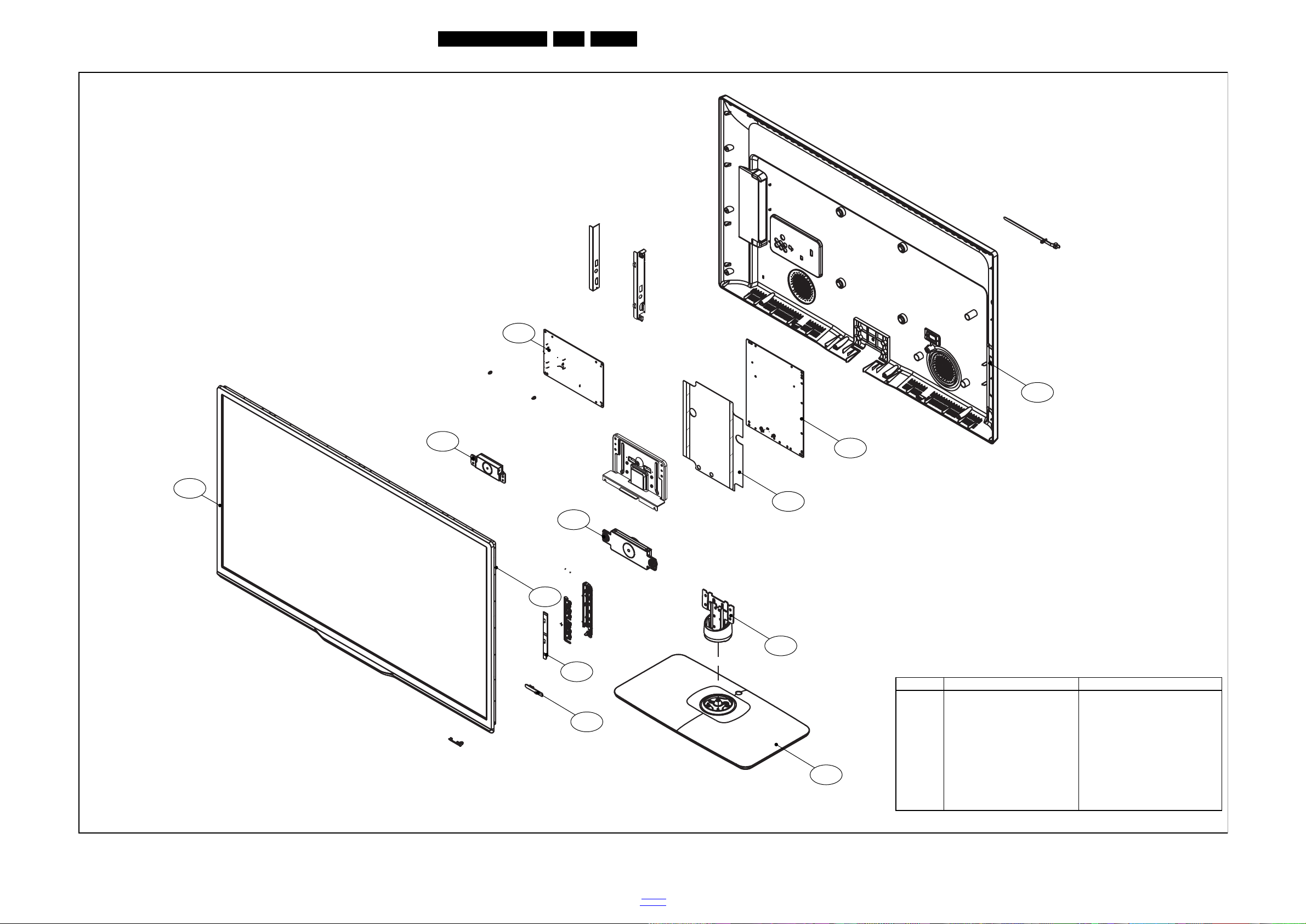

11. Styling Sheets 3008 series 22" 88 3008 series 24" 89 3008 series 26" 90 3008 series 32" 91 3008 series 39" 92

44 46-47

Published by SHC/MJX/SC 1372 Quality Printed in the Netherlands Subject to modification EN 3122 785 19461

2013-Dec-13

2013 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM10.1HE LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figures 4-1 Cable dressing (22" 3008

series), 4-2 Cable dressing (24" 3008 series), 4-3 Cable dressing (26" 3008 series), 4-4 Cable dressing (32" 3008 series) and 4-5 Cable dressing (39" 3008 series).

• Chapter 5: Updated table 5-2 Factory mode overview

.

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-2 Power Architecture

• Chapter 10: Added circuit diagrams 10.1 A 715G5309

PSU, 10.3 A 715G5804 PSU, 10.4 A 715G6050 PSU, 10.5 A 380GLP30029DE0 PSU, 10.7 J 715G5230 IR/LED panel, 10.9 E 715G5252 Keyboard control panel and 10.11 E 715G5869 Keyboard control panel.

• Chapter 11: Added styling sheets 11.1 3008 series 22"

11.2 3008 series 24" series 32" and 11.5 3008 series 39".

2. Technical Specs, Diversity, and Connections

.

,

, 11.3 3008 series 26", 11.4 3008

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

CTN

22HFL3008D/12 2-1 4-1 4-8 4-9 9.1 10.3 10.6 10.8 10.11 11.1 24HFL3008D/12 2-1 4-2 4-8 4-9 9.1 10.1 10.6 10.8 10.11 11.2 24HFL3008W/12 2-1 4-2 4-8 4-9 9.1 10.1 10.6 10.8 10.11 11.2 26HFL3008D/12 2-1 4-3 4-10 4-11 9.1 10.5 10.6 10.7 10.9 11.3 26HFL3008W/12 2-1 4-3 4-10 4-11 9.1 10.5 10.6 10.7 10.9 11.3 32HFL3008D/12 2-1 4-4 4-6 4-7 9.1 10.2 10.6 10.8 10.10 11.4 39HFL3008D/12 2-1 4-5 4-6 4-7 9.1 10.4 10.6 10.8 10.10 11.5

Mechanics

Connection Overview

Wire Dressing

Schematics

Rear Cover Removal

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2013-Dec-13

back to

div. table

2.3 Connections

HDMI

USB

CI

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

SERV.U

AUDIO IN

DVI

HDMI 1

ARC

SCART

(RGB/CVBS)

19460_001_130314.eps

131205

1

2

3

4

5

6

8

7

9

10

11 12

Side ConnectorsRear Connectors

VGA

(optional)

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

EN 3TPM10.1HE LA 2.

2.3.1 Side Connections

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Common Interface

68p- See figure 10-6-3

jk

2 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j

Figure 2-1 Connection overview

20 - Ground Gnd H

3 - USB2 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2.3.2 Rear Connections

5 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

6 - PC IN:VGA

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

back to

div. table

Figure 2-3 USB (type A)

Figure 2-4 VGA connector

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

2013-Dec-13

EN 4 TPM10.1HE LA2.

10000_017_090121.eps

090428

19

1

18 2

21

20

1

2

10000_001_090121.eps

090121

Technical Specs, Diversity, and Connections

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V

+5 V j

DC

10 - Ground Sync Gnd H 11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

7 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

8 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

9 - Service / UART

1 -Ground Gnd H

2 -UART_TX Transmit k 3 -UART_RX Receive j

10 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75  jq

PP

/ 75  jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

11 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

12 - SCART: Video RGB/YC - In, CVBS - In/Out, Audio In/Out

Figure 2-6 SCART connector

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT

/ 10 k j

RMS

/ 75  jk

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c.

/ 75  j

PP

13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V

/ 75  j

PP

16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75  j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V

/ 75  k

PP

/ 75  j

PP

21 - Shield Gnd H

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2013-Dec-13

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPM10.1HE LA 3.

-6

),

-12

).

2013-Dec-13

EN 6 TPM10.1HE LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2013-Dec-13

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPM10.1HE LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19461_100_131204.eps

131204

CN401

CN408

CN700

CN9903

CN8102

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

KEYBOARD CONTROL

(1057)

E

CN016

ECN700

ECN401

ECN601

ECN408

ECN401

LOUDSPEAKER

(1187)

LOUDSPEAKER

(1185)

CN201

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal ( for 32" & 39")

4.4 Assembly/Panel Removal ( for 22" & 24")

4.5 Assembly/Panel Removal ( for 26")

4.1 Cable Dressing

Mechanical Instructions

4.6 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM10.1HE LA 4.

Figure 4-1 Cable dressing (22" 3008 series)

back to

div. table

2013-Dec-13

EN 10 TPM10.1HE LA4.

19461_101_131203.eps

131203

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN401

ECN601

ECN408

ECN601

ECN401

LOUDSPEAKER

(1187)

LOUDSPEAKER

(1185)

KEYBOARD CONTROL

(1057)

E

CN016

IR/LED BOARD

(1056)

J

CN201

CN9903

CN8101

CN601

CN401

CN408

CN700

19461_102_131202.eps

131202

CN700

CN2

CN601

CN401

CN409

CN1

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

IR/LED BOARD (1056)

J

KEYBOARD CONTROL

(1057)

E

CN016

CN201

ECN700

ECN401

ECN409

ECN601

ECN409

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

Mechanical Instructions

Figure 4-2 Cable dressing (24" 3008 series)

2013-Dec-13

Figure 4-3 Cable dressing (26" 3008 series)

back to

div. table

Mechanical Instructions

19460_100_130318.eps

131205

CN700

CN409

CN401

CN601

CN8101

CN9101

KEYBOARD CONTROL

(1057)

E

CN016

J

IR/LED BOARD (1056)

CN201

LOUDSPEAKER

(1186)

LOUDSPEAKER

(1185)

ECN700

ECN409

ECN401

ECN601

ECN401

ECN601

19461_103_131202.eps

131202

CN700

CN8101

CN601

CN401

CN408

CN9101

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

IR/LED BOARD (1056)

J

KEYBOARD CONTROL

(1057)

E

CN016

CN201

ECN700

ECN401

ECN408

ECN601

ECN401

ECN601

LOUDSPEAKER

(1186)

LOUDSPEAKER

(1185)

EN 11TPM10.1HE LA 4.

Figure 4-4 Cable dressing (32" 3008 series)

Figure 4-5 Cable dressing (39" 3008 series)

back to

div. table

2013-Dec-13

EN 12 TPM10.1HE LA4.

19460_101_130318.eps

130318

1

M4 × 10

M3 × 8

1

11

1

2

Q3 × 10

3

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal ( for 32" & 39")

Instructions below apply to the 32HFL3008D/12, but will be similar for 39HFL3008D/12 model.

4.3.1 Rear Cover

Refer to Figure 4-6 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-6

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-7 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connector [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-7

for details.

Figure 4-6 Rear cover removal

2013-Dec-13

back to

div. table

Mechanical Instructions

19460_102_130318.eps

130318

2

1

3

4

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Assembly/Panel Removal ( for 22" & 24")

Instructions below apply to the 22HFL3008D/12, but will be similar for other 24HFL3008 models.

4.4.1 Rear Cover

EN 13TPM10.1HE LA 4.

Figure 4-7 SSB removal

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

Refer to Figure 4-8 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-8

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

back to

div. table

2013-Dec-13

EN 14 TPM10.1HE LA4.

19461_104_131203.eps

131203

1

Q4 × 28

Q3 × 8

1

2

Q3 × 12

3

19461_105_131203.eps

131203

2

1

3

Mechanical Instructions

4.4.2 Small Signal Board (SSB)

Refer to Figure 4-9 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-9

for details.

Figure 4-8 Rear cover removal

Figure 4-9 SSB removal

2013-Dec-13

back to

div. table

4.4.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.4.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

Mechanical Instructions

EN 15TPM10.1HE LA 4.

4.4.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.4.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.4.8 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, IR/LED panel from the LCD panel and put it aside.

Warning:Cause the panels of 22HFL3008 and 24HFL3008 are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.5 Assembly/Panel Removal ( for 26")

Instructions below only apply to the 26HFL3008W/12, but will be similar for 26HFL3008D/12 model.

4.5.1 Rear Cover

Refer to Figure 4-10 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2] that secure the rear cover. Refer to Figure 4-10 for details.

2. At the indicated areas [3] the cover is secured by clips. Be very careful with releasing those.

3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

back to

div. table

2013-Dec-13

EN 16 TPM10.1HE LA4.

19461_106_131202.eps

131202

3

1

2

19461_107_131202.eps

131202

2

1

3

4

Mechanical Instructions

4.5.2 Small Signal Board (SSB)

Refer to Figure 4-11 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connector [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-11

for details.

Figure 4-10 Rear cover removal

Figure 4-11 SSB removal

2013-Dec-13

back to

div. table

4.5.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.5.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.5.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

Mechanical Instructions

EN 17TPM10.1HE LA 4.

4.5.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.5.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.5.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-5

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

and

back to

div. table

2013-Dec-13

EN 18 TPM10.1HE LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAAA is the chassis name: TPM1012HE.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• XXX is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 0- 255.

• YYY is the sub version number: this is updated with a minor change of specification (incompatible with the previous versions). Numbering will go from 0- 255.

• MMM is the number of the mandatory (upgrade) release in association with the area of the mandatory (upgrade) release. Numbering will go from 0 - 255.

• TTT bit 7 to 1 is the area of the mandatory (upgrade) release where 0 - none, 1 - Netflix, rest reserved.

• TTT bit 0 : 0 = development release, 1 = production release.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062596” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

– Automatic user menu time-out (menu switches

back/OFF automatically.

. When the value is

2013-Dec-13

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 19TPM10.1HE LA 5.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Menu/Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAAAB-XXX.YYY.MMM.TTT See Software

Identification, Version, and Cluster for the software name

definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00003 This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM1012E 1.027B” See paragraph Software Identification, Version, and Cluster

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “000 224 032 000 038 192 192

OP2 e.g. “159 255 127 061 011003 000

Clear Codes Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code Alignments Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Channel List To upload several settings from the TV to an USB stick

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

NVM Copy Readable Info EDID Copy

015”

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a det ailed description. Ten codes ar e possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments i n the Alignments section for a detai led description

for the software name

back to

div. table

2013-Dec-13

EN 20 TPM10.1HE LA5.

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Channel List To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

Dealer Options Set Virgin mode Virgin mode:Off Set Virgin mode

NVM Copy EDID Copy

immediately

Store Press [OK] to store virgin mode

Service Modes, Error Codes, and Fault Finding

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Store the virgin mode in the address

immediately

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Menu/Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Menu/Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ,

1 PANEL_ID See table 6-3 Display code overview Displays and changes the Panel ID with the left and right

2 TUNER_ID 130 Displays and changes the Tuner ID with the left and right

3 DEMOD_TYPE 3 Choose demod type. 4 ERR Code: xxx xxx xxx

xxx xxx 5 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 6 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 t o chan ge an d 7 to stor e

7NVM VALUE 0 Displays the value at the NVM address of item 5 8 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of

9 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT

000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of

Description22" 24" 26" 32" 39"

Smart Picture, BL Dimming, Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

cursor; be careful changing this, it can result in not correct displaying the screen!

cursor. Not to be changed when the tuner is r eplaced with t he correct service part.

operation, according to table 5-4 Error code table

the data to the correct NVM address

item 5

formatted USB memory stick. The TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settin gs a re stor e d on to the USB stick and can be used to downl oa d ont o a no the r TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

2013-Dec-13

back to

div. table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

10 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to

11 RESET_PBS_PWD Press OK Use this to reset the Child Lock 12 DIM_LIB RESET Press OK Reset the Dimming 13 SRC_METER RESET Press OK Reset the Source meter 14 AMBLIGHT RESET Press OK Reset Ambilight 15 ACFG RESET Press OK Reset ACFG 16 CIPLUS QUERY Press OK Shows the Validity of the CI+ ke y and th e supp lie r in f ormation 17 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be

18 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 19 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various

20 VIRGIN_MODE Off Use this to return the set to virgin mode. Depends whether the

21 E-Fuse On E-fuse mode 22 ORT_MODE Off ORT mode 23 VGA_UART_SWITCH Off When switched “on” the VGA port can be used for UART

24 DRMWARNING On Warning the data rights management 25 AGEING MODE Off Use this for aging a new LCD panel 26 CLR_TEMP_R 128 100 128 114 128 Red colour temperature setting 27 CLR_TEMP_G 128 100 78 100 128 Green colour temperature setting 28 CLR_TEMP_B 128 100 32 128 128 Red colour temperature setting 29 AUTO_COLOR Press OK PC: any pattern that has black and wh ite, YPbPr: SMPTE bar

30 ADC_GAIN_R 77 84 83 0 0 Red ADC gain 31 ADC_GAIN_G 79 81 81 0 0 Green ADC gain 32 ADC_GAIN_B 73 88 80 0 0 Blue ADC gain 33 ADC_OFFSET_R 88 88 88 128 128 Red ADC offset 34 ADC_OFFSET_G 81 81 81 128 128 Green ADC offset 35 ADC_OFFSET_B 86 86 86 128 128 Blue ADC offset 36 YPBPR_PHASE InValid Not available for this chassis 37 AUD_GAIN_LINEIN 0 Line-in audio gain 38 AUD_GAIN_HDMI 0 HDMI audio gain 39 AUD_GAIN_ATV 7 0 7 0 5 Analogue TV audio gain 40 AUD_GAIN_DTV 0 Digital TV audio gain 41 AUD_GAIN_USB 0 USB audio gain 42 AQ_INDEX 6 6 11 3 4 Audio Quality index 43 AUDIO TEST MODE Off Used for audio testing during production 44 AUDIO CHANNEL TYPE 2.0 Defines the installed speaker system 45 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a

46 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 47 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a

48 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 49 FEF CHECK Off FEF Check 50 PANEL FLIP Off On Off On On Flip panel 51 VGA_SOURCE On On On Off Off Enable/Disable VGA source 52 HDMI2 Off Enable/Disable HDMI2 source 53 HDMI SIDE On Enable/Disable HDMI3 source 54 LIGHT SENEOR Off Li ght sensor 55 RESET_OPTION_CODE Press OK Reset Option Code 56 AMBILIGHT Off Ambilight on/off 57 AMBILIGHT_DRIVER AMS Choose Ambilight driver type 58 3D Off 3D on/off 59 EXIT_FACTORY Press OK Exits the Factory mode

Description22" 24" 26" 32" 39"

the TV. The TV will save the two files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

used when no CI+ code exists in the NVM

test patterns can be chosen

set has been used already.

logging.

(colour bar), any timing.

FAT formatted USB memory stick

EN 21TPM10.1HE LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

back to

div. table

2013-Dec-13

EN 22 TPM10.1HE LA5.

Service Modes, Error Codes, and Fault Finding

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 Bootloader ID ID of Bootloader.

• 2.5 NVM version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel table structure.

• 2.9 Error Codes Detects and displays errors.

• 3.1 Signal Quality

• 3.2 Ch

ild lock Not active / active. This is a combined item

Analog/digital signal strength.

for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

• 3.6 BDS key for Hotel model only, not for 3078/3118 model.

• 3.7 CI module check if CI card is insert.

• 3.8 CI+ protected service CI+ key status.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

2013-Dec-13

back to

div. table

5.3 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 23TPM10.1HE LA 5.

Figure 5-1 Stepwise Start-up

back to

div. table

2013-Dec-13

EN 24 TPM10.1HE LA5.

Service Modes, Error Codes, and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

ComPair II

RC in

Optional

Switch

2

C or UART commands is necessary,

TO TV

TO

UART SERVICE

CONNECTOR

2

I

C

RS232 /UART

ComPair II Developed by Philips Brugge

Optional power

5V DC

Power ModeLink/

Activity

HDMI

2

I

C only

UART SERVICE

CONNECTOR

RC out

TO

I2C SERVICE

CONNECTOR

Multi

function

PC

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

web site.

, it is

.

10000_036_090121.eps

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

2013-Dec-13

091118

back to

div. table

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

.

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

.

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments SDM Service defa ult Mode CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash mem ories MTK-chips MT5580 can

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” + “Panel co de” Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via the ZIP

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

EN 25TPM10.1HE LA 5.

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

back to

div. table

2013-Dec-13

EN 26 TPM10.1HE LA5.

Service Modes, Error Codes, and Fault Finding

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

.

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

for

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

2013-Dec-13

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

Service Modes, Error Codes, and Fault Finding

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

EN 27TPM10.1HE LA 5.

back to

div. table

2013-Dec-13

EN 28 TPM10.1HE LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 22HFL3008 123 100 128

24HFL3008 128 94 128 26HFL3008 128 91 65 32HFL3008 128 110 128 39HFL3008 128 121 128

Cool (11000K) 22HFL3008 128 113 128

24HFL3008 128 128 128 26HFL3008 128 99 82 32HFL3008 114 100 128 39HFL3008 121 102 128

Warm (6500K) 22HFL3008 128 128 96

24HFL3008 117 128 128 26HFL3008 128 78 32 32HFL3008 128 110 96 39HFL3008 128 121 84

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

2013-Dec-13

back to

div. table

Alignments

EN 29TPM10.1HE LA 6.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5580 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3

. After resetting the Display

Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

22HFL3008 TPM215HW01-HGJL02 200 24HFL3008 TPM236H3-BJ1L02 206 26HFL3008 LC260EXN-SDA3 205 32HFL3008 TPT315B5-TU4A 196 39HFL3008 TPT390J1-HJ1L02 222

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM

2

C

menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.6 Cable position numbers

In this chassis, the cable position numbers can be defined via the rule that the number is always starting with an “E” followed by the connector number of the current sourcing board. The order is always seen from where the power initiates from. So from PSU to SSB, from SSB to IR/LED panel, from IR/LED panel to keyboard control panel. For example, a cable from the PSU connector CN902 to the SSB connector CN701, will have the position number ECN902.

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

back to

div. table

2013-Dec-13

EN 30 TPM10.1HE LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MTK5580CPOI

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM10.1HE LA is a new chassis launched in Europe in

2013. The whole range is covered by SCALER MT5580. The major deltas versus its predecessor DVB-TC; with also multi-media, CEC, hotel TV functionality.

The TPM10.1HE LA chassis comes with the following stylings:

• series xxHFL3xxx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MTK5580CPOI PBGA-511 TV Processor for HTV 3000 series

• TDSY-G230D EUROP Tuner for H / T seri e s (DVB-T/C, T2 analogue)

• STA381BWTR 20W VQFN-48 for AUDIO Amplifier

7.1.2 TPM10.1HE LA Architecture Overview

For details about the chassis block diagrams refer to Figure 9.1

.

2013-Dec-13

back to

div. table

7.1.3 SSB Cell Layout

19460_200_130318.eps

130318

AUDIO AMP

MT5580

DDR

HDMI

TUNER

DC/DC

COMMON INTERFACE

USB

Headphone

SCART

SERVICE

CONNECTOR

ANALOG I/O

Circuit Descriptions

EN 31TPM10.1HE LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div. table

2013-Dec-13

EN 32 TPM10.1HE LA7.

19460_201_130321.eps

131206

Display power

Platform MTK5580

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

CN8102

CN8101

DIM

24V

12V

5V

CN700

AMP

24V

7.2 Power Supply

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the TPM10.HE LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-2 Power Architecture

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

2013-Dec-13

back to

div. table

7.2.3 Connector overview

19430_202_130130.eps

130130

LDO

U701

MAIN CHIP

MT5580

DDR*3

NT5CB256M8GN-D1

USB PWR

+5V_SW

BUCK CONVERTER

POWER SWITCH

DDR 1V5

+5VSB

TDQS-A901F

TU101

TDSY-G 2 30D

TU102

3V3-TUNER

P24V

DV15_DDR

PCMCIA CARD

U4100 GL850G-OHG

+5V_SW

DV15_DDR

LDO

U102

CI CARD PWR

CI2_VCC

STB_PWR5V

DV33 & AV33

AVDD3V3

U703

+5V_SW

DV33

MT5136AN

U103

DV3V3

MAIN CHIP

MT5580

U702

MT5580

PVDD

FB753

FB752

AMP STA381BWTR

P12V

PANEL_VCC+5V_SW

AON4421

Q750

Q702

Table 7-1 Connector overview

Circuit Descriptions

Connector

22HFL3008 24HFL3008 32HFL3008 39HFL3008 Number CN8102 CN9103 CN8101 N9101 CN8101 CN9101 CN8101 CN9101 Descriptio

n to panel to SSB to panel to SSB to panel to SSB to panel to SSB Pin 2 13 6 13 12 13 12 13

1 LED1 - LED1 - VLED P_Scan VLED 2 VLED +5.2V LED2 +5.2V n.c. +5.2V n.c. +5.2V 3 - +5.2V VLED+ +5.2V LED6 +5.2V LED1 +5.2V 4 - - VLED+ - LED4 PS_ON LED1 24V 5 - +12V/+16V LED3 +16V LED2 +24V LED1 24V 6 - +12V/+16V LED4 +16V n.c. +24V LED1 PS_ON 7 - GND - GND n.c. GND LED1 GND 8 - GND - GND LED1 GND LED1 GND 9 - GND - GND LED3 GND LED1 GND 10 - - - - LED5 +12V LED1 +12V 11 - - - - n.c. +12V LED1 +12V 12 - DIM - DIM VLED DIM n.c. DIM 13 - ON/OFF - ON/OFF - ON/OFF VELD ON/OFF

EN 33TPM10.1HE LA 7.

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls

• +12V, input from the power supply for the panel common (active mode)

• +24V, input from the power supply for audio amplifier

• +1V2, core voltage supply for MT5580

• +1V5, supply voltage for DDR2 (diagram B03B)

• +3V3, general supply voltage

• +5V, supply voltage for USB and CAM

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB

• +3V3 from the power supply for the scaler IC MT5580 Figures gives a graphical representation of the DC/DC converters with its current consumptions:

Figure 7-3 DC/DC converters

back to

div. table

2013-Dec-13

EN 34 TPM10.1HE LA7.

IF

TS DATA

X

RF_AGC

MTK5580

T2 demod

MT5136AN

IF_AGC

TDSY-G230D

I2C

I

2

C

19430_204_130129.eps

130129

19461_200_131209.eps

131209

MT5580

HDMI1

HDMI2

HDMI SIDE

U504

U507

U509

BRX

ARX

CRX

I2C

Circuit Descriptions

7.4 Front-End Analogue and DVB-T, ISDB-T reception

7.4.1 Front-END Analogue part

The Front-End for Analogue tuner consist of the following key components:

• TUNER DVB-T/T2/C, PAL/SECAM TDSY-G230D

• MT5580CPOI PBGA-511

Below find a block diagram of the front-end application for the front-end application for analogue part.

TDSY-G230D

2

I

C

IF_AGC

RF_AGC

X

RF_AGC

Figure 7-4 Front-End DVB-T/C DTV block diagram

7.4.2 DVB-T/C DTV part

The Front-End for DVB-T/C DTV consist of the following key components:

• TUNER DVB-T/T2/C, PAL/SECAM TDSY-G230D

• MT5580CPOI PBGA-511

Below find a block diagram of the front-end application for DVB-T/C DTV.

I2C

IF

IF_AGC is no use

MTK5580

19430_203_130129.eps

130129

Figure 7-6 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input/ARC

• HDMI 2: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• HPD control

• Sync detection

• TMDS output control

• CEC control

7.6 Video and Audio Processing - MTK5580CPOI

The MTK5580CPOI is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated CI+

• Integrated motion accurate picture processing

• High definition ME/MC

• Extended colour gamut and colour booster

• Integrated USB2.0 host controller

• Improved MPEG artefact reduction

• Security for customers own code/settings (secure flash).

Figure 7-5 Front-End DVB-T2 DTV block diagram

7.5 HDMI

Refer to figure 7-6 HDMI input configuration for the application.

2013-Dec-13

back to

div. table

The MTK5580CPOI combines front-end video processing functions, such as DVB-T channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. High flat panel screen resolutions and refresh rates are supported with formats including 1366 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, optional support is available for 2D dimming in combination with LED backlights for optimum contrast and power savings up to 50%.

For a functional diagram of the MTK5580CPOI, refer to Figure 8-2

.

8. IC Data Sheets

19460_300_130321.eps

130321

Block diagram

Pinning information

LNBH25

GND

DSQOUTNC

DSQIN/

EXTM

VUP

VCC

PGND

FLT

NC

LX-A

SDA ISEL NCNC

DETIN

NC

VOUT

NC

VBYP

BPSW

ADDR NC

SCL

1

2

3

4

5

6

18

17

16

15

14

13

7 8 9 121110

192021222324

GND

DSQOUTNC

DSQIN

VUP

VCC

PGND

FLT

NC

LX

SDA ISEL NCNC

DETIN

NC

VOUT

NC

VBYP

BPSW

ADDR NC

SCL

1

2

3

4

5

6

18

17

16

15

14

13

7 8 9 121110

192021222324

LNBH25

AM10400v1

VUP

SDASCL

ISEL

ADDR

DSQIN

Isense

PWM CTRL

PGND

DAC Drop control Tone ctrl Diagnostics Protections

I2C Digital core

LX

Voltage

reference

VCCGND BYP

DETIN

Tone

detector

Current

Limit

selection

DSQOUT

VOUT

Gate ctrl

Linear

Regulator

FLT

BPSW

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-6-2 System Power 2, B02,LNBH25PQR (IC U751)

IC Data Sheets

EN 35TPM10.1HE LA 8.

Figure 8-1 Internal block diagram and pin configuration

back to

div. table

2013-Dec-13

EN 36 TPM10.1HE LA8.

19430_302_130116.eps

130116

Block diagram

MT5580CPOI

NTSC/

PAL /

SECAM

ATD

TV

Decoder

TS

Demux

ARM CA9

L2 C ache

Video

ADCx4

Video

Input

De-

interlace

ATSC/ DVB -T/ DVB -C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP8

Decoders

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

2D

Graphic

LVDS/min-LVS/

EPI

OD, TCON

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Servo ADC

SPDIF Out, I2S

ADAC L/R x 3

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio

Input

Panel

32-bit

DDR3

T8032

Smart

Card

Optional

2D/3D Converter

CKGEN

IC Data Sheets

8.2 Diagram 10-6-3 Peripheral, B03,MT5580CPOI (IC U401-I)

Figure 8-2 Internal block diagram

2013-Dec-13

back to

div. table

19430_303_130116.eps

130116

Pinning Information

MT5580CPOI

IC Data Sheets

EN 37TPM10.1HE LA 8.

Figure 8-3 Pin configuration [1/2]

back to

div. table

2013-Dec-13

EN 38 TPM10.1HE LA8.

19430_304_130116.eps

130116

Pinning Information

MT5580CPOI

IC Data Sheets

2013-Dec-13

Figure 8-4 Pin configuration [2/2]

back to

div. table

8.3 Diagram 10-6-6 Speaker/Headphone B06, STA381BWTR (IC U602)

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL

LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric E Q

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

EN 39TPM10.1HE LA 8.

Figure 8-5 Internal block diagram and pin configuration

div. table

back to

2013-Dec-13

EN 40 TPM10.1HE LA8.

19430_306_130129.eps

130129

Block diagram

Pinning information

37

38

39

40

41

42

43

44

45

46

47

48

24

23

22

21

20

19

18

17

16

15

14

13

TS_DATA1

GPIO1

DVDD33

GPIO1

DVDD11

TS_DATA0

TS_SYNC

TS_VAL

TS_CLK

SDA

SCL

DGND33

DVDD33

TUNER_CLK

TUNER_DATA

CHIP_CTRL

DVDD11

AVDD33_IFPGA

AVDD12_DEMOD

IFPGA_INP

IFPGA_INN

AVSS12_DEMOD

EXT_CLKSEL

AVDD33_XTAL

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

DVDD33

RSTN

DVDD11

AVDD33_RSSI

ADINO

LOUTN

LOUTP

AVDD33_DEMOD

AVSS33_DEMOD

XTALI

AVSS33_XTAL

XTALO

TS_DATA2

TS_DATA3

TS_DATA4

DVDD11

DVDD33

TS_DATA5

TS_DATA6

TS_DATA7

TS_ERR

DVDD11

RF_AGC

IF_AGC

MT5136AN

RF Tuner

RSSI

RF AGC

Differential IF signal

Tuner SDA

Tuner SCL

RSSI ADC

AGC

PGA

10-bit ADC

Integrated SAW filter function

DVB-C demodulator

TSIFMUX

SIF Master

Microcontroller

DVB-T demodulator

Demod TS

MT5136AN

DVB-T/C FEC

decoder

SIF transceiver

SIF interface

Main decoder chip

DVB-T/C FEC

decoder

IC Data Sheets

8.4 Diagram 10-6-11 T2 Demod/CI Card B11, MT5136AN (IC U103)

2013-Dec-13

Figure 8-6 Internal block diagram and pin configuration

back to

div. table

8.5 Diagram 10-6-13 DVB T2/C/S2 Tuner B13, AVL6211LA (IC U104)

19240_305_120221.eps

120221

Block diagram

Pinning information

AADC_AVDD

ADC_AVDD

ADC_AVSS

ADC_IP

ADC_IN

ADC_QP

ADC_QN

PLL_AVDD

ADC_AVSS

PLL_AVSS

VDDC

PLL_REFCLK_XI

GND

RFAGC

PLL_REFCLK_XO

VDDC

GND

MPEG_ERR

MPEG_SYNC

MPEG_VALID

VDDIO

GND

VDDC

MPEG_CLK

MPEG_DATA_0

MPEG_DATA_1

GND

VDDIO

VDDC

VDDIO

TDI

TDO

TCLK

GND

TMS

TRST_N

VDDC

MPEG_DATA_7

MPEG_DATA_6

GND

VDDIO

GND

RST_B

CS_0

LNB_CNTRL_1

LNB_CNTRL_0

DISEQC_OUT

VDDC

VDDIO

DISEQC_IN

SDA2

SCL2

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

1920212223

24252627282930

31

35

36

37

38

39

40

41

42

43

44

45

46

47

48

52

53

54

55

56

57

58

59

60

61

62

64

GPIO_CLK

LOCK

MPEG_DATA_5

15

16

MPEG_DATA_4 32

MPEG_DATA_2

33

34

SDA1

SCL150

51

MPEG_DATA_3

SLEEP49

63

AVL6211LA

Dual

10 - Bit

ADC

PLL

Digital Front-end Down Converter

Carrier

Phase

Recovery

Symbol

Timing

Recovery

Equalizer

PL Frame Processor

DVB FEC

Viterbi/RS

Decoder

TS Output

Interface

Tuner

Control

Interface

DiSEqC

2.0

Control

Interface

Two-wire

Bus

Controller

RFAGC

ADC_I

ADC_Q

MPEG TS

Output

JTAG

LDPC &

BCH FEC

Decoder

AVL6211LA

IC Data Sheets

EN 41TPM10.1HE LA 8.

Figure 8-7 Internal block diagram and pin configuration

back to

div. table

2013-Dec-13

EN 42 TPM10.1HE LA8.

Personal Notes:

10000_012_090121

110

IC Data Sheets

2013-Dec-13

back to

div. table

9. Block Diagrams

19461_400_131206.eps

131206

UART (ISP & Factory alignment)

DBV-T2/T/C DEMUX MT5136

T/C/T2 RF T uner

TS

DIF +/-

System I2C

LVDS

Tuner I2C

MT5580

• MCU ARM Cortex-A9

• MPEG/video/audio decoder

• Scaling

• Video enhancement

• 3D comb

• LVDS Transmitter

• HDMI 1.4

• ADC

• H.264

• Build-in HDMI swich x3

• min LVDS Transmitter

• ATD build-in

• DVB-T/C Demod

• Head phone Amp

• USB x2

• PHY

NVM 24C128

System I2C

I2S

DDR3 1.6 GHz

256 MByte x 2

NAND Flash

256 MByte

EDID 24C02

CVBS/Y Pb Pr

SCART

(RGB/CVBS)

RJ45

DIGITAL

AUDIO OUT

Panel (50Hz)

12V/5V

RC

L R

Local key pad

AUDIO IN

DVI/VGA

USB 1

Audio AMP

STA381BW

Speakers

SERV.U

AVL6211

LNB power

CI/CI+

TS

IP/IN/OP/ON

Tuner I2C

System I2C

S2 T uner

COMMON INTERFACE

HDMI 2 HDMI 1

(ARC)

HDMI

SIDE

9.1 Block diagram 3008 series

Block Diagrams

EN 43TPM10.1HE LA 9.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19461_500_131210.eps

131210

Power

A01 A01

2012-03-13

A

715G5309

Power

+

C9105

47UF 50V

1 2

ZD9104

BZT52-C5V6

A

+

C9113

470UF 25V

2

1

6

5

4

7

8

12

11

9

10

T9101

NEW

A

C9126 220PF

1

2

3

D9102 MBRF20150CT

R9128

1K 1/8W

+5.2V

R9119

100 OHM 1/4W

D9106

1N4148

12

43

IC9102

PC123X2YFZOF

056G 139 3A

RV9901

TVR14511KFAOZF

12V_16V

R9116

47 OHM 1/4W

R9102

6.8K 1/4W

R9105

100K 1/4W

R9103

6.8K 1/4W

R9101

6.8K 1/4W

R9106 100K 1/4W

1

2

3

4

5

6

7

8

9

10

11

12

13

CN9101

CONN

R9111 10K 1/8W

R9120

100 OHM 1/4W

R9126 2K43 1/8W 1%

+5.2V

R9104

100K 1/4W

R9115

47 OHM 1/4W

R9131

1K 1/8W

OTP

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9101

LD7750RGR

+5.2V

R9107 100K 1/4W

12V_16V

R9114

100KOHM +-5% 1/8W

12

CN9901

SOCKET

Q9102

2SD1623S-TD-E

Q9103 PMBS3904

D9107 1N4148

1 2

ZD9101

GDJ13B

ON/OFF

+5.2V

C9119

100N 50V

DIM

R9118

100 OHM 1/4W

C9120 1NF

1 2

ZD9103

GDZJ5.6B

R9124

1K OHM +-5% 1/8W

C9114 100N 50V

R9901 2M4 5% 1/2W

C9110 100N 50V

R9134

NC

R9132NCR9133

NC

C9104 100N 50V

C9906 470PF 250V

R9123

3K3 1/8W 1%

SG9901

DSPL201M-A21F

1 2

3

HS4

NC

SG9902 DSPL201M-A21F

C9112 100N 50V

C9115 100N 50V

1 2

NR9901

5D2-07MCS

R9130

470R

C9124

22N 50V

C9904 470PF 250V

C9902 470PF 250V

C9125

2.2nF 10% 630V

C9118 100N 50V

1 2

3 4

F9901 FUSE

+

C9101A

47uF M 450V

+

C9102A

47uF M 450V

C9107

1NF 500V

C9108 1NF 500V

D9105

FR107

R9109

10R 1/8W 5%

L

1

N

2

CN901 NC

R9110 62R 1%

C9905 1NF 250V

1 2

3

4

HS1 HEAT SINK

1 2

3

4

HS3 HEAT SINK

Q9101 TK6A65D

L9101

3.5uH

L9102

3.5uH

12

D9104

SS1060FL

R9122 3K3 1/8W 1%

+

C9111

470UF 25V

R9125 47K 1/8W 1%

+

C9122

470UF 25V

+

C9123 470UF 25V

R9129 470R 1/8W 1%

D9103

FR107

IC9103

AS431AZTR-E1

2

1

3

4

-

+

BD9101

GBL08-C2

R9112

0R36 5% 2W

124

3

L9901 30MH

+

C9109

1000UF 10V

1 2

ZD9102

GDZJ22B

C9103

1NF

1

2

3

D9101 FMW-2156

C9907 470PF 250V

C9106

470P 50V

R9113

220 OHM 1/4W

1 2

FB9903 BEAD

R9121 820OHM +-5% 1/8W

C9117

220N 50V

R9127

100R 1/8W 5%

C9901 470NF 305V

R9108

4.7 OHM

10. Circuit Diagrams and PWB Layouts

10.1 A 715G5309 PSU

10-1-1 Power

EN 44TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-1-2 LED Driver

19270_501_120409.eps

120409

LED Driver

A02 A02

2012-03-14

A

715G5309

LED Driver

R8106

10K 1/8W

R8104

22 OHM 1/8W

R8108

200OHM +-5% 1/8W

1

2

CN8102

NC

VLED+

LED1

C8103 1uF

1 2

FB9905

BEAD

R8105

2R2 +-5% 1/8W

LED4

LED3

LED2

LED1

ON/OFF

DIM

1

2

3

4

5

6

CN8101

NC

12 34 56

78

CN8103

CONN

VFB

VSET

Q8106

2N3904

R8113

18R 1%

R8107

0R1 5% 2W

C8109

100N 50V

R8111

18K 1/8W 5%

R8116 100K 1% 1/4W

R8110 100K 1% 1/4W

R8118

1M 1/6W 5%

R8119

150K 1/8W 5%

C8110 470P 50V

C8105 100N 50V

1 2

D8101 SR510-22

VBJT

VADJ

VFB

+5.2V

12V_16V

VADJ

VBJT

1 2

FB9904

JUMPER

SLP

S1S2S3G

4

D8D7D6D

5

Q8101

AO4482L

3

1

2

D8103

BAV99

3

1

2

D8104

BAV99

3

1

2

D8105

BAV99

3

1

2

D8106

BAV99

C8115 NC/100PF

+

C8101 470UF 25V

VLED+L8102

47UH

+

C8102 100UF 63V

+

C8113 100UF 63V

Q8103

2N3904

Q8102

2N3904

12

D8102

SS1060FL

C8106 1NF

R8121

14R 1% 1/8W

LED1

R8129

0 OHM +-5% 1/8W

R8131

0 OHM +-5% 1/8W

LED2

LED3

LED4

R8130

NC

R8103 0R05 1/4W

C8104 100N 50V

12V_16V

R8101

51K 1/8W 1%

VSET

+16V

R8117

4K3 +-1% 1/8W

EN

1

DIM

2

GM

3

VFB

4

VSET

5

OVP

6

RT

7

CS

8

GND

9

VMOS

10

VCC

11

VBJT

12

VADJ

13

SLP

14

IC8501

PF7001S

C8116

220P 50V

C8107

220P 50V

Q8104

2N3904

Q8105

2N3904

Q8107

2N3904

LED2LED1 LED4LED3

SLP

C8112

NC

C8114

10N 50V

C8108

10N 50V

R8112

0R05 1/6W 5%

R8102

100KOHM +-1% 1/8W

R8122

14R 1% 1/8W

R8123

14R 1% 1/8W

C8111

NC

R8124

14R 1% 1/8W

R8120

0R05 1/6W 5%

R8125

14R 1% 1/8W

Circuit Diagrams and PWB Layouts

EN 45TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-1-3 Power layout top

19270_502_120409.eps

120410

2012-03-14

A

715G5309

Power Layout top

CN8102

D8101

D9103

D9105

IC9102

IC9103

R9112

L9101

L9102

J919

J915

J917

J911

C9113

C9122

R8112

R8120

J928

J910

J927

J913

J924

J925

J918

J923

J922

J914

J916

J912

J921

J920

J930

J929

C9109

J926

J908

J907

J904

J909

D9106

D9107

C9101C9102

C9101AC9102A

R8118

J903

C9905

C9103

C8106

BD9101

H2

MH4

MH5

MH6

IC1

J2

J3

J5

J6

J7

R1

R2

C9123

C9105

C9111

CN8103

CN9101

FB9903

HS3

Q8104

Q8105

Q8106

Q8107

R9130

R9901

C8101

GND2

MH2

MH3

L9901

HS4

Q8102

Q8103

D9101

Q9101

L8102

F9901

C9902

C9904

C9901

R8107

SG9901

SG9902

ZD9101

ZD9102 ZD9103

C9906

C9907

C9125

C8115

C9126

RV9901

D9102

FB9904

FB9905

CN901

HS1

C8102 C8113

M1

CN8101

T9101

GND1

CN9901

NR9901

Circuit Diagrams and PWB Layouts

EN 46TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-1-4 Power layout bottom

19270_503_120409.eps

120410

2012-03-14

A

715G5309

Power Layout Bottom

C8103

C8104

C8108

C8109

C8110

C8111

C8112

C9104

C9106

C9110

C9112

C9114

C8105

C9117

C9118

C9119

C9120

C9124

R8101

R8103

R8104

R8105

R8106

R8108

R8111

R8117

R8119

R8121

R8122

R8123

R8124

R8125

R8129

R8130

R8131

R9101

R9102

R9103

R9104

R9105

R9106

R9107

R9108

R9109

R9110 R9111

R9113

R9115

R9116

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9127

R9128

R9131

R8116

R9114

R8102

R8110

C9115

JR901

R9132

R9133

R9134

R9129

C8114

Q8101

IC2

IC3

IC4

JR903

JR902

C9107

C9108

IC5

Q9103

C8116

C8107

R8113

CN1

CN2

D8102

D9104

IC9101

IC8501

ZD9104

D8103 D8104 D8105 D8106

Q9102

Circuit Diagrams and PWB Layouts

EN 47TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.2 A 715G5793 PSU

19461_501_131210.eps

131210

A01 A01

2012-12-07

C

Power

715G5793

Power

+24V

C9161 220NF 50V

FB9901

127R

1 2

R9107 10K 1/4W

Q9107 AOD409

C9355

0.1uF 50V

+12V1

FB_1

R9165

82KOHM +-5% 2WS

!

R9164

82KOHM +-5% 2WS

-

+

BD901

TS6B06G-05-X0

2

1

3

4

R9356

33K OHM

!

C9104

2.2NF

R9115

56R

R9163

20K 1/8W 1%

R9118

56R

Q9372 2N7002K

R9375 NC

C9132 1uF 50V

C9352 1UF

C9158 100N 50V

HS9251 HEAT SINK

1 2

3

4

R9122

120 OHM

R9120

120 OHM

C9155 100N 50V

R9121

120 OHM

HS9101 HEAT SINK

1 2

3

4

P_Scan

+12V1

P_Scan

C9902 220NF 305V

R9339

6.8KOHM +-1% 1/8W

PS_ON

!

C9910

220PF 250V

C9110 NC

R9377 10K OHM +-5% 1/8W

Q9301 2N7002K

DV5

C9901 220NF 305V

C9159 1NF 500V

C9160 1NF 500V

IC9151 AS431AN-E1

RV9901

TVR14561KFAOZF

HOT COLD

R9901 390K

R9341 100KOHM +-5% 1/8W

R9111

0.24 oHM 2W

R9172 100R 1/8W 5%

R9340

0R05 1/4W

D9251 FME-210B

1

2

3

C9119 47PF

C9908

1NF 250V

!

T9101 400uH

1

2

3

4

5

8

9

10 11 12

7

IC9101 PF6200

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

C9164 1NF 50V

IC9152

PF8200S

GND

1

GND

2

SS

3

FLAG4EN

5

ADJ

6

GATE

7

VCC

8

FB9906

BEAD

1 2

!

R9903390K

C9907

47pF

HS9151 HEAT SINK

1 2

3

4

IC9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

R9371 20K OHM

C9257 1NF 50V

EN

SG901 DSPL-501N-A21F

R9104 10 OHM

!

L9902 30MH

124

3

D9351 SK84C

1 2

IC9351 NR111D

BS

1

VIN

2

SW

3

GND4FB

5

ISET

6

EN

7

SS

8

C9256 1NF 50V

R9376 10K OHM +-5% 1/8W

C9372

22N 50V

C9359

0.1uF 50V

+

C9103

47UF 450V

R9113

5.1R 1/8W 5%

Q9371 2N7002K

R9374

100K 1/8W 1%

!

L9901 30MH

124

3

Q9104 2SA1797

R9373 100K 1/8W 1%

R9372

100K 1/8W 1%

!

SG902

DSPL-501N-A21F

IC9106

AS431AN-E1

R9251

10K 1/8W 1%

ZD9101 BZT52-B36

1 2

C9357 1UF

D9107 FMX-12SL

1

2

3

R9322 100KOHM +-5% 1/8W

R9258 220 OHM 1/4W

C9255 1uF

R9105 82KOHM +-5% 2WS

R9150

3K9 1/8W 1%

R9257 220 OHM 1/4W

R9168 270K +-1% 1/8W

C9105

2.2NF

+

C9251

470UF 25V

R9102 47K +-1% 1/4W

R9106 47OHM +-5% 1/8W

D9101 SARS01-V1

C9111

100N 50V

IC9102 EL817M(X)

1

23

4

R9101 47K +-1% 1/4W

R9112

0R05

R9145 470R 1/8W 1%

+

C9356

100UF 50V

D9102 SS0520_R1

12

R9169 360K +-1% 1/8W

R9103 47K +-1% 1/4W

t

NR9901

NTCR

1 2

C9131 47N 50V

R9167

0 OHM +-5% 1/8W

R9161

2.43K OHM 1%

R9160

30K 1/8W 1%

R9162

2K 1/8W 1%

+5.2V

C9354

2.2NF 630V

!

+12V1

D9352 NC

1 2

5V_EN

R9354 10R

R9358 11K 1/8W 1%

R9321 100 OHM 1/4W

CN9902 NC/CONN

1

2

FB_1

C9346

10N 50V

!

R9142

1K OHM 1%

R9147 2Kohm 1/4W +/-5%

C9162

100N 50V

+

C9252

470UF 25V

C9353 100N 50V

+

C9254

470UF 25V

L9201 3UH

R9357 100KOHM +-5% 1/8W

!

ON/OFF

D9112 RB160M

1 2

+12V1

PS_ON

R9151

200K 1/8W 1%

D9103 1N4007

CN9102 CONN

1

2

3

4

5

6

7

8

9

10

11

12

+24V1

C9371

100N 50V

+

C9157 330UF 35V

+

C9253

470UF 25V

FB9904

BEAD

1 2

F9901 FUSE

FB9905 BEAD

1 2

!

CN9101 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

FB9903

127R

1 2

FB9908

BEAD

12

L9301

15uH

!

5V_EN

D9503 1N4148W

FB9907

BEAD

1 2

R9127

56R

R9126

56R

C9358 1UF

+

C9107 22UF 50V

ZD9102 BZT52-B36

1 2

ZD9103 BZT52-B27

1 2

C9906

220PF 250V

C9905 220PF 250V

+5.2V

+12V

DIM

ON/OFF

+24V

DIM

+12V

ON/OFF

R9359 2K 1/8W 1%

!

R9141

100 OHM 1%

+24V1

+12V1

Q9108

PMBS3906

Q9101 STF10N65K3

R9123

120 OHM

R9125

120 OHM

R9124

120 OHM

R9166 100KOHM +-5% 1/8W

C9106 1uF 50V

ZD9152 BZT52-B15

1 2

CN9903 NC

1 2

+12V1

R9173 100KOHM +-5% 1/8W

C9909

220PF 250V

C9351

2.2UF 50V

+

C9350

330UF 25V

+24V2

!

CN9901 SOCKET

12

R9116

56R

R9117

56R

R9171

91KOHM +-1% 1/8W

R9170

4K7 1/8W 1%

+

C9151 330UF 35V

+

C9153 330UF 35V

+

C9152 330UF 35V

R9110

56R

+

C9154 330UF 35V

+

C9156 330UF 35V

D9502 1N4148W

R9108

56R

FB9902

BEAD

1 2

C9163 100N 50V

R9353 22R 1/6W 5%

R9109 220R 1/8W 5%

L9101 3UH

+12V

DV5

!

C9109 22N 50V

R9252

510 OHM +-1% 1/8W

+

C9101

47UF 450V

+

C9102

47UF 450V

!

R9146 1K5 +-1% 1/8W

C9108 220P 50V

R9114

100K 1/8W 1%

R9256 220 OHM 1/4W

10-2-1 Power

Circuit Diagrams and PWB Layouts

EN 48TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-2-2 LED Driver

19430_512_130114.eps

130114

LED Driver

A02 A02

2012-12-07

C

715G5793

LED Driver

R8123 10K OHM +-5% 1/8W

R8107 820K 1%

IC8103

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+24V1

+

C8129

47UF25V

IC8106

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

D8102 SR510-22

1 2

L8101

33uH

8

1

R8117

0.05R

IC8104

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

VLED

R8118

100KOHM +-5% 1/8W

R8127

180K +-1% 1/8W

R8126 1K 1/8W 1%

C8120 1N 50V

IC8105

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8134

0 OHM +-5% 1/8W

+12V

COMP

R8119 10K 1/4W

IC8102

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8111

NC

C8117 NC

C8118 NC

R8102

12.7 KOHM +-1% 1/8W

R8106

12.7 KOHM +-1% 1/8W

R8101

12.7 KOHM +-1% 1/8W

R8105

12.7 KOHM +-1% 1/8W

FB_2

R8104

12.7 KOHM +-1% 1/8W

R8103

12.7 KOHM +-1% 1/8W

FB_2

C8124

100N 50V

R8120

NC

Q8102 NC

ZD8102 NC

1 2

R8108

750K 1%

IC8107 PF7900S

FB

1

GM

2

RT

3

CS4DIM

5

GND

6

OUT

7

VCC

8

DIM3

DIM2

DIM1

+

C8127

10UF 50V

R8122 100K

R8121 100K

C8122 NC

C8111 470NF 50V

L8102

3UH

+12V

CN8103

CONN

1

2

3

4

R8182 0 OHM +-5% 1/8W

R8184 0 OHM +-5% 1/8W

R8181 0 OHM +-5% 1/8W

LED5

LED3

LED1

LED2

LED4

R8183 0 OHM +-5% 1/8W

R8185 0 OHM +-5% 1/8W

ZD8101 NC

1 2

DIM1

C8126 1N 50V

DIM2

DIM3

DIM

R8110

120KOHM +-1% 1/8W

CN8101

CONN

1

2

3

4

5

6

7

8

9

10

11

12

+

C8132 220UF 100V

+

C8108 150UF 35V

+12V

+12V+12V

+12V

R8125

2R2 +-5% 1/8W

D8101

SS0520_R1

12

R8124 22 OHM 1/8W

C8123

100N 50V

VLED

CN8102 NC

1

2

3

4

5

6

7

8

910

C8128

2.2NF 630V

EN

VLED

C8101 470NF 50V

LED6

COMP

C8105 470NF 50V

COMP

C8115 470NF 50V

LED2

LED3

LED6

R8109

120KOHM +-1% 1/8W

LED5

LED3

C8112 470NF 50V

LED1

C8114 470NF 50V

EN

C8102 470NF 50V

LED4

COMP

+12V

LED1

LED4

C8104 470NF 50V

LED2

COMP

Q8101

AOD4126

EN

VLED

EN

C8103 470NF 50V

IC8101

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

COMP

EN

C8113 470NF 50V

LED5

EN

C8116 470NF 50V

C8106 470NF 50V

+

C8125 47UF 100V

D8111 1N4148

D8112

1N4148

D8113

1N4148

DIM3

DIM2

DIM1

Circuit Diagrams and PWB Layouts

EN 49TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-2-3 Power layout top

19430_513_130115.eps

130115

2012-12-07

C

715G5793

Power layout top

D8102

D9103

IC9102

R9105

R9164

R9165

J9165

C9101 C9102 C9103

J8147

J9162

J9151

J9164

J9160

J9161

J8135

J9117

J9104

J8140

J8142

J8143

J8121

J8118

J8126

J8127

J8119

J8123

J8136

J8137

J9135

J9148

J8113

J8138

J9149

J8133

J8129

J8125

J9130

J8110

J9116

J9120

J9145

J9144

J9158

J8131

J8132

J8155

J9157

FB4

J9154

J9163

J8156

J9134

J8101

D8112

D8111

D8113

J8114

J9159

J8102

J9153

C9119

C9107

J8122

J8141

J9106

J8134

J8130

J8109

J8152

R9354

J9146

J9124

J9103

J9139

J9150

J8106

J8139

J8104

J8105

J9112

J8111

J8115

J8128

J9102

T9101

M10

M11

M12

FB6

FB7

FB8

R1

R2

R3

FB9

M13

FB1

M14

M19

C8108

C8125

C8127

C8129

C9104

C9105

C9252

C9356

C9253

C9254

C9907

C9908

C9910

CN8101

CN8102

CN9102

CN9101

CN9902

FB9904

FB9905

IC9351

L8102

L9301

Q9101

R8117

R9111

SG901

SG902

R9901

R9903

C9157

C9251

C9151

C9152

C9153

C9154

C9156

D9251

C9350

FB9906

FB9902

M4

M1

M2 M3

M5

M6

M7

M8 M9

FB9901

CN9903

CN9901

C8132

FB9908

FB9907

C9905

C9906

C9909

L9101

L9201

FB9903

R9353

D9107

M17

FB2

FB3

M18

M15 M16

D9101

L8101

F9901

CN8103

BD901

L9902

L9901

RV9901

NR9901

HS9151

HS9101

HS9251

C9901

C9902

Circuit Diagrams and PWB Layouts

EN 50TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-2-4 Power layout bottom

19430_512_130115.eps

130115

2012-12-07

C

715G5793

Power layout bottom

C8101

C8102

C8103

C8104

C8105

C8106

C8111

C8112

C8113

C8114

C8115

C8116

C8120

C8122

C8123

C8124

C8126

C9106

C9108

C9109

C9110

C9111

C9131

C9155

C9353

C9354

C9255

C9357

C9346

C9158

C9355

C9256

C9257

C9161

C9162

IC8107

IC9106

IC9151Q9108

R8101

R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8118

R8121

R8122

R8123

R8124

R8125

R8127

R8134

R8181

R8182

R8183

R8184

R8185

R9101

R9102

R9103

R9104

R9106

R9109

R9112

R9120

R9121

R9122

R9141

R9142

R9145 R9146

R9147

R9160

R9161

R9162

R9163

R9167

R9168

R9169

R9170

R9171

R9356

R9358

R9359

R9322

R9150

R9251

R9256

R9257

R9258

JR9101

R9107

C9371

C9372

R9339

R9341

R9372

R9373

R9374

R9375

R9376

R9371

Q9301

Q9371Q9372

C9351

C9163

R9108

R9110

R9151

R9377

R9321

R8126

R9113

R8119

R9166

IC8106

IC8104

IC8101

IC8102 IC8103

IC8105

IC9901

IC9152

R9340

C9159

C9160

C9164

R9114

R9173

R9116

R9117

JR8102

C8128

JR8103

C9358

R9252

R9357

C9132

C8117C8118

C9352

R8111

R9172

R9115 R9118

Q8102

JR8104

R9125

R9124

R9123

JR9102

JR9103

JR9104

R9126R9127

R8120

D8101

D9102

D9112

D9502

IC9101

Q8101

Q9107

ZD8101

ZD9152

S5

S6

D9352

D9351

ZD9102

ZD9101

ZD8102

ZD9103

S7

Q9104

D9503

Circuit Diagrams and PWB Layouts

EN 51TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.3 A 715G5804 PSU

19470_500_130402.eps

130402

POWER

A01 A01

2013-01-28

3

715G5804

POWER

R9144

0 OHM +-5% 1/8W-NC

!

R9125 130K 1%

FB9909 BEAD

12

C9908

220PF 250V

FB9904 BEAD

12

R9102

6.8K 1/4W

!

R9119

22 OHM 1/4W

ZD9106 BZT52-B36

1 2

!

IC9102

PS2561DL1-1

12

43

R9129 470 OHM 1/4W

FB9908 BEAD

1 2

R9104 82K OHM 1%

R9128

1K OHM +-5% 1/8W-NC

R9120

22 OHM 1/4W

D9106

1N4148-NC

!

t

NR9902 3R

12

+12V

!

R9109 18R 1%

+

C9122

330UF 25V

R9103

6.8K 1/4W

R9138

22 OHM 1/4W-NC

R9101

6.8K 1/4W

!

T9101

POWER X'FMR

1

2

5

6

7

8

9 10

4

11 12

R9111 10K OHM +-5% 1/8W

R9901

1MOHM +-5% 1/2W

R9139

22 OHM 1/4W

+5.2V

!

D9111 SR510-22

1 2

ZD9104

BZT52-B6V8

1 2

R9140

22 OHM 1/4W

R9114

100KOHM +-5% 1/8W

+12V

+

C9127 100UF 450V-NC

D9107 1N4148-NC

093G 39A0852T-->18B 093G 39G 7----->15B

R9130

470R

R9124 10K OHM +-5% 1/8W

CN9901

12

+

C9113

330UF 25V

!

+5.2V

R9105 82K OHM 1%

ZD9101 GDZJ15B

1 2

R9115

22 OHM 1/4W

!

C9901

0.47uF 305V

FB9902

BEAD-NC

12

C9114 100N 50V-NC

!

R9136

NC

R9135

NC

R9137

NC

C9110 100N 50V-NC

C9103

2.2NF

❔ 063G107M474AUM

R9134

NC

R9132NCR9133

NC

L9901

30MH

124

3

R9106 82K OHM 1%

+16V

C9104 100N 50V

C9906

100PF 250V

+5.2V

ON/OFF

C9120

100N 50V-NC

DIM

C9112 100N 50V-NC

R9142

0 OHM +-5% 1/8W

C9115 100N 50V-NC

R9123 15K 1/8W 1%

C9904

470PF 250V

R9110

33R 1/8W 5%

R9145 3K3 1/8W 1%-NC

C9118 100N 50V-NC

+12V

R9131

1K OHM +-5% 1/8W

-

+

BD9101

GBL08-07

2

1

3

4

C9119

100N 50V

R9107 82K OHM 1%

D9113 SR510-22

1 2

D9105

FR107

IC9103

AS431AN-E1

SG9901

DSPL-501N-A21F-NC

HS9103

HEAT SINK-NC

1 2

3

4

R9121

470OHM +-5% 1/8W

L9101

3UH

+

C9121

330UF 25V

R9116

22 OHM 1/4W

!

R9126

9.31K +-1% 1/8W

+

C9109

330UF 25V

C9907

100PF 250V

Q9101 STF6N65K3

Q9103

MMBT3904-NC

D9112 SR510-22

1 2

HS9104 HEAT SINK-NC

1 2

3

4

C9107

2N2 50V

R9122 3K3 1/8W 1%

C9124 10N 50V

Q9102

2N3904

R9141 430OHM +-1% 1/8W

D9103

FR107

CN9902

CONN-NC

1

2

D9108

SR506

L9102

3UH

FB9906

BEAD

1 2

SG9902

DSPL-501N-A21F-NC

ZD9105 BZT52-B36

1 2

C9902

470PF 250V

C9125

100N 50V-NC

D9104

1N4148W

D9109

SR506

HS9102 HEAT SINK-NC

1 2

3

4

+

C9101 47UF 450V

C9106 220P 50V

R9143

0 OHM +-5% 1/8W

C9123

2N2 50V

R9118

22 OHM 1/4W-NC

D9102

MBRF10150CT-NC

1

2

3

t

NR9901

NTCR-NC

12

+

C9116

330UF 25V-NC

R9117

22 OHM 1/4W

HS9101

HEAT SINK

1 2

3

4

IC9101

PF6200

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

D9101 FMW-2156-NC

1

2

3

R9113

220 OHM 1/4W

!

FB9903 BEAD

1 2

CN9904

CONN-NC

1

2

3

4

5

6

7

8

9

10

11

12

13

C9903

470PF 250V

F9901 FUSE

!

RV9901

680V

FB9901

BEAD-NC

12

RV9902

680V-NC

HV

C9126

100PF

C9117

220N 50V

R9127

100R 1/8W 5%-NC

ZD9102

GDZJ22B-NC

1 2

+

C9105

47UF 50V

R9108 4R7 1/4W 5%

C9108 1NF 500V

CN9903

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

+

C9102 47UF 450V

+

C9111

330UF 25V

R9112

0.43 OHM +-5% 2WS

!

ZD9103

GDZJ5.6B-NC

1 2

10-3-1 POWER

Circuit Diagrams and PWB Layouts

EN 52TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-3-2 LED DRIVER

19470_501_130402.eps

130402

LED DRIVER

A02 A02

2012-10-19

3

715G5804

LED DRIVER

R8106

10K OHM +-5% 1/8W

R8104

22OHM +-5% 1/8W

R8108

200OHM +-5% 1/8W

CN8102

NC

1

2

VLED+

LED1

FB9905

JUMPER

1 2

R8105

2R2 +-5% 1/8W

LED4

LED3

LED2

LED1

ON/OFF

DIM

L8102

47uH

VFB

+

C8102 33UF 100V

VSET

+

C8101

330UF 25V

Q8106

2N3904

R8107

0R1 5% 2W

C8109

100N 50V

D8103

BAV99

3

1

2

R8116 100K 1%

R8110 100K 1%

R8118

1M 1/6W 5%

R8119

150K 1/8W 5%

D8101

SR310-29

1 2

C8110 470P 50V

C8105 100N 50V-NC

D8104

BAV99

3

1

2

D8105

BAV99

3

1

2

D8106

BAV99

3

1

2

CN8104

CONN-NC

1 2

3

4 5 6 7

8

9

10

CN8101

CONN

1

2

3

4

5

6

7 8

VBJT

VADJ

R8121 13R 1%

VFB

+5.2V

D8102 1N4148W

+16V

VADJ

VBJT

SLP

C8108

10N 50V

R8101

51K 1/8W 1%

R8122 13R 1%

R8114

56R 1%

R8115 56R 1%

R8123 13R 1%

R8124 13R 1%

VLED+

R8125 13R 1%

Q8103

2N3904

Q8102

2N3904

R8103

0 OHM +-5% 1/8W

C8106 1NF-NC

LED1

R8129 NC

R8131 NC

LED2

LED3

Q8101 AO4486

S1S2S3G

4

D8D7D6D

5

LED4

FB9907

JUMPER

1 2

R8111 18K 1/8W 1%

R8130 NC

C8104 100N 50V

+16V

C8103

100N 50V

VSET

+16V

IC8501

PF7001S

EN

1

DIM

2

GM

3

VFB

4

VSET

5

OVP

6

RT

7

CS

8

GND

9

VMOS

10

VCC

11

VBJT

12

VADJ

13

SLP

14

R8117 3K9 1/8W 1%

C8116

220P 50V-NC

C8107

220P 50V-NC

Q8104

2N3904

Q8105

2N3904

Q8107

2N3904

R8113 18R 1%

LED2LED1 LED4LED3

SLP

R8102 180K +-1% 1/8W

C8112

NC

C8114

10N 50V

C8111 NC

C8115

220P 50V-NC

+

C8113 47UF 100V-NC

Circuit Diagrams and PWB Layouts

EN 53TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-3-3 Power layout top

19470_502_130402.eps

130402

2013-01-28

3

715G5804

Power LAYOUT TOP

CN8102

D8101

D9103

IC9102

R9112

J917

J911

C9113

C9122

J924

J925

J923

J922

J914

J912

C9109

J909

J903

MH28

BD9101

C8106

L9101

L9102

R8107

J905

J902

R8118

D9105

J929

MH13

J907

D9108

D9109

MH12

D9106

D9107

C9105

J916

J904

J926

J919

J921

J920

J908

MH1

C9101

C9102

C9103

D9111

D9112

D9113

C8102

J930

MH19

MH26

T9101

J915

J918

J931

J932

J933

MH4

MH27

MH11

MH7

MH25

MH23

MH22

MH24

MH2

C9116

C9111

FB9903

R9901

C8101

D9101

Q9101

L8102

SG9901

SG9902

ZD9103

FB9905

C8113

Q8105

Q8104

Q8106Q8107

Q8102

Q8103

C9126

CN8101

D9102

NR9901

ZD9101

R9130

ZD9102

C9121

HS9104

F9901

Q9102

CN9902

FB9906

CN9901

MH8

CN9904CN9903

RV9901

C9127

RV9902

C9906

C9907

C9908

C9902

C9903

C9904

NR9902

CN8104

FB9907

GND2

MH31

GND1

MH32

L9901

HS9101

C9901

HS9102

HS9103

FB9908

FB9904

FB9909

FB9902

FB9901

Circuit Diagrams and PWB Layouts

EN 54TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-3-4 Power layout bottom

19470_503_130402.eps

130402

2013-01-28

3

715G5804

Power Layout Bottom

C8103

C8104

C8108

C8109

C8110

C8111

C8112

C9104

C9106

C9110

C9112

C9114

C8105

C9117

C9118

C9119

C9120

C9124

R8101

R8104

R8105

R8106

R8108

R8111

R8117

R8119

R8122

R8123

R8124

R8125

R8129

R8130

R8131

R9101

R9102 R9103

R9104

R9105

R9106

R9107

R9108

R9109

R9110

R9111

R9113

R9115

R9116

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125 R9126

R9127

R9128

R9131

R8116

R9114

R8102

R8110

C9115

JR901

R9132

R9133

R9134

C8114

Q8101

MH18

JR902

C9108

C8107

C8116

R8103

IC9103

Q9103

R9135

R9137

R9136

C9107

R8113

C9123

R9141

R9117

R9138

R9139

R9140

MH3MH6

C9125

R9142

R9143

R9144

JR903

R9129

R8121

C8115

JR904

R9145

R8114

R8115

MH30

MH29

D9104

IC9101

IC8501

ZD9104

D8103 D8104 D8105 D8106

D8102

ZD9105

ZD9106

Circuit Diagrams and PWB Layouts

EN 55TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.4 A 715G6050 PSU

19500_504_130408.eps

130408

AC input

A01 A01

2013-01-02

A

715G6050

AC input

!

F9901

FUSE

R9901

NC

IC9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

C9906 470NF 275V

R9904 NC

R9905

NC

C9905 470NF 275V

T5.0AH/250V

!

-

+

BD9901

TS6B06G-05-X0

2

1

3

4

t

NR9901

NTCR

1 2

SG9901

DSPL-501N-A21F-NC

L9901

12mH

1

2

4

3

SG9902

DSPL-501N-A21F-NC

!

R9908 510K

VXA VXB

VXB VXA

CN9901

NC/CONN

1 2

C9910

470pF 250V

!

L9902 12mH

1

2

4

3

Vsin

!

R9906

NC

RV9901 680V

CN9903 CONN-NC

1

2

C9901

47PF

FB9901BEAD

1 2

CN9902 SOCKET

12

C9903

100PF 250V

C9904

100PF 250V

FB9902 BEAD

12

!

R9907

510K

t

NR9902

NTCR-NC

1 2

R9902 NC

R9903

NC

!

10-4-1 AC input

Circuit Diagrams and PWB Layouts

EN 56TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-4-2 Main Power

19500_505_130408.eps

130408

Main Power

A02 A02

2013-01-02

A

715G6050

Main Power

R9118

0R05 1/4W

ZD9106

BZT52-B13

1 2

R9154 0 OHM +-5% 1/8W

FB9104 127R

1 2

R9408 330K 1/8W 5%

R9130 100 OHM 1/4W

C9150

2.2NF-NC

D9105 FMXA-2203SE

1

2

3

Q9101 TK8A65D

D9107 1N4148W

R9112

3.3 OHM 1/4W

D9113

1N4148W

C9126

1NF 500V

Q9404

PBSS5350X

CN9101 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

C9127

1NF 500V

R9403 NC

C9119 47PF

FB9102

BEAD

1 2

Q9403 2N7002K

R9142 27 OHM 1/4W

R9150

24K 1/8W 1%

L9103 3UH

L9102 3UH-NC

R9122

100K 1/8W 1%

R9406

0 OHM +-5% 1/8W

R9109

1K 1/4W

C9146

1uF

R9102 47K +-1% 1/4W

+

C9111

330UF 35V-NC

R9114

100 OHM 1/4W

R9156

1K OHM

IC9104

NR111D

BS

1

VIN

2

SW

3

GND4FB

5

ISET

6

EN

7

SS

8

HS9103

HEAT SINK-NC

1 2

3

4

R9144

4K7 1/8W 1%

C9141

2N2 50V

C9139

100N 50V

C9128 47N 50V

R9139

100 OHM 1/4W

C9142

2N2 50V

R9134

10R 1/8W 5%

R9339

5.23K 1% 1/8W

ZD9102 BZT52-B36

1 2

R9308

10K 1/8W 1%

R9104 10R 1/8W 5%

C9117 100N 50V

+

C9104 47UF 450V

+

C9135 470UF 25V

+

C9103 47UF 450V

C9112

100N 50V

R9159

NC

+

C9137 470UF 25V

+

C9114 47UF 450V

C9129 1N 50V

+

C9106 47UF 450V

R9117

10K OHM

R9136 NC

R9121 150OHM +-5% 1/8W

R9140

100 OHM 1/4W

R9158

20R 1%

C9403

100N 50V

HS9102

HEAT SINK

1 2

3

4

R9307 10K OHM

R9133

NC/3K OHM 1%

R9340

10K OHM +-5% 1/8W

R9148

100 OHM 1/4W

R9407 10K OHM

R9162

2K 1/8W 5%

IC9101 PF6200

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

+

C9122

330UF 35V

R9141

100K

+

C9136 470UF 25V

C9115

100N 50V

R9143

91KOHM +-1% 1/8W

R9128 200K 1/8W 1%

FB9101

127R

1 2

D9106 FME-220B

1

2

3

R9108 27 OHM 1/4W

R9146

100 OHM 1/4W

C9147

1uF

+

C9110

330UF 35V-NC

R9105 82KOHM +-5% 2WS

C9138

100N 50V

R9107 10K 1/4W

R9129 3K65 +-1% 1/8W

C9123

100N 50V

C9131 1uF

R9147

100K 1/8W 1%

HS9104

HEAT SINK

1 2

3

4

R9151

2K43 1/8W 1%

R9115

10K OHM

C9118 220N 50V

C9144 10N 50V

C9145

1uF

+

C9108

330UF 35V

R9135 27 OHM 1/4W

D9101 SARS01-V1

L9104 3UH

+

C9107 22UF 50V

R9126 1K 1/8W 1%

R9160

NC

R9132

100K

R9106 47OHM +-5% 1/8W

R9152

20K 1/4W

R9120 270K 1/8W 5%

C9401

NC

IC9151

PF8200S

GND

1

GND

2

SS

3

FLAG4EN

5

ADJ

6

GATE

7

VCC

8

L9101 15uH

FB9103

BEAD

1 2

HQ9101

HEAT SINK

1 2

3

4

IC9106

AS431AN-E1

R9113

100 OHM 1/4W

R9127 9K1 1/8W 1%

C9121

0.1uF 50V

Q9305 PMBT3906

R9101 47K +-1% 1/4W

R9123 2K 1/8W 1%

R9116

10K OHM

R9404 NC

C9132 2N2 50V

R9145

100 OHM 1/4W

C9113 NC

+

C9102

330UF 35V-NC

+

C9109

330UF 35V

ZD9101 BZT52-B36

1 2

R9157

1K OHM

C9130 NC

R9103 47K +-1% 1/4W

R9149

100 OHM 1/4W

C9149

2.2NF-NC

R9138

11K 1/8W 1%

Q9402

NC/2N7002K

R9137 NC/620K

IC9102

PS2561DL1-1

12

43

R9119

NC/20K 1% 1/8W

R9341 100K 1/8W 1%

CN9102 CONN-NC

1

2

3

4

5

6

7

8

9

10

11

12

C9133 1uF 50V

D9102 1N4148W

D9103

FR107G-A0

C9148 220P 50V

C9124 100N 50V

D9104

SK84C

1 2

Q9301 2N7002K

+

C9120

470UF 25V-NC

IC9103 AS431AZTR-E1

C9105

2.2NF

+

C9116

220UF 35V

C9143

2N2 50V

C9134 1N 50V

R9131

200KOHM 1/8W +/-5%

+

C9140

470UF 25V

R9161

20R 1%

R9110 27 OHM 1/4W

+5.2V

PS_ON

+12V

ON/OFF DIM

12V

24VA

DIM

+12V

+24LED

+24VS12V +12V

+24LED

24VA

OVP

ON/OFF

12V

+5.2V

PS_ON

5.2V_On

DV5

+24VS

5.2V_On

DV5

Vsin

+5.2V

12V

PS_ON

!

FOR D9105 Q9107

FOR D9106

R9124 470R 1/8W 1%

ZD9103

BZT52-B36

1 2

T9101

POWER X'FMR

1

2

3

4

5

7

8

9

10

11

12

Q9107

AOTF4185

C9911 1NF 250V

C9912 1NF 250V-NC

!

joeэΘ470ohm

joeэΘ1.5k ohm

+24VS

R9178

10K OHM +-5% 1/8W

C9125

1UF 16V

HOT COLD

+24VS1

R9125 1K5 1/8W 5%

R9111

0.2OHM 2W

R9153 330K 1/4W

Circuit Diagrams and PWB Layouts

EN 57TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-4-3 LED Driver D2D

19500_506_130408.eps

130408

LED Driver D2D

A03 A03

2013-01-02

A

715G6050

LED Driver D2D

+24VS1

C8112

100N 50V

Q8101

AO4486

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R8128

100 OHM 1/4W

C8114

10N 50V

C8119

2.2uF 25V

C8120

2.2uF 25V_NC

R8134

100K 1/8W 1%

C8106

1NF

Q8106

PMBT3906

R8131 15K 1% 1/8W

R8132 51K OHM

R8133

33K OHM

Q8107 PMBS3904

VLED+

IC8501

PF7903BS

DIMOUT

1

GM

2

FB

3

OVP/DIM4CS

5

GND

6

OUT

7

VCC

8

C8117 1uF_NC

R8129

10K OHM +-5% 1/8W

R8121

100K 1% 1/8W_NC

VLED+

Q8103 2N7002

Q8105

PMBT3904

+12V

ZD8102

BZT52-B22_NC

1 2

R8116

51K 1% 1/8W

R8135

51K 1% 1/8W

+

C8124 47UF 50V

C8111

100pF 50V

R8124

1R 1%

R8125

1R 1%

C8122

100N 50V

R8126

1R 1%

VCC1

ZD8101

BZT52-B4V7_NC

1 2

D8103

1N4148W

VCC1

R8130

220K +-5% 1/8W

C8121

1uF

C8123

1uF

LED1

C8104

2.2uF 25V

+

C8113

330UF 50V

R8138

0 OHM +-5% 1/8W

R8122

47K +-5% 1/8W

LED1

R8118

10K OHM +-5% 1/8W

R8108

330R 1/8W 5%

C8108 100N 50V

R8119

10K OHM +-5% 1/8W

C8118

1NF 50V_NC

VCC1

DIM

C8110

1NF 50V

R8123

1R 1%

VLED+

ON/OFF

D8102

1N4148W

D8101

SR506

R8127

1K OHM +-5% 1/8W

R8136

1.5R

R8117

6.2K OHM +-1% 1/8W

L8101

33uH

8

1

Q8102

AOTF4126

R8158

22OHM +-5% 1/8W

HQ8102

HEAT SINK-NC

1 2

3

4

R8102 47K +-5% 1/8W

C8103 100PF-NC

FB8100 BEAD-NC

12

L8102 3UH

R8120 10K OHM +-5% 1/8W

R8161 10R 1/8W 5%

+

C8125 220UF 100V-NC

CN8101

CONN

1 2

3

4 5 6 7

8

9 10 11 12

R8175

0.05R

+

C8101

330UF 35V

+

C8102

330UF 35V

Circuit Diagrams and PWB Layouts

EN 58TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-4-4 Power layout top

19500_507_130408.eps

130408

2013-01-02

A

715G6050

Power layout top

IC9102

IC9103

J917

J909

J924

J919

MH13

J915

R9156R9157

J904

J911

MH34MH35

J925

C9901

J902

J901

J920

R9105

MH26

C8106

C9119

D9101

D8101

J903

J914

J916

J922

J927

J926

J921

J923

J905

MH49

J907

J908

J912

J928

J929J913

J918

J930

J910

J906

T9101

MH45

MH43

MH44

MH46

MH48

MH47

C8101

C9108

C9109 C9110

C9111

C9116

C9120

C9122

C9135

C9136

C9137

C9140

CN9102

CN9901

CN9902

CN9903

D9105

D9106

F9901

FB9902

IC9104

Q8102

Q9107

R8175

MH1

MH2

MH3

MH4 MH5 MH6 MH7

MH8

MH9

MH10

MH11

MH12

MH14

MH15

MH16MH17

MH18

MH19

MH20

MH22

SG9901

SG9902

C9102

HS9103

HS9102

FB9901

C8103

HS9104

BD9901

L8102

C9903

C9904

FB9101

C8125

L9102

L9103

L9104

L9101

R9907

R9908

L8101

FB9102

CN9101

C8102

C8113

C8124

C9103C9106

C9105

C9114 C9104

R9111

FB8100

C9149

HQ9101

HQ8102

CN8101

C9905

C9906

FB9103

FB9104

Q9101

D9103

NR9901

C9150

NR9902

L9901

L9902

C9910

C9911

C9912

RV9901

FB8101

C9107

Circuit Diagrams and PWB Layouts

EN 59TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19500_508_130408.eps

130408

2013-01-02

A

715G6050

Power layout bottom

C8111

C8119

C8104

C8110

C8108

C8114

C8120

C8122

C8123

C8112

C9113

C9112

C9144

C9115

C9117

C9118

C9121

C9123

C9124

C9125

C9126

C9127

C9128

C9130

C9403

C9138

C9142

C9143

C9401

C9148

Q9402

R8131

R8123

R8124

R8125

R8108

R8158

R8135

R8119

R8117

R8130

R8129

R9112

R9113

R9114

R9115

R9116

R9117

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9129

R9130

R9131

R9134

R9135

R9136

R9138

R9139

R9140

R9143

R9144

R9145

R9146

R9408

R9158

R9161

R8133

R8134

R9403

R9404

R9147

R9901

R9902

R9903

RJ904

C9132

R9340

R9341

Q9403

C9141

R9308

R9406

R9307

Q9305

Q9301

RJ901

C9131

RJ902

RJ903

RJ905

C9129

R9133

R9150

R9151

R9162R9152

IC9106

R9407

R9132

MH29

MH30

MH31

C9133

R9137

R9141

R9904

R9905

R9103 R9102

R9906

C9134

C9139

C9145

C9146

C9147

IC9901

R9153

R9159

R9160

C8121

C8118

R8128

R8126

R9101

R9106

C8117

R8116

R8118

R8121

R8122

R8127

R8132

R8138

R9104

R9107

R9108

R9110

R9142

Q8105

Q8106

Q8107

Q8103

R8120

IC8501

Q8101

IC9151

R9118

R9109

R8136

R9148 R9149

R9127

R9128

R9339

R9178

R9154

R8161

R8102

MH40

MH39

MH41

MH42

D8102

D9102

D9113

ZD8102

ZD9101

ZD9106

ZD9102

ZD9103

D9104

D9107

IC9101

Q9404

D8103

ZD8101

EN 60TPM10.1HE LA 10.

10-4-5 Power layout bottom

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19461_502_131209.eps

131209

A01 A01

2013-07-03

1

380GLP30029DE0

AC

C607

220nF 25V 0603

PC601

PS2561DL1-1Y-V-A(Q)

C601

1nF 50V 0603

C602

33pF 50V 0603

ZD601

NZX16C

R604

25.5K 0603

R612

1M 0603

R601

100K 1206

1/2

C608

100pF 50V 0603

R615

10K 0603

R606

10 0603

R616

12K 0603

C603A

470pF 50V 0603

R610

1K 0603

R603

43.2K 0603

C604

1uF 50V 0805

Q602

STN1NK60Z

VCC_ON

C612

100nF 50V 0603

IC601

ICE2QS02G

VCC_ON

R916

2K 0603

ZD905

TFZG TR 16C

C909

1uF 50V 0805

C603B

470pF 50V 0603

Q903

PMBT4401,215

C917

100nF 50V 0603

C916

10nF 50V 0603

C915

1uF 16V 0603

R921

100K 1206

R922

113K 0603

ZD900

TFZG TR 5.6C

IC902

ST9S101-T6G

R903C

3.3 0603

C902

1nF 50V 0603

ZD902

NZX16C

R903A

3.3 0603

R903B

3.3 0603

PC901

PS2561DL1-1Y-V-A(Q)

ZD904

NZX3V3B

1/2

IC901

DDA010

C905

47pF 50V 0603

AC

L

N

FL2

HFH-DP12320

R3B

4.7M 1206

R3A

4.7M 1206

GT1

SPG-201M-LF

F1

T 3.15A H 250V

FL1

HFH-DP12320

AC

ZCD

Z1

TVR10681KSRBUQK(-D)

R1A

1M 1206

CX1

330nF

R1B

1M 1206

GT2

SPG-201M-LF

CY1

470pF

CY2

470pF

COLD

AC

COLD

CY4

100pF

CY3

100pF

C830

10nF 630V

C831

10nF 630V

R3C

4.7M 1206 R3D

4.7M 1206

BD1

UD4KB80-7000

NTC1

SCK10054LSY701

CX2

220nF

B+

R602A

1M 1206

R602C

1M 1206

R602B

1M 1206

R602D

1M 1206

B+

R600

0.1 1/2W

B+

C800

82uF 400V

1/2

+12V''

PC601

PS2561DL1-1Y-V-A(Q)

C306

6.8nF 50V 0603

R302

2.74K 0603

R306

1K 0603

R305

5.11K 0603

R304

2K 0603

R301

2.74K 0603

C305

470nF 25V 0603

12V&24V OVP

+24V'

R241

22.1 1206 C241B

1nF 500V 1206

C241A

1nF 500V 1206

R303

976 0603

IC301

AS431ANTR-G1

R244

100K 0603

C307

PRIMARY

HOT

SECONDARY COLD

CY5

470pF

FB906

3.5 1

FB905

3.5 1

+24V

+24V'

+12V

DIM

ON_OFF

FB240B

3.5 1

C124A

100nF 50V 1206

Q240

AP9561GI-HF

R307A

14K 1206

C124C

1uF 25V 1206

L240

CB-3.0-01

R245

100K 0603

R247A

2.55K 1206

R307B

C904A

100nF 50V 0603

C904B

10uF 50V

D903

BAS316

C910

22pF 1KV J

R908A

1 1206

R904A

124K 0603

R904B

19.1K 0603

C907

100uF 50V

FB901

3.5 1

D902

MUR160RLG

ZD903

NZX22B

1/2

5.2VSB OVP

IC951

AZ431LBNTR-G1

R954

10K 0603

PC901

PS2561DL1-1Y-V-A(Q)

C956

1nF 50V 0603

C955

22nF 50V 0603

R956

200 0603

R955

51.1K 0603

R952

33.2K 0603

C957B

C957A

1uF 16V 0603

R953

10.2K 0603

ZD901

P6KE150AAMP

T901

AV-DP11178

PC903

PS2561DL1-1Y-V-A(Q)

R915

2.2 1/2W

D901

BYV26EAMP

R611

0.27

1/2

VCC

B+

T601

MV-DP12069

R608A

330K 2W

Q601

STP7NK80ZFP

D602

BAS316

C606

4.7nF 1KV K

ZD602

P6KE300AAMP

D603

1N5408GPAMPD

R608B

330K 2W

C605

220pF 1KV K

FB601

3.5 1

R607

30.1 0603

R605

10 0603

R609

10K 0603

ZCD

,

+12V'

D240

SBR10150CTFP

C121B

1nF 200V 0805

ZD240

NZX27B

FB120A

3.5 1

D120

SB5100

C121A

1nF 200V 0805

R121

22.1 1206

C240A

470uF 50V

R243

200K 1206

D241

BAS316

R246

51.1K 0603

,

+5.2V'

L950

CB-3.0-01

C951A

1nF 200V 0805

C120A

2200uF 25V

D950

FCQS10A065

C951B

1nF 200V 0805

R951

22.1 1206

C950A

3300uF 10V

FB950

3.5 1

C123A

100nF 50V 0603

R120A

2.49K 1206

C120B

1000uF 16V

C950B

220uF 10V

+5.2VSB

- H

+12V

+12V''

FB120B

3.5 1

L120

CB-3.0-01

C240B

220uF 35V

R240A

7.32K 1206

C243

100nF 50V 1206

C245

100nF 50V 0603

D242

BAS316

Q241

PMBT4401,215

R247D

3.4K 0603

ZD241

PDZ6.2B

R247B

2.55K 1206

R247C

3.4K 0603

ON_OFF

N/A

PS_ON

+24V

+5.2VSB

CN1

C954

1uF 50V 0805

C246

100nF 50V 0603

+24V

DIM

NC

C244B

100nF 50V 0603

CN2

C244A

100nF 50V 0603

1/2

+5.2V'

PS_ON

-D

PC903

PS2561DL1-1Y-V-A(Q)

C960

100nF 16V 0603

C953

4.7uF 10V 0805

Q960

PMBT4401,215

Q961

PMBT4403

R963

1K 0603

R962

2K 0603

R960

10K 0603

C961

100nF 25V 0603

R965A

1K 1206

R964

100 0805

R966

100 0805

D960

BAS316

R961

20K 0603

EN 61TPM10.1HE LA 10.

10.5 A 380GLP30029DE0 PSU

10-5-1

div. table

back to

2013-Dec-06

10-5-2 Power layout

19461_503_131210.eps

131210

2013-07-03

2

380GLP30029DE0

Power Layout

Circuit Diagrams and PWB Layouts

EN 62TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.6 B 715G5675 SSB

19431_508_130222.eps

130222

System Power 1

B01 B01

2012-11-30

C

715G5675

System Power 1

+12V

+12V3,5,7

+

C709

100UF 16V

CN700

CONN

1 2

3

4 5 6 7

8

9 10 11 12

BRIGHT_ADJ

TP701TPTP702

TP

FB703 120R

1 2

+24_12V

+24_12V3

C731

10UF 6.3V 20%

TP703

TP

DVDD3V3

TP704

TP

C702

10UF 6.3V 20%

CN701

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

C717

100NF 16V

TP705

TP

OPWRSB

3V3SB

TP706

TP

+5V_SW

+5V_SW 3,5,7,8,9,12,13,14

+3V3_TUNER

+3V3_TUNER 14

+5V_STB

+5V_STB 4,5,7

+12V

STB_PWR

DVDD3V3

DVDD3V33,4,5,7,9,11,12,14

U701 AP1117DG-13

VIN3VOUT

2

ADJ(GND)

1

+5V_SW

+24_12V

DDR3 VCC

OPWRSB

BRIGHT_ADJ

+12V

+24_12V

R700

NC/10K 1/8W

STB_PWR

INVERTER_ON_OFF

+

C736

100UF 16V

DC POWER INPUT

R721

NC/22K 1/16W 5%

C719

100NF 16V

R711

180K

BRIGHT_ADJ 9

INVERTER_ON_OFF

INVERTER_ON_OFF 9

U702 G5172R41D

VINA

1

VIN

2

GND

3

GND

4

AGND5FB6COMP7RT

8

SS

9

LX

10

LX

11

LX

12

BS

13

PG14EN

15

VIN

16

E-Pad

17

R702

110R 1/10W 1%

C732

10UF 6.3V 20%

C714

10UF 6.3V 20%

DDRV

R703

24R 1/10W 1%

DDRV 10

C733

10UF 6.3V 20%

+3V3_TUNER

C734

10UF 6.3V 20%

C739

10UF 10V

C740

10UF 10V

OPWRSB

TUNER VCC

R716

33Kohm 1/16W +/-1%

R710

4K7 1/16W 5%

C704

22NF 25V

L701

2.2UH

C710

1UF 10% 16V

R713

17.4K 1%

C712

10UF 10V

VCCK

C713

10NF 50V

+5V_STB

R714

5K1 1/16W 5%

C741

10UF 10V

R706

22KOHM 1/10W

C735

100NF 16V

C707

NC/10UF 10V

C718

100NF 16V

R704

33K 1/10W 5%

R705 2K7 1/16W 5%

C721 100NF 16V

C706 1UF 10% 16V

Q701 BC847C

+5V_STB

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+5V_SW

VCCK

AVDD1V2

C715

10UF 6.3V 20%

+5V_SW AVDD3V3

C708

10UF 10V

Analogue VCC

C723

10UF 10V

C722

10UF 10V

U706 AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

C700

NC/10UF 6.3V 20%

AVDD3V3

AVDD3V3 4,6,7,9,10,11,12,13

INVERTER_ON_OFF

FB704 120R

1 2

STB_PWR +5V_STB

STANDBY

3V3SB+5V_STB

C737

1UF 10% 16V

U704

AZ1117H-3.3TRG1

INPUT

3

ADJ/GND

1

OUTPUT

2

4

C738 10UF 10V

TP700

TP

+

C701

220UF 16V

FB700 120R

1 2

+5V_STB

+5V_STB 4,5,7

ZD700

MM3Z5V6B

+

C705

100UF 16V

DVDD3V3+5V_SW

U703 G1084-33TU3Uf

VIN3VOUT

2

GND

1

+

C711

100UF 16V

+

C703

100UF 16V

AVDD1V2

AVDD1V2 6,9,12,13,14

OPWRSB4

GND 3,4,5,6,7,8,9,10,11,12,13,14

3V3SB

STANDBY

3V3SB 4,5,9,11,12

U705 AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

BRIGHT_ADJ

FB701 120R

1 2

R715

10K 1/16W 5%

FB702 120R

1 2

R701 100R 1/16W 5%

VCCK

VCCK4,11

10-6-1 System Power 1

Circuit Diagrams and PWB Layouts

EN 63TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-2 System Power 2

19431_509_130222.eps

130222

System Power 2

B02 B02

2012-11-30

C

715G5675

System Power 2

+

C667

100uF 35V

FB752 120R

12

+24_12V2

+24_12V

ZD750 PJSD24CW

1 2

DVDD3V3

Q754 NC/BC847C

R765

NC/10K 1/10W 5%

Q755

NC/AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+24_12V

R766 NC/7K5 1/10W 5%

R767

NC/ 10K 1/ 16W 5%

R768

NC/5.1KOHM +-5% 1/10W

R769

NC/ 10K 1/ 16W 5%

C761 NC/1UF 10% 16V

LNB_VCC

FB751

NC/120R

1 2

Q751 BC847C

R752

10K 1/10W 5%

Q750

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

PANEL_VCC

R753 6K8 1/10W 5%

+12V

C751

NC/4.7UF 10% 10V

R755 20K 1/10W 1%

R750 10K 1/ 16W 5%

SMD/0402

R751

5.1KOHM +-5% 1/10W

C750 1U F 10% 16V

TUNER_LNB14

TUNER_LNB

GND2,4,5,6,7,8,9,10,11,12,13,14

PANEL_VCC_ON/OFF11

GND

PANEL_VCC_ON/OFF

+5V_SW

R758

10K 1/16W 5%

OPWRSB

OPWRSB2,4

R759

10K 1/16W 5%

PANEL_VCC_ON/OFF

C758

220nF50V

Q752 NC/BC847C

R760

NC/ 10K 1/ 10W 5%

Q753

NC/AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

R761 N C / 7K5 1/ 10W 5%

+24_12V

R762

NC/ 10K 1/ 16W 5%

R763

NC/5.1KOHM +-5% 1/10W

C760 NC/1UF 10% 16V

R764

NC/ 10K 1/ 16W 5%

PVDD

+12V

FB753 120R

12

C757

220NF 25V

DVDD3V32,4,5,7,9,11,12,14

DVDD3V3

PVDD7

PVDD

ZD751 NC/PJSD24CW

1 2

TUNER_LNB

FB756

NC/120R

12

D751

GS1A

+5V_SW2,5,7,8,9,12,13,14

+5V_SW

DISEQC_OUT14

DISEQC_OUT

S2_DEMO_SCL

S2_DEMO_SDA

R754

100R 1/16W 5%

D750

FB340M

1 2

FB757

NC/120R

12

U751

LNBH25PQR

NC

1

FLT

2

LX

3

PGND

4

NC

5

ADDR

6

SCL7SDA8ISEL9NC10NC11NC

12

NC

13

NC

14

GND

15

VBYP

16

VCC

17

BPSW

18

DETIN

19

VOUT

20

VUP

21

DSQIN

22

DSQOUT

23

NC

24

E-Pad

25

L750 10uH

+12V2,5,7

+12V

C756

220NF 25V

C754

2.2UF 25V

R756

100R 1/16W 5%

LNB_VCC

LNB POWER SUPPLY

+

C752

220UF 16V

+

C753

100uF 25V

S2_DEMO_SDA14

S2_DEMO_SDA

FB750

120R

1 2

D752

FB340M

1 2

FB754

NC/120R

12

FB755

NC/120R

12

+

C755

100UF 16V

DISEQC_OUT

R757

0R05 1/16W

S2_DEMO_SCL14

S2_DEMO_SCL

Circuit Diagrams and PWB Layouts

EN 64TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-3 Peripheral

19431_510_130222.eps

130222

Peripheral

B03 B03

2012-11-30

C

715G5675

Peripheral

OPCTRL0

PACLE

R4020

NC/10K 1/16W 5%

OPCTRL4

OPCTRL3

3V3SB

R4017

10K 1/16W 5%

R4015

10K 1/16W 5%

TP4000

TP

ORESET#

R4008

NC/100K 1/16W 5%

OSDA0

3V3SB

Reset IC

R4006

NC/0R05 1/16W

U410

NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

GND

SYS_EEPROM_WP OSCL0

OSDA0

OPCTRL3 OPCTRL0

OPCTRL4

OPWRSB

OPWRSB2 SYS_EEPROM_WP11 OSCL07

OSDA07

OPCTRL411 OPCTRL05,11

GND2,3,5,6,7,8,9,10,11,12,13,14

OPCTRL311

C4024

4.7UF 10% 16V

C4013

10UF 10V

3V3SB

3V3SB2,5,9,11,12

R4021

9.1K 1%

R4026 4K7 1/16W 5%

PAALE

DVDD3V3

R4024

4K7 1/16W 5%

+5V_STB

C4027

10UF 10V

R4040

13K OHM +-1%

VDD_NAND

C4007

10UF 6.3V 20%

C4025

10uF 16V

R4033

NC/10K 1/16W 5%

AVDD33_VGA_STB

C4026

NC/10UF 10V

+5V_SW

+5V_SW2,3,5,7,8,9,12,13,14

3V3SB

C4023

10UF 10V

3.3V IO Power

VCCK

VCCK2,11

AVDD33_XTAL_STB

C4022

1UF 10% 16V

R4007

0R05 1/16W

SYS_EEPROM_WP

OXTALO

27MHz CRYSTAL

C4005

8.2PF 50V

PDD7 PDD5

C4001

100NF 16V

PDD6

R4004 4K7 1/16W 5%

PDD4

C4003

1UF 10% 16V

DVDD3V3

PDD3

DVDD3V3

PDD2 PDD1 PDD0

U4051

TC58NVG1S3ETAI0

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

I/O0

29

I/O1

30

I/O2

31

I/O3

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

45

NC

46

NC

47

NC

48

DVDD3V3

DVDD3V32,3,5,7,9,11,12,14

NAND Flash

NAND 256MB

MTK5580CPOI

U401I

OSDA0

R7

OSCL0

R6

U0TX

W10

U0RX

Y10

XTALI

AE21

XTALO

AD21

AVSS33_XTAL_STB

AD20

AVDD33_XTAL_STB

AE20

AVDD33_PLL

AE17

AVSS33_PLLGP

V15

POWE#

AB6

POOE#

AC5

POCE1#

AC6

POCE0#

AC4

PDD0

AC2

PDD1

AB1

PDD2

AB2

PDD3

AA3

PDD4

AA2

PDD5

Y3

PDD6

Y2

PDD7

Y1

PARB#

AC1

PACLE

AB5

PAALE

AA5

ORESET__B

AE8

OPWRSB

Y9

OIRI

AB10

FSRC_WR

F21

POR_BND

W9

R4005

4K7 1/16W 5%

MTK5580CPOI

U401K

AVDD33_VGA_STB

AE10

AVSS33_VGA_STB

V10

AVDD10_LDO

AD10

3V3SB

U0RX

U0TX

AVDD33_XTAL_STB

OSCL0

OSDA0

OXTALI OXTALO

AVSS33_PLLGP

AVDD33_PLL

AVSS33_XTAL_STB

PARB#

POWE#

PAALE

PACLE

POCE0#

POCE1#

POOE#

PDD3 PDD4 PDD5

PDD0

PDD6 PDD7

PDD1 PDD2

RC6

ORESET#

FSRC_WR

E-Fuse

OPWRSB

AVSS33_VGA_STB

AVDD33_VGA_STB

AVDD10_LDO

+5V_STB

+5V_STB 2,5,7

OXTALI

Core Power

DVDD3V3

R4002

4K7 1/16W 5%

+

C4021

100UF 16V

C4004

8.2PF 50V

C4002

100NF 16V

CN412

CONN

1 2

3

---><---|>

R4029

100R 1/16W 5%

R4030

100R 1/16W 5%

3V3SB

D4000 NC/BAV99

3

1

2

U0TX

3V3SB

D4001 NC/BAV99

3

1

2

U0RX

R4031

4K7 1/16W 5%

R4032

4K7 1/16W 5%

---><---|>

R4012

NC/0R05 1/16W

R4041

NC/3K9 +/-5% 1/16W

C4029 100NF 16V

+12V

+12V2,3,5,7

R4009

4K7 1/16W 5%

C4028

1UF 10% 16V

R4011

4K7 1/16W 5%

U409

CAT24C128WI-GT3

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

R4010

4K7 1/16W 5%

OSCL0

SYSTEM EEPROM

DVDD3V3

C4030 100NF 16V

RC6

RC6 5

R4042

NC/10K 1/16W 5%

R4019

10K 1/16W 5%

C4006

NC/4U7 10V

X4000

27MHz

1

24

3

AVDD3V3

AVDD3V32,6,7,9,10,11,12,13

R4034 4K7 1/16W 5%

POWE#

PARB#

VDD_NAND

POCE1#

POOE#

Flash_WP#

PACLE PAALE

C4016 100NF 16V

C4019 100NF 16V

C4010 100NF 16V

C4017 100NF 16V

C4008 100NF 16V

C4015 100NF 16V

C4011 100NF 16V

Analog Power

R4001

NC/0R05 1/16W

TP4001

TP

C4014

NC/4U7 10V

C4012 100NF 16V

C4009 100NF 16V

C4018 100NF 16V

AVDD33_PLL

C4020 100NF 16V

VCCK

DVDD3V3

AVDD3V33V3SB 3V3SB

R4013

10K 1/16W 5%

R4014

10K 1/16W 5%

STRAPPING

R4016

NC/10K 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 65TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-4 Connector/USB

19431_511_130222.eps

130222

Connector/USB

B04 B04

2012-11-30

C

715G5675

Connector/USB

3V3SB

Key1KEY_UP_DN_DCSW

R4102

100R 1/10W 1%

RC6

KEY_MENU_L_R_SOURCE 11

KEY_MENU_L_R_SOURCE

ZD4106

MM3Z3V6B

1 2

1234

CN1031 USB CONN

1

2

3

4

65

+

C4108

100UF 16V

USB PORT

R4108

NC/4K7 1/16W 5%

R4106

NC/10K 1/10W 5%

t

TH4000 PTCR

1 2

R4104 0R05 1/16W

U1051

NC/G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

R4105 0R05 1/16W

C4110

NC/0.1uF 25V

IR_SW_IN

R4107

NC/4K7 1/16W 5%

C4109

NC/10UF 10V

FB4101

220R

1 2

USB_OC_OCP0

DVDD3V3

+5V_SW

R4100

3.9K 1%

IR_IN

R4142

NC/10K 1/16W 5%

L/R_OUT

R4143

NC/22K 1/16W 5%

R4141

NC/10K 1/16W 5%

AVDD3V3

AVDD3V3 2,4,6,7,9,10,11,12,13

R4139

NC/10K 1/16W 5%

3V3SB

ZD4108NC/MM3Z5V6B

3V3SB 2,4,9,11,12

3V3SB

ZD4109NC/MM3Z5V6B

USB_DM_P0 11 USB_DP_P0 11

USB_DM_P0

KEY_MENU_L_R_SOURCE Key2

R4103

100R 1/10W 1%

R4101

3.9K 1%

3V3SB

KEY_UP_DN_DCSW11

IR_SW_IN

CN401

CONN

1 2

3

4 5 6 7

8

9 10 11 12 133V3SB

DVDD3V3 2,3,4,7,9,11,12,14

DVDD3V3

USB_DP_P0

ZD4104

NC/MM3Z3V6B

1 2

R4144

NC/33K 1/16W 5%

ZD4105

NC/MM3Z3V6B

1 2

ZD4107MM3Z5V6B

R4130

NC/0R05 1/16W

IR_SW

KEY_UP_DN_DCSW

R4132

NC/0R05 1/16W

+5V_STB 2,4,7

+5V_STB

ZD4101

NC/MM3Z5V6B

R4140

NC/1K 1/16W 5%

Gamming 9

Gamming

LED_R 4,11

LED_R

R4115

NC/1K 1/16W 5%

IR_IN

ZD4102

NC/MM3Z5V6B

Light_Sensor

Light_Sensor 11

IR_IN

ZD4103

NC/MM3Z5V6B

ZD4100

NC/MM3Z5V6B

R4121

100R 1/16W 5%

RC6 4

RC6

DVDD3V3

GND 2,3,4,6,7,8,9,10,11,12,13,14

R4145

NC/22K 1/16W 5%

IR_SW_IN

USB_PWR_EN0

USB_PWR_EN0 11

IR_SW

+12V

USB_DM_P0

USB_DP_P0

R4138

NC/100R 1/16W 5%

U4101

NC/TS5A3157DCKR

NO

1

GND

2

NC3COM

4

V+

5

IN

6

RC6

R4116 NC/100R 1/10W 5%

R4114 100R 1/10W 5%

Light_Sensor

Key1

LED_R

IR

---><---|>

+5V_SW

Key2

---><---|>

Gamming

C4113

NC/0.1uF 50V

3V3SB

R4117 100R 1/10W 5%

USB_PWR_EN0

Q4101

NC/PMBT3904

R4119 100R 1/10W 5%

C4115

NC/10UF 6.3V 20%

L/R_OUT 9

3V3SB

L/R_OUT

IR

+5V_SW2,3,7,8,9,12,13,14

+5V_SW

R4131

NC/0R05 1/16W

C4124

NC/10UF 10V Q4100 NC/2N7002

D4101 NC/BAV99

3

1

2

+5V_STB

D4100 NC/BAV99

3

1

2

C4125

NC/100NF 16V

Q4102

NC/PMBT3904

+12V 2,3,7

+12V

IR_OUT

CN4100

NC/PHONE JACK

1

2

3

4

Circuit Diagrams and PWB Layouts

EN 66TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

19431_512_130225.eps

130225

Audio/Video IO/SPDIF

B05 B05

2012-11-30

C

715G5675

Audio/Video IO/SPDIF

Y1P

SOY0

SOY08

ADCINN_DEMOD

ADCINP_DEMOD

SCART1_L_IN

SCART1_R_IN

VGA_R_IN

VGA_R_IN8 VGA_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14

SCART1_L_IN8

SCART1_R_IN8

AL0O7 AR0O7

AOBCLK_D7 AOLRCK_D7 AOMCLK_D7 AOSDATA0_D7

AVDD33_ADAC

VGA_L_IN

GND

AL0O AR0O

AOBCLK_D AOMCLK_D

AOSDATA0_D

AVDD3V3

AOLRCK_D

AVDD3V3

AVDD33_HPAAVDD33_AADC

Close to Main Chip ( Max Trace Length 1000mil )

Analog Power

YPBPR0_L_IN

R603

51OHM 1/16W +/-5%

YPBPR0_R_IN

R604

51OHM 1/16W +/-5%

SPDIFOUT

PR1P

R1113 10R 1/16W 5%

AVDD1V2

AVDD3V3

AVDD12_DEMOD

Analog Power

AVDD33_VIDEO

AVDD33_DEMODAVDD12_RGB

C613 100NF 16V

AVDD1V2

AVDD1V2 2,9,12,13,14

SPDIF_OUT

YPbPrL_IN

YPbPrR_IN

Y_IN_1

PB_IN_1

SPDIFOUT

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

PR_IN_1

YPbPr & Audio IN

IF_AGC

IF_AGC12,14

C600 100NF 16V

C1037

NC/10NF 50V

C1038

NC/10NF 50V

YPbPrL_IN

C1039

10UF 10V

C1040

10UF 10V

R1087

30Kohm 1/16W +/-5%

R1088

30Kohm 1/16W +/-5%

YPBPR0_R_IN

YPBPR0_L_IN

---><---|>

YPbPrR_IN

IF_AGC

C621

47NF 16V

C601 100NF 16V

AL1O AR1O

AL1O7 AR1O7

C602 100NF 16V

PB1P

C611 100NF 16V

C603 100NF 16V

C608 1uF 10V

C612 100NF 16V

AVDD3V3

AVDD3V32,4,7,9,10,11,12,13

PR_IN_1

R1039 0R05 1/16W

R1040

18R 1/16W 5%

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

C609

10PF 50V

C617 10NF 50V

C618

10PF 50V

R1043 100R 1/16W 5%

C619 10NF 50V

R1044

18R 1/16W 5%

R1045

56R 1/16W 5%

C620 10NF 50V

C1033 1.5NF 50V

R1046

56R 1/16W 5%

R1047

56R 1/16W 5%

R1048 100R 1/16W 5%

C1034 10NF 50V

R1049 100R 1/16W 5%

C1035

10PF 50V

PB_IN_1

YPBPR IN

-------><-------

PR1 PR1P

COM1

PB1P

Y1 Y1P

SOY1

C622

47PF 50V

-------><------- -------><-------

PB1

C1036 47NF 16V

R1050 100R 1/16W 5%

CVBS1P

Y_IN_1

C614 10UF 10V

C623

47PF 50V

C615 10UF 10V

Video

---><---|>

C605

33pF 50V

R601

100R 1/10W 5%

R600

240R 1/10W 5%

C604

100NF 16V

SPDIF OUT

C616 10NF 50V

TU_FAT_IN2+

MTK5580CPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA 0

AD6

AOSDATA 1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

AOBCLK_D AOMCLK_D

AOSDATA0_D

AOLRCK_D

AVDD33_HPA AVSS33_HPA

AL0O AR0O

ARC

SPDIF_OUT

SCART1_L_IN SCART1_R_IN

VGA_R_IN

VGA_L_IN

AVDD33_ADAC AVSS33_ADAC

AVSS33_AADC

AVDD33_AADC

AVSS33_CLN VMID_AADC

AL1O

ARC

ARC13

TU_FAT_IN2-

Y0P

SOG

OSCL2 OSDA2

Y0P8 COM08 PB0P8 PR0P8 HSYNC8 VSYNC8 RP8 GP8 BP8 VGACOM8 SOG8 VGASDA8 VGASCL8 TU_FAT_IN2+14 TU_FAT_IN2-14

CVBS3P8

OSCL212,14 OSDA212,14

MTK5580CPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

CVBS_COM

VGASDA

COM0

AVSS12_RGB

AVDD12_RGB

AVSS33_DEMOD

HSYNC

VGASCL

PB0P

AVDD33_DEMOD

AVDD12_DEMOD AVSS12_DEMOD

AVDD33_VIDEO AVSS33_VDAC AVSS33_VDAC_BG

VSYNC

ADCINN_DEMOD

ADCINP_DEMOD

AVSS33_CPUPLL

AVSS33_CVBS_1

PR0P

RP

TU_FAT_IN2+

AVSS33_CVBS_2

HSYNC VSYNC

GP BP

GP

TU_FAT_IN2-

RP

SOG

VGACOM VGASCL

VGASDA

CVBS3P

BP

SOY1

COM0

VGACOM

SOY0

PB0P PR0P Y0P

CVBS3P

CVBS1P

OSDA2

OSCL2

AR1O

R1071 75 OHM +-5% 1/16W R1073 75 OHM +-5% 1/16W

C610 100NF 16V

Audio

COM1

C606 1uF 10V

C607 1uF 10V

R605 10K 1/16W 5%

EN 67TPM10.1HE LA 10.

10-6-5 Audio/Video IO/SPDIF

2013-Dec-06

back to

div. table

10-6-6 Speaker/Headphone

19431_513_130225.eps

130225

Speaker/Headphone

B06 B06

2012-11-30

C

715G5675

Speaker/Headphone

C6860.1uF 25V

ZD630

NC/MM3Z5V6B

LSPK-

FB631

120R

1 2

AUD_V33HP

DVDD3V3

C645

4U7 10V

FB635 NC/120R

1 2

C687 NC/47NF 16V

C649

220nF50V

FB636

NC/120R

1 2

C688 NC/47NF 16V

RSPK+

C693

NC/1nF 50V

+5V_SW

+5V_SW2,3,5,8,9,12,13,14

HPOUTR

R638

6.2 OHM 1/4W

C683 0.1uF 25V

C684

0.1uF 25V

R647

6.2 OHM 1/4W

DVDD3V3

DVDD3V3 2,3,4,5,9,11,12,14

FB634

NC/120R

1 2

R650

100R 1/16W 5%

R651 100R 1/16W 5%

C690

NC/10UF 10V

C6850.1uF 25V

R671

0R05 1/10W

C668

1nF 50V

AL1O AR1O

AR0O

AL1O6 AR1O6

AR0O 6

AL0O

AL0O 6

AUD_V33

CN601

CONN

1

2

3

4

5 6

C660 1uF 10V

3V3SB 2,4,5,9,11,12

3V3SB

R668

NC/10K 1/16W 5%

C644 NC/1uF 10V

FB633

120R

1 2

AUD_V33

C650

4U7 10V

C691

NC/100NF 16V

AVDD3V3

AVDD3V3 2,4,6,9,10,11,12,13

PWRDN-HP

LRCLKI

C652 330PF 50V

PVDD

R662 43K 1/16W

C651

100NF 16V

C653

2.2uF

AL0O

AR0O

MCLK

AUD_V33HP

C664 1uF 10V

AUD_V33HP

C656 1uF 10V

C654

0.1uF 50V

C643

0.1uF 50V

C661

0.1uF 50V

R661

18Kohm 1/16W +/-1%

R663

18Kohm 1/16W +/-1%

C669 330PF 50V

R636 16K 1%

C670 1uF 10V

C671

68PF 50V

SDI

U602

STA381BWTR

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDIG1

29

FFX3A

30

FFX3B

31

EAPD/FFX4A

32

TWARNEXT/FFX4B

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA43SA45TESTMODE46GNDDIG247VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

C672 1UF 50V

BICKI

C673 1UF 50V

R637

43K 1/16W

PWRDN

R635 16K 1%

C674 1uF 10V

AMP_RESET

C675 68PF 50V

C657

100NF 16V

C637

100NF 16V

C638

0.1uF 50V

AUD_V33

PVDD

C648

330PF 50V

reserve for test

OUT1B

OUT1A

OUT2A

OSDA0

C647 1uF 10V

R664

NC/20K 1/16W 5%

R665

NC/20K 1/16W 5%

HPOUTL

R643

10R 1/10W 5%

C680

0.1uF 25V

C658

100NF 16V

OUT2B

HPOUTR

R644

10R 1/10W 5%

R645

6.2 OHM 1/4W

I2SAMP_RESET

AOSDATA 0_ D

AMP_RESET

OSCL0

OSDA0

AOBCLK_D

AOMCLK_D

C646

1nF 50V

AOBCLK_D

MCLK

+5V_STB

AOLRCK_D

+5V_STB2,4,5

BICKI

AOMCLK_D

LSPK+

LRCLKI

AOSDATA0_D SDI

RSPK-

C676

NC/1uF 10V

OSCL0

R642

0R05 1/16W

+

C642

220UF 16V

R652

10K 1/16W 5%

R658

100K 1/16W 5%

Q632

BC847BW

AOLRCK_D

R659

NC/4K7 1/16W 5%

D632

BAS316

A1K

2

C639

NC/33PF 50V

R649

0R05 1/16W

R666

10K 1/16W 5%

Q633

BC847BW

R667 0R05 1/16W

C662

330PF 50V

PWRDN-HP

DVDD3V3

R660

100R 1/16W 5%

L631 33UH

C640

NC/33PF 50V

C679

0.1uF 25V

C665

1nF 50V

C641

NC/33PF 50V

R656 4K7 1/16W 5%

R654

NC/0R05 1/10W

R634

22 OHM 1/4W

D630

BAS316

A

1

K

2

R655 0R05 1/10W

C655

220nF50V

D631

BAS316

A1K

2

R657

1K 1/16W 5%

R639

0R05 1/16W

Q631

BC857BW

1

23

C677

NC/1uF 10V

R640

22 OHM 1/4W

R641

0R05 1/16W

R648 0R05 1/16W

R672

NC/0R05 1/10W

C678

NC/0.1uF 50V

R670

NC/0R05 1/16W

C636

NC/33PF 50V

L630 33UH

C692

NC/1nF 50V

R653

4K7 1/16W 5%

+12V +5V_STB

DVDD3V3

AUD_V33

I2SAMP_RESET 11 AOMCLK_D 6 AOBCLK_D 6 AOLRCK_D 6 AOSDATA 0_ D 6

OSDA0 4

OSCL0 4

GND 2,3,4,5,6,8,9,10,11,12,13,14

AVDD3V3

L632 33UH

ZD631

NC/MM3Z5V6B

AMP_RESET

PVDD

PVDD3

L633 33UH

+5V_SW

C659 1nF 50V

Bathroom_R

AL1O

AR1O

C663 1nF 50V

R632

NC/200R 1/16W 5%

R630

NC/510R 1/16W 5%

R633

NC/510R 1/16W 5%

C631

NC/1nF 50V

C630

NC/1nF 50V

C634

NC/10NF 50V

C635

NC/10NF 50V

HPOUTL

R631

NC/200R 1/16W 5%

Bathroom_L

U603

NC/APA2010

SD

1

NC

2

INP

3

INN4VOP

5

VDD

6

GND

7

VON

8

E-Pad

9

C6810.1uF 25V

PWRDN

C682

0.1uF 25V

R646

6.2 OHM 1/4W

R669

NC/0R05 1/16W

I2SAMP_RESET

C689

NC/100NF 16V

HPOUTR

HPOUTL

C633

0.1uF 50V

C632

0.1uF 50V

CN604

CONN

1

2

3

+12V

+12V 2,3,5

PWRDN

Circuit Diagrams and PWB Layouts

EN 68TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-7 SCART/VGA Input

19431_514_130225.eps

130225

SCART/VGA Input

B07 B07

2012-11-30

C

715G5675

SCART/VGA Input

RED

BLU

GRN

VGACOM

BP

RP

GP

SOG

C1017 NC/10NF 50V

VGA IN

-------><--------------><------- -------><-------

R1023

NC/100R 1/16W 5%

C1022 NC/10NF 50V

C1019 NC/10NF 50V

R1019

NC/10R 1/16W 5%

C1023 NC/10PF 50V

R1021

NC/75 OHM +-5% 1/16W

GRN_GND

R1020

NC/100R 1/16W 5%

R1026

NC/75 OHM +-5% 1/16W

C1020 NC/10NF 50V

R1025

NC/100R 1/16W 5%

C1021 NC/10PF 50V

C1016 NC/1.5NF 50V

C1018 NC/10PF 50V

R1024

NC/75 OHM +-5% 1/16W

R1022

NC/100R 1/16W 5%

RED_GND

BLU_GND

C1010

47PF 50V

R1012

75 OHM +-5% 1/16W

C1009

47NF 16V

CVBS3PSCT1_AV_IN

R1011

100R 1/16W 5%

Audio Input

CVBS IN

SCART (Full SCART) -- CVBS+SV+RGB

FAST BLANKING/SOY

VSYNC# VSYNC

+5V_SW

+5V_SW2,3,5,7,9,12,13,14

VGA SYNC SLICER

HSYNC

C1026 NC/5PF 50V

C1013

NC/10NF 50V

C1027 NC/5PF 50V

C1014

NC/10NF 50V

R1037

NC/100R 1/16W 5%

R1038

NC/100R 1/16W 5%

HSYNC#

ZD1000

NC/MM3Z5V6B

ZD1001

NC/MM3Z5V6B

C1012

1uF 10V

R1018

30Kohm 1/16W +/-5%

C1011 1uF 10V

R1016

30Kohm 1/16W +/-5%

SCART1_R_IN

SCART1_L_IN

R1014

51K 1/16W 5%

R1013

75 OHM +-5% 1/16W

SCART_FS0

R1017

10K 1/16W 5%

SCT1_FS_IN

SOY0

VGA_AudioRIN

SCT1_G_IN

VGA_AudioLIN

VGA_R_IN

VGA_L_IN

SCT1_FB_IN

SCT1_R_IN

SCT1_AUL_IN

SCT1_AV_IN

SCT1_B_IN

VGA AUDIO

VGA_AudioLIN

R1033

30Kohm 1/16W +/-5%

C1024

1uF 10V

SCT1_FS_IN

SCT1_AVO_GND

SCT1_AUR_IN

R1034

30Kohm 1/16W +/-5%

C1025

1uF 10V

VGA Audio Input

SCT1_AV1_GND

CN104

PHONE JACK

1

2

3

VGA_AudioRIN

Function Select

SCART

CN151

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

VGASDA

VGA_L_IN

VGASCL

HSYNC

VGA_R_IN6 VGA_L_IN6

HSYNC6 VSYNC6 RP6 GP6 BP6 VGACOM6 SOG6

VSYNC RP

VGASDA6 VGASCL6

GP BP VGACOM SOG

VGA_R_IN

SCT1_AUL_IN

SCT1_FB_IN

EDID_WEN

EDID_WEN11,13

ZD1002

NC/MM3Z5V6B

ZD1003

NC/MM3Z5V6B

SCT1_AUR_IN

VGA I2C

----------><---------|

VGA_PLUGPWR

----------><---------|

R1032

NC/100R 1/16W 5%

R1027 NC/10K 1/16W 5%

R1031 NC/10K 1/16W 5%

VGA_PLUGPWR

R1029

NC/100R 1/16W 5%

VGASDA

VGASCL

SCART1_L_IN

SCART1_R_IN

VGASCL_IN

SCART1_R_IN6 SCART1_L_IN6

R1015

0R05 1/16W

VGASDA_IN

SCT1_R_IN

R1000

18R 1/16W 5%

R1001 100R 1/16W 5%

R1002

18R 1/16W 5%

C1000

10PF 50V

C1001 10NF 50V

R1003 100R 1/16W 5%

C1002

10PF 50V

C1003 10NF 50V

C1004 10NF 50V

R1004

18R 1/16W 5%

R1005

56R 1/16W 5%

R1006

56R 1/16W 5%

R1007

56R 1/16W 5%

R1008 100R 1/16W 5%

C1006 10NF 50V

SCT1_G_IN

R1009 100R 1/16W 5%

C1007

10PF 50V

SCART IN

-------><-------

PR0P

COM0

PB0P

Y0P

-------><------- -------><-------

SCT1_B_IN

SOY0

Y0P COM0 PB0P PR0P

CVBS3P6

SOY06 Y0P6 COM06 PB0P6 PR0P6

SCART_FS011

GND2,3,4,5,6,7,9,10,11,12,13,14

SCART_FS0

CVBS3P

GND

EDID_WEN

VGASDA

VGASCL

R1028

NC/10K 1/16W 5%

Q1000 NC/BC847C

U110

NC/M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

VGA_PLUGPWR

R1030

NC/10K 1/16W 5%

C1015 NC/100NF 16V

VGA_PLUGPWR

VGA EDID

CN103

NC/D-SUB 15P

1

6

2

7

3

8

4

9

5

11 12 13 14 15

10

1716

BLU_GND

RED

VGA_PLUGPWR

GRN

----------><---------|

VGASCL_IN

VGASDA_IN

D1000 NC/BAS316

A1K

2

D1001 NC/BAS316

A

1

K

2

VSYNC#

HSYNC#

GRN_GND

+5V_SW

BLU

RED_GND

VGA Input

Circuit Diagrams and PWB Layouts

EN 69TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-8 LVDS

19431_515_130225.eps

130225

LVDS

B08 B08

2012-11-30

C

715G5675

LVDS

AVDD33_LVDSA

AVDD3V3

AVDD12_LVDSA

Analog Power

C403 100NF 16V

C404 100NF 16V

C406

NC/1UF 25V

C405

NC/1UF 25V

R415

NC/0R05 1/16W

Temp_sel0

R412

100R 1/10W 5%

BL_DIMMING 11

BL_ON/OFF 11

INVERTER_ON_OFF BL_DIMMING

BRIGHT_ADJ 2

INVERTER_ON_OFF 2

BL_ON/OFF

BRIGHT_ADJ

R405

NC/2KOHM 1/10W

R401

NC/4K7 1/16W 5%

R406

1K 1/10W 5%

R407

4K7 1/16W 5%

Q401 MMBT3904

FB400

120R

1 2

R409

4K7 1/16W 5%

FB401

120R

1 2

C400

NC/10UF 10V

R404

4K7 1/16W 5%

R403

100R 1/10W 5%

R411

NC/10K 1/8W

GND

R408

NC/4K7 1/16W 5%

C402 NC/10UF 16V

R402

1K 1/10W 5%

R400

NC/4K7 1/16W 5%

Q400 MMBT3904

DVDD3V3 3V3SB

+5V_SW

DVDD3V3

DVDD3V3DVDD3V3

PANEL_VCC

Panel_12V

Tem p_sel1

+5V_SW

+5V_SW2,3,5,7,8,12,13,14

BL_ON/OFF

BL_ON/OFF 11

DVDD3V3

DVDD3V32,3,4,5,7,11,12,14

R417

NC/3K3 1/16W 5%

DEMOD_S2_RESET

DEMOD_S2_RESET14

AVDD3V3

AVDD3V32,4,6,7,10,11,12,13

L/R_OUT

L/R_OUT 5

CI_OCP

CI_OCP 12

R410

100R 1/10W 5%

Temp_sel1

R413

100R 1/10W 5%

GND2,3,4,5,6,7,8,10,11,12,13,14

2D/3D_EN

Gamming

T2_RESET

Gamming 5

T2_RESET 12

R418

NC/3K3 1/16W 5%

2D/3D_SEL

K1P

2N 2P

0N

Panel_12V

0P

CN409

NC/HEADER 30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

1P

K1N

3N

1N

3P

DEMOD_S2_RESET

AVDD1V2

AVDD1V22,6,12,13,14

Temp_sel_0

BL_DIMMING

TX_AO2N

TX_AO2P

TX_AO1N

TX_AO1P

TX_AO0N

TX_AO0P

INVERTER_ON_OFF

TX_AOCKP TX_AOCKN

TX_AO3N

TX_AO3P TX_AO4P

TX_AO4N

TX_AE4N

TX_AE4P

TX_AE3N

TX_AE3P

TX_AE1N

TX_AE1P

TX_AE0N

TX_AE0P

TX_AE2P TX_AE2N

TX_AECKN

TX_AECKP

INVERTER ON/OFF

BRIGHT ADJUST

BRIGHT_ADJ

AVDD33_LVDSA AVSS33_LVDSA

DVDD3V3

AVDD12_LVDSA AVSS12_LVDSA

BL_ON/OFF

R

C

RA RB

MTK5580CPOI

U401B

TCON0

C22

TCON1

C23

TCON2

D24

TCON3

B24

TCON4

C25

TCON5

A24

TCON6

D22

TCON7

B25

TCON8

C24

TCON9

E24

TCON10

D25

TCON11

D23

TCON12

A25

AVDD33_LVDSA

A23

AVSS33_LVDSA

G16

AVDD12_LVDSA

B23

AVSS12_LVDSA

H15

AO0P

A16

AO0N

B16

AO1P

A17

AO1N

B17

AO2P

A18

AO2N

B18

AOCKP

A19

AOCKN

B19

AO3P

A20

AO3N

B20

AO4P

A21

AO4N

B21

AO5P

A22

AO5N

B22

AE0P

D16

AE0N

E16

AE1P

C17

AE1N

C16

AE2P

E17

AE2N

D17

AECKP

C19

AECKN

C18

AE3P

E19

AE3N

D19

AE4P

C21

AE4N

C20

AE5P

E21

AE5N

D21

AVSS33_LVDSA

F17

AVSS33_LVDSA

E20

AVSS33_LVDSA AVSS33_LVDSA

Temp_sel_1

CI_OCP Gamming

R416

NC/3K3 1/16W 5%

3V3SB

3V3SB 2,4,5,11,12

T2_RESET

TX_AO3N

TX_AE3N

TP422

TP

TX_AO4N

2D/3D_EN

K1P

TX_AE0N

TX_AE3P

TP423

TP

TX_AE1N

TX_AE4P

2N

TP420

TP

TX_AECKN

K1N

TX_AE4N

TP421

TP

TP403

TP

TP416

TP

TP412

TP

TP410

TP

TP409

TP

TP400

TP

TP414

TP

TP419

TP

TP406

TP

TP405

TP

1N

TP413

TP

CN408

CONN

1

3

5 7 9 11 13 15 17 19 21 23 25 27 29

31 33 35 37 39

41

2 4 6

8

10 12 14 16 18 20 22 24 26 28

30 32 34 36 38

40

42

TX_AE2P

TP411

TP

TP417

TP

TX_AE1P

TP402

TP

TX_AE0P

Panel_12V

TX_AO4P

TP401

TP

TX_AO3P

TP408

TP

TX_AOCKP

TX_AO2P

3P

TP407

TP

TP418

TP

TX_AO1P

TX_AO0N

1P

TX_AO0P

0P0N

TX_AECKP

TP415

TP

TP404

TP

TX_AE2N

TX_AO1N

TX_AO2N

2P

3N

TX_AOCKN

C401

NC/10UF 10V

DVDD3V3

LVDS OUTPUT

L/R_OUT

R414

NC/3K3 1/16W 5%

DVDD3V3

Tem p_sel_1

Tem p_sel_0

2D/3D_SEL

Tem p_sel0

AVDD1V2

Circuit Diagrams and PWB Layouts

EN 70TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-9 DRAM Interface

19431_516_130225.eps

130225

DRAM Interface

B09 B09

2012-11-30

C

715G5675

DRAM Interface

RBA0

RWE#

RRAS# RODT

RCKE

RCAS#

RA5

RA1 RA14

RBA2

RBA1

RA8

RA9

RA11 RA12

RA4

RA3

RA10

RA7

RA6

RA0 RA2

DDR3_RST#

RA13

C4175

10UF 10V

ZQ2

RDQM2

RDQM3

RDQS3 RDQS2

RDQS2#

RDQS3#

RP415322 OHM

1 2

3

4

8

7 6 5

DDRV

CS# RCS#

C4160

NC/10UF 10V

CSX# RCSX#

U402

H5TQ2G63DFR-PBC

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

C4192

10uF 16V

RP4152 22 OHM

1 2

3

4

8

7 6 5

2_DDR3_RST#

C4184 NC/100NF 16V

RVREF4

C4157 100NF 16V

R4161

1Kohm 1/16W +/-1%

C4153

NC/100NF 16V

R4164

1Kohm 1/16W +/-1%

DDRV

R4168

240 OHM +-5% 1/16W

R4158

22R 1/16W 5%

C4159

100NF 16V

RVREF0

R4155

1Kohm 1/16W +/-1%

R4162

1Kohm 1/16W +/-1%

C4165

NC/100NF 16V

DDRV

R4169

22R 1/16W 5%

RVREF5

C4194

NC/10uF 16V

RP4161 22 OHM

1 2

3

4

8

7 6 5

C4191 100NF 16V

RP4151 22 OHM

1 2

3

4

8

7 6 5

RP4154 22 OHM

1 2

3

4

8

7 6 5

RVREF2

RP4155 22 OHM

1 2

3

4

8

7 6 5

C4183

10UF 10V

Chip bottom

C4193

10UF 10V

C4190

10UF 10V

RVREF3

CLK0#

CLK0 CS#

1_RRAS#

1_RODT

1_RCKE

1_RCAS#

1_RA14

1_RBA2

1_RBA1

1_RBA0

1_RWE#

1_RA9 1_RA11

1_RA12

1_RA4 1_RA5

1_RA1

1_RA7

1_RA6

1_RA0 1_RA2

1_RA8

1_RA13

1_RA3

1_RA10

C4156

100NF 16V

RVREF5

R4159

1Kohm 1/16W +/-1%

R4163

1Kohm 1/16W +/-1%

C4152

NC/100NF 16V

DDRV

C4187

10UF 10V

R4167

240 OHM +-5% 1/16W

RP4156

22 OHM

1 2

3

4

8

7 6 5

C4188

100NF 16V

AVDD3V3 2,4,6,7,9,11,12,13

AVDD3V3

RP4157 22 OHM

1 2

3

4

8

7 6 5

C4178

10UF 10V

DVDD3V3 2,3,4,5,7,9,11,12,14

DVDD3V3

1_DDR3_RST#

2_RA1

2_RA8 2_RA9

2_RA11 2_RA12

2_RA4 2_RA5

2_RA10

2_RA7

2_RA6

2_RA0 2_RA2

2_RODT

2_RCKE

2_RCAS#

2_RA13

2_RA3

2_RBA2

2_RBA1

2_RBA0

2_RWE#

CSX#

2_RRAS#

+

C4189

NC/100UF 16V

CLK1 CLK1#

2_RA14

C4185 NC/100NF 16V

RDQS0#

RDQS1 RDQS1#

RDQS2 RDQS2#

RDQS0

RDQM2 RDQM3

RDQM1

RDQS3 RDQS3#

RDQ6 RDQ7

RDQ3

RDQ2

RDQ1

RDQM0

RDQ14 RDQ15

RDQ4

RDQ0

RDQ5

RDQ11 RDQ12

RDQ8

RDQ13

RDQ9

RDQ30

RDQ19

RDQ31

RDQ17

RDQ16

RDQ10

RDQ23

RDQ28

RDQ20 RDQ21

RDQ18

RDQ25

RDQ24

RDQ27 RDQ29

RDQ22

RVREF0

AVSS33_MEMPLL

AVDD33_MEMPLL

RDQ26

RA12

RA7

RA11 RA13

RA14

RA8

RA4 RA5

RA10

RA9

RA0 RA2

RA1

RA6

RA3

C4186 NC/100NF 16V

RCLK1#

RCLK0#

RCLK0

RBA1

RBA0 RBA2

RWE#

RCKE

RCSX#

RCS#

RCLK1

RODT

DDR3_RST#

RRAS#

RCAS#

MTK5580CPOI

U401A

RDQ0

C1

RDQ1

H3

RDQ2

D3

RDQ3

H2

RDQ4

C2

RDQ5

J1

RDQ6

B1

RDQ7

J2

RDQ8

J4

RDQ9

F5

RDQ10

H4

RDQ11

E4

RDQ12

H5

RDQ13

G3

RDQ14

J3

RDQ15

G4

RDQ16

A14

RDQ17

B9

RDQ18

B14

RDQ19

A9

RDQ20

B15

RDQ21

C8

RDQ22

C14

RDQ23

C9

RDQ24

D10

RDQ25

F14

RDQ26

E10

RDQ27

E14

RDQ28

D13

RDQ29

F13

RDQ30

E12

RDQ31

E13

RDQS0

D2

RDQS0#

D1

RDQS1

F1

RDQS1#

F2

RDQS2

A13

RDQS2#

B13

RDQS3

A11

RDQS3#

B11

RDQM0

G2

RDQM1

G5

RDQM2

B10

RDQM3

C13

AVDD33_MEMPLL

C10

AVSS33_MEMPLL

G10

RVREF

E3

RA0

D4

RA1

D8

RA2

C5

RA3

B6

RA4

E7

RA5

C4

RA6

D6

RA7

B5

RA8

C7

RA9

A6

RA10

F9

RA11

D5

RA12

E6

RA13

C6

RA14

D7

RBA0

B7

RBA1

D9

RBA2

A7

RCLK0

E2

RCLK0#

E1

RCLK1

B12

RCLK1#

A12

RCS#

B3

RCSX#

A3

RCKE

E9

RWE#

C3

RCAS#

B2

RRAS#

A2

DDR3_RST#

A5

RODT

A1

DDRV

J5

DDRV

K7

DDRV

K6

DDRV

K5

DDRV

K4

DDRV

K3

DDRV

K2

DDRV

K1

DDRV

H7

MEMTP

G11

MEMTN

G12

AVDD3V3

DDRV

AVDD33_MEMPLL

RDQS0 RDQS0#

RDQS1#

RP4158 22 OHM

1 2

3

4

8

7 6 5

RDQ6 RDQ7

RDQ3

RDQ2

RDQ1

RDQS1

RDQ14 RDQ15

RDQ4

RDQ0

RDQ5

DDR3#2-128Mx16-1600MHz

RDQ11 RDQ12

RDQ8

RDQ13

RDQ9

RDQM0

RDQM1

RDQ10

RP4159 22 OHM

1 2

3

4

8

7 6 5

RDQ17

RDQ16

RDQ21

RDQ18

RDQ30

RDQ19

RDQ31

RDQ27 RDQ29

RDQ22 RDQ23

RDQ28

RDQ20

RDQ26

RDQ25

RDQ24

CAPs for DRAM IO Power

Damping for DDR#2 ADDR/CMD

DDR3#1-128Mx16-1600MHz

Damping for DDR#1 ADDR/CMD

RVREF2

CAPs for DRAM IO Power

RCLK1

CLK0

CLK0#

CLK1

CLK1#

RCLK0

RCLK0#

RCLK1#

Damping and T ermination for CLK

C4169 100NF 16V

C4155

100NF 16V

C4177 100NF 16V

R4160

1Kohm 1/16W +/-1%

C4171 100NF 16V

C4180 100NF 16V

C4182 NC/100NF 16V

R4150

1Kohm 1/16W +/-1%

C4176 100NF 16V

C4161 100NF 16V

C4170

NC/10uF 16V

C4167 100NF 16V

R4156

100R 1/16W 5%

C4150 100NF 16V

C4166 100NF 16V

RVREF3

R4165

1Kohm 1/16W +/-1%

C4158

100NF 16V

R4166

1Kohm 1/16W +/-1%

DDRV

C4154

NC/100NF 16V

C4151

NC/100NF 16V

C4162 100NF 16V

DDRV 2

RVREF4

DDRV

2_RCAS#

ZQ1

2_RBA0

2_RWE#

2_RRAS# 2_RODT

2_RCKE

R4152

100R 1/16W 5%

2_RA4

2_RA5

2_RA1 2_RA14

2_RBA2

2_RBA1

C4179 100NF 16V

2_RA2

2_RA8

2_RA9

2_RA11 2_RA12

2_RA3

2_RA10

2_RA7

2_RA6

2_RA0

C4181 100NF 16V

RP4160

22 OHM

1 2

3

4

8

7 6 5

2_DDR3_RST# 2_RA13

U403

H5TQ2G63DFR-PBC

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

RP4150 22 OHM

1 2

3

4

8

7 6 5

C4174

NC/10uF 16V

C4163 100NF 16V

C4173

100NF 16V

C4168 100NF 16V

C4164 100NF 16V

DDRV

C4172

10UF 6.3V 20%

DDRV

GND 2,3,4,5,6,7,8,9,11,12,13,14

RWE#

RCKE

DDR3_RST#

RA4 RA1

RA14

RBA2

RBA1

RBA0

RA6 RA8

RA9

RA11

RA12

RODT RRAS#

RA13

RA3

RA10

RCAS#

RA7

RA0

RA2 RA5

1_RA12

1_RA4 1_RA1

1_RCAS#

1_RA3

1_RA10

1_RA6 1_RA8

1_RA9

1_RA11

1_RBA1

1_RBA0

1_RRAS#

1_RA14

1_RA13

1_RA5

1_RWE#

1_RCKE

1_RODT

1_RBA2

1_DDR3_RST#

1_RA7

1_RA0

1_RA2

Circuit Diagrams and PWB Layouts

EN 71TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-10 MII/GPIO/SERVAD

19431_517_130225.eps

130225

MII/GPIO/ServAD

B10 B10

2012-11-30

C

715G5675

MII/GPIO/ServAD

EDID_WEN

ARC3_EN13

EDID_WEN8,13

ARC2_EN ARC3_EN

ARC1_EN13 ARC2_EN13

ARC1_EN

DVDD3V3 2,3,4,5,7,9,12,14

DVDD3V3

R4254

0R05 1/16W

R4255

NC/0R05 1/16W

C4256

1UF 25V

3V3SBAVDD3V3

AVDD3V3

AVDD33_ETH

C4254

100NF 16V

AVDD33_USB

C4255

100NF 16V

PANEL_VCC_ON/OFF

BL_ON/OFF 9

BL_ON/OFF

BL_ON/OFF 9

BL_DIMMING 9

BL_ON/OFF

BL_DIMMING

KEY_UP_DN_DCSW

BL_ON/OFF

CI_PWR_EN 12

CI_PWR_EN

EDID_WEN

R4263 4K7 1/16W 5%

Tem p_o ut

VCCK 2,4

VCCK

PANEL_VCC_ON/OFF

KEY_MENU_L_R_SOURCE

U4251

BD1020HFVTR

N.C.

1

PG

2

VOUT

3

VDD

4

GND

5

Thermal Sensor

Temp_out

C4264

100NF 16V

DVDD3V3

C4265

100NF 16V

I2SAMP_RESET

I2SAMP_RESET 7

USB_DP_P0 5 USB_DM_P0 5

MTK5580CPOI

U401G

GPIO0

P7

GPIO1

AA7

GPIO2

U7

GPIO3

Y5

GPIO4

AD1

GPIO5

W7

GPIO6

AC3

GPIO7

U6

GPIO8

V6

GPIO9

Y6

OPCTRL0

AC9

OPCTRL1

AB8

OPCTRL2

Y7

OPCTRL3

Y12

OPCTRL4

AA10

ADIN0_SRV

W12

ADIN1_SRV

V11

ADIN2_SRV

AA9

ADIN3_SRV

AA6

ADIN4_SRV

AB7

ADIN5_SRV

AB9

OPWM0

G23

OPWM1

F23

OPWM2

E22

OPWM3

E23

OPWM4

G21

OPWM5

G22

OPWM6

F22

SCART_FS1CI_PWR_EN

SYS_EEPROM_WP

USB_PWR_EN0

SCART_FS0

OPCTRL3 OPCTRL4

OPCTRL0 LED_R

PANEL_VCC_ON/OFF3

KEY_MENU_L_R_SOURCE 5

ARC1_EN

SCART_FS08

SCART_FS0

I2SAMP_RESET

ARC2_EN

R4262

4K7 1/16W 5%

TP4005

TP4004

TP4003

LED_R 4,5

LED_R

KEY_MENU_L_R_SOURCE

Light_Sensor 5

Light_Sensor

C4260

0.1uF 25V

C4263

0.1uF 25V

SEPARATE GROUND

RJ45

TXVN

TXVP

SYS_EEPROM_WP4

SYS_EEPROM_WP

RXVP

C4258 10NF 50V

C4259 10NF 50V

C4262

10NF 50V

C4261

100NF 16V

RXVN

USB_DM_P0

ARC3_EN

DVDD3V3

VCCK

MTK5580CPOI

U401E

VCCK

M6

VCCK

L6

VCCK

M5

VCCK

L5

VCCK

M4

VCCK

L4

VCCK

M3

VCCK

L3

VCCK

M2

VCCK

L2

VCCK

M1

VCCK

L1

VCCK

M8

VCCK

L8

VCCK

M7

VCCK

L7

VCCK

N8

VCCK

N9

VCCK

N5

VCCK

U13

VCCK

U14

VCCK

R17

DVSS

N10

DVSS

P10

DVSS

P8

DVSS

H6

DVSS

T13

DVSS

K11

DVSS

L11

DVSS

M11

DVSS

N11

DVSS

P11

DVSS

R11

DVSS

R10

DVSS

U9

DVSS

J12

DVSS

K12

DVSS

L12

DVSS

M12

DVSS

N12

DVSS

P12

DVSS

R12

DVSS

W18

DVSS

T11

DVSS

J13

DVSS

K13

DVSS

L13

DVSS

M13

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T12

DVSS

J14

DVSS

K14

DVSS

L14

DVSS

M14

DVSS

N14

DVSS

P14

DVSS

R14

VCC3IO_C

AA4

VCC3IO

E25

VCC3IO_B

AB3

DVSS

E5

DVSS

F6

DVSS

J6

DVSS

P15

DVSS

N15

DVSS

M15

DVSS

L15

DVSS

K15

DVSS

K17

DVSS

T14

DVSS

U17

DVSS

T15

DVSS

T16

DVSS

N17

DVSS

L17

DVSS

V12

DVSS

R16

DVSS

P16

DVSS

N16

DVSS

M16

DVSS

L16

DVSS

M10

DVSS

L10

DVSS

K10

DVSS

M9

DVSS

L9

DVSS

K9

DVSS

J9

DVSS

M17

DVSS

R15

VCCK

H14

VCCK

J15

VCCK

N6

VCCK

J10

VCCK

U10

VCCK

J11

VCCK

K16

DVSS

F8

DVSS

C11

DVSS

G1

DVSS

T10

DVSS

G7

DVSS

U8

DVSS

V8

DVSS

J16

DVSS

J17

DVSS

L18

VCCK

P9

VCCK

R9

VCCK

T9

VCCK

U11

VCCK

U12

VCCK

U15

VCCK

U16

VCCK

T17

DVSS

F7

DVSS

G14

DVSS

D15

DVSS

G8

DVSS

G9

DVSS

C12

DVSS

E15

DVSS

F15

VCCK

Light_Sensor

EDID_WEN

AVSS33_USB

AVDD33_USB

AVSS33_LD

AVDD33_ETH

AVSS33_COM

AVSS33_ELDO

RXVP

AVDD10_ELDO

REXT

USB_DM_P0

USB_DP_P0

TXVP

TXVN

RXVN

MTK5580CPOI

U401F

USB_DP_P0

U24

USB_DM_P0

U25

USB_DP_P1

T24

USB_DM_P1

T25

GPIO10

R24

GPIO11

R25

AVDD33_USB

P25

AVSS33_USB

P17

RXVN_1

AD2

RXVP_1

AE2

TXVN_0

AD3

TXVP_0

AE3

REXT

AE1

AVDD33_ETH

AD4

AVSS33_LD

Y8

AVSS33_ELDO

V9

AVSS33_COM

W8

AVDD10_ELDO

AE4

R4253

24K 1%

C4257

4U7 10V

USB_PWR_EN0 5

KEY_UP_DN_DCSW

USB_DP_P0

TP4006

USB_PWR_EN0

CN4252

couplier assembly

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

TH2

10

TH1

9

3V3SB

3V3SB2,4,5,9,12

T2_RESET

T2_RESET 9,12

TP4007

KEY_UP_DN_DCSW5

GND 2,3,4,5,6,7,8,9,10,12,13,14

AVDD3V3 2,4,6,7,9,10,12,13

AVDD3V3

OPCTRL4 OPCTRL0

OPCTRL3

OPCTRL34 OPCTRL04,5

OPCTRL44

BL_DIMMING

Circuit Diagrams and PWB Layouts

EN 72TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-11 T2 Demod/CI Card

19431_518_130225.eps

130225

T2 Demod/CI Card

B11 B11

2012-11-30

C

715G5675

T2 Demod/CI Card

C107310UF 6.3V 20%

CIGPIO21

CIGPIO27

CIGPIO20

CIGPIO26

CIGPIO24

CIGPIO23

CIGPIO29

CIGPIO22

CIGPIO28

CIGPIO1

CIGPIO7

CIGPIO0

CIGPIO6

CIGPIO25

CIGPIO5

CIGPIO4

CIGPIO3

CIGPIO9

CIGPIO2

CIGPIO8

CIGPIO18

CIGPIO11

CIGPIO17

CIGPIO10

CIGPIO16

CIGPIO15

CIGPIO14

CIGPIO13

CIGPIO19

CIGPIO12

CIGPIO37

CIGPIO30

CIGPIO36

CIGPIO54

CIGPIO46

CIGPIO53

CIGPIO33

CIGPIO39

CIGPIO32

CIGPIO38

CIGPIO31

CIGPIO47

CIGPIO41

CIGPIO40

CIGPIO35

CIGPIO34

CIGPIO43

CIGPIO49

CIGPIO42

CIGPIO56

CIGPIO48

CIGPIO55

CIGPIO52

CIGPIO45

CIGPIO51

CIGPIO44

CIGPIO50

MTK5580CPOI

U401H

CIGPIO0

H22

CIGPIO1

K23

CIGPIO2

K25

CIGPIO3

L25

CIGPIO4

L23

CIGPIO5

H16

CIGPIO6

H18

CIGPIO7

P23

CIGPIO8

K18

CIGPIO9

N21

CIGPIO10

P18

CIGPIO11

N20

CIGPIO12

H19

CIGPIO13

P24

CIGPIO14

K19

CIGPIO15

N23

CIGPIO16

U23

CIGPIO17

M18

CIGPIO18

AA21

CIGPIO19

N25

CIGPIO20

N24

CIGPIO21

U21

CIGPIO22

U22

CIGPIO23

J22

CIGPIO24

J21

CIGPIO25

M23

CIGPIO26

H23

CIGPIO27

H25

CIGPIO28

H24

CIGPIO29

Y19

CIGPIO30

U19

CIGPIO31

U20

CIGPIO32

T20

CIGPIO33

T19

CIGPIO34

H21

CIGPIO35

H20

CIGPIO36

G25

CIGPIO37

V18

CIGPIO38

U18

CIGPIO39

T22

CIGPIO40

T21

CIGPIO41

T18

CIGPIO42

AA23

CIGPIO43

N19

CIGPIO44

J19

CIGPIO45

J23

CIGPIO46

K24

CIGPIO47

N18

CIGPIO48

L22

CIGPIO49

J20

CIGPIO50

N22

CIGPIO51

Y22

CIGPIO52

G24

CIGPIO53

Y21

CIGPIO54

Y20

CIGPIO55

H17

CIGPIO56

L24

R1051 100K 1/16W 5%

OSDA2

C1064100NF 16V

C107410UF 6.3V 20%

FB1050 120R

1 2

DVDD3V3 2,3,4,5,7,9,11,14

DVDD3V3

R1063

10K 1/16W 5%

R1064

10K 1/16W 5%

C1078100NF 16V

C1079100NF 16V

R1066

10K 1/16W 5%

R1065

10K 1/16W 5%

CI_CD2# CI_OUT_TSCLKCI_WAIT#CI_CD1# CI_VS1#

CI_IREQ#

CI_VCCCI_DVDD3V3

CI_VCC

CI_DVDD3V3

CI_DVDD3V3DVDD3V3

CI_VCC CI_VCCCI_DVDD3V3

CI_CE2#

R1067

NC/10K 1/16W 5%

R1068

10K 1/16W 5%

R1069

10K 1/16W 5%

R1070 0R05 1/16W

C1077100NF 16V

AVDD1V2

C1067100NF 16V

C107510UF 6.3V 20%

TUNER_DATA

TUNER_CLK14

TUNER_DATA14

TUNER_CLK

VCCK 2,4,11

VCCK

C1068100NF 16V

3V3SB 2,4,5,9,11

3V3SB

AVDD12_DEMOD

CI_OUTDATA5

CI_CD2#

CI_CE2#

CI_OUTDATA3

CI_VS1#

CI_OUTSYNC

CI_OUTVALID

CI_INDATA2

CI_OUTDATA4

CI_OUTDATA7

CI_INSYNC

CI_IOWR#

CI_OUTDATA6

CI_INDATA0

CI_REG#

CI_IORD#

CI_CD1#

CI_INDATA4

CI_INDATA7

CI_INDATA6

CI_INDATA5

CI_INDATA3

CI_INDATA1

R1055

10K 1/16W 5%

CI_OUT_TSCLK

CI_OUTDATA2

CI_OUTDATA1

CI_OUTDATA0

CI_WAIT#

CI_RESET

CI_VCC CI_VCC

C1069100NF 16V

DEMOD_TSCLK

R1133 0R05 1/16W

R1103 0R05 1/16W

R1054

4K7 1/16W 5%

R1134 0R05 1/16W

R1116 0R05 1/16W

DEMOD_TS2

R1117 0R05 1/16W

R1135 0R05 1/16W

R1053

4K7 1/16W 5%

CIGPIO25 CIGPIO24

PAD_CHIP_CTRL

DVDD3V3

CIGPIO18

CIGPIO22

CIGPIO23

C1085

NC/10UF 6.3V 20%

CIGPIO21 CIGPIO19

CIGPIO20

U105

NC/G9661

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

R1128 0R05 1/16W

DEMOD_TS3

DEMOD_TS7

R1093

NC/5K1 1/10W 1%

C105310UF 10V

DEMOD_TS1

R1094

NC/10K 1/10W 1%

C1086

10UF 6.3V 20%

DVDD11

CIGPIO17 CIGPIO16

R1061 10K 1/16W 5%R1129 0R05 1/16W

C1087

NC/1UF 10% 16V

C1088

10UF 6.3V 20%

R1112 22R 1/16W 5%

R1059 4K7 1/16W 5%

R1091 0R05 1/16W

R1100 22R 1/16W 5%

R1056

NC/39K 1/16W 5%

+5V_SW

R1089 0R05 1/16W

C1058100NF 16V

RP1061

22R

1 2

3

4

8

7 6 5

R1090 0R05 1/16W

R1105 22R 1/16W 5%

PCMCIA

CN159

PCMICA CARD

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY#:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

DEMOD_TS0

R1111 22R 1/16W 5%

MT5136AN

U103

DVDD331DVDD113RSTN2AVDD33_RSSI4ADIN05LOUTN6LOUTP7AVDD33_DEMOD8AVSS33_DEMOD9XTALI10AVSS33_XTAL11XTALO

12

AVDD33_XTAL

13

EXT_CLKSEL

14

AVSS12_DEMOD

15

IFPGA_INN

16

IFPGA_INP

17

AVDD12_DEMOD

18

AVDD33_IFPGA

19

DVDD11

20

CHIP_CTRL

21

TUNER_DATA

22

TUNER_CLK

23

DVDD33

24

IF_AGC

25

RF_AGC

26

DVDD1127TS_ERR

28

TS_DATA729TS_DATA630TS_DATA5

31

DVDD3332DVDD11

33

TS_DATA434TS_DATA335TS_DATA2

36

TS_DATA1

37

GPIO1

38

DVDD33

39

GPIO2

40

DVDD11

41

TS_DATA0

42

TS_SYNC

43

TS_VAL

44

TS_CLK

45

SDA

46

SCL

47

DGND33

48

EPAD

49

R1099 22R 1/16W 5%

C1061100NF 16V

R1130 0R05 1/16W

R1058

4K7 1/16W 5%

C1070100NF 16V

FB1052

120R

1 2

R1107 22R 1/16W 5%

DEMOD_TS6

C1057100NF 16V

C1084

8.2PF 50V

C1059100NF 16V

R1062 100R 1/16W 5%

C1055

NC/100NF 16V

R1110 22R 1/16W 5%

R1060

4K7 1/16W 5%

R1057

NC/4K7 1/16W 5%

R1096 0R05 1/16W

R1108 22R 1/16W 5%

C107647NF 16V

R1098 22R 1/16W 5%

R1095 22R 1/16W 5%

X1050

27MHz

1

2 4

3

DEMOD_TSSYNC

R1114

10K 1/16W 5%

R1109 22R 1/16W 5%

R1052

NC/0R05 1/16W

R1106 22R 1/16W 5%

R1097 22R 1/16W 5%

C1052100NF 16V

U102

APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

RP1062 22R

1 2

3

4

8

7 6 5

R1101 22R 1/16W 5%

R1131 0R05 1/16W

C1060100NF 16V

C1083

8.2PF 50V

R1102 0R05 1/16W

C1056NC/10UF 6.3V 20%

R1092 0R05 1/16W

DEMOD_TS5

DVDD3V3

3V3SB

DVDD33

AVDD12_DEMOD

AVDD33_IFPGA

C1051

1UF 10% 16V

AVDD33_DEMOD

AVDD33_RSSI

DVDD33

DVDD11

AVDD33_XTAL

Reset

PAD_RSTN_1

XTALO

XTALI

Xtal

CIGPIO15

FEF

DVDD33

P3_DEMOD_TS_DATA1

DEMOD_TSVALI D

T2_RESET

TS2

P3_DEMOD_TS_VAL

TS3

TUNER_CLK TUNER_DATA

XTALI

P3_DEMOD_TS_DATA3

P3_DEMOD_TS_SYNC

TS1

P3_DEMOD_TS_DATA0

TS0

R1132 0R05 1/16W

XTALO

TSVALI D

EFUSE

TSSYNC

P3_DEMOD_TS_DATA4

P3_DEMOD_TS_ERR

TSCLK

TS7

P3_DEMOD_TS_DATA2

P3_DEMOD_TS_DATA6

P3_DEMOD_TS_DATA5

IF_AGC_M

DEMOD_TS4

IF_AGC

P3_DEMOD_TS_DATA7

TS5

TS6

MT5136 IC

P3_DEMOD_TS_CLK

TS4

IF_N

IF_P

PAD_RSTN_1

+5V_SW

DVDD3V3

CI_VCC

GND2,3,4,5,6,7,8,9,10,11,13,14

IF_N14

IF_P14

IF_N

IF_P

CI interface

CI Bus Power Control

PCMCIA 5V Slot

CI_OCP 9

CI_OCP

C1065100NF 16V

OSDA2 6,14

OSCL2 6,14

OSDA2

OSCL2

DVDD3V3

+5V_SW2,3,5,7,8,9,13,14

+5V_SW

R1124 47R 1/16W 5%

R1127 47R 1/16W 5%

R1122 47R 1/16W 5%

R1121 22R 1/16W 5%

CI_OUT_TSCLK

CIGPIO4CI_A4

CIGPIO27CI_D1

CIGPIO53CI_IORD#

CIGPIO10CI_A10

CIGPIO9CI_A9

CIGPIO8CI_A8

+

C1054

NC/100UF 16V

R1085 22R 1/16W 5%

CI_OUTDATA3

CIGPIO50CI_WAIT#

CI_INDATA3

CI_INDATA4

CI_INDATA0

CI_OUTDATA5

CI_INSYNC

CI_OUTDATA7

CIGPIO13CI_A13

CIGPIO12CI_A12

CI_IN_TSCLK

CI_OUTDATA2

CI_INVALID

DVDD3V3

CIGPIO6CI_A6

TSCLK

CIGPIO14CI_A14

CI_OUTVALID

CI_OUTDATA4

CI_OUTDATA6

CIGPIO32CI_D6

CIGPIO41

CI_INDATA7

CI_INDATA6

CI_INDATA5

CI_INDATA2

CI_OUTSYNC

CIGPIO43CI_OE#

CIGPIO42CI_CE1#

CIGPIO5CI_A5

CI_OUTDATA0

CIGPIO48

CIGPIO47CI_VS1#

CIGPIO46

CIGPIO45

CIGPIO44CI_WE#

TSVALI D

CIGPIO54CI_IOWR#

CIGPIO51CI_CD1#

CIGPIO11CI_A11

CIGPIO28CI_D2

CIGPIO7CI_A7

TS4

TS0

TSSYNC

CIGPIO56CI_REG#

CIGPIO0CI_A0

CIGPIO30CI_D4

CIGPIO39

CIGPIO37

TS5

TS2

TS3

CIGPIO52CI_CD2#

CIGPIO34

CIGPIO40

CIGPIO33CI_D7

CIGPIO1CI_A1

CIGPIO36

CIGPIO2CI_A2

TS7

TS6

CIGPIO55CI_RESET CIGPIO3CI_A3

CIGPIO31CI_D5

CIGPIO38

CIGPIO29CI_D3

R1125 47R 1/16W 5%

CI_OUTDATA1

R1072 22R 1/16W 5%

R1084 22R 1/16W 5%

R1120 22R 1/16W 5%

CIGPIO26CI_D0

R1080 22R 1/16W 5%

R1083 22R 1/16W 5%

TS1

R1123 47R 1/16W 5%

R1118 47R 1/16W 5%

C1081

NC/10PF 50V

R1086 47R 1/16W 5%

R1077 47R 1/16W 5%

C1082100NF 16V

R1104 47R 1/16W 5%

R1081 22R 1/16W 5% R1082 22R 1/16W 5%

R1075 22R 1/16W 5%

C1080

NC/10PF 50V

R1115 47R 1/16W 5%

R1119 22R 1/16W 5%

R1126 47R 1/16W 5%

CIGPIO49CI_IREQ#

CIGPIO35

CI_INDATA1

C1066100NF 16V

AVDD3V3 2,4,6,7,9,10,11,13

AVDD3V3

CI_PWR_EN

IF_AGC6,14

IF_AGC

DVDD11

AVDD33_IFPGA

AVDD33_RSSI

AVDD33_XTAL

AVDD3V3

AVDD33_DEMOD

AVDD1V2

FB1054

120R

1 2

AVDD1V2 2,6,9,13,14

AVDD1V2

CI_OCP

DEMOD_TSVALID14

DEMOD_TSSYNC14

DEMOD_TS114

DEMOD_TS014

DEMOD_TSCLK14

DEMOD_TS414

DEMOD_TS314

DEMOD_TS214

DEMOD_TS714

DEMOD_TS614

DEMOD_TS514

DEMOD_TSCLK

DEMOD_TS1

DEMOD_TS0

DEMOD_TS3

DEMOD_TSVALI D

DEMOD_TSSYNC

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

DEMOD_TS7

DEMOD_TS2

FB1053

120R

1 2

C107210UF 6.3V 20%

CI_PWR_EN 11

CI_PWR_EN

R1074

4K7 1/16W 5%

CI_INVALID

CI_OE#

CI_CE1#

CI_A13

CI_D6 CI_D7

CI_A6

CI_A7

CI_D5

CI_A10

CI_IREQ#

CI_A1

CI_A2

CI_A8

CI_A9

CI_A11

CI_A4

CI_A5

CI_D1

CI_D0

CI_A12

CI_D3

CI_A0

CI_D2

CI_A14

CI_A3

C107110UF 6.3V 20%

CI_VCC

CI_WE#

CI_IN_TSCLK

CI_D4

CI_VCC

R1076

4K7 1/16W 5%

OSCL2

C1062100NF 16V

C1063100NF 16V

T2_RESET 9

T2_RESET

FB1051

120R

1 2

FEF

FEF 14

Circuit Diagrams and PWB Layouts

EN 73TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-12 HDMI SW/Connector

19431_519_130225.eps

130225

HDMI SW/Connector

B12 B12

2012-11-30

C

715G5675

HDMI SW/Connector

C501 100NF 16V

C502 100NF 16V

HDMI 2 INPUT

RX1_2+

C512 100NF 16V

GND2,3,4,5,6,7,8,9,10,11,12,14

GND

ARC

AVDD3V3

ARC3_HDMI

C511

NC/1uF 10V

R547

NC/82R

ARC3_EN

R548

NC/4K7 1/16W 5%

R550

NC/0R05 1/16W

R549

NC/100K 1/16W 5%

AVDD3V3

U515

NC/74LVC1G125GV

24

5

1

3

R551

NC/0R05 1/16W

AVDD3V32,4,6,7,9,10,11,12

AVDD3V3

C513 100NF 16V

Audio Reture Channel (ARC)

ARC

AVDD3V3

R533

180ohm 1/16W +/-5%

ARC1_HDMI

C508

1uF 10V

R535

82R

R534

100K 1/16W 5%

ARC1_EN

R538

NC/0R05 1/16W

R536

NC/4K7 1/16W 5%

R537

NC/0R05 1/16W

AVDD3V3

U512

NC/74LVC1G125GV

24

5

1

3

R553

NC/1K2 OHM

RX1_2-

AVDD1V22,6,9,12,14

EDID_WEN8,11

EDID_WEN

AVDD1V2

HPLUGP2_5V

R510910R

R504 100R 1/16W 5%

+5V_SW

HPLUGP1_5V

SCL_1 SDA_1

PWR5V_1

------><-------

PWR5V_1

RX1_1-

RX1_1+

RX1_2-

RX1_2+

CEC_1

RX1_C-

RX1_C+

RX1_0-

RX1_0+

HPLUGP1_5V

HPD1

HPLUGP1_5V

HDMI1_SDA

HDMI1_SCL

------><-------

HDMI 1 EDID EEPROM

EDID_WEN

HDMI1_SDA

HDMI1_SCL

R508

47K 1/16W 5%

R512

33R 1/16W 5%

C503

100NF 16V

R514

4K7 1/16W 5%

D503 BAS316

A1K

2

R509470K 1/16W 5%

ZD501NC/PDZ24B

12

R505 100R 1/16W 5%

R507

47K 1/16W 5%

D504 BAS316

A1K

2

CN501

HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

R513

75 OHM +-5% 1/16W

C504100NF 16V

D505BAS316

A

1

K

2

ARC6

ARC

U504

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

R511

75 OHM +-5% 1/16W

R506

10K 1/16W 5%

Q502

BC847C

R522

75 OHM +-5% 1/16W

+5V_SW

RX1_0-

RX1_C+

R517910R

HDMI_CEC

AVDD33_HDMI_3_RX

AVDD12_HDMI_3_RX

AVDD12_HDMI_2_RX

AVSS33_HDMI_3_RX

AVSS33_HDMI_RX

AVDD33_HDMI_RX

AVDD12_HDMI_1_RX

MTK5580CPOI

U401D

HDMI_1_RX_0

P4

HDMI_1_RX_0B

P3

HDMI_1_RX_1

R2

HDMI_1_RX_1B

R1

HDMI_1_RX_2

R4

HDMI_1_RX_2B

R3

HDMI_1_RX_C

N4

HDMI_1_RX_CB

N3

HDMI_1_SCL

P5

HDMI_1_SDA

P6

HDMI_1_HPD

T8

HDMI_2_RX_0

U2

HDMI_2_RX_0B

U1

HDMI_2_RX_1

U4

HDMI_2_RX_1B

U3

HDMI_2_RX_2

V4

HDMI_2_RX_2B

V3

HDMI_2_RX_C

T4

HDMI_2_RX_CB

T3

HDMI_2_SCL

T5

HDMI_2_SDA

T6

HDMI_2_HPD

T7

HDMI_3_RX_0

Y25

HDMI_3_RX_0B

Y24

HDMI_3_RX_1

W25

HDMI_3_RX_1B

W24

HDMI_3_RX_2

V25

HDMI_3_RX_2B

V24

HDMI_3_RX_C

AA25

HDMI_3_RX_CB

AA24

HDMI_3_SCL

W3

HDMI_3_SDA

W4

HDMI_3_HPD

W5

HDMI_CEC

U5

AVDD12_HDMI_RX

W1

AVDD12_HDMI_RX

W2

AVDD12_HDMI_3_RX

AB24

AVDD33_HDMI_RX

N2

AVDD33_HDMI_3_RX

AB25

AVSS33_HDMI_RX

N7

AVSS33_HDMI_3_RX

R18

R552

0R05 1/16W

RX1_C-

R523910R

R520

47K 1/16W 5%

U507

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

SCL_2

------><-------

SDA_2

PWR5V_2

RX2_2+

PWR5V_2

RX2_0-

RX2_0+

RX2_1-

RX2_1+

RX2_2-

CEC_2

RX2_C-

RX2_C+

HDMI2_SDA

HPLUGP2_5V

HDMI2_SCL

EDID_WEN

HDMI2_SCL

D507 BAS316

A1K

2

------><-------

C506100NF 16V

ZD502NC/PDZ24B

12

HDMI 2 EDID EEPROM

HDMI2_SDA

R525

4K7 1/16W 5%

R518

10K 1/16W 5%

R519

47K 1/16W 5%

R515 100R 1/16W 5%

D506 BAS316

A1K

2

Q503

BC847C

R521470K 1/16W 5%

R516 100R 1/16W 5%

R524

33R 1/16W 5%

D508BAS316

A

1

K

2

C505100NF 16V

HPLUGP2_5V

+5V_SW

CN502

HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

HDMI3_SCL

AVDD12_HDMI_1_RX

AVDD1V2AVDD1V2

AVDD3V3

AVDD1 V2

AVDD3V3

Analog Power

AVDD33_HDMI_RX AVDD33_HDMI_3_RX

AVDD12_HDMI_3_RXAVDD12_HDMI_2_RX

ARC2_HDMI

R546

NC/180ohm 1/16W +/-5%

HDMI1_SCL

ARC3_EN

ARC3_EN11

RX3_C-

RX3_C+

RX3_0-

RX3_2-

RX3_2+

RX3_1-

HPD3

RX3_1+

HDMI3_SDA

RX3_0+

HDMI3_SCL

R526 100R 1/16W 5%

HPLUGP3_5V

+5V_SW

SCL_3 SDA_3

PWR5V_3

RX3_2-

RX3_2+

R540

NC/180ohm 1/16W +/-5%

RX3_0-

RX3_0+

RX3_1-

RX3_1+

------><-------

CEC_3

RX3_C-

RX3_C+

HPD3

HPLUGP3_5V

HDMI3_SDA

HDMI3_SCL

EDID_WEN

HDMI 3 EDID EEPROM

------><-------

HDMI3_SDA

R528

47K 1/10W 5%

C507

100NF 16V

R527

33R 1/16W 5%

D509 BAS316

A1K

2

R529

4K7 1/16W 5%

ZD503NC/PDZ24B

12

R530470K 1/16W 5%

D501 BAS316

A1K

2

R531 100R 1/16W 5%

R532

47K 1/10W 5%

D510BAS316

A

1

K

2

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CEC_3

C509100NF 16V

U509

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

Q501

BC847C

R539

10K 1/16W 5%

HDMI 3 INPUT (SIDE)

U510 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HPD2

CEC_3

PWR5V_3PWR5V_3

SDA_3

SCL_3

HDMI 3 ESD PROTECTER

ARC1_HDMI

RX3_2-

RX3_2+

SDA_3

SCL_3

CEC_3

RX3_1-

RX3_1+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

RX3_0+

RX3_C-

RX3_C+

RX3_0-

RX3_0+

RX3_C-

RX3_C+

RX3_0-

U511 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX1_0+

U513 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI1_SDA

+5V_SW2,3,5,7,8,9,12,14

+5V_SW

HPLUGP3_5V

HDMI-CEC

ARC3_HDMI

RX2_2-

RX2_2+

HDMI2_SDA

RX2_0+

HDMI2_SCL

RX2_C-

RX2_C+

RX2_0RX2_1-

HPD2

RX2_1+

ARC2_EN11

ARC2_EN

RX1_1+

AVDD3V3

ARCARC2_HDMI

R541

NC/82R

C510

NC/1uF 10V

ARC2_EN

R543

NC/4K7 1/16W 5%

R542

NC/100K 1/16W 5%

R544

NC/0R05 1/16W

R545

NC/0R05 1/16W

AVDD3V3

U514

NC/74LVC1G125GV

24

5

1

3

CEC_2

CEC_1

HDMI_CEC

R503 0R05 1/16W

HPD1

R500

0R05 1/16W

ARC1_EN11

ARC1_EN

RX1_1-

C500 100NF 16V

R502

0R05 1/16W

HDMI 1 INPUT

Circuit Diagrams and PWB Layouts

EN 74TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-13 DVB T2/C/S2 Tuner

19431_520_130225.eps

130225

D VB T2/C/S2 Tuner

B13 B13

2012-11-30

C

715G5675

DVB T2/C/S2 Tuner

TS_S2_DQ5

+5V_SW

+5V_SW2,3,5,7,8,9,12,13

C1314 100NF 16V

DV33_VDDIO DV12_VDDC

GND_Tuner

R1340 4K7 1/16W 5%

IN

S2_DEMO_SDA

DEMOD_S2_RESET

C1353

NC/47PF 50V

DV12_ADC TUNER_QP

TS_S2_CLK

C1339

12pF 50V

C1322

1nF 50V

C1323 100NF 16V

DEMOD_S2_RESET

IF_P

TU_FAT_IN2+

C1304

1uF 10V

R1330

1K 1/16W 5%

R1331

1K 1/16W 5%

C1305

1uF 10V

R1333

750R 1/16W 5%

R1325 0R05 1/10W

TU_FAT_IN2-

R1326 0R05 1/10W

TS_S2_DQ6

DV33_VDDIO

C1302

1uF 10V

OSDA2

DV12_VDDCRF_AGC_S2_TUNER

DIF_OUT_P

C1351

NC/100NF 16V

C1340

12pF 50V

TUNER_LNB3

TUNER_LNB DISEQC_OUT

GND_Tuner

DISEQC_OUT3

S2_DEMO_SCL

S2_DEMO_SDA S2_DEMO_SCL

S2_DEMO_SDA3 S2_DEMO_SCL3

C1309

100NF 16V

TUNER_QN

DIF_OUT_P

TS_S2_DQ0

IF_AGC_T

t

TH1300 NC/PTCR

1 2

C1350

270PF 50V

DV33_VDDIO

C1347 100NF 16V

C1348 NC/100NF 16V

QP

R1305

4K7 1/16W 5%

C1317

22PF 50V

R1313

33R 1/10W 5%

S2_RESET

DVDD3V3

R1300

10K 1/10W 5%

+3V3_VCC_T2

DV33_VDDIO

S2_RESET

TS_S2_DQ7

C1308 100NF 16V

C1343 22PF 50V

DV12_VDDC

OSCL2

DV33_VDDIO

R1334

NC/4K7 1/16W 5%

+3V3_TUNER

+3V3_TUNER2

C1344

100NF 16V

TS_S2_DQ1

DV33_VDDIO

OSDA0

OSDA04,7

OSCL0

OSCL04,7

C1345 NC/100NF 16V

DVB-T/C/T2 TUNER CIRCUIT

R1347

0R05 1/16W

DIF_OUT_N

DEMOD_TSSYNC12 DEMOD_TSVALI D12 DEMOD_TSCLK12

DEMOD_TS012 DEMOD_TS112 DEMOD_TS212 DEMOD_TS312 DEMOD_TS412

DEMOD_TSCLK

DEMOD_TS512 DEMOD_TS612 DEMOD_TS712

DEMOD_TSSYNC DEMOD_TSVALI D

DEMOD_TS3

DEMOD_TS0 DEMOD_TS1 DEMOD_TS2

DEMOD_TS7

DEMOD_TS4 DEMOD_TS5 DEMOD_TS6

C1301 100NF 16V

C1330 10NF 50V

DVB-S/S2 Demodulator I2C

R1319 100R 1/10W 1%

C1326

22PF 50V

R1301

4K7 1/16W 5%

C1325

22PF 50V

GND_Tuner

R1307

4K7 1/16W 5%

R1315 100R 1/10W 1%

GND_Tuner

+3V3_TUNER

TT_SCL TUNER_CLK

TU101

TDQS-A901F

LNA B

1

RF 3.3V

2

TU 3.3V

3

QN_OUT

4

QP_OUT

5

IP_OUT

6

IN_OUT

7

AGC

8

X-OUT

9

SDA

10

SCL

11

TH1

12

TH2

13

TH3

14

TH4

15

TUNER_DATATT_SDA

C1346 100NF 16V

DV12_VDDC

C1310 100NF 16V

R1329

1K 1/16W 5%

FEF

R1328

1K 1/16W 5%

R1322

0R05 1/16W

IF_AGC6,12

C1332

0.1uF 50V

TU_FAT_IN2+6 TU_FAT_IN2-6

GND2,3,4,5,6,7,8,9,10,11,12,13

OSDA26,12

OSDA2 OSCL2

IF_AGC

OSCL26,12

TU_FAT_IN2+ TU_FAT_IN2-

DVB-S/S2 TUNER & Demodulator CIRCUIT

DIF_OUT_N

R1314

4K7 1/16W 5%

C1342

10NF 50V

GND_Tuner

TS_S2_ERR

TT_SDA

R1327

0R05 1/16W

C1336 100NF 16V

R1306

NC/4K7 1/16W 5%

TU102

TDSY-G 230D

Ant.PWR

1

+B1(3.3V)

2

DIF_(N)

5

SDA

3

SCL

4

DIF_(P)

6

IF AGC

7

GPIO

8

TH1

9

TH2

10

TH3

11

TH4

12

TH5

13

TH6

14

TS_S2_DQ2

R1346

0R05 1/16W

+3V3_VCC_T2

DV33_VDDIO

FEF

FEF 12

DV12_VDDC

R1338 4K7 1/16W 5%

R1318 4K7 1/16W 5%

DV12_PLL

+3V3_VCC_S2

C1303

1uF 10V

TUNER_DATA

TUNER_CLK

TUNER_DATA12

TUNER_CLK12

C1349

10UF 6.3V 20%

R1348

0R05 1/10W

C1320

1nF 50V

IF_AGC_T

TS_S2_SYNC

C1337 100NF 16V

QP

IP

TS_S2_DQ3

R1345

0R05 1/16W

S2_TUNER_SCL

FB1300

120R

1 2

R1312

NC/2K7 1/16W 5%

C1352

NC/47PF 50V

C1328

NC/47PF 50V

DVDD3V3

+3V3_VCC_S2

GND_TunerGND_Tuner

DVDD3V32,3,4,5,7,9,11,12

FB1305

120R

1 2

C1331

10UF 10V

+3V3_TUNER

R1316

2K7 1/16W 5%

FB1301

120R

1 2

C1300 100NF 16V

R1337 4K7 1/16W 5%

DV12_VDDC

R1320

2K7 1/16W 5%

R1309

33R 1/16W 5%

FB1302

120R

1 2

R1308

33R 1/16W 5%

TT_SCL

R1336

4K7 1/16W 5%

C1307 100NF 16V

C1306 1nF 50V

R1304

NC/2K7 1/16W 5%

S2_TU_SDA

GND_Tuner

C1315

1nF 50V

C1335

NC/47PF 50V

R1303

33R 1/16W 5%

C1316 100NF 16V

TUNER_IP

FB1303

120R

1 2

C1318

1UF 10% 16V

C1321 100NF 16V

R1302

33R 1/16W 5%

DV12_PLL AVDD1V2

AVDD1V2

AVDD1V2 DV12_VDDC DV12_ADCDV33_VDDIODV DD3V3

GND_Tuner

+3V3_TUNER DV33_VDDIO

R1321

10K 1/16W 5%

C1338 100NF 16V

+5V_ANT

TS_S2_VAL

OSDA2

OSCL2

AVDD1V2

AVDD1V22,6,9,12,13

QN

R1335 4K7 1/16W 5%

IN

TS_S2_DQ4

GND_Tuner

R1323 0R05 1/16W

C1311 100NF 16V

+

C1319 100UF 16V

R1332

560R 1/16W 5%

IF_P IF_N

IF_P12

S2_TUNER_SCL

DV12_VDDC

IF_N12

S2_TUNER_SDA

TUNER I2C

QN

IP

DISEQC_OUT

DVB-S2 TUNER

TUNER_LNB

S2_TU_SCL

R1324 0R05 1/16W

C1312 100NF 16V

R1349

0R05 1/10W

+5V_SW

R1311NC/4K7 1/16W 5%

C1334

NC/100NF 16V

C1333

NC/100NF 16V

U1300

NC/G552B1TA1U

VOUT

1

GND

2

FLAG

3

ON/ON

4

VIN

5

IF_N

S2_TU_SCL

C1324

10UF 10V

FB1304

120R

1 2

S2_DEMO_SCL S2_DEMO_SDA

X1300

10MHz

1243

S2_TU_SDA

TUNER_IN

DV12_ADC

C1329

0.1uF 50V

S2_TUNER_SDA

Tuner power

+3V3_TUNER

DEMOD_S2_RESET9

GND_Tuner

R1310

180ohm 1/16W +/-5%

C1341

100NF 16V

R1342 22R 1/16W 5%

RF_AGC_S2_TUNER

GND_Tuner

R1341 22R 1/16W 5%

RP1300

22R

1 2

3

4

8

7 6 5

R1343 22R 1/16W 5%

RP1301

22R

1 2

3

4

8

7 6 5

DEMOD_TSCLK

DEMOD_TS3

DEMOD_TS0 DEMOD_TS1

U104

AVL6211LA

ADC_AVDD

1

ADC_AVSS

2

ADC_IP

3

ADC_IN

4

ADC_AVSS

5

ADC_AVDD

6

ADC_QP

7

ADC_QN

8

PLL_AVDD

9

PLL_AVSS

10

VDDC

11

GND

12

VDDC

13

PLL_REFCLK_XI

14

PLL_REFCLK_XO

15

RFAGC

16

VDDIO17GPIO_CLK18LOCK19TDI20TDO21TCLK22GND23TMS24TRST_N25VDDC26MPEG_DATA_727MPEG_DATA_628MPEG_DATA_529VDDIO30GND31MPEG_DATA_4

32

MPEG_DATA_3

33

MPEG_DATA_2

34

VDDC

35

VDDIO

36

GND

37

MPEG_DATA_1

38

MPEG_DATA_0

39

MPEG_CLK

40

VDDC

41

GND

42

VDDIO

43

MPEG_VALID

44

MPEG_SYNC

45

MPEG_ERR

46

GND

47

VDDC

48

SLEEP

49

SCL1

50

SDA1

51

GND

52

SCL2

53

SDA2

54

DISEQC_IN

55

VDDIO

56

VDDC

57

DISEQC_OUT

58

LNB_CNTRL_0

59

LNB_CNTRL_1

60

CS_0

61

RST_B

62

GND63GND

64

R1344 22R 1/16W 5%

DEMOD_TS2

DEMOD_TSSYNC DEMOD_TSVALI D

DEMOD_TS7

DEMOD_TS4 DEMOD_TS5 DEMOD_TS6

TS_S2_CLK

TS_S2_SYNC TS_S2_VAL

TS_S2_ERR

TS_S2_DQ4 TS_S2_DQ5 TS_S2_DQ6 TS_S2_DQ7

C1313 100NF 16V

+5V_ANT

IF_AGC

TS_S2_DQ0 TS_S2_DQ1 TS_S2_DQ2 TS_S2_DQ3

R1339 4K7 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 75TPM10.1HE LA 10.

2013-Dec-06

div. table

back to

10-6-14 SSB layout top

19431_521_130226.eps

130226

2012-11-20

C

715G5675

SSB layout top

C4157

C4158

C4155

C4156

X8

X9

C10

C13

X10

TP4001

R10

R11

R16 R21

R22

R23

R24

R25

R26

R27

R32

R33

R34

R35

R36

R37

R41

R30

R31

U2

U3

RP4159 RP4157

RP4160 RP4158

RP4161

RP4155 RP4153

RP4151

RP4156 RP4154 RP4152 RP4150

C1053

CN601

CN412

CN409

CN104

CN604

CN503

CN501 CN502

CN1031

CN103

CN112

D750

C1051

C1318

C1329

C1332

C1349

C4003

C4007

C4022

C4028

C4113

C4115

C632C633

C638

C643

C654

C661

C678

C700

C702

C710

C732

C715

C714

C731

C760

C750

C751

C756

C757

C1324

C1331

C400

C401

C4014

C402

C4024

C4026

C4109

C4160

C4183

C4190

C4257

C649

C655

C672

C673

C723

C4170

C4174

C4194

CN408

Q750

C1054

C1319

C709

C4021

C4108

C4189

C642

C667

C701

FB1050

FB1300

FB1301 FB1302

FB1303

FB1304

FB1305

FB752

FB400

FB401

FB700

FB701

FB704

FB702

FB4101

L630

L631

L632

L633

R1315

R1319

R402

R403

R405

R406

R4102

R4103

R4106

R4114

R4116

R4117

R643

R644

R702

R703

R751

R752

R753

R411

R700

R634

R638

R640

R645

R646

R647

TH1300

TH4000

U1300

U510

U511

U513

D501

D503

D504

D505

D506

D507

D508

D510

ZD501

ZD502

ZD503

ZD750

U409

U102

U1051

U512

U514

U515

D4000

D4001

Q400

Q401

U410

U110

U504

U507

X2

X5

C755

C753

C754

FB756

U751

C752

FB1051

FB1052

FB1053

CN401

CN700

FB703

C2

C4

C6

C8

X3 X4

C4124

U4101

Q4101

Q4102

U702

C733

C707

C712

C738

R4119

R706

R761

Q702

U701

C706

C734

R704

CN4100

U1

C690

FB634

U603

R765

R1349 R1348

R1325

R1326

C1071

C1072

C1074

C1075

C1073

C1056

R755

CN151

C736

CN159

D751

C740

C737

C739

L701

Q4100

C741

Q753

FB750 FB751

R760

U704

U705

R1065

R4164

R4152

R4155

R4156

R4158

R4159

R4161

R4160

R4162

R4163

R4150

R4165

R4166

R4167

R4168

R4169

R1050

R1019

R1020

R1021

R1022

R1023

R1024

R1025

R1026

R1028

R1030

R1053

R1054

R1055

R1057

R1058

R1063

R1064

R1066

R1067

R1068

R1069

R1070

R1072

R1075

R1077

R1080

R1081

R1082

R1083

R1084

R1301

R1303

R1307

R1309

R1310

R1311

R1316

R1320

R1321

R1323

R1324

R1330

R1331

R1333

R1042

R764

R4034

R400

R4002

R4004

R4006

R4007

R4008

R4009

R401

R4016

R4017

R4024

R4026

R4031

R4032

R404

R407 R408

R409

R4100

R4101

R4107

R4108

R4115

R414

R415

R769

R4253

R500

R502

R503

R504

R505

R506

R507

R508

R509

R510

R511

R512

R513

R514

R515

R516

R517

R518

R519

R520

R521

R522

R523

R524

R525

R526

R530

R531

R533

R534

R535

R536R537

R538

R540

R541

R542

R543

R544

R545

R546

R547

R548

R549

R550

R551

R603

R604

R630

R631

R632

R633

R635

R636

R637

R639

R641

R642

R649

R650

R651

R659 R660

R661

R662

R663

R701

R710

R715

R721

R762

R4042

R750

R754

R758

R1049

R1046

R757

R1045

R1040

R1041

R1043

R1048

R756

R4021

R4040

R1101

R1345

R759

R4142

R1104

R1105

R1110 R1111

R1115

R1117

R1346

R1347

R4138

R4139

R4140

R4141

R4143

R4144

R4145

R4041

R705

R711

R714

R713

R716

R664

R665

R4010 R4011

R1119

R1085

R1116

R1120

R1121

R1123

R1124

R1125

R1126

R1127

R1128

R1129

R1132

R1133

R1134

C623

C4153

C4154

C4151

C4152

C4159

C4161

C4162

C4163

C4165

C4168

C4171

C4176

C4179

C4181

C4167

C4177

C4002

C1082

C4150

C4001

C1033

C1036

C1015

C1016

C1017

C1018

C1019

C1020

C1021

C1022

C1023

C1024

C1025

C1052

C1057

C1058

C1059

C1060

C1061

C1062

C1063

C1064

C1065

C1066

C1067

C1068

C1069

C1070

C1077

C1078

C1079

C1080

C1081

C1300

C1301

C1304

C1305

C1306

C1307

C1308

C1310

C1311

C1312

C1313

C1314

C1315C1316

C1320

C1321

C1322

C1323

C1325 C1326

C1330

C1328

C1333

C1334

C1335

C1336

C1337

C1338

C1341

C4010

C4110

C4258 C4259

C4260

C4261

C4262

C4263

C500

C501

C503

C504

C505

C506

C508

C509

C510

C511

C513

C636

C637

C639

C640

C641

C644

C646

C647

C648

C651

C652

C656

C657

C658

C659

C660

C662

C663

C664

C665

C668

C669

C670

C671

C674

C675

C676

C677

C679

C680

C681

C682

C683

C684

C685

C686

C719

C721

C735

C718

C1035

C609

C1034

C617

C619 C620

C622

C4125

C1352C1353

C704

C717

C713

C687

C688

C689

C631

C634

C630

C635

C4004C4005

R4029

R4030

C1351

CN4252

R4130

R4131

R4132

X4000

X7

X6

FB753

ZD4101

C691

C692

C693

FB635

FB636

R668

R669

R1074

R1076

FB754

FB755

C758

C4172

ZD4103

C653

TU101

L750

D752

R4121

R670

TU102

CN701

C722

C703

C705

C708

U706

R767

U703

Q1000

Q502

Q503

Q701

Q751

Q752

C761

Q755

FB757

R552

R553

R766

R768

ZD751

Q754

U602

U403

U402

R28

R4012

U401

ZD630

ZD631

ZD700

C711

ZD4104

ZD4105

ZD4106

ZD4107

ZD4108

ZD4109

Circuit Diagrams and PWB Layouts

EN 76TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-6-15 SSB layout bottom

19431_522_130226.eps

130226

2012-11-20

C

715G5675

SSB layout bottom

TP700

TP701

TP702

TP703

TP704

TP705

TP706

TP4000

TP405

TP406

TP407

TP408

TP409

TP410

TP411

TP412

TP413

TP414

TP420

TP421

TP422

TP423

TP4003

TP4004

TP4005

R1

R2

R3

R4

R5

R6

R7

R8

R9

R12

R13

R14

R15

R17

R18R19 R20

R38R39

TP400

TP401

TP402

TP403

TP404

TP415

TP416

TP417

TP418

TP419

TP4006

TP4007

C4006

C4023

C4175

C1339C1340

C405

C406

C4256

C605

C4013

C4027

C4178

C4187

C4193

C614

C615

C645

C650

RP1061RP1062

RP1300

RP1301

FB631

FB633

R1300

R1313

R410

R412

R413

R600

R601

R654

R655

D1000

D1001

D509

D630

D631

D632

ZD1000

ZD1001

Q631

Q632

U4051

U509

X1300

C1039 C1040

U105

C1085

C1086

C1087

C1088

R1093

R1094

C1

C3

C5

C7

FB1054

U103

U104

R528

R532

X1050

R763

ZD1002

ZD1003

Q633

R1000

R1001

R1002

R1003

R1004

R1005

R1006

R1007

R1008

R1009

R1011

R1012

R1013

R1014

R1015

R1016

R1017

R1018

R1027 R1029

R1031

R1032

R1033

R1034

R1037

R1038

R1051

R1052

R1056

R1059

R1060

R1061

R1062

R1086

R1302

R1304

R1305

R1306

R1308

R1312

R1314

R1318

R1322

R1327

R1328

R1329

R1332

R1334

R1335

R1336

R1337

R1338

R1339

R1340

R666

R4001

R4005

R4013

R4014

R4015

R4019

R4020

R4104

R4105

R416

R417

R418

R4254

R4255

R4262

R527

R529

R539

R1044

R648

R652

R653

R656

R657

R658

R1047

R1039

R1087

R1088

R1089

R1090

R1091

R1092

R4263

R605

R1095

R1096

R1097

R1098

R1099

R1100

R1341

R1342

R1343

R1344

R1102

R1106

R1107

R1108

R1109

R1112

R1113

R1114

R1118

R4033

R1103

R1122

R1130

R1131

R1135

R667

C4166

C4188

C4169

C4191

C4030

C4164

C4173

C4182

C4185

C4184

C4180

C4186

C1000

C1001

C1002

C1003

C1004

C1006

C1007

C1009

C1010

C1011

C1012

C1013

C1014

C1026

C1027

C1055

C1076

C1302

C1303

C1309

C1317

C1342

C1343

C1344

C1345

C1346

C1347

C1348

C1350

C4008

C4009

C4011

C4012

C4015

C4016

C4017

C4018

C4019

C4020

C4029

C403

C404

C502

C507

C512

C600

C601

C602

C603

C604

C606

C607

C608

C618

C610

C611

C612

C613

C616

C1037 C1038

C621

C1083

C1084

C4254

C4255

R1071

R1073

ZD4100

ZD4102

U4251

C4264

C4265

C4025

C4192

Q501

R671

R672

D4100

D4101

Circuit Diagrams and PWB Layouts

EN 77TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.7 J 715G5230 IR/LED panel

IR/LED panel

J J

2011-10-14

1

715G5230

IR/LED panel

3

1

2

D202 BAV99

Q301 BC847C

C002

0.1UF50V

R302

1K 1/10W

C001

0.1UF50V

R301

2.2K 1/10W

KEY2

12

LED301

LED

KEY1

Red

1 2

3

4 5 6

78

CN201 CONN

GND

1

Vs

2

OUT

3

GND

4

U201

TSOP75436W

RC6

C204

1UF16V

R202

100R

C203

NC/100P 50V

3V3SB

R201

NC/2K7 1/16W 5%

LED_R

3V3SB

1 2

3

45

CN001 CONN

RC6

KEY1

C201

10uF 10V

3V3SB

KEY2

LED_R

3

1

2

D201 BAV99

10-7-1 IR/LED panel

Circuit Diagrams and PWB Layouts

EN 78TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-7-2 IR/LED Board layout

19230_537_120305.eps

120305

2011-10-14

1

715G5230

IR/LED board

layout top/bottom

C001

C201

C203

LED301

Q301

R201

R202

R301

U201

D201

D202

C002

C204

CN001

CN201

R302

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 79TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10.8 J 715G5772 IR/LED Panel

19431_525_130226.eps

130226

IR/LED panel

J J

2012-09-20

C

715G5772

IR/LED panel

NC NC

Q301 BC847C

R302

1K 1/10W 5%

R301

2K2 1/10W 5%

LED301

LED

12

CN201 CONN

1 2

3

4 5 6

78

LED_R

U201

TSOP75436WTT

GND

1

Vs

2

OUT

3

GND

4

C204

1UF16V

--------><----|

R202

100R 1/10W 5%

----><----|

C203

NC/1N 50V

R201

NC/2K7 1/16W 5%

3V3SB

D201 BAV99

3

1

2

D202

BAV99

3

1

2

3V3SB

RC6

C201

100N 16V

3V3SB

10-8-1 IR/LED Panel

Circuit Diagrams and PWB Layouts

EN 80TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

10-8-2 IR/LED board layout

19431_525_130226.eps

130226

2012-09-20

C

715G5772

IR/LED panel

layout top/bottom

U1 U2

C201

C203

LED301

Q301

R302

U201

U4

U9

C204

CN201

D201

D202

R201

R202

R301

U3

U10

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 81TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

Keyboard control panel

E E

2011-10-05

1

715G5252

Keyboard control panel

KEY2 KEY1

SOURCE VOL- VOL+

CH- CH+POWER

----><----|

----><----|----><----|

----><----|

----><----| ----><----|

SW020

TACT SW FWRD H1.5MM

R020

470R 1/8W 1%

R017

2K2 1/8W 1%

SW022

TACT SW FWRD H1.5MM

R022

5K6 +-1% 1/8W

C019

NC/100N 50V

C023

100N 50V

C016

NC/100N 50V

CN016 CONN

1 2

3

45

R018

5K6 +-1% 1/8W

R024

NC/0R05 1/10W

SW016

TACT SW FWRD H1.5MM

SW021

TACT SW FWRD H1.5MM

SW017

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C017

NC/100N 50V

SW019

TACT SW FWRD H1.5MM

C024 100N 50V

R016

470R 1/8W 1%

R021

2K2 1/8W 1%

R025

NC/1K 1/10W 1%

C021

NC/100N 50V

R023

0R05 1/10W

C018

NC/100N 50V

10.9 E 715G5252 Keyboard control panel

10-9-1 Keyboard control panel

EN 82TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19240_514_120215.eps

120629

2012-01-09

1

715G5252

Keyboard control panel

layout top/bottom

CN016

SW016

SW017

SW019

SW020

SW021

SW022

C016

C017

C018

C019

C020

C021

C023

C024

R023 R024

R025

R016

R017

R018

R020

R021

R022

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-9-2 Key board layout

EN 83TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19430_535_130115.eps

130115

Keyboard control panel

E E

2012-07-23

C

715G5771

Keyboard control panel

----><----|

R023

0R05 1/10W

R024

NC/0R05 1/10W

SW021

TACT SW FWRD H1.5MM

KEY1

R020

470R 1/8W 1%

R021

2K2 1/8W 1%

R022

5K6 +-1% 1/8W

----><----|

KEY2

R025

NC/1K 1/10W 1%

C023

100N 50V

SW022

TACT SW FWRD H1.5MM

C016

NC/100N 50V

C017

NC/100N 50V

C018

NC/100N 50V

C019

NC/100N 50V

SW016

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C021

NC/100N 50V

CN016 CONN

1 2

3

45

----><----|

SW019

TACT SW FWRD H1.5MM

----><----| ----><----|

C024 100N 50V

----><----|

SW020

TACT SW FWRD H1.5MM

----><----|

SOURCE

SW017

TACT SW FWRD H1.5MM

VOL- VOL+

CH- CH+POWER

R017

2K2 1/8W 1%

R018

5K6 +-1% 1/8W

R016

470R 1/8W 1%

10.10 E 715G5771 Keyboard control panel

10-10-1 Keyboard control panel

EN 84TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19430_536_130115.eps

130115

2012-07-23

C

715G5771

Keyboard control panel

layout top/bottom

C016

C017

C018

C019

C020

C021

C023C024

R016

R017

R018

R020

R021

R022

R023

R024

R025

SW11

SW12

SW13

SW14

SW15

SW16

SW17

SW18

SW20

CN016

SW016 SW017SW019 SW020SW021 SW022

SW1

SW2

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-10-2 Key board layout

EN 85TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19470_519_130402.eps

130402

Key

E E

2012-08-30

1

715G5869

Key

----><----|

SW021

TACT SW FWRD H1.5MM

KEY1

R020

470R 1/8W 1%

R021

2K2 1/8W 1%

R022

5K6 +-1% 1/8W

----><----|

KEY2

C023

100N 50V

SW022

TACT SW FWRD H1.5MM

C016

NC/100N 50V

C017

NC/100N 50V

C018

NC/100N 50V

C019

NC/100N 50V

SW016

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C021

NC/100N 50V

CN016 CONN

1 2

3

45

----><----|

SW019

TACT SW FWRD H1.5MM

----><----| ----><----|

C024 100N 50V

----><----|

SW020

TACT SW FWRD H1.5MM

----><----|

SOURCE

SW017

TACT SW FWRD H1.5MM

VOL- VOL+

CH- CH+POWER

R017

2K2 1/8W 1%

R018

5K6 +-1% 1/8W

R016

470R 1/8W 1%

10.11 E 715G5869 Keyboard control panel

10-11-1 Key

EN 86TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

Circuit Diagrams and PWB Layouts

19470_520_130402.eps

130402

2012-08-30

1

715G5869

Keyboard control panel

layout top/bottom

SW1

SW2

SW3

SW4

SW5

SW6

SW8

SW9

SW21

C016

C017

C018

C019

C020

C021

C023C024

CN016

R016

R017

R018

R020

R021

R022

SW016SW017 SW019SW020 SW021SW022

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-11-2 Key board layout

EN 87TPM10.1HE LA 10.

2013-Dec-06

back to

div. table

11. Styling Sheets

19461_800_131204.eps

131204

3008 series 22"

Pos No. Description Remarks

0031 Bezel 0032 Deco bezel 0034 Deco 0041 Rear cover 0050 Base Assy 0090 Stand Assy 0095 V0 Sheet 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker_R 1187 Speaker_L

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050

0090

0041

1054

0095

1057

1187

1185

0031

0034

0032

1056

1050

1053

11.1 3008 series 22"

Styling Sheets

EN 88TPM10.1HE LA 11.

2013-Dec-06

back to

div. table

11.2 3008 series 24"

19461_801_131204.eps

131204

3008 series 24"

Pos No. Description Remarks

0031 Bezel 0032 Deco bezel 0034 Deco 0041 Rear cover 0050 Base Assy 0090 Stand Assy 0095 V0 Sheet 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker_R 1187 Speaker_L

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050

0090

0041

1054

0095

1057

1187

1185

0031

0034

0032

1056

1050

1053

Styling Sheets

EN 89TPM10.1HE LA 11.

2013-Dec-06

back to

div. table

11.3 3008 series 26"

19461_802_131203.eps

131203

3008 series 26"

Pos No. Description Remarks

0031 Bezel 0032 Deco bezel 0041 Rear cover 0050 Base Assy 0090 Stand Assy 0095 V0 Sheet 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050

0090

0041

1054

0095

1057

1184

0031

0032

1056

1050

1053

Styling Sheets

EN 90TPM10.1HE LA 11.

2013-Dec-06

back to

div. table

11.4 3008 series 32"

19460_800_130313.eps

130313

3008 series 32"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1185

1050

0050

0041

1054

1057

0095

1186

0031

0090

1056

1053

Pos No. Description Remarks

0031 Bezel 0041 Rear cover 0050 Base Assy 0090 Stand Assy 0095 V0 Sheet 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker_R 1186 Speaker_L

Styling Sheets

EN 91TPM10.1HE LA 11.

2013-Dec-06

back to

div. table

11.5 3008 series 39"

19461_803_131205.eps

131205

3008 series 39"

Pos No. Description Remarks

0031 Bezel 0041 Rear cover 0050 Base Assy 0090 Stand Assy 0095 V0 Sheet 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speaker_R 1186 Speaker_Sub woofer

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050

0090

0041

1054

0095

1057

1185

1053

1186

0031

1056

1050

Styling Sheets

EN 92TPM10.1HE LA 11.

2013-Dec-06

back to

div. table

Philips 39HFL3008D Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

2.2 Directions for Use

Table 2-1 Described Model Numbers and Diversity

2.3 Connections

2.3.1 Side Connections

1 - Common Interface

2 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-2 HDMI (type A) connector

Figure 2-1 Connection overview

3 - USB2 2.0

4 - Head phone (Output)

2.3.2 Rear Connections

5 - TV ANTENNA - In

6 - PC IN:VGA

Figure 2-3 USB (type A)

Figure 2-4 VGA connector

7 - Audio - In: Left / Right, VGA

Figure 2-5 HDMI (type A) connector

9 - Service / UART

10 - Cinch: Video YPbPr - In, Audio - In

11 - Cinch: Digital Audio - Out

Figure 2-6 SCART connector

2.4 Chassis Overview

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (22" 3008 series)

Figure 4-2 Cable dressing (24" 3008 series)

Figure 4-3 Cable dressing (26" 3008 series)

Figure 4-4 Cable dressing (32" 3008 series)

Figure 4-5 Cable dressing (39" 3008 series)

4.2 Se rvice Positions

4.3 Assembly/Panel Removal ( for 32" & 39")

4.3.1 Rear Cover

4.3.2 Small Signal Board (SSB)

Figure 4-6 Rear cover removal

4.4 Assembly/Panel Removal ( for 22" & 24")

4.4.1 Rear Cover

Figure 4-7 SSB removal

4.3.3 Power Supply Unit (PSU)

4.3.4 Speakers

4.3.5 Keyboard Control unit

4.3.6 Stand bracket

4.3.7 IR/LED Panel

4.3.8 LCD Panel

4.4.2 Small Signal Board (SSB)

Figure 4-8 Rear cover removal

Figure 4-9 SSB removal

4.4.3 Power Supply Unit (PSU)

4.4.4 Speakers

4.4.5 Keyboard Control unit

4.4.6 Stand bracket

4.4.7 IR/LED Panel

4.4.8 LCD Panel

4.5 Assembly/Panel Removal ( for 26")

4.5.1 Rear Cover

4.5.2 Small Signal Board (SSB)

Figure 4-10 Rear cover removal
