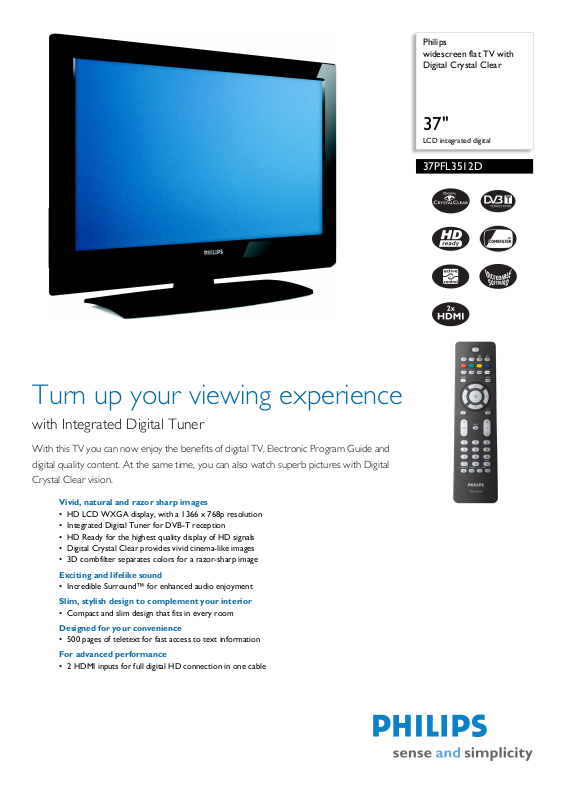

Page 1

Philips widescreen flat TV with Digital Crystal Clear

37"

LCD integrated digital

37PFL3512D

Turn up your viewing experience

with Integrated Digital Tuner

With this TV you can now enjoy the benefits of digital TV, Electronic Program Guide and digital quality content. At the same time, you can also watch superb pictures with Digital Crystal Clear vision.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Digital Crystal Clear provides vivid cinema-like images

• 3D combfilter separates colors for a razor-sharp image

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• 500 pages of teletext for fast access to text information

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

Widescreen flat TV with Digital Crystal Clear

37" LCD integrated digital

Specifications

37PFL3512D/12

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 5000:1

• Response time (typical): 6 ms

• Viewing angle (H / V): 178 / 178 degree

• Diagonal screen size: 37 inch / 94 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Digital Crystal Clear, Dynamic contrast enhancement, Contrast Plus, 3/ 2 - 2/2 motion pull down, 3D Combfilter, Active Control, Digital Noise Reduction, Jagged Line Suppression, Progressive Scan

• Screen enhancement: Anti-Reflection coated screen

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz

• Video Formats Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10 W

• Sound Enhancement: Auto Volume Leveller, Dynamic Bass Enhancement, Incredible Surround

• Sound System: Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Easy toggle Dig/Analog modes, Program List, Side Control, Smart Picture Control, Smart Sound Control

• Electronic Program Guide: 8 day Electronic Program Guide

• Remote Control: TV

• Remote control type: RC2034301/01

• Screen Format Adjustments: 4:3, Movie expand 14:9, Movie expand 16:9, Subtitle Zoom, Super Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 500 page Smart Text

• Teletext enhancements: 4 favourite pages, Program information Line

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/ G, SECAM D/K, SECAM L/L', DVB COFDM 2K/ 8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 100

• Tuner Display: PLL

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• Ext 3: S-video in, CVBS in, Audio L/R in

• Ext 4: YPbPr, Audio L/R in

• Ext 5: HDMI

• Ext 6: HDMI

• Number of Scarts: 2

• Other connections: Headphone out, Common Interface

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 175 W

• Standby power consumption: < 1 W

Accessories

• Included Accessories: Table top stand, Power cord, Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

• Optional accessories: Floor stand

Dimensions

• Color cabinet: High Gloss Black

• Set dimensions (W x H x D): 944

x 628 x 113 mm

• Set dimensions with stand (W x H x D): 944

x 690 x 286 mm

• Product weight: 21.6 kg

• Product weight (+stand): 29.6 kg

• Box dimensions (W x H x D): 1014

x 733 x 330 mm

• Weight incl. Packaging: 35 kg

• VESA wall mount compatible: 600 x 400 mm

•

Page 3

Widescreen flat TV with Digital Crystal Clear

37" LCD integrated digital

37PFL3512D/12

Product highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive Digital Terrestrial TV to watch or record. This means you do not need an additional set top box and also the additional cables.

HD Ready

Enjoy the exceptional picture quality of High Definition pictures and be fully prep ared for H D sources li ke HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema-like images.

3D Combfilter

The 3D comb filter separates brightness and color signals better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the blackand-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Issue date 2008-04-30

Version: 1.0.9

12 NC: 8670 000 32376 EAN: 87 12581 35136 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Incredible Surround™

Incredible Surround is an audio technology from Philips that dramatically magnifies the sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.

Compact and slim design

This design style emphasizes a slim, compact look that saves space and fits in anywhere.

2 HDMI inputs

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest ou tp ut re solu tion wi th th e sou rce d evic e. Th e HDM I inp ut is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.
