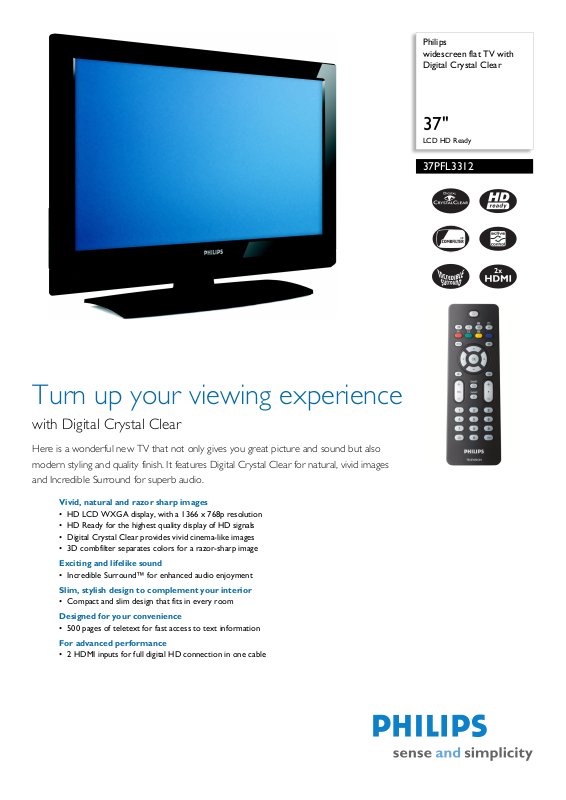

Page 1
Philips
widescreen flat TV with
Digital Crystal Clear
37"
LCD HD Ready
37PFL3312
Turn up your viewing experience
with Digital Crystal Clear
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Digital Crystal Clear for natural, vivid images
and Incredible Surround for superb audio.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Digital Crystal Clear provides vivid cinema-like images
• 3D combfilter separates colors for a razor-sharp image
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• 500 pages of teletext for fast access to text information
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
Page 2
Widescreen flat TV with Digital Crystal Clear
37" LCD HD Ready
Specifications
37PFL3312/10
Picture/Display
• Aspect ratio: 16:9, Widescreen
• Brightness: 500 cd/m²
• Dynamic screen contrast: 5000:1
• Response time (typical): 6 ms
• Viewing angle (H / V): 178 / 178 degree
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD WXGA Active Matrix
TFT
• Panel resolution: 1366 x 768p
• Picture enhancement: Digital Crystal Clear,
Dynamic contrast enhancement, Contrast Plus, 3/
2 - 2/2 motion pull down, 3D Combfilter, Active
Control, Digital Noise Reduction, Jagged Line
Suppression, Progressive Scan
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 72, 75, 85Hz
800 x 600 60, 72, 75, 85Hz
1024 x 768 60, 70, 75, 85Hz
• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Equalizer: 7-bands
• Output power (RMS): 2 x 10 W
• Sound Enhancement: Auto Volume Leveller,
Dynamic Bass Enhancement, Incredible Surround
• Sound System: Nicam Stereo, Stereo
Loudspeakers
• Built-in speakers: 2
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL),
Program List, Side Control, Smart Picture
Control, Smart Sound Control
• Remote Control: TV
• Remote control type: RC2023601/01
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 500 page Smart Text
• Teletext enhancements: 4 favourite pages,
Program information Line
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, SECAM, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 100
• Tuner Display: PLL
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in
• Ext 3: S-video in, CVBS in, Audio L/R in
• Ext 4: YPbPr, Audio L/R in
• Ext 5: HDMI
• Ext 6: HDMI
• Number of Scarts: 2
• Other connections: Headphone out
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 220 - 240V, 50/60Hz
• Power consumption: 175 W
• Standby power consumption: < 1W
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
• Optional accessories: Floor stand
Dimensions
• Color cabinet: High Gloss Black
• Set dimensions (W x H x D):
944
x 628 x 113 mm
• Set dimensions with stand (W x H x D):
944
x 690 x 286 mm
• Product weight: 21.6 kg
• Product weight (+stand): 29.6 kg
• Box dimensions (W x H x D):
1014
x 733 x 330 mm
• Weight incl. Packaging: 35 kg
• VESA wall mount compatible: 600 x 400 mm
•
Page 3
Widescreen flat TV with Digital Crystal Clear
37" LCD HD Ready
37PFL3312/10
Product highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High Definition
pictu res a nd b e full y prepa red for HD source s li ke HDT V
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels. It's like
watching vivid cinema-like images.
3D Combfilter
The 3D comb filter separates brightness and color signals
better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract
from your viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the television
image to accurately separate the color from the blackand-white information and remove both horizontally and
vertically hanging dots, as well as dot crawl. The result is
a razor sharp image.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
Issue date 2008-04-30
Version: 1.0.8
12 NC: 8670 000 30333
EAN: 87 12581 33769 8
Compact and slim design
This design style emphasizes a slim, compact look that
saves space and fits in anywhere.
2 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
ou tp ut resolution with the sour ce device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
