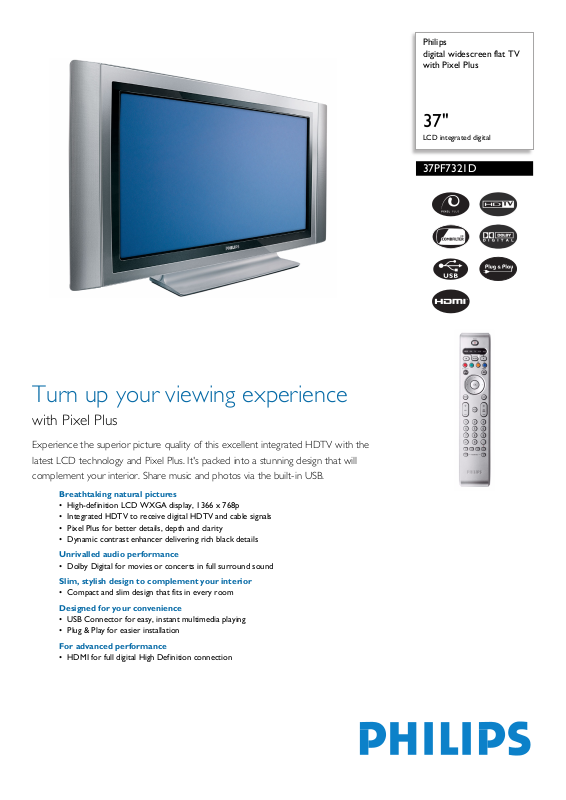

Page 1
For preview purpose only
Philips
digital widescreen flat TV
with Pixel Plus
37"
LCD integrated digital
37PF7321D
Turn up your viewing experience
with Pixel Plus
Experience the superior picture quality of this excellent integrated HDTV with the
latest LCD technology and Pixel Plus. It's packed into a stunning design that will
complement your interior. Share music and photos via the built-in USB.
Breathtaking natural pictures
• High-definition LCD WXGA display, 1366 x 768p
• Integrated HDTV to receive digital HDTV and cable signals
• Pixel Plus for better details, depth and clarity
• Dynamic contrast enhancer delivering rich black details
Unrivalled audio performance
• Dolby Digital for movies or concerts in full surround sound
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• USB Connector for easy, instant multimedia playing
• Plug & Play for easier installation
For advanced performance
• HDMI for full digital High Definition connection
Page 2
For preview purpose only
digital widescreen flat TV with Pixel Plus
37" LCD integrated digital
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 16:9, Widescreen
• Brightness: 500 cd/m²
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD WXGA Active Matrix
TFT
• Picture enhancement: Pixel Plus, Progressive
Scan, 3/2 - 2/2 motion pull down, Active
Control, 3D Combfilter, Dynamic contrast
enhancement
• Screen enhancement: Anti-Reflection coated
screen
• Viewing angle (H / V): 176/176degree
• Panel resolution: 1366 x 768p
• Response time (typical): 8ms
• Dynamic screen contrast: 2400:1
Supported Display Resolution
• Video formats
Resolution Refresh rate
480p 60Hz
480i 60Hz
720p 60Hz
1080i 60Hz
Multimedia Applications
• Digital Content Management: Digital Media
Reader
• Multimedia connections: USB memory class
device
• Playback Formats: JPEG Still pictures, MP3,
Slideshow files (.alb)
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Aerial Input: 75 ohm F-type
• Cable: Unscrambled Digital Cable -QAM
Connectivity
• AV 1: Audio L/R in, CVBS in, YPbPr
• AV 2: Audio L/R in, CVBS, YPbPr
• AV 3: Audio L/R in, CVBS in, S-Video Y/C
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-Video in, USB
• Audio Output - Digital: Coaxial (cinch)
• Other connections: HDMI
Power
Sound
• Sound System: Dolby Digital (AC-3)
• Output power (RMS): 2 x 15W
• Power consumption: 190 W
• Standby power consumption: < 1 W
• Mains power: AC 110 - 120 V, 60 Hz
• Ambient temperature: 5 °C to 40 °C
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Auto Volume Leveler,
Autostore, PLL Digital Tuning, Plug & Play
• Ease of Use: On Screen Display, Side Control,
AutoPicture, AutoSound
• Remote control type: RC4346/01
• Remote Control: DVD-R, Multi-functional, TV,
VCR, CBL
• Screen Format Adjustments: 7 Widescreen
Modes, Auto Format, Subtitle and Heading Shift,
Subtitle Zoom
• Clock: On main display
• Child Protection: Child Lock+Parental Control
• VESA Mount: 800x400 mm
Dimensions
• Product weight (lb): 57 (with stand), 52.8
(without stand)
• Weight incl. Packaging (lb): 72.6
• Box dimensions in inch (W x H x D):
46.9 x 32.7 x 13 inch
• Set dimensions in inch (W x H x D):
44 x 24.3 x 4.1 inch
• Set dimensions with stand in inch (W x H x D):
44 x 26 x 10 inch
Accessories
• Included Accessories: Table top stand, User
Manual, Remote Control, Registration card,
Quick start guide, Power cord
•
37PF7321D/37
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness and
superb colors. This vibrant and sharp image will provide
you with an enhanced viewing experience.
Integrated HDTV Cable Ready
The built-in HDTV tuner that receives and displays
te rr estrial ATSC and unsc ra mb led ca ble (64/256 QAM)
signals.
Pixel Plus
This set uses the power of the Pixel Plus processor to
increase the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and dept, every time from any source.
Dynamic contrast enhancer
You want the LCD flat display with the highest contrast
and most vibrant images even at wide viewing angle.
The Philips dynamic contrast enhancer uses video
processing and unique dimming backlight technology.
This delivers deep rich black levels with increased detail.
The dimming backlight increases the contrast up to 5
times*, and at the same time improves the viewing
angle. It gives a bright, lifelike picture with high contrast
and vibrant colors, (* factor between 2 and 5, screen
type and picture content dependant).
Dolby Digital
Because Dolby Digital and DTS, the world's leading
digital multi-channel audio standards, make use of the
way the human ear naturally processes sound, you
experience superb quality surround sound audio with
realistic spatial cues.
USB Multimedia Connector
The USB connector allows access to multimedia jpg,
mp3, mp3-pro and alb files of most USB-sticks and
most digital cameras (USB 1.1 memory-class device).
Plug the USB into the slot at the side of the TV and
access your photos or music files. This makes you easily
viewing and sharing your photos and music.
Plug & Play
Plug & Play gives you the ability to install or add a new
comp onent and have it wo rk w ithout ha ving to pe rform
any complex installation procedure or technical analysis.
HDMI input
HDMI makes an uncompressed digital RGB connection
fr om the source t o the scr een. By eliminating conversion
to an analog signal, it delivers an unblemished image.
The non-degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently communicates the
highest output resolution with the source device. The
HDMI input is fully backward compatible with DVI
sources but includes digital audio. HDMI uses HDCP
copy protection.
Date of issue 2006-07-18
Version: 10.0
12 NC: 8670 000 22903
UPC: 6 09585 11132 5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
