◗ Ordering Information

Ordering Code CDM35/TC/830 ANSI Designation M130/E Product Number 373720 DescriptionMasterColor Ceramic Metal Halide Package Quantity 12

◗ Physical Characteristics

Bulb Size T-4 Bulb Finish Clear Base G-8.5 Bi-Pin Max. Overall Length (MOL) 3.35'' (85mm) Light Center Length (LCL) 2.0'' (52mm) Arc Length 0.2'' (5mm) Arc Tube Material Polycrystalline Alumina Max. Permissible Bulb Temp. 500ºC (932ºF) Max. Permissible Pinch Temp. 300ºC (572ºF) Max. Arc Tube to Pinch Eccentricity 3º

◗ Operating Characteristics (Photometric)

Rated Initial Lumens

3300

Mean Lumens,Approx.

2640 Rated Average Life, Hours 9000 Correlated Color Temp. (CCT)

3000K CIE Chromaticity Approx.

x-.432, y-.394 Color Rendering Index (CRI) 81 Efficacy (lpw) 85

◗ Operating Position

Universal-Enclosed Luminaires Only

Note: Use on thermally protected electronic ballast only.

MasterColor® Spectral Power Distribution—3K Types

RELATIVE ENERGY

400 450 500 550 600 650 700

WAVELENGTH (Nanometers)

350

300

250

200

150

100

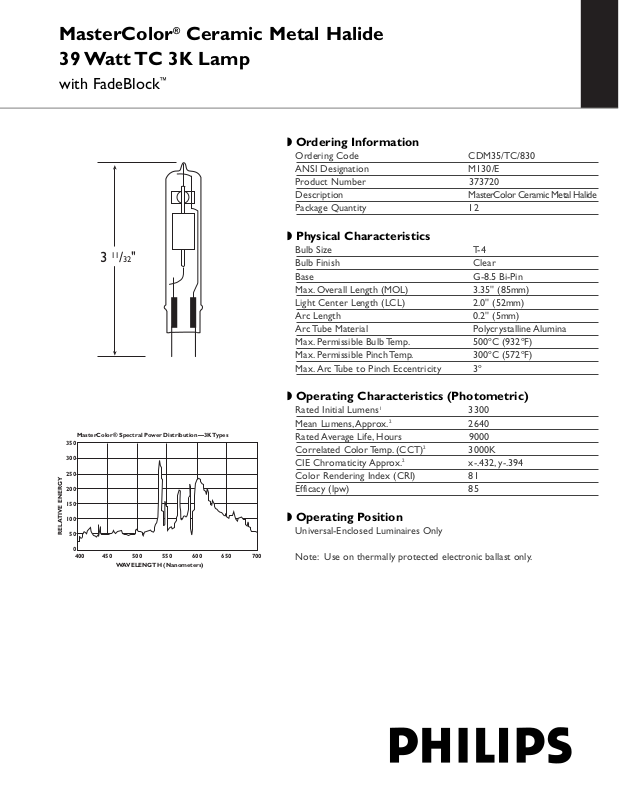

MasterColor®Ceramic Metal Halide 39 Watt TC 3K Lamp

with FadeBlock

™

311/32''

Warnings, Cautions and Operating Instructions

“WARNING: These lamps can cause serious skin burn and eye inflammation from

short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.” This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21CFR 1040.30 Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured, turn off at once and replace the lamp to avoid possible injury from hazardous short wave ultraviolet radiation. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter. A partial vacuum in the outer bulb may cause glass to fly if the envelope is struck.

WAR NI NG: The arc-tube of metal halide lamps are designed to operate under high

pressure and at temperatures up to 1000º C and can unexpectedly rupture due to internal or external factors such as a ballast failure or misapplication. If the arc-tube ruptures for any reason, the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY DAMAGE,

BURNS AND FIRE.

Certain lamps that will retain all the glass particles should inner arc-tube rupture occur are commercially available from Philips Lighting Company.

RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

This lamp contains an arc tube with a filling gas containing Kr-85 and is distributed by Philips Lighting Company, a division of Philips Electronics North America Corporation, Somerset, New Jersey, 08875.

CAUTION: TO R ED UCE THE RISK OF PERSONAL INJURY, PROPERTY

DAMAGE, BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURE THE FOLLOWING LAMP OPERA

TING INSTRUCTIONS MUST BE FOLLOWED:

LAMP OPERATING INSTRUCTIONS:

1. RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

2. Use only in fully enclosed fixtures capable of withstanding particles of glass having temperatures up to 1000º C. Lens/diffuser material must be heat resistant. Consult fixture manufacturer regarding the suitability of the fixture for this lamp.

3. Do not operate a fixture with a missing or broken lens/diffuser.

4. Operate lamp only within specified limits of operating position.

5. Before lamp installation/replacement, shut power off and allow lamp and fixture to cool to avoid electrical shock and potential burn hazards.

6. Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within voltage limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation.

B. For total supply load refer to ballast manufacturers electrical data.

C. Operate CDM-T (G12 base) and CDM-TC (G8.5 base) lamps only

on thermally protected ballasts.

D. Operate CDM-TC lamps (G8.5 base) only on electronic ballasts.

7. Periodically inspect the outer envelope. Replace any lamps that show scratches, cracks or damage.

8. If a lamp bulb support is used, be sure to insulate the support electrically to avoid possible decomposition of the bulb glass.

9. Protect lamp base, socket and wiring against moisture, corrosive atmospheres and excessive heat.

10. Time should be allowed for lamps to stabilize in color when turned on for the first time. This may require several hours of operation, with more than one start. Lamp color is also subject to change under conditions of excess vibration or shock, and color appearance may vary between individual lamps.

11. Lamps may require 4 to 8 minutes to re-light if there is a power interruption.

12.Take care in handling and disposing of lamps. If an arc tube is broken, avoid skin

contact with any of the contents or fragments.

Philips Lighting Company 200 Franklin Square Drive■P. O. Box 6800 Somerset, NJ 08875-6800 1-800-555-0050 www.lighting.philips.com/nam

A Division of Philips Electronics North America Corporation

Updated 5/04 CDM 028

Philips Lighting 281 Hillmount Road Markham, Ontario Canada L6C 2S3 1-800-555-0050 www.lighting.philips.com/nam

A Division of Philips Electronics Ltd.

MasterColor®Ceramic Metal Halide 39 Watt TC 3K Lamp with FadeBlock

™

Electrical Data (Subject to change without notice)

Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Lamp Operating Voltage (rms) (Nominal)2. . . . . . . . . . . 88

Initial Lamp Voltage Range (rms)3. . . . . . . . . . . . . . . . . . . 80 -100

Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 0.53

Lamp Current Crest Factor (Maximum). . . . . . . . . . . . . . 1.8

Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . 3 Minutes

Restrike Time for Hot Lamp . . . . . . . . . . . . . . . . . . . . . . . 4-8 Minutes

Ballast Type (Electronic Only) . . . . . . . . . . . . . . . . . . . . . . ANSI M130/E

Ballast Open Circuit Voltage (Minimum) . . . . . . . . . . . . . . 209 RMS Min.

Pulse Peak Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 Minimum, 4000 Maximum

Pulse Width @ 90% Peak. . . . . . . . . . . . . . . . . . . . . . . . . . 2 Micro Second Minimum

Pulse Repetition Rate (Minimum)

. . . . . . . . . . . . . . . . . . 1 per Half Cycle

Minimum Operating Temperature. . . . . . . . . . . . . . . . . . . -30º C (-22°F)

1) Measured at 100 hours of life in vertical position.

2) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.

3) Measured with the lamp operating at rated watts.

4) Option-Pulse Width @ 90% Peak, 1 micro second minimum with 2 pulses per half cycle.

Installation Information: MasterColor

Metal Halide TC lamps must be used in combination with appropriate fully electronic ballast only.
