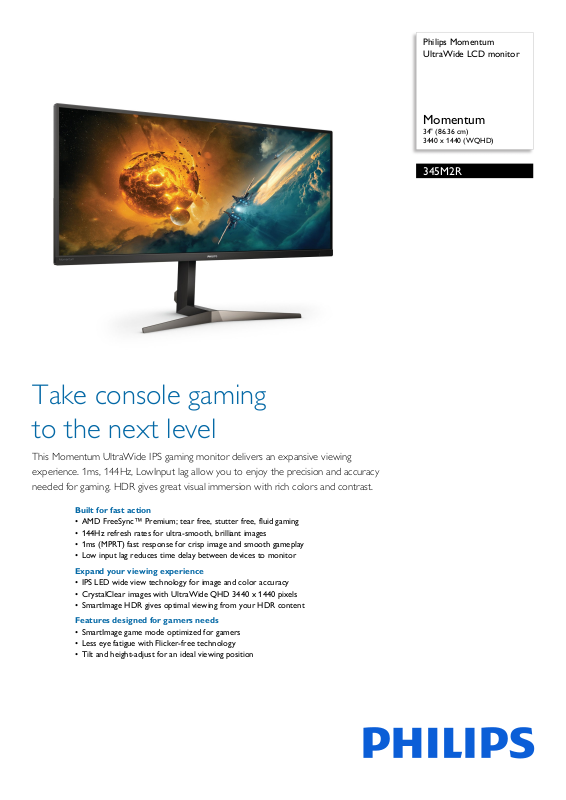

Page 1
Philips Momentum
UltraWide LCD monitor
Momentum
34" (86.36 cm)
3440 x 1440 (WQHD)
345M2R
Take console gaming
to the next level
This Momentum UltraWide IPS gaming monitor delivers an expansive viewing
experience. 1ms, 144Hz, LowInput lag allow you to enjoy the precision and accuracy
needed for gaming. HDR gives great visual immersion with rich colors and contrast.
Built for fast action
• AMD FreeSync™ Premium; tear free, stutter free, fluid gaming
• 144Hz refresh rates for ultra-smooth, brilliant images
• 1ms (MPRT) fast response for crisp image and smooth gameplay
• Low input lag reduces time delay between devices to monitor
Expand your viewing experience
• IPS LED wide view technology for image and color accuracy
• CrystalClear images with UltraWide QHD 3440 x 1440 pixels
• SmartImage HDR gives optimal viewing from your HDR content
Features designed for gamers needs
• SmartImage game mode optimized for gamers
• Less eye fatigue with Flicker-free technology
• Tilt and height-adjust for an ideal viewing position
Page 2
345M2R/69
UltraWide LCD monitor
Momentum 34" (86.36 cm), 3440 x 1440 (WQHD)
Highlights
AMD FreeSync™ Premium
Gaming shouldn't be a choice between choppy
gameplay or broken frames. AMD FreeSync™
Premium equips serious gamers with a fluid,
tear-free gameplay experience at peak
performance. There are no compromises,
game confidently with a high refresh rate, low
framerate compensation, and low latency.
144Hz Gaming
You play intense, competitive gaming. You
demand display with lag free, ultra-smooth
images. This Philips display redraws the screen
image up-to 144 times per second, effectively
2.4x faster than a standard display. A lower
frame rate can make enemies appear to jump
from spot to spot on the screen, making them
difficult targets to hit. With 144Hz frame rate,
you get those critical missing images on the
screen which shows enemy movement in ultrasmooth motion so you can easily target them.
With ultra-low input lag and no screen tearing,
this Philips display is your perfect gaming
partner
1ms MPRT fast response
MPRT (motion picture response time) is more
intuitive way to describe the response time,
which directly refers the duration from seeing
blurry noise to clean and crisp images. Philips
gaming monitor with 1 ms MPRT effectively
eliminates smearing and motion blur, delivers
shaper and precise visuals to enhance gaming
experience. Best choice for playing thrilling and
twitch-sensitive games.
Low Input Lag
Input lag is the amount of time that elapses
between performing an action with connected
devices and seeing the result on screen. Low
input lag reduces the time delay between
entering a command from your devices to
monitor, greatly improve on playing twitchsensitive video games, particularly important
to whom plays fast-paced, competitive games.
IPS technology
degree, making it possible to view the display
from almost any angle. Unlike standard TN
panels, IPS displays gives you remarkably crisp
images with vivid colors, making it ideal not
only for Photos, movies and web browsing, but
also for professional applications which
demand color accuracy and consistent
brightness at all times.
UltraWide CrystalClear images
These Philips screens deliver CrystalClear,
UltraWide Quad HD 3440 x 1440 pixel
images. Utilizing high performance panels with
high-density pixel count, 178/178 wide viewing
angles, these new displays will make your
images and graphics come alive. The
UltraWide 21:9 format enables more
productivity with more room for side-by-side
comparisons and more viewable spreadsheet
columns. Whether you are demanding
professional requiring extremely detailed
information for CAD-CAM solutions, or a
financial wizard working on huge spreadsheets,
Philips displays delivers CrystalClear images.
SmartImage HDR
Select one of SmartImage
suit your needs. HDR Game: Optimize for
playing video games. With brighter white and
darker black, the gaming scene is vivid and
revealing more details, easily spot enemies
hiding in the dark corner and shadows. HDR
Movie: Ideal for watching HDR movie. Deliver
better contrast and brightness for more
realistic and immerse viewing experience.
HDR Photo: Enhance red, green, and blue for
lively visuals. DisplayHDR: VESA DisplayHDR
certified*. Personal: Customize settings in
picture menu. *Please refer to specification for
HDR grade.
HDR modes to best
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
Page 3
345M2R/69
UltraWide LCD monitor
Momentum 34" (86.36 cm), 3440 x 1440 (WQHD)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 34 inch / 86.36 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 799.8 H) x 334.8 (V) mm
• Aspect ratio: 21:9
• Maximum resolution: 3440 x 1440 @ 144 Hz*
• Pixel Density: 109.68 PPI
• Response time (typical): 4 ms (Gray to Gray)*
•MPRT: 1 ms
• Low Input Lag
• Brightness: 300 cd/m²
• SmartContrast: Mega Infinity DCR
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.2325 x 0.2325 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Flicker-free
•HDR: HDR Ready
•Color gamut (min.): DC
I-P3 88.9%*
• Color gamut (typical): NTSC 97.5%*, sRGB 119%*,
e RGB 96%*
Adob
• Picture enhancement: SmartImage game
• Display colors: 16.7 M
• Scanning Frequency: HDMI: 30 - 160 kHz (H) / 48
100 Hz (V), DP: 30 - 220 kHz (H) / 48 - 144 Hz (V)
-
•LowBlue Mode
•EasyRead
•sRGB
• AMD FreeSync™ technology: Premium
Connectivity
• Signal Input: HDMI 2.0 x 2, DisplayPort x 2
• Sync Input: Separate Sync
• Audio (In/Out): Audio out
Convenience
• MultiView: PIP/PBP mode*, 2x devices
• User convenience: Power On/Off, Menu/OK,
put/Up, Game Settings/Down, SmartImage game/
In
Back
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Swedish, Turkish, Traditional Chinese, Ukranian
• Other convenience: Kensington lock, VESA mount
0x100mm)
(10
• Plug & Play Compatibility: DDC/CI, Mac OS X,
s
RGB, Windows 10 / 8.1 / 8 / 7
Stand
• Height adjustment: 110 mm
• Tilt: -5/20 degree
Power
• On mode: 55.5 W (typ.)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 817 x 523 x
249 mm
• Product without stand (mm): 817 x 365 x 51 mm
• Packaging in mm (WxHxD): 930 x 525 x 159 mm
Weight
• Product with stand (kg): 9.72 kg
• Product without stand (kg): 5.72 kg
• Product with packaging (kg): 12.46 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 50,000 (Excluded backlight) hour(s)
Sustainability
• Environmental and energy: RoHS, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CB, CE Mark, FCC Class B,
ICES-003
Cabinet
• Color: Black
• Finish: Textured
•
Issue date 2021-04-21
Version: 1.0.1
12 NC: 8670 001 78214
EAN: 87 12581 77848 4
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* The maximum resolution works for DP input only.
* For best output performance, please always ensure that your graphic
card is capable of achieving the maximum resolution and refresh rate
of this Philips display.
* Response time value equal to SmartResponse
* MPRT is to adjust brightness for blur reduction, so cannot adjust
brightness while MPRT is turned on. To reduce motion blur, LED
backlight will strobe synchronously with screen refresh, which may
cause noticeable brightness change.
* MPRT is gaming-optimized mode. Turn on MPRT may cause
noticeable screen flickering. It is recommended to turn off when you
are not using the gaming function.
* BT. 709 / DCI-P3 Coverage based on CIE1976
* NTSC Area based on CIE1976
* sRGB Area based on CIE1931
* Adobe RGB Coverage based on CIE1976
* PIP DP: only supports up to 3440 x 1440 @ 120Hz
* 2020 Advanced Micro Devices, Inc. All rights reserved. AMD, the
AMD Arrow logo, AMD FreeSync™ and combinations thereof are
trademarks of Advanced Micro Devices, Inc. Other product names
used in this publication are for identification purposes only and may
be trademarks of their respective companies.
* The monitor may look different from feature images.
