Philips 343E2E/27 leaflet

Download

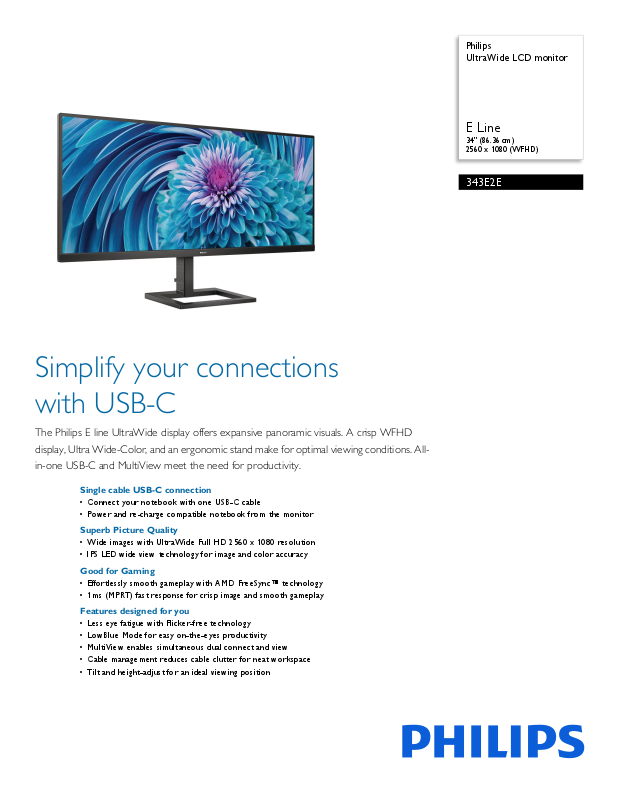

Page 1

Philips UltraWide LCD monitor

E Line

34" (86.36 cm) 2560 x 1080 (WFHD)

343E2E

Simplify your connections with USB-C

The Philips E line UltraWide display offers expansive panoramic visuals. A crisp WFHD display, Ultra Wide-Color, and an ergonomic stand make for optimal viewing conditions. Allin-one USB-C and MultiView meet the need for productivity.

Single cable USB-C connection

• Connect your notebook with one USB-C cable

• Power and re-charge compatible notebook from the monitor

Superb Picture Quality

• Wide images with UltraWide Full HD 2560 x 1080 resolution

• IPS LED wide view technology for image and color accuracy

Good for Gaming

• Effortlessly smooth gameplay with AMD FreeSync™ technology

• 1ms (MPRT) fast response for crisp image and smooth gameplay

Features designed for you

• Less eye fatigue with Flicker-free technology

• LowBlue Mode for easy on-the-eyes productivity

• MultiView enables simultaneous dual connect and view

• Cable management reduces cable clutter for neat workspace

• Tilt and height-adjust for an ideal viewing position

Page 2

343E2E/27

UltraWide LCD monitor

E Line 34" (86.36 cm), 2560 x 1080 (WFHD)

Highlights

USB-C connection

This Philips display features a USB type-C connector with power delivery. With intelligent and flexible power management, you can power charge your compatible device directly. Its slim, reversible USB-C allows for easy, one-cable connection. You can watch high resolution video while powering up and re-charging your compatible device at the same time.

Power & re-charge notebook

This monitor features a built in USB-C c

onnector which meets USB Power Delivery standard. With intelligent and flexible power management, you can now power up and or recharge your compatible* Notebook directly from the Monitor using a single USB-C cable.

degree, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

Ultra-smooth gaming

Gaming shouldn't be a choice between choppy gameplay or broken frames. With the new Philips monitor it doesn't have to be. Get fluid, artifact-free performance at virtually any framerate with AMD FreeSync™ technology, smooth quick refresh and ultra-fast response time.

Flicker-free technology

Due to the way brightness is controlled on LEDbacklit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

LowBlue Mode

UltraWide Full HD

With 21:9 UltraWide format, you can spread o

ut and see multiple applications side-by-side on the same screen. The 21:9 UltraWide format also makes movies and games more immersive than ever. Full HD resolution makes everything look crisp and clear.

IPS technology

IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178

1ms MPRT fast response

MPRT (motion picture response time) is more intuitive way to describe the response time, which directly refers the duration from seeing blurry noise to clean and crisp images. Philips gaming monitor with 1 ms MPRT effectively eliminates smearing and motion blur, delivers shaper and precise visuals to enhance gaming experience. Best choice for playing thrilling and twitch-sensitive games.

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

MultiView technology

With the ultra-high resolution Philips MultiView display yo connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multi-tasking.

u can now experience a world of

Page 3

343E2E/27

UltraWide LCD monitor

E Line 34" (86.36 cm), 2560 x 1080 (WFHD)

Specifications

Picture/Display

• AMD FreeSync™ technology

• LCD panel type: IPS technology

• Backlight type: W-LED system

• Panel Size: 34 inch / 86.36 cm

• Display Screen Coating: Anti-Glare, 3H, Haze 25%

• Effective viewing area: 799.8 (H) x 334.8 (V) mm

• Aspect ratio: 21:9

• Maximum resolution: 2560 x 1080 @ 75 Hz*

• Pixel Density: 82 PPI

• Response time (typical): 4 ms (Gray to Gray)*

•MPRT: 1 ms

• Brightness: 300 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast: Mega Infinity DCR

• Pixel pitch: 0.31242 x 0.31000 mm

• Viewing angle: 178º (H) / 178º (V), @ C/R > 10

• Flicker-free

• Picture enhancement: SmartImage game

• Color gamut (typical): NT

SC 109.5%*, sRGB

123.1%*

• Display colors: 16.7 M

• Scanning Frequency: 30 - 99 kHz (H) / 48 - 75 Hz (V)

•LowBlue Mode

•EasyRead

•sRGB

Connectivity

• Signal Input: DisplayPort x 1, HDMI x 2, USB-C x 1

(DP Alt mode, Power delivery up to 65W))

• Sync Input: Separate Sync

• Audio (In/Out): Audio out

Convenience

• MultiView: PIP/PBP mode, 2x devices

• User convenience: Power On/Off, Menu, Brightness,

put, SmartImage Game

• OSD Languages: Brazil Portuguese, Czech, Dutch,

lish, Finnish, French, German, Greek, Hungarian,

Eng Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukranian

• Other convenience: Kensingto

(100x100mm)

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 10 / 8.1 / 8 / 7

n lock, VESA mount

Power

• On mode: 22.36 W (typ.) (EnergyStar test method)

• Standby mode: 0.5 W (typ.)

• Off mode: 0.3 W (typ.)

• Power LED indicator: Operation - White, Standby de- White (blinking)

• Power supply: External, 100-240VAC, 50-60Hz

Dimensions

• Product with stand(max height): 817 x 491 x

235 mm

• Product with stand(max height): 32.2 x 19.3 x

9.3 inch

• Product without stand (mm): 817 x 365 x 49 mm

• Product without stand in inch: 32.2

x 14.4 x 1.9 inch

• Packaging in mm (WxHxD): 930 x 525 x 186 mm

• Packaging in inch (WxHxD): 36.6 x 20.7 x 7.3 inch

Weight

• Product with stand (kg): 7.69 kg

• Product with stand (lb): 16.92 lb

• Product without stand (kg): 5.73 kg

• Product without stand (lb): 12.61 lb

• Product with packaging (kg): 10.31 kg

• Product with packaging (lb): 22.68 lb

Operating conditions

• Temperature range (operation): 0 to 40 °C

• Temperature range (storage): -20 to 60 °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000ft (3,658m), Non-

peration: +40,000ft (12,192m)

• MTBF: 50,000 hrs (excluding backlight) hour(s)

Sustainability

• Environmental and energy: EnergyStar 8.0, RoHS,

Mercury Free

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: CB, EPA, cETLus, FCC Class

B, ICES-003, CCC, CECP, CEL

Cabinet

• Color: Black

• Finish: Textured

Stand

• Height adjustment: 100 mm

• Tilt: -5/20 degree

Issue date 2022-04-21

Version: 5.3.2

12 NC: 8670 001 67938 UPC: 6 09585 25335 3

What's in the box?

•Monitor with stand

• Cables: HDMI cable, USB-C to USB-C cable, Power le

cab

•User Documentation

•

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

o change without notice.

* "IPS" word mark / trademark and related patents on technologies

belong to their respective owners. * The maximum resolution works for either HDMI, DP or USB-C input. * Response time value equal to SmartResponse * NTSC Area based on CIE1976 * sRGB Area based on CIE1931 * For Video transmission via USB-C, your Notebook/device must

support USB-C DP * For USB-C power and charging function, your Notebook/device must

support USB-C st

Arrow logo, AMD FreeSync™ and combinations thereof are

trademarks of Advanced Micro Devices, Inc. Other product names

used in this publication are for identification purposes only and may be

trademarks of their respective companies. * The monitor may look different from feature images.

Alt mode

andard Power Delivery specifications. Please check
