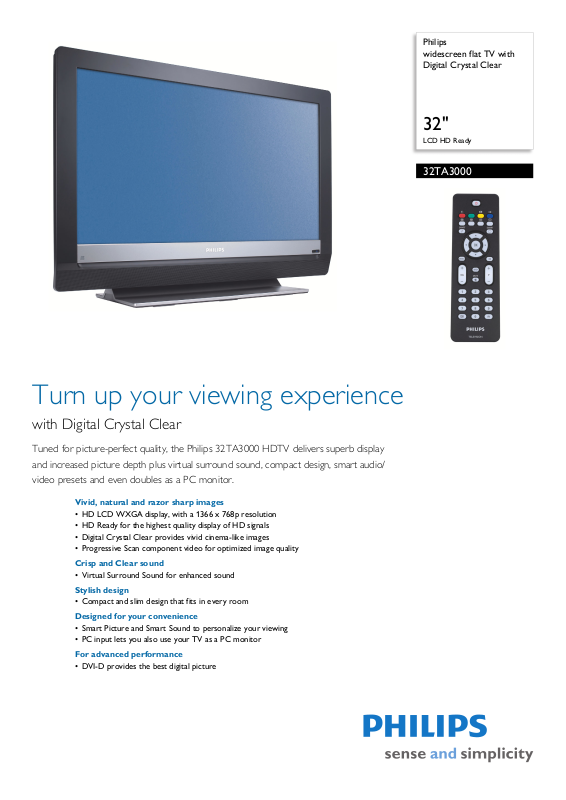

Philips 32TA3000 User Manual

Philips widescreen flat TV with Digital Crystal Clear
32"
LCD HD Ready
32TA3000
Turn up your viewing experience
Tuned for picture-perfect quality, the Philips 32TA3000 HDTV delivers superb display and increased picture depth plus virtual surround sound, compact design, smart audio/ video presets and even doubles as a PC monitor.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Digital Crystal Clear provides vivid cinema-like images
• Progressive Scan component video for optimized image quality
Crisp and Clear sound
• Virtual Surround Sound for enhanced sound
Stylish design
• Compact and slim design that fits in every room
Designed for your convenience
• Smart Picture and Smart Sound to personalize your viewing
• PC input lets you also use your TV as a PC monitor
For advanced performance
• DVI-D provides the best digital picture
Widescreen flat TV with Digital Crystal Clear
32" LCD HD Ready
Highlights
32TA3000/93
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD s
creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High Definiti
on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture i
nnovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema­like images.
Progressive Scan
Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.
Virtual surround sound
Virtual surround sound creates additional au
dio channels for a theater-like audio
experience.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.
DVI-D input
A DVI-D input makes an uncompressed digital RGB co eliminating the conversion of the digital signal to analog, it delivers an unblemished image. Thanks to the non-degraded signal, you get less flicker and a clearer picture. The DVI input is fully backward compatible with HDMI sources, and also uses HDCP copy protection.
PC input
With PC input you can connect your TV to a c
omputer and use the TV as a PC monitor.
provide you with direct access via
nnection from source to screen. By
Widescreen flat TV with Digital Crystal Clear
32" LCD HD Ready
Specifications
32TA3000/93
Picture/Display
• Aspect ratio: 16:9
• Display screen type: LCD WXGA Active Matrix T
TF
• Panel resolution: 1366 x 768p
• Picture enhancement: Digital C
2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Blue stretch, Black stretch, White stretch, Green enhancement, Progressive Scan, Smart Picture, Automatic skin tone correction
• Screen enhancement: Anti-Reflection coated
reen
sc
rystal Clear, 3/2 - 2/
Supported Display Resolution
Computer formats
Resolution Refresh rate 640 x 480 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 60Hz 1280 x 768 60Hz 1360 x 768 60Hz
deo formats
Vi
Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz
Sound
• Output power (RMS): 2 x 5W
• Sound Enhancement: Virtual Surround Sound
• Sound System: Mono, Nicam Stereo, Stereo
Loudspeakers
• Built-in speakers: 2
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer
• Ease of Installation: Autos
Digital Tuning, Sorting
• Ease of Use: Auto Volume Leveller (AVL), On
tore, Fine Tuning, PLL
een Display, Program List, Smart Picture, Smart
Scr Sound, Top Controls
• Remote Control: TV
• Remote control type: RC2023611/01B
• Screen Format Adjustments: 4:3, Subtitle Zoom, erwide, Widescreen, Zoom 14:9, Zoom 16:9
Sup
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL D/K
• Video Playback: NTSC, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: Audio L/R in, CVBS in, S-Video in
•Front / Side connections: Audio
Headphone out, S-video in
• Other connections: DVI-D, PC Audio in, PC-In
A
VG
L/R in, CVBS in,
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 100-240V, 60-50 Hz
• Power consumption: 150 W
• Standby power consumption: < 2 W
Accessories
• Included Accessories: Power cord, Quick start
guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control
Dimensions
• Color cabinet: black, high gloss black strip
•Set dimensions (W x H x D):
0.7 x 544.6 x 103.9 mm
79
• Set dimensions with stand (W x H x D):
0.7 x 581.8 x 252.4 mm
79
• Product weight: 13.47 kg
• Product weight (+stand): 16 kg
•Box dimensions (W x H x D):
27 x 672 x
10
• Weight incl. Packaging: 19.2 kg
• VESA wall mount compatible: 400 x 200 mm
234 mm
Issue date 2009-06-11
Version: 2.1.7
12 NC: 8670 000 31005 EAN: 87 12581 34218 0
© 2009 Koninklijke Philips Electronics N.V. All Rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
www.philips.com
