Philips 32RF 50S User Manual

Page 1

3121 235 20311

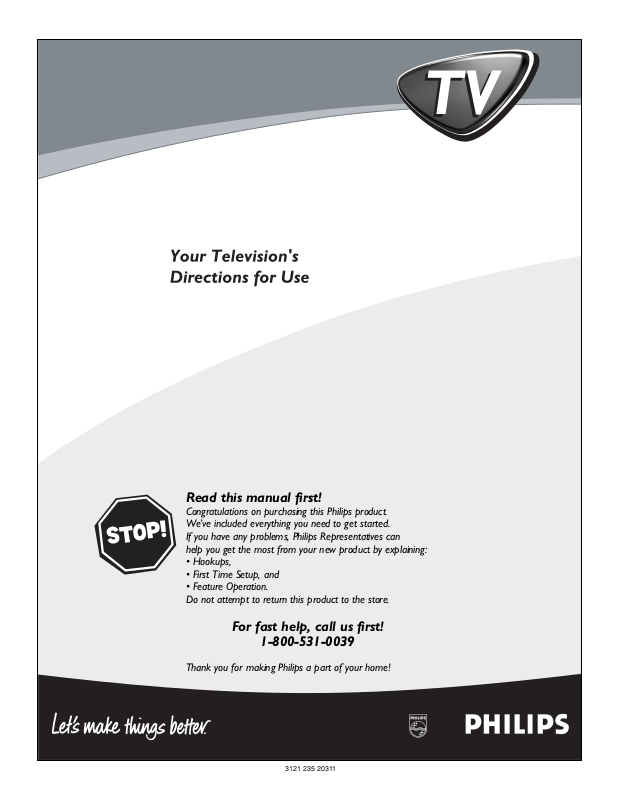

Read this manual first!

Congratulations on purchasing this Philips product. We’ve included everything you need to get started. If you have any problems, Philips Representatives can help you get the most from your new product by explaining:

• Hookups,

• First Time Setup, and

• Feature Operation. Do not attempt to return this product to the store.

For fast help, call us first!

1-800-531-0039

Thank you for making Philips a part of your home!

Page 2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your pur-

chase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Philips Consumer Electronics Company

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electri-

cal shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed

literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS product, you

must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

Visit our World Wide Web Site at http://www.philipsusa.com

Page 3

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should

be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should

be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating

instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be

followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or

stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended inter-

national global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a

wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or

position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a builtin installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power sup-

ply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so

that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended

by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from

power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to

the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be

unplugged from the outlet when left unused for a long period of time.

16. Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by

qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance;

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

(NEC SECTION 810-20)

Page 4

Introduction

✧Welcome/Registration of Your TV . . . . . . . . . . . . . . . . . .2

✧Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

✧Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

✧Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ONSCREEN MENU


✧ Adjusting the Picture . . . . . . . . . . . . . . . . . . . . . . .6

✧Turning ON the Dynamic Noise Reduction

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

✧Turning ON the ImageMax™ Control . . . . . . . . . . . . . . .7

Features

✧Using the Closed Captioning Control . . . . . . . . . . . . . . .8

✧Using the Format (Screen) Control . . . . . . . . . . . . . . . . .9

✧Activating the Blue Mute Control . . . . . . . . . . . . . . . . .10

✧Using the Sleep Timer Control . . . . . . . . . . . . . . . . . . . .11

The Timer Feature

✧ The Timer – Setting the Clock . . . . . . . . . . . . . . .12

✧ The Timer – Setting the Start Time . . . . . . . . . . . . . . .13

✧The Timer – Setting the Stop Time . . . . . . . . . . . . . . . .14

✧The Timer – Selecting the Channel . . . . . . . . . . . . . . . .15

✧The Timer – Setting Activate to ON or OFF . . . . . . . .16

✧The Timer – Turning ON the Timer Display . . . . . . . . .17

The AutoLock™ Feature

✧ Understanding AutoLock™ . . . . . . . . . . . . . . . . . . .18

✧ AutoLock™ – Setting Up the Access Code . . . . . . . . .19

✧AutoLock™ – Blocking Channels . . . . . . . . . . . . . . . . .20

✧AutoLock™ – Blocking by Movie Rating . . . . . . . . . .21

✧AutoLock™ – Blocking by TV Rating . . . . . . . . . . . .22

✧AutoLock™ – Turning Block ON or OFF . . . . . . . . . .23

✧AutoLock™ – Blocking Unrated

Broadcasts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

✧AutoLock™ – Blocking Broadcasts That

Have No Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

✧AutoLock™ – Reviewing Your Settings . . . . . . . . . . . .26

✧AutoLock™ – Viewing Blocked

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Sound

✧ Sound – Adjusting the Treble, Bass, and

and Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

✧Sound – Setting the Volume . . . . . . . . . . . . . . . . . . . . .29

✧Sound – Using the AVL (Audio Volume

Leveler) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

✧Sound – Using Incredible Surround . . . . . . . . . . . . . . . .31

✧Sound – Setting the TV for Stereo and

SAP (Second Audio Program) . . . . . . . . . . . . . . . . . . . .32

✧Sound – Setting the Audio Out Control . . . . . . . . . . . . .33

✧Sound – Using the TV Speaker Control

and Audio Output Jacks . . . . . . . . . . . . . . . . . . . . . . . . .34

✧Sound – Using the Surround Sound

External Speaker Connections . . . . . . . . . . . . . . . . . . . .35

✧Sound – Using the Audio/Video

Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36–38

TABLE OF CONTENTS

AutoChron, AutoLock, AutoPicture, AutoSound, M-Link, and

ImageMax are trademarks of Philips Consumer Electronics Company.

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television system. This is normal and does not require that you contact your dealer or request service.

Remote Control Operation

✧ Remote Control – Using AutoPicture™ . . . . . .39

✧ Remote Control – Using AutoSound™ . . . . . .40

✧ Remote Control – Using Channel Surf . . . . . . . . . . .41

✧ Remote Control – Operating Accessory Devices

(Direct Access) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

✧ Remote Control – Operating Accessory Devices

(Code Entry) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

✧ Remote Control – Operating Accessory Devices

(Search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

✧ Remote Control – Accessory Device Code

Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45–46

✧ Remote Control – Using the Remote’s VCR

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

General Information

✧ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .48

✧Glossary of Television Terms . . . . . . . . . . . . . . . . . . . . .49

✧Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

✧Factory Service Locations . . . . . . . . . . . . . . . . . . . . . . .51

✧Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

2 0 1

4 8

Page 5

Audio/Video Jack Panel allows direct connections with VCRs, DVDs, or other devices, providing quality TV picture and sound playback.

Audio Volume Leveler (AVL) Control keeps the TV sound at an even level. Peaks and valleys that occur during program changes or commercial breaks are reduced, making for a more consistent, comfortable sound.

AutoChron™ automatically sets the right time of day and maintains it with digital precision through brownouts, power failures, and even Daylight Savings Time adjustments.

AutoLock™ allows you to block the viewing of certain channels or programs with certain ratings if you do not want your children to view inappropriate materials.

Auto Programming scans (when activated) for all available channels from regular antenna or cable signals and stores only active broadcast stations in the TV’s memory.

AutoPicture™ allows you to change the picture settings (color, tint, contrast, etc.) for various types of programming, such as sports, movies, multimedia (games), or weak signals with the push of one button.

AutoSound™ allows you to select from three factory-set controls and a personal control that you set according to your own preferences through the onscreen Sound menu. The three factory-set controls (Voice, Music, and Theatre) enable you to tailor the TV sound so as to enhance the particular programming you are watching.

Channel Edit allows you to add or delete channels from the list stored in the TV’s memory. Channel Edit makes it easy to limit or expand the number of channels that are available to you when you press the Channel (+) or (–) buttons on your remote control.

Closed Captioning allows the viewer to read TV program dialogue or voice conversations as onscreen text.

ImageMax™ helps you sharpen the picture quality by making dark portions of the picture darker and light portions brighter.

Infrared Remote Control works your TV and other remotecontrolled devices, such as VCRs, DVD players, cable converters, and satellite receivers.

Onscreen Menu shows helpful messages and instructions for setting TV feature controls (can be viewed in English, French, or Spanish).

Sleep Timer automatically turns the TV OFF after a set amount of time that you choose.

Standard Broadcast (VHF/UHF) or Cable TV (CATV)

channel capability allows for viewing by antenna or cable.

Stereo capability, including a built-in audio amplifier and twin-speaker system, allows for the reception of TV programs broadcast in stereo sound.

Surf Button allows you to easily switch among only the channels that are of interest to you (the ones that you have programmed into the TV’s Surf control through the onscreen menu).

Timer allows you to set your TV to turn itself ON and OFF once or daily like an alarm clock.

Use the simple Quick Use and Installation Guide (supplied with your TV information

packet) for details on:

• Cable/Antenna Hookups

• Automatic Channel Programming

• Channel Editing

• Setting the TV’s Clock Automatically (AutoChron™)

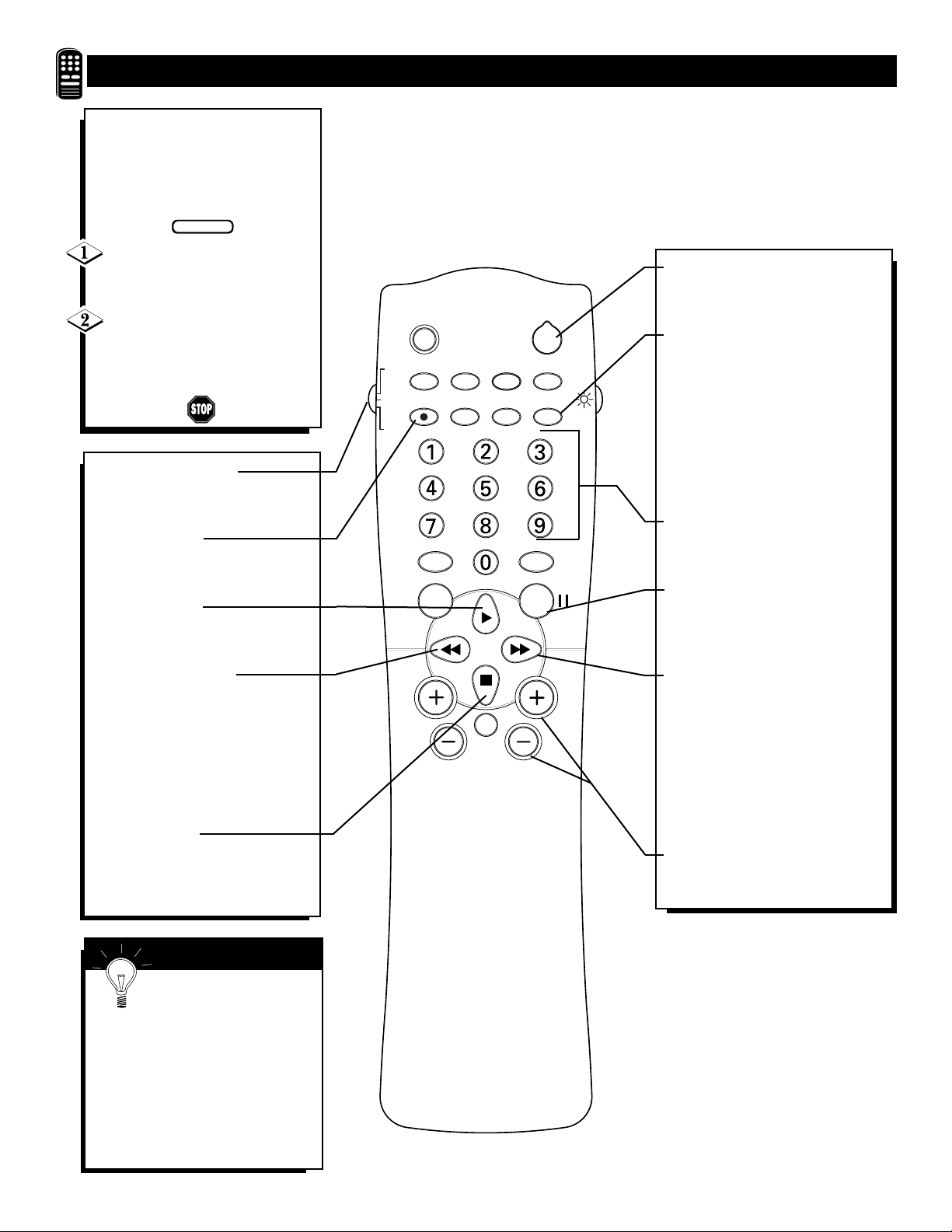

• Basic Operation of the TV and Remote Control

• Selection of the Onscreen Menu Language

QUICK USE AND INSTALLATION GUIDE

2 1

5 6

BEGIN

FEATURES

Your new television and its packing contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts that need to be properly disposed.

Your product also uses batteries that should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

When you replace your existing equipment, please find out about the local regulations regarding disposal of your old television, batteries, and packing materials.

END-OF-LIFE DISPOSAL

ANTENNAOR

CABLETV

our TV has two separate ANT(enna)/Cable

A and PIPANT B connection (using a common signal source and an optional Signal Splitter):

If your Antenna or Cable TV signal has a round cableconnector(75 ohm) on the end,

then you're ready to connect it to the 75ohm Signal Splitter.

If your antenna has flat twinlead wire (300 ohm),you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter before connecting to the 75ohm Signal Splitter.

QUICK USE AND INSTALLATION GUIDE

TABLEOF CONTENTS

Getting Started

Warning/Precautions..................................1

Hooking Up Your TV.................................1

Basic TV and Remote Control Operation.................2

How to Use the “INSTALL”Controls ..................3-4

Using the Language Control......................................3

Setting the TV to Auto Program Channels................3

Setting the TV for a Cable or Antenna Signal...........3

Using the Channel Edit Control................................4

Setting the Channel Name Control............................4

How to use the AutoChron control............................4

Connect the twin Output

Connect your Antenna or

A typical ANT(enna)

Twin Lead

300 to 75ΩAdapter

Wire

Cable TV signal to the single

75 ohm input plug on the two-

way Signal Splitter (optional).

Then connect two lengths of RF

Coaxial Cable to the two Output

plugs on the two-way Signal

Splitter (F-type connector on

both ends).

Combination VHF/UHF Antenna

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

plugs on the Signal Splitter to the ANT A and PIP ANT B inputs on the rear of the TV. Push the round connector end of the RF Coaxial Cable onto the ANT(enna) plug and screw it down tight (if using threaded cables).

•For details on product registration,warranty, and service refer to the other literature included

with your TV information packet.

Please retain all these materials and keep them handy for future reference.

WARNING:TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS UNIT TO RAIN OR EXCESSIVE MOISTURE.

NOTE:This Quick Use Guide may be used with other models. Some of the features listed may or may not apply to your TV.

SMART HELP

Remember, be sure to set the TV for the type signal you've connected (see "TUNER" section on page 3 of this Guide.)

Your TV can set itself to select only the channel numbers on your Cable system (see “Auto Program" page 3). If you use a Cable

Back of TV

Converter box,set the TV to the same channel as the converter's CH 3/4 switch (on the rear of the converter.)

To order accessories

Color Television and Remote Control

ANT(ENNA) A & B INPUTS

inputs on the rear of the

set. These two signal inputs offer convenient hook-up options for both normal TV program viewing and Picture-In-Picture (PIP) features.

The ANT(enna) A input is intendedfor use and view-

ing on the TV’s main screen. Your home’s primary Antenna,or Cable TV signal,should be connected to this input for normal TV setup,use and feature operation.

Page 6

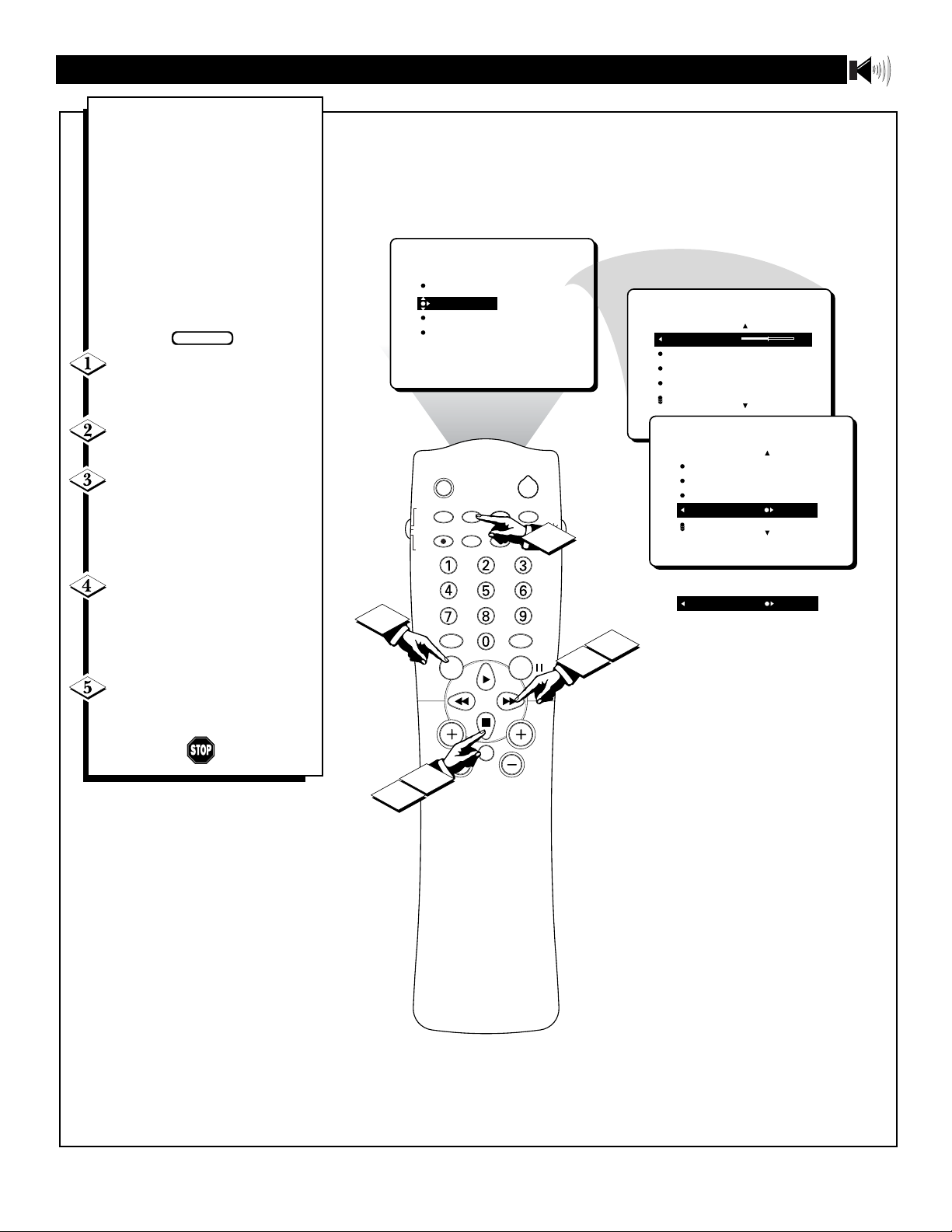

o adjust your TV picture controls, select a channel and follow these

steps.

Press the MENU button on the

remote control to show the onscreen

menu. PICTURE will be highlighted.

Press the CURSOR RIGHT button

and the menu will shift to the left. BRIGHTNESS will be highlighted and an adjustment bar will be shown to the right.

Use the CURSOR LEFT or CUR-

SOR RIGHT button to adjust the

BRIGHTNESS level of the picture.

After adjusting the BRIGHTNESS

control, press the CURSOR DOWN button to select another picture adjustment: COLOR, PICTURE, SHARPNESS, TINT, OR COLOR TEMP.

Press the CURSOR LEFT or CURSOR RIGHT button to adjust the

selected control.

NOTE: The menu will show only five items at a time, so you will need to continue scrolling with the CURSOR DOWN button to adjust the TINT and COLOR TEMP.

Press the STATUS/EXIT button to

remove the menu from the screen.

ADJUSTING THE PICTURE

Remember, when the bar scale is centered , the control settings are at normal, mid-range levels. Picture adjustments are described here.

BRIGHTNESS – adds or subtracts light from the darkest part of the picture.

COLOR – adds or eliminates color.

PICTURE – improves the detail of the

lightest parts of the picture.

SHARPNESS – improves the detail in the picture.

TINT – adjusts the picture to obtain natural skin tones.

COLOR TEMP offers NORMAL, COOL, or WARM picture preferences.

NORMAL – keeps whites, white.

COOL – makes whites, bluish.

WARM – makes whites, reddish.

BEGIN

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

BRIGHTNESS COLOR PICTURE SHARPNESS TINT

POWER

CLOCK

TV/VCR

SURF


BRIGHTNESS 30

COLOR PICTURE SHARPNESS STORE


SOUND FEATURES INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE


BRIGHTNESS

COLOR 30

PICTURE SHARPNESS STORE


BRIGHTNESS COLOR

PICTURE 30

SHARPNESS STORE


BRIGHTNESS COLOR PICTURE

SHARPNESS 30

TINT


VOL

MUTE

BRIGHTNESS COLOR PICTURE SHARPNESS

TINT 0


COLOR PICTURE SHARPNESS TINT

COLOR TEMP NORMAL

COLOR TEMP WARM

COLOR TEMP COOL

Page 7

ue to many reasons, such as poor

cable reception, the picture can sometimes appear slightly “speckled” (an indication of signal noise in the picture). The DNR (Dynamic Noise Reduction) control can help eliminate this type of interference and improve the quality of the picture.

Press the MENU button on the

remote to show the onscreen menu.

PICTURE will be highlighted.

Press the CURSOR RIGHT but-

ton and the menu will shift to the left.

BRIGHTNESS will be highlighted.

Press the CURSOR DOWN but-

ton repeatedly until the DNR control

is highlighted.

Press the CURSOR RIGHT but-

ton to switch DNR ON or press the

CURSOR LEFT button to switch DNR OFF.

Press the STATUS/EXIT button

to remove the menu from the screen.

TURNING ON THE DYNAMIC NOISE REDUCTION CONTROL

mageMax™ helps you sharpen the

picture quality by making dark portions of the picture darker and light portions of the picture brighter. Follow these steps to turn ImageMax™ ON.

Press the MENU button on the

remote control to show the onscreen

menu. PICTURE will be highlighted.

Press the CURSOR RIGHT but-

ton and the menu will shift to the left.

BRIGHTNESS will be highlighted.

Press the CURSOR DOWN but-

ton repeatedly until the IMAGEMAX

control is highlighted.

Press the CURSOR RIGHT but-

ton to switch between ON and OFF.

Press the STATUS/EXIT button

to remove the menu from the screen.

TURNING ON THE IMAGEMAX™CONTROL

BEGIN


SOUND FEATURES INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

STATUS/EXIT

INCR.

SURR.

BRIGHTNESS COLOR PICTURE SHARPNESS TINT

POWER

CLOCK

PROGRAM

TV/VCR

LIST

SURF

MUTE


BRIGHTNESS 30

COLOR PICTURE SHARPNESS TINT


PICTURE SHARPNESS TINT COLOR TEMP

DNR

DNR OFF

BEGIN

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

BRIGHTNESS COLOR PICTURE SHARPNESS TINT


BRIGHTNESS 30

COLOR PICTURE SHARPNESS TINT

POWER

CLOCK

TV/VCR

SURF


SHARPNESS TINT COLOR TEMP

DNR

IMAGEMAX ON

IMAGEMAX OFF


SOUND FEATURES INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

MUTE

Page 8

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses onscreen “text boxes” to show dialogue and conversations while the TV program is in progress.

Press the MENU button on

the remote control to show the on-

screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until the

CLOSED CAP control is highlighted.

Press the CURSOR RIGHT

button again. The menu will shift

to the left and CAPTION MODE will be highlighted. Then press the CURSOR RIGHT button to highlight CAPTION MODEs.

Press the CURSOR UP or

CURSOR DOWN button to

select a CAPTION MODE: CC1, CC2, CC3, CC4, CMUTE, TXT1, TXT2, TXT3, or TXT4. CC DISPLAY turns text OFF or ON if the TV station broadcasting on the channel is making CLOSED CAPTIONING available. With CC DISPLAY highlighted, press the CURSOR RIGHT button to toggle Closed Captioning ON or OFF.

NOTE: You also can press the CC button on the remote control to turn the CC TEXT option ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

USING THE CLOSED CAPTIONING CONTROL

NOTE: Not all TV programs and product commercials are broadcast with Closed Captioning (CC). Nor are all Closed Captioning MODEs (CAPTION 1–4 or TEXT 1–4) necessarily being used by broadcast stations during the transmission of a program offering Closed Captioning. Refer to your area’s TV program listings for the stations and times of shows being broadcast with Closed Captioning.

CAPTION Mode Example Display

TEXT Mode Example Display -

The TV screen will be

blocked from viewing.

NOTE: The CC MUTE option can be used to set the TV to turn the CLOSED CAPTIONING mode ON whenever the MUTE button is pressed.

You can press the CC button on the remote control to turn the CC text ON or OFF.

BEGIN

VCR

ACC


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

STATUS/EXIT

MULTIMEDIA

INCR.

VCR

INCR.

VCR

SURR.

RECORD

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

A/CH

SURF

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP

FORMAT

BLUE MUTE

FEATURES

CLOSED CAP

CAPTION MODE

CC DISPLAY

FEATURES

CLOSED CAP

CAPTION MODE CC DISPLAY

TIME START TIME STOP TIME CHANNEL ACTIVATE

CAPTION MPDE CC DISPLAY

CC1 CC2 CC3

CC1 CC2 CC3 CC4 CC MUTE TXT1 TXT2 TXT3 TXT4

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING

10:00 THE BEST LITTLE CALL-IN SHOW EVER

12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND

6:00 WORLD NEWS FOR TODAY

9:00 PLAYHOUSE MOVIE OF THE WEEK

Page 9

ou can change the screen for-

mat size to match the type of program you’re watching. Select the normal 4:3 aspect ratio or expand the 4:3 aspect ratio to completely fill the screen. There also is a compressed 16:9 aspect ratio, which allows movies to be viewed in their full width (known as letterbox style).

Press the MENU button on

the remote control to show the on-

screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until the FOR-

MAT control is highlighted.

Press the CURSOR RIGHT

button repeatedly to toggle among

the three screen format sizes – 4:3, EXPAND 4:3, or COMPRESS 16:9.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

SELECTING THE SCREEN FORMAT SIZE

SMART HELP

Without the onscreen

menu display showing, you also can press the CURSOR UP or CURSOR DOWN button on the remote control to toggle among the screen sizes 4:3, Expand 4:3, or Compress 16:9.

BEGIN


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP

FORMAT 4:3

BLUE MUTE

FORMAT EXPAND 4:3

FORMAT COMPRESS 16:9

TIME START TIME STOP TIME CHANNEL ACTIVATE

FORMAT 4:3

FORMAT EXPAND 4:3

FORMAT COMPRESS 16:9

Page 10

he Blue Mute feature will elimi-

nate annoying snow from the screen when no video signal is present by displaying a pleasent blue screen. This occurs in cases such as when a VCR tape is removed or an antenna signal is broken. To turn the Blue Mute feature ON or OFF, follow the steps below.

Press the MENU button on

the remote control to show the on-

screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until the BLUE

MUTE control is highlighted.

Press the CURSOR RIGHT

button repeatedly to toggle the

Blue Mute option ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

ACTIVATING THE BLUE MUTE CONTROL

BLUE MUTE OFF

-with no video signal; screen is snowing looking.

BLUE MUTE ON

-with no video signal; screen is a pleasent blue color.

BEGIN


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER AutoLock

CLOSED CAP FORMAT

BLUE MUTE OFF

FEATURES

TIMER AutoLock

CLOSED CAP FORMAT

BLUE MUTE ON

TIME START TIME STOP TIME CHANNEL ACTIVATE

Page 11

ave you ever fallen asleep in

front of the TV, only to have it wake you up at two in the morning with a test pattern sound screeching in your ears? Well, your TV can enable you to avoid that discomfort by automatically turning itself off. With the Sleep Timer feature, you can set a timer to automaticaly swtich the TV OFF after a period of time you choose (15-minute increments up to 60 minutes, then 30-minute increments up to 90 minutes, then 60-minute increments up to 240 minutes).

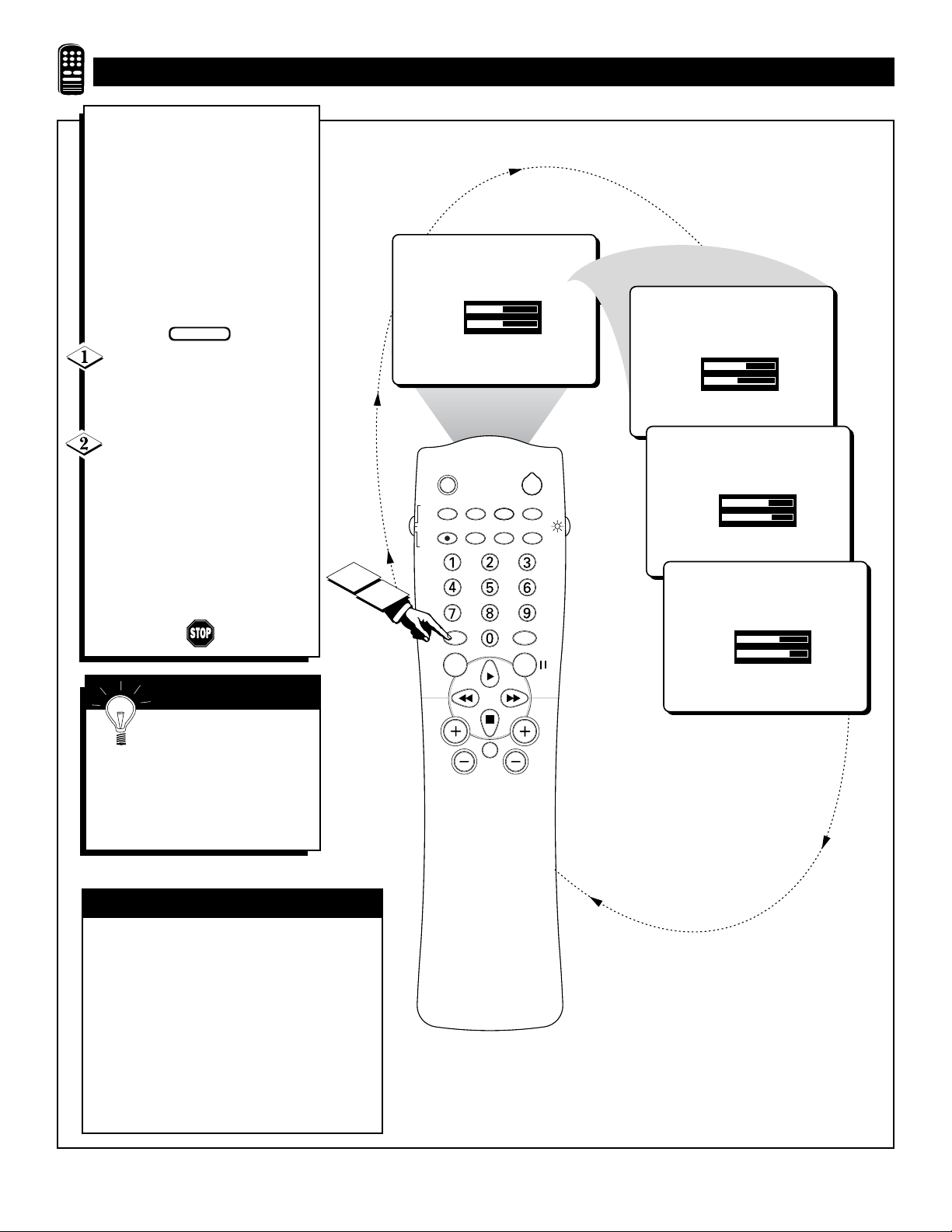

Press the SLEEP button on

the remote control. The SLEEP timer onscreen display will appear in the upper part of the screen.

Within five seconds, press the

SLEEP button repeatedly to pick

the amount of time (15-minute increments up to 60 minutes, then 30-minute increments up to 90 minutes, then 60-minute increments up to 240 minutes) before the TV will turn itself off.

An onscreen countdown will appear during the last minute before the TV shuts itself off.

USING THE

SLEEP TIMER

During the last minute of a SLEEP timer setting, an onscreen countdown will be displayed.

During the last 10 seconds of a SLEEP timer setting, an onscreen display will read GOOD BYE.

SMART HELP

To see how many min-

utes remain before the TV shuts itself off, press the STATUS/EXIT button.

BEGIN

VCR

ACC

SLEEP OFF

MUTE

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

A/CH

SLEEP

STATUS/EXIT

MULTIMEDIA

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

15 MIN

30 MIN

45 MIN

60 MIN

50 SEC

GOOD BYE

90 MIN

120 MIN

180 MIN

240 MIN

Page 12

THE TIMER – SETTING THE CLOCK

our television comes with an on-

screen clock. During normal operation, the clock appears on the screen when the STATUS/EXIT button is pressed or if the TIMER DISPLAY control is turned ON.

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton and the menu will shift to the left.

TIMER will be highlighted.

With TIMER selected, press the

CURSOR RIGHT button again to

shift the display left and highlight the TIME control.

Press the CURSOR RIGHT but-

ton again to highlight the time indica-

tor area.

Press the CURSOR LEFT or

CURSOR RIGHT button to select

the position or digit you wish to enter.

Press the CURSOR UP or CUR-

SOR DOWN button to select the digits for the time. Or press the NUMBERED buttons to enter the

correct time.

Press the CURSOR RIGHT but-

ton to move to the AM or PM posi-

tion.

Press the CURSOR UP or

DOWN button to set AM or PM.

Press the STATUS/EXIT button

to remove the menu from the screen.

SMART HELP

Remember, be sure to press

0 first and then the hour num-

ber for single-digit entries.

The Clock also can be set automatically using the AutoChron

feature found on page 4 of the Quick Use and Installation Guide that came with your television.

The TV’s clock settings may be lost when the TV is unplugged (or when AC power to the set is interrupted).

BEGIN

NOTE: The TIME (Clock) feature can be accessed directly by pressing the CLOCK button on the remote control, and then by simply following steps 5 through 10 to complete the task.


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

INCR.

SURR.

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

A/CH

SURF

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

FEATURES TIMER

TIME START TIME STOP TIME CHANNEL TUNER MODE

TIME 10:30 AM

START TIME STOP TIME CHANNEL ACTIVATE

5 6

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

POWER

CLOCK

TV/VCR

A/CH

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL TUNER MODE

Page 13

THE T

IMER – SETTING THE START TIME

ust as you would an alarm clock,

you can set the TV to turn itself ON once or at the same time every day. Follow these steps to set the Start Time.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TIMER will be highlighted.

Press the CURSOR RIGHT

button again to shift the display left. Then press the CURSOR DOWN button once to highlight

the START TIME control.

Press the CURSOR RIGHT

button again to highlight the time

indicator area.

Press the CURSOR RIGHT

or CURSOR LEFT button to

move among the positions where the time is input.

Press the CURSOR UP or

CURSOR DOWN button to select the digits for the time. Or press the NUMBERED buttons to enter the

correct time.

Press the CURSOR RIGHT

button to move to the AM or PM

position.

Press the CURSOR UP or

DOWN button to set AM or PM.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

BEGIN

4 9


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

A/CH

SURF

FEATURES

5 6

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME

START TIME _ _:_ _ AM

STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

TIME START TIME 10:30 AM

STOP TIME CHANNEL ACTIVATE

Page 14

THE T

IMER – SETTING THE STOP TIME

se the START TIME control to

set the TV to turn itself ON once or at the same time every day (see page 13 for details). The following steps will guide you in setting the TV to turn itself OFF once or at the same time every day.

Press the MENU button on the

remote control to show the on-

screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TIMER will be highlighted.

Press the CURSOR RIGHT

button again to shift the display left. Then press the CURSOR DOWN button once twice to high-

light the STOP TIME control.

Press the CURSOR RIGHT

button again to highlight the time

indicator area.

Press the CURSOR RIGHT

or CURSOR LEFT button to

move among the positions where the time is input.

Press the CURSOR UP or

CURSOR DOWN button to select the digits for the time. Or press the NUMBERED buttons to enter the

correct time.

Press the CURSOR RIGHT

button to move to the AM or PM

position.

Press the CURSOR UP or

DOWN button to set AM or PM.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

BEGIN


SOUND

FEATURES

INSTALL

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

4 9

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

A/CH

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

TIME START TIME

STOP TIME _ _:_ _ AM

CHANNEL ACTIVATE

FEATURES

TIMER

TIME START TIME STOP TIME 10:30 AM

CHANNEL ACTIVATE

Page 15

ou can select a specific channel

that the television will tune to when the timer turns the set ON. Follow these steps to select the channel.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TIMER will be highlighted.

Press the CURSOR RIGHT

button again to shift the menu to the left. Then press the CURSOR DOWN button repeatedly until the

CHANNEL control is highlighted.

Press the NUMBERED but-

tons to enter the desired start-up channel. Or, press the CURSOR RIGHT button repeatedly to enter

the start-up channel you want.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

THE T

IMER – SELECTING THE CHANNEL

BEGIN

INCR.

SURR.

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

A/CH

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

FEATURES


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

MUTE

SURF

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL

ACTIVATE

TIMER

TIME START TIME STOP TIME

CHANNEL 12

ACTIVATE

FEATURES

TIMER

TIME START TIME 10:30 AM STOP TIME

CHANNEL 13

ACTIVATE

Page 16

fter you have set the Time, Start

Time, Stop Time, and Start Channel, the timer must be set to come on ONCE or DAILY, or turned OFF through the ACTIVATE control.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TIMER will be highlighted.

Press the CURSOR RIGHT

button again to shift the display to the left. Then press the CURSOR DOWN button repeatedly until the

ACTIVATE control is highlighted.

Press the CURSOR RIGHT

button again to set ACTIVATE to ONCE; press the CURSOR RIGHT button again for DAILY; and press the CURSOR RIGHT button again to toggle ACTIVATE

to OFF.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

THE T

IMER – SETTING ACTIVATE TO ON OR OFF

MART HELP

Remember, before set-

ting the TIMER controls, the TV’s clock must be set to the correct time manually (see page

12) or by using the AutoChron™ feature described on page 4 of the

Quick Use and Installation Guide.

Try it! After following the steps on pages 12-17, use your TV as an alarm clock.

BEGIN


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIMER

TIME START TIME STOP TIME

CHANNEL

ACTIVATE OFF

ACTIVATE ONCE

ACTIVATE DAILY

Page 17

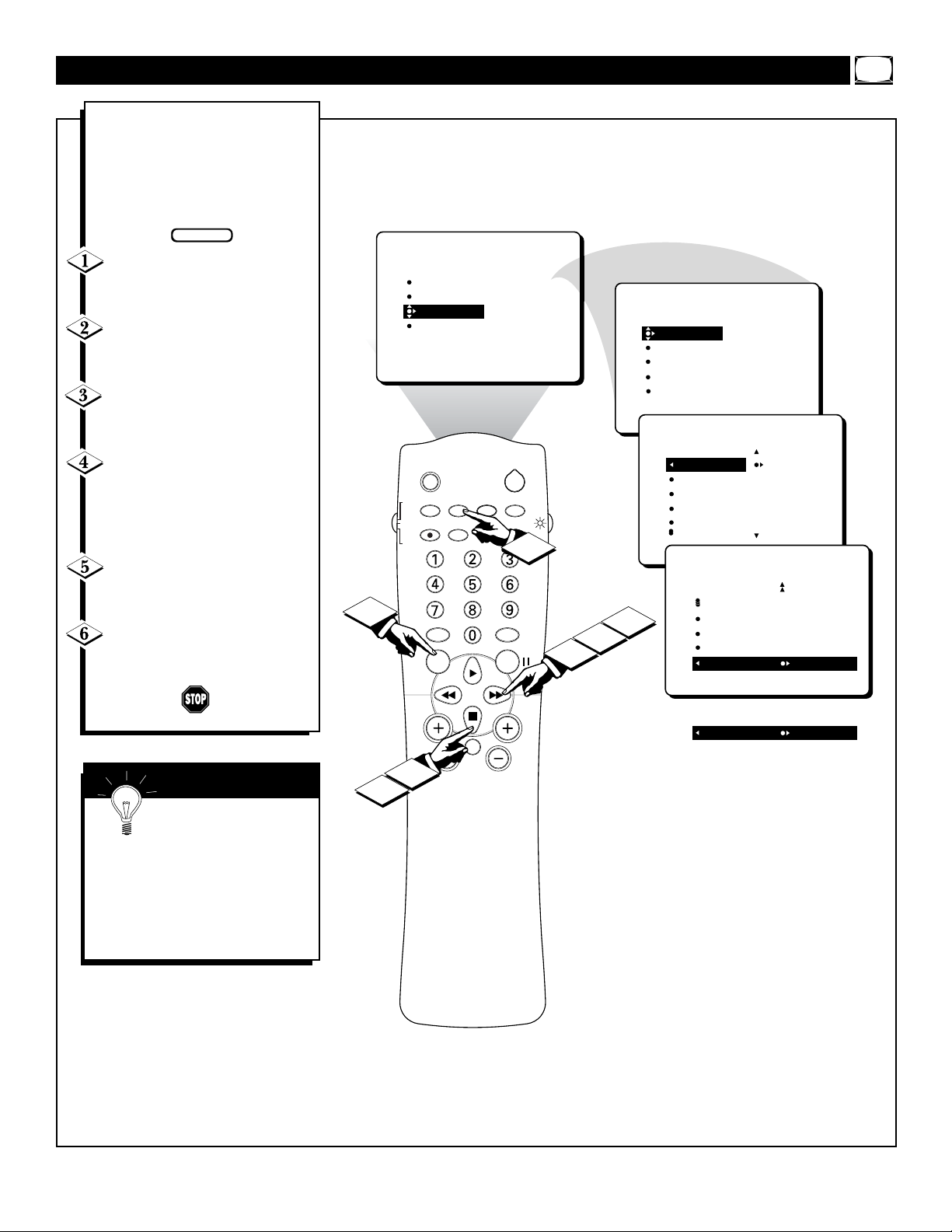

fter the TV’s clock has been set,

you can use your TV as a clock. The TIMER DISPLAY control allows you to permanently display the time in the upper right corner of the screen.

Press the MENU button on

the remote to show the onscreen

menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TIMER will be highlighted.

Press the CURSOR RIGHT

button again to shift the menu left. Then press the CURSOR DOWN button repeatedly until the DIS-

PLAY control is highlighted.

Press the CURSOR RIGHT

or CURSOR LEFT button to turn

the TIMER DISPLAY ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

THE T

IMER – TURNING ON THE TIMER DISPLAY

SMART HELP

Remember, be sure you

have set the TV’s clock with

the correct current time. (Refer to

page 12 to set the clock manually or page 4 of the Quick Use and Installation Guide to set the clock automatically using the AutoChron™ feature.)

BEGIN


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

TIME _ _:_ _ AM

START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIMER

START TIME STOP TIME

CHANNEL

ACTIVATE

DISPLAY ON

VOL

MUTE

DISPLAY OFF

Page 18

UNDERSTANDING AUTOLOCK™

he AutoLock™ feature receives

and processes data sent by broadcasters or other program providers that contain program content advisories. When programmed by the viewer, a TV with AutoLock™ can respond to the content advisories and block program content that may be found objectionable (such as offensive language, violence, sexual situations, etc.). This is a great feature to censor the type of programming children may watch.

In the AutoLock™ section, you’ll learn how to block channels and programming that is not rated, is unrated, or has no rating. You will also find out how to turn these blocking features ON or OFF. Following are brief explanations of some terms and ratings related to the AutoLock™ feature.

AutoLock™ offers various Blocking Options from which to choose:

BLOCKING: The BLOCKING control is what can be thought of as the “master switch” for AutoLock™. This control affects the settings you have chosen for blocking programs according to movie ratings or TV ratings, or for blocking programs that have no rating or are unrated. When the BLOCKING control is OFF, the blocking or censoring of programs is disabled. When the BLOCKING control is ON, blocking will occur according to the settings you have chosen.

BLOCK UNRATED: ALL unrated programs will be blocked if this feature is set to ON.

UNRATED programming is encoded with information from the MPAA (Motion Picture Association of America) or TV broadcasters, but it does not have a specific rating. In other words, the MPAA or the TV broadcasters have chosen not to assign a rating to the programming.

NO RATING: ALL programming with no content advisory data can be blocked if NO RATING is set to ON.

Programming that has No Rating is not encoded with any rating information from the MPAA or the Parental Guidelines. Any programming could fall into this category.

You also can block individual channels or block programming

based on ratings of the MPAA and TV broadcasters. (See a description of the ratings on this page.)

G: General Audience - All ages admitted. Most parents would find this programming suitable for all ages. This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

PG: Parental Guidance Suggested -

This programming contains material that parents may find unsuitable for younger children. It may contain one or more of the following: Moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

PG-13: Parents Strongly Cautioned - This programming contains material that parents may find unsuitable for children under the age of 13. It contains one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

R: Restricted -This programming is specifically designed for adults. Anyone under the age of 17 should view this programming only with an accompanying parent or adult guardian. It contains one or more of the following: intense violence; intense sexual situations; strong, coarse language; or intensely suggestive dialogue.

NC-17: No one under the age of 17 will be admitted. - This type of programming

should be viewed by adults only. It contains graphic violence; explicit sex; or crude, indecent language.

X: Adults Only - This type of programming contains one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, very coarse and intensely suggestive language.

MOVIE RATINGS

OTIONPICTUREASSOCIATION OFAMERICA

)

TV-Y: (All children -- This program is designed to be appropriate for all children.) Designed for a very young

audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

TV-Y7: (Directed to Older Children -- This program is designed

for children ages 7 and above.) It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G: (General Audience -- Most parents would find this program suitable for all ages.) This type of pro-

gramming contains little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

TV-PG: (Parental Guidance Suggested -- This program contains

material that parents may find unsuit-

able for younger children.) This type of pro-

gramming contains one or more of the following: Moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14: (Parents Strongly Cautioned -- This program contains

some material that many parents

would find unsuitable for children under 14 years of age.) This type of programming

contains one or more of the following: intense violence (V); intense sexual situations (S); strong, coarse language (L); or intensely suggestive dialogue (D).

TV-MA: (Mature Audience Only --

This program is specifically designed to be viewed by adults and therefore

may be unsuitable for children under 17.)

This type of programming contains one or more of the following: graphic violence (V); explicit sexual situations (S); or crude, indecent language (L).

TV PARENTAL GUIDELINES

(TV BROADCASTERS)

AutoLock

MOVIE RATING

PG PG-13 R NC-17

AutoLock

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

Page 19

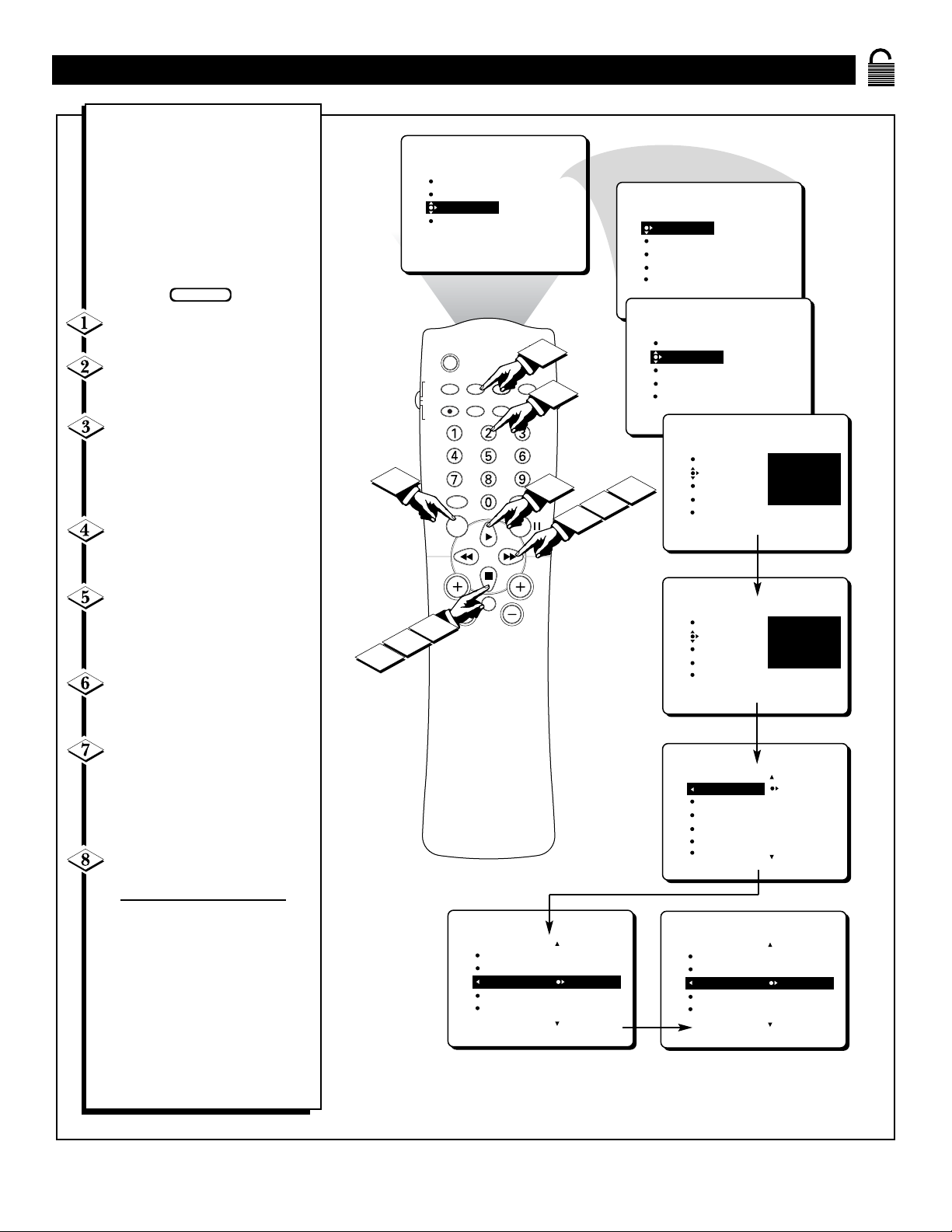

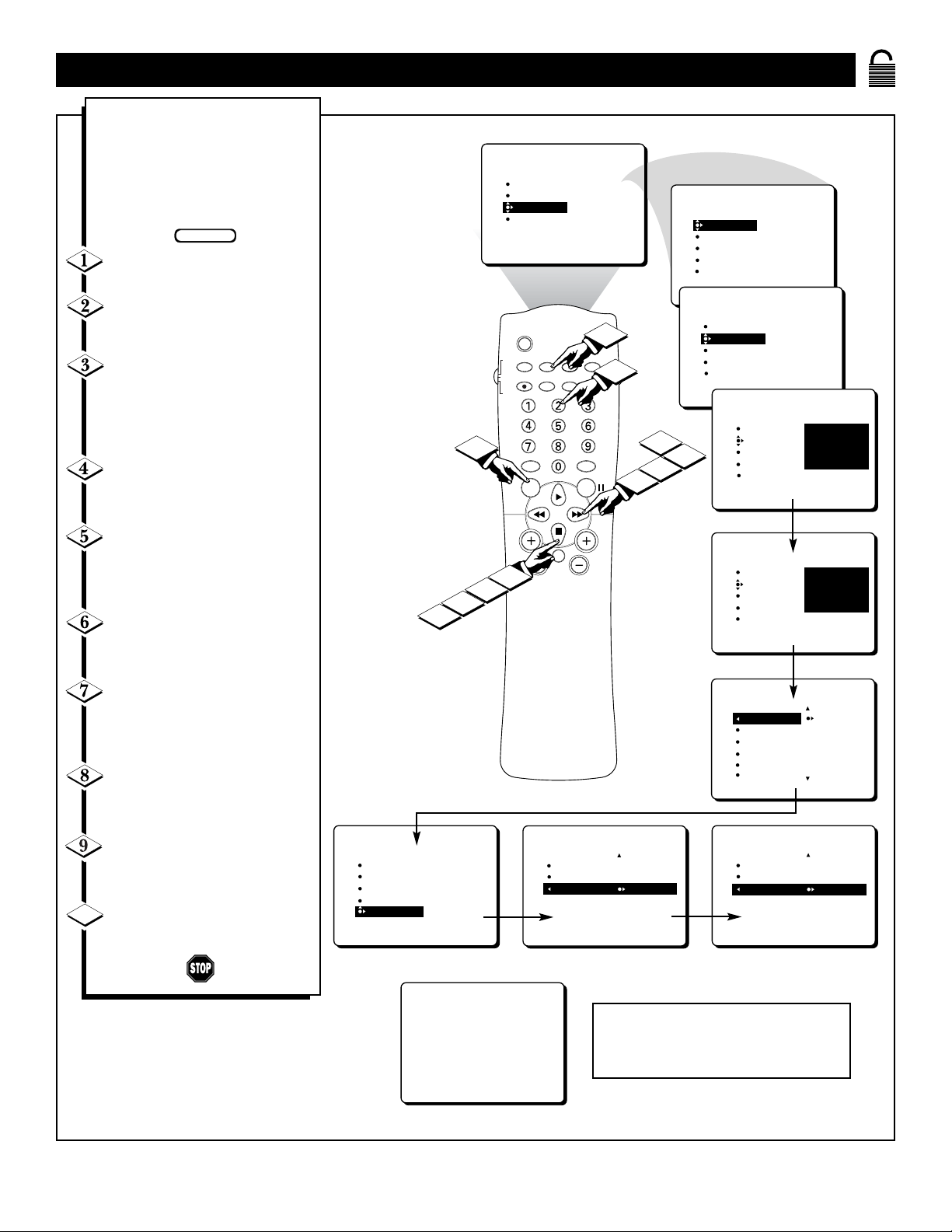

AUTOLOCK™– SETTING UP THE ACCESS CODE

NOTE TO PARENTS:

It isn’t possible for your child to unblock a channel without knowing your access code or changing it to a new one. If your code has been changed without your knowledge, then you will become aware that blocked channels may have been viewed.

utoLockTMallows parents to

block out or “censor” any channels they think children should not watch. A channel blocked by the AutoLock

control cannot be viewed until a correct access code is used to unlock the channel for viewing. First, let’s set your AutoLock access code.

Press the MENU button on the remote control to show the onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button to highlight ACCESS CODE.

Press 0,7,1,1 on the remote

control. INCORRECT will appear

on the screen.

Press 0,7,1,1 on the remote con-

trol again. ENTER NEW CODE

will appear on the screen.

Enter a new four-digit code

using the number buttons. CONFIRM CODE will appear on the screen.

Enter your new four-digit

code again. CORRECT will flash

on the screen briefly and the highlight bar goes back to AutoLock.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

Remember that 0711 is the default AutoLockTMcode. If your access code has been changed by someone other than you (a child, for example) or you have forgotten the code, you can always get in by inputting the default code.

BEGIN

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

ACCESS CODE X X X X INCORRECT


SOUND

FEATURES

INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

INCR.

VCR

ACC

SURR.

RECORD

SOUND PICTURE

VOL

PROGRAM

MUTE

OPEN/CLOSE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

LIST

SURF

TUNER A/B

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

A/CH

CLOSED CAP FORMAT BLUE MUTE

FEATURES

ACCESS CODE

- - - -

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

ENTER NEW CODE

- - - -

CONFIRM CODE X X X X

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

ENTER NEW CODE X X X X

CONFIRM CODE X X X X CORRECT

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT BLUE MUTE

CONFIRM CODE

- - - -

ACCESS CODE

- - - -

Page 20

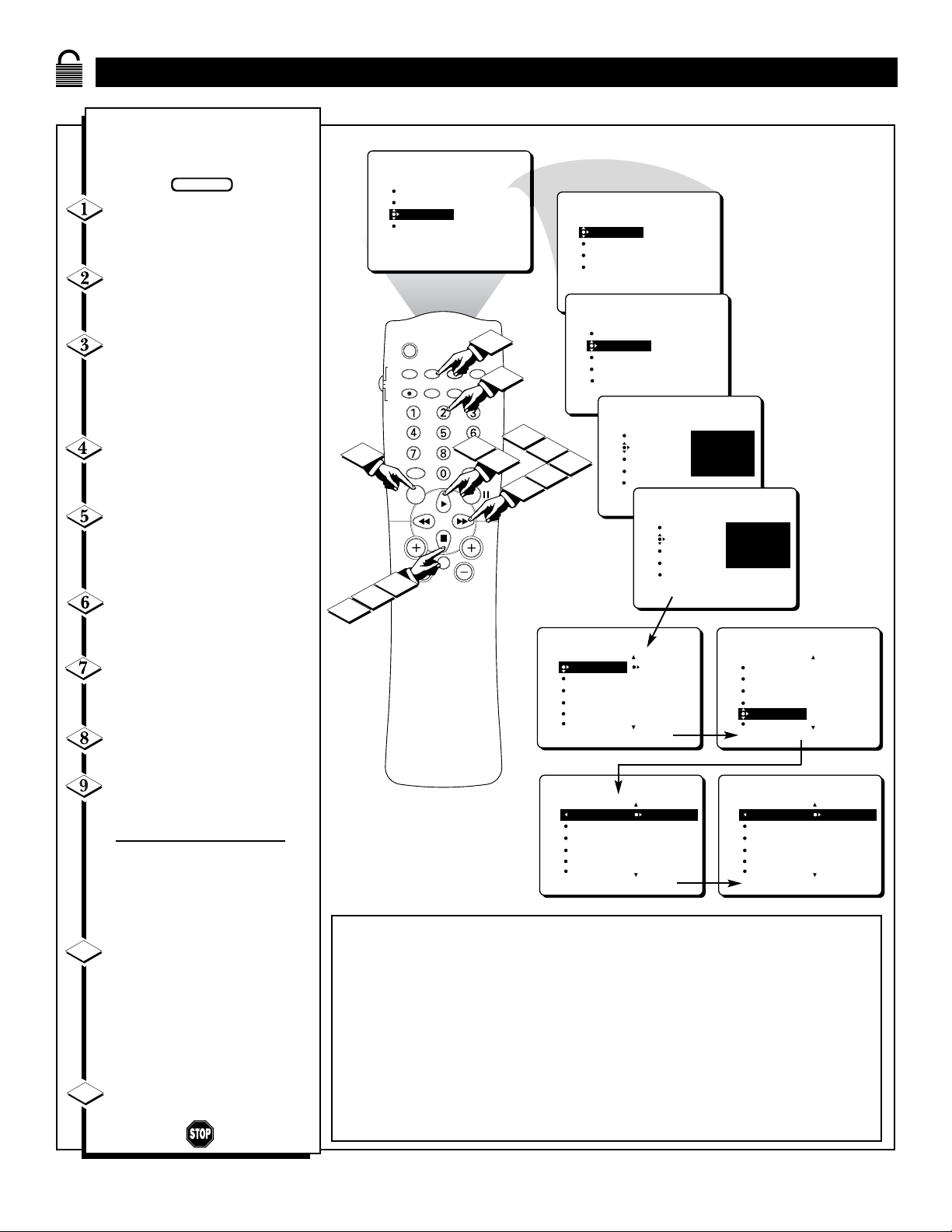

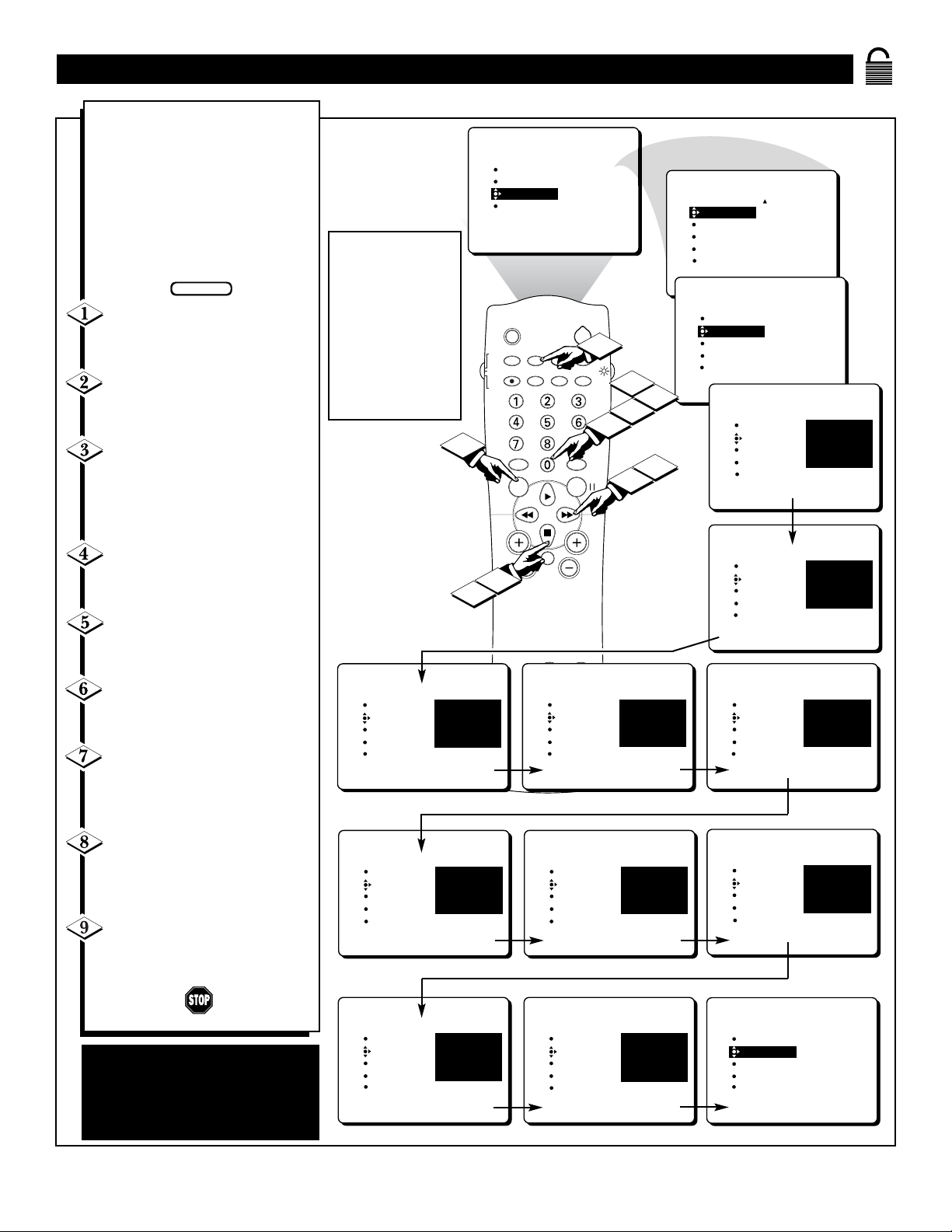

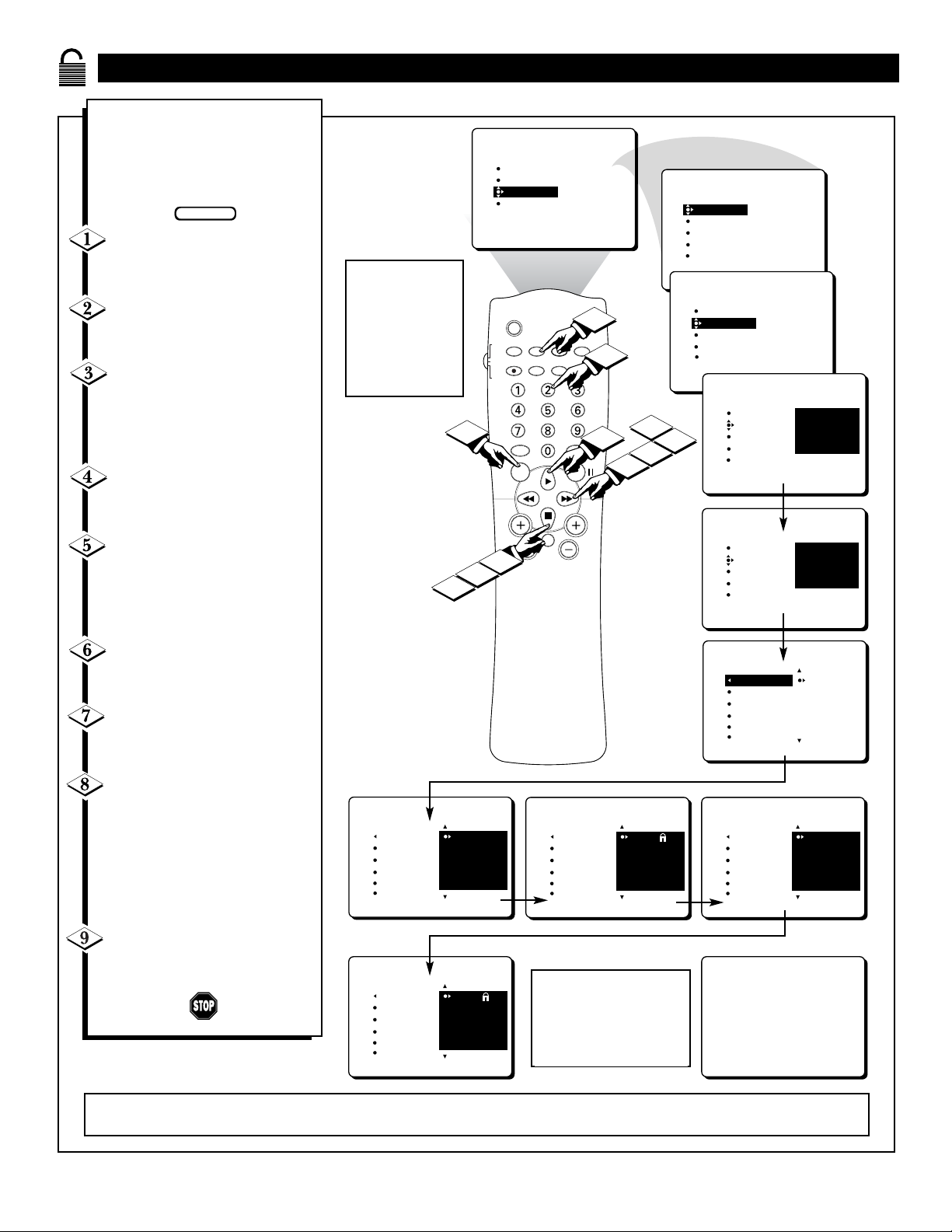

AUTOLOCK™– BLOCKING CHANNELS

NOTE: You also can block out the use of the A/V external inputs on the rear of the TV. This stops the viewing of VCR, DVD, and other sources that can be

shown through the A/V input jacks. Select AV1, AV2, or AV3 and then select BLOCK.

fter your personal access code

has been set (see the previous page), you are ready to select the channels or inputs you want to block out or censor.

Press the MENU button on

the remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock™ control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit

ACCESS CODE. CORRECT will

flash very briefly and the menu will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR RIGHT

button to highlight the TV’s avail-

able channels.

Press the CURSOR UP or

CURSOR DOWN button to high-

light the channel you want to block.

Press the CURSOR RIGHT

button to block the channel. A

padlock image appears to the right of the channel number.

Repeat steps 7 and 8 for any channels you want to block from viewing.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

NOTE: Blocked channels will be skipped when you press the Channel +/– buttons. To view a blocked channel, refer to page 28 for details.

If a channel is blocked by the BLOCK CHANNEL option, the TV will display the screen shown to the right. To watch the channel, enter your access code or change the BLOCK CHANNEL option back to off.

BEGIN

STATUS/EXIT

INCR.

SURR.

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT

BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X


SOUND

FEATURES

INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

FEATURES

AutoLock

FEATURES

AutoLock

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

FEATURES

AutoLock

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

FEATURES

AV2 AV3 ALL 1 2

12 13 14 15 16

AutoLock

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

FEATURES

AutoLock

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

Blocked by AutoLock

TV rating TV-PG

Channel 12

Access code

- - - -

AV2 AV3 ALL 1 2

12 13 14 15 16

Page 21

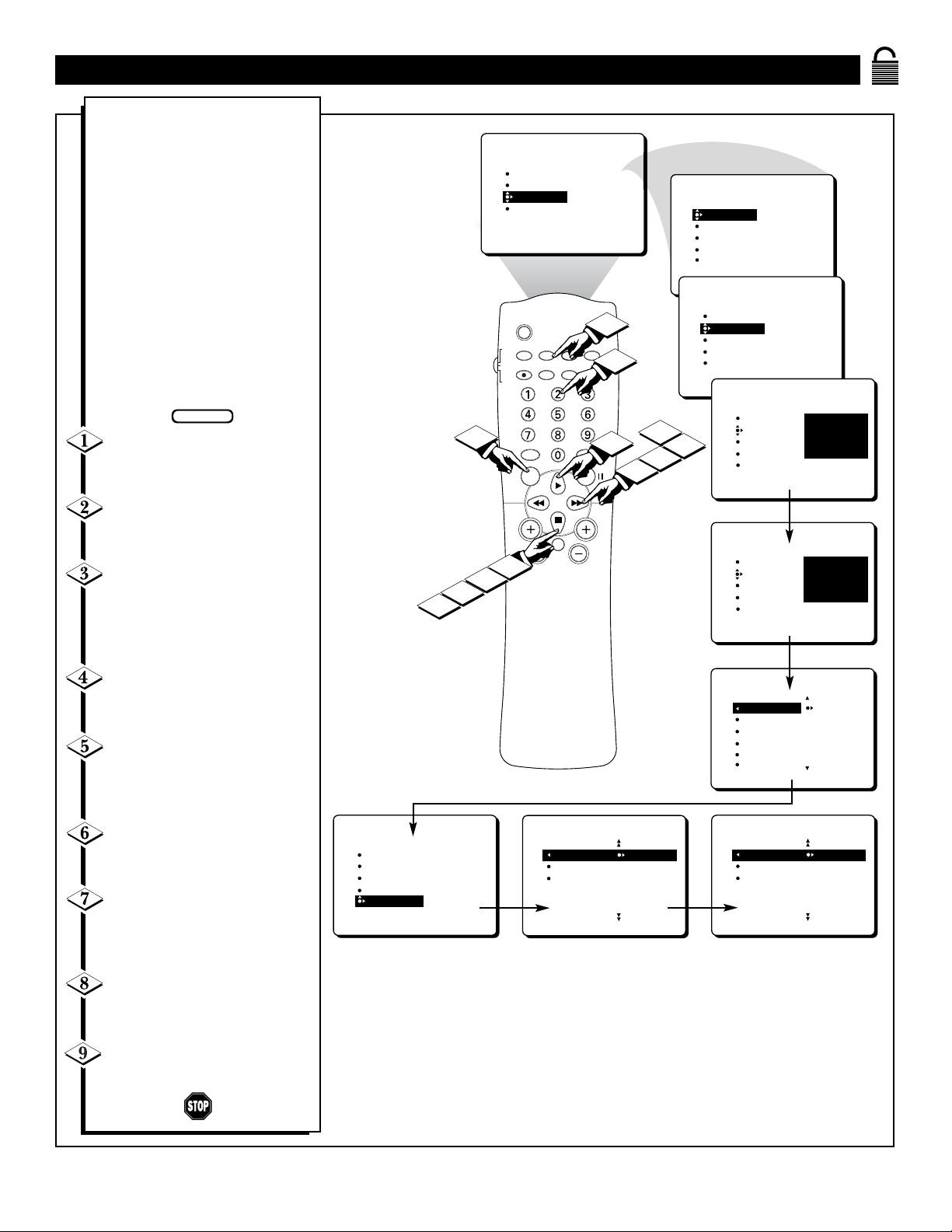

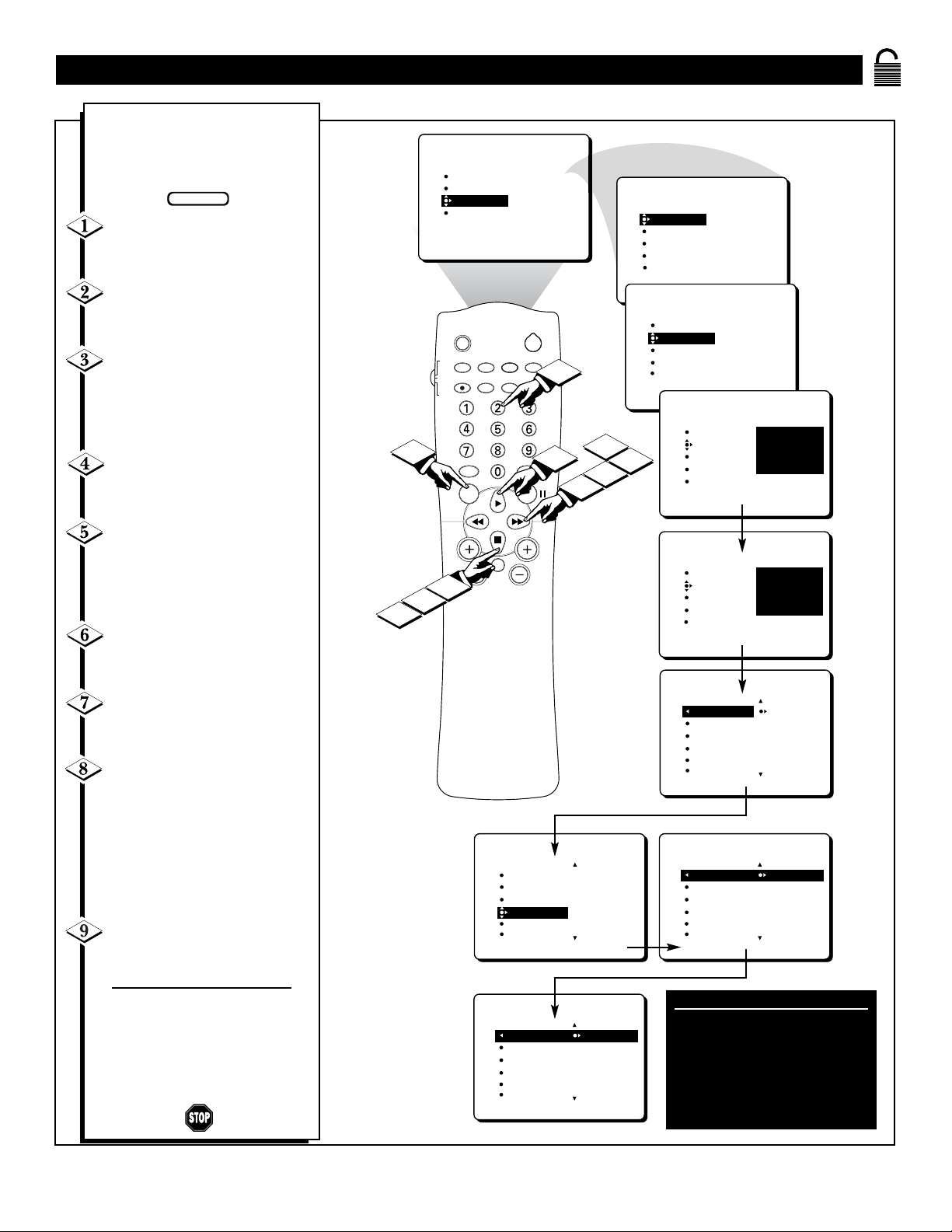

AUTOLOCK™– BLOCKING BY MOVIE RATING

fter your personal access code

has been set (see page 19), you can select specific movie ratings that you want to censor.

Press the MENU button on

the remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight

ACCESS CODE.

Enter your four-digit

ACCESS CODE. CORRECT will

flash very briefly in red and the menu will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button repeatedly until MOVIE

RATING is highlighted.

Press the CURSOR RIGHT

button and the Rating menu shifts

to the left with G highlighted.

Press the CURSOR UP or

CURSOR DOWN button to high-

light each rating you want. Then

press the CURSOR RIGHT button to turn the rating ON or OFF.

Turning the rating ON will block programs with that rating from being seen.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

NOTE: When a rating is turned ON, all higher ratings also will be turned on automatically. For example, if the R rating is turned on, the NC-17 and X ratings also will be turned on.

MOVIE RATING OPTIONS

G ON or OFF PG ON or OFF PG-13 ON or OFF R ON or OFF NC-17 ON or OFF X ON or OFF

BEGIN

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

SURF

POWER

CLOCK

TV/VCR

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT

BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -


SOUND

FEATURES

INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

MUTE

FEATURES

AutoLock

BLOCK CHANNEL SETUP CODE CLEAR ALL

MOVIE RATING

TV RATING

G PG PG-13 R NC-17

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

AutoLock

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AutoLock

MOVIE RATING

PG PG-13 R NC-17

ACCESS CODE X X X X

AV2 AV3 ALL 1 2

OFF AV3 ALL 1 2

AutoLock

MOVIE RATING

PG PG-13 R NC-17

ON AV3 ALL 1 2

Page 22

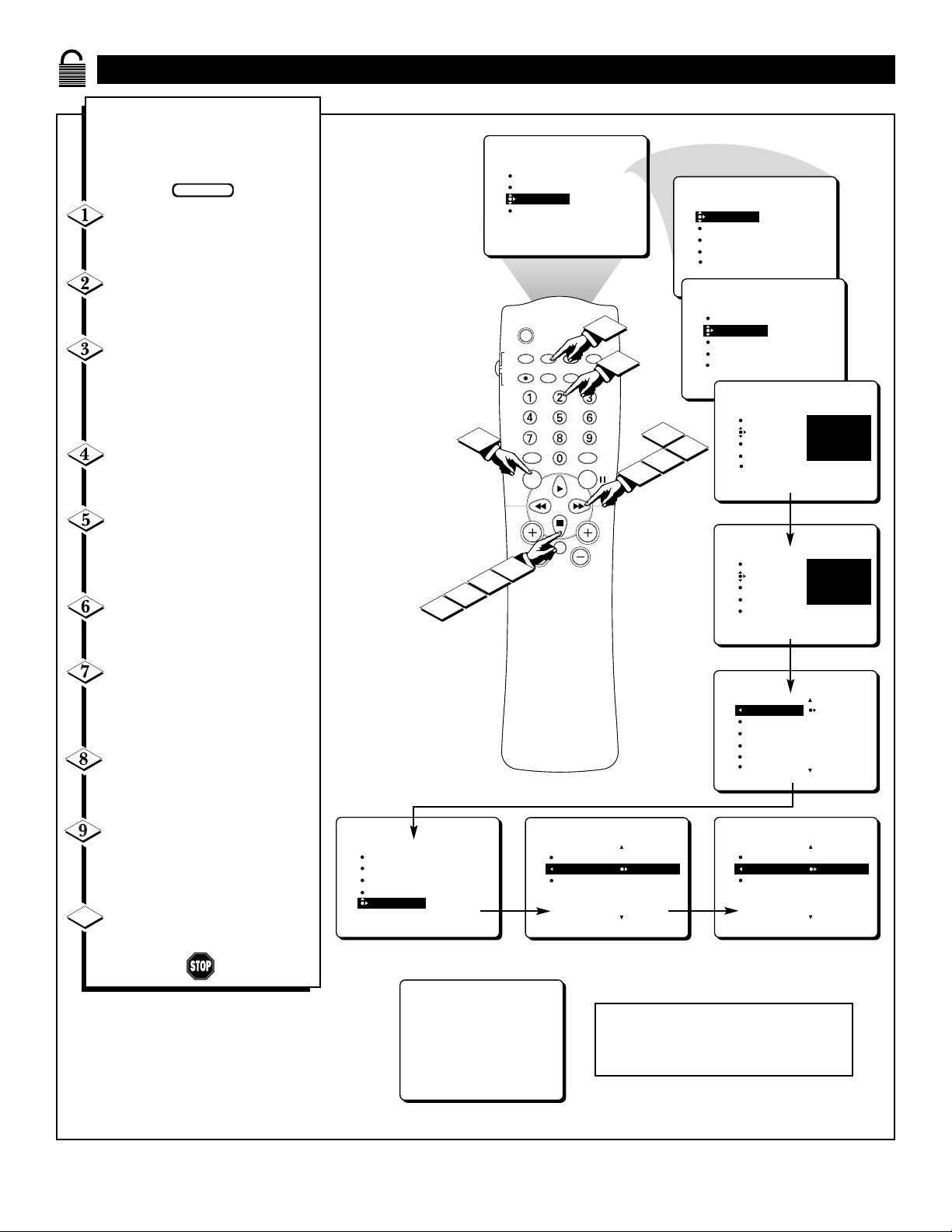

AUTO

LOCK™– BLOCKING BY TV RATING

ou also can select specific TV ratings that you want to censor

by following these steps.

Press the MENU button on the remote control to show the onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit ACCESS

CODE and the menu will move to

the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button repeatedly until TV RAT-

ING is highlighted.

Press the CURSOR RIGHT

button and the menu will shift to

highlight the TV RATING options.

Press the CURSOR UP or

DOWN button to select a rating.

Press the CURSOR RIGHT or

LEFT button to turn the block on

the rating ON or OFF.

NOTE: More specific subratings (for violence, sexual content, dialogue, or fantasy violence) are available for TV-Y7, TV-PG, TV-14, and TV-MA.

To access these subratings, press

the CURSOR RIGHT button. Press the CURSOR UP or DOWN button to select the subrating that

you want to block or unblock. Then

press the CURSOR RIGHT or CURSOR LEFT button to turn the

block on the subrating ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu.

TV-Y: (All children -- This program is designed to be appropriate for all children.) Designed for a very young audience, including children ages 2–6. This type of programming is not expected to frighten younger children.

TV-Y7: (Directed to Older Children -- This program is designed for children age 7 and above.) It may be more appropriate for chil- dren who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G: (General Audience -- Most parents would find this program suitable for all ages.) This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

TV-PG: (Parental Guidance Suggested -- This program contains material that parents may find unsuitable for younger children.) This type of programming contains one or more of the following: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).

TV-14: (Parents Strongly Cautioned -- This program contains some material that many parents would find unsuitable for children under 14 years of age.) This type of programming contains one or more of the following: intensely suggestive dialogue (D); strong,

coarse language (L); intense sexual situations (S); or intense violence (V).

TV-MA: (Mature Audience Only -- This program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.) This type of programming contains one or more of the following: crude, indecent language (L); explicit sexual

situations (S); or graphic violence (V).

BEGIN

STATUS/EXIT

INCR.

SURR.

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT

BLUE MUTE

FEATURES

AutoLock

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

AV2 AV3 ALL 1 2

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

ACCESS CODE

- - - -

FEATURES


SOUND

FEATURES

INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

ACCESS CODE X X X X

AutoLock

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING

TV RATING

TV-Y TV-Y7 TV-G TV-PG TV-14

AutoLock

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

OFF AV3 ALL 1 2

AutoLock

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

ON AV3 ALL 1 2

Page 23

AUTOLOCK™– TURNING BLOCK ON OR OFF

he BLOCKING control is what

can be thought of as the “master switch” for AutoLock™. This control affects the settings you have chosen for blocking programs according to movie ratings or TV ratings, or for blocking programs that have no rating or are unrated. When the BLOCKING control is OFF, the blocking or censoring of programs is disabled. When the BLOCKING control is ON, blocking will occur according to the settings you have chosen. Follow these steps to toggle BLOCKING OFF or ON.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit

ACCESS CODE and the menu

will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT

button to enter the BLOCK

OPTIONS menu. BLOCKING will be highlighted.

Press the CURSOR RIGHT or

LEFT button to toggle BLOCK-

ING ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu.

BEGIN

STATUS/EXIT

INCR.

SURR.

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

SURF

POWER

CLOCK

TV/VCR

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT

BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X


SOUND

FEATURES

INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

FEATURES

AutoLock

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

BLOCKING BLOCK UNRATED NO RATING

AutoLock

BLOCK OPTIONS

BLOCKING

BLOCK UNRATED NO RATING

FEATURES

AutoLock

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AutoLock

BLOCK OPTIONS

OFF AV3 ALL 1 2

BLOCKING

BLOCK UNRATED NO RATING

AV2 AV3 ALL 1 2

ON AV3 ALL 1 2

Page 24

AUTOLOCK™– BLOCKING UNRATED BROADCASTS

n addition to blocking specific

ratings or channels, you may choose to block all programming that is unrated.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit

ACCESS CODE and the menu

will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT

button to enter the BLOCK

OPTIONS menu. BLOCKING will be highlighted.

Press the CURSOR DOWN

button once to select BLOCK

UNRATED.

Press the CURSOR RIGHT

or CURSOR LEFT button to

toggle BLOCK UNRATED ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu.

NOTE: If the BLOCK OPTION, BLOCK UNRATED control is turned ON, all unrated programs will display the screen shown to the left. To watch the channel, enter your access code or change the BLOCK UNRATED option back to OFF.

BEGIN

STATUS/EXIT

INCR.

SURR.

MUTE

PROGRAM

LIST

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

POWER

CLOCK

TV/VCR

SURF

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT

BLUE MUTE

FEATURES

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X


SOUND

FEATURES

INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

FEATURES

AutoLock

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

BLOCKING BLOCK UNRATED NO RATING

Channel 12

Blocked by AutoLock

Unrated

Access Code

- - - -

AutoLock

BLOCK OPTIONS

BLOCKING

BLOCK UNRATED

NO RATING

FEATURES

AutoLock

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AutoLock

BLOCK OPTIONS

OFF OFF

BLOCKING

BLOCK UNRATED

NO RATING

AV2 AV3 ALL 1 2

ON ON

Page 25

AUTO

LOCK™– BLOCKING BROADCASTS THAT HAV E NO RATING

ome programming is not encod-

ed with content advisory data by the MPAA (Motion Picture Association of America) or the television broadcasters (see the explanation on page 18). To block such programming, follow these steps.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit ACCESS

CODE and the menu will move to

the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT

button to enter the BLOCK

OPTIONS menu. BLOCKING will be highlighted.

Press the CURSOR DOWN

button twice to highlight NO RAT-

ING.

Press the CURSOR RIGHT

or CURSOR LEFT button to tog-

gle NO RATING ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu.

NOTE: If the BLOCKING OPTION, NO RATING control is turned ON, all programs containing NO content advisory data will display the screen shown to the left. To watch the channel, enter your access code or change the NO RATING option back to OFF.

BEGIN


SOUND

FEATURES

INSTALL

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

AutoLock

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

BLOCKING BLOCK UNRATED NO RATING

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT BLUE MUTE

FEATURES

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

POWER

CLOCK

TV/VCR

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

SURF

MUTE

FEATURES

AutoLock

BLOCK OPTIONS

BLOCKING BLOCK UNRATED

NO RATING

OFF OFF OFF

AutoLock

BLOCK OPTIONS

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCKING BLOCK UNRATED

NO RATING

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X

AV2 AV3 ALL 1 2

ON ON ON

Channel 12

Blocked by AutoLock

No rating

Access Code

- - - -

Page 26

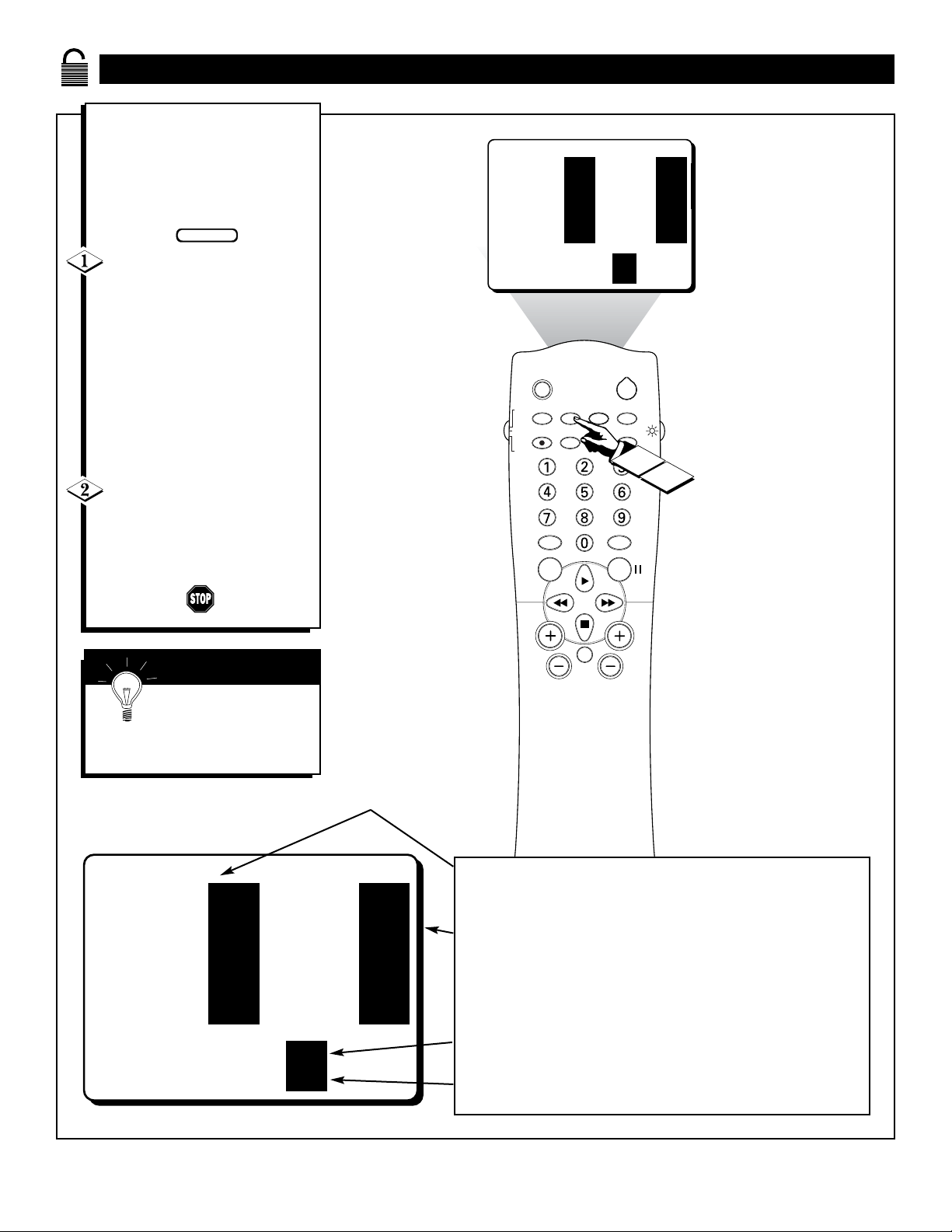

AUTOLOCK™– REVIEWING YOUR SETTINGS

o remind you which ratings you have blocked and which Block

Options you have selected, a review screen is available to review your

AutoLock

settings. To access this

screen follow the steps below.

Press the STATUS/EXIT but-

ton on your remote control twice.

Your AutoLock

settings will

appear on the screen.

NOTE: If you have blocked specific subratings, such as V for Violence in the TV-PG category, these blocked subratings will not appear in the review. The subratings however, are still blocked according to your selections.

After a few seconds, the set-

tings will leave the screen automatically, or you can press the STATUS/EXIT button a third time to remove them from the screen.

SMART HELP

Remember, the review

screen will appear only if BLOCKING is set to ON. For details, see page 23.

MOVIE RATINGS – Shows all blocked movie ratings that were set within the MOVIE RATING feature. Some or all may be blocked at one time. NOTE: If a lower rating is blocked, higher ratings also will be blocked automatically (for example, if R is set to be blocked, X also will automatically be blocked).

TV RATINGS – Shows all blocked TV ratings that were set within the feature. Some or all may be blocked at one time. NOTE: If a lower rating is blocked, higher ratings also will be blocked automatically (for example, if TV-14 is set to be blocked, TV-MA also will automatically be blocked). TV ratings also have subratings for Violence (V), Fantasy Violence (FV), Sexual Situations (S), Coarse Lanuage (L), and Suggestive Language (D). If the main rating is turned OFF but the subrating is turned ON, the program will be blocked; however, the rating will not appear within the AutoLock review menu.

BLOCK UNRATED – Shows ON or OFF, depending on the status of the BLOCK UNRATED feature.

BLOCK NO RATING – Shows ON or OFF, depending on the status of the BLOCK NO RATING feature.

BEGIN

MOVIE RATING -

BLOCK UNRATED

NO RATING

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

INCR.

SURR.

R NC17 X

PROGRAM

LIST

TV RATING -

PG 14 MA

ON OFF

POWER

CLOCK

TV/VCR

SURF

MOVIE RATING -

R NC17 X

BLOCK UNRATED

NO RATING

TV RATING -

ON OFF

PG 14 MA

VOL

MUTE

Page 27

AUTOLOCK™– VIEWING BLOCKED PROGRAMMING

arious onscreen messages will

appear when someone tries to view blocked programming. The message is determined by how the current programming is blocked. You may view the blocked programming and turn OFF the AutoLock™ feature by clearing all blocking options or by entering your access code.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button and the menu will shift to the left. Then press the CURSOR DOWN button once to highlight

the AutoLock control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit

ACCESS CODE and the menu

will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN

button twice to highlight CLEAR

ALL.

Press the CURSOR RIGHT

button twice. The CLEAR ALL

option will display the word CLEARED. All blocked channels and programming are now viewable.

Press the STATUS/EXIT but-

ton to remove the menu.

If you tune to a specific channel that has been blocked by BLOCK CHANNEL or any of the AutoLock™ RATING options, simply enter your four-digit access code to view the channel. NOTE: this will unblock ALL channels until the TV is shut OFF. When powered back ON, all previously blocked channels will be blocked again.

BEGIN


SOUND

FEATURES

INSTALL

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

FEATURES

TIMER

AutoLock CLOSED CAP

FORMAT BLUE MUTE

TIME START TIME STOP TIME CHANNEL ACTIVATE

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

INCR.

VCR

ACC

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

FEATURES

TIMER

AutoLock

CLOSED CAP FORMAT BLUE MUTE

FEATURES

AutoLock

TIMER AutoLock CLOSED CAP FORMAT BLUE MUTE

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

ACCESS CODE

- - - -

ACCESS CODE

- - - -

ACCESS CODE X X X X

AV2 AV3 ALL 1 2

FEATURES

AutoLock

BLOCK CHANNEL SETUP CODE

CLEAR ALL

MOVIE RATING TV RATING

BLOCK OPTIONS

FEATURES

AutoLock

BLOCK CHANNEL SETUP CODE

CLEAR ALL CLEARED

MOVIE RATING TV RATING

BLOCK OPTIONS

Page 28

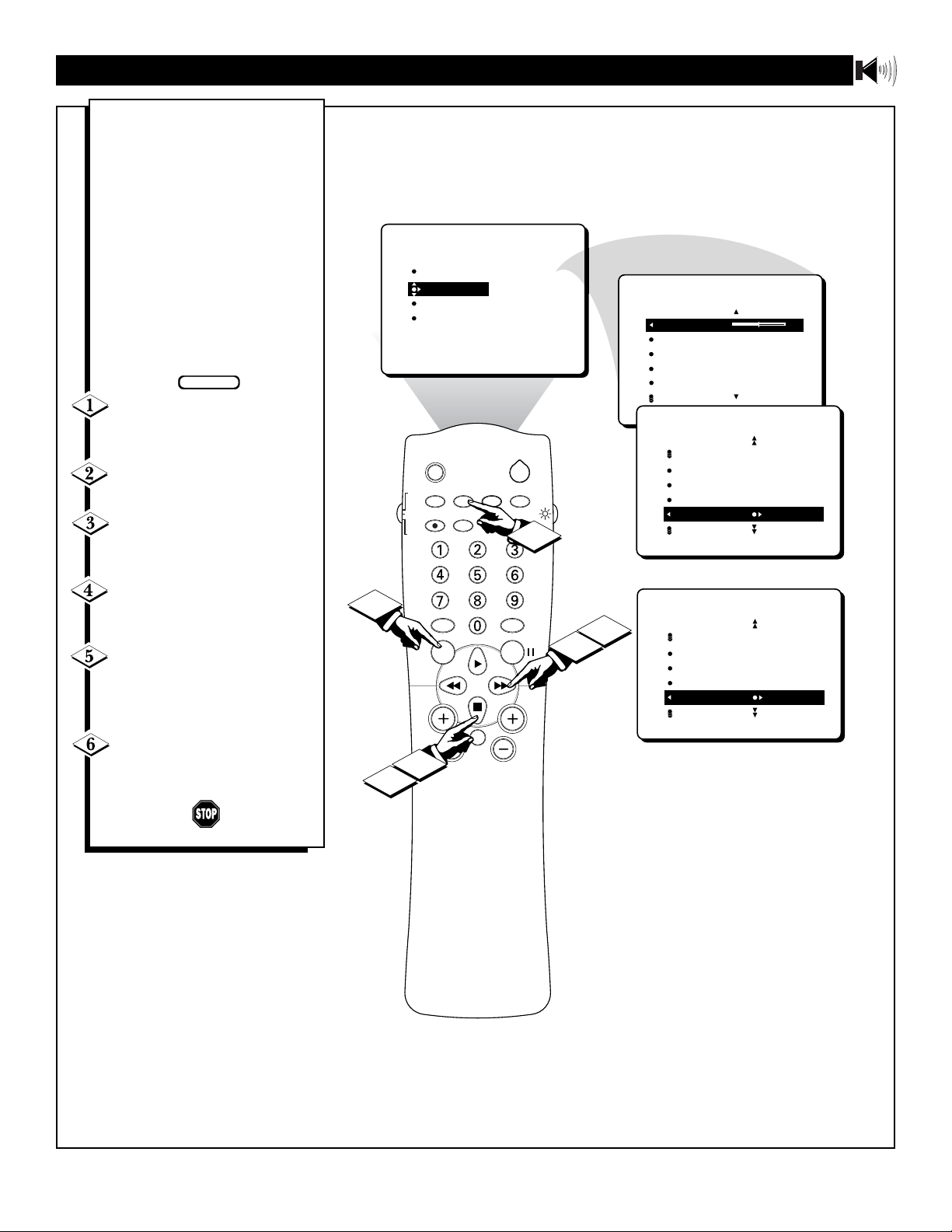

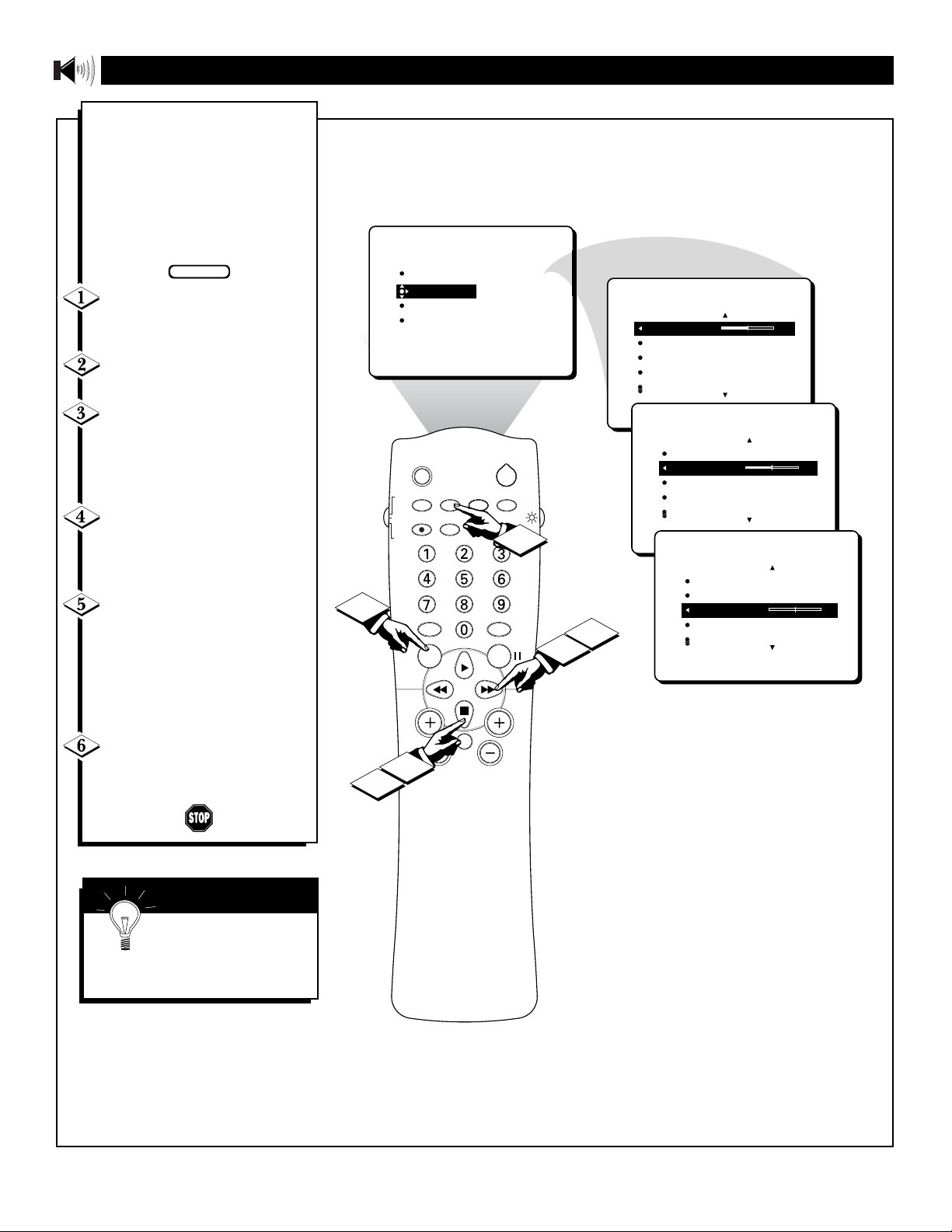

esides the normal volume level

control, your TV also has individual sound-adjustment controls. The TREBLE (high frequency), BASS (low frequency), and Speaker BALANCE may all be used to adjust the sound playback of TV programs.

Press the MENU button on the remote control to show the onscreen menu.

Press the CURSOR DOWN

button once to highlight SOUND.

Press the CURSOR RIGHT button and the menu will shift to

the left. TREBLE will be highlighted and an adjustment bar will be shown to the right.

Use the CURSOR RIGHT or CURSOR LEFT button to adjust

the TREBLE (high frequency) level of the television’s sound.

After adjusting the TREBLE control, press the CURSOR DOWN button to select another sound adjustment: BASS or BALANCE. Press the CURSOR

RIGHT or CURSOR LEFT button to adjust the selected control.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

SOUND – A

DJUSTING THE TREBLE, BASS, AND BALANCE

SMART HELP

Remember, when the bar

scale is centered, speaker BALANCE is centered between the TV’s left and right side speakers.

BEGIN


SOUND

FEATURES INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

PROGRAM

LIST

MUTE

TREBLE BASS BALANCE AVL INCR. SURROUND

POWER

CLOCK

TV/VCR

SURF

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE

BASS 30

BALANCE AVL INCR. SURROUND

SOUND

TREBLE BASS

BALANCE 0

AVL INCR. SURROUND

Page 29

se the Volume Bar control to see

the TV’s volume level settings on the TV screen. The Volume Bar will be seen each time the VOLUME buttons (on the TV or remote control) are pressed.

Press the VOLUME (+) or (–)

button on the remote control to

show the VOLUME bar display on the screen.

Press the VOLUME (+) or (–)

button to adjust the television’s

sound level.

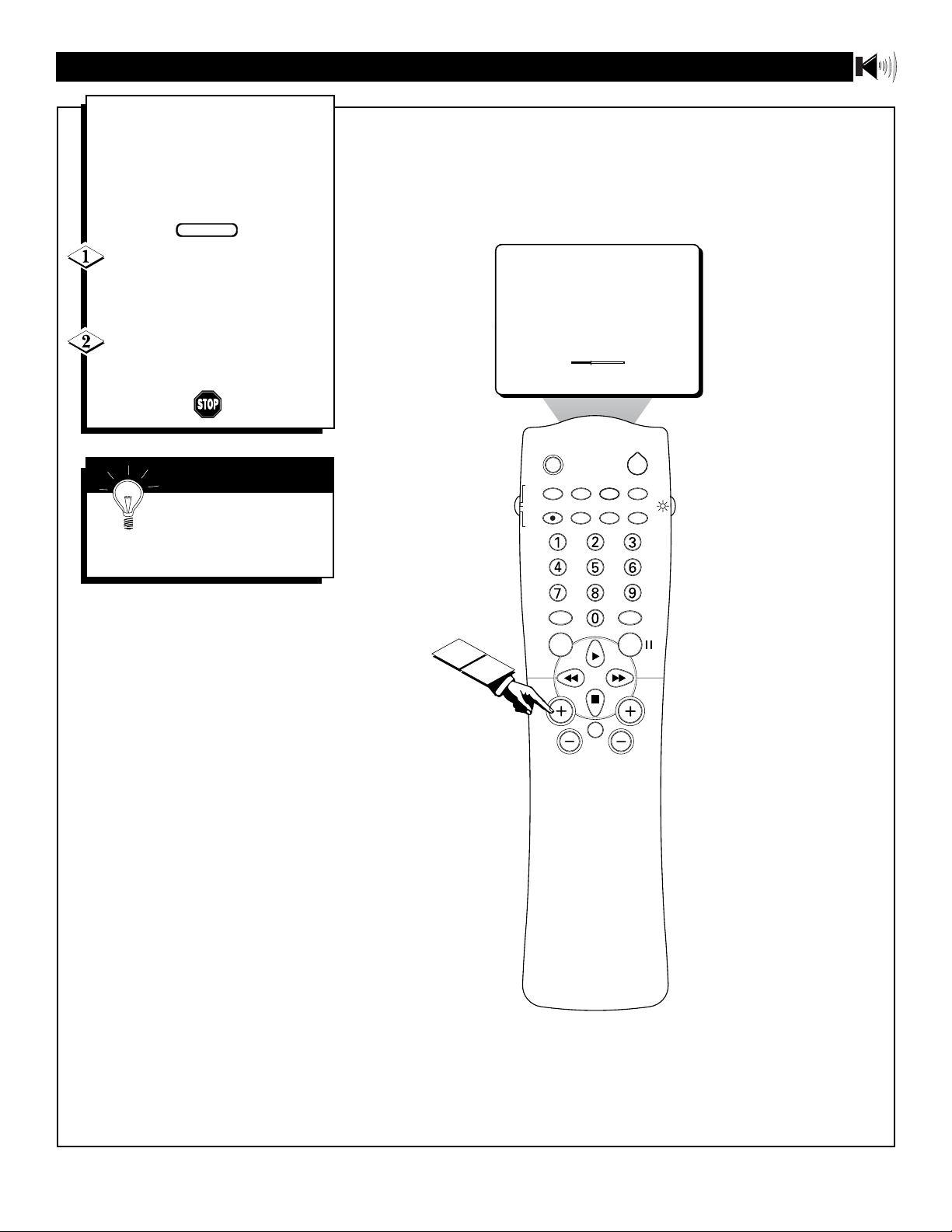

SOUND – ADJUSTING THE VOLUME

BEGIN

SMART HELP

Try it out. Press the VOL

(+) and (–) buttons. The VOLUME bar will appear near the bottom center of the screen.

VOLUME 15

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

INCR.

SURR.

MUTE

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

A/CH

Page 30

SOUND – USING THE AV L ( A UDIO VOLUME LEVELER)

n most cases, the volume levels

coming from broadcast programming or commercials are never the same. With the AVL (Audio Volume Leveler) control turned ON, you can have the TV level out sound that is being heard. This makes for a more consistent sound by reducing the peaks and valleys that occur during program changes or commercial breaks. To turn the AVL ON, follow these steps.

Press the MENU button on the

remote control to show the

onscreen menu.

Press the CURSOR DOWN

button once to highlight SOUND.

Press the CURSOR RIGHT

button and the menu will shift to

the left. TREBLE will be highlighted and an adjustment bar will be shown to the right.

Press the CURSOR DOWN

button repeatedly until AVL is

highlighted. Then press the CURSOR RIGHT or CURSOR LEFT button to toggle AVL ON or OFF.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

BEGIN

VCR

ACC


SOUND

FEATURES INSTALL

SLEEP

MULTIMEDIA

VCR

RECORD

STATUS/EXIT

INCR.

SURR.

TREBLE BASS BALANCE AVL INCR. SURROUND

PROGRAM

LIST

POWER

CLOCK

TV/VCR

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE BASS BALANCE

AVL OFF

INCR. SURROUND

SOUND PICTURE

VOL

MUTE

SURF

AVL ON

Page 31

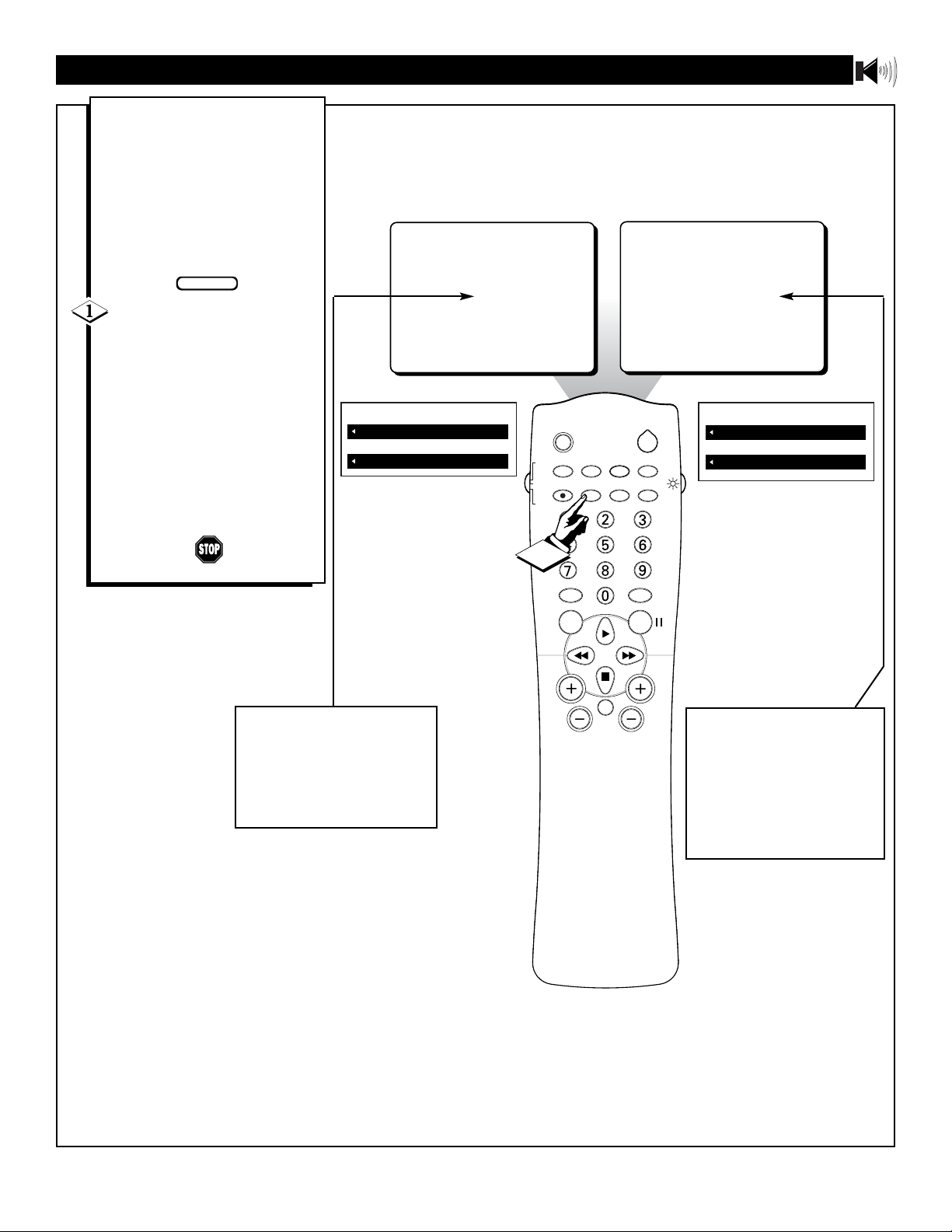

SOUND – USING INCREDIBLE SURROUND

he Incredible Surround feature

adds greater depth and dimension to both monaural (MONO) and stereo TV sound. With the control set to INCR. SURROUND (Incredible Surround), the TV’s speakers can add even wider sound separation to normal broadcasts.

Press the INCR. SURR. but-

ton on the remote control to turn

the Incredible Surround feature ON.

When the TV signal is being received in Stereo, pressing this button will give you these options: STEREO, or INCR. SURROUND.

When the TV signal is in MONO, the choices displayed will read SPATIAL or MONO.

NOTE: If the TV signal is being received from a stereo source, pressing the INCR. SURR. button will toggle three choices: STEREO, INCR. SURROUND, and VIRTUAL DOLBY SURR.

INCR. SURROUND – widens the sound, simulating a broader, fuller sound.

NOTE: If the TV signal is being received from a mono source, pressing the INCR. SURR. button will cause either MONO or SPATIAL to appear on the the screen.

SPATIAL – widens the sound, simulating a broader, fuller sound.

Onscreen menu options for Incredible Surround in MONO mode

Onscreen menu options for Incredible Surround in STEREO mode

BEGIN

SPATIAL

MONO OPTIONS ARE:

INCR. SURR. SPATIAL

INCR. SURR. MONO

SLEEP

STATUS/EXIT

MULTIMEDIA

STATUS/EXIT

MULTIMEDIA

VCR

ACC

VCR

RECORD

INCR.

SURR.

SOUND PICTURE

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

INCR. SURROUND

STEREO OPTIONS ARE:

INCR. SURR. INCR. SURR

INCR. SURR. STEREO

VOL

MUTE

SURF

Page 32

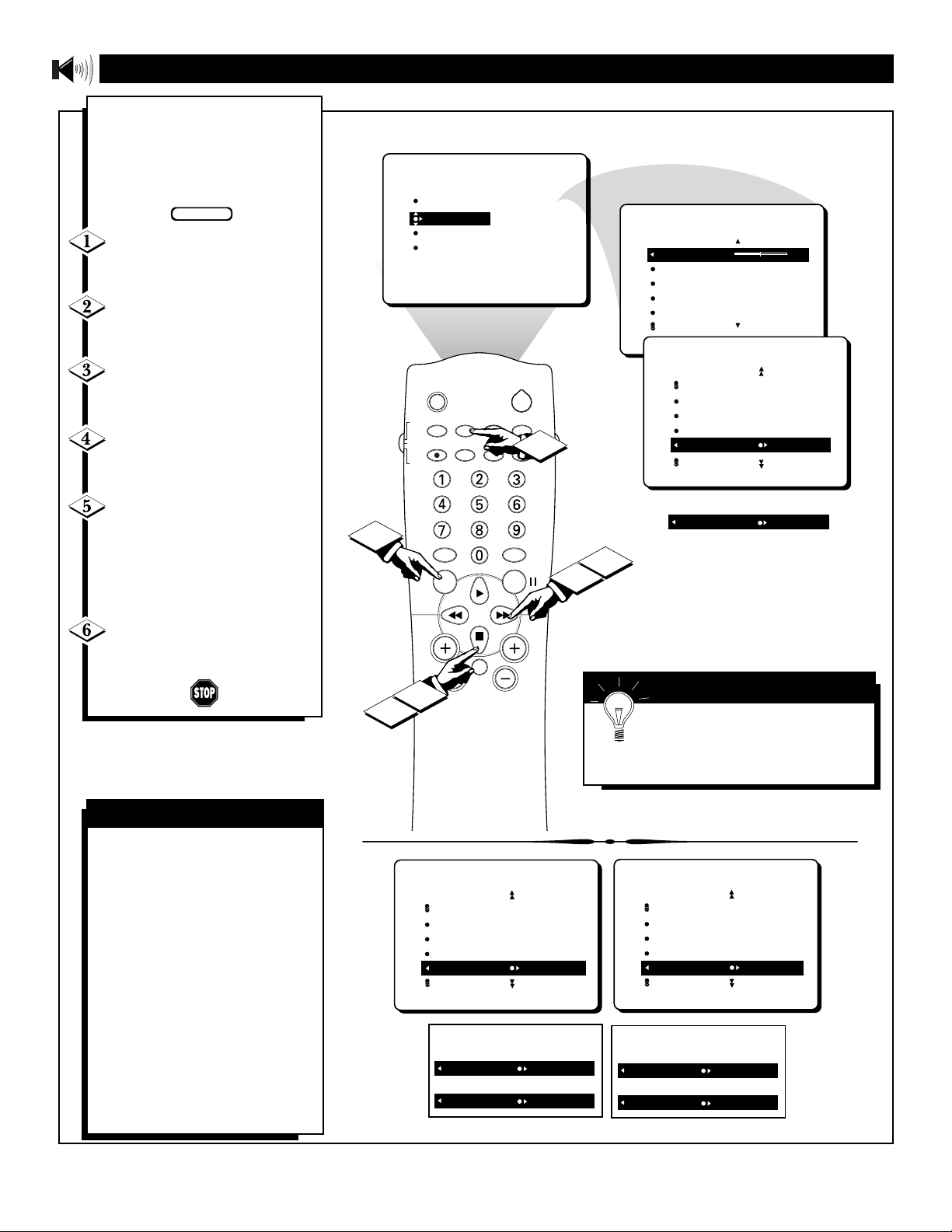

SOUND – SETTING THE TV FOR STEREO AND SAP

ou can receive broadcast

stereo TV programs. The TV has both an amplifier and twin speakers through which the stereo sound can be heard.

Press the MENU button on

the remote control to show the

onscreen menu.

Press the CURSOR DOWN

button once to highlight the

SOUND menu.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until the

STEREO control is highlighted.

Press the CURSOR LEFT or

CURSOR RIGHT button to

select STEREO or MONO. When STEREO has been selected, the television will reproduce any stereo broadcast signal it receives.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

An SAP is an additional part of the stereo broadcast system. Sent as a third audio channel, an SAP can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes.

If an SAP signal is not present with a selected program, the SAP option cannot be selected. Also, if SAP is selected on a channel (with SAP) and you select another channel, when you return to the original channel, SAP will be OFF. You will have to reselect the SAP feature.

SECOND AUDIO PROGRAM (SAP)

SMART HELP

Remember, if stereo is not present

on a selected show and the TV is placed in the STEREO mode, the sound coming from the set will remain monaural.

BEGIN


SOUND

FEATURES INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

TREBLE BASS BALANCE AVL INCR. SURROUND

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

BALANCE AVL INCR. SURROUND HEADPHONE

STEREO MONO

STEREO STEREO

VOL

MUTE

SOUND

AVL INCR. SURROUND HEADPHONE STEREO

SAP NOT AVAILABLE

IF SECONDARY AUDIO PROGRAMING

IS BEING BROADCAST:

SAP AVAILABLE

SAP OFF

SOUND

AVL INCR. SURROUND HEADPHONE STEREO

SAP AVAILABLE

IF SECONDARY AUDIO PROGRAMING

IS NOT BEING BROADCAST:

SAP NOT AVAILABLE

SAP OFF

Page 33

SOUND – SETTING THE AUDIO OUT CONTROL

f you have connected the TV’s

AUDIO OUTPUT jacks to the AUDIO INPUT jacks on a stereo receiver, set AUDIO OUT to either VARIABLE or FIXED to determine whether you adjust the volume at the stereo or at the TV. If you select VARIABLE, change the volume at the TV using the TV’s remote control. If you select FIXED, adjust the volume at the stereo using the stereo’s controls. To select FIXED or VARIABLE, follow these steps.

Press the MENU button on the remote control to show the onscreen menu.

Press the CURSOR DOWN

button once to highlight SOUND.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until AUDIO

OUT is highlighted.

Press the CURSOR LEFT or CURSOR RIGHT button to set

the AUDIO OUT to VARIABLE or FIXED.

Press the STATUS/EXIT but-

ton to remove the menu from the

screen.

BEGIN


SOUND

FEATURES INSTALL

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

PROGRAM

LIST

MUTE

TREBLE BASS BALANCE AVL INCR. SURROUND

POWER

CLOCK

TV/VCR

SURF

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

INCR. SURROUND HEADPHONE STEREO SAP

AUDIO OUT FIXED

SOUND

INCR. SURROUND HEADPHONE STEREO SAP

AUDIO OUT VARIABLE

Page 34

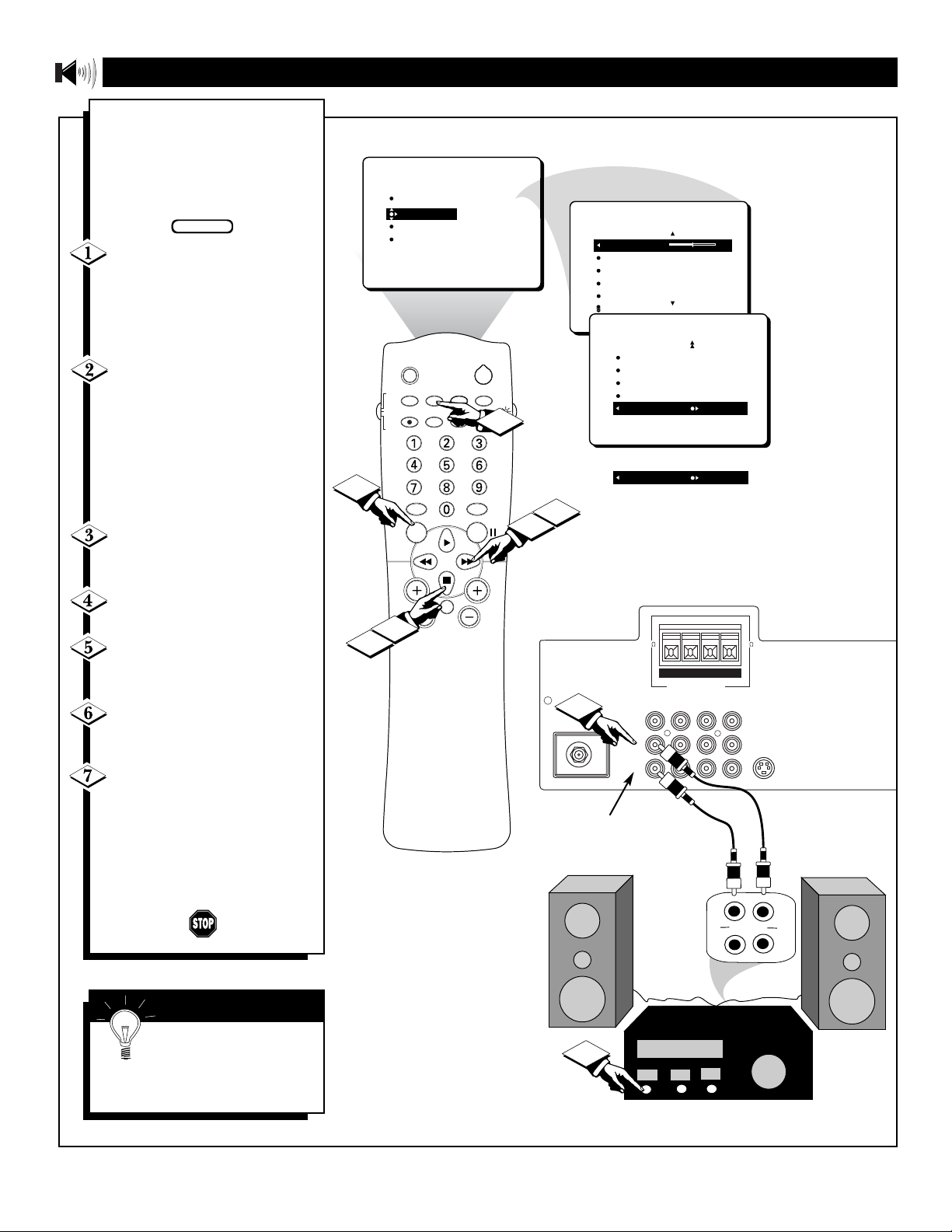

SOUND – USING THE TV SPEAKER CONTROL AND AUDIO OUTPUT JACKS

ould you like to hear TV pro-

grams through your audio hifi system? The TV’s Audio Output jacks and TV Speaker ON/OFF control work together to offer you this TV sound option.

Connect the R(ight) and

L(eft) AUDIO OUT jacks on the

TV to the R and L audio input jacks on your amplifier or sound system. Set the audio system’s volume to a normal listening level.

Turn the TV and audio sys-

tem ON. You can now adjust the

sound level coming from the audio system with the VOLUME (+) or (–) buttons on the TV or remote control.

To hear the TV sound from only the audio system speakers:

Press the MENU button on

the remote control to show the

onscreen menu.

Press the CURSOR DOWN

button once to highlight SOUND.

Press the CURSOR RIGHT

button and the menu will shift to

the left.

Press the CURSOR DOWN

button repeatedly until the

SPEAKERS control is highlighted.

Press the CURSOR RIGHT

or CURSOR LEFT button to

turn the television’s speakers ON or OFF. With the SPEAKERS control set to OFF, you should hear the TV sound coming only from the audio system speakers.

AUDIO SYSTEM

SMART HELP

Remember, the audio

system may have to be in AUX(iliary) mode to play sound from the TV.

RCA PHONO

PLUG CABLES

BEGIN

JACK PANEL

LOCATED ON THE

REAR OF THE

TELEVISION

AUDIO OUT

(RED/WHITE)

STATUS/EXIT

INCR.

SURR.

TREBLE BASS BALANCE AVL INCR. SURROUND

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

HEADPHONE STEREO SAP AUDIO OUT

SPEAKERS ON

SPEAKERS OFF


SOUND

FEATURES INSTALL

SLEEP

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

MUTE

+ R – – L +

SURROUND SOUND

AV1 in

ANT 75Ω

VIDEO

AUDIO

Monitor out

AV2 in

S-VIDEO

Page 35

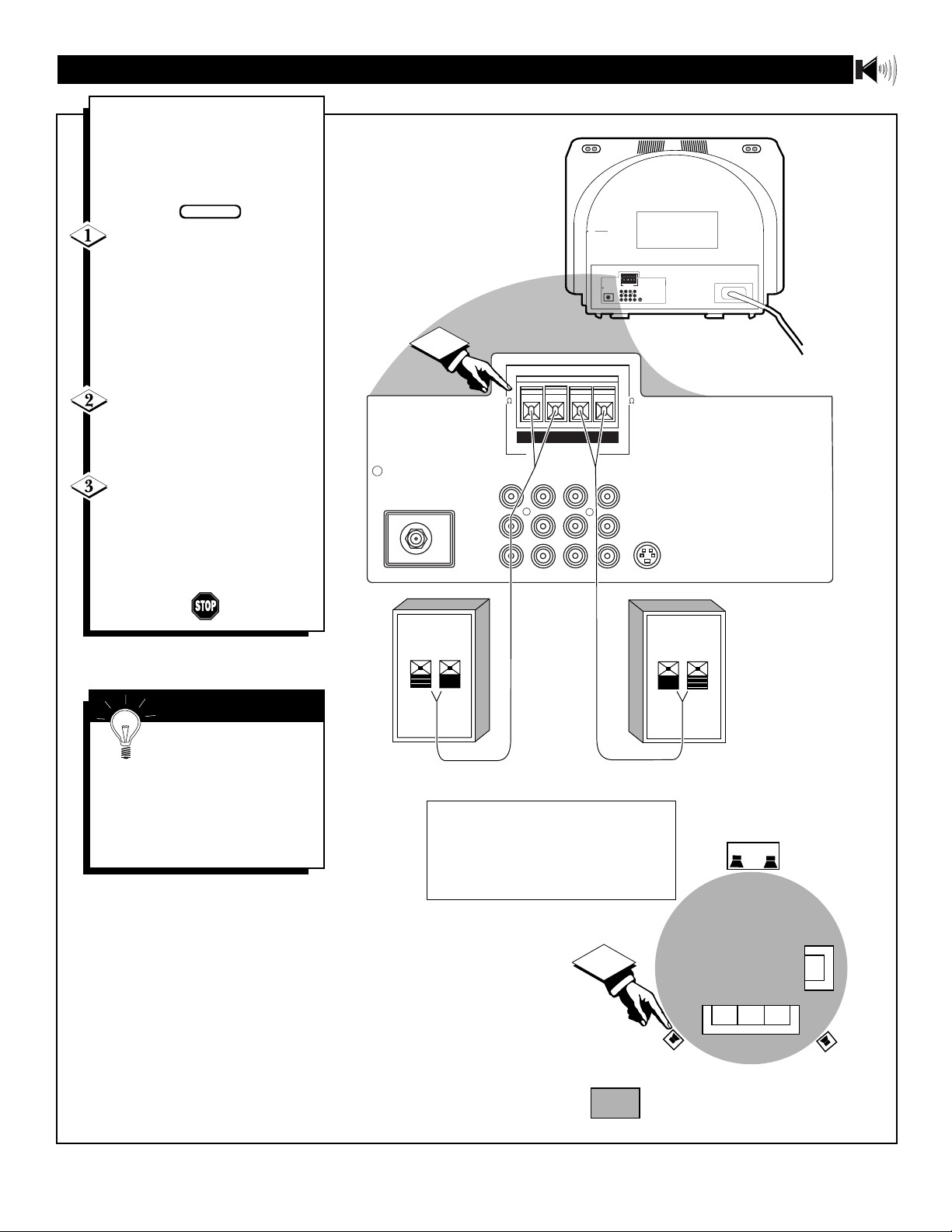

SOUND – USING THE SURROUND SOUND EXTERNAL SPEAKER C

ONNECTIONS

y adding optional external

speakers to the TV’s sound system, you can create the feeling of reflected sound that surrounds you at a movie theater or concert hall.

Connect both external speak-

ers to the speaker wire terminals

on the TV.

Recommended speakers: 8 ohm, 15 watt minimum. Be sure the (+) and (–) speaker wires are connected to the correct R(ight) and L(eft) speaker terminals on the TV.

Place the speakers so that the viewing area is between the TV and the rear surround speakers. (See overhead view drawing.)

Turn the TV and the

STEREO control ON.

After setup, whenever a stereo signal is received, the audio will be heard in Surround Sound.

REAR SURROUND SOUND

SPEAKER TERMINALS

SMART HELP

Remember, Surround

Sound will not work with only one speaker connected, nor with a monaural audio source supplied, unless the Incredible Surround feature is turned ON (see page 31).

BEGIN

BACK OF TV

REAR SURROUND SOUND SPEAKERS

REAR SPEAKER

PRIMARY VIEWING AREA

NOTE: The rear Surround Sound speakers will not be heard at the same volume level as the front TV speakers. The rear speakers are intended to give a background noise effect that requires a lower volume level than the TV’s front speakers.

AV2 in

+ R – – L +

SURROUND SOUND

AV1 in

AV2 in

Monitor out

VIDEO

ANT 75Ω

L/Mono

S-VIDEO

AUDIO

S-VIDEO

ANT 75Ω

VIDEO

L/Mono

AUDIO

+ R – – L +

SURROUND SOUND

Monitor out

AV1 in

Page 36

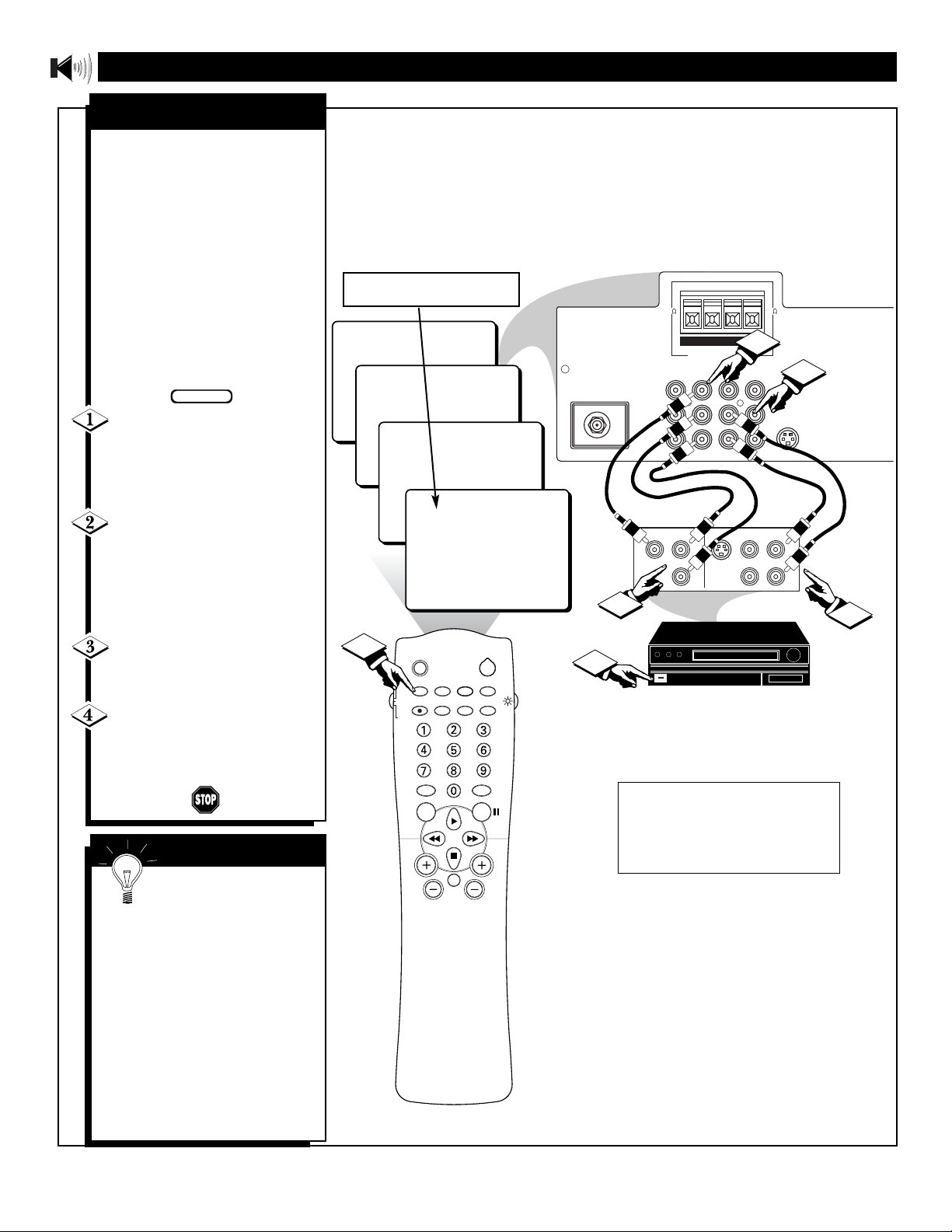

he TV’s audio/video input

jacks are for direct picture and sound connections between the TV and a VCR (or similar device) that has audio/video output jacks.

Connect the VIDEO (yellow)

cable to the VIDEO AV1 jack on the back of the TV. Then connect the AUDIO (red and white) cables to the AUDIO (left

and right) AV1 jacks on the rear of the TV.

Connect the VIDEO (yellow)

cable to the VIDEO OUT jack

on the back of the VCR. Then

connect the AUDIO (red and white) cables to the AUDIO (left

and right) OUT jacks on the rear of the VCR.

Turn the VCR and the TV

ON.

Press the MUTLIMEDIA

button on the remote control to

select the AV1 channel.

With the VCR ON and a prerecorded tape inserted, press the PLAY button to view the tape on the television.

AUDIO IN

(RED/WHITE)

VCR

(EQUIPPED WITH VIDEO AND

AUDIO OUTPUT JACKS)

VIDEO IN

(YELLOW)

SOUND – USING THE AUDIO/VIDEO INPUT JACKS

BEGIN

BACK OF VCR

NOTE: Repeatedly pressing the MULTIMEDIA button on the remote control will toggle the picture source from the current channel (Tuner A or B), the last viewed channel, then AV1 (or CVI) connection, then the AV2 connection, and then the AV3 connection.

If you are using a nonstereo device, use only the Audio R jack.

AUDIO/VIDEO INPUTS

BACK OF TV

NOTE: For more convenient direct playback connections, you can use your TV’s side video input panel, located on the right and angled toward the front for easy access. The audio/video jacks in this panel allow for quick connections that are especially handy for playing back camcorder (composite video or S-VHS) tape recordings. Press the remote control’s SOURCE button to select the AV3 mode. Then use the side jack panel inputs for playback on the TV.

SIDE VIDEO

JACK PANEL INPUTS

AV3

AV2

AV1

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

POWER

CLOCK

PROGRAM

INCR.

TV/VCR

A/CH

LIST

SURR.

SURF

MUTE

ANT 75Ω

+ R – – L +

SURROUND SOUND

AV1 in

AV2 in

VIDEO

AUDIO

Monitor out

R L

AUDIO OUT

VIDEO

OUT

S-VIDEO

OUT

ANT/CABLE

OUT

S-VIDEO

AV3

S-VIDEO

VIDEO

AUDIO

Page 37

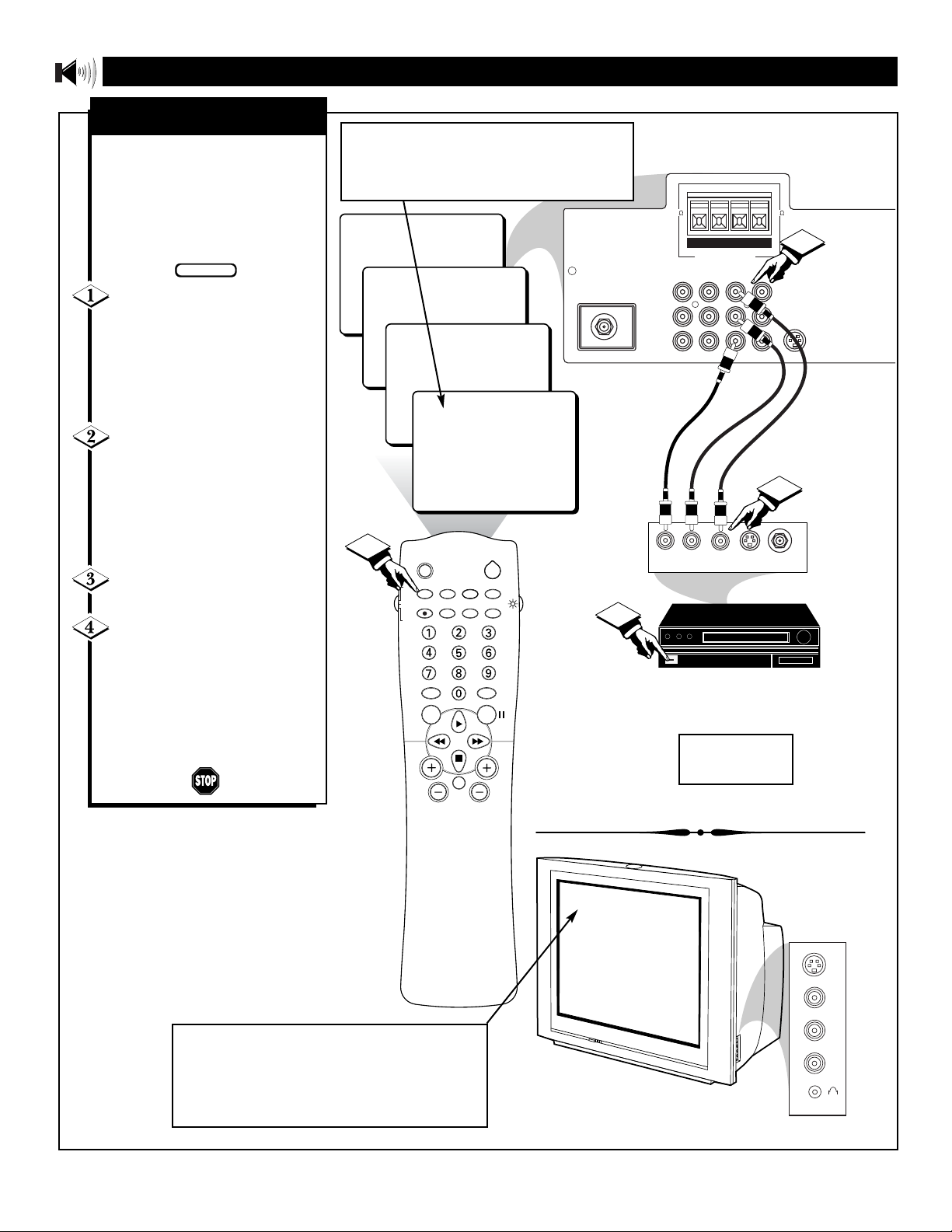

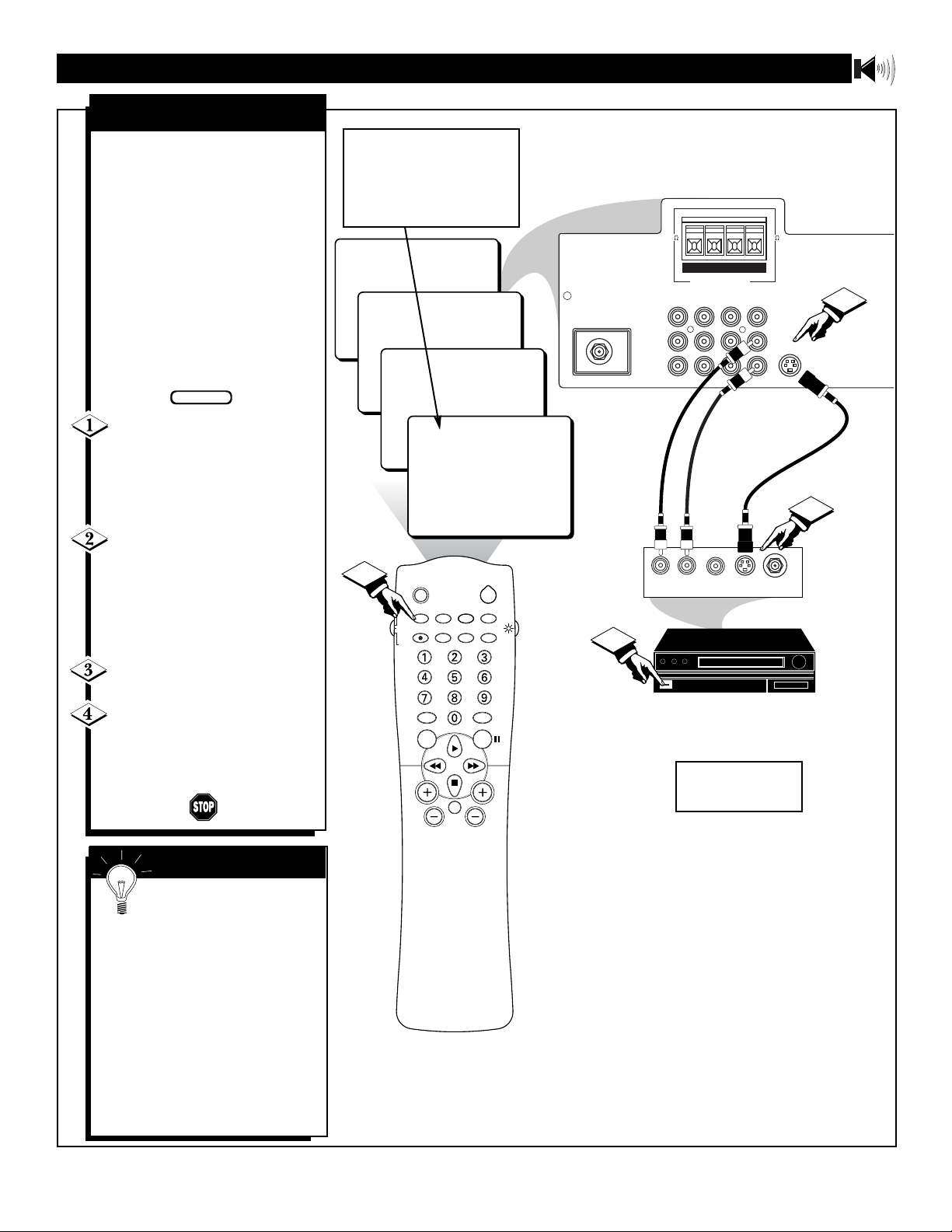

he S(uper)-Video connection

on the rear of the TV can provide you with better picture detail and clarity for the playback of accessory sources such as DBS (digital broadcast satellite), DVD (digital video discs), video games, and S-VHS VCR (video cassette recorder) tapes than the normal antenna picture connections.

NOTE: The accessory device must have an S-VIDEO OUT(put) jack in order for you to complete the connection on this page.

Connect the S-VIDEO

CABLE to the S-VIDEO input

jack on the rear of the television. Then connect the AUDIO (red and white) cables to the AUDIO AV2 jacks on the rear of the TV

Connect the S-VIDEO

CABLE to the S-VIDEO output

jack on the accessory device. Then connect the red and white AUDIO cables to the AUDIO (left and right) output jacks on the rear of the accessory device.

Turn the accessory device

ON.

Press the MULTIMEDIA

button on the remote control to

tune the AV2 channel. You are now ready to view the tape or disc on the TV.

AUDIO IN

(RED/WHITE)

SMART HELP

The S-VIDEO and

VIDEO AV2 in(puts) are in parallel. The S-VIDEO input is dominant when in use. If separate video signals are connected to the S-VIDEO and VIDEO AV2 in(puts), the signal from the VIDEO AV2 in(put) will not be usable.

If you have added AV2 in(puts) to the TV’s channel memory, just press the CHANNEL (+) or (–) button until the AV2 in(puts) (channel) mode is selected.

SOUND – USING THE AUDIO/VIDEO INPUT JACKS (CONT’D)

BEGIN

S-VIDEO CABLE (NOT SUPPLIED)

DBS, DVD, Video Game, etc.

(EQUIPPED WITH S-VIDEO AND

AUDIO OUTPUT JACKS)

BACK OF ACCESSORY

NOTE: Repeatedly pressing the MULTIMEDIA button on the remote will toggle the picture source from the current channel, the last viewed channel, then the AV1 (or CVI) connection, the AV2 connection, and the AV3 connection.

S-VIDEO INPUT

BACK OF TV

NOTE: If you are using a nonstereo device, use only the Audio R jack.

AV3

AV2

ANT 75‰

VIDEO

AUDIO

Monitor out

+ R – – L +

SURROUND SOUND

AV1 in

AV2 in

S-VIDEO

AV1

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

POWER

CLOCK

PROGRAM

INCR.

TV/VCR

A/CH

LIST

SURR.

SURF

MUTE

L R AUDIO OUT

VIDEO

OUT

S-VIDEO

ANT/CABLE

OUT

Page 38

omponent Video inputs pro-

vide for the highest possible

color and picture resolution in the playback of digital signal source material, such as with DVD players. The color difference signals (Pb, Pr) and the luminance (Y) signal are connected and received separately, which allows for improved color bandwidth information (not possible when using composite video or S-Video connections).

Connect the Component (Y,

Pb, Pr) Video OUT jacks from

the DVD player (or similar device) to the (Y, Pb, Pr) AV1 in(put) jacks on the TV.

Connect the red and white

AUDIO CABLES to the Audio

(left and right) output jacks on the rear of the accessory device to the Audio (L and R) AV1 in(put) jacks on the TV.

Turn the TV and the DVD (or digital accessory device) ON.

Press the MULTIMEDIA

button on the remote to tune to

the AV1 channel. You are now ready to view the disc on the TV.

AUDIO IN

(RED/WHITE)

COMP

VIDEO

(YELLOW)

SOUND – USING THE AUDIO/VIDEO INPUT JACKS (CONT’D)

BEGIN

DBS, DVD, Video Game, etc.

(EQUIPPED WITH COMPONENT VIDEO

OUTPUTS AND AUDIO OUTPUT JACKS)

NOTE: Optional video/audio cables (with standard RCA plug connectors) are available to complete your component video input jack connections. Contact your dealer or our Parts Information Center (1-800-851-8885) to order any optional accessories.

BACK OF DIGITAL

ACCESSORY

Picture and sound will be seen and heard on the AV1 channel.

COMPONENT VIDEO INPUTS

BACK OF TV

SMART HELP

The description for the

component video connectors may differ depending on the DVD player or accessory digital source equipment used (for example, Y, Pb, Pr; Y, B–Y, R–Y; Y, Cr, Cb). Although abbreviations and terms may vary, the letters b and r stand for the blue and red color component signal connectors, and Y indi- cates the luminance signal. Refer to your DVD or digital accessory owner’s manual for definitions and connection details.

COMP VIDEO

(BLUE)

COMP VIDEO

(BLUE)

AV3

AV2

AV1

ANT 75Ω

+ R – – L +

Monitor out

VIDEO

AUDIO

COMP VIDEO

SURROUND SOUND

AV1 in

S-VIDEO

OUT

AV2 in

VIDEO

OUT

AUDIO

OUT

S-VIDEO

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

RECORD

SOUND PICTURE

VOL

POWER

CLOCK

PROGRAM

INCR.

TV/VCR

A/CH

LIST

SURR.

SURF

MUTE

Page 39

hether you’re watching a

movie or a video game, your TV has automatic video control settings that will match with your current program source or content. AutoPicture™ quickly resets your TV’s video controls for a number of different types of programs and viewing conditions that you may have in your home. The Movies, Sports, Weak Signal, and Multmedia AutoPicture™ controls have been preset at the factory to automatically adjust the TV’s brightness, color, picture, sharpness, tint, and color temperature levels. The Personal AutoPicture™ settings are the ones that you made through the PICTURE options within the onscreen menu.

Press the PICTURE button

on the remote control. The current

AutoPicture

setting will appear in

the middle of the screen.

Press the PICTURE button

repeatedly to select either PER-

SONAL, MOVIES, SPORTS, WEAK SIGNAL, or MULTI MEDIA picture settings.

NOTE: The PERSONAL setting and the PICTURE options within the onscreen menu are the same. This is the only option in AutoPicture

that can be changed. To adjust these settings, use the PICTURE options within the onscreen menu. All other settings are set up at the factory during production and cannot be adjusted.

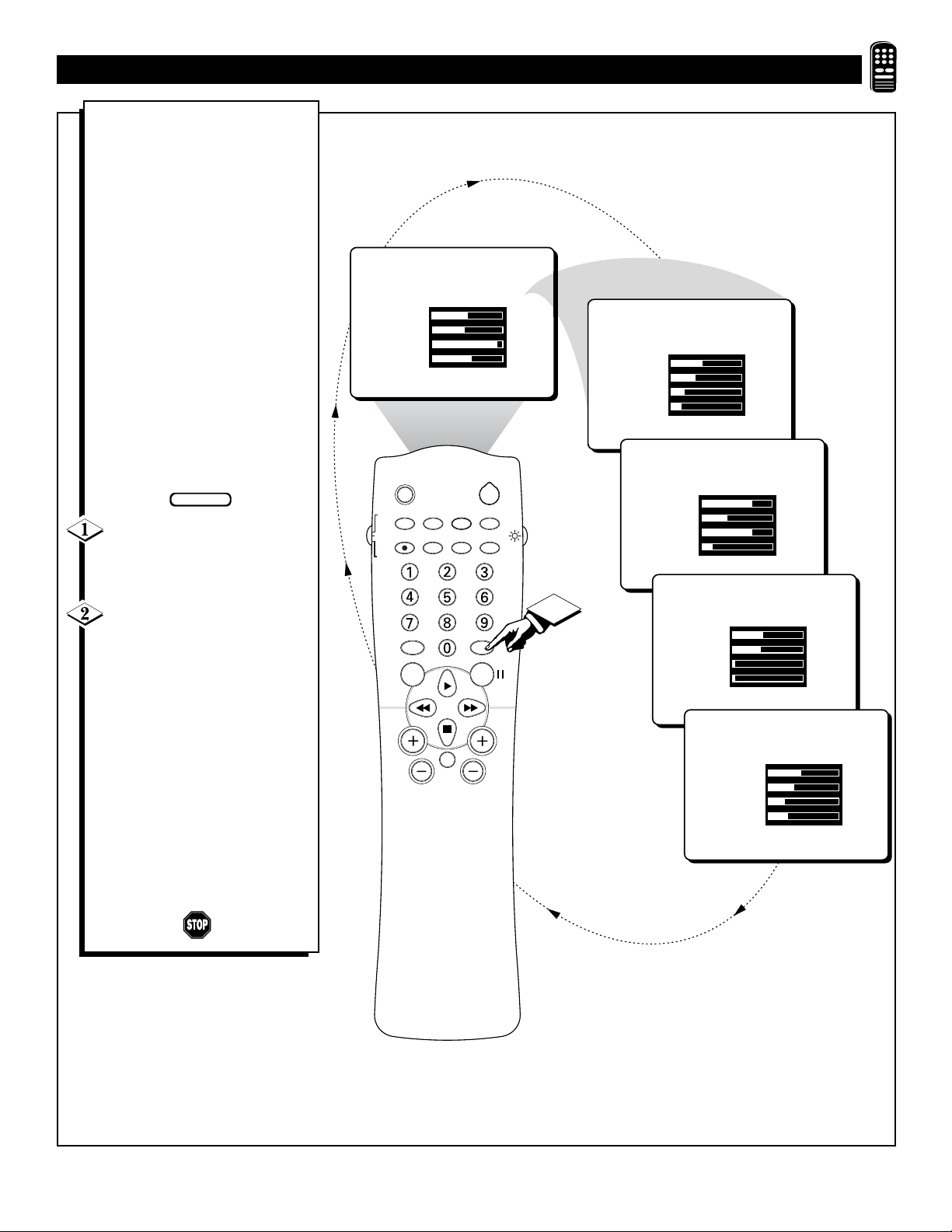

REMOTE CONTROL – USING AUTOPICTURE™

BEGIN

PERSONAL

BRIGHTNESS 48 COLOR 41 PICTURE 81 SHARPNESS 46

VCR

ACC

SLEEP

MULTIMEDIA

VCR

RECORD

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

MOVIES

BRIGHTNESS 40 COLOR 31 PICTURE 20 SHARPNESS 16

SPORTS

BRIGHTNESS 62 COLOR 31 PICTURE 62 SHARPNESS 16

SOUND PICTURE

VOL

MUTE

SURF

WEAK SIGNAL

BRIGHTNESS 37 COLOR 35 PICTURE 15 SHARPNESS 15

WEAK SIGNAL

MULTI MEDIA

BRIGHTNESS 40 COLOR 31 PICTURE 20 SHARPNESS 26

Page 40

REMOTE CONTROL – USING AUTOSOUND™

SMART HELP

Remember, AutoSound

works only with the programs coming through the ANTENNA/CABLE (ANT) input on the rear of the TV (RF audio). It will not control the sound levels for the external connections.

utoSound™ allows you to

select from three factory-set controls and a personal control that you set according to your own preferences through the onscreen Sound menu. The three factory-set controls (Voice, Music, and Theatre) enable you to tailor the TV sound so as to enhance the particular program you are watching. Follow these steps to select any of the options.

Press the SOUND button on

the remote control. The current

AutoSound

setting will appear in

the middle of the screen.

Press the SOUND button

repeatedly to toggle among the

four settings: PERSONAL, VOICE, MUSIC, or THEATRE.

Remember, only the PERSONAL control can be changed by the viewer. This changes the settings in the main onscreen menu’s SOUND controls.

PERSONAL – presents the TV’s sound according to the settings you make within the sound menu.

VOICE – brings voices to the forefront and emphasizes them. Moves music to the background.

MUSIC – emphasizes music over voices.

THEATRE – provides a balance between

voices and music.

AutoSound™ Options

BEGIN

PERSONAL

TREBLE 49 BASS 49

PROGRAM

LIST

SURF

POWER

CLOCK

TV/VCR

A/CH

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

SURR.

RECORD

SOUND PICTURE

INCR.

VOICE

TREBLE 56 BASS 47

MUSIC

TREBLE 63 BASS 69

THEATRE

TREBLE 60 BASS 72

VOL

MUTE

Page 41

list or series of previously

viewed channels can be selected with the SURF button on your remote control. With this feature, you can easily switch between different TV channels that currently interest you. The SURF control allows you to set up to ten channels in its quick viewing list.

Press the CHANNEL(+) or (–)

button (or the numbered buttons)

to select a channel to add to the SURF list.

Press the SURF button on the

remote control. The onscreen display may read, “SURF LIST EMPTY.” The number of the current channel will be shown with “ADD?” to the right.

While the SURF list message or

the SURF channel list appears on the screen, press the CURSOR RIGHT button to add the present channel to the SURF list.

If you want to delete the present

channel from the SURF list, press

the CURSOR RIGHT button

again.

Repeat steps 1 through 3 to add more channels (up to 10) to the SURF list.

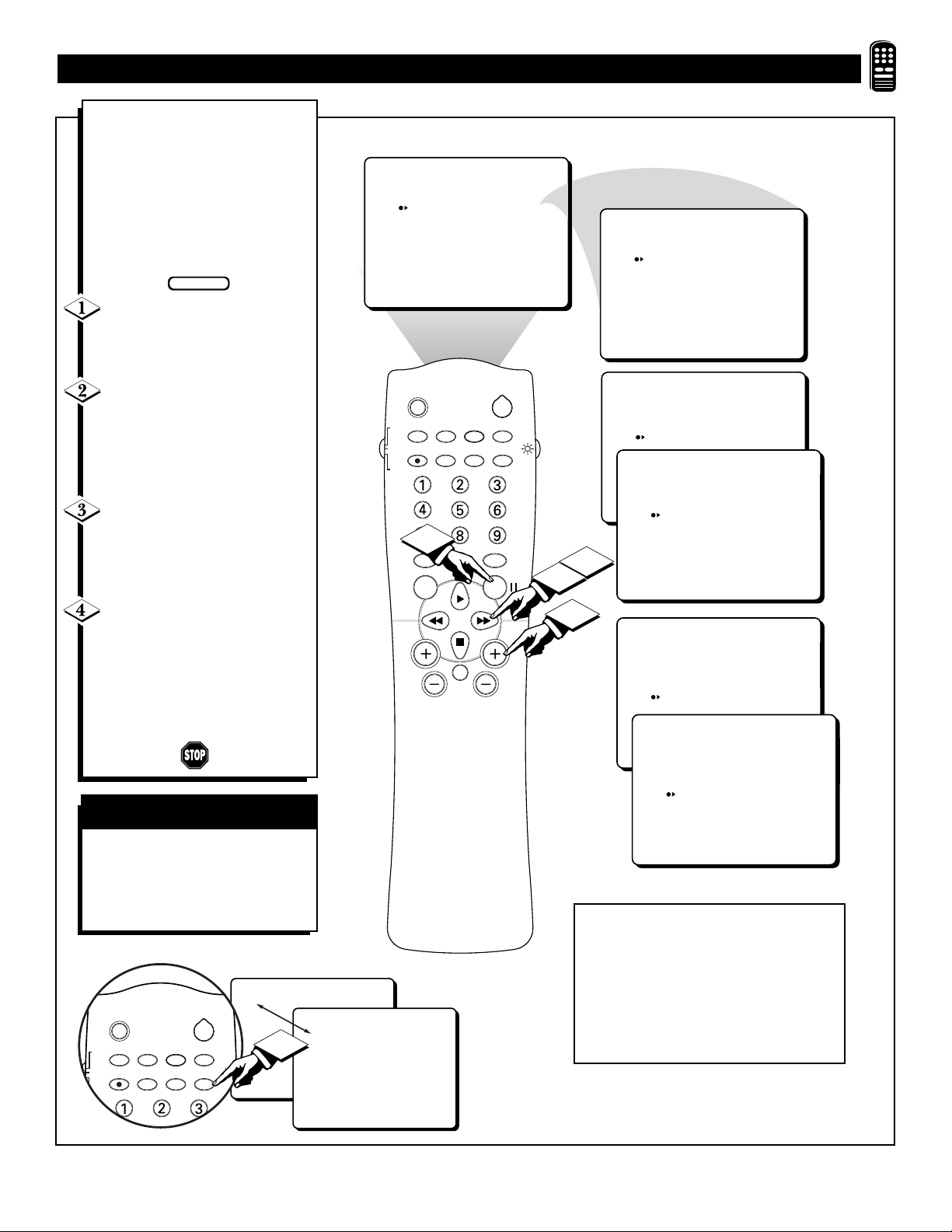

REMOTE CONTROL – USING CHANNEL SURF

A/CH BUTTON

Your remote also has an A/CH (Alternate Channel) button. Pressing this button will toggle between the current and one previous channel.

BEGIN

NOTE: Along with regularly programmed channels, the external video source connections can be added to the SURF list. This means that the AV1, AV2, and AV3 channels can be added to your SURF list. Just tune to their channel and use the same procedure described on this page.

VCR

ACC

SLEEP

MULTIMEDIA

VCR

RECORD

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

SURF

12 ADD?

SURF

12 DELETE?

SURF LIST EMPTY

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

SURF

12 24 ADD?

SURF

12 24 DELETE?

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

SURR.

RECORD

SOUND PICTURE

INCR.

SURF

VOL

MUTE

12 24 32 ADD?

SURF

12 24 32 DELETE?

Page 42

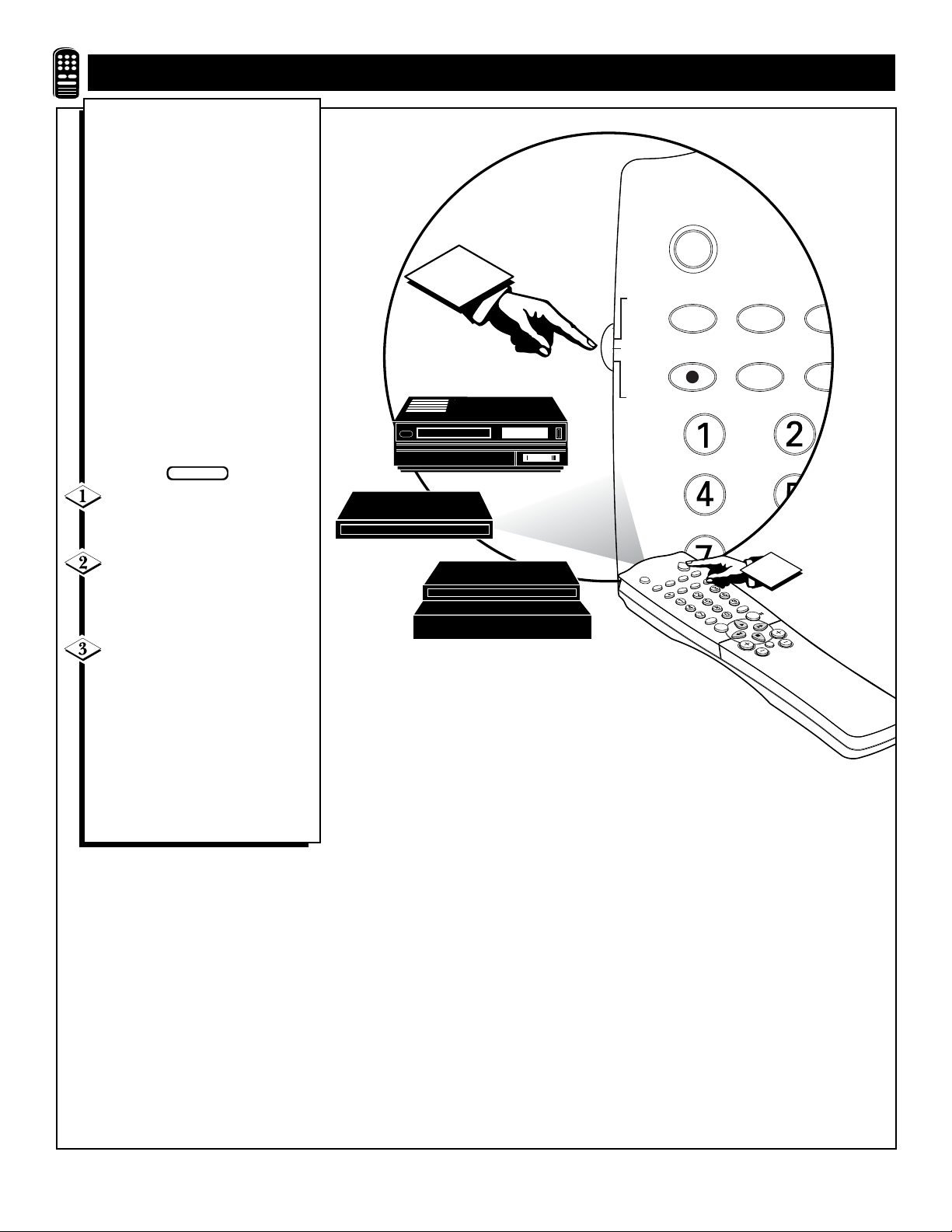

REMOTE CONTROL – OPERATING ACCESSORY DEVICES (DIRECT ACCESS)

our remote control is capable

of working your TV and many other devices that respond to infrared remote control commands, such as VCRs, cable boxes, satellite systems, and DBS. Your remote may be already, as is, to work an accessory device, or you may need to use one of the methods (“Code Entry” or “Search”) explained on pages 43 and 44.

First, try this simple test to see if your TV remote control will give you direct access to the accessory device’s functions, or if you will need to try another method in order to set up your TV remote control for that capability.

Place the TV/VCR/ACC

mode switch in the proper posi-

tion.

Point the remote control at

the remote sensor window of the accessory device and press the POWER button.

Does the remote control turn

the device ON?

If YES, stop and try other function buttons on the remote. If they also work the device, then the remote is ready and no further steps are needed.

If NO, go to page 43 to try the Code-Entry method.

Cable Converter

BEGIN

Satellite Receiver

VCR

SLEEP

MULTIMEDIA

STATUS/EXIT

VCR

ACC

RECORD

VCR

INCR.

SURR.

PROGR

SURF

VOL

Page 43

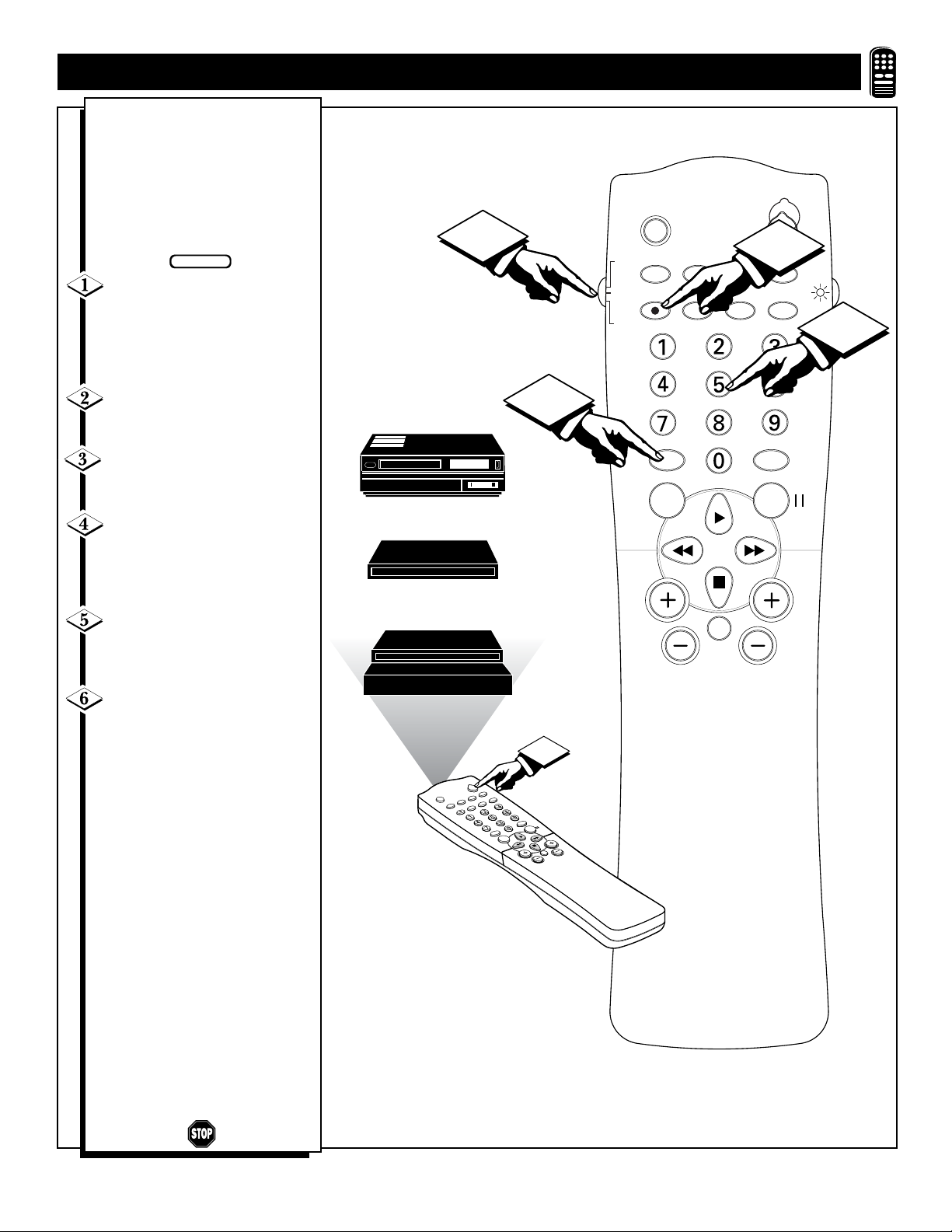

REMOTE CONTROL – OPERATING ACCESSORY DEVICES (CODE ENTRY)

ollow these simple steps to

enter a three-digit Accessory Device Code Number that will allow you to use your TV remote to work the functions of an accessory device. Please read through the steps once before performing them.

Look up a three-digit

Accessory Device Code Number for the accessory device (found on pages 45–46) whose functions you want to work with your TV’s remote control.

Press the VCR RECORD

button on the remote control and

release.

Press the SOUND button on

the remote within 30 seconds, then release.

Enter the three-digit Direct-

Entry Code Number for your

desired device. The remote is now ready to send commands to the unit.

Point the remote at the remote

sensor window of the device. Then press the POWER button on the remote to turn the unit ON.

Enter the three-digit

Accessory Code Number for the accessory device. The TV remote

control should now be ready to send commands to the accessory device.

NOTE: If the process just explained doesn’t work the first time, repeat the same Accessory Device code number.

If after a second try the TV remote control does not operate your accessory device, see if other three-digit Accessory Device Code Numbers are shown for your device on the list pages 45–46 and repeat the steps above using a new number.

If after repeated attempts this method does not work for you, go to page 44 and follow the steps for using the Search method to set up your remote control.

Cable Converter

BEGIN

Satellite Receiver

or DBS, etc.

VCR

ACC

SLEEP

MULTIMEDIA

VCR

RECORD

STATUS/EXIT

INCR.

SURR.

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

POWER

SLEEP

STATUS/EXIT

INCR.

MULTIMEDIA

VCR

RECORD

SOUND PICTURE

VOL

MUTE

CLOCK

TV/VCR

A/CH

PROGRAM

LIST

SURR.


SURF

SOUND

ENU

MUTE

VOL

SURF

Page 44

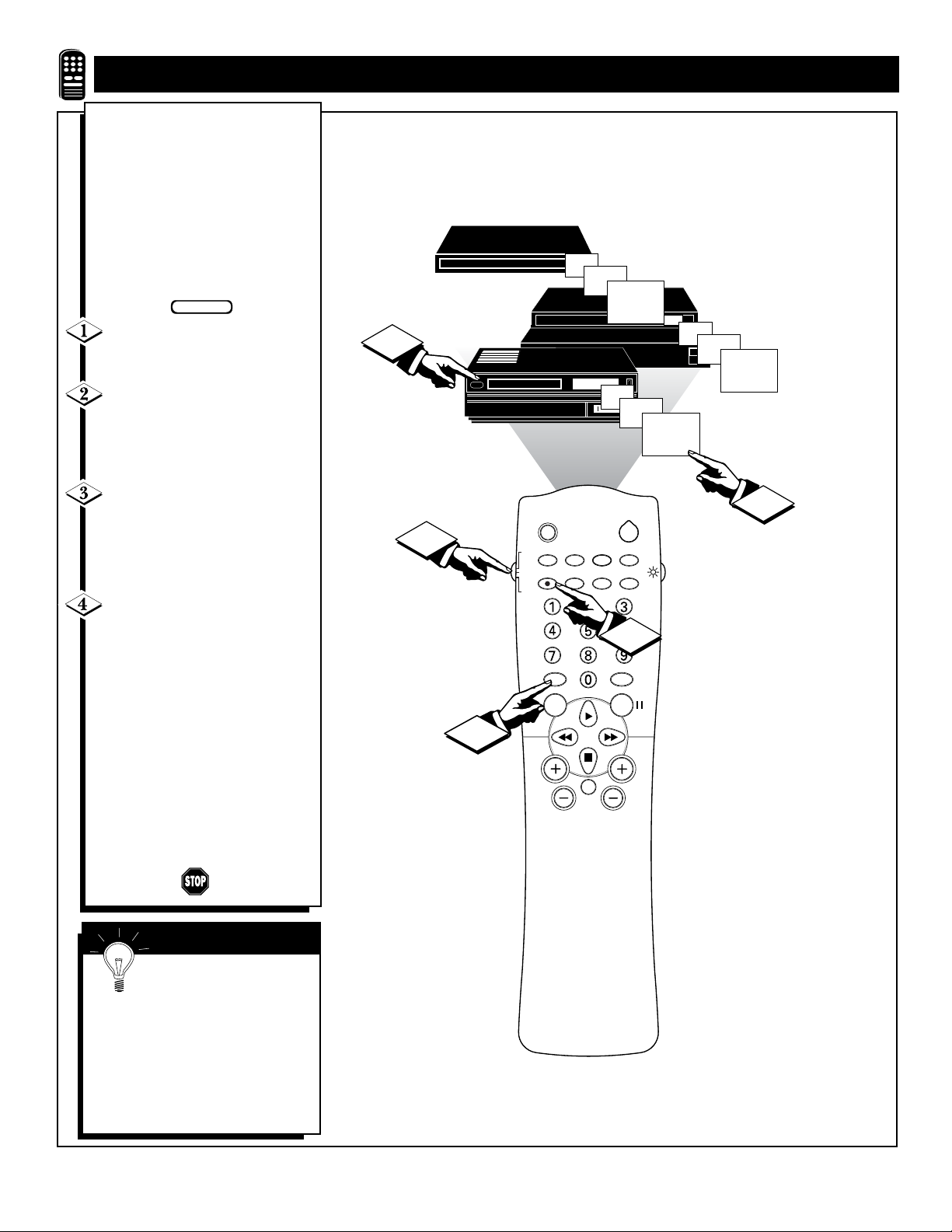

REMOTE CONTROL – OPERATING ACCESSORY DEVICES (SEARCH)

ollow these simple steps to have

your TV remote search for the code it needs to work the functions of your accessory device. Please read through the steps once before performing them.

NOTE: The Search method works only with devices equipped with channel display indicators or channel display capability.

Press the POWER button on

the device your are attempting to

program to turn it ON.

Slide the TV/VCR/ACC mode

switch to the VCR position if

you’re setting up a VCR or to the ACC position if you’re setting up any other accessory device.

Press the (VCR) • RECORD

and SOUND buttons simultane-

ously and hold them down. The

device will begin to change channels after the remote identifies the correct code.

When the channels start to

change, release the VCR

RECORD and SOUND buttons.

NOTE: Don’t let the device scan

up more than five channels. If you do, the remote control may pass up the correct code, and another twominute search cycle will have to be done.

If no channel change happens within two minutes, repeat steps 1–4. Should a channel change still not occur, the remote will not work the desired device.

Cable Converter

SMART HELP

Don’t let the device scan

up more than five channels. If you do, the remote may pass up the right code, and another two-minute search cycle will have to be done.

If no channel change happens within two minutes, repeat steps 1–4. Should a channel change still not occur, the remote control will not work the desired device.

BEGIN

Satellite Receiver

VCR

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

INCR.

VCR

ACC

SURR.

RECORD

SOUND PICTURE

PROGRAM

LIST

POWER

CLOCK

TV/VCR

A/CH

SURF

VOL

MUTE

Page 45

REMOTE CONTROL – ACCESSORY DEVICE CODE NUMBERS

REMOTE

VCR CODE NO.

Admiral . . . . . . . . . . . . . . . . . . . . . . . . .048

Advantz . . . . . . . . . . . . . . . . . . . . . . . . .358

Adventure . . . . . . . . . . . . . . . . . . . . . . .000

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Aiwa . . . . . . . . . . .000, 037, 307, 348, 352

Akai . . . . . . . .041, 049, 053, 061, 106, 315

Alba . . . . . . . . . . . . . . . . . . . . . . . . . . . .352

Amercian High . . . . . . . . . . . . . . . . . . .035

Amstrad . . . . . . . . . . . . . . . . . . . . .325, 332

Asha . . . . . . . . . . . . . . . . . . . . . . . . . . . .240

Audiovox . . . . . . . . . . . . . . . . . . . . . . . .037

Baird . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Beaumark . . . . . . . . . . . . . . . . . . . . . . . .240

Bell & Howell . . . . . . . . . . . . . . . . . . . .104

Blaupunkt . . . . . . . . . . . . . . .003, 006, 154

Brandt . . . . . . . . . . . . . . . . . .187, 320, 321

Broksonic . . . . . . .121, 184, 211, 295, 361

Bush . . . . . . . . . . . . . . . . . . . . . . . . . . . .352

CCE . . . . . . . . . . . . . . . . . . . . . . . .072, 278

Calix . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Canon . . . . . . . . . . . . . . . . . . . . . . . . . . .035

Capehart . . . . . . . . . . . . . . . . . . . . . . . . .020

Carver . . . . . . . . . . . . . . . . . . . . . .081, 146

Citizen . . . . . . . . . . . . . . . . . . . . . .037, 278

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . . .072

Combitach . . . . . . . . . . . . . . . . . . . . . . .352

Craig . . . . . . . . . . .037, 047, 072, 240, 271

Curtis Mathes . . . . . . . . . . . .035, 041, 060

Cybermax . . . . . . . . . . . . . . . . . . .051, 240

Daewoo . . . . . . . . . . . . . . . . .020, 045, 276

Daytron . . . . . . . . . . . . . . . . . . . . . . . . .020

Denon . . . . . . . . . . . . . . . . . . . . . . . . . .042

Dynatech . . . . . . . . . . . . . . . . . . . . . . . .000

Electrophonic . . . . . . . . . . . . . . . . . . . . .037

Emerex . . . . . . . . . . . . . . . . . . . . . . . . . .032

Emerson . . . .000, 002, 036, 037, 043, 061

. . . . . . . . . . .068, 088, 121, 164, 208, 209,

. . . . . . . . . . . .211, 212, 278, 295, 361, 479

Ferguson . . . . . . . . . . . . . . . .107, 320, 321

Fisher . . . . . . . . . . . . . . .047, 054, 066, 104

Fuji . . . . . . . . . . . . . . . . . . . . . . . .033, 035

Funai . . . . . . . . . . . . . . . . . . . . . . . . . . .000

GE . . . . . . . . . . . . . . . . .035, 060, 065, 202

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . .000

Go Video . . . . . . . . . . . . . . . .232, 279, 432

Gold Star . . . . . . . . . . . . . . . . . . . .037, 038

Gradiente . . . . . . . . . . . . . . . . . . . .000, 406

Grundig . . . . . . . . . . . . .003, 007, 195, 347

HI-Q . . . . . . . . . . . . . . . . . . . . . . . . . . . .047

Harley Davidson . . . . . . . . . . . . . . . . . .000

Harman/Kardon . . . . . . . . . . . . . . .038, 075

Harwood . . . . . . . . . . . . . . . . . . . .068, 072

Headquarter . . . . . . . . . . . . . . . . . . . . . .046

Hinari . . . . . . . . . . . . . . . . . . . . . . .004, 352

Hitachi . . . . . . . . . . . . .000, 004, 041, 042,

. . . . . . . . . . . . . . . . . . . .065, 105, 168, 235

Ingersol . . . . . . . . . . . . . . . . . . . . . . . . .004

JVC . . . . . . . .008, 041, 067, 208, 384, 486

Jensen . . . . . . . . . . . . . . . . . . . . . . . . . .041

KEC . . . . . . . . . . . . . . . . . . . . . . . .037, 278

KLH . . . . . . . . . . . . . . . . . . . . . . . . . . . .072

Kenwood . . . . . . . . . . . .038, 041, 067, 384

Kodak . . . . . . . . . . . . . . . . . . . . . .035, 037

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Lloyd’s . . . . . . . . . . . . . . . . . . . . . .000, 206

REMOTE

VCR CODE NO.

Loewe . . . . . . . . . . . . . . . . . . . . . . . . . .004

Logik . . . . . . . . . . . . . . . . . . . . . . .004, 072

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . . .035

MGA . . . . . . . . . . . . . . . . . . . . . . .043, 061

MGN Technology . . . . . . . . . . . . . . . . .240

MTC . . . . . . . . . . . . . . . . . . . . . . .000, 240

Magnavox . . . . . . .000, 035, 081, 146, 181

Marta . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Matsui . . . . . . . . . . . . . . . . . .004, 348, 352

Matsushita . . . . . . . . . . . . . . .035, 162, 454

Memmorex . . . . . . . . . . . . . . . . . . . . . .307

Memorex . . . . . . .000, 035, 037, 039, 046,

. . . . . . . . . . .047, 048, 104, 240, 266, 307

Metz . . . . . . . . . . . . . . . . . . . . . . . .003, 347

Minolta . . . . . . . . . . . . . . . . . . . . .042, 105

Mitsubishi . . .043, 061, 067, 075, 173, 443

Motorola . . . . . . . . . . . . . . . . . . . .035, 048

Multitech . . . . . . . . . . . . . . . . . . . .000, 072

NAD . . . . . . . . . . . . . . . . . . . . . . . . . . .058

NEC . . . . . . . . . . . .036, 040, 041, 067, 104

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Nikon . . . . . . . . . . . . . . . . . . . . . . .034, 253

Noblex . . . . . . . . . . . . . . . . . . . . . . . . . .240

Nordmende . . . . . . . . . . . . . .297, 320, 321

Okano . . . . . . . . . . . . . . . . . . . . . . . . . .346

Olympus . . . . . . . . . . . . . . . . . . . .035, 226

Optimus . . . . . . . . . . . .037, 048, 058, 104,

. . . . . . . . . . . . . . . . . . . . . . . .162, 432, 454

Optonica . . . . . . . . . . . . . . . . . . . . . . . .062

Orion . . . . . . . . . . .004, 295, 348, 352, 479

Panasonic . . . . . . . . . . .035, 077, 162, 225,

. . . . . . . . . . . . . . . . . . . . . . . .226, 378, 454

Penney . . . . . . . . . . . . .035, 037, 038, 040,

. . . . . . . . . . . . . . . . . . . . . . . .042, 065, 105

Pentax . . . . . . . . . . . . . . . . . .042, 065, 105

Philco . . . . . . . . . . . . . . . . . . . . . . . . . . .035

Philips . . . . . . . . . .035, 062, 081, 110, 403

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Pioneer . . . . . . . . . . . . . . . . . . . . . .058, 067

Portland . . . . . . . . . . . . . . . . . . . . . . . . .020

Profax . . . . . . . . . . . . . . . . . . . . . . . . . .322

Profitronic . . . . . . . . . . . . . . . . . . . . . . .240

Protec . . . . . . . . . . . . . . . . . . . . . . . . . . .072

Pulsar . . . . . . . . . . . . . . . . . . . . . . .039, 051

Quarter . . . . . . . . . . . . . . . . . . . . . . . . . .046

Quartz . . . . . . . . . . . . . . . . . . . . . . . . . .046

Quasar . . . . . . . . . . . . . .035, 077, 162, 454

RCA . . . . . . . . . . . . . . .042, 060, 065, 077,

. . . . . . . . . . . . . . . . . . . .105, 106, 149, 202

Radio Shack . . . . . . . . . . . . . . . . .000, 037

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . .037

Randex . . . . . . . . . . . . . . . . . . . . . . . . . .037

Realistic . . . . . . . . .000, 035, 037, 045, 047

. . . . . . . . . . . . . . . . . . . 048, 062, 066, 104

Ricoh . . . . . . . . . . . . . . . . . . . . . . .034, 253

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .039

SEG . . . . . . . . . . . . . . . . . . . . . . . . . . . .322

SEI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .004

STS . . . . . . . . . . . . . . . . . . . . . . . . . . . .042

Saba . . . . . . . . . . . . . . . . . . . .297, 320, 321

Saisho . . . . . . . . . . . . . . . . . . . . . . . . . .004

Salora . . . . . . . . . . . . . . . . . . . . . . . . . . .075

Samsung . . . . . . . . . . . .045, 051, 053, 240

Sanky . . . . . . . . . . . . . . . . . . . . . . .039, 048

Sansui . . . . . . . . . . . . . .000, 041, 067, 271

REMOTE

VCR CODE NO.

Sanyo . . . . . . . . . . .046, 047, 104, 240, 268

Saville . . . . . . . . . . . . . . . . . . . . . . . . . .352

Scott . . . . . . .043, 045, 121, 164, 211, 212

Sears . . . . . . . . . . .000, 035, 037, 042, 046,

. . . . . . . . . . . . . . . .047, 054, 066, 104, 105

Sharp . . . . . . . . . . . . . . . . . . . . . . .046, 062

Shintom . . . . . . . . . . . . . . . . . . . . . . . . .072

Shogun . . . . . . . . . . . . . . . . . . . . . .051, 240

Shoral . . . . . . . . . . . . . . . . . . . . . . . . . . .004

Siemens . . . . . . . . . . . . . . . . . . . . . . . . .003

Singer . . . . . . . . . . . . . . . . . . . . . . . . . . .072

Sinudyne . . . . . . . . . . . . . . . . . . . . . . . .004

Sony . . . . . . . . . . .000, 011, 022, 032, 033,

. . . . . . . . . . . . . . . . . . . .034, 035, 253, 275

Sunkel . . . . . . . . . . . . . . . . . . . . . . . . . .348

Sunpak . . . . . . . . . . . . . . . . . . . . . . . . . .253

Sylvania . . . . .000, 035, 043, 081, 103, 110

Symphonic . . . . . . . . . . . . . . . . . . . . . . .000

TMK . . . . . . . . . . . . . . . . . . .036, 208, 240

Tatung . . . . . . . . . . . . . . . . . . . . . . . . . .041

Teac . . . . . . . . . . . . . . . . . . . . . . . .000, 041

Technics . . . . . . . . . . . . . . . . . . . . .035, 162

Teknika . . . . . . . . . . . . . . . . .000, 035, 037

Telefunken . . . . . . . . . . . . . . .187, 320, 321

Tansal . . . . . . . . . . . . . . . . . . . . . . . . . . .322

Thomas . . . . . . . . . . . . . . . . . . . . . . . . .000

Thomson . . . . . . . . . . . . . . . . . . . . . . . .320

Toshiba . . . . . . . . .043, 045, 066, 212, 366

Totavision . . . . . . . . . . . . . . . . . . .037, 240

Towada . . . . . . . . . . . . . . . . . . . . . . . . .322

Unitech . . . . . . . . . . . . . . . . . . . . . . . . .240

Universum . . . . . . . . . . . . . . . . . . . . . . .325

Vactor . . . . . . . . . . . . . . . . . . . . . . . . . . .045

Vactor Research . . . . . . . . . . . . . . .038, 040

Video Concepts . . . . . . . . . . .040, 045, 061

Videosonic . . . . . . . . . . . . . . . . . . . . . . .240

Wards . .000, 035, 042, 047, 048, 060, 062,

. . . . . . . . . . .072, 081, 149, 161, 212, 240

XR-1000 . . . . . . . . . . . . . . . .000, 035, 072

Ya maha . . . . . . . . . . . . . . . . . . . . . . . . .038

Zenith . . . . . . . . . . . . . .000, 033, 034, 039

CABLE REMOTE CONVERTOR CODE NO.

ABC . . . . . . . . . . . . . . .001, 003, 007, 008,

. . . . . . . . . . . . . . . . . . . .011, 013, 014, 017

Aliegio . . . . . . . . . . . . . . . . . . . . . . . . . .153

Andover . . . . . . . . . . . . . . . . . . . . . . . . .544

Antronix . . . . . . . . . . . . . . . . . . . . . . . . .022

Archer . . . . . . . . . . . . . . . . . . . . . .022, 153

Balcor . . . . . . . . . . . . . . . . . . . . . . . . . .056

British Telecom . . . . . . . . . . . . . . . . . . .105

Cable Star . . . . . . . . . . . . . . . . . . . . . . .056

Cablatenna . . . . . . . . . . . . . . . . . . . . . . .022

Cabletime . . . . . . . . . . .161, 271, 377, 448

Cableview . . . . . . . . . . . . . . . . . . . . . . .022

Century . . . . . . . . . . . . . . . . . . . . . . . . .153

Citizen . . . . . . . . . . . . . . . . . . . . . . . . . .153

Clyde . . . . . . . . . . . . . . . . . . . . . . . . . . .086

Colour Voice . . . . . . . . . . . . . . . . .025, 031

Comtec . . . . . . . . . . . . . . . . . . . . . . . . . .274

Comtronics . . . . . . . . . . . . . . . . . . . . . .040

Contec . . . . . . . . . . . . . . . . . . . . . . . . . .019

Cryptovision . . . . . . . . . . . . . . . . . . . . .600

Deceat . . . . . . . . . . . . . . . . . . . . . . . . . .423

Page 46

REMOTE CONTROL – ACCESSORY DEVICE CODE NUMBERS

CABLE REMOTE CONVERTOR CODE NO.

Eastern . . . . . . . . . . . . . . . . . . . . . .002, 274

Everquest . . . . . . . . . . . . . . . . . . . .015, 040

Filmnet . . . . . . . . . . . . . . . . . . . . . . . . . .443

Focus . . . . . . . . . . . . . . . . . . . . . . . . . . .400

France Telecom . . . . . . . . . . . . . . . . . . .451

GC Electronics . . . . . . . . . . . . . . . . . . .056

GEC . . . . . . . . . . . . . . . . . . . . . . . . . . . .086

Ganard . . . . . . . . . . . . . . . . . . . . . . . . . .153

Gemini . . . . . . . . . . . . . . . . . .015, 070, 242

General Instrument . . . . . . . .011, 276, 476

Gold Star . . . . . . . . . . . . . . . . . . . . . . . .040

Grundig . . . . . . . . . . . . . . . . . . . . . . . . .529

Hamlin . . . . . . . . . . . . . .009, 020, 034, 259

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . .011

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . . .007

Jasco . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Jerrold . . . . . . . . . . . . . .003, 011, 012, 014,

. . . . . . . . . . . . . . . . . . . .015, 024, 276, 476

M.N.E. T. . . . . . . . . . . . . . . . . . . . . . . . .443

MNet . . . . . . . . . . . . . . . . . . . . . . . . . . .443

Macon . . . . . . . . . . . . . . . . . . . . . . . . . .033

Magnavox . . . . . . . . . . . . . . .027, 032, 334

Memorex . . . . . . . . . . . . . . . . . . . . . . . .000

Movie Time . . . . . . . . . . . . . . . . . . . . . .063

NSC . . . . . . . . . . . . . . . . . . . . . . . .063, 070

Oak . . . . . . . . . . . . . . . . . . . . . . . .007, 019

Optimus . . . . . . . . . . . . . . . . . . . . . . . . .021

Panasonic . . . . . . . . . . . . . . . .000, 021, 107

Paragon . . . . . . . . . . . . . . . . . . . . . . . . .000

Philips . .025, 027, 031, 153, 242, 290, 334

Pioneer . . . . . . . . . . . . . . . . . . . . . .533, 753

Popular Mechanics . . . . . . . . . . . . . . . .400

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . .000

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .021

Radio Shack . . . . . . . . . . . . . . . . . . . . . .015

Recoton . . . . . . . . . . . . . . . . . . . . . . . . .400

Regal . . . . . . . . . . . . . . . . . . . . . . .020, 259

Regency . . . . . . . . . . . . . . . . . . . . . . . . .002

Rembrandt . . . . . . . . . . . . . . . . . . .011, 070

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .000

SL Marx . . . . . . . . . . . . . . . . . . . . . . . . .040

Salora . . . . . . . . . . . . . . . . . . . . . . . . . . .382

Samsung . . . . . . . . . . . . . . . . . . . . . . . .040

Satbox . . . . . . . . . . . . . . . . . . . . . . . . . .375

Scientific Atlanta . . . . . . . . . .008, 017, 477

Signal . . . . . . . . . . . . . . . . . . . . . . .015, 040

Signature . . . . . . . . . . . . . . . . . . . . . . . .011

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . . .021

Star Sight . . . . . . . . . . . . . . . . . . . . . . . .542

Starcom . . . . . . . . . . . . . . . . . . . . .003, 015

Stargate . . . . . . . . . . . . . . . . . . . . .015, 040

Starquest . . . . . . . . . . . . . . . . . . . . . . . .015

Sylvania . . . . . . . . . . . . . . . . . . . . . . . . .001

TV85 . . . . . . . . . . . . . . . . . . . . . . . . . . .063

Tandy . . . . . . . . . . . . . . . . . . . . . . . . . . .258

Tele+1 . . . . . . . . . . . . . . . . . . . . . . . . . .443

Teleservice . . . . . . . . . . . . . . . . . . . . . . .281

Teleview . . . . . . . . . . . . . . . . . . . . . . . .040

Texscan . . . . . . . . . . . . . . . . . . . . . . . . .001

Timeless . . . . . . . . . . . . . . . . . . . . . . . . .274

Tocom . . . . . . . . . . . . . . . . . .012, 013, 059

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . .000

Tudl . . . . . . . . . . . . . . . . . . . . . . . . . . . .286

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . . .015

Unike . . . . . . . . . . . . . . . . . . . . . . .022, 153

CABLE REMOTE CONVERTOR CODE NO.

United Artists . . . . . . . . . . . . . . . . . . . . .007

United Cable . . . . . . . . . . . . . . . . . . . . .003

Universal . . . . . . . . . . . .022, 056, 153, 191

Videoway . . . . . . . . . . . . . . . . . . . . . . . .250

Viewstar . . . . . . . . . . . . . . . . .027, 063, 258

Visi Cable+ . . . . . . . . . . . . . . . . . . . . . .461

Westminster . . . . . . . . . . . . . . . . . . . . . .105

Wolsey Gaine . . . . . . . . . . . . . . . . . . . .544

Zenith . . . . . . . . . . . . . . . . . .000, 054, 525

Zentek . . . . . . . . . . . . . . . . . . . . . . . . . .400

REMOTE

DBS CODE NO.

Alpha Star . . . . . . . . . . . . . . . . . . . . . . .772

Echostar . . . . . . . . . . . . . . . . . . . . . . . . .775

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . . .775

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . .819

Hughes Network System . . . . . . . . . . . .749

Jerrold . . . . . . . . . . . . . . . . . . . . . . . . . .627

Magnavox . . . . . . . . . . . . . . . . . . .722, 724

Memorex . . . . . . . . . . . . . . . . . . . . . . . .724

Panasonic . . . . . . . . . . . . . . . . . . . . . . . .701

Philips . . . . . . . . . . . . . . . . . . . . . .722, 724

Primestar . . . . . . . . . . . . . . . . . . . . . . . .627

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .566

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .639

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . .790

Uniden . . . . . . . . . . . . . . . . . . . . . . . . . .724

REMOTE

SATELLITE CODE NO.

AST . . . . . . . . . . . . . . . . . . . . . . . . . . . .351

Akai . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

Alba . . . . . . . . . . . . . . . . . . . .352, 515, 613

Aldea . . . . . . . . . . . . . . . . . . . . . . . . . . .288

Amstrad . . . . .080, 252, 345, 461, 509, 689

Ankaro . . . . . . . . . . . . . . . . . .220, 288, 369

Anitron . . . . . . . . . . . . . . . . . . . . . . . . . .183

Armstrong . . . . . . . . . . . . . . . . . . . . . . .243

Astra . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Avalon . . . . . . . . . . . . . . . . . . . . . . . . . .396

Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . .369

BT . . . . . . . . . . . . . . . . . . . . . . . . .515, 668

Beko . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

Best . . . . . . . . . . . . . . . . . . . . . . . . . . . .369

Boca . . . . . . . . . . . . . . . . . . . . . . . .243, 513

Bush . . . . . . . . . . . . . . . . . . . . . . . . . . . .067

Cambridge . . . . . . . . . . . . . . . . . . .344, 515

Channel Master . . . . . . . . . . . . . . . . . . .362

Commlink . . . . . . . . . . . . . . . . . . . . . . .288

Connexions . . . . . . . . . . . . . . . . . . . . . .396

Conrad . . . . . . . . . . . . . . . . . . . . . . . . . .607

Crown . . . . . . . . . . . . . . . . . . . . . . . . . .243

DDC . . . . . . . . . . . . . . . . . . . . . . . . . . . .362

DNT . . . . . . . . . . . . . . . . . . . . . . . . . . . .396

Echostar . . . . . . . . . . . . . . . . . . . . . . . . .396

Farguson . . . . . . . . . . . .067, 183, 189, 336

Fidelity . . . . . . . . . . . . . . . . . . . . . . . . . .252

Finiux . . . . . . . . . . . . . . . . . . . . . .108, 397

Fuba . . . . . . . . . . . . . . . . . . . . . . . .369, 396

G-Bat . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Galaxis . . . . . . . . . . . . . . . . . . . . . . . . . .286

Gooding . . . . . . . . . . . . . . . . . . . . . . . . .571

Grundig . . . . . . . . . . . . .173, 189, 571, 750

Hinari . . . . . . . . . . . . . . . . . . . . . . . . . . .183

REMOTE

SATELLITE CODE NO.

Hirschmann . . . . . . . . . . . . . . . . . .397, 573

Houston . . . . . . . . . . . . . . . . . . . . . . . . .668

Huth . . . . . . . . . . . . . . . . . . . .220, 243, 268

ITT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Intervision . . . . . . . . . . . . . . . . . . . . . . .592

JVC . . . . . . . . . . . . . . . . . . . . . . . .515, 571

Kathrein . . . . . . . . . . . . .092, 504, 622, 658

La Sat . . . . . . . . . . . . . . . . . . . . . .513, 607

Lennox . . . . . . . . . . . . . . . . . . . . . . . . . .592

Lupus . . . . . . . . . . . . . . . . . . . . . . . . . . .369

Luxor . . . . . . . . . . . . . . . . . . . . . . .108, 573

Manhatten . . . . . . . . . . . . . . . . . . . . . . .592

Maspro . . . . . . . . . . . . . . . . . .092, 336, 750

Matsui . . . . . . . . . . . . . . . . . . . . . . . . . .571

Mediamarkt . . . . . . . . . . . . . . . . . . . . . .248

Minerva . . . . . . . . . . . . . . . . . . . . . . . . .571

Mintec . . . . . . . . . . . . . . . . . . . . . . . . . .576

Morgan’s . . . . . . . . . . . . . . . . . . . .243, 513

Newhaus . . . . . . . . . . . . . . . . . . . . . . . .220

Nikko . . . . . . . . . . . . . . . . . . . . . . .360, 713

Nokia . . . . . . . . . . . . . . . . . . .108, 397, 573

Nordmende . . . . . . . . . . . . . . . . . . . . . .362

Orbitech . . . . . . . . . . . . . . . . . . . . . . . . .501

Pace . . . . . . . . . . . .067, 183, 336, 455, 791

Paliadium . . . . . . . . . . . . . . . . . . . . . . . .571

Palsat . . . . . . . . . . . . . . . . . . . . . . . . . . .501

Philips . . . . . . . . . . . . . .200, 292, 571, 750

Phonotrend . . . . . . . . . . . . . . . . . .288, 592

Plasmatic . . . . . . . . . . . . . . . . . . . . . . . .442

Proset . . . . . . . . . . . . . . . . . . . . . . . . . . .288

Quadral . . . . . . . . . . . . . . . . . . . . .362, 628

RFT . . . . . . . . . . . . . . . . . . . . . . . .220, 288

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . .396

SAT . . . . . . . . . . . . . . . . . . . . . . . .351, 461

SEG . . . . . . . . . . . . . . . . . . . . . . . . . . . .369

Saba . . . . . . . . . . . . . . . . . . . . . . . . . . . .336

Salora . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Satec . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Schwaiger . . . . . . . . . . . . . . . . . . .183, 504

Seemann . . . . . . . . . . . . . . . .396, 578, 626

Skymaster . . . . . . . . . . . . . . . . . . .288, 626

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .704

Star Trak . . . . . . . . . . . . . . . . . . . . . . . .421

Strong . . . . . . . . . . . . . . . . . . . . . . . . . .421

Sunstar . . . . . . . . . . . . . . . . . . . . . . . . . .513

Tantec . . . . . . . . . . . . . . . . . . . . . . . . . .336

Techni Sat . . . . . . . . . . . . . . . . . . .262, 501

Teleka . . . . . . . . . . . . . . . . . . . . . .243, 613

Tonna . . . . . . . . . . . . . . . . . . . . . . . . . . .668

Triad . . . . . . . . . . . . . . . . . . . . . . . . . . .351

Universum . . . . . . . . . . . . . . . . . . . . . . .571

Vtech . . . . . . . . . . . . . . . . . . . . . . . . . . .351

Wisi . . . . . . . . . . . . . . . . . . . . . . . .351, 396

REMOTE

DVD CODE NO.

Kenwood . . . . . . . . . . . . . . . . . . . . . . . .534

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . .521

Panasonic . . . . . . . . . . . . . . . . . . . . . . . .490

Philips . . . . . . . . . . . . . . . . . . . . . . . . . .539

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . . .550

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .522

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .552

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . .503

Page 47

REMOTE CONTROL – USING THE REMOTE’S VCR BUTTONS

hen using the TV remote

control with a VCR, first make certain it is set to control your VCR (by the REMOTE CODE or SEARCH method).

Set the TV/VCR/ACC mode

switch to VCR on the remote

control.

Point the top of the remote

toward the front of the VCR (remote sensor window) when pressing the buttons.

SMART HELP

Remember, the VCR but-

tons on the remote will not operate your VCR if those features are not found on your VCR remote control.

NOTE: All VCR functions (particularly Search, Rewind, Fast Forward, etc.) will operate the same as with the original VCR remote control provided with the VCR.

BEGIN

Power Button

Press to turn the VCR ON and OFF.

TV/VCR Button

Press while in the VCR mode (the VCR indicator on the front of the unit will light) to view the playback of a tape. Press again to place in the TV position (the VCR indicator light will go off) to view one program while recording another program.

Number Buttons

Press buttons for the direct selection of VCR channels.

Pause Button II

Press to temporarily stop the tape during a playback or recording. Press again to release Pause.

Fast Forward Button 

Press to rapidly advance the tape. For some VCRs, you may need to press the STOP button first, then the FAST FORWARD button. In playback mode, hold the button down to view the picture moving rapidly in the forward direction.

Channel + and – Buttons

Press to scan up or down through the VCR channel numbers.

VCR System Switch

Set in the VCR position to send remote commands to the VCR.

Record Button

Hold the (VCR) • RECORD button down to begin a VCR recording.

Play Button 

Press to begin playback of a videotape.

Rewind Button



Press to rewind tapes. For some VCR’s, the STOP button may have to be pressed first, then REWIND. In playback mode, hold down the button to view the picture moving rapidly in reverse.

Stop Button ■

Press to stop the motion of a tape in playback, rewind, fastforward, and so on.

SLEEP

STATUS/EXIT

MULTIMEDIA

VCR

ACC

INCR.

VCR

SURR.

RECORD

SOUND PICTURE

VOL

MUTE

PROGRAM

LIST

POWER

SURF

CLOCK

TV/VCR

A/CH

Page 48

TROUBLESHOOTING

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert the plug into the outlet and push the POWER button again.

• Check that the outlet is not on a wall switch.

• Be sure the fuse is not blown on the AC power strip, if one is being used.

• Check antenna connections. Are they properly secured to the TV's ANT 75Ω plug?

• Check the TUNER MODE control for the correct tuner setting.

•Try running the Auto Program feature to find all available channels.

• Press the AV button on the remote to make sure the correct signal source is selected (AV 1, AV 2, AV 3, or S-VIDEO).

• Check the batteries. If necessary, replace them with AA Heavy Duty (Zinc Chloride) or Alkaline batteries.

• Clean the remote control and the remote control sensor window on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert the plug into the outlet and push the POWER button again.

• Be sure the fuse is not blown on the AC power strip, if one is being used.

• Check to be sure the TV outlet is not on a wall switch.

• Check the VOLUME buttons.

• Check the MUTE button on the remote control.

• Check the SPEAKER onscreen control. If it is in the OFF position, sound at the set will be eliminated.

• If you’re attempting to hook up auxiliary equipment, check the audio jack connections.

• (If applicable) Check the audio receiver for the correct operating mode.

• Repeat channel selection.

• Add the desired channel numbers (using the CHANNEL EDIT control) into the TV’s memory.

• Check to be sure the TUNER MODES are set to the CABLE option and run the Auto Program feature to find all available channels.

lease make these simple checks

before calling for service. Because charges for TV installation and adjustment of customer controls are not covered under your warranty, these tips can save you time and money.

CAUTION: A video source (such as a video game, compact disc interactive [CDI], or TV information channel) that shows a constant nonmoving pattern on the TV screen can cause picture tube damage. When your TV is continuously used with such a source, the pattern of the nonmoving portion of the game (or other source) can leave a permanent image on the picture tube. When you’re not using the video source, turn it OFF. Also, regularly alternate the use of such video sources with normal TV viewing.

No Power

No Picture

No Sound

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

•To avoid possible shock hazard, be sure the TV is unplugged from the electrical outlet before cleaning.

• When you are cleaning the TV, take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool, clear water. Use a clean, dry cloth to dry the wiped surfaces.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

Cleaning and Care

Page 49

GLOSSARY OF

TELEVISION TERMS

Alternate Channel • The feature that allows you to toggle between the last two channels viewed by pressing the A/CH button on the remote control.

Auto Programming • The feature that, when activated, scans for all available channels from regular antenna or cable signals and stores only active broadcast stations in the TV’s memory.

Channel Edit • The feature that allows you to add or delete channels from the list of channels stored in the TV’s memory. Channel Edit makes it easy to limit or expand the number of channels that are available to you when you press the Channel (+) or (–) buttons on your remote control.

Closed Captioning • The broadcast standard feature that allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, Closed Captioning uses onscreen “text boxes” to show dialogue and conversations while a TV program is in progress.

Coaxial Cable • A single, solid antenna wire normally matched with a metal plug (F type) end connector that screws (or pushes) directly onto a 75-ohm input found on the television or VCR.

Direct Audio/Video Inputs • Connectors, located on the rear of the TV, used for the input of audio and video signals. These inputs are designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound-connection options.

Identify • The method by which a TV remote control searches and finds an operating code for another product (such as a VCR or a cable converter). After the code has been “identified,” the TV remote control can operate and send commands to the other product.

Incredible Stereo (or Surround) • False acoustic management of the audio signal that produces a dramatic expansion of the wall of sound that surrounds the listener and heightens overall viewing pleasure.

Menu • An onscreen listing of feature controls that are available for you to adjust.

Multichannel Television Sound (MTS) • The broadcast standard that allows for stereo sound to be transmitted with the TV picture.

Onscreen Displays (OSD) • The wording or messages generated by the television (or VCR) to help you with specific feature controls (color adjustment or programming, for example).

Programming • The process of adding or deleting channel numbers into the television’s memory circuits. Through programming, the TV “remembers” only the locally available or desired channel numbers and skips over any unwanted channel numbers.

Remote Control Sensor Window • The window or opening found on the television control panel and through which infrared remote control command signals are received.

Second Audio Program (SAP) • An additional audio channel provided for within the Multichannel Television Sound (MTS) broadcast standard. The most frequently proposed use for SAP is the simultaneous bilingual broadcast of TV material.

Status/Exit Button • The remote-control function that allows you to quickly confirm what channel number is being viewed. Status/Exit also can be used to clear the television of onscreen displays or information (rather than waiting for the displays to “time out,” or automatically disappear from the screen).

Twin-Lead Wire • The more commonly used name for the twostrand, 300-ohm antenna wire used with many indoor and outdoor antenna systems. In many cases, this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75-ohm input terminals designed into the more recent TVs and VCRs.

Page 50

INDEX

Accessories/Optional Parts . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-1

Alternate Channel Button (A/CH) . . . . . . . . . . . . . . . . . . . . . .41

Antenna Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-1

Audio Out Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Audio Output Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Audio/Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . .36–38

AutoChron™ Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-4

AutoLock™

Access Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Blocking Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Block No Rating Programs . . . . . . . . . . . . . . . . . . . . . . . . . .25

Block ON/OFF Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Block Unrated Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Movie Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Review AutoLock™ Settings . . . . . . . . . . . . . . . . . . . . . . . .26

TV Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Understanding AutoLock™ . . . . . . . . . . . . . . . . . . . . . . . . .18

Viewing Blocked Programming/Channels . . . . . . . . . . . . . .27

AutoPicture™ Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Auto Program Channels Control . . . . . . . . . . . . . . . . . . .*Q/U-3

AutoSound™ Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

AV L (Audio Volume Leveler) Control . . . . . . . . . . . . . . . . . . .30

Balance Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Bass Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Blue Mute Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Cable Box Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-1

Cable TV Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . *Q/U-1

Channel Edit Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-4

Channel Name Control . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-4

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Closed Captioning Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Component Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . .38

DVD (or similar device) Hookup . . . . . . . . . . . . . . . . . . . .36–38

Dynamic Noise Reduction (DNR) Control . . . . . . . . . . . . . . . .7

External Speaker Connections . . . . . . . . . . . . . . . . . . . . . . . . .35

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Format (Screen) Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Glossary of Television Terms . . . . . . . . . . . . . . . . . . . . . . . . . .49

ImageMax™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Incredible Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Language Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-3

Picture Adjustment Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Registration/Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Remote Control

Accessory Device Code Numbers . . . . . . . . . . . . . . . . . .45–46

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-2

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-2

Operating Accessory Devices (Direct Access) . . . . . . . . . . .42

Operating Accessory Devices (Code Entry) . . . . . . . . . . . . .43

Operating Accessory Devices (Search) . . . . . . . . . . . . . . . . .44

Using the Remote’s VCR Buttons . . . . . . . . . . . . . . . . . . . .47

S-Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 48

SAP (Second Audio Program) Control . . . . . . . . . . . . . . . . . .32

Sleep Timer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Start Time

Activate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Channel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Stereo/Mono Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Stop Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Surf Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Surround Sound (Connections) . . . . . . . . . . . . . . . . . . . . . . . .35

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Timer Display Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Treble Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Tuner Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-3

TV Keypad (Buttons) . . . . . . . . . . . . . . . . . . . . . . . . . . . .*Q/U-2

TV Speaker Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36–37

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

* Refer to the Quick Use and Installation Guide for information.

Page 51

5151

FACTORY

SERVICE LOCATIONS

QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER

NEAR YOU

. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF

MIND

KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE.

COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES

DE RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS

DANS UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.

CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR

TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO

DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.

ATLANTA

Philips Factory Service 200 N. Cobb Pkwy., Suite 120 Marietta, GA 30062 800-273-1501

TAMPA

Philips Factory Service 1911 US Highway 301 North Tampa, FL 33619 800-442-2027

SAN FRANCISCO

Philips Factory Service 681 East Brokaw Rd. San Jose, CA 95112 800-300-9013

HOUSTON

Philips Factory Service 1110 N. Post Oak Rd., Suite 100 Houston, TX 77055 800-952-3254

CLEVELAND

Philips Factory Service 950 Keynote Circle Brooklyn Heights, OH 44131 800-331-7037

DETROIT

Philips Factory Service 25173 Dequindre Madison Heights, MI 48071 800-438-1398

DALLAS

Philips Factory Service 415 N. Main Street, #107 Euless, TX 76040 800-952-3254

CHICAGO

Philips Factory Service 1279 W. Hamilton Pkwy. Itasca, IL 60143 800-531-2922

KNOXVILLE

Philips Factory Service 6700 D Papermill Rd. Knoxville, TN 37919 800-821-1767

PHILADELPHIA

Philips Factory Service 352 Dunks Ferry Rd. Bensalem, PA 19020 800-847-9320

•

★ Miami/SE Florida

•

Chicago

Cleveland/ N Ohio

•

Tampa/W Florida

★ Ft. Myers/SW Florida

•

San Francisco/Metro Area

•

Detroit/Toledo

★ Pittsburgh/WV Area

•

Philadelphia/S New Jersey

•

Atlanta/N Georgia

Houston

Knoxville/E Tennessee

Charlotte

Los Angeles★

• Dallas

★ Columbus

★ Wash/Balt

★ Orlando

★ Indicates In-Home Service Only

• Indicates In-Home/Carry-In Service

★

NOTE: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.

NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.

NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame al lugar más cercano de los abajo indicados.

In Canada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking) or 1-800-363-7278 (English speaking)

Au Canada

Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicileVeuillez contacter philips á: 1-800-661-6162 (Francophone) ou 1-800-363-7278

En el Canadá

Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (francófono) o 1-800-363-7278 (anglófono)

EL4482-3 Rev. CC

Page 52

COLOR TELEVISION

90 Days Free Labor

One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)

This product can be repaired in-home.

LIMITED WARRANTY

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced free, and labor is free.

From 90 days to one year from the day of purchase, all parts will be repaired or replaced free, but you pay for all labor charges. From one to two years from the day of purchase, you pay for the replacement or repair of all parts except the picture tube, and for all labor charges. After two years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

•a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________________________

SERIAL # ________________________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips Consumer Electronics Company, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

Printed in U.S.A.
