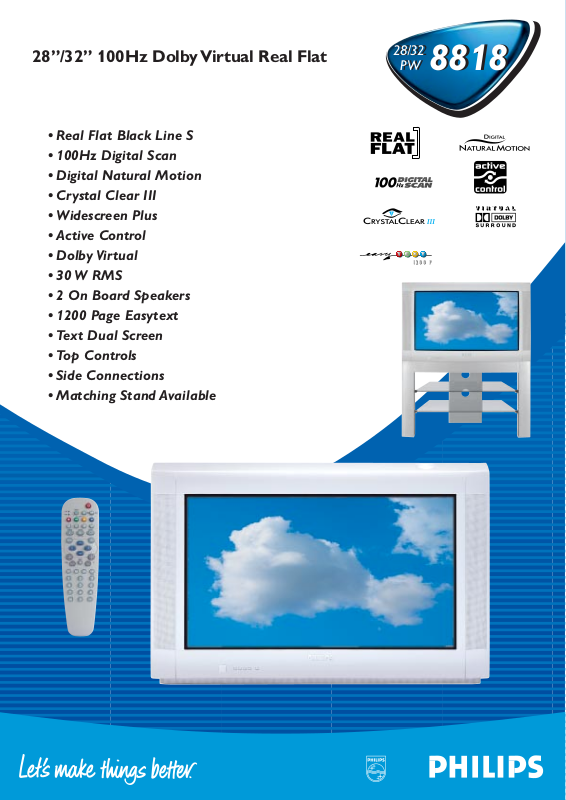

Philips 32PW 8818 User Manual
28”/32” 100Hz Dolby Virtual Real Flat
• Real Flat Black Line S
• 100Hz Digital Scan
• Digital Natural Motion
•Crystal Clear III
• Widescreen Plus
• Active Control
• Dolby Virtual
• 30 W RMS
•2 On Board Speakers
• 1200 Page Easytext
•Text Dual Screen
•Top Controls
• Side Connections
• Matching Stand Available
28/32
PW 8818
28/32
PW 8818
Technical specifications
• Screen Size:28” (70 cm)
32” (82 cm)
• Visible screen size:66 cm (28”)
76 cm (32”)
• Picture Tube: Real Flat Black Line S
• 100 Hz Digital Scan
• Digital Natural Motion
•Crystal Clear III
• Dynamic Auto Focus
• Active Control
• Color Transient Improvement (CTI)
• Black stretch and blue stretch
• Widescreen Plus
• Picture Freeze
Sound
• Sound Power: 30 W RMS
60 W Music Power
• Dolby Virtual
•2 On Board Speakers
• Digital Signal Processing
Ease of Use Installation
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
•Top Controls
• RC 19002 (suitable for VCR/DVD/SAT)
•Program List
• Smart Picture Control: Soft, Natural,Rich,
Multimedia, Personal
• Smart Sound Control: Movie, Speech
Music, Personal
• Smart Listening (Delta volume + AVL)
• Dual I-II
•6 Wide screen modes : 4:3, Zoom 14:9,
Zoom 16:9, Subtitle Zoom,
Super Zoom,Wide screen
• Subtitle and Heading shift
• Autoformat / Autoscreen fit (incl.WSSB)
• Smart Clock
• Sleep Timer
• Child Lock
• Picture Tilt Control
28”/32” 100Hz Dolby Virtual Real Flat
Connections
Side
• S-Video (Y/C) in
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (S-Video in/out)
• Euro A/V connector Ext3 (CVBS in)
• Stereo Audio out (cinch) Constant level
Information
• 1200 Page Text level 2.5 with Habit Watch
•Text Dual Screen
•Program Information Line
• NexTView Level 2
• Easy Link : Pre-set download,WYSIWYR,
One Touch Record
• NexTView Link
• Zoom 16x
Reception
•Tuning System: PLL digital tuning
•Tuner:VHF,UHF, S-Channel,Hyperband
• Aerial Input: 75 ohm Coaxial
• TV System: See table
• Stereo System: See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains:AC 220-240V +/- 10%
•Power Consumption: 120W Normal Operation
1W Stand by
• Set Weight: 28” - 39 kg
32” - 54 kg
•Weight Incl. Packaging: 28” – 43.5 kg
32” - 60 kg
• Set Dimension (WxHxD): 28” - 763x490x504 mm
32” - 858x541x557 mm
•Box Dimension (WxHxD): 28” - 875x619x651 mm
32” - 968x717x702 mm
• TV Colour: Silver Chrome tbc (11004)
Predecessor : 28/32PW8806
Chassis : EMG-Star
Introduction :Year 2003
Features and specifications subject to change without notice
28/32
PW 8818
28/32
PW 8818
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
28/32PW8818 /12
••••• ••• •• ••
Product highlights
Real Flat Black Line S
Philips TV picture tube provides non–distorted picture
quality, while offering a wider viewing angle without light
reflections.Thanks to the highly pigmented phosphors,
the brightness and contrast performance are considerably improved compared to conventional picture tubes.
100 Hz Digital Scan
Conventional Televisions show a picture by scanning 50
times per second (50 Hertz).This frequency can be
detected by the human eye in the form of a field flickering picture. 100 Hertz sets show a picture by scanning
100 times per second eliminating the field flickering.
Philips’ Digital Scan doubles the number of field changes
thus also eliminating visible line flicker.The result is an
absolute stable picture relaxing for your eyes.
Digital Natural Motion
Building upon 100 Hz technology Philips invented
Digital Natural Motion to eliminate juddering effects
that are visible with moving picture content. Digital
Natural Motion estimates motion in the picture and
corrects juddering movements in both broadcast and
movie material (DVD). Smooth motion reproduction and
excellent sharpness are the result.
Crystal Clear III
A unique package of picture innovations including
Scavem and Dynamic Contrast. Crystal Clear III, using
10 bit processing, offers 30% more contrast, natural
colors and a high level of detail.
Active Control
Active Control automatically analyses, 50 times per
second, the incoming signal and adjusts the key picture
settings on Sharpness, Digital Noise Reduction and
Picture Format.Active Control thus offers the best
possible picture settings any time, any source.
Dolby Virtual
Dolby processing circuitry for an enhanced cinema surround sound effect without the need for rear speakers.
1200 Page Easytext
Almost instant access to frequently used teletext pages
(Habitwatch) and the ability to scroll through subpages
without waiting.
Teletext Dual Screen
The ability to shows a picture and text side by side from
the same channel.
12/2002
