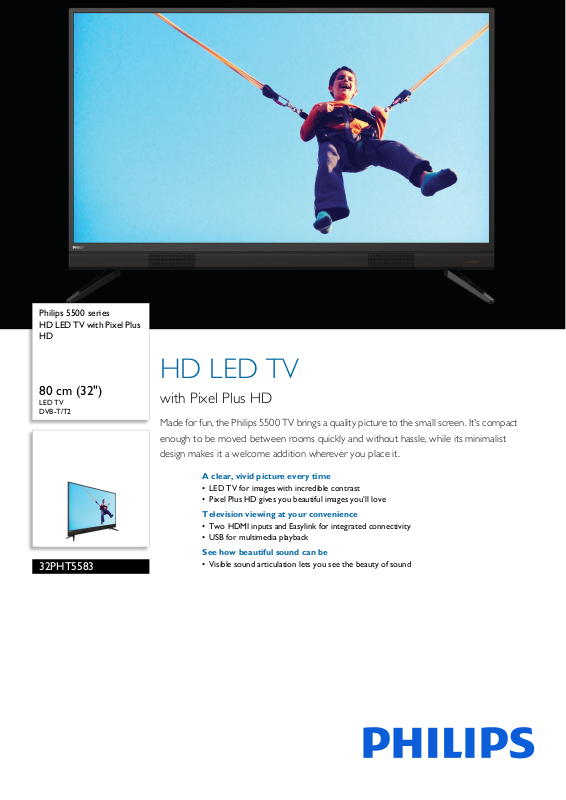

Page 1
Philips 5500 series
HD LED TV with Pixel Plus
HD
HD LED TV
80 cm (32")
LED TV
DVB-T/T2
32PHT5583
with Pixel Plus HD
Made for fun, the Philips 5500 TV brings a quality picture to the small screen. It's compact
enough to be moved between rooms quickly and without hassle, while its minimalist
design makes it a welcome addition wherever you place it.
A clear, vivid picture every time
• LED TV for images with incredible contrast
• Pixel Plus HD gives you beautiful images you’ll love
Television viewing at your convenience
• Two HDMI inputs and Easylink for integrated connectivity
• USB for multimedia playback
See how beautiful sound can be
• Visible sound articulation lets you see the beauty of sound
Page 2
32PHT5583/68
HD LED TV
80 cm (32") LED TV, DVB-T/T2
Highlights
Pixel Plus HD
Philips Pixel Plus HD engine optimizes picture
qu
ality to deliver crisp images with beautiful
contrast. So whether you’re streaming online
or watching from a disc, you’ll enjoy sharper
images with brighter whites and blacker blacks.
Visible sound articulation
Experience entertainment in all its glory. With
f
ront facing visible sound articulation, enjoy a
complete audio set up straight from your TV.
Incredible highs, lifelike mids and explosive
bass, all masterfully produced by a series of
speakers that have been subtly placed for a thin
TV design.
USB (photos, music, video)
Share the fun. Connect your USB memorystick
, digital camera, mp3 player or other
multimedia device to the USB port on your TV
to enjoy photos, videos and music with the
easy to use onscreen content browser.
Two HDMI inputs with Easylink
Avoid cable clutter with a single HDMI cable to
carry bo
th picture and audio signals from your
devices to your TV. HDMI uses uncompressed
signals, ensuring the highest quality from
source to screen. Together with Philips
Easylink, you’ll need only one remote control
to perform most operations on your TV, DVD,
Blu-ray, set top box or home theatre system.
LED TV
With LED backlight you can enjoy low power
consumpti
high brightness, incredible contrast and vibrant
colors.
on and beautiful lines combined with
Page 3
32PHT5583/68
HD LED TV
80 cm (32") LED TV, DVB-T/T2
Specifications
Picture/Display
• Display: LED HD TV
• Panel resolution: 1366 x 768
• Aspect ratio: 16:9
• Picture enhancement: Pixel Plus HD, 200 PPI
Sound
• Output power (RMS): 6Wx2
• Sound Enhancement: Auto Volume Leveler, Smart
Sound
Connectivity
• Number of HDMI connections: 2
• Number of USBs: 1
• Number of AV connections: 1
• Other connections: Antenna IEC75, Headphone
t,
Digital audio out (coaxial)
ou
• EasyLink (HDMI-CEC): One touch play, Remote
rol pass-through, System audio control,
cont
System standby
• Number of component in (YPbPr): 1
Multimedia Applications
• Video Playback Formats: MPEG-2, MPEG-4, H264/
MPEG-4 AVC, Containers: AVI, MKV
• Subtitles Formats Support: .SRT, .ASS
• Music Playback Formats: AAC, WAV
• Picture Playback Formats: JPEG, BMP, PNG
Supported Display Resolution
• Computer inputs: up to 1366x768 @ 60Hz
• Video inputs: up to 1366x768p
Tuner/Reception/Transmission
• MPEG Support: MPEG2, MPEG4
• Video Playback: PAL, SECAM, NTSC
• Analog TV: PAL, SECAM, NTSC
• Digital TV: DVB-T/T2
Power
• Mains power: AC 100-240V 50/60Hz
• Ambient temperature: 5 °C to 40 °C
• Power Saving Features: Auto switch-off timer
Dimensions
•Box dimensions (W x H x D):
835 x 556 x 132 mm
•Set dimensions (W x H x D): 730 x 471 x 68 mm
• Set dimensions with stand (W x H x D):
0 x
521 x 202 mm
73
• VESA wall mount compatible: 75 x 75 mm
•Product weight: 4 kg
• Product weight (+stand): 4.1 kg
• Weight incl. Packaging: 5.5 kg
Accessories
• Included accessories: Remote Control, 2 x AAA
Batteries, Table top stand, Quick start guide, Legal
and safety brochure
•
Issue date 2022-04-26
Version: 7.1.1
12 NC: 8670 001 59275
EAN: 87 18863 02066 1
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* EPG and actual visibility (up to 8 days) is country and operator
dependent.
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* (Philips) only compatible with specific Philips player device.
