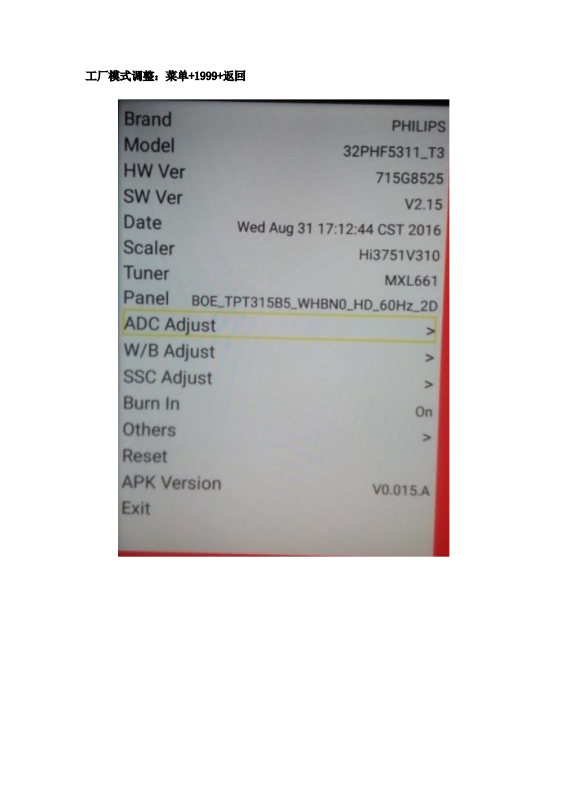

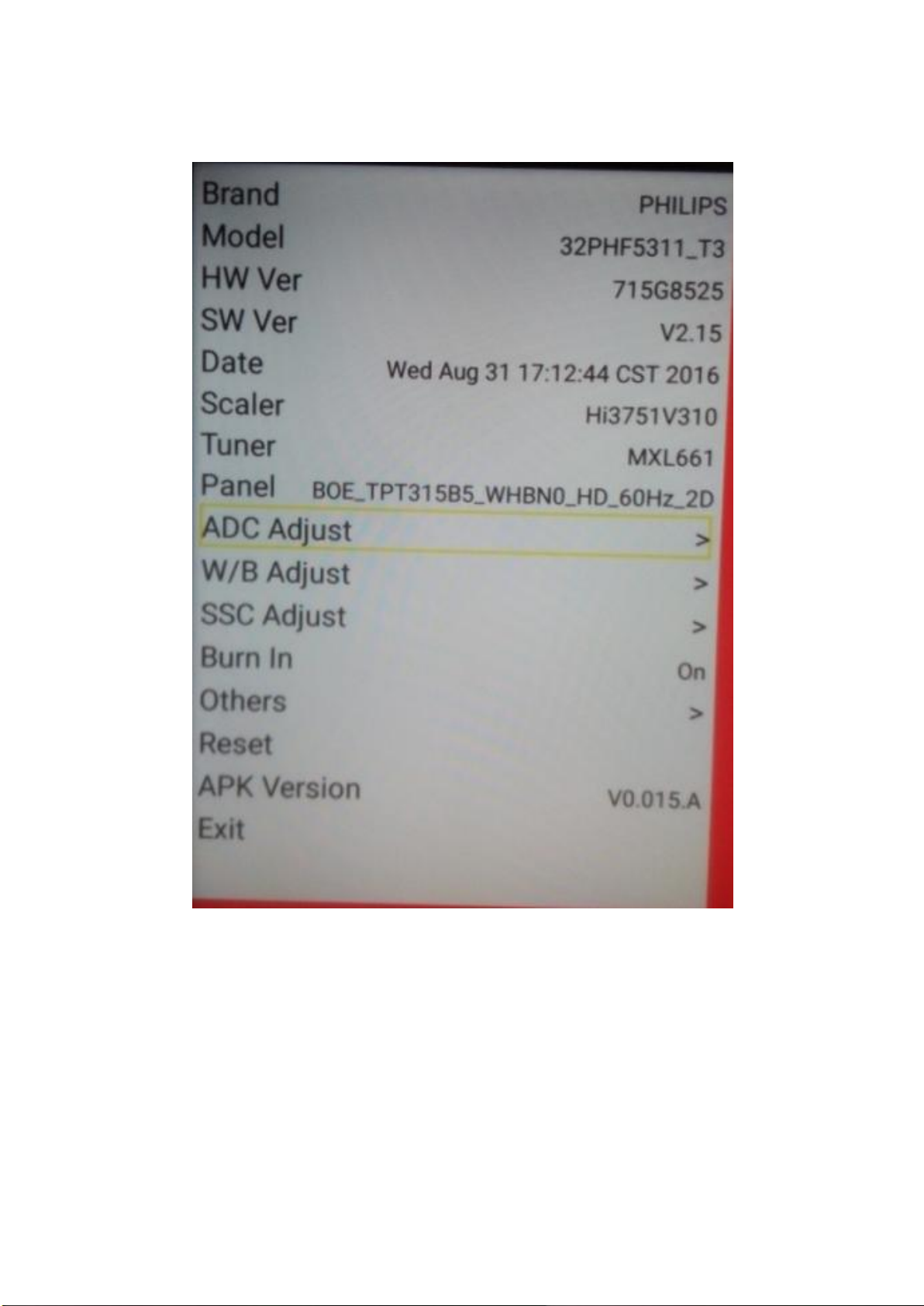

工厂模式调整：菜单+1999+返回

项目名称

功能说明

备注

Brand

机种品牌

不可调整

Model

机器型号

不可调整

HW Ver

硬体板号

不可调整

SW Ver

软体版本

不可调整

Date

软体发布日期

不可调整

Scaler

主芯片型号

不可调整

Tuner

高频头型号

不可调整

Panel

液晶屏型号

不可调整

ADC Adjust

ADC 调整

免调

W/B Adjust

白平衡调整

不建议调整

SSC Adjust

展频调整

不建议调整

Burn In

拷机模式

On/Off

Reset

复位

Exit

退出工厂模式

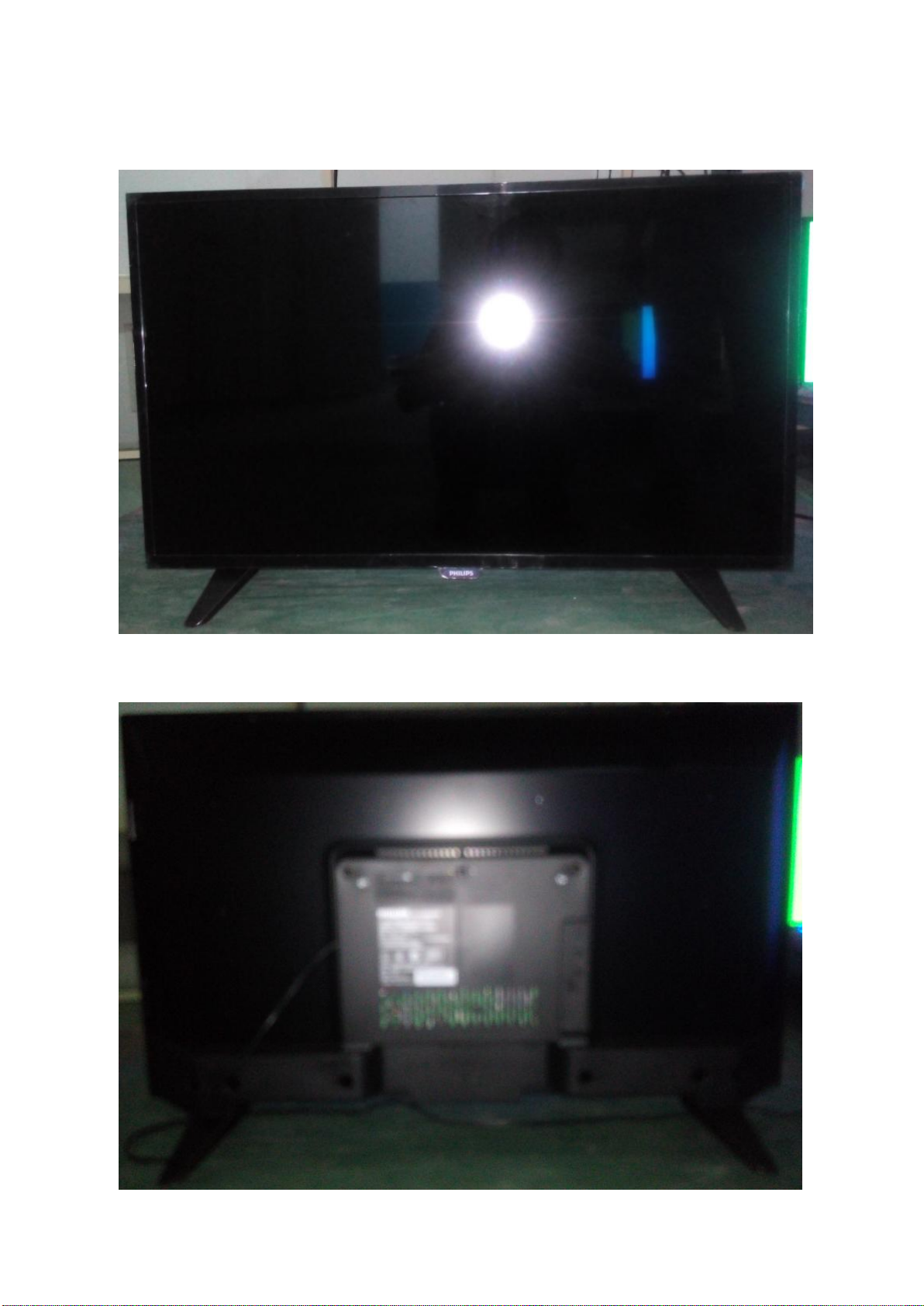

1. 正视图

2. 后视图

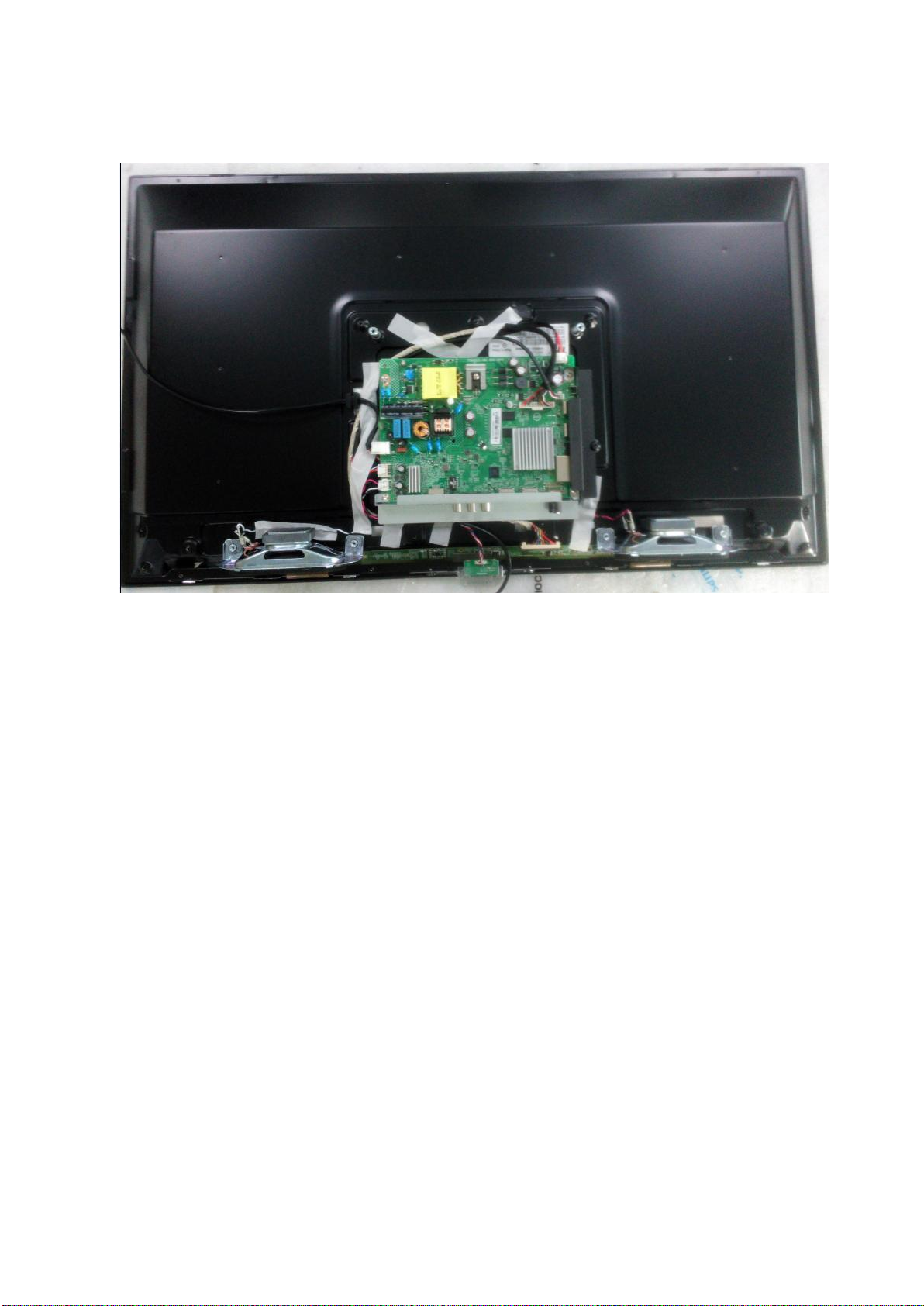

3. 内部结构图

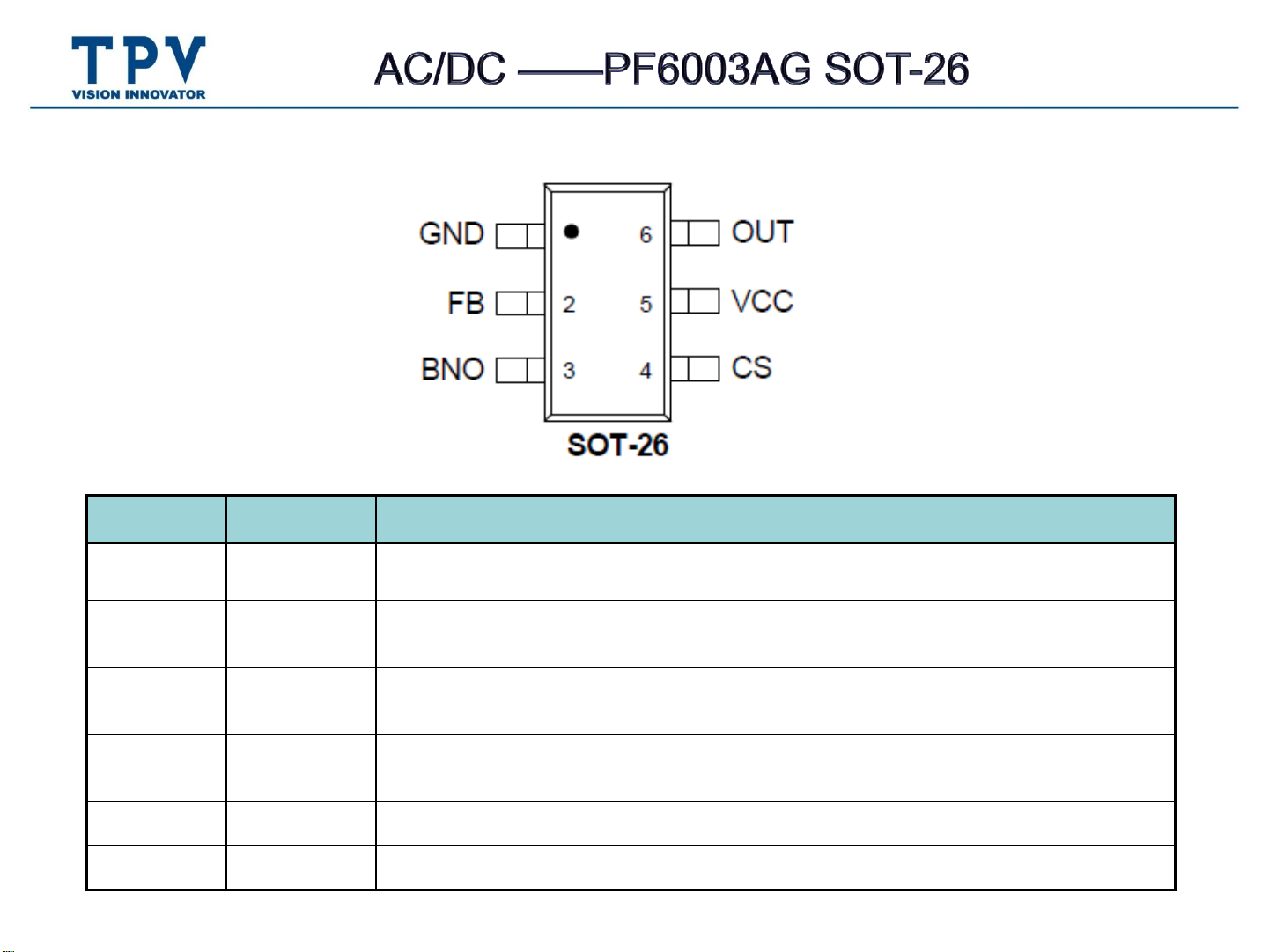

PIN DESCRIPTIONS

NAME

PIN NO.

DESCRIPTION

GND

1

Ground

FB

2

Voltage loop feedback pin. Connecting the collector of a photocoupler to this pin
to close the voltage feedback loop.

BNO

3

Brownout Protection Pin. A resistor divider from this pin to bulk voltage to set the
brownout level.

CS

4

Current loop feedback pin. Connect this pin to the primary sensing resistor to
achieve the current mode control.

VCC

5

Supply voltage

OUT

6

MOSFET gate driver output

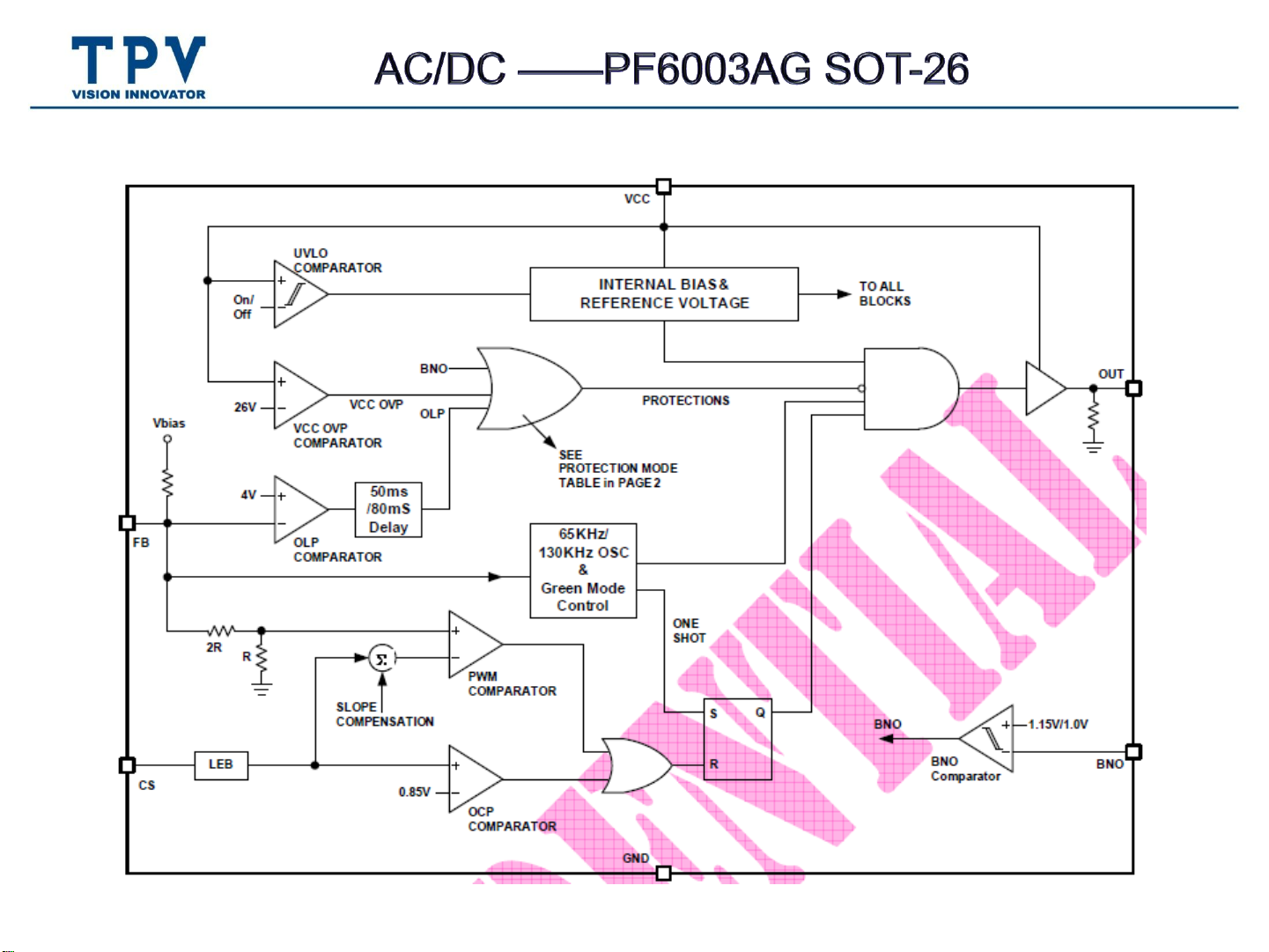

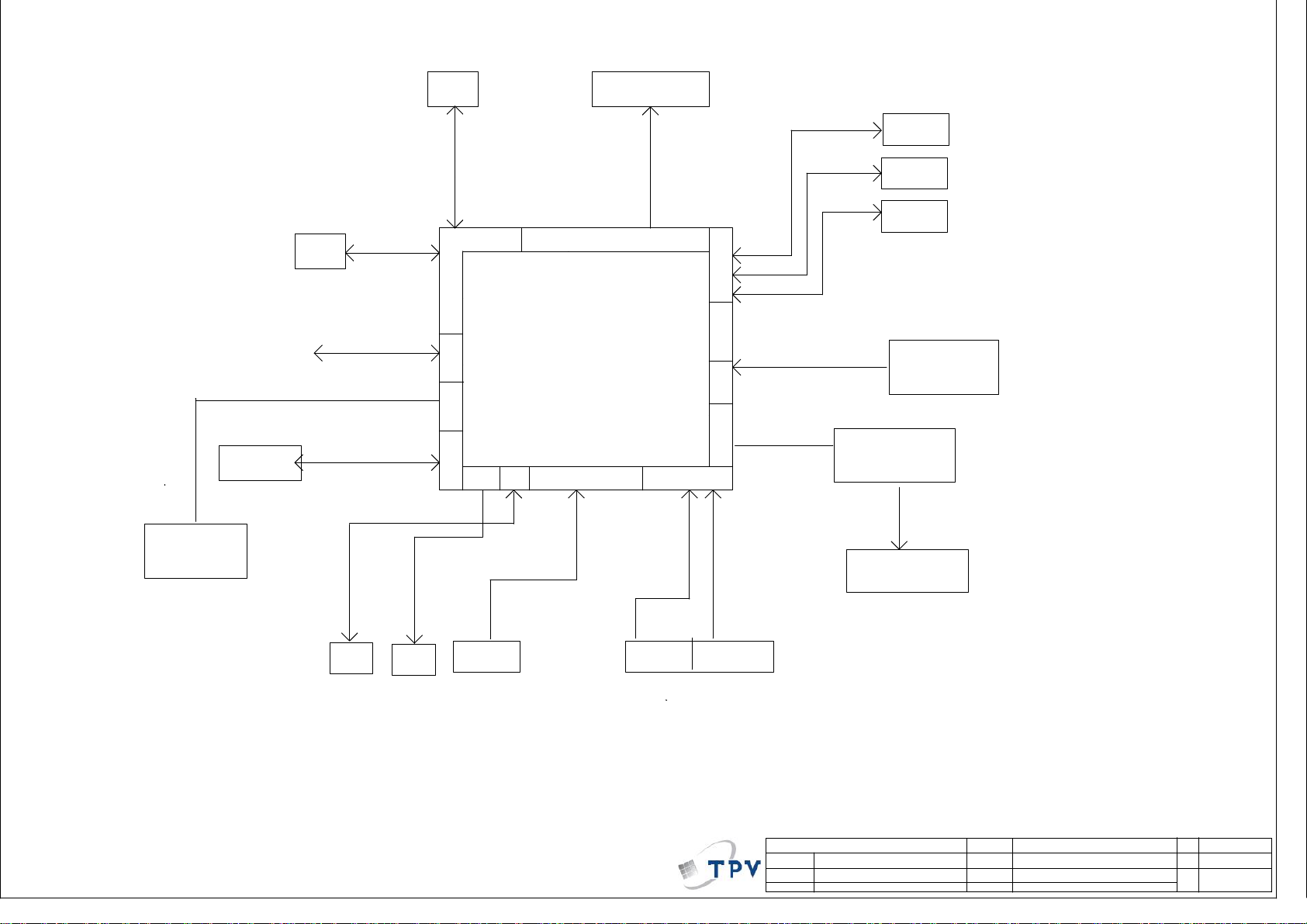

BLOCK DIAGRAM

PIN DESCRIPTIONS

NAME

PIN NO.

DESCRIPTION

LED

1

Drain Terminal of Dimming MOSFET for LED PWM Dimming Control .

CS/OVP

3

Dual Function Pin for Both Over Voltage Protection of Boost Output and & Current Sensing of
Boost Switch.

OUT

4

Output to Drive Boost MOSFET .

GM

7

Compensation Output .

FB

8

Source Terminal of Dimming MOSFET. It Is also the Feedback Input, Connecting LED
Sensing Resistor .

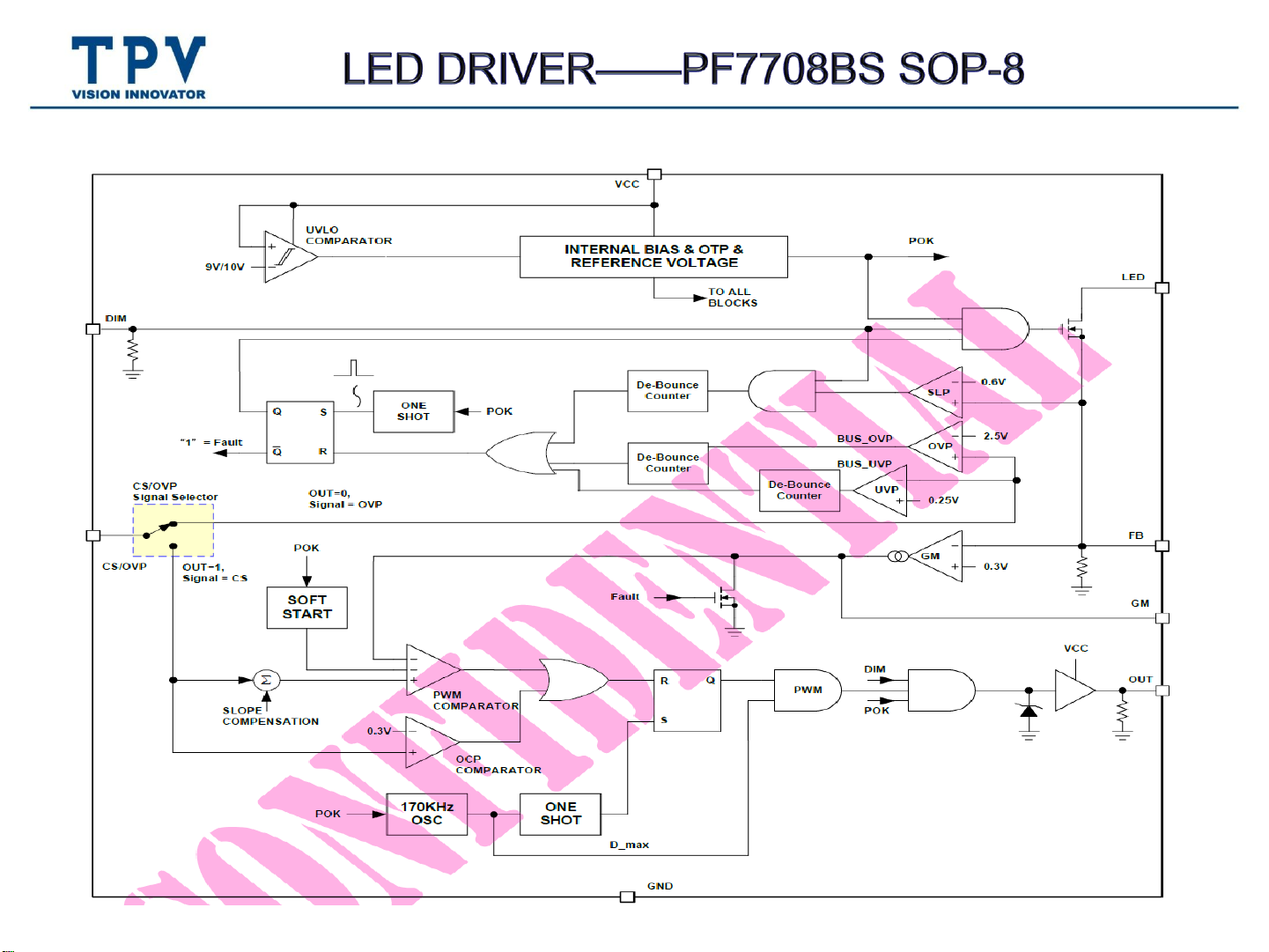

BLOCK DIAGRAM

Thank you!

9

层

次

点位 物料

1 040G 58162435A
1 0M1G 130 6120
1 0M1G1030 5120
1 0M1G1030 6 47 CR3
1 0Q1G 930 6 47 CR3
1 0Q1G 940 18 47 CR3
1 317G01 317GAAWF634XUG
1 SP01 378G0060498CAB
1 ECN9903 389G214A15NHS500X2
1 ECN9903 389G214A15NYH500X2
1 392GB1TA1A3C2C
1 ECN602 395GH20004AT078000
1 ECN602 395GH20004XT078000
1 ECN102 395GH20006AT010000
1 ECN102 395GH20006DT010000
1 ECN400 395GH20010DT054000
1 ECN400 395GH20010XT054000
1 ECN402 395GLT3032D0120000
1 ECN402 395GLT3032X0120000
1 RC01 398GR08BCPHN0001CH
1 RC01 398GR08BCPHN0001CR
1 708TJ9078130WPZ1CH
2 J44G6002514138
2 J45G 77 6
2 Q44G6002695 1A
2 Q44G6002900 78
2 Q44G9003 16
2 Q50G 4 10
2 Q52G1301 9
2 X07G009508302C
2 X07G012508302C
2 X50G500500600000JY
1 E750 750TBV315B62BDN000
1 E750 750TBV315B85EDN000
1 756TXGCC07D001020X
2 SMTF-U406 100TP7VK001D2X
2 U406 356G3333004612
1 CCPFG9DDX2
2 Z40G0002ALL01A
2 CN104 033G3802 3 BH L
2 CN9903 033G8029 3A H
2 IC9102 056G 139 9
2 R9114 061G152M33852T HX
2 C620 067G315M1016KV
2 C621 067G315M1016KV
2 FB8101 071G 55 29
2 FB8102 071G 55 29
2 FB9905 071G 55 29
2 L9902 073G 174 76 V
2 L9901 073G 174192 X

2 L8102 073G 253214 X
2 SW401 077G602S 3A HJ
2 CN603 088G302G7B1AYG
2 BD9901 093G 50460519
2 D8601 093G 60334
2 D9107 093G 60335
2 D9109 093G 60335
2 D9108 093G 60335
2 D9106 093G 60927
2 D9105 093G 60953
2 CN602 311GW200A04ABX
2 CN8604 311GW200A06ABX
2 CN108 311GW200C06AAL
2 CN400 311GW200C10ABL
2 CN402 311GW200C32AAL
2 NR9901 361G0058309LAW004A
2 C9901 363G107K334AUM
2 C9902 363G107K334AUM
2 C9901 363G107M334BEC
2 C9902 363G107M334BEC
2 C9101 367G215S680PHZ00AS
2 FB9908 371G0055021H02
2 FB9909 371G0055021H02
2 T9101 380GL32P171H00
2 CN103 388G078G137ACL0001
2 CN103 388G078G137AYG0001
2 CN102 388G352F6B3AXH
2 CN101 388G352F6B3AXH
2 SH102 388G510G502ACL
2 TU100 388G510H402AHC
2 705TXF93178
3 051G 200 1
3 D9101 093G 60329
3 0M1G1730 8120
3 HS9101 Q90G0219 2
2 AICCPFG9DDX2
3 C9100 065G 1K10193T
3 C9102 065G 1K22293S
3 C9906 065G306K47123R
3 C9907 065G306K47123R
3 C9905 065G306M15233R
3 C9123 067G 5153316KT
3 C9122 067G 5153316KT
3 C9118 067G 5154714KT
3 C9117 067G 5154714KT
3 C9106 067G 5154797KB
3 FB9910 071G 55 26 H
3 F9901 084G 56 4W
3 C9904 365G306J47063R
3 C9903 365G306K2206WR
3 C9908 365G306K2206WR

3 C8602 367G415X3317KT
3 SMTCCPFG9DDX2
4 IC9103 056G 158501
4 U702 056G 563114
4 U105 056G 662 18
4 U100 056G 665528
4 U101 056G 665528
4 Q702 057G 417511
4 Q404 057G 417511
4 Q504 057G 417511
4 Q701 057G 417511
4 Q503 057G 417511
4 Q600 057G 417511
4 Q8601 057G 600941
4 Q8603 057G 760 4A
4 Q700 057G 763940
4 RP505 061G 1260008JT
4 RP503 061G 1260008JT
4 RP502 061G 1260008JT
4 RP504 061G 1260008JT
4 RP406 061G 1263308JY
4 RP407 061G 1263308JY
4 RP412 061G 1263308JY
4 RP405 061G 1263308JY
4 RP409 061G 1263308JY
4 RP411 061G 1263308JY
4 RP410 061G 1263308JY
4 RP403 061G 1263308JY
4 RP404 061G 1263308JY
4 RP402 061G 1263308JY
4 RP413 061G 1263308JY
4 RP408 061G 1263308JY
4 RP400 061G 1263308JY
4 RP401 061G 1263308JY
4 R649 061G0402000 JF
4 R544 061G0402000 JF
4 R7011 061G0402000 JF
4 R543 061G0402000 JF
4 R541 061G0402000 JF
4 R113 061G0402000 JF
4 R461 061G0402000 JF
4 R4121 061G0402000 JT
4 R147 061G0402000 JY
4 R117 061G0402000 JY
4 R537 061G0402000 JY
4 R148 061G0402000 JY
4 R114 061G0402000 JY
4 R611 061G0402100 JY
4 R612 061G0402100 JY
4 R508 061G04021000FY
4 R4035 061G04021000FY

4 R4049 061G04021001FY
4 R4057 061G04021001FY
4 R4051 061G04021001FY
4 R4056 061G04021001FY
4 R4054 061G04021001FY
4 R621 061G04021001FY
4 R4036 061G04021001FY
4 R4050 061G04021001FY
4 R4055 061G04021001FY
4 R4048 061G04021001FY
4 R133 061G04021002FT
4 R132 061G04021002FT
4 R138 061G04021002FY
4 R131 061G04021002FY
4 R161 061G0402101 JF
4 R191 061G0402101 JF
4 R162 061G0402101 JF
4 R524 061G0402101 JY
4 R124 061G0402101 JY
4 R123 061G0402101 JY
4 R118 061G0402101 JY
4 R125 061G0402101 JY
4 R534 061G0402101 JY
4 R617 061G0402101 JY
4 R4077 061G0402101 JY
4 R523 061G0402101 JY
4 R609 061G0402101 JY
4 R533 061G0402101 JY
4 R115 061G0402101 JY
4 R535 061G0402102 JY
4 R4002 061G0402102 JY
4 R631 061G0402102 JY
4 R620 061G0402102 JY
4 R518 061G0402102 JY
4 R7037 061G0402102 JY
4 R7020 061G0402102 JY
4 R7043 061G0402102 JY
4 R7038 061G0402102 JY
4 R7031 061G0402102 JY
4 R525 061G0402102 JY
4 R656 061G0402102 JY
4 R7050 061G0402102 JY
4 R527 061G0402102 JY
4 R130 061G0402103 JF
4 R625 061G0402103 JF
4 R129 061G0402103 JF
4 R731 061G0402103 JF
4 R651 061G0402103 JT
4 R4001 061G0402103 JY
4 R135 061G0402103 JY
4 R655 061G0402103 JY

4 R4003 061G0402103 JY
4 R530 061G0402103 JY
4 R4080 061G0402103 JY
4 R653 061G0402103 JY
4 R4000 061G0402103 JY
4 R528 061G0402103 JY
4 R7007 061G0402103 JY
4 R531 061G0402103 JY
4 R520 061G0402103 JY
4 R4007 061G0402103 JY
4 R521 061G0402103 JY
4 R7035 061G0402103 JY
4 R4006 061G0402103 JY
4 R4109 061G0402103 JY
4 R502 061G0402103 JY
4 R7009 061G0402103 JY
4 R112 061G0402103 JY
4 R4008 061G0402103 JY
4 R7017 061G0402103 JY
4 R519 061G0402103 JY
4 R134 061G0402103 JY
4 R7036 061G0402104 JF
4 R627 061G0402104 JF
4 R7042 061G0402104 JF
4 R616 061G0402104 JY
4 R615 061G0402104 JY
4 R4071 061G0402105 JT
4 R727 061G04021053FT
4 R4101 061G04021201FY
4 R7039 061G04021212FF
4 R137 061G0402123 JY
4 R136 061G0402123 JY
4 R728 061G04021372FY
4 R610 061G0402152 JF
4 R7032 061G04021692FY
4 R4047 061G0402201 JY
4 R622 061G0402203 JF
4 R659 061G0402203 JF
4 R632 061G0402220 JY
4 R633 061G0402220 JY
4 R634 061G0402220 JY
4 R635 061G0402220 JY
4 R7025 061G04022202FT
4 R4053 061G0402241 JY
4 R4046 061G0402241 JY
4 R7048 061G0402241 JY
4 R7041 061G04022702FT
4 R509 061G04022702FT
4 R624 061G0402303 JF
4 R127 061G0402330 JT
4 R642 061G0402330 JT

4 R126 061G0402330 JT
4 R641 061G0402330 JT
4 R4069 061G0402330 JY
4 R4078 061G0402330 JY
4 R4067 061G0402330 JY
4 R4074 061G0402330 JY
4 R4075 061G0402330 JY
4 R4068 061G0402330 JY
4 R4073 061G0402330 JY
4 R4079 061G0402330 JY
4 R4072 061G0402330 JY
4 R4070 061G0402330 JY
4 R4076 061G0402330 JY
4 R7023 061G04023302FF
4 R116 061G0402472 JF
4 R603 061G0402472 JF
4 R602 061G0402472 JF
4 R643 061G0402472 JF
4 R644 061G0402472 JF
4 R4133 061G0402472 JF
4 R4132 061G0402472 JF
4 R4045 061G0402472 JY
4 R7018 061G0402472 JY
4 R7014 061G0402472 JY
4 R4052 061G0402472 JY
4 R529 061G0402472 JY
4 R7013 061G0402472 JY
4 R522 061G0402472 JY
4 R121 061G0402472 JY
4 R7010 061G0402472 JY
4 R122 061G0402472 JY
4 R648 061G0402473 JY
4 R4081 061G0402473 JY
4 R7049 061G0402474 JT
4 R623 061G0402474 JT
4 R619 061G04025101FF
4 R613 061G04025101FF
4 R119 061G04025103FF
4 R660 061G0402561 JF
4 R661 061G0402561 JF
4 R735 061G04026202FT
4 R4028 061G04026801FY
4 R128 061G04027509FY
4 R618 061G0402823 JF
4 R614 061G0402823 JF
4 R743 061G06031001FY
4 R7006 061G0603154 JY
4 R4131 061G0603154 JY
4 R7004 061G0603473 JY
4 R4130 061G0603473 JY
4 R174 061G06037509FF

4 R177 061G06037509FF
4 R175 061G06037509FF
4 R176 061G06037509FF
4 R9131 061G0805000 JT
4 R9103 061G08051003FT
4 R8615 061G0805102 JT
4 R8613 061G0805103 JT
4 R8603 061G0805103 JT
4 R9123 061G0805103 JT
4 R9121 061G0805103 JT
4 R9128 061G08051501FT
4 R9136 061G08051623FF
4 R729 061G08052208FT
4 R9120 061G08052402FF
4 R8605 061G08053302FT
4 R8607 061G08053302FT
4 R9134 061G08053303FF
4 R9106 061G08053303FF
4 R9104 061G08053303FF
4 R8616 061G0805334 JT
4 R9135 061G0805335 JF
4 R9101 061G0805335 JF
4 R9102 061G0805335 JF
4 R9111 061G08053609FT
4 R8602 061G08054709FT
4 R9115 061G0805471 JT
4 R9126 061G08055101FT
4 R8608 061G0805562 JF
4 R9112 061G0805680 JF
4 R8601 061G0805680 JF
4 R9125 061G08056800FT
4 R178 061G1206000 JY
4 R143 061G1206000 JY
4 R637 061G1206100 JY
4 R638 061G1206100 JY
4 R640 061G1206100 JY
4 R639 061G1206100 JY
4 R9137 061G1206123 JT
4 R9138 061G1206123 JT
4 R9132 061G1206123 JT
4 R9122 061G1206123 JT
4 R9139 061G1206123 JT
4 R8617 061G12062007FF
4 R8604 061G12062007FF
4 R8610 061G12062007FF
4 R9133 061G1206300 JT
4 R9130 061G1206300 JT
4 R9140 061G1206300 JT
4 R9141 061G1206300 JT
4 R9129 061G1206300 JT
4 R9116 061G1206300 JT

4 R9105 061G1206479 JT
4 R9901 061G1206754 JT
4 R9902 061G1206754 JT
4 R9905 061G1206754 JT
4 R9904 061G1206754 JT
4 R9906 061G1206754 JT
4 R9903 061G1206754 JT
4 R9109 061G12068202FT
4 R9117 061G12068202FT
4 R9107 061G12068202FT
4 R9108 061G12068202FT
4 R9110 061G12068202FT
4 R9118 061G12068202FT
4 C4090 065G040210031J A
4 C131 065G040210031J A
4 C4008 065G040210131J T
4 C654 065G040210232K F
4 C7132 065G040210232K F
4 C128 065G040210232K Y
4 C4033 065G040210232K Y
4 C4012 065G040210232K Y
4 C125 065G040210232K Y
4 C133 065G040210332K A
4 C7014 065G040210412K A
4 C7111 065G040210412K A
4 C507 065G040210412K A
4 C4025 065G040210412K A
4 C102 065G040210412K A
4 C7077 065G040210412K A
4 C4100 065G040210412K A
4 C4022 065G040210412K A
4 C7112 065G040210412K A
4 C7110 065G040210412K A
4 C144 065G040210412K A
4 C4040 065G040210412K A
4 C7113 065G040210412K A
4 C7104 065G040210412K A
4 C4049 065G040210412K A
4 C137 065G040210412K A
4 C611 065G040210412K A
4 C7059 065G040210412K A
4 C7091 065G040210412K A
4 C7042 065G040210412K A
4 C4050 065G040210412K A
4 C7031 065G040210412K A
4 C4031 065G040210412K A
4 C4081 065G040210412K A
4 C506 065G040210412K A
4 C4084 065G040210412K A
4 C7045 065G040210412K A
4 C7118 065G040210412K A

4 C115 065G040210412K A
4 C7049 065G040210412K A
4 C7048 065G040210412K A
4 C146 065G040210412K A
4 C4021 065G040210412K A
4 C7078 065G040210412K A
4 C612 065G040210412K A
4 C7060 065G040210412K A
4 C4026 065G040210412K A
4 C4028 065G040210412K A
4 C7069 065G040210412K A
4 C143 065G040210412K A
4 C4046 065G040210412K A
4 C147 065G040210412K A
4 C7079 065G040210412K A
4 C112 065G040210412K A
4 C4043 065G040210412K A
4 C4039 065G040210412K A
4 C4041 065G040210412K A
4 C7082 065G040210412K A
4 C109 065G040210412K A
4 C7051 065G040210412K A
4 C7125 065G040210412K A
4 C4045 065G040210412K A
4 C7108 065G040210412K A
4 C7056 065G040210412K A
4 C107 065G040210412K A
4 C619 065G040210412K A
4 C4017 065G040210412K A
4 C4101 065G040210412K A
4 C159 065G040210412K A
4 C160 065G040210412K A
4 C145 065G040210412K A
4 C7071 065G040210412K A
4 C4042 065G040210412K A
4 C4034 065G040210412K A
4 C4023 065G040210412K A
4 C4092 065G040210412K A
4 C4044 065G040210412K A
4 C7081 065G040210412K A
4 C132 065G040210412K A
4 C140 065G040210412K A
4 C7114 065G040210412K A
4 C4088 065G040210412K A
4 C7117 065G040210412K A
4 C4018 065G040210412K A
4 C4027 065G040210412K A
4 C7107 065G040210412K A
4 C141 065G040210412K A
4 C7068 065G040210412K A
4 C7016 065G040210412K A

4 C4020 065G040210412K A
4 C4032 065G040210412K A
4 C7055 065G040210412K A
4 C4024 065G040210412K A
4 C7034 065G040210412K A
4 C4082 065G040210412K A
4 C4083 065G040210412K A
4 C200 065G040210412K F
4 C7089 065G0402105A5K A
4 C153 065G0402105A5K A
4 C7088 065G0402105A5K A
4 C7124 065G0402105A5K A
4 C7122 065G0402105A5K A
4 C4047 065G0402105A5K A
4 C7092 065G0402105A5K A
4 C7043 065G0402105A5K A
4 C4030 065G0402105A5K A
4 C7085 065G0402105A5K A
4 C7097 065G0402105A5K A
4 C7096 065G0402105A5K A
4 C4016 065G0402105A5K A
4 C122 065G0402105A5K A
4 C7086 065G0402105A5K A
4 C7095 065G0402105A5K A
4 C7123 065G0402105A5K A
4 C7109 065G0402105A5K A
4 C4048 065G0402105A5K A
4 C7011 065G0402105A5K A
4 C4099 065G0402105A5K A
4 C7058 065G0402105A5K A
4 C121 065G0402105A5K A
4 C4029 065G0402105A5K A
4 C154 065G0402105A5K A
4 C120 065G0402105A5K A
4 C7099 065G0402105A5K A
4 C7120 065G0402105A5K A
4 C7094 065G0402105A5K A
4 C136 065G0402105A5K A
4 C7076 065G0402105A5K A
4 C7105 065G0402105A5K A
4 C7062 065G0402105A5K A
4 C7090 065G0402105A5K A
4 C4015 065G0402105A5K A
4 C7126 065G0402105A5K A
4 C7057 065G0402105A5K A
4 C7100 065G0402105A5K A
4 C7106 065G0402105A5K A
4 C7087 065G0402105A5K A
4 C7098 065G0402105A5K A
4 C7121 065G0402105A5K A
4 C7015 065G040210605M A

4 C634 065G040222031J F
4 C635 065G040222031J F
4 C7020 065G040222031J F
4 C637 065G040222031J F
4 C636 065G040222031J F
4 C142 065G040222232K F
4 C7052 065G040222415K Y
4 C7072 065G040222415K Y
4 C124 065G040233031J F
4 C117 065G040233031J F
4 C139 065G040233031J F
4 C138 065G040233031J F
4 C603 065G040233131J A
4 C4087 065G040239031J A
4 C4086 065G040239031J A
4 C148 065G040247031J Y
4 C657 065G040247031J Y
4 C149 065G040247031J Y
4 C607 065G040247031J Y
4 C118 065G040247312K F
4 C119 065G040247312K F
4 C150 065G040247312K F
4 C151 065G040247312K F
4 C4036 065G0402474A5K F
4 C4035 065G0402474A5K F
4 C4014 065G0402474A5K F
4 C7115 065G0402474A5K F
4 C4013 065G0402474A5K F
4 C7116 065G0402474A5K F
4 C4037 065G0402474A5K F
4 C655 065G040268132K F
4 C656 065G040268132K F
4 C617 065G060310432K F
4 C615 065G060310432K F
4 C4007 065G060310432K F
4 C731 065G060310432K F
4 C4116 065G060310432K Y
4 C604 065G060310512K A
4 C605 065G060310512K A
4 C508 065G060310512K A
4 C608 065G060310512K A
4 C7131 065G060310512K T
4 C7017 065G060310605M A
4 C130 065G060310605M M
4 C7063 065G060310605M M
4 C7033 065G060310605M M
4 C113 065G060310605M M
4 C7064 065G060310605M M
4 C629 065G060310605M M
4 C7044 065G060310605M M
4 C631 065G060310605M M

4 C630 065G060310605M M
4 C108 065G060310605M M
4 C7032 065G060310605M M
4 C705 065G060322232K Y
4 C7001 065G060322422K T
4 C732 065G0603225A5K A
4 C7065 065G0603225A5K A
4 C7075 065G0603225A5K A
4 C625 065G060347131J Y
4 C627 065G060347131J Y
4 C628 065G060347131J Y
4 C626 065G060347131J Y
4 C602 065G0603475A5K A
4 C4089 065G0603475A5K A
4 C601 065G0603475A5K A
4 C8609 065G080510031J Y
4 C8607 065G080510231J F
4 C8612 065G080510231J F
4 C9109 065G080510232K M
4 C8611 065G080510432K Y
4 C9108 065G080510432K Y
4 C8608 065G080510432K Y
4 C8604 065G080510432K Y
4 C8610 065G080510432K Y
4 C8603 065G080510432K Y
4 C9113 065G080510432K Y
4 C9104 065G080510532K M
4 C9110 065G080510532K M
4 C7127 065G080510615K A
4 C4113 065G080510615K A
4 C7128 065G080510615K A
4 C715 065G080510615K T
4 C197 065G0805106A5K A
4 C9105 065G080522131J Y
4 C9119 065G080522232K Y
4 C8613 065G080522432K M
4 C9112 065G080522432K Y
4 C740 065G080522605M M
4 C729 065G080522605M M
4 C730 065G080522605M M
4 C738 065G080522605M M
4 C735 065G080522605M M
4 C737 065G080522605M M
4 C736 065G080522605M M
4 C739 065G080522605M M
4 C613 065G080568412K F
4 C618 065G080568412K F
4 C616 065G080568412K F
4 C614 065G080568412K F
4 C9111 065G120610272K Y
4 C9121 065G120610272K Y

4 C8606 065G120610272K Y
4 C9107 065G120622272K Y
4 C9120 065G120622272K Y
4 C4093 067G311C1013LT
4 HDCP-U406 070GHDCP500HDC
4 FB600 071G 56K121 TA
4 FB700 071G 59A121 TA
4 L102 073G 6333810M
4 L705 073G253S 71 M
4 CN501 088G 34019K AV
4 CN502 088G 34019K AV
4 D100 093G 6433S
4 ZD700 093G 39S923 T
4 D700 093G 60S 37 T
4 ZD600 093G 64S500 SU
4 ZD406 093G 64S500 SU
4 ZD601 093G 64S500 SU
4 ZD404 093G 64S500 SU
4 ZD405 093G 64S500 SU
4 D501 093G 64S526SEM
4 T100 353G0045502J00
4 IC9101 356G0379006600
4 U704 356G056313200C00HF
4 U706 356G0563223607
4 U707 356G0563252601
4 U102 356G0566024600
4 U401 356G0568577605
4 U402 356G0615004613
4 U403 356G0615004613
4 U601 356G0616048601
4 U600 356G0616136
4 IC8601 356G0700008603
4 U406 356G3333004612
4 U701 356GD563006183
4 U708 356GD563006610
4 U703 356GD563006610
4 U710 356GD563010205
4 Q8602 357G07630620HF
4 Q500 357G07630620HF
4 Q9101 357G0763650600
4 Q401 357G0763A06
4 R7034 361G04022492FY
4 R7040 361G04022492FY
4 R110 361G04025108FT
4 R109 361G04025108FT
4 R108 361G04025108FT
4 R111 361G04025108FT
4 R101 361G06031330FY
4 R8618 361G12061508FY
4 R8619 361G12061508FY
4 R8614 361G12061808FT

4 R8606 361G12061808FT
4 R8609 361G12061808FT
4 R8611 361G12061808FT
4 C7080 365G040222502K000M
4 C4085 365G040222505M000T
4 C4001 365G040222505M000T
4 C104 365G040247931C000M
4 C105 365G040247931C000M
4 C4102 365G060310606M000A
4 C7103 365G060310606M000A
4 C103 365G060310606M000A
4 C100 365G060310606M000A
4 C7084 365G060310606M000A
4 C4038 365G060322606M000M
4 C7018 365G060322606M000M
4 C7019 365G060322606M000M
4 C4019 365G060322606M000M
4 C7119 365G060322606M000M
4 C7119 365G060322606M000T
4 C4019 365G060322606M000T
4 C7019 365G060322606M000T
4 C7018 365G060322606M000T
4 C4038 365G060322606M000T
4 C7101 365G080522606M000M
4 C7083 365G080522606M000M
4 C126 365G080547172K000F
4 C196 365G120610292K000F
4 C183 365G120647282K000Y
4 C168 365G120647282K000Y
4 C180 365G120647282K000Y
4 C182 365G120647282K000Y
4 C176 365G120647282K000Y
4 C127 365G120647282K000Y
4 C161 365G120647282K000Y
4 C135 365G120647282K000Y
4 C181 365G120647282K000Y
4 C179 365G120647282K000Y
4 MAC-U406 370G0MAC642CNT
4 HDCP2-U406 370GHDCP603PHP
4 FB601 371G042P121M02
4 FB704 371G042P121M02
4 FB712 371G042P121M02
4 FB706 371G042P221M00
4 FB705 371G042P221M00
4 FB101 371G042U102C00
4 FB100 371G042U102C00
4 L102 373G0603338FKD
4 L101 373G253S239D00
4 L603 373G253S245M00
4 L600 373G253S245M00
4 L601 373G253S245M00

4 L602 373G253S245M00
4 L704 373G253S356M00
4 L703 373G253S356M00
4 L701 373G253S526M00
4 CN105 388G342G8B5FCL
4 D9103 393G006432S0HF
4 D9104 393G006432S0HF
4 D8604 393G006432S0HF
4 D8602 393G006432S0HF
4 X100 393G022S60100J
4 X400 393G022S66300J
4 ZD9101 393G039SA2900T
4 E715 715G8525C01000004K
4 E715 715G8525C01000004Y
2 HS401 P90T0051301
2 HS601 Q90G6119 6
1 IRPFGXA9
2 SMTIRPFGXA9
3 R001 061G0402472 JT
3 709T67260ZS001
4 Q52G1701 7 XW
4 055G 100610
4 Q49G01WB1JL0HF0000
4 Q05G6054 1
3 Q001 057G 477900 T
3 R004 061G0402101 JT
3 R002 061G0402102 JT
3 R003 061G0402272 JT
3 C002 065G040210232K Y
3 C003 065G040210412K Y
3 C001 065G060310512K T
3 ZD001 093G 64 37 N
3 CN001 311GW125D05ACL
3 U001 356GS927052
3 LED001 381G0A1500R1GP
3 E715 715G6726R01003004C
3 E715 715G6726R01003004K
1 J40G000281356B
1 J40G032081309A
1 J41G32SV81308B
1 J44GJ9071010KM
1 J44GJ9072010KM
1 J44GJ90781302B00JA
1 E750 LVB315WHBN0AKT2F0Z
1 E750 LVB315WHBN0AM42F0Z
1 P40GD000813 9A
1 Q11G701016000L00PJ
1 Q12G71400610HF0AJF
1 Q36T 600 49 7
1 Q40G0001624 4A
1 Q45G88010TV05600SJ

1 Q45G99010TV03900SZ
1 Q49G 51500 HF
1 Q52G130118600000YY
1 Q52G1501150523 W
1 Q52G160119100A00YY
1 X15T264610100000JH
1 X15T8967701000GMNP
1 X33E0196001Z1C0100
1 X34E02990GM02G0200
1 X34E0302XLN01L0200
1 X34E0303XLN01L0200
1 X40G0001624 2A
1 X40G000181310C
1 X40G000881328A
1 X41G78DV81311E
1 R05201 X52G150100300000BK
1 R05201 X52G150100300000YY
1 X52G180137700000BK
1 X52G180144100000BK
1 X52G20012470000ABK

物料描述

组件数

量

项⽬组

MANUAL P/N LABEL 1
SCREW M3 6 2
Screw 4
SCREW M3 6 12
SCREW 2
screw 4
WIFI USB IEEE 802.11 b/g/n SDWF-2F/GJ 1
8 OHM 6W 132*45*39 0 UNIT 2
AC POWER CORD 1500+60 for China 1 T
AC POWER CORD 1500+60 for China 1
BATTERY 1.5V 2P R03(KI)2S/PG 1
HARNESS 4Pin pitch2.0-B&R+B&W 320mm/200m 1 T
HARNESS 4Pin pitch2.0-B&R+B&W 320mm/200m 1
HARNESS 5P pitch1.25-6P pitch2.0 600mm 1
HARNESS 5P pitch1.25-6P pitch2.0 600mm 1 T
HARNESS 10P pitch2.0-5P pitch1.25 240mm 1 T
HARNESS 10P pitch2.0-5P pitch1.25 240mm 1
LVDS CABLE 30P(1.0mm)-32P(2.0mm) 600mm 1 T
LVDS CABLE 30P(1.0mm)-32P(2.0mm) 600mm 1
REMOTE PHILIPS RL134B chinese 1
REMOTE PHILIPS RC44N chinese 1 T
PHILIPS 40(588 CH) 1
PAPER BOARD 1
PE PACKING 1.290
PAPER BOARD 0.095
PAPER BOARD 0.095
Corner paper 0.190
TIE (Y1900221) 37
BIG TAPE FOR PHILIPS 193
WOOD PALLET 0.024
WOOD PALLET 0.024
TIE 0.500
LCD TPT315B5-WHBN0.K S8D62B BJ TPV 1 1
LCD TPT315B5-WHBN0.K S8945E BJ TPV BJ TP 1 1
MCU ASSY 1 T
PHP 32PHF5361/T3 EMMC V2.21 93368321 1
EMMC THGBMDG5D1LBAIT 4GB FBGA153 1
MAIN BOARD+POWER BOARD 1
OTHER LABEL 1.020
conn 2.0mm 3p 1
CONN 3.96mm 3(2N)P R/A 11.88mm 9.5mm 1
IC EL817M(X) photocoupler DIP-4 1
RST MOF 0.33R 5% 2WS 1
EC 100UF 20% 35V 8*7 1
EC 100UF 20% 35V 8*7 1
FERRITE BEAD 1
FERRITE BEAD 1
FERRITE BEAD 1
INE FILTER 4mH MIN 1
LINE FILTER 30MH MIN ET20 0.8A 1

替代

CHOKE COIL 47UH 10% ,HF 1
TACT SW 4P 5.85 200g TSDBYC2202 1
PHONE JACK R/A 7P BLACK 10.5mm 1
BRIDGE KBP206G X0 2A 800V KBP 80A 1
3HOTTKY SR506-44 5A 60V DO-201AD 1
DIODE SR515 5A/150V DO-201AD 1
DIODE SR515 5A/150V DO-201AD 1
DIODE SR515 5A/150V DO-201AD 1
SCHOTTKY PR1007G 1A 1000V DO-41 1
SCHOTTKY FR107G-A0 1A 1000V DO-41 1
AFER 2.0mm 4P 1
WAFER 2.0mm 6P 1
WAFER 2.0mm 6P 1
WAFER 2.0mm 10P R/A B2000W10HTKB 1
WAFER 2.0mm 32P 1
NTCR 3R 15% 2.4W SCK10034LJY501 1
CAP X2 0.33uF 10% 305V 18*13.5*7.5 MPX23 1 T
CAP X2 0.33uF 10% 305V 18*13.5*7.5 MPX23 1 T
CAP X2 330NF 20% 275V 18*7*12.5 B32922E2 1
CAP X2 330NF 20% 275V 18*7*12.5 B32922E2 1
EC 68uF 20% 450V 12.5*40 2000 hr 620mA H 1
BEAD 6.5*12.5 700R 25% BF-I60100R-815 1
BEAD 6.5*12.5 700R 25% BF-I60100R-815 1
X'FMR 480uH 10% 8u EQ28 BCK-12877-HA 1
RCA JACK 6P 1*3 Y/W/R -- 1
RCA JACK 6P 1*3 Y/W/R -- 1 T
USB A TYPE R/A 6P 1*1 BLACK 8.4 1
USB A TYPE R/A 6P 1*1 BLACK 8.4 1
.F RF CONNECTOR 5P 1*1 GRAY 9.5MM 1
RF IFP-013 4P 1*1 W -- 1
D9101 ASS'Y 1
OIL FOR DISAPPEAR 0.018
IODE FMEN-220A 20A/100V TO-220 1
SCREW M3 8 1
HEAT SINK 24.8 19.5 7 1
MAIN BOARD+POWER BOARD FOR AI 1
CAP CER 100PF 10% 1KV R 1
CAP CER 2.2NF 10% 1KV R TAPING 1
CAP Y1 470PF 10% 250V Y5P 1
CAP Y1 470PF 10% 250V Y5P 1
CAP Y1 1.5NF 20% 250V Y5U 1
EC 330UF 20% 35V 10*12 5000H EV 1
EC 330UF 20% 35V 10*12 5000H EV 1
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1
EC 4.7UF 20% 50V 5*11 EY 1
BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1
FUSE 4A 250V 1
CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 1
CAP Y1 22PF 10% 250V SL CT7-Y1-250V-06d 1
CAP Y1 22PF 10% 250V SL CT7-Y1-250V-06d 1

EC 330UF 20% 50V 12.5*12 1
MAIN BOARD+POWER BOARD FOR SMT 1
C/DC AS431ANTR-E1 150mA 40V SOT23-3 1
LDO G1117-33T63UF 1A 3.3V SOT-223 1
ESD PROTECT AZ1045-04F.R7G DFN2510P10E 1
IC IC G5250M1T1U 1A SOT23-5 1
IC IC G5250M1T1U 1A SOT23-5 1
MMBT3904 1
MMBT3904 1
MMBT3904 1
MMBT3904 1
MMBT3904 1
MMBT3904 1
MOSFET AOD482 32A 100V TO-252 1
DTA144WN3/S SOT-23 1
MOSFET AO3401A SOT-23 1
RST NET 0R 5% 1/16W 1
RST NET 0R 5% 1/16W 1
RST NET 0R 5% 1/16W 1
RST NET 0R 5% 1/16W 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST CHIPR MAX0R05 1/16W FENGHUA 1
RST 0402 0.05R MAX 1/16W - 1
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
RST CHIP 100R 1/16W 1% 1
RST CHIP 100R 1/16W 1% 1

RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIP 1K 1/16W 1% 1
RST CHIPR 10K +-1% 1/16W TZAI YUAN 1
RST CHIPR 10K +-1% 1/16W TZAI YUAN 1
RST CHIP 10K 1/16W 1% YAGEO 1
RST CHIP 10K 1/16W 1% YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W FENGHUA 1
RST CHIPR 100 OHM +-5% 1/16W FENGHUA 1
RST CHIPR 100 OHM +-5% 1/16W FENGHUA 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1
RST CHIP 10K 1/16W 5% TZAI YUAN 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1

RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN 1
RST 0402 105K 1/16W 1% TZAI YUAN 1
RST CHIP 1.2K 1/16W 1% 1
RST 0402 12.1K 1% 1/16W FENGHUA 1
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1
RST CHIP 13.7K 1/16W 1% 1
RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA 1
RST 0402 16.9K 1% 1/16W - 1
RST CHIP 200R 1/16W 5% YAGEO 1
RST CHIPR 20KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 20KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
RST CHIP 22K 1/16W 1% TZAI YUAN 1
RST CHIPR 240 OHM +-5% 1/16W YAGEO 1
RST CHIPR 240 OHM +-5% 1/16W YAGEO 1
RST CHIPR 240 OHM +-5% 1/16W YAGEO 1
RST 0402 27K 1% 1/16W 1
RST 0402 27K 1% 1/16W 1
RST 0402 30K 5% 1/16W 1
RST CHIP 33R 1/16W 5% TZAI YUAN 1
RST CHIP 33R 1/16W 5% TZAI YUAN 1

RST CHIP 33R 1/16W 5% TZAI YUAN 1
RST CHIP 33R 1/16W 5% TZAI YUAN 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1
RST 0402 33K 1% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
RST CHIP 470K 1/16W 5% TZAI YUAN 1
RST CHIP 470K 1/16W 5% TZAI YUAN 1
RST CHIP 5.1K 1/16W 1% FENGHUA 1
RST CHIP 5.1K 1/16W 1% FENGHUA 1
RST 0402 510K 1% 1/16W FENGHUA 1
RST CHIP 560R 1/16W 5% FENGHUA 1
RST CHIP 560R 1/16W 5% FENGHUA 1
RST CHIP 62K 1/16W 1% TZAI YUAN 1
RST CHIP 6K8 1/16W 1% 1
RST CHIP 75R 1/16W 1% 1
RST CHIPR 82KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 82KOHM +-5% 1/16W FENGHUA 1
RST CHIPR 1KOHM +-1% 1/10W YAGEO 1
RST CHIPR 150K +-5% 1/10W YAGEO 1
RST CHIPR 150K +-5% 1/10W YAGEO 1
RST CHIPR 47KOHM 1/10W YAGEO 1
RST CHIPR 47KOHM 1/10W YAGEO 1
ST CHIPR 75 OHM +-1% 1/10W FENGHUA 1

ST CHIPR 75 OHM +-1% 1/10W FENGHUA 1
ST CHIPR 75 OHM +-1% 1/10W FENGHUA 1
ST CHIPR 75 OHM +-1% 1/10W FENGHUA 1
RST 0805 0.05R MAX 1/8W 1
RST CHIP 100K 1/8W 1% 1
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1
RST 0805 10K 5% 1/8W 1
RST 0805 10K 5% 1/8W 1
RST 0805 10K 5% 1/8W 1
RST 0805 10K 5% 1/8W 1
RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1
.ST CHIPR 162KOHM +-1% 1/8W FENGHUA 1
RST 0805 2.2R 1% 1/8W 1
RST CHIPR 24KOHM +-1% 1/8W FENGHUA 1
RST CHIP 33K 1/8W 1% 1
RST CHIP 33K 1/8W 1% 1
RST CHIP 330K 1/8W 1% 1
RST CHIP 330K 1/8W 1% 1
RST CHIP 330K 1/8W 1% 1
RST CHIP 330K 1/8W 5% TZAI YUAN 1
RST CHIPR 3.3 MOHM +-5% 1/8W 1
RST CHIPR 3.3 MOHM +-5% 1/8W 1
RST CHIPR 3.3 MOHM +-5% 1/8W 1
RST 0805 36R 1% 1/8W 1
RST 0805 47R 1% 1/8W 1
RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 1
RST CHIP 5K1 1/8W 1% 1
RST CHIPR 5.6kOHM +-5% 1/8W FENGHUA 1
RST CHIPR 68OHM +-5% 1/8W FENGHUA 1
RST CHIPR 68OHM +-5% 1/8W FENGHUA 1
RST CHIP 680R 1/8W 1% 1
RST CHIPR MAX0R05 1/4W YAGEO 1
RST CHIPR MAX0R05 1/4W YAGEO 1
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1
RST CHIP 12K 5% 1/4W TZAI YUAN 1
RST CHIP 12K 5% 1/4W TZAI YUAN 1
RST CHIP 12K 5% 1/4W TZAI YUAN 1
RST CHIP 12K 5% 1/4W TZAI YUAN 1
RST CHIP 12K 5% 1/4W TZAI YUAN 1
RST CHIPR 0.2 OHM +-1% 1/4W FENGHUA 1
RST CHIPR 0.2 OHM +-1% 1/4W FENGHUA 1
RST CHIPR 0.2 OHM +-1% 1/4W FENGHUA 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1
RST CHIPR 30 OHM +-5% 1/4W TZAI YUAN 1

RST 1206 4.7R 5% 1/4W 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1
CAP 0402 10PF 5% 50V NP0 - 1
CAP 0402 10PF 5% 50V NP0 - 1
CAP CHIP 0402 100pF 50V NPO 1
CAP 0402 1NF 10% 50V X7R 1
CAP 0402 1NF 10% 50V X7R 1
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
CAP 0402 10NF 10% 50V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1

CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1

CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP CHIP 0402 100nF K 16V X7R 1
CAP 0402 100NF 10% 16V X7R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP CHIP 0402 1UF K 10V X5R 1
CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1

CAP 0402 22PF 5% 50V NP0 1
CAP 0402 22PF 5% 50V NP0 1
CAP 0402 22PF 5% 50V NP0 1
CAP 0402 22PF 5% 50V NP0 1
CAP 0402 22PF 5% 50V NP0 1
CAP 0402 2.2NF K 50V X7R 1
CAP CHIP 0402 220nF 16V X5R 1
CAP CHIP 0402 220nF 16V X5R 1
CAP 0402 33PF 5% 50V NP0 1
CAP 0402 33PF 5% 50V NP0 1
CAP 0402 33PF 5% 50V NP0 1
CAP 0402 33PF 5% 50V NP0 1
LCC 0402 330pF 50V NP0 +-5% 1
CAP CHIP 0402 39PF J 50V NPO 1
CAP CHIP 0402 39PF J 50V NPO 1
CAP 0402 47PF 5% 50V NP0 1
CAP 0402 47PF 5% 50V NP0 1
CAP 0402 47PF 5% 50V NP0 1
CAP 0402 47PF 5% 50V NP0 1
CAP 0402 47NF 10% 16V X7R 1
CAP 0402 47NF 10% 16V X7R 1
CAP 0402 47NF 10% 16V X7R 1
CAP 0402 47NF 10% 16V X7R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 470NF 10% 10V X5R 1
CAP 0402 680PF 10% 50V X7R 1
CAP 0402 680PF 10% 50V X7R 1
CAP CHIP 0603 0.1UF K 50V X7R 1
CAP CHIP 0603 0.1UF K 50V X7R 1
CAP CHIP 0603 0.1UF K 50V X7R 1
CAP CHIP 0603 0.1UF K 50V X7R 1
CAP 0603 100NF 10% 50V X7R 1
CAP 0603 1UF 10% 16V X7R 1
CAP 0603 1UF 10% 16V X7R 1
CAP 0603 1UF 10% 16V X7R 1
CAP 0603 1UF 10% 16V X7R 1
CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
MLCC 0603 10UF 6.3V X5R +-20% 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1

CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
CAP 0603 10UF 20% 6.3V X5R 1
.AP CHIP 0603 2N2 50V X7R +/-10% 1
CAP CHIP0603 220NF K 25V X7R 1
CAP 0603 2.2UF K 10V X5R 1
CAP 0603 2.2UF K 10V X5R 1
CAP 0603 2.2UF K 10V X5R 1
CAP CHIP 0603 470P 50V NP0 +/-5% 1
CAP CHIP 0603 470P 50V NP0 +/-5% 1
CAP CHIP 0603 470P 50V NP0 +/-5% 1
CAP CHIP 0603 470P 50V NP0 +/-5% 1
CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN 1
CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN 1
CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN 1
CAP CHIP 0805 10PF J 50V NPO 1
CAP 0805 1NF 5% 50V NPO 1
CAP 0805 1NF 5% 50V NPO 1
CAP 0805 1NF 10% 50V X7R 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP CHIP 0805 100N 50V X7R +/-10% 1
CAP 0805 1UF 10% 50V X7R 1
CAP 0805 1UF 10% 50V X7R 1
CAP 0805 10UF 10% 16V X5R 1
CAP 0805 10UF 10% 16V X5R 1
CAP 0805 10UF 10% 16V X5R 1
CHIP 10uF 16V X5R 0805 1
CAP 0805 10UF 10% 10V X5R 1
CAP CHIP 0805 220P 50V NP0 +/-5% 1
CAP CHIP 0805 2N2 50V X7R +/-10% 1
CAP 0805 220nF 10% 50V X7R GRM21BR71H224 1
CAP CHIP 0805 220N 50V X7R +/-10% 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP 0805 22UF 20% 6.3V X5R 1
CAP CHIP 0805 680NF K 16V X7R 1
CAP CHIP 0805 680NF K 16V X7R 1
CAP CHIP 0805 680NF K 16V X7R 1
CAP CHIP 0805 680NF K 16V X7R 1
CAP 1206 1NF 10% 500V X7R 1
CAP 1206 1NF 10% 500V X7R 1

CAP 1206 1NF 10% 500V X7R 1
CER 1206 2N2 500V X7R 10% 1
CER 1206 2N2 500V X7R 10% 1
EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2 1
HDCP CODE 1
HIP BEAD 120R/6000mA HCB2012KF-121T60 1
CHIP BEAD 120R/3000mA HCB1608KF-121T30 1
CHIP INDUCTOR 0.33UH 10% 0.75R 100mA 1
SMD CHOKE 2.2UH 20% 0.020R 8.2A 1
HDMI HEADER R/A 19P BLACK H=8.4 1
HDMI HEADER R/A 19P BLACK H=8.4 1
switching diode BAV99 1
ZENER BZX84B6V8 6.8 0.5 SOT-23 1
SCHOTTKY SM260A 2A 40V DO-214AC 1
ESD MLVG04025R0QV05BP INPAQ 1
ESD MLVG04025R0QV05BP INPAQ 1
ESD MLVG04025R0QV05BP INPAQ 1
ESD MLVG04025R0QV05BP INPAQ 1
ESD MLVG04025R0QV05BP INPAQ 1
SWITCHING BAS316WS 250mA 100V SOD323 1
LAN FILTER S16013 LF 1
AC/DC PF6003AG SOT-26 1
LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223 1
LDO LD1117AG33AA3AR 1A 3.3V SOT-223 1
LDO UZ1084G33TN3R 5A 3.3V TO-252 1
Silicon Tuner MxL661-AG-R 1
SCALER Hi3751ARBCV3100D00 PBGA-577 1
DRAM NT5CB256M16DP-EK 4Gb VFBGA-96 1
DRAM NT5CB256M16DP-EK 4Gb VFBGA-96 1
AUDIO AD82584D-LG48NAR 20 E-LQFP-48L 7x7 1
AUDIO AD22650-QH14NAR - TSSOP-14 1
LED DRIVER PF7708BS SOP-8 1
EMMC THGBMDG5D1LBAIT 4GB FBGA153 1
DC/DC SY8009BABC 2A 3.3V SOT23-6 1
DC/DC TPS563201DDCR 17V 3A SOT-23-6 1
DC/DC TPS563201DDCR 17V 3A SOT-23-6 1
DC/DC SY8366QNC 6A 28V QFN3x3-10 1
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1
MOSFET TK8P65W 7.8A 650V DPAK 1
MOSFET AO3407A -25A -30V 1.4W SOT23 1
RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1
RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1
RST 0603 133Ω 1% 1/10W N/A 1
RST 1206 1.5R 1% 1/4W RC1206FR-071R5L 1
RST 1206 1.5R 1% 1/4W RC1206FR-071R5L 1
RST 1206 1.8R 1% 1/4W SMD12061R8F 1

RST 1206 1.8R 1% 1/4W SMD12061R8F 1
RST 1206 1.8R 1% 1/4W SMD12061R8F 1
RST 1206 1.8R 1% 1/4W SMD12061R8F 1
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1
CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
CAP 0402 4.7pF 0.25pF 50V NP0 GRM1555C1H 1
CAP 0402 4.7pF 0.25pF 50V NP0 GRM1555C1H 1
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1
CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
CAP 0603 22uF 20% 6.3V X6S JMK107BC6226 1 T
CAP 0603 22uF 20% 6.3V X6S JMK107BC6226 1 T
CAP 0603 22uF 20% 6.3V X6S JMK107BC6226 1 T
CAP 0603 22uF 20% 6.3V X6S JMK107BC6226 1 T
CAP 0603 22uF 20% 6.3V X6S JMK107BC6226 1 T
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1
CAP 0805 470pF 10% 500V X7R - 1
CAP 1206 1NF 10% 2KV X7R 1206B102K202NT 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
Buy key CNTV腾讯版MAC for 海 1
CD CD HDCP2.2 code for W ifi Miracast 1
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1
CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1
CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1
CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1
CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1
CHIP IND 0.33uH 10% 0.1 0.75 SDFL1608LR3 1 T
SMD CHOKE 75R 25% 280mA 75R BW21S7511B01 1
SMD CHOKE 22uH 20% 1A 0.225R MPIT4030-2 1
SMD CHOKE 22uH 20% 1A 0.225R MPIT4030-2 1
SMD CHOKE 22uH 20% 1A 0.225R MPIT4030-2 1

SMD CHOKE 22uH 20% 1A 0.225R MPIT4030-2 1
0804D09092 1
0804D09092 1
SMD CHOKE 4.7uH 20% 0.9A 0.444R MPIH2016 1
RJ45 R/A 8P 1*1 BLACK 10.75mm 1
SWITCHING 1N4148W 0.15A 75V SOD-123 1
SWITCHING 1N4148W 0.15A 75V SOD-123 1
SWITCHING 1N4148W 0.15A 75V SOD-123 1
SWITCHING 1N4148W 0.15A 75V SOD-123 1
CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 1
CRYSTAL NXK24.000AE18F-KAB7-2 24.000MHz 1
ZENER BZT52-B15 15V 0.41 SOD-123 1
MAIN PCB FR4 DS 193*140*1.6mm 1 T
MAIN PCB FR4 DS 193*140*1.6mm 1
Heat Sink 1
HEAT SINK 25 10 1
IR BOARD 715G6726R010030040 1
IR BOARD FOR SMT 1
RST CHIP 4K7 1/16W 5% TZAI YUAN 1
COMSUMPTIVE ASSY 1
MESH PRINTTING_PAPER 0.050
Solder Paste 0.028
Water-based Cleaning Agent - Decotron 23 0.100
SHEET 0.003
RA SIG SM BC847C (KEC0) R 1
RST CHIP 100R 1/16W 5% TZAI YUAN 1
RST CHIP 1K 1/16W 5% TZAI YUAN 1
RST CHIP 2K7 1/16W 5% TZAI YUAN 1
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
CAP 0402 100NF 10% 16V X7R 1
CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
VPORT0603100KV05 1
CONN 1.25mm 5P V/T B1254W05VUM2 1
IR RECEIVER TSOP75436WTT 36 KHZ 1
LED R GPSS008RC4 1
IR PCB FR4 DS 35x15x1.6mm 1
IR PCB FR4 DS 35x15x1.6mm 1 T
CEL LABEL -- 1
RATING LABEL 32PHF5361/T3 1
QSG 32PHF5361/T3 china 1
CUSHION-T NA China(2002) 1
CUSHION-B NA China(2002) 1
ARTWORK CARTON 32PHF 5361/5301/5311/5351 1
TPT315B5-WHBN0.K S8D62B BJ TPV 1 1
TPT315B5-WHBN0.K S8945E BJ TPV 1 1
A4 PALLET LABEL -for A4 paper 0.050
PCB-SUPPORT D3.5xH16 1
HEAT PAD 1
NON-WOVEN FABRIC 2
产线需求的栈板LABEL 0.050
PROTECT BAG 1

PROTECT BAG 1
Cleaning Naphtha 1.842
TAPE 20
NSULATING PLATE 56
TAPE 24
BKT_IO_BTM 1
BKT_IO_SIDE 1
DECO_BEZEL 1
REAR_COVER NA 1
BASE_LEFT NA 1
BASE_RIGHT NA 1
Label for screw pe bag 1
CARTON LABEL 1
OTHER LABEL 开机必读标签 1
WARRANTY CARD TPV address china 1
TAPE_INSULATING 12
TAPE_INSULATING 12 T
INSULATING SHEET 1
INSULATING SHEET 1
TAPE 95

HI3751AV500 DEMO VER.A

Update 2014.02.07

Hi3751AV500 Schematic Circuit Version and Page Information

Page Comment

1
2
3

4
5
6
7

8
9

10
11

Comment
Information indicator
Block diagram

Power tree & Boot strap

Power and Signal switching control

Power supply management

UART & JTAG socket & IR & KEY

Chip Power

DDRIII_Chip Power
DDRIII_0

DDRIII_1

eMMC & eeprom & xtal

Page

12
13

14
15

16

17

18

19

20
21
22

V-BY-ONE

USB2.0 & USB3.0 & WIFI

CI & CA

Tuner socket
MIC YPBPR & AV IN & CVBS OUT

Audio Output

AMP
HDMI0 & MHL

HDMI1(ARC) & HDMI2
Ethernet & SD

Power switching control

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

V310

V310

V310

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

1

1

1

21Friday, July 01, 2016

21Friday, July 01, 2016

21Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

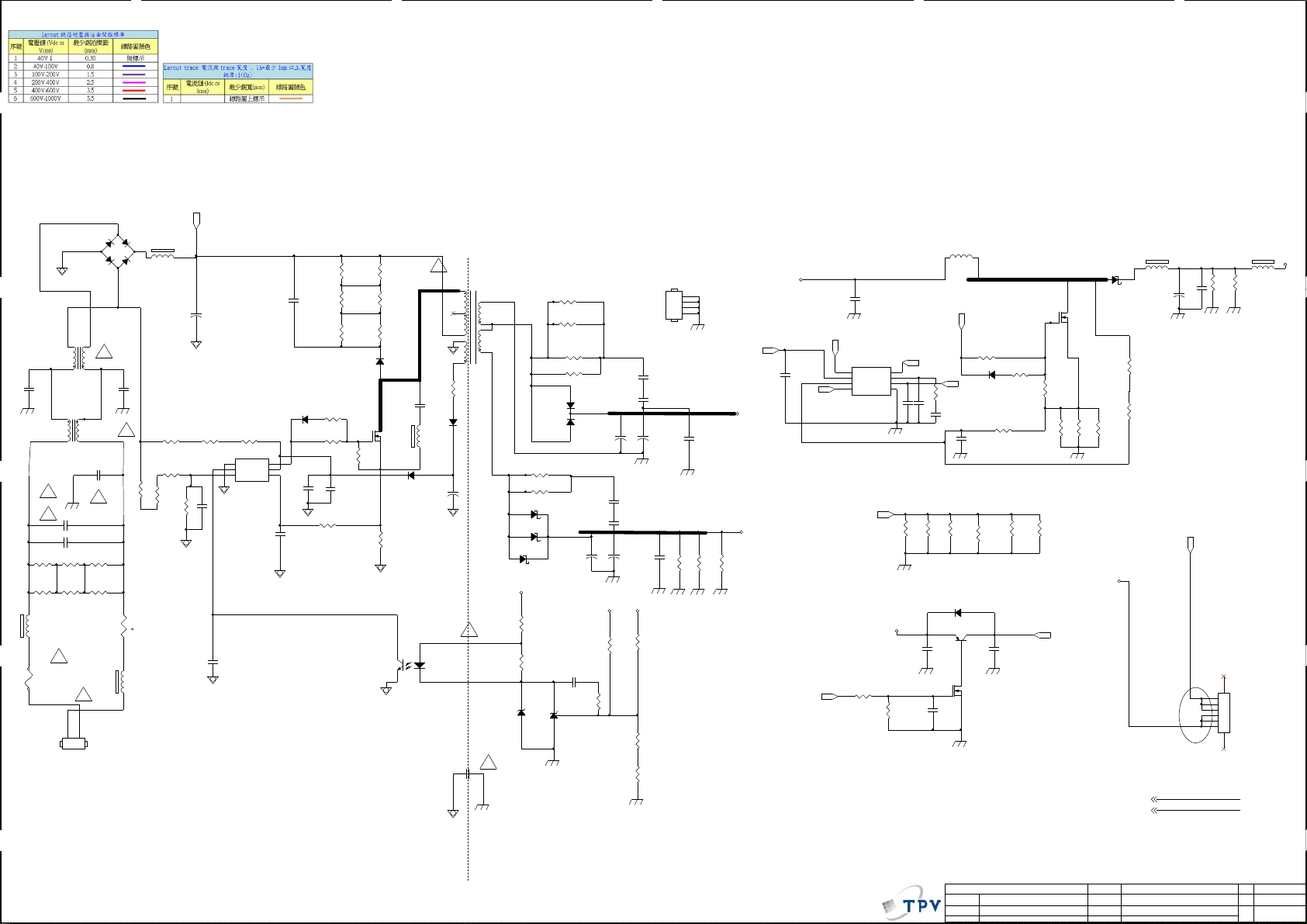

5 4 3 2 1

544332211

5

750K +-5% 1/4W

750K +-5% 1/4W

12

FB9909
BEAD

CONN

C9906
470pF 250V

R9904

R9903

F9901

FUSE

CN9903

4 5 W

124

!

!

R9902

750K +-5% 1/4W

R9905

750K +-5% 1/4W

!

盡ノ

L9901

124

30MH

L9902

4MH

1

4

3

3

C9901
470nF 275V

C9902
330NF 275V

R9906

R9901

!

3

-

!

!

绢仅 

750K +-5% 1/4W

750K +-5% 1/4W

3

2

!

C9904
47pF 250V

R9135
3M3 1%

f or cost

12

12

t

FB9908
BEAD

BD9901

KBP206G

1
1 2

+

C9907
470pF 250V

100K 1/8W 1%

NR9901
3R

T3.5AL/250 V

127R

FB9910

R9104

330K +-1% 1/8W

R9102

3M3 1%

R9101

3M3 1%

R9103

B+

C9101

+

56UF 450V

R9134
330K +-1% 1/4W

C9109
1NF 50V

1
2

C9119
2N2 50V

R9106
330K +-1% 1/4W

IC9101

GND

OUT

FB

VCC

BNO3CS

PF6003AG

For 32　 panelr

FB

R8609

1.2R 1%

R8613

10K OHM +-5% 1/8W
C8607
1NF

C8603

1NF

1.2R 1%
R8606

C8608
100N 50V

C8610

100N 50V

L8102
47UH

OUT

DIM

R8611

1.2R 1%

D8604
1N4148W

Q8603
DTA144WN3/S

47OHM +-5% 1/8W

1N4148W

C8609
22PF

Q8602
2N7002K

Hot

R9118

R9117

82K OHM 1%

82K OHM 1%

R9108

R9107

82K OHM 1%

82K OHM 1%

C9102

2.2NF

R9110

R9109

82K OHM 1%

82K OHM 1%

D9105

SARS01-V1

D9103

1N4148W

R9111
36R 1%

R9112
33R 1%

6
5
4

C9104

1uF

C9105
220P 50V

C9110

R9115

470OHM +-5% 1/8W

1uF

Q9101
AOD2916

R9121
10K OHM +-5% 1/8W

R9114

0.36R

IC9102

EL817M(X)

43

D9104

1N4148W

FB9905
BEAD

1 2

12

C9100
100PF

!

T9101

6

5

4
2

1

POWER X'FMR

R9105
4R7 1/4W 5%

D9106

PR1007G

C9106

+

4.7UF 50V

!

10

8
7

11

R9125

680R 1/8W 1%

ZD9101

BZT52-B15

!

C9905

1.5NF 250V

Cold

R9133
30 OHM 1/4W

R9130

30 OHM 1/4W

D9108 SR510-22

1 2

1 2

1 2

D9109 SR510-22

+12V

R9128
1K5 +-1% 1/8W

1 2

R9141
30 OHM 1/4W

R9140
30 OHM 1/4W

R9129
30 OHM 1/4W

R9116

30 OHM 1/4W

D9107
SR510-22

470UF 25V

C9112

220N 50V

IC9103
AS431AN-E1

3

1

C9123

D9101
FMXA-2202S

2

470UF 25V

C9111

1NF 500V

C9121

1NF 500V

+

C9117

+

+

C9122
470UF 25V

+12V

R9120
24K 1/8W 1%

R9123
10K OHM +-5% 1/8W

+

C9118
470UF 25V

C9113

100N 50V

+16V

R9136
162K 1/8W 1%

R9126
5K1 1/8W 1%

R9131
0 OHM +-5% 1/8W

C9120
2N2 500V

C9107
2N2 500V

100N 50V

HS9101

HEAT SINK

C9108

1
2
3
4

1.4A

R9122

12K 5% 1/4W

2A

R9132

12K 5% 1/4W

R9137

12K 5% 1/4W

+16V

100N 50V

LED_a

Vcc2

C8613
220N 50V

OUT

+12V

+16V

ON/OFF

IC8601
PF7708AS

1

LED

2

VCC

3

CS/OVP
OUT4GND

R8615

1K OHM +-5% 1/8W

GM
DIM

C8612
1NF

FB

FB

8
7
6
5

+12V

R8616
330K 1/8W 5%

R8601

D8602

R8614

1R 1%

R8602

10ohm +/-1% 1/8W

R8608

5.6K 1/4W

C8611
100N 50V

ㄏノ

R8604

0.2oHM 1% 1/4W

R8618

1R 1%

R8603

10K OHM +-5% 1/8W

0.2oHM 1% 1/4W

R8619

1R 1%

Vcc2

Q8601
AOD2916

R8610

D8601

1 2

SR506

Option for cost

R8617

0.2oHM 1% 1/4W

VLED+

FB8101

BEAD

R8607
33K +-1% 1/4W

R8605
33K +-1% 1/4W

ON/OFF3

DIM3

C8602
330UF 50VC8604

1NF 500V

+

LED_a

1 2

For 32　 Connector

ON/OFF

DIM

C8606

R9138

12K 5% 1/4W

6
5
4
3
2
1

7 8

1 2

R9139

12K 5% 1/4W

CN8604

CONN

FB8102
BEAD

VLED+

ㄏノ

Hot

Cold

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

715GXXX-P0X-XXX-XXXX

絬 隔 瓜 絪 腹

715GXXX-P0X-XXX-XXXX

絬 隔 瓜 絪 腹

715GXXX-P0X-XXX-XXXX

Key Compon ent

Key Compon ent

Key Compon ent

01.POWER

01.POWER

01.POWER

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

32 inch

32 inch

32 inch

32A7000

32A7000

32A7000

1 2Friday, July 01, 2016

1 2Friday, July 01, 2016

1 2Friday, July 01, 2016

Size

Size

Size

Re v

Re v

Re v

称 爹

称 爹

称 爹

A2

A2

A2

DDR1

DDR0

DDR

LVDS Connector

VBO & LVDS

USB2.0

USB2.0

WIFI

USB

CI & SIM

& SD

AMP

KEY & IR

EMMC

RJ45

SPDIF

STB

I2S

EMMC

SPDIF

CVBS in

HI3751 AV310

FE

AFE

HDMI1

HDMI

IF & TS

LINE OUT

HDMI0

Tuner
MXL661

Earphone AMP

Headphone
OUT

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

V310

V310

V310

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

2

2

2

21Friday, July 01, 2016

21Friday, July 01, 2016

21Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

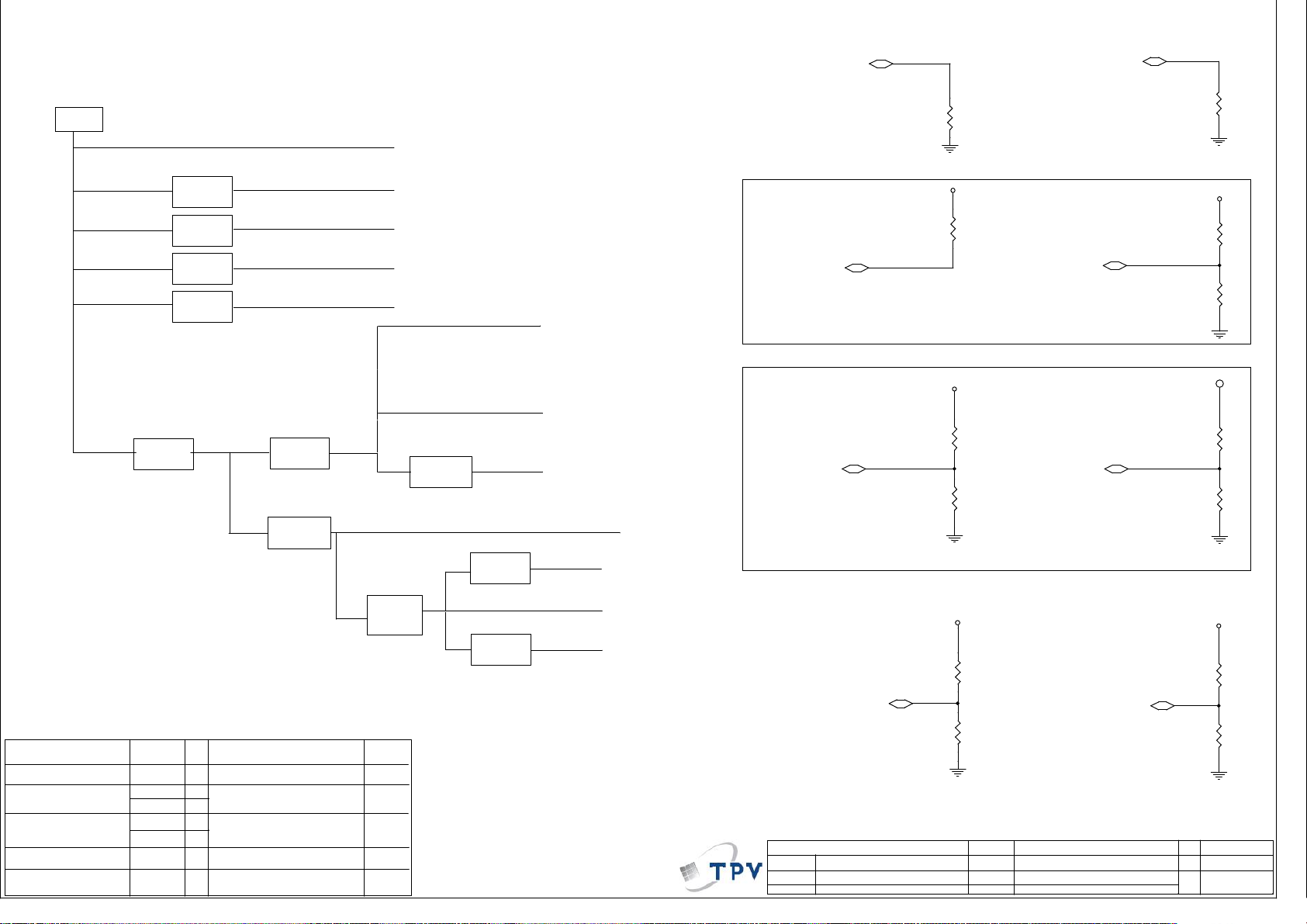

Power tree & Boot strap

12V0

12V0

AMP

CI_ADR13/PCB_L20

CI_ADR13/PCB_L

FUNC_SEL11

2 Layer

R4000

10K

FUNC_SEL

Normal
Function

R4002

1K

1A max

2.5A max

2.5A max

5A max

4A

DC/DC 5A
SY836 6

PANEL

DC DC 2A

SY800 9

DC DC 3A

TPS56 3201

DC DC 3A

TPS56 3201

2.7A max5V_S B

0.8A max

AO444 9

LDO 1A

AZ10 84/AS1117

VCC_ PANEL

TCON

1V5_DDR3

DDR & DDR PHY

CPU_1V1

CPU

VDD_1V1

(Core GPU)

5V0

MOS 1A
NDS336P

0.3 A

LDO

AZ111 7

3V3

5V0

(USB2.0 * 2 & BT)

WIFI_ PWR

WIFI

3V3_ TUN

TUNER

MOS 1A

NDS336P

LDO 1A

TJ4210GDP -ADJ

3V3_ SB

VCC_SD

SD CARD

DVDD33

LDO_1 V2

(QAM AVDDREF FE AFE HDMI)

3V3

R4001

CI_ADR10/BOOT_SEL120

CI_ADR10/BOOT_SEL1

10K

Boot from eMMC

3V3

R4009NC/10KR4008

RF_AGC/JTAG_MUX014 GPIO10_1/JTAG_MUX114

RF_AGC/JTAG_MUX0 GPIO10_1/JTAG_MUX1

R4012NC/10K

A53 JATG

3V3

3V3

CI_ADR12/BOOT_SEL020

10K

CI_ADR12/BOOT_SEL0

10K

R4005

NC/10K

TP400

1

R4004NC/10K

R400610K R4003

3V3_SB

R400710K

Boot Strap Selection

0:2 LAYERS

PCB LAYER

FUNCTION MODE

BOOT DEVICE SEL

JTAG CHANNEL SEL

JTAG CONTROL SEL

POWER ON RESET SEL

PCB_L

FUNC_SEL

BOOT_ SEL0

BOOT_ SEL1

JTAG_M UX1

JTAG_M UX0

JTAG_S EL

POR_SE L US

DS

1:4 LAYERS

0:NORMAL FUCNTION

DS

1:TE ST

0X:SPI FLASH

DS

10:FSD

US

11:e MMC

00:A53 JATG

S

01:DSP JTAG
10:DDRC JTAG

S

11:A53 JTAG

0:registers control JTAG

DS

1:JTAG_MUX0/1 control JTAG

0:reset from RESTIN pin
1:reset from internal POR signal

JTAG_SEL11

JATG MUC0/1

0

0

11

00

1

1

control JTAG

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

V310

V310

V310

JTAG_SEL

POR_SEL11

NC

R4011

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

3

3

3

Shee t o f

Shee t o f

Shee t o f

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Reset from
RESTIN pin

POR_SEL

Re v

Re v

Re v

称 爹

称 爹

称 爹

R4010NC/10K

A3

A3

A3

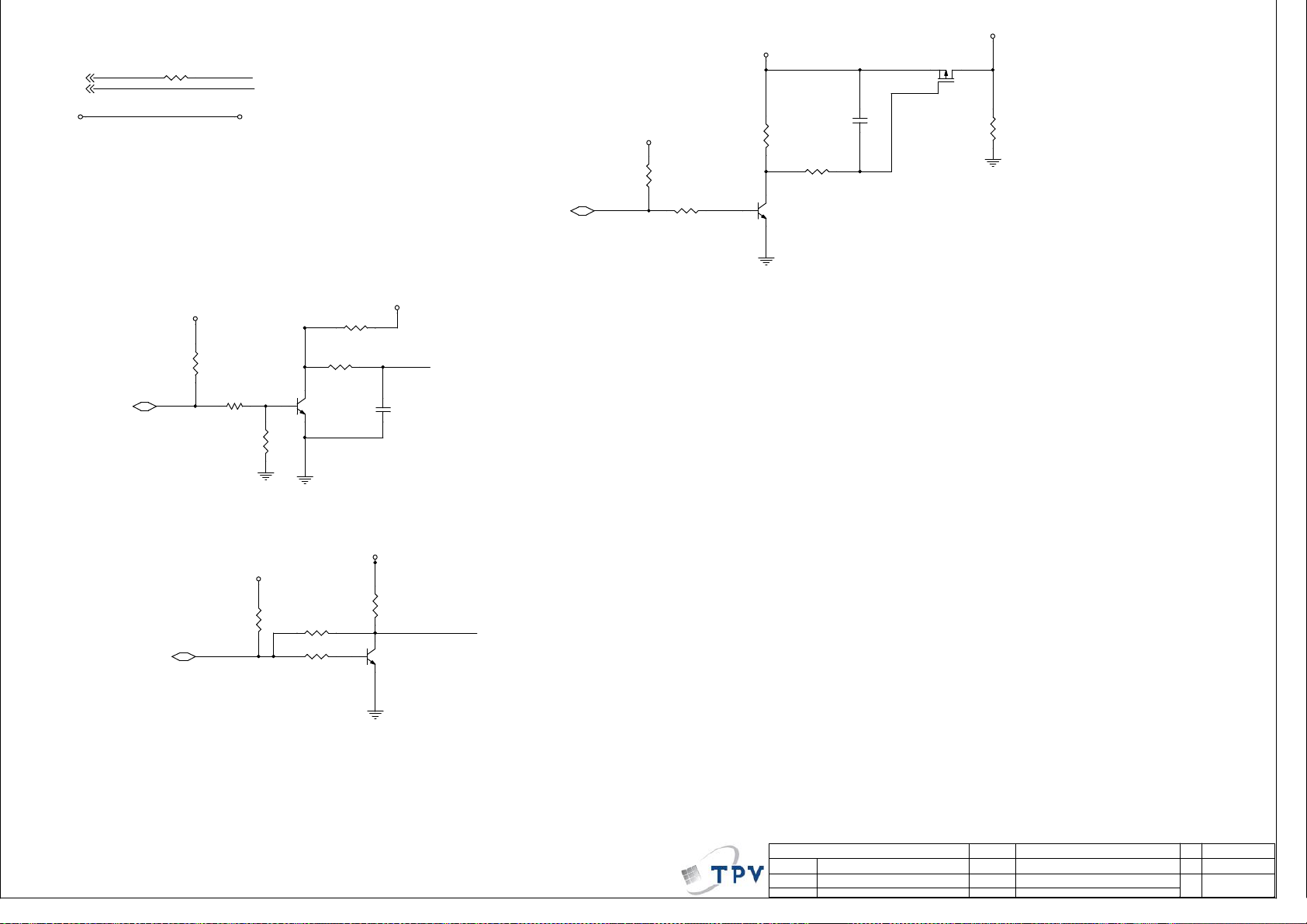

Connetor

ON/OFF

ON/OFF21

PWM_OUT

DIM21

R7020 1K

BL_ON_OFF

5V_SB

Q700
AO3401A

5V0

12V0 +12V

Panel bright control

3V3

R7010

4.7K1/16W

PWM0

PWM011

R7013

4.7K1/16W

Power on off switch

3V3

R7014

4.7K1/16W

R7011

0R05 OHM

Q702
MMBT3904

R7009

10K

3V3

3V3

PWM_OUT

C7007

NC/1UF 6.3V

C7001

3V3_SB

R7017
10K

STB5,11

STB

R7007

10K

R7004
47K

R7006 150K

Q701
MMBT3904

220NF 25V

R7003
NC/10KOHM

R744

R7015
NC/10K

R7050 1K

BL_ON11

BL_ON

H: Backlight OFF
L: Backlight On

R7016 NC/4.7K1/16W

NC/10K

Q703
NC/MMBT3904

BL_ON_OFF

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

4

4

4

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

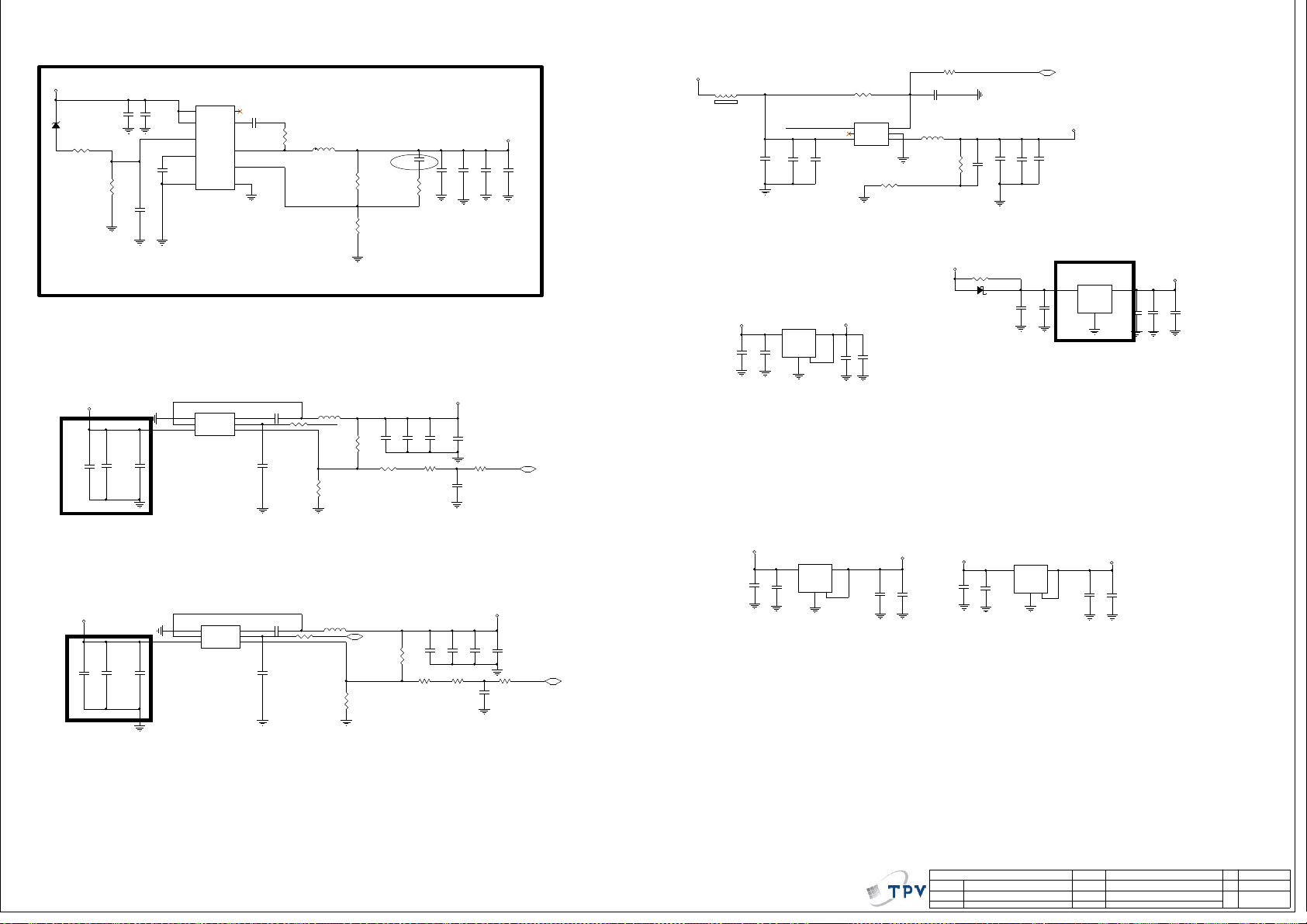

Power supply management

12V0

ZD700

BZX84B6V8

1 3

R731 10K+-5%1/16W

R735
62K 1/16W 1%

Big plane

C714

C715

NC/10uF 16V

10uF 16V

C0805 C0805

C706
NC/100N16V

C732

2.2UF 10V

8

7

1

5

9

U710

IN

IN

EN

VC

GND

SY8366QNC

CPU_1V1

SY8368QNC: Max:8A
Vin 4V~25V

5V_SB

2

C731

PG

0.1uF

6

BS

10

LX

Big plane

4

FB

3

ILMT

Vout = 0.6Vx (1+(R1/R2 )=5.2V

R729

2.2R 1%

2.2u H

L705

2.2UH

R727

R1

105K 1%

R2

Big plane

R728

13.7K 1/16W 1%

C705
2N2 50V

R743

1K1/10W

C730

C729

22UF

22UF

6.3V

6.3V

C0805 C080 5

C733

NC/22UF

6.3V
C0805

5V_SB

C734

NC/22UF

6.3V
C0805

1V5_DDR3

FB700

12

120R 3A

C7015

10UF 6.3V

DDR_PWR_FB

C7016

100N16V

C7017

10UF 6.3V 20%

R7018

4.7K1/16W
U701
SY8009BABC

6

FB

5

NC

4

1

EN

2

GND

LX3IN

R7025
22K 1%

3V3_SB

GND14

3V3_SB

2

C7059

C7063

100N16V

10UF

4

5V_SB

C7055

U706

VI3VO

C7057

100N16V

1UF 10V

R730

STB_GPIO0_0

NC/100OHM

C7011 1UF 10V

L701 4.7uH

C7019

C7018

C7020

22PF 50V

22uF 6.3V

C7014

100N16V

22uF 6.3V

DDR_PWR_FB

R7023
33K 1%

Vout= 0.6x(1+33K/22K)= 1.5V

3V3

5V0

R7033 NC/0 OHM +-5% 1/8W

1 2

D700 SM260A

C7056

100N16V

UZ1084G33TN3R

C7058

1UF 10V

STB_GPIO0_0 11

1V5_DDR3

3

2016/ 02/2 0

C7064

3V3

C7062

C7060

100N16V

10UF

1UF 10V

U707

VOUT2VIN

GND

1

12V0

C7127

10UF 16V

2016/ 02/1 7

12V0

C7128

10UF 16V

2016/ 02/1 7

C7050

NC/10UF 16V

C7070

NC/10UF 16V

1
2

TPS563201DDCR

3A DC-DC For CPU

C7051

100N16V

VDD_1V1

1
2

C7071

100N16V

3A DC-DC For VDD

U703

GND

VBST
SW
VIN3VFB

U708

GND
SW
VIN3VFB

TPS563201DDCR

EN

VBST

C736

C737

22UF

22UF

R7036
100K 1/16W

C738

22UF

R7041

27K 1/16W 1%

CPU_1V1

100N16V

R7037

2.2UF 10V

C739

22UF

R7042

100K 1/16W

C7048

C7065

C740

22UF

R7043

1K

VDD_1V1

C7075

2.2UF 10V

PMC1

C7068

100N16V

PMC1 11

TU3V3

5V0

PMC0

1K

PMC0 11

C7031

U702
G1117-33T63Uf

2

VI3VO

C7032

100N16V

GND14

10UF

4

C7033

TU3V3

C7034

100N16V

10UF

LDO_1V2

3V3

C7042

AZ1117H-1.2TRE1

100N16V

C7043

1UF 10V

U704

VI3VO

GND14

C7044

LDO_1V2

C7045

100N16V

10UF

2

4

C7049100N16V

R7031 1K

220nF 16V

24.9K 1%

100N16V

C7069

R7038 1K

220nF 16V

R7034

L703 2.2UH

STB

16.9K 1%

L704 2.2UH

STB

R7040

24.9K 1%

R7032

R7035

10K

Close to HI3751

STB 4,11

R7039

12.1K 1%

C735

22UF

6
5
4

C7052

6
5

EN

4

C7072

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Compon ent

Key Compon ent

Key Compon ent

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

Size

Size

Size

A2

A2

A2

Re v

Re v

Re v

称 爹

称 爹

5

5

5

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

称 爹

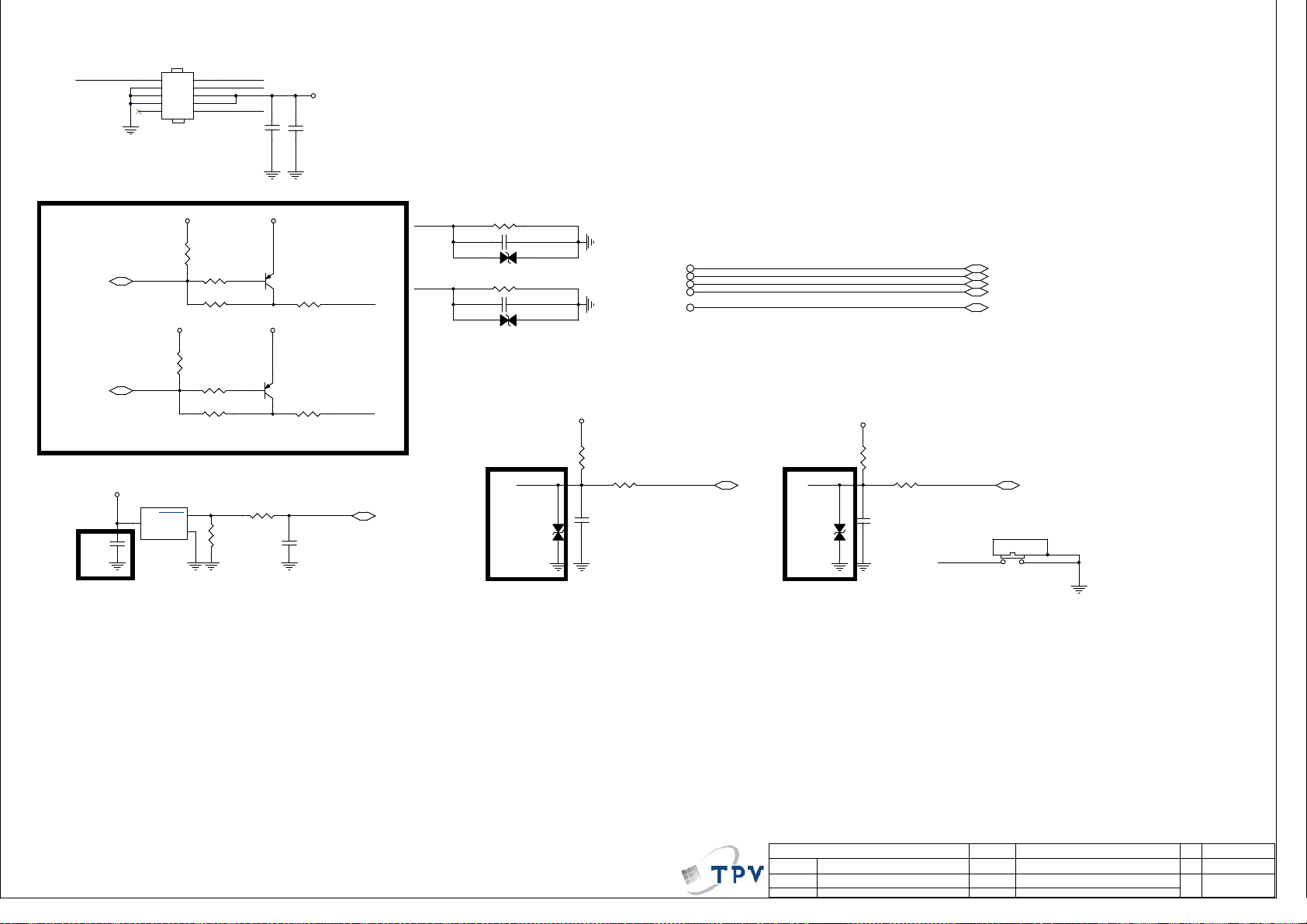

JTAG socket & IR & KEY

CN400

2

LED-B

10

1

4
6
8

CONN

LED-R

3

IR

IR_VCC

5
7
9

KEY0

3V3_SB

C7131 1UF16V

C7130 NC/100NF 25V

LED_R(LED_B):
H = LED OFF
L = LED ON

3V3_SB

LEDR

LEDB

RESET

U400

3

NC/G690L263T73U

LED_PWM11

LEDR_OUT11

LED_B 砞N C

C4003
NC/100N16V

2016/02/17

3V3_SB 3V3_SB

R4109

R4110
NC/10K

Vcc

10K

RES ET

GND

3V3

R4113
NC/1K 1/16W 1%

R4121
0R05 1/16W

R4112
NC/1K 1/16W 1%

R4120
NC/0R05 1/16W

2

1

R4027

NC/100K 1/16W

Q420
NC/MMBT3906

R4101

1.2K 1/16W 1%

3V3_SB

Q421
NC/MMBT3906

R4102
NC/1.2K 1/16W 1%

R4026 NC/2.2K1/16W

C4002 NC/2.2uF 6.3V

RESTIN

LED-R

LED-B

RESTIN 11

LED-R

LED-B

NC/4.7K1/16W

R4042

C4011 NC/0.1uF

1 2

ZD400 NC/MLVG0402

NC/4.7K1/16W

R4043

C4010 NC/0.1uF

1 2

ZD401 NC/MLVG0402

12

ZD403
NC/MLVG0402

3V3_SB

C4008 100pF 50V

R4030
NC/10K+-5%1/16W

R4035
100R 1/16W 1%

TP401
TP402
TP403
TP404

TP405

JTAG

KEY0IR IRIN

12

TSI0_D1/JTAG_TRSTN
TSI0_D3/JTAG_TDI
TSI0_D0/JTAG_TMS

TSI0_D2/JTAG_TCK

TSI0_D4/JTAG_TDO

3V3_SB

R4028
6K8 1%

R4036
1K 1/16W 1%

C4007 0.1uF

LS_ADC0_KEY

SW401

KEY0

TSI0_D1/JTAG_TRSTN 20
TSI0_D3/JTAG_TDI 20
TSI0_D0/JTAG_TMS 20
TSI0_D2/JTAG_TCK 20

TSI0_D4/JTAG_TDO 20

LS_ADC0_KEY 11IRIN 11

3 4
1 2

SW

1
1
1
1

1

ZD404
MLVG0402

2016/02/172016/02/17

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

6

6

6

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

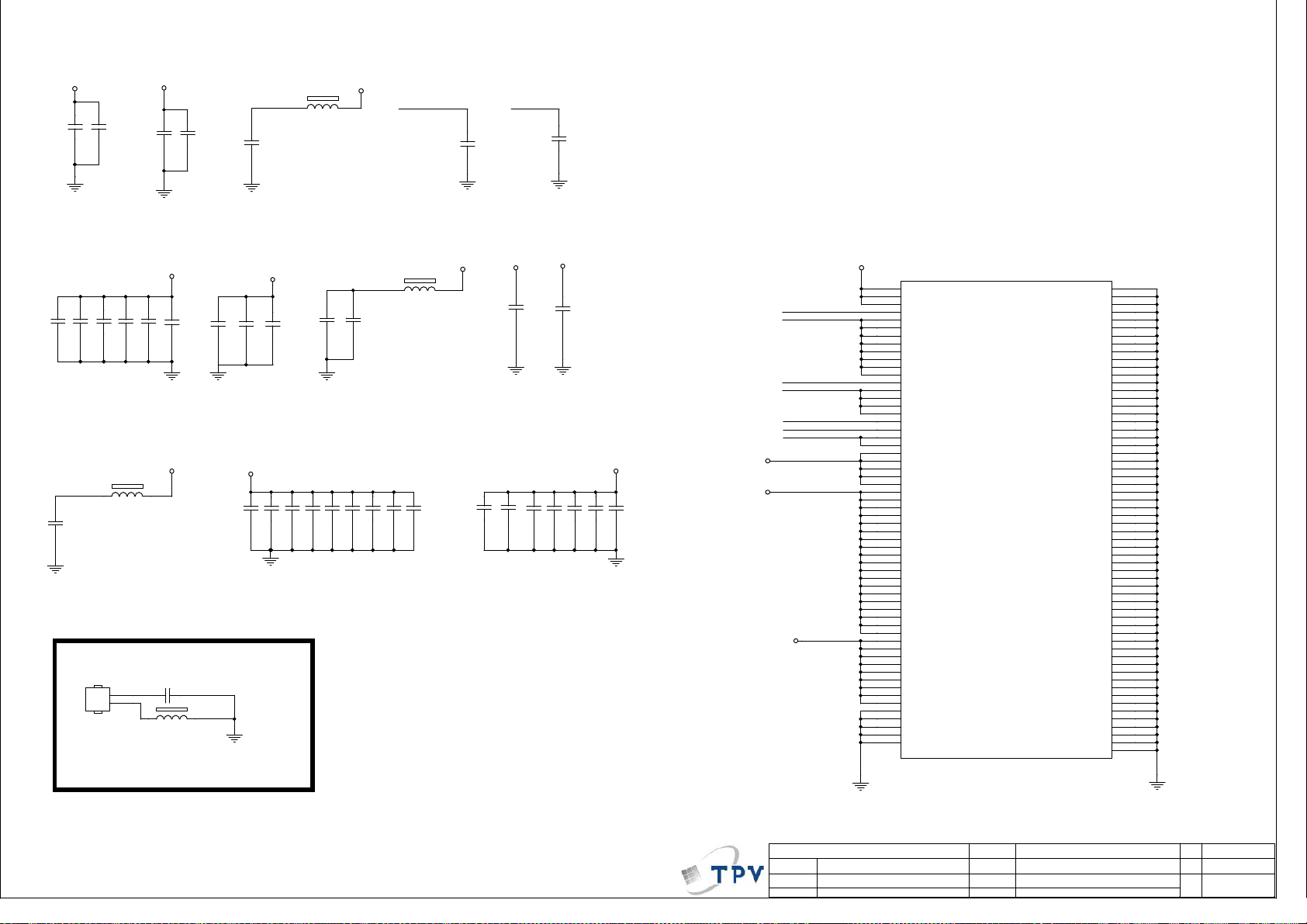

Chip Power

3V3

C7078

C7077

100N16V

100N16V

C7110

PLL_1V1

C7104

C7112

C7111

100N16V

100N16V

100N16V

FB705

1 2

220R

100N16V

Heat sink

HS401
HEAT SINK

1
2

3V3_SB

C7081

C7082

100N16V

100N16V

3V3

DVDD_3V3 FE_3V3

C7113

C7109

C7114

100N16V

1UF 10V

100N16V

VDD_1V1

R7045 22pF 50V

1 2

R7046 600R/200mA

C7106

1UF 10V

PLL_3V3

1UF 10V

C7107

100N16V

VDD_1V1

C7101

22uF 6.3V

C7105

3V3

C7108

C7103

10uF 6.3V

100N16V

FB706

1 2

220R

C7094

C7095

1UF 10V

1UF 10V

C7091

C7096

3V3

AVREF

AVREF

C7100

1UF 10V

LDO_1V2

C7090

C7098

1 2

C7099

1UF 10V

1UF 10V

FB704

120R

REF_1V2

100N16V

1UF 10V

C7097

1UF 10V

1UF 10V

C7080

2.2uF 6.3V

C7083

22uF 6.3V

LDO_1V1_OUT
LDO_1V1_OUT

LDO_1V2

C7079

100N16V

C7084

C7085

10uF 6.3V

1UF 10V

C7076

1UF 10V

LDO_1V2

C7092

1UF 10V

C7086

1UF 10V

C7087

1UF 10V

C7088

1UF 10V

CPU_1V1

C7089

1UF 10V

LDO_1V2

VDD_1V1

CPU_1V1

PLL_3V3
DVDD_3V3

AVREF
FE_3V3

LDO_1V1_OUT
PLL_1V1
REF_1V2

3V3_SB

U401J

C12

DVD D33_ST ANDBY1

D12

DVD D33_ST ANDBY2

E11

AVD D33_HDMI _VBUS

J13

AVD D33_PL L

AB1 2

DVD D33_1

AB1 3

DVD D33_2

AB1 4

DVD D33_3

AB1 5

DVD D33_4

AB1 7

DVD D33_5

AB1 8

DVD D33_6

E4

DVD D33_7

F4

DVD D33_8

AB9

AVR EF

R9

AVD D33_FE

T9

AVD D33_AF E

V9

AVD D33_HDMI RX1

W9

AVD D33_HDMI RX2

F10

DVD D11_LD O1_OUT

K14

AVD D11_PL L

Y13

AVD DREF

Y12

AVD D11_QA M

R10

AVD D11_FE

T10

AVD D11_PL L_AFE

U10

AVD D11_AF E

V10

AVD D11_HDMI RX1

W1 0

AVD D11_HDMI RX2

L14

VDD 1

T14

VDD 2

T15

VDD 3

L15

VDD 4

M14

VDD 5

M15

VDD 6

M16

VDD 7

M17

VDD 8

N14

VDD 9

N15

VDD 10

N16

VDD 11

P14

VDD 12

P15

VDD 13

R14

VDD 14

R15

VDD 15

L16

VDD 16

L17

VDD 17

L13

VDD 18

M13

VDD 19

F8

VDD _CPU1

G8

VDD _CPU2

H8

VDD _CPU3

K10

VDD _CPU4

L10

VDD _CPU5

M10

VDD _CPU6

K11

VDD _CPU7

L11

VDD _CPU8

M11

VDD _CPU9

J14

AVS S_PLL

W1 3

AGNDR EF

AB1 0

VSS 1

R16

VSS 2

K15

VSS 3

Hi3751ARBCV510HM00

W1 8

VSS 63

W1 7

VSS 62

W1 6

VSS 61

W1 5

VSS 60

W1 4

VSS 59

W1 1

VSS 58

V18

VSS 57

V17

VSS 56

V16

VSS 55

V15

VSS 54

V14

VSS 53

V13

VSS 52

V12

VSS 51

V11

VSS 50

U18

VSS 49

U17

VSS 48

U16

VSS 47

U15

VSS 46

U14

VSS 45

U13

VSS 44

U12

VSS 43

U11

VSS 42

T18

VSS 41

T17

VSS 40

T16

VSS 39

T13

VSS 38

T12

VSS 37

T11

VSS 36

R19

VSS 35

R13

MISC Interface of

VSS 34
VSS 33
VSS 32
VSS 31
VSS 30
VSS 29
VSS 28
VSS 27
VSS 26
VSS 25
VSS 24
VSS 23
VSS 22
VSS 21
VSS 20
VSS 19
VSS 18
VSS 17
VSS 16
VSS 15
VSS 14
VSS 13
VSS 12
VSS 11
VSS 10

VSS 9
VSS 8
VSS 7
VSS 6
VSS 5
VSS 4

R12
R11
P19
P18
P13
P12
P11
N19
N18
N13
N12
N11
M19
M18
L19
L18
K19
K18
K17
K16
M12
L12
H7
G7
P16
N17
AB1 6
AB1 1
N10
R17

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

7

7

7

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

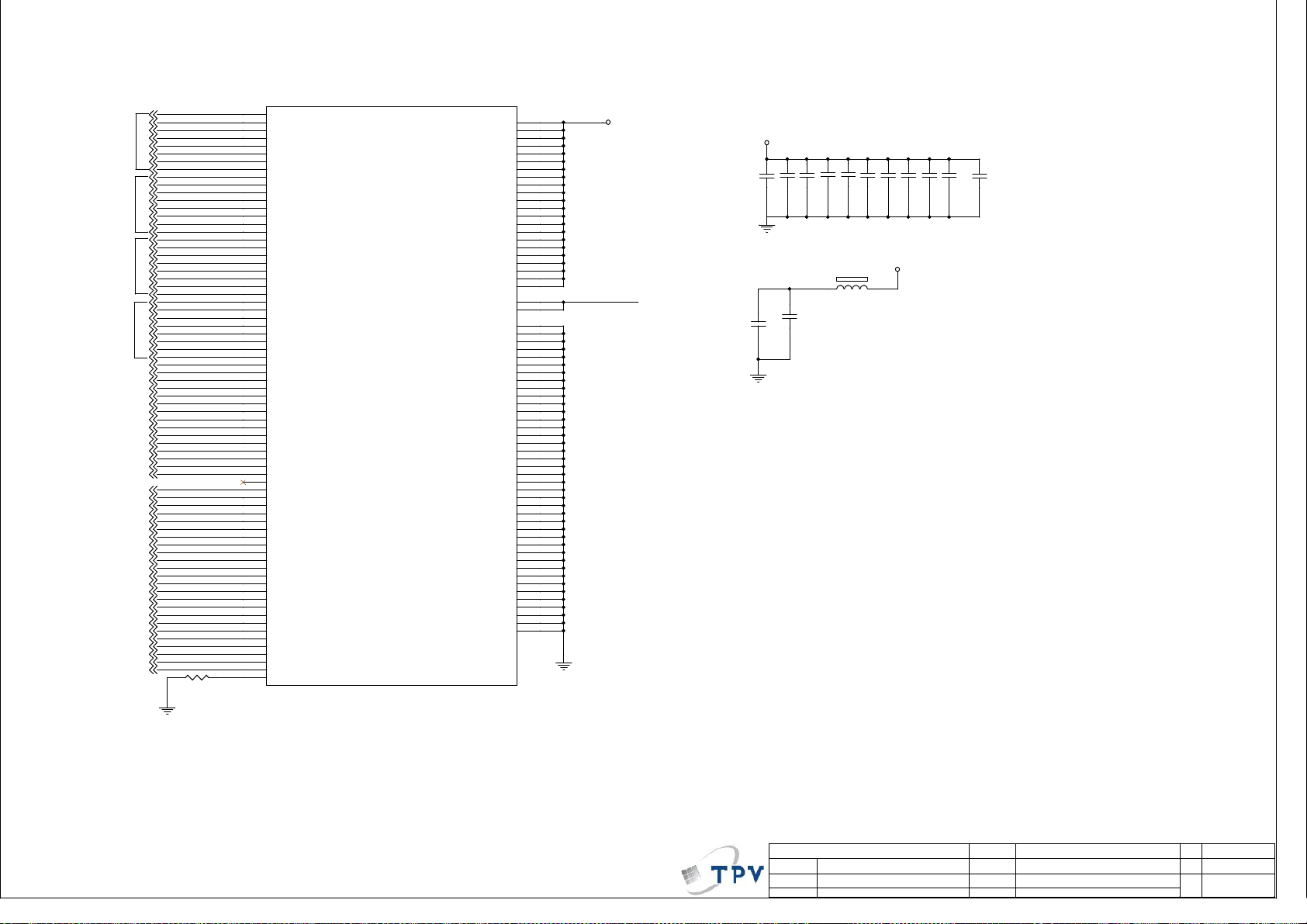

DDRIII_Chip Power

DDR0_DQ3
DDR0_DQ4
DDR0_DQ1
DDR0_DQ0
DDR0_DQ7

0-7

BIT

DDR0_DQ2
DDR0_DQ5
DDR0_DQ6
DDR0_DQ9
DDR0_DQ14
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13

8-15

BIT

DDR0_DQ8
DDR0_DQ15
DDR0_DQ10
DDR0_DQ19
DDR0_DQ22
DDR0_DQ17
DDR0_DQ16
DDR0_DQ21
DDR0_DQ18

16-23

BIT

DDR0_DQ23
DDR0_DQ20
DDR0_DQ27
DDR0_DQ24
DDR0_DQ29
DDR0_DQ26
DDR0_DQ25
DDR0_DQ28

24-31

BIT

DDR0_DQ31
DDR0_DQ30
DDR0_ADDR0
DDR0_ADDR1
DDR0_ADDR2
DDR0_ADDR3
DDR0_ADDR4
DDR0_ADDR5
DDR0_ADDR6
DDR0_ADDR7
DDR0_ADDR8
DDR0_ADDR9
DDR0_ADDR10
DDR0_ADDR11
DDR0_ADDR12
DDR0_ADDR13
DDR0_ADDR14

DDR0_DM0
DDR0_DM1
DDR0_DM2
DDR0_DM3
DDR0_BA0
DDR0_BA1
DDR0_BA2
DDR0_CLK0_P
DDR0_CLK0_N
DDR0_DQS0_N
DDR0_DQS0_P
DDR0_DQS1_N
DDR0_DQS1_P
DDR0_DQS2_N
DDR0_DQS2_P
DDR0_DQS3_P
DDR0_DQS3_N
DDR0_CKE
DDR0_WEN
DDR0_CASN
DDR0_CSN
DDR0_ODT
DDR0_RESETN
DDR0_RASN

R7048

240 OHM

U401I

G26

DDR _DQ0

L24

DDR _DQ1

G27

DDR _DQ2

L23

DDR _DQ3

F28

DDR _DQ4

L28

DDR _DQ5

F26

DDR _DQ6

L26

DDR _DQ7

K27

DDR _DQ8

F25

DDR _DQ9

K26

DDR _DQ10

G24

DDR _DQ11

K23

DDR _DQ12

H23

DDR _DQ13

K24

DDR _DQ14

H24

DDR _DQ15

C23

DDR _DQ16

E27

DDR _DQ17

A23

DDR _DQ18

F24

DDR _DQ19

C22

DDR _DQ20

E26

DDR _DQ21

B22

DDR _DQ22

E25

DDR _DQ23

D26

DDR _DQ24

E21

DDR _DQ25

C26

DDR _DQ26

D21

DDR _DQ27

C27

DDR _DQ28

B24

DDR _DQ29

B28

DDR _DQ30

C24

DDR _DQ31

C17

DDR _ADDR0

D19

DDR _ADDR1

F15

DDR _ADDR2

C15

DDR _ADDR3

E19

DDR _ADDR4

F13

DDR _ADDR5

B18

DDR _ADDR6

D14

DDR _ADDR7

C18

DDR _ADDR8

B16

DDR _ADDR9

E20

DDR _ADDR1 0

F17

DDR _ADDR1 1

A19

DDR _ADDR1 2

F14

DDR _ADDR1 3

D18

DDR _ADDR1 4

D17

DDR _ADDR1 5

J25

DDR _DM0

J23

DDR _DM1

E22

DDR _DM2

D23

DDR _DM3

B14

DDR _BA0

B19

DDR _BA1

A17

DDR _BA2

B20

DDR _CLK0_ P

A20

DDR _CLK0_ N

J28

DDR _DQS0_ N

J27

DDR _DQS0_ P

H27

DDR _DQS1_ N

H28

DDR _DQS1_ P

A27

DDR _DQS2_ N

B27

DDR _DQS2_ P

A25

DDR _DQS3_ P

B25

DDR _DQS3_ N

F19

DDR _CKE

D15

DDR _WEN

D16

DDR _CASN

C14

DDR _CSN

B13

DDR _ODT

C16

DDR _RESET N

D13

DDR _RASN

G13

DDR _ZQ

Hi3751ARBCV510HM00

VSS 40
VSS 39
VSS 38
VSS 37
VSS 36
VSS 35
VSS 34
VSS 33
VSS 32
VSS 31
VSS 30
VSS 29
VSS 28
VSS 27
VSS 26
VSS 25
VSS 24
VSS 23
VSS 22
VSS 21
VSS 20
VSS 19
VSS 18
VSS 17
VSS 16
VSS 15
VSS 14
VSS 13
VSS 12
VSS 11
VSS 10

VSS 9
VSS 8
VSS 7
VSS 6
VSS 5
VSS 4
VSS 3
VSS 2
VSS 1

H18
G18
G22
G21
G20
G19
G17
G16
G15
G14
M22
L22
K22
J22
H22
F23
F22
F21
F20
E24
E23
D24

H16
J21

L27
L25
K25
J26
J24
H26
H25
G25
G23
F27
F18
F16
E28
E18
E17
E16
E15
E14
E13
D27
D25
D22
D20
C28
C25
C21
C20
C19
C13
B26
B23
B21
B17
B15
A28
A26
A22
A16
A14
A13

VDD IO_CK_ DDR

VDD IO_DDR 21
VDD IO_DDR 20
VDD IO_DDR 19
VDD IO_DDR 18
VDD IO_DDR 17
VDD IO_DDR 16
VDD IO_DDR 15
VDD IO_DDR 14
VDD IO_DDR 13
VDD IO_DDR 12
VDD IO_DDR 11
VDD IO_DDR 10

VDD IO_DDR 9
VDD IO_DDR 8
VDD IO_DDR 7
VDD IO_DDR 6
VDD IO_DDR 5
VDD IO_DDR 4
VDD IO_DDR 3
VDD IO_DDR 2
VDD IO_DDR 1

AVD D_DDR_ PLL2
AVD D_DDR_ PLL1

MISC Interface of

1V5_DDR3

AVDD_DDR_PLL

1V5_DDR3

C7116

C7115

470NF 10V

AVDD_DDR_PLL

C7125

100N16V

470NF 10V

C7126

1UF 10V

C7117

100N16V

1 2

C7118

100N16V

FB712

120R

C7119

22uF 6.3V

C7120

1UF 10V

C7121

1UF 10V

3V3

C7122

1UF 10V

C7123

1UF 10V

C7124

1UF 10V

C7129

22uF 6.3V

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

8

8

8

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

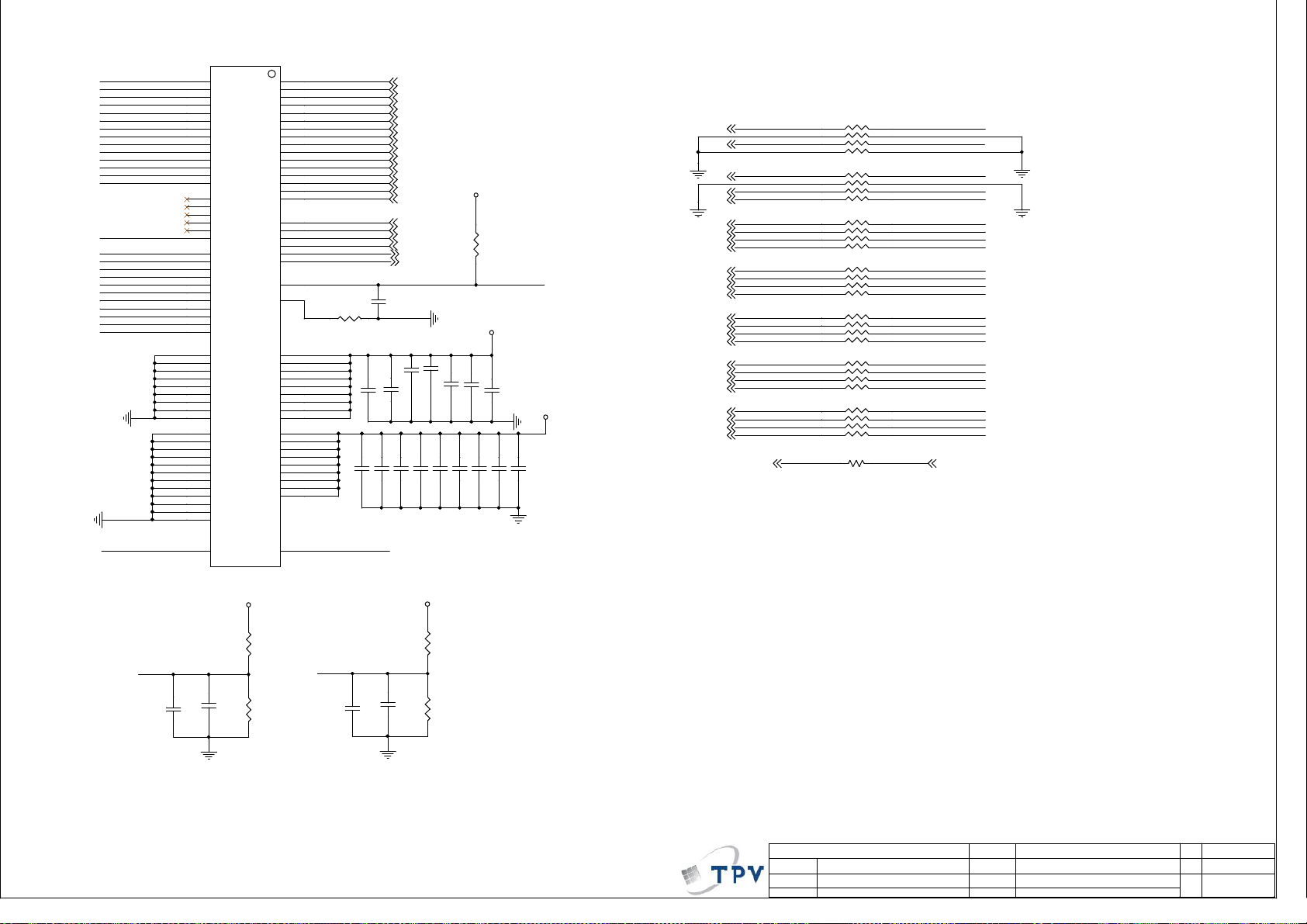

DDRIII_1

ADDR0_1
ADDR1_1
ADDR2_1
ADDR3_1
ADDR4_1
ADDR5_1
ADDR6_1
ADDR7_1
ADDR8_1

ADDR10_1
ADDR11_1
ADDR12_1
ADDR13_1

ADDR14_1

BA0_1
BA1_1
BA2_1
DDR0_CLK0_P
DDR0_CLK0_N
CSN_1
CASN_1
ODT_1
RASN_1
WEN_1
CKE_1

VREF_CA_0

U402

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10 /AP

R7

A11

N7

A12 /BC#

T3

A13

J1

NC_0

J9

NC_1

L1

NC_2

L9

NC_3

M7

NC_4

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK#

L2

CS#

K3

CAS #

K1

ODT

J3

RAS #

L3

WE #

K9

CKE

B1

VSS Q_0

B9

VSS Q_1

D1

VSS Q_2

D8

VSS Q_3

E2

VSS Q_4

E8

VSS Q_5

F9

VSS Q_6

G1

VSS Q_7

G9

VSS Q_8

A9

VSS _0

B3

VSS _1

E1

VSS _2

G8

VSS _3
VSS _4J2VDD _4

J8

VSS _5

M1

VSS _6

M9

VSS _7

P1

VSS _8

P9

VSS _9

T1

VSS _10

T9

VSS _11

M8

VRE FCA

NT5CB256M16DP-EK

1V5_DDR3

DQL 0
DQL 1
DQL 2
DQL 3
DQL 4
DQL 5
DQL 6
DQL 7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS

UDQS#

LDQ S

LDQ S#

UDM
LDM

RES ET#

VDD Q_0
VDD Q_1
VDD Q_2
VDD Q_3
VDD Q_4
VDD Q_5
VDD Q_6
VDD Q_7
VDD Q_8

VDD _0
VDD _1
VDD _2
VDD _3

VDD _5
VDD _6
VDD _8
VDD _7

VRE FDQ

DDR0_DQ0

E3

DDR0_DQ1

F7

DDR0_DQ2

F2

DDR0_DQ3

F8

DDR0_DQ4

H3

DDR0_DQ5

H8

DDR0_DQ6

G2

DDR0_DQ7

H7

DDR0_DQ8

D7

DDR0_DQ9ADDR9_1

C3

DDR0_DQ10

C8

DDR0_DQ11

C2

DDR0_DQ12

A7

DDR0_DQ13

A2

DDR0_DQ14

B8

DDR0_DQ15

A3

DDR0_DQS1_P

C7

DDR0_DQS1_N

B7

DDR0_DQS0_P

F3

DDR0_DQS0_N

G3

DDR0_DM1

D3

DDR0_DM0

E7

T2

L8

ZQ

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7
K2
K8
N1
N9
R9
R1

H1

R4046

240 OHM

VREF_DQ_0

C4020 100N16V

C4018

100N16V

C4021 100N16V

C4012
1N 50V

C4017

100N16V

C4014

C4022 100N16V

1V5_DDR3

1V5_DDR3

R4045

4.7K1/16W

RESETN_1

1V5_DDR3

C4013

C4016

C4015

C4019

470NF 10V

470NF 10V

C4024 100N16V

C4023 100N16V

22uF 6.3V

1UF 10V

1UF 10V

C4025 100N16V

1V5_DDR3

C4026 100N16V

C4027 100N16V

C4028 100N16V

DDR0_RASN

DDR0_ODT

DDR0_CSN

DDR0_BA0
DDR0_ADDR3

DDR0_ADDR5

DDR0_RESETN
DDR0_ADDR9

DDR0_ADDR13
DDR0_ADDR2
DDR0_ADDR0
DDR0_BA2

DDR0_WEN
DDR0_CASN
DDR0_ADDR11
DDR0_ADDR14

DDR0_ADDR8
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4

DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE

DDR0_CLK0_P

RP400

RP401

RP402

RP403

RP404

RP405

RP406

33R

8
7
6
5

33R

8
7
6
5

33R

8
7
6
5

33R

8
7
6
5

33R

8
7
6
5

33R

8
7
6
5

33R

8
7
6
5

DDR0_CLK0_N

RASN_1

ODT_1

CSN_1

BA0_1
ADDR3_1

ADDR5_1
ADDR7_1DDR0_ADDR7
RESETN_1
ADDR9_1

ADDR13_1
ADDR2_1
ADDR0_1

BA2_1

WEN_1
CASN_1
ADDR11_1
ADDR14_1

ADDR8_1

ADDR6_1

ADDR1_1

ADDR4_1

BA1_1
ADDR12_1
ADDR10_1
CKE_1

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

R4047

200R

VREF_CA_0

C4032

100N16V

C4030

1UF 10V

R4049

1K 1/16W 1%

R4051

1K 1/16W 1%

VREF_DQ_0

C4031

100N16V

C4029

1UF 10V

R4048

1K 1/16W 1%

R4050

1K 1/16W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

9

9

9

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

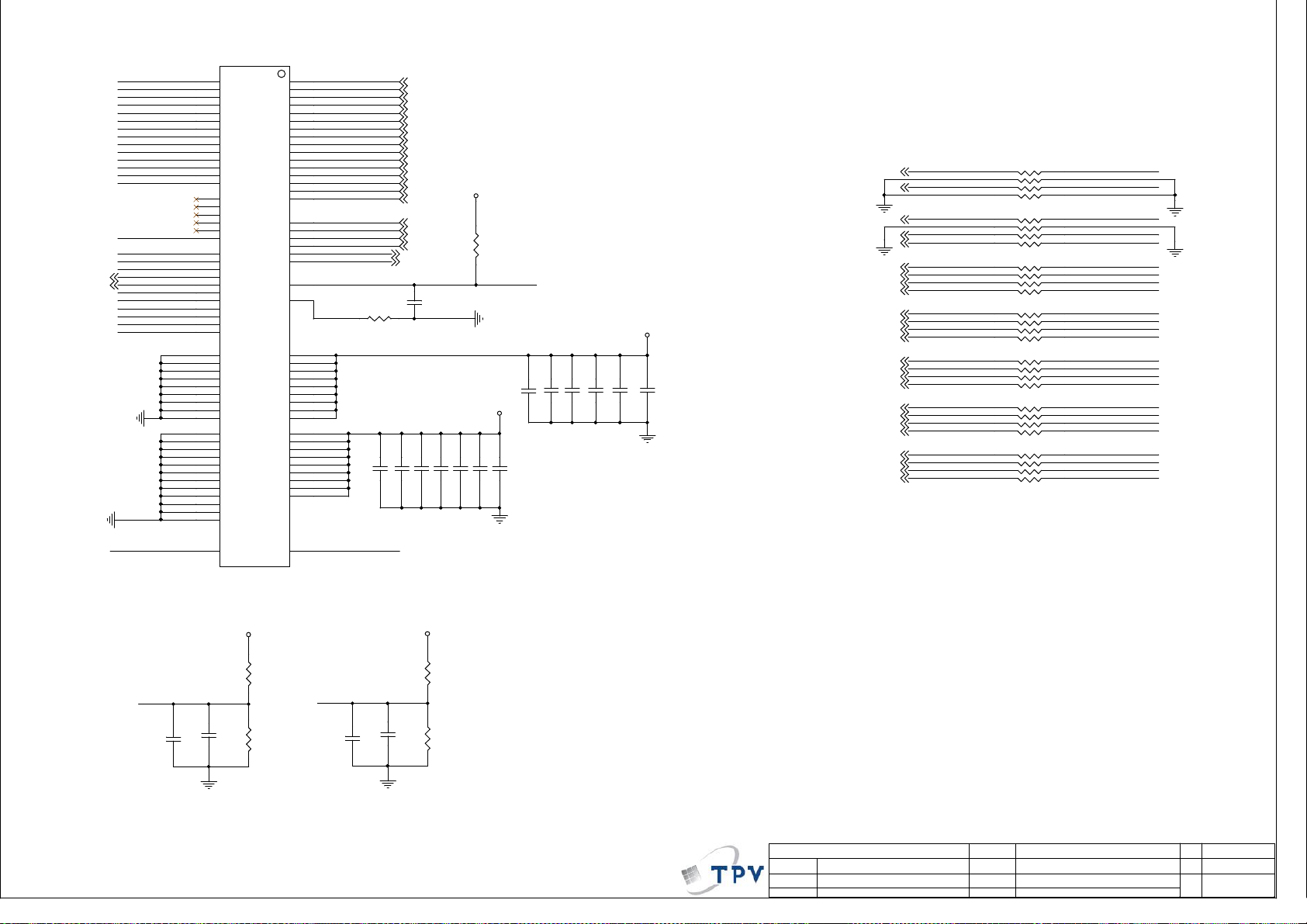

DDRIII_2

ADDR0_2
ADDR1_2
ADDR2_2
ADDR3_2
ADDR4_2
ADDR5_2
ADDR6_2
ADDR7_2
ADDR8_2
ADDR9_2
ADDR10_2
ADDR11_2
ADDR12_2
ADDR13_2

ADDR14_2

BA0_2
BA1_2
BA2_2
DDR0_CLK0_P
DDR0_CLK0_N
CSN_2
CASN_2
ODT_2
RASN_2
WEN_2
CKE_2

VREF_CA_1

U403

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10 /AP

R7

A11

N7

A12 /BC#

T3

A13

J1

NC_0

J9

NC_1

L1

NC_2

L9

NC_3

M7

NC_4

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK#

L2

CS#

K3

CAS #

K1

ODT

J3

RAS #

L3

WE #

K9

CKE

B1

VSS Q_0

B9

VSS Q_1

D1

VSS Q_2

D8

VSS Q_3

E2

VSS Q_4

E8

VSS Q_5

F9

VSS Q_6

G1

VSS Q_7

G9

VSS Q_8

A9

VSS _0

B3

VSS _1

E1

VSS _2

G8

VSS _3
VSS _4J2VDD _4

J8

VSS _5

M1

VSS _6

M9

VSS _7

P1

VSS _8

P9

VSS _9

T1

VSS _10

T9

VSS _11

M8

VRE FCA

NT5CB256M16DP-EK

DQL 0
DQL 1
DQL 2
DQL 3
DQL 4
DQL 5
DQL 6

DQL 7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS

UDQS#

LDQ S

LDQ S#

UDM
LDM

RES ET#

VDD Q_0
VDD Q_1
VDD Q_2
VDD Q_3
VDD Q_4
VDD Q_5
VDD Q_6
VDD Q_7
VDD Q_8

VDD _0
VDD _1
VDD _2
VDD _3

VDD _5
VDD _6
VDD _8
VDD _7

VRE FDQ

DDR0_DQ16

E3

DDR0_DQ17

F7

DDR0_DQ18

F2

DDR0_DQ19

F8

DDR0_DQ20

H3

DDR0_DQ21

H8

DDR0_DQ22

G2

DDR0_DQ23

H7

DDR0_DQ24

D7

DDR0_DQ25

C3

DDR0_DQ26

C8

DDR0_DQ27

C2

DDR0_DQ28

A7

DDR0_DQ29

A2

DDR0_DQ30

B8

DDR0_DQ31

A3

DDR0_DQS3_P

C7

DDR0_DQS3_N

B7

DDR0_DQS2_P

F3

DDR0_DQS2_N

G3

DDR0_DM3

D3

DDR0_DM2

E7

T2

L8

ZQ

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7
K2
K8
N1
N9
R9
R1

H1

VREF_DQ_1

R4053

240 OHM

C4040 100N16V

C4041 100N16V

C4033
1N 50V

C4042 100N16V

C4043 100N16V

1V5_DDR3

C4044 100N16V

R4052

4.7K1/16W

RESETN_2

1V5_DDR3

C4045 100N16V

1V5_DDR3

C4035

C4034

C4039

100N16V

C4046 100N16V

C4036

C4037

C4038

22uF 6.3V

100N16V

470NF 10V

470NF 10V

470NF 10V

DDR0_RASN

DDR0_ODT

DDR0_CSN

DDR0_BA0
DDR0_ADDR3

DDR0_ADDR5
DDR0_ADDR7
DDR0_RESETN
DDR0_ADDR9

DDR0_ADDR13
DDR0_ADDR2
DDR0_ADDR0
DDR0_BA2

DDR0_WEN
DDR0_CASN
DDR0_ADDR11
DDR0_ADDR14

DDR0_ADDR8
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4

DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

RP407

RP408

RP409

RP410

RP411

RP412

RP413

33R

33R

33R

33R

33R

33R

33R

RASN_2

5
6

ODT_2

7
8

CSN_2

5
6

BA0_2

7

ADDR3_2

8

ADDR5_2

5

ADDR7_2

6

RESETN_2

7

ADDR9_2

8

ADDR13_2

5

ADDR2_2

6

ADDR0_2

7

BA2_2

8

WEN_2

5

CASN_2

6

ADDR11_2

7

ADDR14_2

8

ADDR8_2

5

ADDR6_2

6

ADDR1_2

7

ADDR4_2

8

BA1_2

5

ADDR12_2

6

ADDR10_2

7

CKE_2

8

VREF_CA_1

C4050

100N16V

C4048

1UF 10V

1V5_DDR3

R4055

1K 1/16W 1%

R4057

1K 1/16W 1%

VREF_DQ_1

C4049

100N16V

C4047

1UF 10V

1V5_DDR3

R4054

1K 1/16W 1%

R4056

1K 1/16W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

10

10

10

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

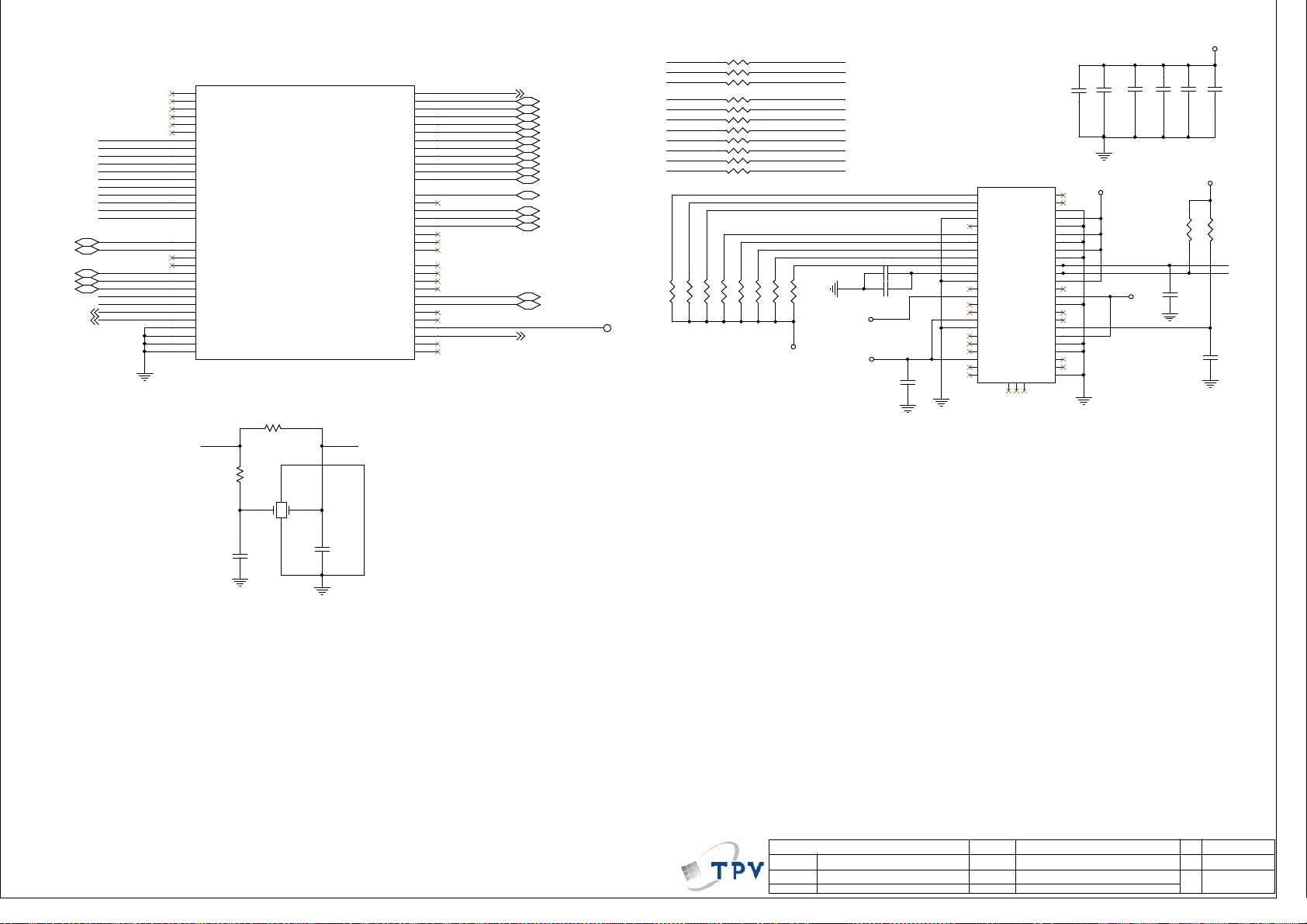

eMMC & eeprom & xtal

MISC Interface of

U401H

AD2 8

SFC _DIO/GP 3_0/SPI 0_DO

AD2 7

SFC _WPN/GP 3_1

AC2 7

SFC _CLK/GP 3_2/SPI 0_CLK

AC2 8

SFC _DOI/GP 3_3/SPI 0_DI

AD2 6

SFC _HOLDN/GP 3_4

EMMC_RST

EMMC_CMD

EMMC_CLK

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7

JTAG_SEL

JTAG_SEL3

SPDIF_OUT16

FUNC_SEL3

POR_SEL3
RESTIN6

AMP_MUTE17

LED_PWM6

SPDIF_OUT

FUNC_SEL
POR_SEL

RESTIN

XIN
AMP_MUTE

LED_PWM

AD2 5

SFC _CS1N/GP 3_5/SPI 0_CSN

D1

EMMC_R STN/GP7 _2

D3

EMMC_C CMD/GP7 _3

C1

EMMC_C LK/GP7 _4

E2

EMMC_D 0/GP7_ 5

F2

EMMC_D 1/GP7_ 6

G4

EMMC_D 2/GP7_ 7

D2

EMMC_D 3/GP8_ 0

E3

EMMC_D 4/GP8_ 1

F3

EMMC_D 5/GP8_ 2

F1

EMMC_D 6/GP8_ 3

G2

EMMC_D 7/GP8_ 4

H3

JTA G_SEL

G1

SPD IF_OUT/G P8_5

G3

VGA _DDC_S CL/GP8_ 6

H4

VGA _DDC_S DA/GP8_ 7

C10

FUNC_S EL

B7

POR _SEL

D10

RES TIN

A9

XOUT

B9

XIN

D9

AMP_MUT E/SGP0 _5

C8

LED _PWM/SG P0_4

A1

VSS 1

B2

VSS 2

C9

VSS 3

E10

VSS 4

Hi3751ARBCV510HM00

R4077

100OHM

R4071

UART 2_TXD/G P7_1/I2 C4_SD A
UART 2_RXD/G P7_0/I2 C4_SC L

PMC1/G P6_5
PMC0/G P6_4

I2S _MCLK/GP 6_0

I2S _BCLK/G P6_1

I2S _WS/GP 6_2

I2S _DOUT/GP 6_3

I2C 0_SCL/G P6_6

I2C 0_SDA/G P6_7

UART 1_TXD/UA RT0_TX D

UART 1_RXD/UA RT0_RX D

MHL_VB US_CTR L/SGP0_ 1

STA NDBY/SGP0 _3

LS_ ADC0/SG P0_6
LS_ ADC1/SG P0_7
LS_ ADC2/SG P1_0
LS_ ADC3/SG P1_1

I2C 1_SCL/G P5_3

LD_ EN/GP4_0 /SCN_EN/SF C_ADD R_MOD

VBO _LOCKN/G P4_4/LV DS_SE L

I2C 1_SDA/G P5_2

SYNC_3 DI/GP5 _1

BRI _PWM0/G P4_5

BLK _ON/GP4_ 6

SYNC_3 DO/GP5 _0

VBO _HPN/GP4_ 3

PW R_EN/GP4 _2

EN_3D /GP4_1

VSYNC_ GLSS/G P4_7

1MOHM 1/16W +/-5%

XINXOUT

X400

24.000MHz

1

3

2 4

C4086
C4087
39pF 50V

39pF 50V

SGP 0_0

IRI N/SGP0_2

B4
B1
D4
C4
C2
C3
A2
A3
A4
B3
C6
B6

D8
A6
C7
A7
A11
B11
C11
D11

N24
N23
M25
M24
M26
N28
M23
N26
N25
N27
P23
P24

GPIO7_1

HP_EN

PMC1
PMC0

I2S_MCLK
I2S_BCLK
I2S_WS
I2S_DOUT
I2C0_SCL
I2C0_SDA
UART1_TXD
UART1_RXD

STB_GPIO0_0

IRIN
STB

LS_ADC0_KEY

PWM0XOUT
BL_ON

RST_TEST
TCON_PWR

GPIO7_1 17

HP_EN 18
PMC1 5
PMC0 5
I2S_MCLK 17
I2S_BCLK 17
I2S_WS 17
I2S_DOUT 17
I2C0_SCL 17
I2C0_SDA 17
UART1_TXD 15
UART1_RXD 15

STB_GPIO0_0 5

IRIN 6
STB 4,5
LS_ADC0_KEY 6

PWM0 4
BL_ON 4

TCON_PWR 12

C4082

100N16V

R4080

10K

C4090

C4083

10PF 50V

100N16V

R4081

47K

3V3

3V3

C4084

100N16V

C4091

NC/100NF

EMMC_CLK

R4067 33 OHM 1/16W

EMMC_CMD

R4068 33 OHM 1/16W

EMMC_RST

R4069 33 OHM 1/16W

EMMC_D0

R4070 33 OHM 1/16W

EMMC_D1

R4072 33 OHM 1/16W

EMMC_D2

R4073 33 OHM 1/16W

EMMC_D3

R4074 33 OHM 1/16W

EMMC_D4

R4075 33 OHM 1/16W

EMMC_D5

R4076 33 OHM 1/16W

EMMC_D6

R4078 33 OHM 1/16W

EMMC_D7

R4079 33 OHM 1/16W

R4084

R4082

R4083

NC

1

TP406

NC

R4086

R4087

R4085

NC

NC

NC

NC

R4088

NC

R4089

NC

3V3

EMMCCK

EMMCCMD

EMMCRSTN

EMMCDAT0

EMMCDAT1

EMMCDAT2

EMMCDAT3

EMMCDAT4

EMMCDAT5

EMMCDAT6

EMMCDAT7

EMMCDAT0

EMMCDAT2

EMMCDAT3
EMMCDAT4
EMMCDAT5
EMMCDAT6
EMMCDAT7

EMMCDAT1

3V3

3V3

100N16V

C4092

C4001

2.2UF 6.3V

U406
THGBMDG5D1LBAIT

A3

DAT 0

A4

DAT 1

A5

DAT 2

A6

VSS

A7

NC

B2

DAT 3

B3

DAT 4

B4

DAT 5

B5

DAT 6

B6

DAT 7

E10

F10

C2

VDD I

C4

Vss q

C5

NC

C6

Vcc q

D4

A1 inde x

E5

NC

E6

Vcc

E7

Vss

E8

NC

E9

NC
NC

F5

Vcc
NC

G3

NC

C4088100N16V

C40894.7UF 10% 10V

NCB1NCC1NC

Vss q
Vcc q
Vss q
Vcc q
Vss q
Vcc q
Vss q

CLK
CMD
Vcc q

Vcc
Vss

RST N

Vcc

VSS

Vss

Vss

NC
NC

NC

NC
NC

DS
NC

P10
P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10
K9
K8
K7
K6
K5
J10
J5
H10
H5
G10
G5

3V3

2.2UF 6.3V

EMMCCK
EMMCCMD

EMMCRSTN

100N16V

3V3

C4081

C4085

N1

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

11

11

11

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

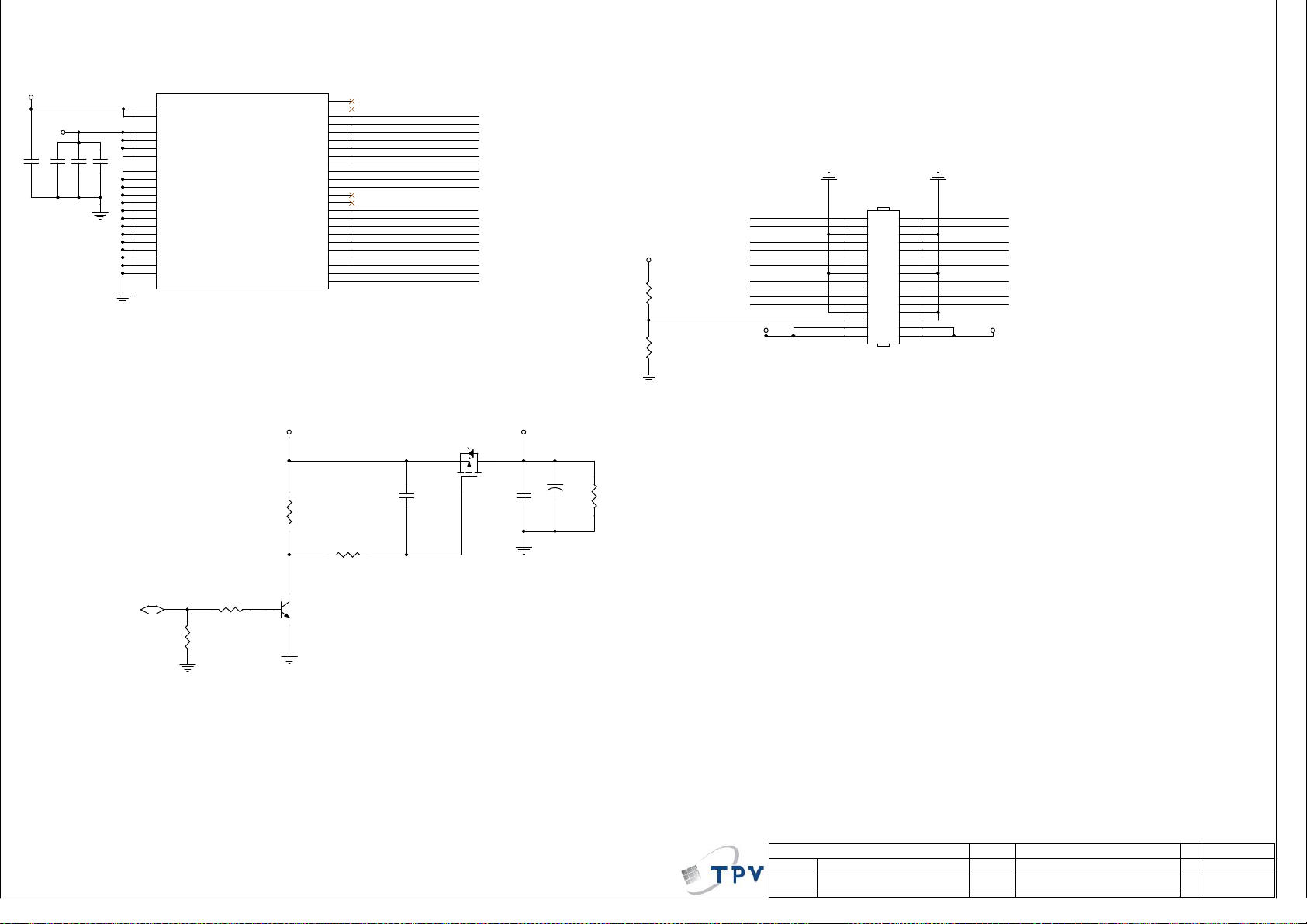

V-BY-ONE socket

MISC Interface of

VDD_1V1

C4100

100N16V

VDD_1V1

C4099

1UF 10V

C4101

100N16V

3V3

C4102

10uF 6.3V

3V3

U401G

T19

AVD D11_LV DS1

U19

AVD D11_LV DS2

T23

AVD D33_PL L_LVDS

U23

AVD D33_LV DS1

V23

AVD D33_LV DS2

W2 3

AVD D33_LV DS3

R23

AVS S33_PL L_LVDS

P25

AVS S_LVDS 1

P26

AVS S_LVDS 2

R26

AVS S_LVDS 3

T24

AVS S_LVDS 4

U26

AVS S_LVDS 5

V24

AVS S_LVDS 6

W2 6

AVS S_LVDS 7

Y24

AVS S_LVDS 8

AA2 6

AVS S_LVDS 9

AB2 4

AVS S_LVDS 10

AC2 4

AVS S_LVDS 11

AC2 5

AVS S_LVDS 12

AC2 6

AVS S_LVDS 13

Hi3751ARBCV510HM00

LVD S1_TEP /VX1_LA NE7P
LVD S1_TEN/V X1_LANE 7N

LVD S1_TCL KP/VX1_ LANE6P
LVD S1_TCL KN/VX1_L ANE6N

LVD S1_TCP /VX1_LA NE5P
LVD S1_TCN/V X1_LANE 5N

LVD S1_TAP /VX1_LA NE4P
LVD S1_TAN/V X1_LANE 4N
LVD S0_TEP /VX1_LA NE3P
LVD S0_TEN/V X1_LANE 3N

LVD S0_TCL KP/VX1_ LANE2P
LVD S0_TCL KN/VX1_L ANE2N

LVD S0_TCP /VX1_LA NE1P
LVD S0_TCN/V X1_LANE 1N

LVD S0_TAP /VX1_LA NEN0P
LVD S0_TAN/V X1_LANE N0N

LVD S1_TDP
LVD S1_TDN

LVD S1_TBP
LVD S1_TBN

LVD S0_TDP
LVD S0_TDN

LVD S0_TBP
LVD S0_TBN

AB2 5
AB2 6
AA2 4
AA2 5

VX1_LANE6P/LVDSBCLKP

AA2 8
AA2 7
Y25
Y26
W2 4
W2 5
W2 8
W2 7
V25
V26
U24
U25

VX1_LANE2P/LVDSACLKP

U28

VX1_LANE2N/LVDSACLKN

U27
T25
T26
R24
R25
R28
R27

LVDSB3P
LVDSB3N

VX1_LANE6N/LVDSBCLKN
VX1_LANE5P/LVDSB2P

VX1_LANE5N/LVDSB2N

LVDSB1P

LVDSB1N

VX1_LANE4P/LVDSB0P
VX1_LANE4N/LVDSB0N

LVDSA3P

LVDSA3N

VX1_LANE1P/LVDSA2P
VX1_LANE1N/LVDSA2N

LVDSA1P

LVDSA1N

VX1_LANE0P/LVDSA0P
VX1_LANE0N/LVDSA0N

R458

NC/1K 1/16W

R461

0R05 OHM

FOR FULL HD PANEL

3V3

LVDS_format

LVDSB3N
VX1_LANE6N/LVDSBCLKN

VX1_LANE5N/LVDSB2N

LVDSB1N
VX1_LANE4N/LVDSB0N

LVDSA3N

VX1_LANE2N/LVDSACLKN
VX1_LANE1N/LVDSA2N

LVDSA1N
VX1_LANE0N/LVDSA0N

CN402

CONN

2

VX1_LANE6P/LVDSBCLKP

4
6

VX1_LANE5P/LVDSB2P

8
10

VX1_LANE4P/LVDSB0P

12
14
16

VX1_LANE2P/LVDSACLKP

18

VX1_LANE1P/LVDSA2P

20
22

VX1_LANE0P/LVDSA0P

24
26
28
30
32

LVDSB3P

LVDSB1P

LVDSA3P

LVDSA1P

VCC_PANELVCC_PANEL

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31

12V0

3

C4116

R4131
150K

100N 50V
R4130
47K

R4132

R4133

4.7K 1/16W

4.7K 1/16W

TCON_PWR11

Q404
MMBT3904

Q401

AO3407A

1

VCC_PANEL

2

R4107

C4093 100UF 16V

C4113 10UF 16V

+

NC/1K 1/4W

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

12

12

12

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

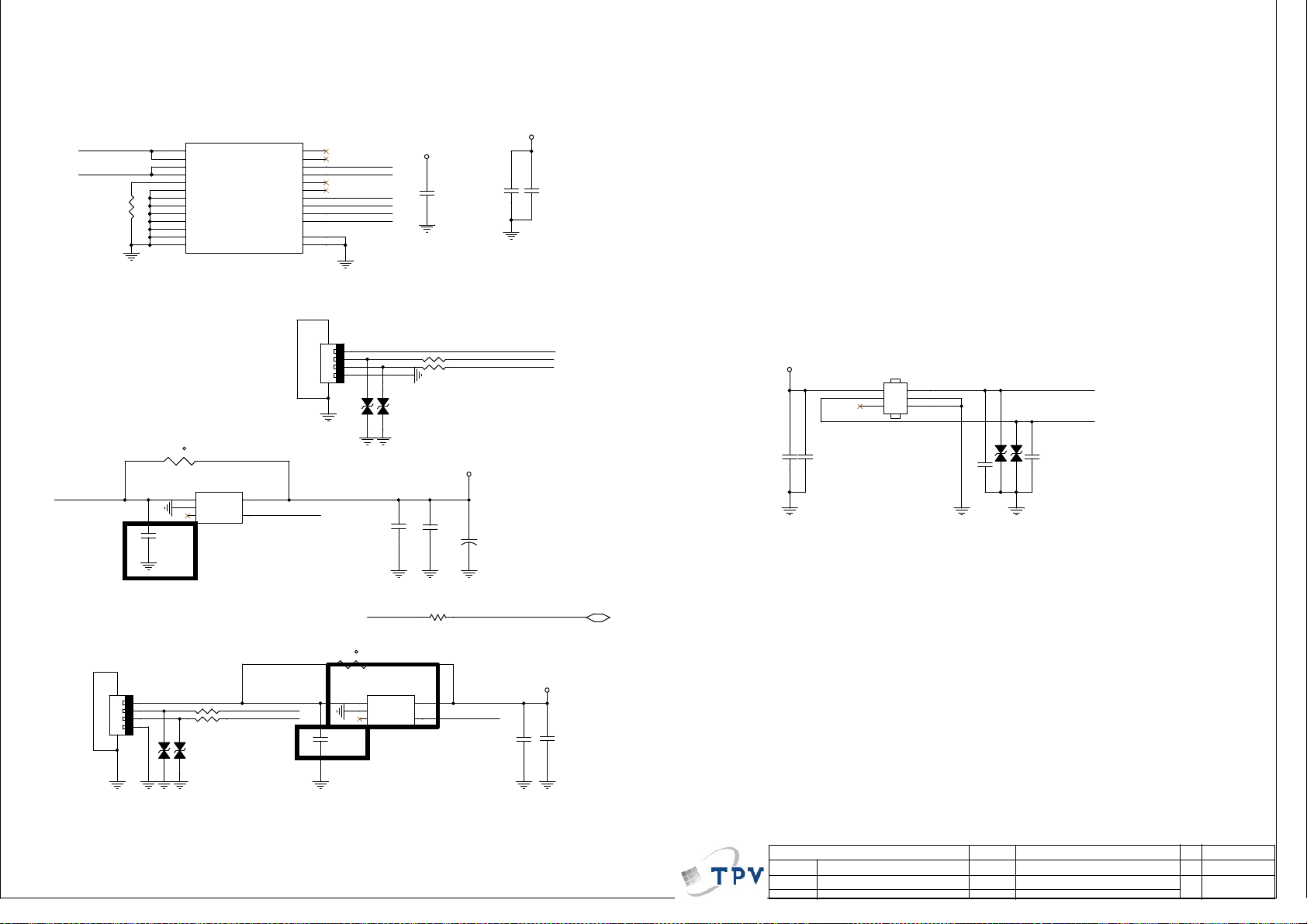

USB2.0 & USB3.0 & WIFI

3V3

VDD_1V1

R101
133R 1/10W 1%

USB2.0 Port

USB3_VBUS

U401F

MISC Interface of

AB2 0

AVD D33_USB 3

AB2 1

AVD D33_USB 2

V19

AVC C11_USB 2

W1 9

DVD D11_USB 3

AD2 4

USB2_ RBIAS

AE2 6

VSS 1

AF2 6

VSS 2

AF2 7

VSS 3

AF2 8

VSS 4

AH27

VSS 5

AH28

VSS 6

AB2 2

VSS 7

AB1 9

VSS 8

Hi3751ARBCV510HM00

TH100
NC/PTCR

1 2

1
2

C109
100N16V

t

U100

G5250M1T1U

OUT
GND
OC3EN

AVS S_USB3_ 2
AVS S_USB3_ 1

5

IN

4

USB3_ TXN
USB3_ TXP
USB2_ DN2
USB2_ DP2
USB3_ RXN
USB3_ RXP
USB2_ DM1
USB2_ DP1
USB2_ DM0
USB2_ DP0

USB-EN

AG2 4
AH24
AF2 5
AE2 5
AG2 6
AH26
AG2 8
AG2 7
AE2 7
AE2 8

AF2 4
AE2 4

USB CONN

CN101

1234

6 5

USB3_DM
USB3_DP

USB2_DM1
USB2_DP1
USB2_DM0
USB2_DP0

1
2
3
4

ZD104

1 2

100N16V

3V3

C100

10uF 6.3V

(2015 -0 9-2 5) X 5R传X6S э到der at ing拜肈.
C101, C1 03

(侣)065G060310605M M ; 10uF/6.3V(0603)
(穝)365G060310606M000A ; 10uF/6.3V(0603)

R108 5.1R 1/16W
R110 5.1R 1/16W

ZD103

1 2

　穝ン

5V0

C102

100N16V

:

1000mA

C107

C108
10UF

C110

+

NC/100UF 16V

VDD_1V1

USB3_VBUS

USB3_DM
USB3_DP

C103

10uF 6.3V

WIFI & BT (Internal)

5V0

C197 10UF 10V

C200 100NF 16V

CN108

2

1

4

3

6

5

C105

4.7pF 50V

USB2_DM1

USB2_DP1

ZD117 NC/MLVG0402

ZD118 NC/MLVG0402

C104

4.7pF 50V

1 2

1 2

2016/02/17

USB2.0 Port

USB CONN

CN102

1

1234

2
3
4

ZD100

6 5

1 2

1 2

R109 5.1R 1/16W
R111 5.1R 1/16W

ZD101

R191

USB2_DM0
USB2_DP0

TH101

NC/PTCR

1 2

1
2

C115
100N16V

USB-EN

t

U101

G5250M1T1U

OUT
GND
OC3EN

IN

5

4

USB-EN

100OHM1/16W

500mA

C112
100N16V

э 5V_U S B

　

2016/02/17

U1 01パG5 250 K 1T1 U(1. 5 A ) эG5250M 1 T 1 U ( 1A)
for cost down(2016/01/25)

USB-EN1

5V0

C113

10UF

USB-EN1 20

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

13

13

13

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

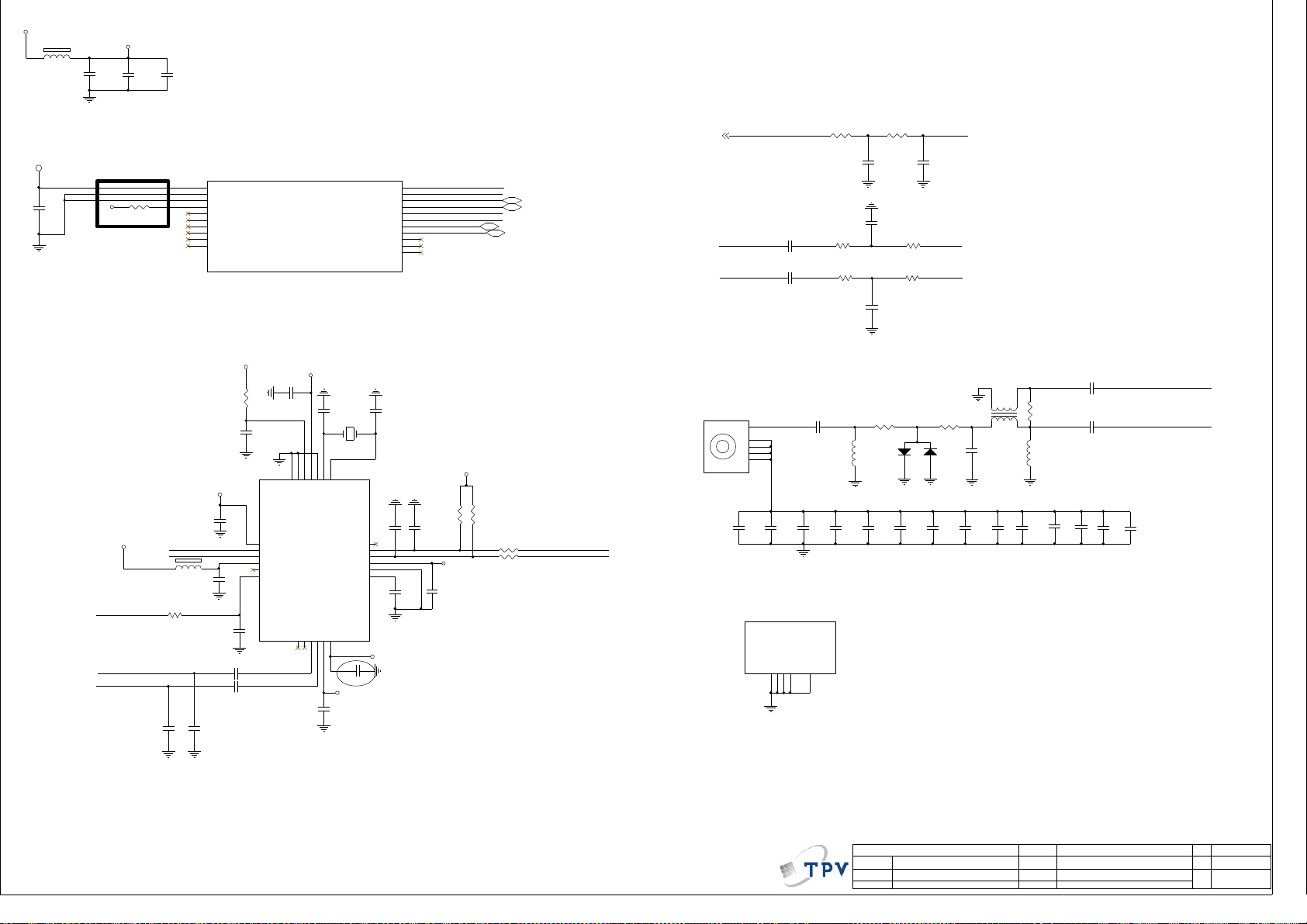

TU3V3

DVDD18_OUT

FB100

1 2

1000

C121

1UF 10V

C130
10UF

3V3_TUN

C132

C131

100N16V

10PF 50V

10K

0R05 OHM
R113

R112

Tuner

U401D

AB8

AF10

W12

3V3

R116

4.7K 1/16 W

AF12
AD10
AC11
AE11
AD12
AC12
AE12

Hi3751ARBCV5 10HM00

MISC Interface of

DVDD1833_ LDO_OUT
AVSS_QAM1
AVSS_QAM2
SD_CDZ/GP11_7
SD_PWREN/TSI1_SYNC/GP12_0
SD_CWPR/TSI1_D0/GP12_1
SD_CLK/TSI1_D3/GP12_4
SD_CCMD/TSI1_D4/GP12_5
SD_D3/TSI1_D5/GP12_6
SD_D2/TSI1_D6/GP12_7

I2C2_SDA/PWM2/GP10_3

I2C2_SCL/PWM1/GP10_2

AGC_SEL/JTAG_MUX1/GP10_1

RF_AGC/JTAG_MUXO/GP10_0

QAMAD_VINNI

QAMAD_VINPI
TSI1_VLD/GP13_2
TSI1_CLK/GP13_1

TSI1_D7/GP13_0
SD_D0/TSI1_D2/GP12_3
SD_D1/TSI1_D1/GP12_2

TUNER_SDA

AE9

TUNER_SCL

AD9

GPIO10_1/JTAG_MUX1

AC8

RF_AGC/JTAG_MUX0

AC9
AH10

IF-

AG10

IF+

EAR_DET

AE10

LEDR_OUT

AC10
AF9
AF11
AD11

GPIO10_1 /JTAG_MUX1 3
RF_AGC/JTAG_MUX0 3

EAR_DET 17

LEDR_OUT 6

IFN_SOC

IFP_SOC

Near 3751

C120

1UF 10V

C122

1UF 10V

0R05 OHM

R114

0R05 OHM

R117

C118

47NF 16V

C117
33PF 50V

R115

R118

C124
33PF 50V

100OHM

100OHM

IF_AGC_TUXGRF_AGC/JTAG_MUX0

C119

47NF 16V

IF-

IF+

VDD_1V8_SOB

IF_AGC_TUXG

IFP_SOC

IFN_SOC

R125

C149

47pF 50V

100N16V

SOB_LNA_INP
SOB_LNA_INN

FB101 1000

100N16V

100OHM

3V3_TUN

C137

12

C140

100N16V

C148

47pF 50V

3V3_TUN

R119

510K 1%

C136

1UF 10V

U102
MxL661-AG- R

C143

C144 100N 16V

C146 100N 16V

1

VDD_3p3

2

LNA_INP

3

LNA_INN

4

VDD_1p8

5

AGC_2/GPO_3

6

AGC_1

10NF 50V

25

VDD_1V8_SOB

C133

21

22

23AS24

E-PAD

VDD_1p8

RESET_N

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

GND_XTAL

20

C198
NC/2.7pF

1 2

XTAL_N19XTAL_P

12

C147
100N16V

X100

16MHz

CLK_OUT

SDA

VDD_IO
GND_DIG
VDD_1p2

C145

100N16V

3V3_TUN

SCL

C138
33PF 50V

18
17
16
15
14
13

VDD_1V8_SOB

C199
NC/2.7pF

R121

4.7K1/16 W

C139
33PF 50V

3V3_TUN

C142

C141

2.2nF 50V

Change from 1u to

0.1u follow Max 's
advice on 12/17

100N16V

3V3_TUN

R122

4.7K1/16 W

R123 100OHM
R124 100OHM

TUNER_SDA
TUNER_SCL

TU_GND

C178

NC

C126
470pF 50 0V

C181

4.7nF 1KV

RF CONN

5

4
3
2
1

TU100

C179

4.7nF 1KV

1206 1206 1206 1206 1206 1206 120 6 1206 1206

C182

4.7nF 1KV

R147
0R05 OHM

L102
NC/0.33uH

C183

4.7nF 1KV

2

C176

4.7nF 1KV

3

R148
0R05 OHM

D100
BAV99

1

C175

NC

High voltage isolation

Shield Cover

SH102

11223344ANT

5

C129
NC/1pF 50V

C177

NC

C125
1N 50V

C128
1N 50V

C135

4.7nF 1KV

SOB_LNA_INP

SOB_LNA_INN

C161

C168

4.7nF 1KV

4.7nF 1KV

reserve on bottom on 3/28

L101
75R

4

3

R171
NC/1K 1/16 W 1%

1

2

L103
NC/0.56uH

C127

4.7nF 1KV

C134

NC

C180

4.7nF 1KV

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

14

14

14

Sheet of

Sheet of

Sheet of

23Friday, July 0 1, 2016

23Friday, July 0 1, 2016

23Friday, July 0 1, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

Custom

Custom

Custom

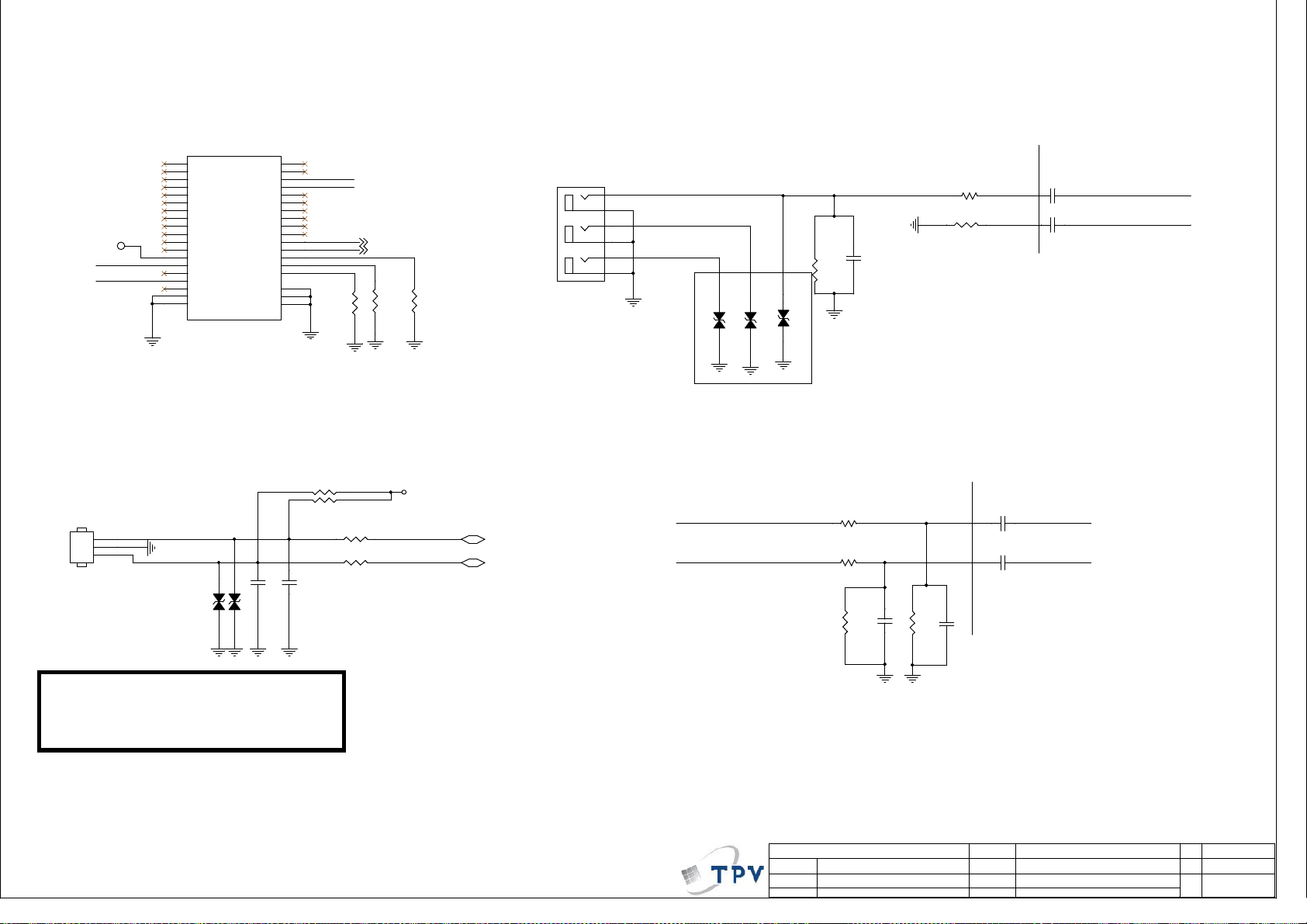

MIC & YPBPR & AV IN & CVBS OUT

MISC Interface of

U401C

LINE IN_L3

LINE IN_L2

LINE IN_L1

MIC_ P
MIC_ N

AG6
AF6
AG5
AH6
AG7
AF7
AD8
AD7
AE8
AF8
AE6
AE5
AH8
AG8
R6

P5
P4
N4

LINEIN_R2

LINEIN_L2

LINEOUT_L1
LINEOUT_R1

R131

10K 1%

LINEOUT_L1 16
LINEOUT_R1 16

R129

10K+-5%1/16W

TP100

CVBS_VCOM

CVBS1_IN

N3

SOG

M3

VGA _GN

L2

VGA _BP

M2

VGA _GP

N2

VGA _RP

M4

VGA _HS0

L1

VGA _VS0

N1

Y0N

R3

SOY0

P1

PB0 Y

P3

1

Y0P

P2

PRO Y

T5

VDA C1_OUT

T4

CVB S_COM

R2

CVB S0

R4

CVB S1

R5

CVB S2

T6

VSS 2

M5

VSS 1

Hi3751ARBCV510HM00

LINE IN_R3

LINE IN_R2

LINE IN_R1

LINE OUT_R3

LINE OUT_L3

LINE OUT_R2

LINE OUT_L2
LINE OUT_L1

LINE OUT_R1

BG_ RES_10 K

AVS S_AFE3
AVS S_AFE2
AVS S_AFE1

R130
10K+-5%1/16W

CN103

A

B

C

RCA JACK

CVBS Input

2

1

4

3

6

5

AV1_IN

AV1_L

AV1_R

ZD112

1 2

穝糤

ZD1 12 , Z D1 13

Close to RCA port

33R 1/16W 5%

R126

R127 33R 1/16W 5%

C152

R128

NC/47pF

75R 1/16W 1%

ZD102

ZD113

1 2

1 2

NC/VPORT0603100KV05

NC/VPORT0603100KV05

NC/VPORT0603100KV05

Close to HI3751

C150
47NF 16V

C151
47NF 16V

CVBS1_IN

CVBS_VCOM

CN104

CONN

　埃

CN108(UAR T debu g connector )

(2016/01/27)

UART
Debug

1
2
3

UART_TX UART1_TXD

UART_RX

ZD405

ZD406 MLVG0402

C155

MLVG0402

1 2

1 2

R132 10K +-1% 1/16W
R133 10K +-1% 1/16W

C156

NC/100N 16V

NC/100N 16V

R161

R162

100OHM1/16W

100OHM1/16W

5V_SB

UART1_RXD

UART1_TXD 11

UART1_RXD 11

CVBS Audio IN

AV1_R

R134 10K

R135

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

10K

R136

NC/470P 50V

12K 1/16W

C157

R137

C158

NC/470P 50V

12K 1/16W

Close to HI3751

LINEIN_R2

C153
1UF 10V

LINEIN_L2AV1_L

C154
1UF 10V

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

15

15

15

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

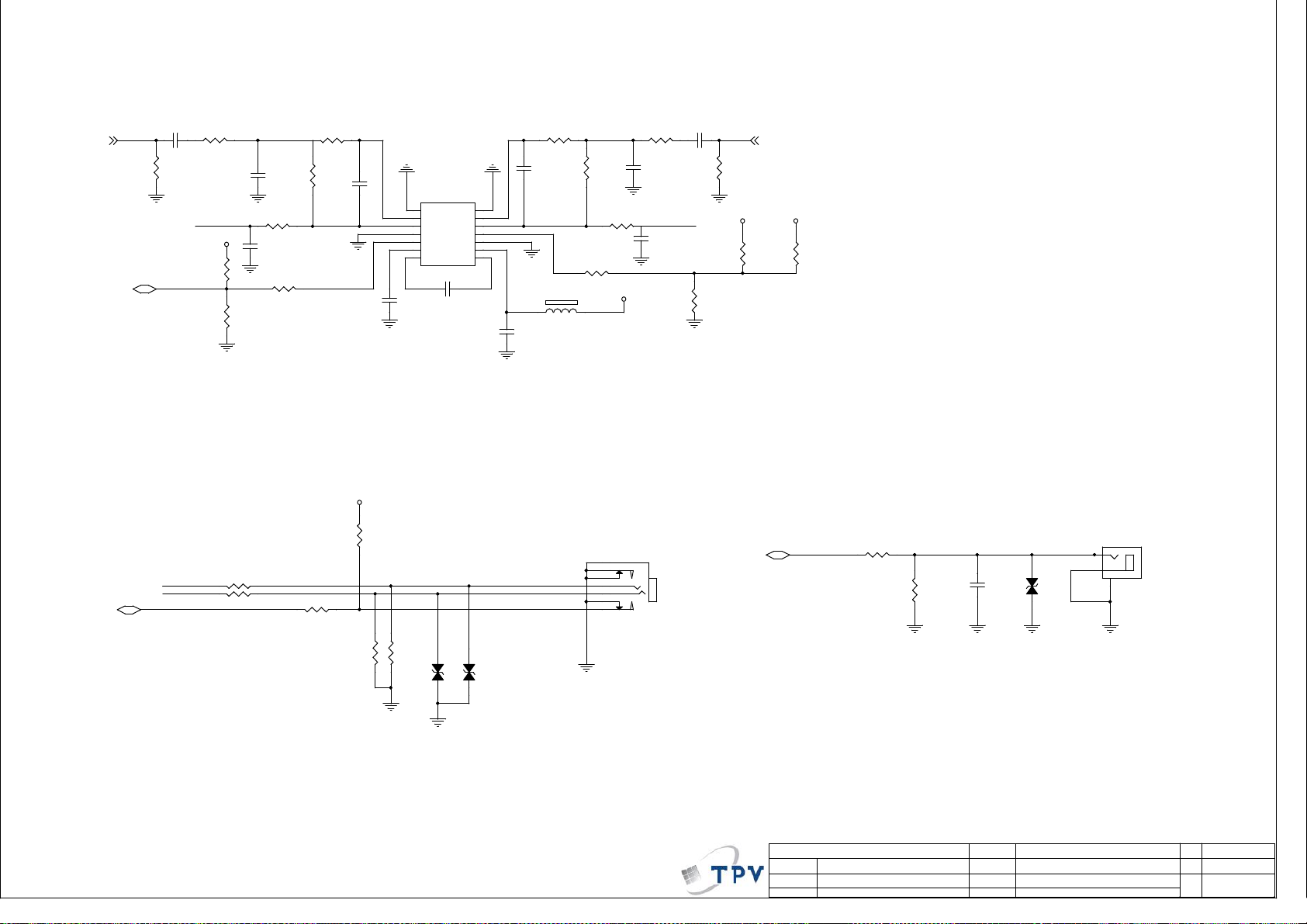

Audio Output

R661

R659

20K 1/16W

C656
680PF 50V

3V3

CN603

C7132
1NF

C601

4.7UF 10% 10V

1.5KOHM +-5% 1/16W

R620

1K

SPDIF_OUT11

LINEOUT_R1 16LINEOUT_L116

R623
470K 1/16W 5%

3V3 12V0

R610

R626
NC/1.5KOHM +-5% 1/16W

R609

SPDIF_OUT

100OHM

R617

100OHM

C603

330pF 50V

12

ZD603

NC/MLVG0402

CN601

2

1

NC/RCA JACK

3

A

C602

4.7UF 10% 10V

R7049

470K 1/16W 5%

NC/10K+-5%1/16W

HP_EN11

A_OUT_L
A_OUT_R

EAR_DET11

R622

20K 1/16W

C655

680PF 50V

A_OUT_L A_OUT_R

R658

R625

10K+-5%1/16W

R611 10 OHM
R612 10 OHM

R660

3V3

560R 1/16W 5%

C654
1NF

R621

1K 1/16W 1%

R613

5.1K 1%

R618

82KOHM +-5% 1/16W

R656 1K

47pF 50V

HP_SDN

H: ENABLE
L: MUTE

1UF 10% 16V

3V3

C607

R655

10K

U600
AD22650-QH14NAT

1
2
3
4
5
6

C608

LINP

RINP

LINN

RINN

OUTL

OUTR

SGND

UVP

EN

PGND

PVS S

PVD D

CN7CP

C605
1UF 10% 16V

47pF 50V

14
13
12
11
10
9
8

FB600 120R 6A

C604
1UF 10% 16V

R619 5.1K 1%

C657

R614

82KOHM +-5% 1/16W

560R 1/16W 5%

R624 30Kohm 1/16W +/-5%

12

Vuvp=(1.25-6uAxR624) x(Rup +Rdow n)/Rdo wn=2. 675V

1
7
6
2
3
4
5

R615
100K

R616
100K

ZD601 MLVG0402

ZD600 MLVG0402

12

12

2016/02/22

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Dat e

Dat e

Dat e

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Shee t o f

Shee t o f

Shee t o f

16

16

16

23Friday, July 01, 2016

23Friday, July 01, 2016

23Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A3

A3

A3

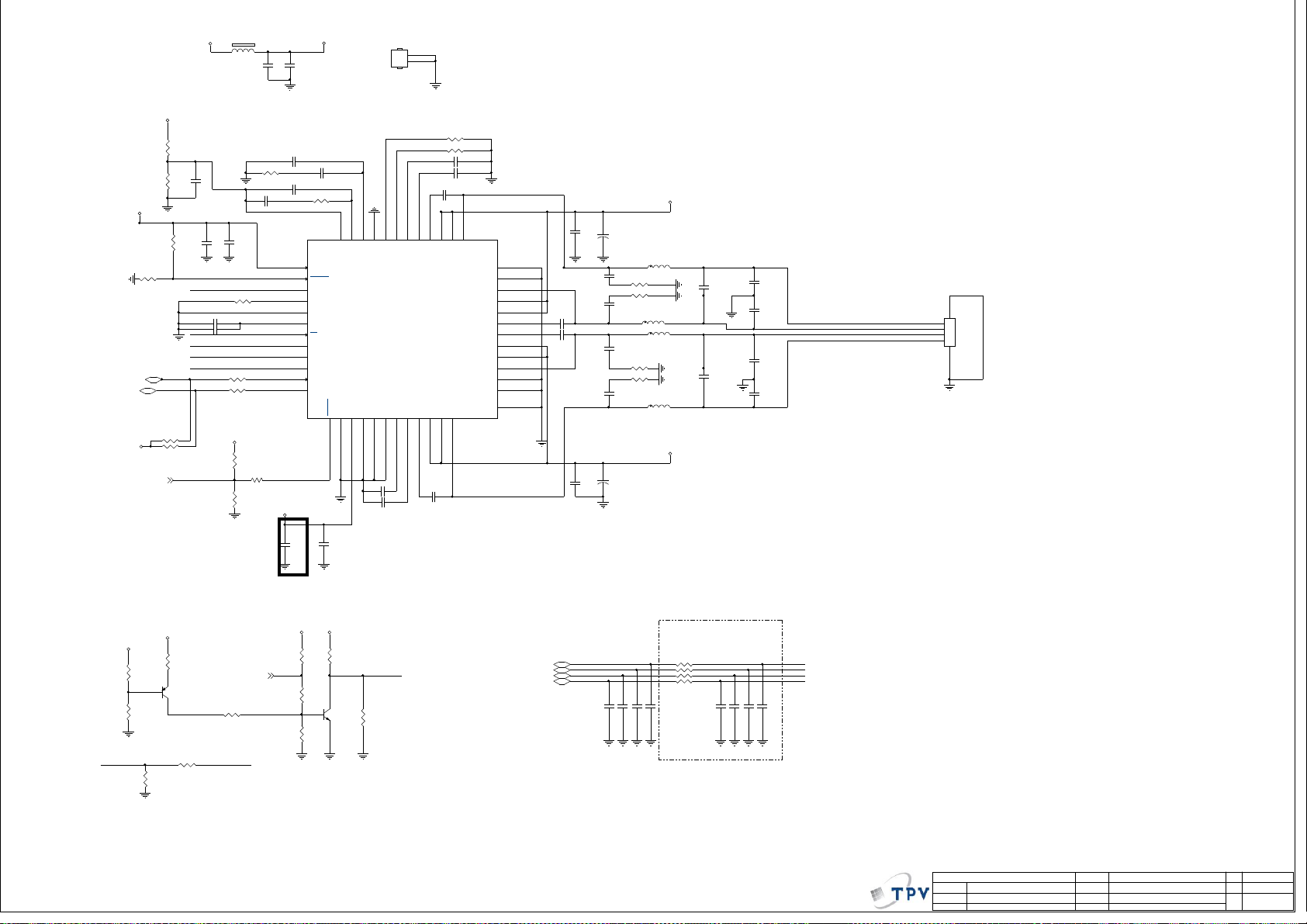

I2C0_SCL11

AMP_3V3

I2C0_SDA11

AMP_3V3

R651
10K 1/16W 5%

AMP_3V3

R628

NC/15K 1%

R630

NC/18Kohm 1/1 6W +/-1%

R650
NC/10K

I2C0_SDA

I2C0_SCL

R644 4.7K 1/16W
R643 4.7K 1/16W

GPIO7_111

3V3

FB601

1 2

120R

C624

NC/10NF 50V

C612

C630

10UF

I2S_MCK

C644 NC/4.7UF 10% 10V
C610 NC/100N16V

I2S_LRCLK

I2S_BCK

I2S_SD

R642 33R 1/16W 5%

R641 33R 1/16W 5%

AMP_3V3

R645

NC/1M 1/16W

GPIO7_1

R653

10K

C619

100N16V

R647
NC/470 OHM 1/16W

C646 NC/47NF 16V

100N16V

R629
NC/18.2K 1%

AMP-MUTE/

R631

1K

AMP_RESET/

C629
10UF

C642 NC/4.7NF 50V

C643 NC/4.7NF 50V

13

14

15

16

17

18

19

20

21

22

23

24

AMP_3V3

AMP_3V3

HEAT SINK

C645 NC/47NF 16V

R646 NC/470 OHM 1/16W

8

9NC10NC11NC12

DVDD

ERROR

MCLK

NC

NC

NC

PD

LRCIN

BCLK

SDATA

SDA

SCL

DGND

U601

AD82584D

RESET25NC26NC29NC30NC31NC32NC33VDDRB34VDDRA

DVDD27DGND

28

C609 NC/100N16V

C633 NC/1UF 10% 16V

HS601

7

PBTL

CLA_OUT

1
2

R649 0R05 OHM

R636 NC/22K 1/16W 5%

C649 NC

C632 NC/1UF 10% 16V

C638

NC/33nF 50V

3NC4NC5NC6

35

36

C641

NC/33nF 50V

1

LA

VDDLA2VDDLB

Thermal_G ND

RA

GNDLA

GNDLB

VDDLB

VDDRB

GNDRB

GNDRA

12V0

C617

C621

+

0.1uF
100UF 35V

48

47

46

LB

45

NC

44

43

NC

42

NC

41

40

NC

39

RB

38

37

49

C640 NC/33nF 50V

C639 NC/33nF 50V

470P 50V

C615

0.1uF

470P 50V

470P 50V

470P 50V

C626

0603

C627

0603

0603

C628

0603

C625

+

100UF 35V

L603 22 uH

R638 10 OHM

1206

R637 10 OHM

1206

L601 22 uH

L600 22 uH

1206

R640 10 OHM

R639 10 OHM

1206

L602 22 uH

C620

0805

C647

0805

NC/330nF

0805

C648

NC/330nF

12V0

C613

680NF 16V

C616

0805

680NF 16V

0805

C618

680NF 16V

0805

C614

680NF 16V

L+
L­R+
R-

CONN

CN602

4
3
2
1

L+
L­R+
R-

5 6

4Pin R/A 2.0mm
311GW200A04 ABX

12V0

R605

NC/301K 1%

R606

NC/100K 1/16W

AMP_MUTE

H: Normal
L: MUTE

3V3

R604

NC/1K

Q601

NC/MMBT3906

Line_PH_POP/

R652 NC/1K

R654
NC/4.7K 1/16W

AMP_MUTE11

R607 NC/1K

AMP-MUTE/

C631

10UF

2016/ 02/2 0

3V3_SB

R602

4.7K 1/16W

AMP_MUTE

R648
47K

R608

NC/10K

C611

100N16V

3V3

R603

4.7K 1/16W

Q600
MMBT3904

AMP-MUTE/

R627
100K 1/16W

Need close to scaler

I2S_BCLK

I2S_BCLK11
I2S_MCLK11
I2S_DOUT11
I2S_WS11

I2S_MCLK
I2S_DOUT
I2S_WS

C651

NC/22P 50V

C650

C652

C653NC/22P 50V

NC/22P 50V

NC/22P 50V

R634 22 OHM 1/16W
R635 22 OHM 1/16W
R632 22 OHM 1/16W
R633 22 OHM 1/16W

C637

22PF 50V

I2S_BCK
I2S_MCK
I2S_SD
I2S_LRCLK

C63522PF 50V

C634

C636

22PF 50V

22PF 50V

Size

A2

Size

A2

Size

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

Key Compon ent

Key Compon ent

Key Compon ent

17.AMP

17.AMP

17.AMP

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

32 inch

32 inch

32 inch

TBD

TBD

TBD

17 21Friday, July 01, 2016

17 21Friday, July 01, 2016

17 21Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A2

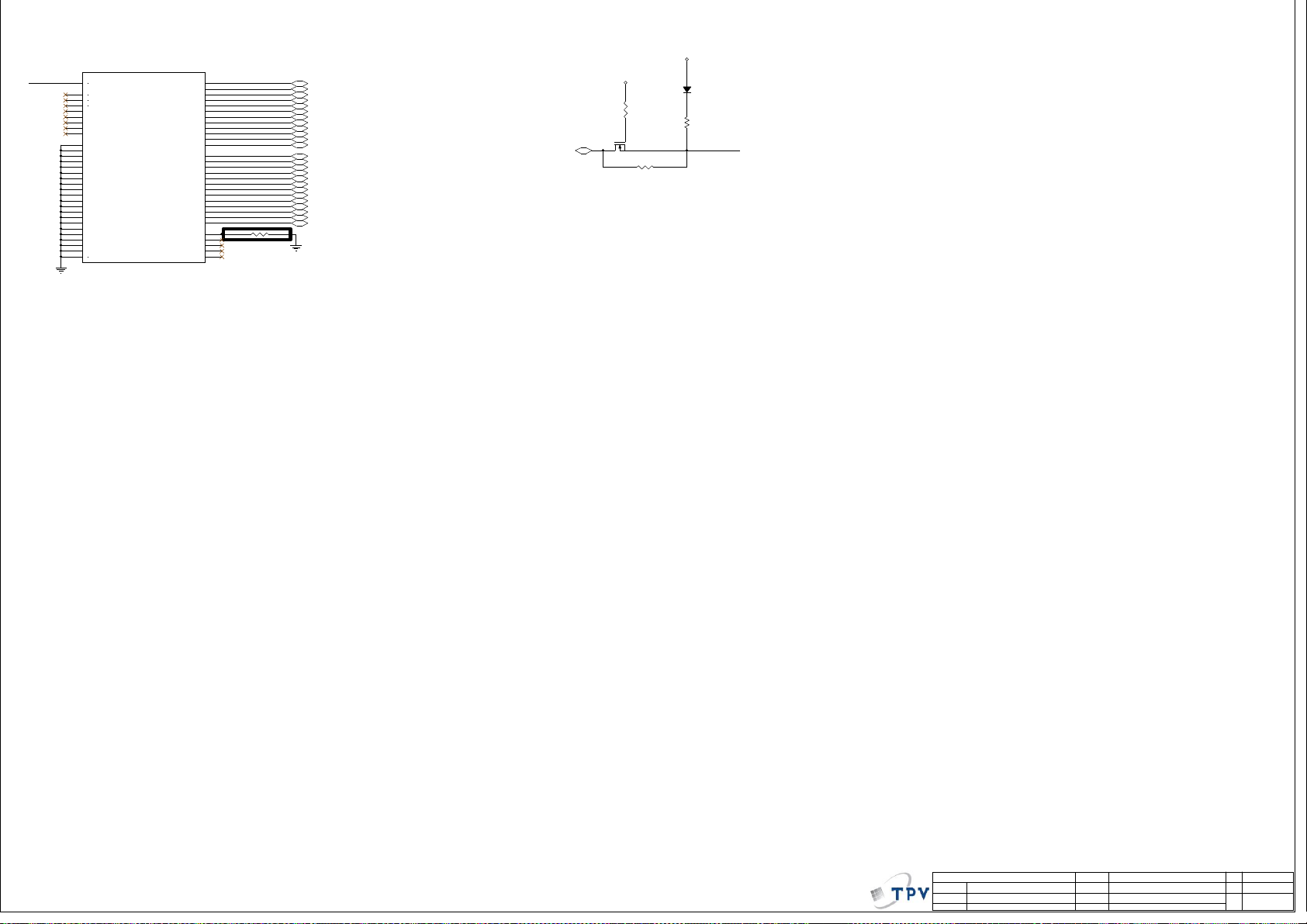

HDMI0 & MHL

HDMI_CEC

U401B

U5

HDMI_CEC/SGP2_6

AE2

HDMI_R0XCP

AE1

HDMI_R0XCN

AF4

HDMI_R0X0P

AF3

HDMI_R0X0N

AG2

HDMI_R0X1P

AG1

HDMI_R0X1N

AH4

HDMI_R0X2P

AH3

HDMI_R0X2N

U3

AVSS_HDMIRX1

U4

AVSS_HDMIRX2

V5

AVSS_HDMIRX3

W3

AVSS_HDMIRX4

W4

AVSS_HDMIRX5

Y5

AVSS_HDMIRX6

AA3

AVSS_HDMIRX7

AA4

AVSS_HDMIRX8

AB5

AVSS_HDMIRX9

AC3

AVSS_HDMIRX10

AC4

AVSS_HDMIRX11

AD5

AVSS_HDMIRX12

AE3

AVSS_HDMIRX13

AE4

AVSS_HDMIRX14

AF5

AVSS_HDMIRX15

AG3

AVSS_HDMIRX16

AG4

AVSS_HDMIRX17

AH1

AVSS_HDMIRX18

AH2

AVSS_HDMIRX19

AH5

AVSS_HDMIRX20

F12

AGND_HDMI_VBUS

Hi3751ARBCV510HM00

HDMI_R2XCP
HDMI_R2XCN

HDMI_R2X0P
HDMI_R2X0N
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X2P
HDMI_R2X2N

HDMI2_SDA/SGP2_4

HDMI2_SCL/SGP2_5

HDMI2_DET/SGP1_5

HDMI2_HTP/SGP1_7

HDMI_R1XCP
HDMI_R1XCN

HDMI_R1X0P
HDMI_R1X0N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X2P
HDMI_R1X2N

HDMI1_SDA/SGP2_2

HDMI1_SCL/SGP2_3

HDMI1_DET/SGP1_4

HDMI1_HTP/SGP1_6

ARC_PAD

MISC Interface of

MHL_CD_SENSE/SGP1_2

HDMI0_DET/SGP1_3

HDMI0_SCL/SGP2_1

HDMI0_SDA/SGP2_0

CBUS_PAD

HDMI_R2XCP

U2

HDMI_R2XCN

U1

HDMI_R2X0P

V4

HDMI_R2X0N

V3

HDMI_R2X1P

W2

HDMI_R2X1N

W1

HDMI_R2X2P

Y4

HDMI_R2X2N

Y3

HDMI2_SDA

Y7

HDMI2_SCL

U6

HDMI2_DET

V7

HDMI2_HOTPLUG

W6

HDMI_R1XCP

AA2

HDMI_R1XCN

AA1

HDMI_R1X0P

AB4

HDMI_R1X0N

AB3

HDMI_R1X1P

AC2

HDMI_R1X1N

AC1

HDMI_R1X2P

AD4

HDMI_R1X2N

AD3

HDMI1_SDA

W5

HDMI1_SCL

AA6

HDMI1_DET

Y6

HDMI1_HOTPLUG

V6

ARC_PAD

AC7

AA5

R502 10K

AB6
AD6
AC6
AC5

HDMI_R2XCP 19
HDMI_R2XCN 19
HDMI_R2X0P 19
HDMI_R2X0N 19
HDMI_R2X1P 19
HDMI_R2X1N 19
HDMI_R2X2P 19
HDMI_R2X2N 19
HDMI2_SDA 19
HDMI2_SCL 19
HDMI2_DET 19
HDMI2_HOTPLUG 19

HDMI_R1XCP 19
HDMI_R1XCN 19
HDMI_R1X0P 19
HDMI_R1X0N 19
HDMI_R1X1P 19
HDMI_R1X1N 19
HDMI_R1X2P 19
HDMI_R1X2N 19
HDMI1_SDA 19
HDMI1_SCL 19
HDMI1_DET 19
HDMI1_HOTPLUG 19
ARC_PAD 19

3V3_SB

5V_SB

R508

100R 1/16W 1%

Q500

CEC19

2N7002K

R501 NC/0R05 OHM

D501
BAS316WS

R509

27K 1/16W 1%

HDMI_CEC

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

Key Compon ent

Key Compon ent

Key Compon ent

18.HDMI

18.HDMI

18.HDMI

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

32 inch

32 inch

32 inch

TBD

TBD

TBD

Size

A2

Size

A2

Size

A2

Re v

Re v

Re v

称 爹

称 爹

18 21Friday, July 01, 2016

18 21Friday, July 01, 2016

18 21Friday, July 01, 2016

称 爹

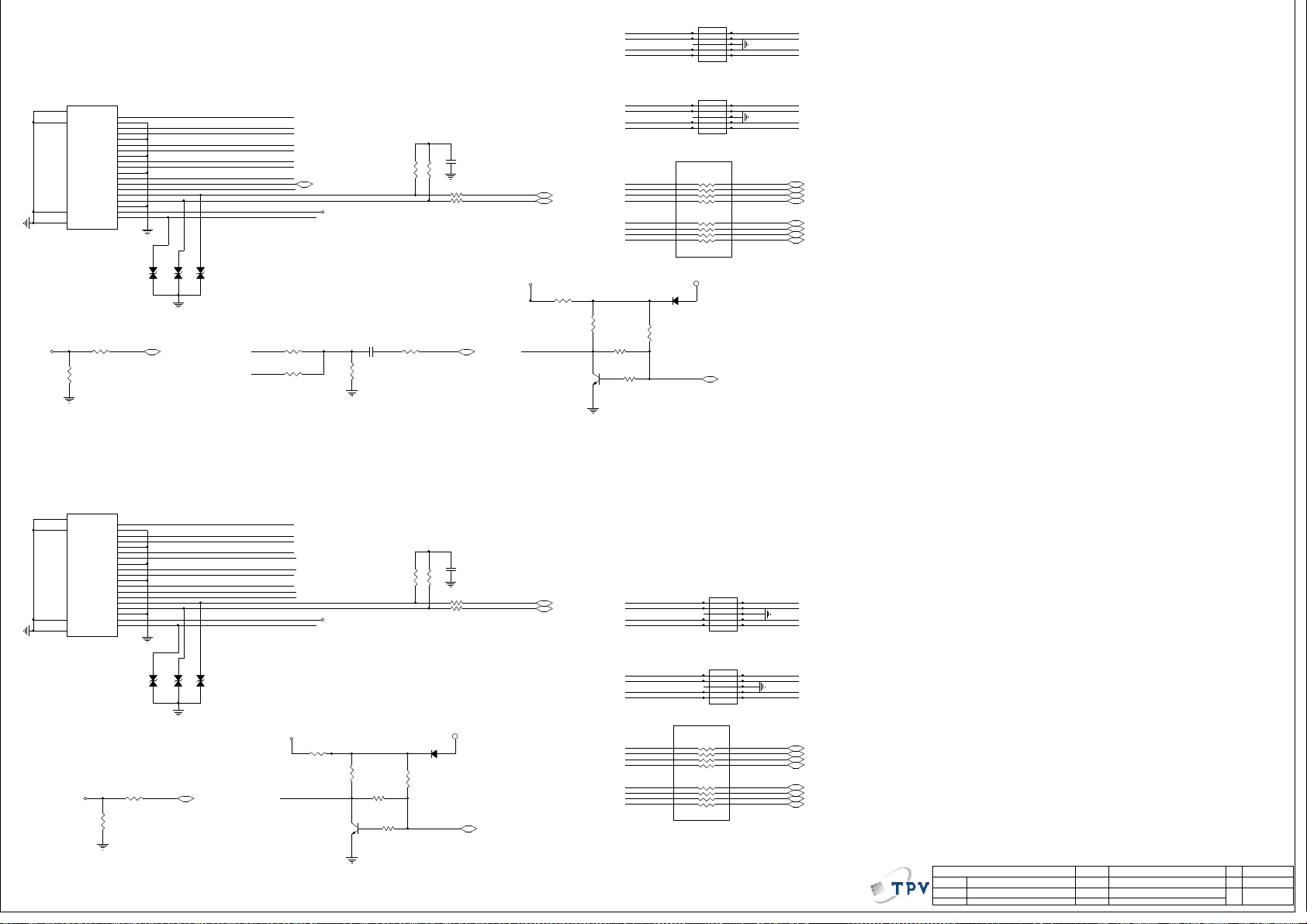

HDMI1 & HDMI2 (HDMI 2.0 / ARC)

HDMI1 (ARC)

CN501

HDMI1_5V

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI

R526

NC/10K

1

TMDSD2+

2

DSHLD0

3

TMDSD2-

4

TMDSD1+

5

DSHLD1

6

TMDSD1-

7

TMDSD0+

8

DSHLD2

9

TMDSD0-

10

TMDSC+

11

CSHLD0

12

TMDSC-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

ZD506

ZD507

ZD508

NC/MLVG0402

HDMI1_DET ARC_PAD

R525

1K

NC/MLVG0402

NC/MLVG0402

1 2

1 2

1 2

HDMI1_DET 18 ARC_PAD 18

HDMI_R1X2P/

HDMI_R1X2N/
HDMI_R1X1P/

HDMI_R1X1N/
HDMI_R1X0P/

HDMI_R1X0N/
HDMI_R1XCP/

HDMI_R1XCN/

CEC
ARC1

HDMI1-HOTPLUG

HDMI ARC Function

ARC2

R541

0R05 OHM

R542

NC

CEC 18

HDMI1_5V

ARCARC1

C508
1UF 10% 16V

R538
NC

DDC1B_SCL
DDC1B_SDA

R537
0R05 OHM

HDMI1_5V0

10K

R520

R523
R524

For lay outǐ

NC/BAS316WS
D502

U506

1

CH1

2

CH2

3

GND

GND

4

CH3
CH45NC

NC/AZ1143-04F.R7G

U505

1

CH1

2

CH2

3

GND

GND

4

CH3
CH45NC

NC/AZ1143-04F.R7G

4
3
2
1

4
3
2
1

5V_SB

10

NC

9

NC

8
7

NC

6

10

NC

9

NC

8
7

NC

6

RP502

HDMI_R1X2P

5

HDMI_R1X2N

6

HDMI_R1X1P

7

HDMI_R1X1N

8

0R
RP504

HDMI_R1X0PHDMI_R1X0P/

5

HDMI_R1X0N

6

HDMI_R1XCP

7

HDMI_R1XCN

8

0R

絬抖 絬, 龟悔 ノ

HDMI1_HOTPLUG 18

0R

HDMI_R1X0P/
HDMI_R1X0N/

HDMI_R1XCP/
HDMI_R1XCN/

HDMI_R1X2P 18
HDMI_R1X2N 18
HDMI_R1X1P 18
HDMI_R1X1N 18

HDMI_R1X0P 18
HDMI_R1X0N 18
HDMI_R1XCP 18
HDMI_R1XCN 18

HDMI_R1X2P/
HDMI_R1X2N/

HDMI_R1X1P/
HDMI_R1X1N/

10K

C506
100N16V

R521

100OHM
100OHM

HDMI1_SCL
HDMI1_SDA

HDMI1_5V

HDMI1_SCL 18
HDMI1_SDA 18

R543

0R05 OHM

HDMI1-HOTPLUG

Q503

MMBT3904

HDMI1_5V0

R518

1K

NC/4.7K1/16W

R540

4.7K1/16W

R522

HDMI_R1X2P/
HDMI_R1X2N/
HDMI_R1X1P/
HDMI_R1X1N/

HDMI_R1X0N/
HDMI_R1XCP/
HDMI_R1XCN/

R519

10K

HDMI1_HOTPLUG

HDMI2

20

22

23

21

HDMI2_5V

CN502

HDMI

SHLD0

SHLD2

SHLD3

SHLD1

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+

CSHLD0
TMDSC-

DDC_GND

VCC5

CEC

SDA

HPD

SCL

NC

R536

NC/10K

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

ZD509

NC/MLVG0402

R535

1K

ZD510

NC/MLVG0402

1 2

HDMI2_DET

1 2

ZD511

NC/MLVG0402

1 2

HDMI2_DET 18

HDMI_R2X2P/

HDMI_R2X2N/
HDMI_R2X1P/

HDMI_R2X1N/
HDMI_R2X0P/

HDMI_R2X0N/
HDMI_R2XCP/

HDMI_R2XCN/

CEC
ARC2

HDMI2-HOTPLUG

HDMI2_5V

HDMI2-HOTPLUG

R544

0R05 OHM

MMBT3904

HDMI2_5V

Q504

DDC2B_SCL
DDC2B_SDA

HDMI2_5V0

R527

1K

NC/4.7K1/16W

R539

4.7K1/16W

R529

HDMI2_5V0

10K

10K

R530

R531

R533
R534

NC/BAS316WS
D503

R528

10K

HDMI2_HOTPLUG

5V_SB

C507
100N16V

100OHM
100OHM

HDMI2_HOTPLUG 18

HDMI2_SCL
HDMI2_SDA

HDMI2_SCL 18
HDMI2_SDA 18

HDMI_R2X2P/
HDMI_R2X2N/
HDMI_R2X1P/
HDMI_R2X1N/

HDMI_R2X0P/
HDMI_R2X0N/
HDMI_R2XCP/
HDMI_R2XCN/

4
3
2
1

4
3
2
1

For lay outǐ

U504

1

CH1

2

CH2

3

GND

GND

4

CH3
CH45NC

NC/AZ1143-04F.R7G

U503

1

CH1

2

CH2

3

GND

GND

4

CH3
CH45NC

NC/AZ1143-04F.R7G

5
6
7
8

5
6
7
8

絬抖 絬, 龟悔 ノ

NC
NC

NC

NC
NC

NC

RP503

HDMI_R2X2P
HDMI_R2X2N
HDMI_R2X1P
HDMI_R2X1N

0R
RP505

HDMI_R2X0P
HDMI_R2X0N
HDMI_R2XCP
HDMI_R2XCN

0R

HDMI_R2X2P/

10

HDMI_R2X2N/

9
8

HDMI_R2X1P/

7

HDMI_R2X1N/

6

HDMI_R2X0P/

10

HDMI_R2X0N/

9
8

HDMI_R2XCP/

7

HDMI_R2XCN/

6

HDMI_R2X2P 18
HDMI_R2X2N 18
HDMI_R2X1P 18
HDMI_R2X1N 18

HDMI_R2X0P 18
HDMI_R2X0N 18
HDMI_R2XCP 18
HDMI_R2XCN 18

0R

Size

A2

Size

A2

Size

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

Key Compon ent

Key Compon ent

Key Compon ent

19.HDMI1&2

19.HDMI1&2

19.HDMI1&2

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

32 inch

32 inch

32 inch

TBD

TBD

TBD

19 21Friday, July 01, 2016

19 21Friday, July 01, 2016

19 21Friday, July 01, 2016

Re v

Re v

Re v

称 爹

称 爹

称 爹

A2

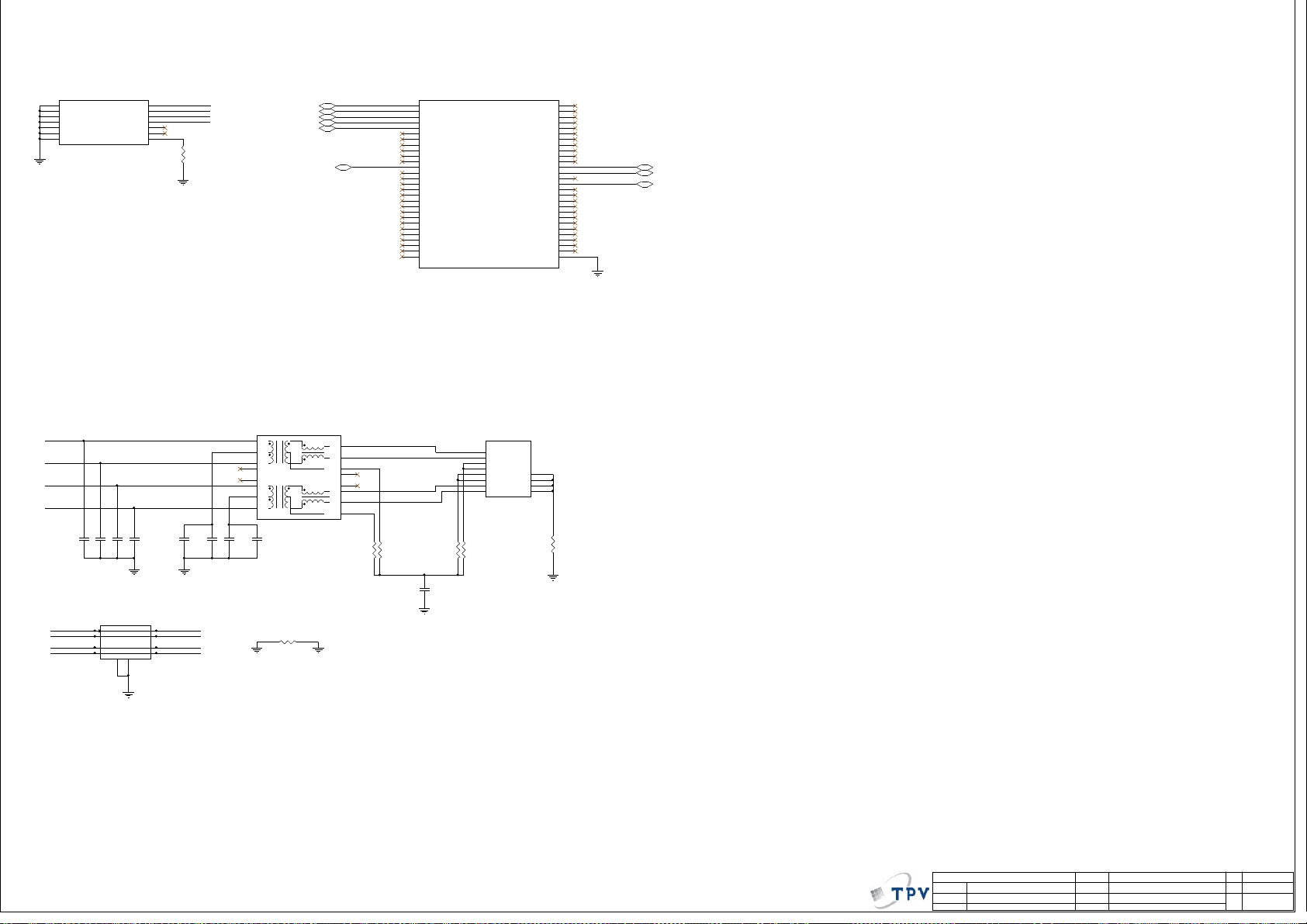

Ethernet & SD & CI

MISC Interface of

U401A

P9

AVSS11_FE

J3

AVSS_FE1

J4

AVSS_FE2

K5

AVSS_FE3

L3

AVSS_FE4
AVSS_FE5
AVSS_FE6

Hi3751ARBCV510HM00

C192

C194

NC/7PF 50V

NC/7PF 50V

NC/7PF 50V

FE_LED0/G P9_0
FE_LED1/G P9_1

C193

L4
L5

FE_TX+

FE_TX-

FE_RX+

FE_RX-

FE_TXP
FE_TXN
FE_RXP
FE_RXN

FE_REXT

C195

NC/7PF 50V

FE_RX+

J1

FE_RX-

J2

FE_TX+

K3

FE_TX-

K4
H5
J5
N6

R138

10K 1%

C159

C190

100N16V R174

NC/0.01uF 25V

C160

100N16V

1

2

3
4

5
6

7

8

T100
S16013 LF

TSI0_D0/JTAG_TMS6

TSI0_D1/JTAG_TRSTN6

TSI0_D2/JTAG_TCK6

TSI0_D3/JTAG_TDI6

TSI0_D4/JTAG_TDO6

TD+

TCT

TD­NC1

NC2
RD+

RCT

RD-

C191
NC/0.01uF 25V

USB-EN113

TSI0_D0/JTAG_TMS
TSI0_D1/JTAG_TRSTN
TSI0_D2/JTAG_TCK
TSI0_D3/JTAG_TDI
TSI0_D4/JTAG_TDO

USB-EN1

16

TX+

14

TX-

15

TCM

13

NC4

12

NC3

11

RX+

9

RX-

10

TCM-

R177

75 OHM +-1% 1/10W

AG22

AE21
AD22
AH13
AF13
AD14
AC14

AG14

AF19
AH21
AC21

AG16

AD16
AD17

AG17

AC18
AC19
AF18
AD19
AE18
AD18
AF16
AH22
AD21
AE22
AC13

AG12

AE14

RJ45_FE_TX+

RJ45_FE_TX-

RJ45_FE_RX+

RJ45_FE_RX-

R175

75 OHM +-1% 1/10W

MISC Interface of

U401E

TSI0_D0/JTAG_T MS/GP10_4
TSI0_D1/JTAG_T RSTN/GP10_5
TSI0_D2/JTAG_T CK/GP10_6
TSI0_D3/JTAG_T DI/GO10_7
TSI0_D4/JTAG_T DO/GP11_0
TSI0_D5/RSA_RESULT/G P11_1
TSI0_D6/RSA_END/GP11 _2
TSI0_D7/GOIN_NORMAL/GP11_ 3
TSI0_CLK/CLK_T EST_OUT/GP11_4
TSI0_VLD/BOOT ROM_STR/GP11_5
TSI0_SYNC/GP11_6
TSO0_D0/ GP13_3
TSO0_D1/ GP13_4
TSO0_D2/ GP13_5
TSO0_D3/ GP13_6
TSO0_D4/ GP13_7
TSO0_D5/ GP14_0
TSO0_D6/ GP14_1
TSO0_D7/ GP14_2
TSO0_CLK/ GP14_3
TSO0_VLD/ GP14_4
TSO0_SYNC/GP14_ 5
CI_DQ0/GP14_ 6
CI_DQ1/GP14_ 7
CI_DQ2/GP15_ 0
CI_DQ3/GP15_ 1
CI_DQ4/GP15_ 2
CI_DQ5/GP15_ 3

Hi3751ARBCV510HM00

100M ETHERNET

1
2
4
5
7
8
3
6

75 OHM +-1% 1/10W

R176
75 OHM +-1% 1/10W

CI_RDY/SIM0_RST

CI_REGN/GP17_5

CI_IOWRN/GP17_4

CI_IORDN/GP17_3

CI_RST/GP17_2

CI_WAITN/SIM0_DATA

CI_WEN/GP17_1
CI_OEN/GP17_0
CI_CEN/GP16_7
CI_CDN/GP16_6

CI_ADR14/GP16_ 5

CI_ADR13/PCB_L

CI_ADR12/BOOT _SEL0

CI_ADR11/ROMBOOT _SEL

CI_ADR10/BOOT _SEL1

CI_ADR9/GP16_4
CI_ADR8/GP16_3
CI_ADR7/GP16_2
CI_ADR6/GP16_1

CI_ADR5/SIM0_PWREN

CI_ADR4/SIM0_CLK
CI_ADR3/SIM0_DET

CI_ADR2/GP16_0
CI_ADR1/GP15_7
CI_ADR0/GP15_6

CI_DQ7/GP15_ 5
CI_DQ6/GP15_ 4

CN105

TX+
TX­NC1
NC2

12

NC3

Chassis1

11

NC4

Chassis2

10

RX+

Chassis4

9

RX-

Chassis3

RJ45 8P

VSS

AE17
AG20
AC16
AG15
AD20
AF20
AC17
AD15
AC15
AC22
AF17
AH16
AG18
AF15
AF14
AE15
AH15
AH18
AC20
AH19
AG19
AE20
AF21
AG21
AF22
AG13
AD13
AH12

R143
0R05

CI_ADR13/PCB_L
CI_ADR12/BOOT_SEL0

CI_ADR10/BOOT_SEL1

CI_ADR13/PCB_L 3
CI_ADR12/BOOT_SEL0 3

CI_ADR10/BOOT_SEL1 3

FE_RX­FE_RX+

FE_TX­FE_TX+

U105
AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

8

C196

1NF 2KV

FE_RX-

10

FE_RX+

NC

9

NC

FE_TX-

7

FE_TX+

NC

6

GND

GND

3

R178 0R05

1206

N_GND

N_GND

N_GND

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

絬 隔 瓜 絪 腹

V310

Key Compon ent

Key Compon ent

Key Compon ent

20.RJ45

20.RJ45

20.RJ45

Date

Date

Date

OEM M ODEL

OEM M ODEL

OEM M ODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

32 inch

32 inch

32 inch

TBD

TBD

TBD

Size

A2

Size

A2

Size

A2

Re v

Re v

Re v

称 爹

称 爹

20 21Friday, July 01, 2016

20 21Friday, July 01, 2016

20 21Friday, July 01, 2016

称 爹

1

CONT ENTS

01. Cover

02. IR_board

A A

REVISION HISTORY

Date

12/19 2012

04/16 2013

Author

Harrison

Jamie Tsai This IR_LED board modification is for LD58U3000 lighting logo design.

Reviser reasonVer

FN

A

Custom

Custom

<󱽥󱞮>

<󱽥󱞮>

<󱽥󱞮>

Custom

A

A

A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

󲋡 󳰉 󱩑 󲋟 󲛮

󲋡 󳰉 󱩑 󲋟 󲛮

Key Component

Key Component

Key Component

1

Date

Date

Date

01-Cover

01-Cover

01-Cover

OEM MODEL Size

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet of

Sheet of

Sheet of

X

X

X

1 2

1 2

1 2

Re v

Re v

Re v

󱽥 󱞮

󱽥 󱞮

󱽥 󱞮

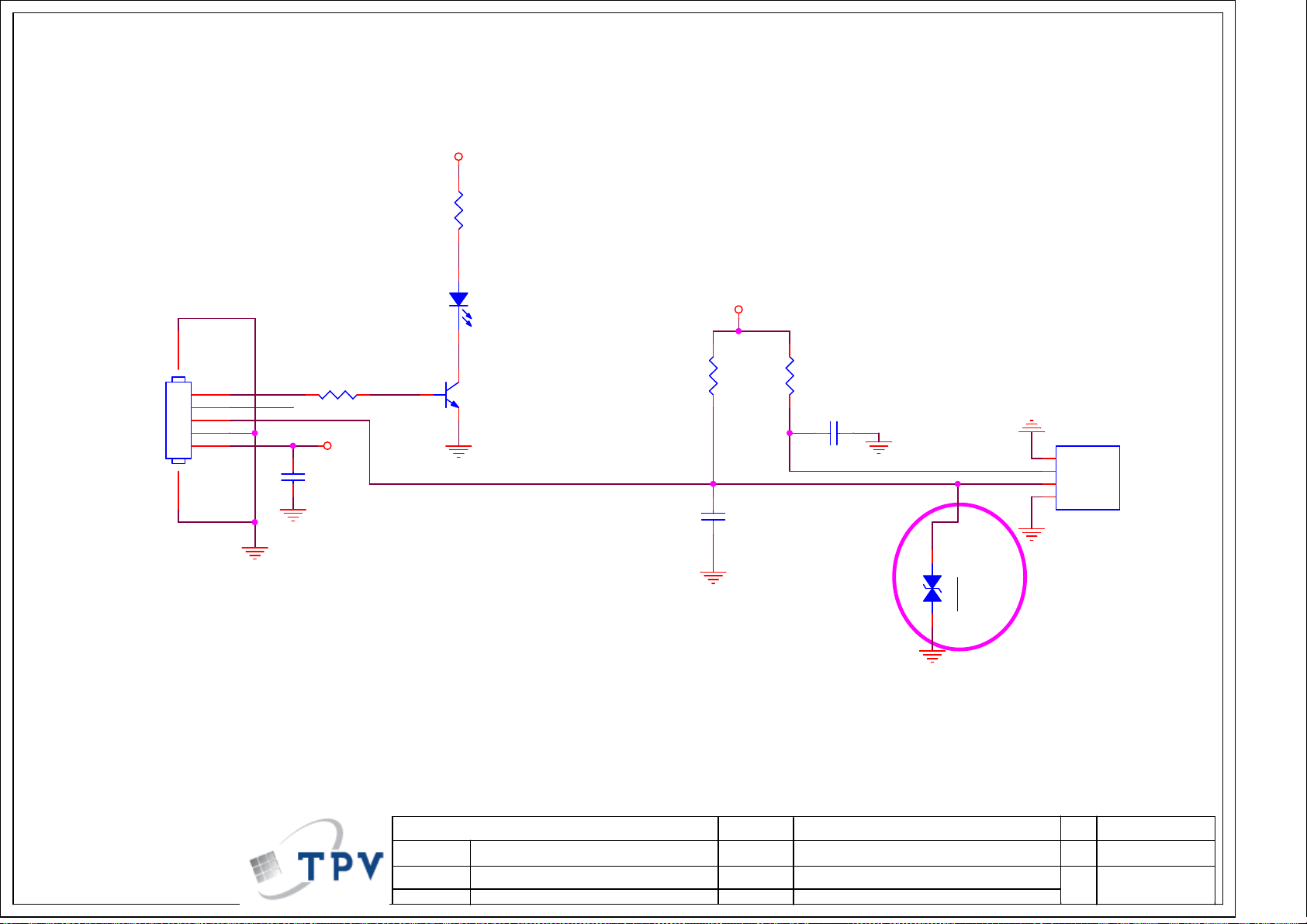

1

VCC

R001

470R 1/16W 5%

12

LED001
GPSS008RC4

CN001

67

CONN

LED

1

NC

2

IR

3

GND

4

VCC

5

A A

R002

1K 1/16W 5%

VCC

C003

100N 16V

2K7 1/16W 5%

R003

Q001
BC847C

C002

NC/1N 50V

VCC

R004

100R 1/16W 5%

C001

1UF16V

----><----|

U001

1

GND

2

Vs

3

OUT

4

GND

TSOP75436WTT

Close to U001

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

󲋡 󳰉 󱩑 󲋟 󲛮

󲋡 󳰉 󱩑 󲋟 󲛮

Key Component

Key Component

Key Component

Date

Date

Date

IR BOARD

IR BOARD

IR BOARD

1

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet o f

Sheet o f

Sheet o f

2 2

2 2

2 2

ZD001

1 2

VPORT0603100KV05

A

A

Size

Size

Size

Re v

Re v

Re v

󱽥 󱞮

󱽥 󱞮

󱽥 󱞮

A

A

A

A

<󱽥󱞮>

<󱽥󱞮>

<󱽥󱞮>
