Philips 32PFL9632D/10 leaflet

Download

Page 1

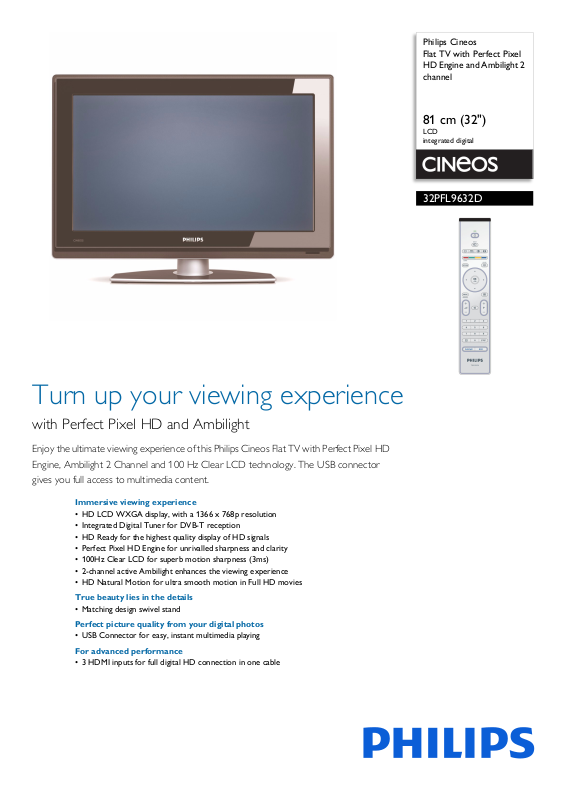

Philips Cineos Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel

81 cm (32")

LCD integrated digital

32PFL9632D

Turn up your viewing experience

with Perfect Pixel HD and Ambilight

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Perfect Pixel HD Engine, Ambilight 2 Channel and 100 Hz Clear LCD technology. The USB connector gives you full access to multimedia content.

Immersive viewing experience

• HD LCD WXGA display, with a 1366 x 768p resolution

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• 100Hz Clear LCD for superb motion sharpness (3ms)

• 2-channel active Ambilight enhances the viewing experience

• HD Natural Motion for ultra smooth motion in Full HD movies

True beauty lies in the details

• Matching design swivel stand

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• 3 HDMI inputs for full digital HD connection in one cable

Page 2

32PFL9632D/10

Flat TV

81 cm (32") LCD, integrated digital

Highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity w

ith Perfect Pixel HD Engine. Each pixel of the picture is enhanced to better match the surrounding pixels, resulting in a more natural

picture. The result is a unique combination of sharpness, natural detail, vivid colors superior contrast and smooth natural motion whatever you are watching. Clean and razor sharp images result from artifact and noise detection and reduction in all content sources - from multimedia to standard TV.

100Hz Clear LCD

100Hz Clear LCD creates extreme motion sharpness for cle with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a response time of 3 milliseconds (measured in Perceived Blur-Edge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

Ambilight 2 channel

Ambilight makes an impressive contribution to th

e overall viewing experience by producing ambient light to complement the colors and light intensity of the on-screen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambiance, stimulates more relaxed viewing, and improves perceived picture detail, contrast and color. Ambilight automatically and independently adapts its colors according to the changing content on the screen.

ar and vibrant images even

Pre-mounted swivel stand

For maximum freedom of placement, this highq

uality stand is designed specifically for this TV. The stand comes pre-mounted to the TV out of the box. It allows easy placement of your Flat TV without the hassle of building the stand to the TV first. Enjoy the best viewing angle by swivelling it the your personal preference.

USB Multimedia Connector

The USB connector allows access to m

ultimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1 memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. This makes you easily viewing and sharing your photos and music.

3 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

32PFL9632D/10

Flat TV

81 cm (32") LCD, integrated digital

Specifications

Picture/Display

• Color cabinet: Anthracite dark

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic screen contrast: 8000:1

• Response time (typical): 3 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix T

TF Panel resolution: 1366 x 768p

•

• Color processing: 4 trillion colors (14bit RGB)

• Picture enhancement: Perfect Pixel HD Engine, HD

ral Mot

Natu 1080p 50/60Hz processing, 1080p 24/25/30Hz processing, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control + Light sensor, Jagged Line Suppression, Progressive scan, Pulse Killer Chip, Widescreen Plus, 100Hz Clear LCD, Double frame rate

• Screen enhancement: Anti-Reflection coated

ion, Dynamic contrast enhancement,

Ambilight

• Ambilight Features: Ambilight 2 Channel, Auto

adaptive to video content, Full operation in standby, Efficient low energy lamp

• Ambilight light system: LED wide color

• Dimming Function: Manual and via Light Sensor

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz

deo formats

• Vi Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30Hz 1080p 24, 50, 60Hz

Sound

• Output power (RMS): 2x8W

• Sound Enhancement: Digital Signal Processing,

• Sound System: Virtual Dolby Digital, BBE

Equaliser, Dynamic Bass Enhancement

Graphic

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Integrated woofers with wOOx,

Dome tweeter

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming,

• Ease of Use: 4 favorite lists, Auto Volume Leveller

• Electronic Program Guide: Now + Next EPG, 8

• Remote Control: TV

• Remote control type: RC4450

• Screen Format Adjustments: 4:3, Auto Format,

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program

• Firmware upgradeable: Firmware auto upgrade

• Multimedia: Digital media reader (browser), USB

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, PLL Digital Tuning, Plug & Play

), Delt

(AVL Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

day Electronic Progr

Mov Zoom, Widescreen

info

wizard

autobr

a Volume per preset, Graphical User

am Gu

ide

e expand 14:9, Movie expand 16:9, Super

rmat

ion Line

, Firmware upgradeable via USB

eak-in

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pict

ures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• HDMI features: Cable equalization, Category 1 and es, Compressed audio, Multirate pref. format

2 cab support, PC format support, Resolutions 720p, 1080i, 1080p

• Front / Side connections: Audio L/R in, CVBS in,

• Other connections: Analog audio Left/Right out, S/

Headpho

PDIF ou

e Out, S-video in, USB

t (coaxial), Common Interface

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 132 W

• Standby power consumption: 0.8 W

Accessories

• Included accessories: Tabletop swivel stand, RF

antenna cable

Dimensions

• Set dimensions (W x H x D): 829 x 543 x 125 mm

• Set dimensions with stand (H

• Product weight: 17.6 kg

• Product weight (+stand): 19.8 kg

•Box dimensions (W x H x D):

x 742 x 290 mm

• Weight incl. Packaging: 25.1 kg

• VESA wall mount compatible: 200 x 100 mm

•

x D): 607 x 219 mm

Issue date 2019-06-25

Version: 8.0.23

12 NC: 8670 000 30509 EAN: 87 12581 33896 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only
