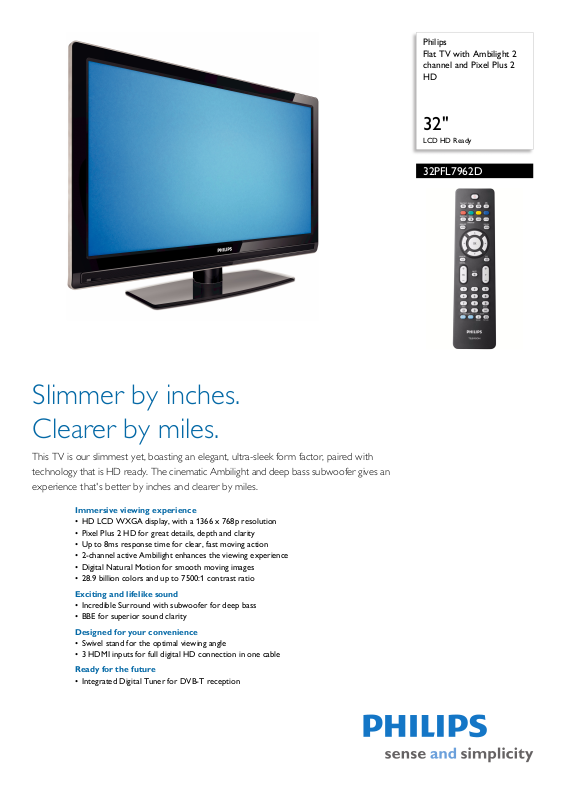

Page 1

Philips Flat TV with Ambilight 2 channel and Pixel Plus 2 HD

32"

LCD HD Ready

32PFL7962D

Slimmer by inches. Clearer by miles.

This TV is our slimmest yet, boasting an elegant, ultra-sleek form factor, paired with technology that is HD ready. The cinematic Ambilight and deep bass subwoofer gives an experience that's better by inches and clearer by miles.

Immersive viewing experience

• HD LCD WXGA display, with a 1366 x 768p resolution

• Pixel Plus 2 HD for great details, depth and clarity

• Up to 8ms response time for clear, fast moving action

• 2-channel active Ambilight enhances the viewing experience

• Digital Natural Motion for smooth moving images

• 28.9 billion colors and up to 7500:1 contrast ratio

Exciting and lifelike sound

• Incredible Surround with subwoofer for deep bass

• BBE for superior sound clarity

Designed for your convenience

• Swivel stand for the optimal viewing angle

• 3 HDMI inputs for full digital HD connection in one cable

Ready for the future

• Integrated Digital Tuner for DVB-T reception

Page 2

Flat TV with Ambilight 2 channel and Pixel Plus 2 HD

32" LCD HD Ready

Highlights

32PFL7962D/12

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive Digital T means you do not need an additional set top box and also the additional cables.

Pixel Plus 2 HD

Pixel Plus 2 HD offers the unique combination of ultimate sharpness, natural detail, increased depth, vivid colors and smooth and natural motion from standard TV, High Definition signals and multimedia sources. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts in compressed multimedia content are detected and reduced,

errestrial TV to watch or record. This

ensuring that the picture is clean and razor sharp. Digital noise reduction ensures that the picture is perfectly smooth yet razor sharp.

Ambilight 2 channel

Ambilight makes an impressive contribution to th

e overall viewing experience by producing ambient light to complement the colors and light intensity of the on-screen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambiance, stimulates more relaxed viewing, and improves perceived picture detail, contrast and color. Ambilight automatically and independently adapts its colors according to the changing content on the screen.

Digital Natural Motion

Philips invented Digital Natural Motion to e

liminate juddering effects that are visible with moving picture content. Digital Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Incredible Surround subwoofer

Incredible Surround is an audio technology from Phi sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting,

lips that dramatically magnifies the

Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround with integrated subwoofer now allows you to experience total surround with greater depth and bass ,width of sound with the use of an integrated subwoofer.

BBE

BBE high definition sound is the core sound e

nhancement technology (licensed by BBE Sound) that will enable you to experience real natural music, speech intelligibility with rich and clear audible vocals.

3 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

Flat TV with Ambilight 2 channel and Pixel Plus 2 HD

32" LCD HD Ready

Specifications

32PFL7962D/12

Picture/Display

• Aspect ratio: Widescreen, 16:9

• Brightness: 500 cd/m²

• Dynamic screen contrast: 12000:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 176 / 176 degree

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix T

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 2 HD, Digital

Natural Motion,

Luminance Transient Improver, Color Transient Improvement, Dynamic contrast enhancement, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Color Enhancement, Digital Noise Reduction

• Screen enhancement: Anti-Reflection coated reen

Ambilight

• Ambilight Features: Ambilight 2 Channel

• Preset modes: 4 Active Adaptive modes

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30Hz 1080p 24, 50, 60Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 20W

• Sound Enhancement: Auto Volume Leveller, ncredible Surround, Dynamic Bass Enhancement

• Sound System: Stereo, BBE

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Integrated subwoofer

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming,

matic Channel Install(ACI), Automatic Tuning

Auto System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Easy

toggle Dig/Analog m

odes, Program List, Side

Control, Smart Picture, Smart Sound

• Electronic Program Guide: 8 day Electronic

Program Guide

• Remote Control: TV

• Remote control type: RC2034312/01

• Screen Format Adjustments: 4:3, Movie expand

9, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages,

Program info

rmation Line

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G,

SECAM D/K, SECAM L/L', DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 100

•Tuner Display: PLL

PAL D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

•Number of Scarts: 2

• Ext 3: HDMI v1.3, CVBS in, Audio L/R in

• Ext 4: YPbPr, S-video in, Audio L/R in

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• Other connections: Headphone out, Common terface

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 110 W

• Standby power consumption: < 1 W

Accessories

• Included Accessories: Table top stand, Power

cord, Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

Dimensions

• Color cabinet: High Gloss black deco front with

Silver rim cabinet

• Set dimensions (W x H x D): 804 x 533 x 162

• Set dimensions with stand (W x H x D):

4 x 605 x 223 mm

• Product weight: 16.5 kg

• Product weight (+stand): 19.5 kg

•Box dimensions (W x H x D):

4 x 646 x 299 mm

• Weight incl. Packaging: 23.5 kg

• VESA wall mount compatible: 200 x 100 mm

•

COMMON INTERFACE

TV ANTENNA

Issue date 2009-05-03

Version: 5.0.9

12 NC: 8670 000 32647 EAN: 87 12581 35375 9

S-VIDEO

PbYPr

AUDIO IN

HDMI 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
