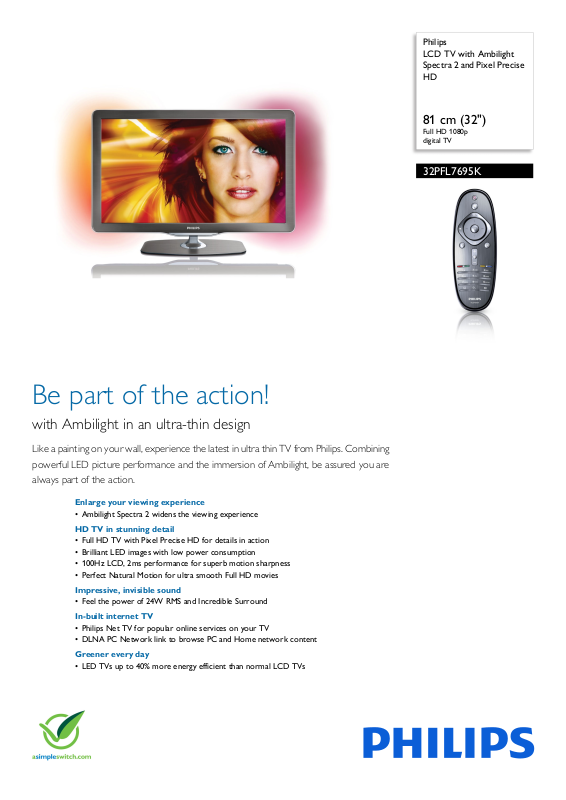

Page 1
Philips
LCD TV with Ambilight
Spectra 2 and Pixel Precise
HD
81 cm (32")
Full HD 1080p
digital TV
32PFL7695K
Be part of the action!
with Ambilight in an ultra-thin design
Like a painting on your wall, experience the latest in ultra thin TV from Philips. Combining
powerful LED picture performance and the immersion of Ambilight, be assured you are
always part of the action.
Enlarge your viewing experience
• Ambilight Spectra 2 widens the viewing experience
HD TV in stunning detail
• Full HD TV with Pixel Precise HD for details in action
• Brilliant LED images with low power consumption
• 100Hz LCD, 2ms performance for superb motion sharpness
• Perfect Natural Motion for ultra smooth Full HD movies
Impressive, invisible sound
• Feel the power of 24W RMS and Incredible Surround
In-built internet TV
• Philips Net TV for popular online services on your TV
• DLNA PC Network link to browse PC and Home network content
Greener every day
• LED TVs up to 40% more energy efficient than normal LCD TVs
Page 2
32PFL7695K/02
LCD TV
81 cm (32") Full HD 1080p, digital TV
Highlights
Ambilight Spectra 2
Add a new dimension to your viewing
experience with Ambilight Spectra 2. This
patented Philips technology enlarges the
screen by projecting a glow of light, on the 2
sides of the TV, from the back of the screen
onto the surrounding wall. Ambilight adjusts
automatically the colour and brightness of the
light to match the picture, creating an
immersive viewing experience. The wall
adaptive function ensures that the color of the
light always matches the picture, no matter
what the color of your wall. With Ambilight
Spectra 2 movies truly come to life!
Pixel Precise HD
Pixel Precise HD builds on the award winning
Pixel
Plus foundation. It brings the high
definition picture quality to the next level with
4 trillion colours. With Super Resolution, Pixel
Precise HD now brings you the best HD TV
picture quality whether you are watching a
video from the internet or good quality Blu-ray
movies.
with LED backlight you can enjoy low power
consumption, high brightness, incredible
contrast, sharpness and vibrant colors.
100Hz LCD, 2ms response time
100Hz LCD creates extreme motion
sharpness. The Doub
increases the sharpness of motion
reproduction to more than twice that of
conventional LCD, resulting in a performance
with a response time of 2 milliseconds. Now
you can enjoy clear images even with fast onscreen motion.
Perfect Natural Motion
Enjoy the action without any judder. Perfect
Natural Motion estimates motion in the
picture and corrects juddering movements in
both broadcast and pre-recorded movie
material (including 1080p movies and 24p True
Cinema on Blu-ray and DVD). The result is
even smoother and quieter pictures with
excellent sharpness. Enjoy motion
performance that surpasses cinema quality!
le Frame Rate Insertion
addition, Philips TV designs have constantly
improved, resulting in higher material
efficiency and reduced energy usage without
compromising on safety and well-being.
Philips Net TV
Experience a rich selection of online services
with Philips Net TV. Enjoy movies, pictures,
infotainment and other internet directly on
your TV whenever you like. Simply connect
directly to your home network through the
ethernet connection, and navigate and select
what you want to watch with the remote
control. The Philips menu gives you access to
popular Net TV services fitted for your TV
screen. Additionally, with the DLNA certified
PC network you can watch videos or access
pictures stored on your computer using your
remote control.
LED
The most advanced LED lighting technology in
this TV combines an eye-catching minimalistic
design with stunning image quality as well as
the lowest power consumption in its category.
On top of that, LED lighting technology does
not contain any hazardous materials. Thus,
24W RMS Incredible Surround
Feel the power of the music's beat and the real
at
mosphere of the movies. The powerful 24W
RMS (2x12W RMS) amplifiers create a lifelike
sound stage. Incredible Surround allows you to
experience total surround with greater depth
and width of sound complementary to the rich
viewing experience.
Energy efficient LED
Using the latest LED backlight technology,
LED-backlit
with a longer life and far lower energy
consumption than plasmas and conventional
LCD TVs. Unlike CCFL backlights, LEDs do
not use mercury in their manufacture. In
TVs are a more sustainable choice,
Philips Green Logo
Philips Green Products can reduce costs,
energy co
How? They offer a significant
environmental improvement in one or
more of the Philips Green Focal Areas –
Energy efficiency, Packaging, Hazardous
substances, Weight, Recycling and
disposal and Lifetime reliability.
nsumption and CO2 emissions.
Page 3
32PFL7695K/02
LCD TV
81 cm (32") Full HD 1080p, digital TV
Specifications
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 450 cd/m²
• Dynamic screen contrast: 500,000:1
• Response time (typical): 2 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 32 inch / 81 cm
• Display: LCD Full HD, edge LED backlight
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel precise HD, Perfect
ral Motion, Active Control + Light sensor,
u
Nat
100Hz Clear LCD, Digital Noise Reduction,
Dynamic contrast enhancement, Luminance
Transient Improver, MPEG artifact reduction,
Super Resolution, Color booster
• Screen enhancement: Anti-Reflection coated
en
re
sc
• Peak Luminance ratio: 65 %
• Color processing: 4 trillion colors (14bit RGB)
• Color cabinet: Gun Metal Brush Aluminium
Ambilight
• Ambilight Version: 2-sided
• Ambilight Features: Ambilight Spectra 2, Lounge
de
light mo
• Dimming Function: Manual and via Light Sensor
• Ambilight light system: LED wide color
Supported Display Resolution
• Computer inputs: up to 1920x1080 @ 60Hz
• Video inputs: up to 1920x1080p, 24, 25, 30, 50, 60
Hz
Sound
• Output power (RMS): 24W
• Sound Enhancement: Auto Volume Leveler,
namic Bass Enhancement, Incredible Surround,
Dy
Treble and Bass Control, Clear Sound
• Sound System: Mono, Nicam Stereo, Stereo
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer
• Ease of Installation: Channel installation wizard,
• Ease of Use: Smart Picture, Smart Sound,
k installation wizard, Settings assistant
Networ
wizard, Device connection wizard, Auto detect
Philips devices, Auto Program Naming, Autoinstall,
Program Name, Sorting
sc
reen Usermanual, EasyLink, Favorite program
On
selection, Mozaïc channel grid, One-stop
experience button, One-stop Home button
• Electronic Program Guide: Now + Next EPG, 8day
r
onic Program Guide*
Elect
• Screen Format Adjustments: Auto Format, Super
, Movie expand 16:9, Widescreen, unscaled
Zoom
(1080p dot by dot)
• Teletext: 1200 page Hypertext
• Firmware upgradeable: Firmware auto upgrade
wizar
d, Firmwar
e upgradeable via USB, Online
firmware upgrade
• Multimedia: DLNA media Browser, Net TV
e
rvices, USB media browser
s
Multimedia Applications
• Picture Playback Formats: JPEG
• Music Playback Formats: MP3, WMA (v2 up to
v9.2), AAC
Video Playback Formats: Codec support:, H264/
•
MPEG-4 AVC, MPEG-1, MPEG
-2, MPEG-4,
WMV9/VC1, Containers: AVI, MKV
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: DVB COFDM 2K/8K
• Video Playback: NTSC, SECAM, PAL
• Digital TV: DVB Terrestrial *, DVB-T MPEG4*,
4*, DV
DVB-C MPEG
B-S2 MPEG4 HD
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in, RGB
• Ext 2 Scart: Audio L/R, CVBS in, RGB
• Ext 3: YPbPr, Audio L/R in
• VGA-in: PC input, D-sub 15
•HDMI 1: HDMI v1.4 (Audi
•HDMI 2: HDMI v1.3
•HDMI 3: HDMI v1.3
• HDMI Side: HDMI v1.3
•Front / Side connections: USB, Co
Slot (CI-CI+), SD-card (Videostore)
• Other connections: Headphone out, PC Audio in,
net-LAN RJ-45
Ether
• EasyLink (HDMI-CEC): One touch play, EasyLink,
Pixel Plus link (Philips), Re
through, System audio control, System standby
• Audio Output - Digital: Coaxial (cinch)
• PC network link: DLNA 1.5 certified
o
Return Ch.)
mmo
n Interface
mote control pass-
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 220 - 240V, 50/60Hz
• Power consumption (typical): 70 W
• Standby power consumption: < 0.15 W
• Off mode power consumption: < 0.01 W
• Annual energy consumption: 102.2 kW·h
• Presence of lead: Yes*
• Power Saving Features: 0 Watt Power-off switch,
t sensor, Eco mode, Picture mute (for radio),
h
Lig
Auto switch-off timer
Dimensions
• Compatible wall mount: adjustable 200 x 300mm
•Set dimensions (W x H x D): 777 x 472 x 42 mm
• Set dimensions with stand (W x H x D):
x 540 x 221 mm
777
• Weight incl. Packaging: 13 kg
• Product weight: 9.5
kg
• Product weight (+stand): 11.6 kg
•Box dimensions (W x H x D):
x 572 x 158 mm
950
Accessories
• Included accessories: Tabletop swivel stand, Quick
start guide, Registration card, Warranty Leaflet,
Remote Control, 2 x AAA Batteries, Safety/legal
instructions, Software declaration
• Optional accessories: Wireless USB adaptor
01)
(PTA
•
Issue date 2020-05-07
Version: 5.1.8
12 NC: 8670 000 61191
EAN: 87 12581 53225 3
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* 8 days EPG, service not available in all countries
* Net TV: Visit www.philips.com/smarttv to discover the services
ring in your country.
offe
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB oper
ators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* Typical on-mode power consumption measured according to
IEC62087 Ed 2.
* Energy consumption in kWh per year, based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
