Philips 42PFL7532D, 32PFL7532D User Manual

LCD TV

www.philips.com/support

EN USER MANUAL

Table of contents

1 About this User Manual ....................3

1.1 Digital Broadcasting ..................................... 3

1.2 Analogue Broadcasting ................................. 3

2 Important ...........................................4

2.1 General ............................................................ 4

2.2 Care of the screen ........................................ 4

2.3 Stationary images on the TV screen ......... 4

2.4 Electric, Magnetic and Electromagnetic

Fields ('EMF') .................................................. 4

3 Before you start .................................5

3.1 Overview of the rear connector panel .... 5

3.2 Common Interface Slot ............................... 5

3.3 Overview of the side connector panel .... 6

3.4 Keys at the side of the TV .......................... 6

3.5 Lights indicator on the TV .......................... 6

4 Getting started ..................................7

4.1 Connect the antenna .................................... 7

4.2 Connect the mains ........................................ 7

4.3 Remote control ............................................. 7

4.4 Switch on the TV .......................................... 7

4.5 First time installation .................................... 7

4.6 How to navigate through the menus ......10

5 Use of the remote control ..............12

5.1 Use of the option key ................................13

6 Use of the TV menu settings..........15

6.1 Adjust picture menu settings ....................16

6.2 Adjust sound menu settings ...................... 19

6.3 Adjust feature menu settings .................... 21

6.4 Search for and store TV channels ........... 25

6.5 Rearrange the rename the channel list ..29

6.6 Set your preferences .................................. 30

6.7 Select your connections ............................ 31

6.8 Select a Decoder channel number .......... 31

6.9 Reset the Factory settings ......................... 32

6.10 How to upgrade the TV software ........... 32

7 Create your favourite list ...............33

7.1 To select a channel from the displayed

favourite list .................................................. 33

7.2 To select another favourite channel

list ...................................................................33

7.3 To create a favourite list or to modify the

list ...................................................................33

7.4 To select only TV or only radio channels

on the All channels list ............................... 34

8 EPG (Electronic Programme Guide)

(Only with Digital TV channels) ....35

9 Multimedia Browser ........................37

9.1 To view content from a USB device....... 37

9.2 To insert a USB device ..............................37

9.3 To remove the USB device ....................... 37

9.4 Multimedia Browser menu ........................ 37

9.5 Function keys at the bottom of the

screen............................................................. 39

9.6 Multimedia function keys on the remote

control ........................................................... 39

10 Teletext ............................................40

11 To make video and audio

connections ......................................43

11.1 Side panel overview .................................... 43

11.2 Rear panel overview ................................... 44

11.3 Connect a DVD or VCR recorder ......... 45

11.4 Connect a decoder and a VCR ................ 45

11.5 Connect two VCRs or VCR and DVD

recorder ........................................................ 46

11.6 Connect a satellite receiver ...................... 46

11.7 Connect a DVD player, Cable box or

game console ................................................ 47

11.8 Connect a DVD player, satellite receiver

or Cable Box ............................................... 48

11.9 Connect a PC ............................................... 49

11.10 Connect a Home Cinema amplifier ........50

12 Troubleshooting ..............................51

13 Philips TV software upgrade with

portable memory ............................53

13.1 Automatic software upgrade

procedure .....................................................53

13.2 Manual software upgrade procedure ......54

14 Slideshow format with background

music .................................................56

15 Digital camera and USB issues .... 59

16 Issues referring to connected

peripherals with a HDMI

connector ....................................... 61

17 Index ............................................... 62

18 Recycling & Product

information .................................... 64

1 About this User Manual

This manual contains all information you will need to initially install and operate your new TV. Also read the help text which are being displayed at the bottom of the screen.

If this instruction manual does not give an

answer or if ‘Troubleshooting’ does not solve your TV problem, you can call your Local Philips Customer or Service Centre. See the supplied Worldwide guarantee booklet. Please have the Model and Product number (which you can find at the back or the bottom of your television set or on the packaging) ready, before calling the Philips customer support service.

Model: ...........................................

Product No: .................................

1.1 Digital BroadcastingBroadcasting

Next to analogue broadcast reception, your TV has a built-in TV tuner which receives, decodes and displays digital terrestrial signals.

Digital TV and radio channels are only available and reproduced:

• when Digital Video Broadcasting Terrestrial

(DVB-T) is applicable in your local area;

• and if DVB-T signal is supported by your TV

for the country you live in. See

www.philips.com/support for the list of

supported countries.

1.2 Analogue Broadcasting

When your area is not broadcasting digital terrestrial signals, the TV will only receive analogue channels.

When on a frequency where a DVB signal is broadcasted, the tuner will try to decode an analogue TV channel and hence will not show video.

2 Important

2.1 General Do not insert the power plug in a wall socket or hang the TV to the wall before all connections are made.

• Place or hang the TV wherever you want, but

make sure that air can circulate freely through the ventilation slots.

• Do not install the TV in a confined space such

as a book case or a similar unit.

• To prevent any fire hazards, no naked flame

sources, such as lighted candles, should be placed near the TV.

• Avoid heat, direct sunlight and exposure to

rain or water.

2.2 Care of the screen

• Do not touch, push or rub or strike the

screen with anything hard as this may scratch or damage the screen permanently.

• Do not touch the surface with bare hands or

greasy cloth (some cosmetics are detrimental to the screen).

• Unplug the TV before cleaning the screen.

• When the surface becomes dusty wipe gentlyWhen the surface becomes dusty wipe gently

with absorbent cotton or other soft material like chamois soaks.

• Do not remove the protective sheet until youDo not remove the protective sheet until you

have completed the stand/wall mounting and connections. Please handle with care.

• Use only soft cloth provided to clean theUse only soft cloth provided to clean the

glossy black front of the TV.

• Wipe off water droplets as soon as possible.

Their long time contact with the screen causes deformations and colour fading.

2.3 Stationary images on the TV

A characteristic of LCD and Plasma Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen. This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen. Examples of stationary images (this is not an

all-inclusive list, you may encounter others in your viewing):

• TV and DVD menus: listings of DVD disk content;

• Black bars: when black bars appear at the left and right side of the screen, it is recommended to change to a picture format so that the picture fills the entire screen;

• TV channel logo: present a problem if they are bright and stationary. Moving or low-contrast graphics are less likely to cause uneven aging of the screen;

• Stock market stickers: presented at the bottom of the TV screen;

• Shopping channel logos and pricing displays: bright and shown constantly or repeatedly in the same location on the TV screen.

Examples of still pictures also include logos,

computer images, time display, teletext and images displayed in 4:3 mode, static images or characters, etc.

Tip

Reduce contrast and brightness when viewing.

2.4 Electric, Magnetic and

Electromagnetic Fields (“EMF”)

• Philips Royal Electronics manufactures and

sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.

• One of Philips’ leading Business Principles is to

take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

• Philips is committed to develop, produce and

market products that cause no adverse health effects.

• Philips confirms that if its products are handled

properly for their intended use, they are safe to use according to scientific evidence available today.

• Philips plays an active role in the development

of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early

integration in its products.

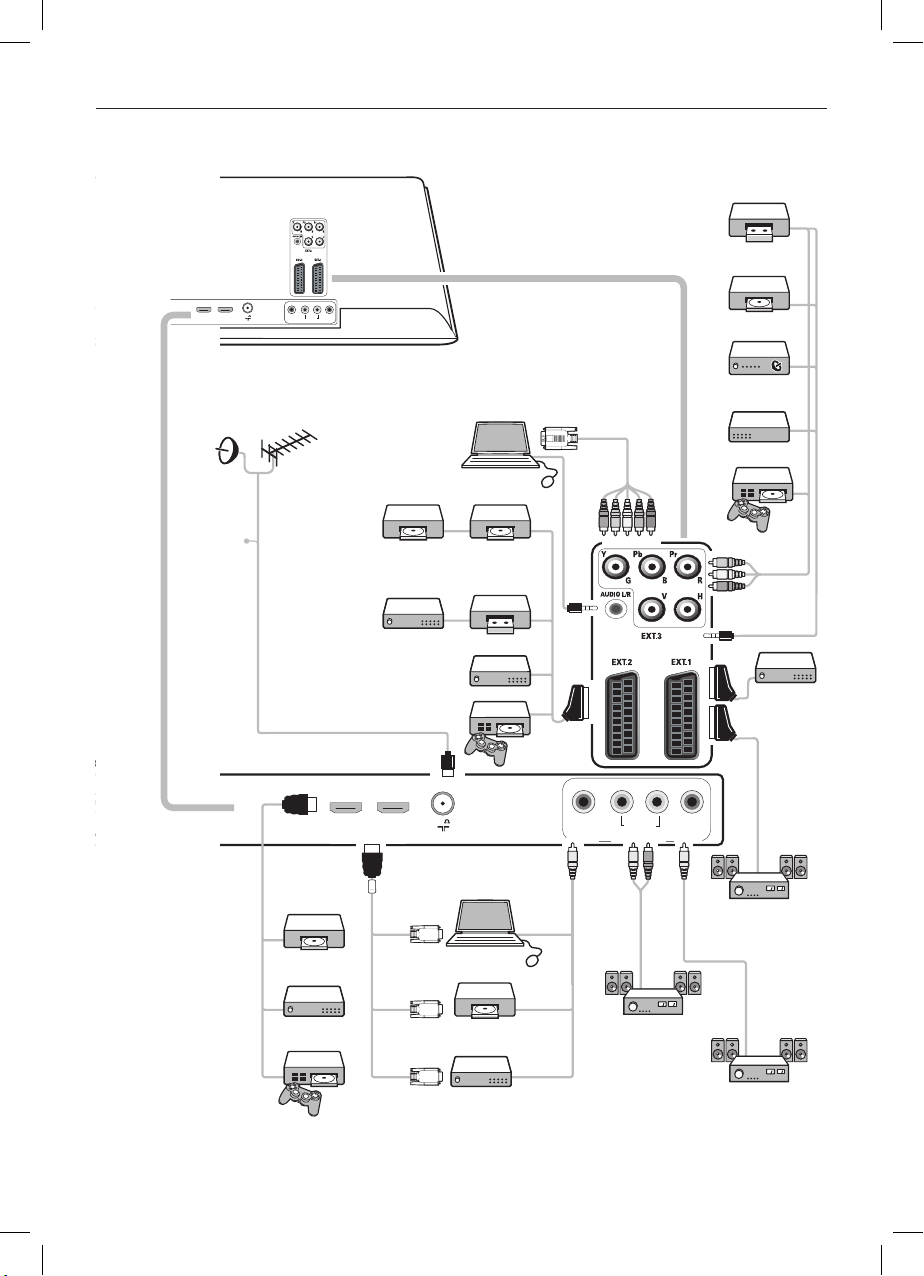

3.1 Overview of the rear connector panel

There is a wide range of audio and video equipment that can be connected to your TV. See 'To make video and audio connections', p. 43.

EXT1 can handle CVBS, RGB and Audio L/R; EXT2 can handle CVBS, S-VIDEO, RGB and

Audio L/R;

EXT3 can handle YPbPr, RGB H/V and Audio L/R; HDMI 1 and 2. Supported video formats: 480i, 480p, 576i,

576p, 720p, 1080i.

Warning

Disconnect all power sources before making any connections.

Tip

It is preferable to connect peripherals with RGB output to EXT1 or EXT2 as RGB provides a better picture quality.

3.2 Common Interface Slot

Warning

Switch off your TV before any module is inserted in the Common Interface slot.

Note

This functionality is only available in certain countries.

To receive scrambled DTV signals you will need a CA (Conditional Access) module and a Smart card provided by the service provider.

• A CA module can enable additional services,

for example Pay TV. Contact your Common Interface service provider to get more information about these modules.

• Although CA module types may vary

dependent on the manufacturer, each one of the CA modules supports a certain kind of encryption system. Your TV supports CA modules to work with the DVB-T standard. Note that a smart card may only be valid for a single broadcast channel.

• CA modules and smart cards are neither

supplied nor optional accessories from Philips. The CA module is responsible for the messages and texts on screen. In case of failure or strange behaviour, you must call your CI service broadcaster.

EXT3

EXT1EXT2

HDMI ANTENNA

COMMON INTERFACE

3 Before you start

Warning

Do not insert the mains cord into the mains at the bottom of the TV and in a wall socket or hang the TV on the wall before all connections are made.

Before you switch on your TV, connect all your peripheral equipment. See 'To make video and audio connections', p. 43.

3.3 Overview of the side connector panel

• To connect a camera, camcorder or game,

see To make video and audio connections,

p. 43.

• To connect a headphone, see To make video

and audio connections, p. 43.

• To connect a USB device, see 'Multimedia

browser', p. 37.

3.4 Keys at the side of the TV

In case your remote control is lost or broken, apart from channel selection and volume adjustment, you can still change some of the basic settings with the keys at the side of your TV.

• Press the power switch B to switch the TV

on or off.

The MENU key can be used to call up the TV

menu without the remote control.

• Use:

- the VOLUME - and + keys and the PROGRAM - and + keys to select menu

items;

- the MENU key to confirm your selection.

Insert a CA module

Insert the specified Conditional Access

module into the Common Interface slot as far as it will go. It may take a few minutes before the CA module is activated and service information is downloaded.

Warning

When you connect the CA module incorrectly, it may damage the card and the TV. After inserting a card, leave it in the slot permanently. Do not remove it from the slot unless asked to do so. For example, your card has to be in the slot when your CI service broadcaster wants to download new information to the smart card. Once the CA module is removed, your TV will no longer decode scrambled digital DVB-T channels.

To access common interface applications, see TV menu, Adjust feature menu settings, Common Interface, p. 24.

3.5 Light indicator on the TV

The light indicator shows the status of the TV.

• Red means TV is on “standby”

• Blue means TV is “switched on”

4 Getting started

4.1 Connect the antenna

Insert the aerial plug ﬁ rmly into the aerial

socket

x at the bottom of the TV.

AUDIO IN

AUDIO OUT

HDMI 1 HDMI 2

AUDIO OUT

DIGITAL

(DIGITAL)

COMMON INTERFACE

HDMI ANTENNA

4.2 Connect the mains

Insert the mains cord supplied into the

mains at the bottom of the TV and in the wall socket.

Warning

Verify that the mains supply voltage corresponds to the voltage printed on the sticker at the rear of the TV.

For most keys pressing a key once will activate the function. Pressing a second time will undo the action.

4.4 Switch on the TV

Press the power switch

B at the side of

the TV. An indicator on the front of the TV lights up and the screen comes on.

If the TV is in standby mode, press the -P+

keys or the B key on the remote control.

4.5 First time installation

The installation procedure consists of a series of screens that will guide you through the installation of your TV. Follow the instructions on the screen.

Note

If the TV has already been installed before and/ or you want to change the First time installation settings, proceed with Use of the 'TV menu settings', p. 15.

4.3 Remote control

Insert the 2 batteries supplied. Be sure the (+) and (-) ends of the batteries line up correctly (markings are printed in the case)

Step 2: complete the initial TV installation procedure

Press the green colour key on your remote

control when Television is highlighted.

Select the country where you are now

located.

Step 1: select your on-screen language

After the Welcome screen you are asked to select a language of the TV's on-screen menus. The text of the header and the info on screen continuously change language. Also the digital audio and subtitle language will be set to the selected menu language.

Press the o or œ key to highlight your

language. Press the OK key on the remote control. Follow the instructions on the screen to

proceed.

English

Español

Français

Hrvatski

Italiano

Magyar

.............

Please select your

language.....

PHILIPS

using cursor up and down

Menu language

Notes

• if you select a wrong country, the channel numbering will not be according to the standard for your country.

• in case the country selected is not DVB-T supported by your TV, digital related menuitems will not be accessible.

Press the green colour key on your remote

control to start the Automatic channel installation.

Notes

All available digital TV and radio channels and analogue TV channels are searched for and stored automatically. This will take a few minutes. When the search is complete, the menu will indicate the number of digital and analogue channels found.

Previous Next Skip Stop

PHILIPS Installation

This will help you to install the following sections:

Television

Settings assistant

PHILIPS Television

System searching: please wait..........

Digital channels found 16

Analogue channels found 22

Stop

Notes

- reception of digital terrestrial TV channels is applicable dependent on the country selected;

- if you choose to install the channels at a later time, select the Automatic installation in the TV menu, Installation, Channels to scan available channels.

Press the red colour key again when the

search is completed.

Step 3: Settings assistant: select your TV settings

By means of several split screens/full screens you are prompted to select your preferred picture and sound to finally arrive at a complete setting which satisfies you.

Press the green colour key on your remote

control to enter the Settings assistant menu.

Select your Location with the o or œkey. If you choose Shop it will skip the Settings assistant. The TV parameters for Picture and Sound will then be set to predefined fixed settings.

Press the green colour key again to proceed.

Notes

If you choose Home it will display the Settings assistant. Use the p or π key to each time select your preferred screen.

PHILIPS Settings assistant

Please select your location before continuing:

Home

Shop

Previous Next Skip Stop

PHILIPS Installation

This will help you to complete the Settings assistant. Television

Settings assistant

Press the green colour key to confirm your

selection each time and to jump to the next screen. The items will be presented sequentially. In the header it is mentioned how many screens have been completed and how many

screens there are in total. The Settings assistant will step sequentially through the following settings: Picture and Sound.

Press the green colour key again to store

all the settings and to return to the TV

installation menu.

Note When you skip or stop the Settings Assistant, then the standard settings Philips selected for you will be chosen.

Press the red colour key again to finish the

First time installation procedure and to

display the first stored TV channel.

Note

Any time you can change or reset your settings or adjust individual settings for Picture and Sound in the 'TV settings' menu. See p. 15, 'Use of the TV menu settings'. To control the settings of special TV functions, features and accessory equipment, see p. 21, 'Adjust feature menu settings'.

4.6 How to navigate through the menus Introduction

A lot of guiding instructions, help texts and messages will be display on your TV when you use the menus or when you try to execute an action.

• Read the help texts which are being displayed on the specific item highlighted.

• The colour keys at the bottom of the screen refer to the different actions which may be executed.

Press the corresponding colour key on the remote control to perform the required or desired action.

Note Digital related menu items will only be accessible in case of digital TV broadcasting.

Press the key on the remote control.

The main menu appears on the screen.

• TV menu allows you to access the TV

menu. See below.

• TV channels allows you to access the

TV channel list and to create up to four favourite lists with your preferred TV channels and digital radio stations. See Create your favourite channel list, p. 33.

• Programme guide allows you to access

detailed information about individual digital TV programmes. According to the type of Electronic Programme Guide, it also allows you to access the table of scheduled Digital TV programmes and easily select and tune to a desired programme. See EPG, Electronic Programme Guide, p. 35.

• Multimedia allows you to access the

Multimedia browser application. It lets you display your personal multimedia files.

Television

Multimedia

TV menu

TV channels

Programme guide

Use the o or œ key to highlight and select

a menu item.

Use the π key to enter the highlighted

menu item. The right panel shows the content of the highlighted menu item.

Multimedia is only present when a USB device is connected. See Multimedia browser, p. 37.

TV settings

Settings assistant

Reset to standard


Sound

Info

TV menu

TV settings

Features

Installation

Exit

away. When the p key is pressed, the hidden menu items reappear and the highlight moves to the left panel.

Press the key to exit the main menu.

Use the o or œ key to select a menu item.

• TV settings allows you to adjust your preferred picture and sound settings

• Features allows you to control the settings of special TV features

• Installation allows you

- to select your language preferences;

- to search for and store your TV channels;

- to set or adjust various special functions;

- to select connected peripheral equipment;

- to define one or more channel numbers as decoder channel numbers;

- to reset your picture and sound settings to the factory standard settings;

- to upgrade your TV software

Press the π key to enter the highlighted

menu item. The content of the right panel is moved to the left panel and the right panel now shows the content of the newly highlighted item in the left panel.

Note

In some cases it is important that the picture can be watched while you adjust the settings. This means that when the highlight is on the right side panel, the other menu items hide

Info

TV menu

TV settings

Settings assistant

Reset to standard


Sound

TV settings

Features

Installation

Exit

5 Use of the remote control

B Standby

Press to switch the TV from or to standby

mode. When switched to standby, a red indicator on the TV lights up.

Note

The TV is never powered off completely unless it is physically unplugged.

 Ò‡πº †

See Multimedia browser functional keys,

p. 37. AV Audio Video To display source list to select TV or other

equipment. Use the o or œ to select

source and the OK key to confirm selection. OPTION

• To open and close the Quick access menu

which contains a few frequently used

options, like Picture format.

• When in teletext, press repeatedly to enlarge

the teletext page display. See Teletext, p. 40.

bTeletext On/Off

Press to switch teletext on. See

Teletext, p. 40. Only for UK: Digital text/

Interactive services.

Note

Not all channels transmit interactive television applications at all times. Cursor keys

Press the cursor keys oœpπ to

navigate through the menus.

• To activate a setting

• Starts playing content in the Multimedia

Browser application. a EPG To open and close the Electronic

Programme Guide.

See EPG (Electronic Programme Guide), p. 35.

3 4

+P- Channel selection

• to browse through the TV channels and sources stored and marked in the Favourite channels list;

• to select a page in Teletext mode;

• to quickly browse through the lists in the menus;

• to switch on the TV from standby mode.

¬ Mute key To turn off or on sound.

0/9 Digit keys

To select a TV channel between 0 and 999.

Previous channel

Press to alternate between the currently viewed and the previously viewed TV channel. VOL +/- Press + or - to turn on sound louder or softer.

i INFO

Press to display (when available) information about the selected TV channel and programme. BROWSE/MENU To open and close the main menu. See How to navigate through the menus, p. 10. FAV To display the channels list. You can create up to four favourite lists.

Colour keys

• When functions are attached to the colour keys, the colour keys are shown on screen.

• To select a page in Teletext mode.

The key allows you to display the Quick access menu which will give you direct access to some features and menu options.

Press the key.

The Quick access menu appears. Press the o or œ key to select a menu

item. Press the OK key to jump to the selected

menu item in the TV menu. (Except for the

Clock option). Use the o or œ, p or πkey to make a

selection. Press the key to exit.

Note Digital related menu items will only be accessible in case of digital TV broadcasting.

Digital audio language:

See 'Adjust sound menu settings', p. 19.

Digital subtitle language:

See 'Adjust feature menu settings', p. 21.

Subtitles:

See 'Adjust feature menu settings', p. 21.

5.1 Use of the option key

screen.

Picture format:

See Use of the TV menu settings, Adjust picture menu settings, p. 16.

Equalizer:

See Use of the TV menu settings, Adjust sound menu settings, p. 19.

Clock:

Select to call up or remove the clock display on the screen.

Quick access

Digital audio language

Digital subtitle language

Subtitles

Picture format

Equalizer

Clock

6 Use of the TV menu settings

The TV menu allows you to access and change settings and preferences in case you want to change the First time installation settings and/or you want to control the settings of special TV functions, features and peripheral equipment.

Television

Multimedia

TV menu

TV channels

Programme guide

TV settings

Features

Installation

Exit

Info

TV menu

TV settings

Settings assistant

Reset to standard


Sound

Adjust viewing and listening settings

Press the key on the remote control.

The main menu appears on the screen.

Select TV menu and press the π key.

The TV menu appears on the screen.

Select TV settings and press the π key.

The TV settings menu moved to the left. Press the key to exit the menu. To make it easier to change the settings of

the TV, there are 3 ways of doing it.

A. Change settings in an easy-to-use

manner with the Settings assistant

Each time you've made a selection, press the

green key to confirm your selection.

Select Settings assistant and press the π

key.

By means of several split screens/full screens

you are prompted to select your preferred picture and sound settings to finally arrive at a complete setting which satisfies you.

See 'First time installation', Step 3: Settings

assistant: select your TV settings, p. 9.

Press the green colour key to return to the

TV menu again.

B. Use of the Standard settings (if present)

This allows you to reset your settings for

viewing and listening to predefined factory settings.

Settings assistant

Reset to standard


Sound

Info

TV menu

TV settings

Reset to standard

Current

Natural

Vivid

Subtle

Select Reset to standard and press the π

key.

• A menu appears which allows you to select one of the standard settings for viewing and listening.

• Current shows your current settings for viewing and listening.

• If you select Natural, it allows you to set your picture and sound settings to the recommended standard values. In most cases this will give the best balanced viewing experience.

• If you select Vivid, it allows you to set your picture and sound settings to rich values, making use of the TV capabilities to its full extend.

• If you select Subtle, it allows you to set your picture and sound settings to the purest representation of the original source content.

Press the green colour key to store the

selected setting.

C. Individual settings for picture and sound

Select Picture and Sound press the πkey.

• A menu appears which allows you to fine tune the picture and sound settings.

• To adjust the Picture settings, see 'Adjust picture menu settings', p. 16.

• To adjust the Sound settings, see 'Adjust sound menu settings', p. 19.

6.1 Adjust picture menu settings

The picture menu contains the settings that affect the quality of the picture.

Press the key on the remote control.

The main menu appears.

Select TV menu and press the πkey.

The TV menu moved to the left.

Select TV settings and press the πkey.

The TV settings menu moved to the left panel.

Select Picture and press the πkey.

The Picture menu moved to the left panel.

TV settings

Features

Installation

Exit

Info

TV menu

TV settings

Settings assistant

Reset to standard


Sound

Settings assistant

Reset to standard


Sound

TV menu

TV settings


Contrast

Brightness

Colour

Hue

Sharpness

Tint

..............

Info

Press the o or œ key to select the Picture

menu items.

Press the πkey to enter the selected

Picture menu item.

Note

All digital related menu items will only be accessible in case of digital TV broadcasting.

Press the o or œ, p or πkey to adjust

the settings.

Press the p key to return to the Picture

menu.

Contrast

Adjusts the intensity of bright parts in the picture but keep the dark parts unchanged.

Brightness

Adjusts the light output of the complete picture, which will mainly affect the darker areas of the picture.

Colour

Adjusts the saturation level of the colours to suit your personal preference.

Hue

Compensates for the colour variations in NTSC encoded transmissions.

Sharpness

Adjusts the sharpness of fine details in the picture.

Tint Increases or decreases Warm (red) and Cool (blue) colours to suit personal preferences.

• Select Cool to give the white colours a blue.

Normal to give the white colours a neutral. Warm to give the white colours a red tint.

Custom to make a customised setting in the

Custom tint menu item.

Custom tint (only when Tint is set to

Custom) Fine tunes the white point (WP) and black level (BL) of the picture.

Select Custom tint and press the πkey. Use the o or œ, p or π keys to select

and adjust the settings of:

R-WP: allows you to customise the colour

tint by adjusting the red whitepoint of the picture.

G-WP: allows you to customise the colour

tint by adjusting the green whitepoint of the picture.

B-WP: allows you to customise the colour

tint by adjusting the blue whitepoint of the picture.

R-BL: allows you to customise the colour

tint by adjusting the red blacklevel of the picture.

G-BL: allows you to customise the colour

tint by adjusting the green blacklevel of the picture.

Press the colour keys to reset to the

predefined settings.

Press the p key to return to the Picture

menu.

Settings assistant

Reset to standard


Sound

Info

TV menu

TV settings


.............

Custom tint

Pixel Plus

Digital Natural Mo..

Dynamic contrast

DNR

.............

Pixel Plus

Pixel Plus is the most ideal setting, as it fully processes the image to make every single pixel the best it can be, improving contrast, sharpness, picture depth, and colour reproduction and brilliance from every source, including High Definition. Select On or Off to activate/de-activate Pixel Plus.

Digital Natural Motion

Reduces the field and line flicker and reproduces smooth movement especially in movies. Select Off, Minimum or Maximum in order to really see the difference in picture quality.

Dynamic contrast

Automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on the screen changes. Normally select Medium. It may be preferred to select Minimum, Maximum or Off.

DNR (Dynamic Noise Reduction)

DNR automatically filters out and reduces the image noise. This improves picture quality when receiving weak signals. Select Off, Minimum, Medium or Maximum according to the image noise in the picture.

MPEG artefact reduction

Smoothens the transitions on digital content.

Select On or Off.

Colour enhancement

Automatically controls green enhancement and blue stretch. It makes the colours more vivid.

Select Off, Minimum, Medium or Maximum.

Active control

The TV continuously measures and corrects all incoming signals in order to provide the best picture possible.

Select On or Off to activate/de-activate Active control.

Light sensor

Light sensor On automatically adjusts the picture settings for best viewing dependent on the lighting conditions in the room.

Select On or Off.

Settings assistant

Reset to standard


Sound

Info

TV menu

TV settings


.............

DNR

MPEG artefact red.

Colour enhancem..

Active control

Light sensor

Picture format

This allows you to adjust the size of the picture dependant on the broadcasted format and your preferred setting.

Manufactured under license from Dolby Laboratories. ‘Dolby’ ‘Pro Logic’ and the double-D symbol are trademarks of Dolby Laboratories.

Auto format Super zoom 4:3

Movie expand 14:9 Movie expand 16:9 Wide screen

Settings assistant

Reset to standard


Sound

Info

TV menu

TV settings

Sound

Equalizer

Volume

Balance

Digital audio lang..

Dual I/II

Mono/Stereo

.............

Tip This function is also accessible via the key on the remote control.

Choose among the following picture formats: Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie Expand 16:9 or Wide screen.

Auto format makes the picture fill the screen as much as possible. In case of subtitles in the bottom black bar, Auto format makes the subtitles visible. In case of a broadcaster logo in the corner of the top black bar, the logo disappears from the screen. Super zoom removes the black bars on the sides of 4:3 programmes with minimal distortion. When in Movie Expand 14:9, Movie Expand 16:9 or Super zoom screen format, you can make subtitles visible with the o or œ key.

Note With HD sources not all picture formats will be available.

6.2 Adjust sound menu settings

The sound menu contains the settings that affect the quality of the sound.

Press the key on the remote control.

The main menu appears. Select TV menu and press the πkey.

The TV Menu is moved to the left.

Select TV settings and press the πkey.

The TV settings menu is moved to the left panel.

Select Sound and press the πkey.

The Sound menu is moved to the left panel.

Use the o or œ key to select the Sound

menu items.

Press the πkey to enter the selected

Sound menu item.

Note Dependent on the input signal, one or more menu items may not be selectable. Use the o or œ, p or π keys to adjust

the settings. Press the p key to return to the Sound

menu.

+ 46 hidden pages
