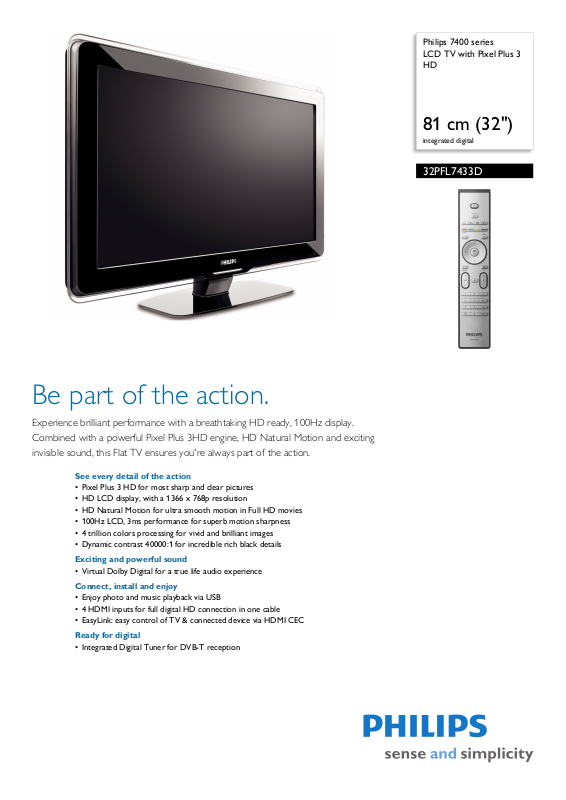

Page 1

Philips 7400 series LCD TV with Pixel Plus 3 HD

81 cm (32")

integrated digital

32PFL7433D

Be part of the action.

Experience brilliant performance with a breathtaking HD ready, 100Hz display. Combined with a powerful Pixel Plus 3HD engine, HD Natural Motion and exciting invisible sound, this Flat TV ensures you're always part of the action.

See every detail of the action

• Pixel Plus 3 HD for most sharp and clear pictures

• HD LCD display, with a 1366 x 768p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

• 100Hz LCD, 3ms performance for superb motion sharpness

• 4 trillion colors processing for vivid and brilliant images

• Dynamic contrast 40000:1 for incredible rich black details

Exciting and powerful sound

• Virtual Dolby Digital for a true life audio experience

Connect, install and enjoy

• Enjoy photo and music playback via USB

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

Ready for digital

• Integrated Digital Tuner for DVB-T reception

Page 2

LCD TV with Pixel Plus 3 HD

81 cm (32") integrated digital

Highlights

32PFL7433D/12

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

LCD display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Natural Motion

Philips invented HD Natural Motion to minimize movie based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material

juddering effects that are visible with

(such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

100Hz LCD (3ms)

100Hz LCD creates extreme motion sharpness for cle with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 3 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

Virtual Dolby Di

Virtual Dolby Digital is a processing technology for e

nhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear

ar and vibrant images even

gital

speakers. You become totally immersed in your television experience.

4 HDMI inputs

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen for the ultimate picture quality. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources and includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and game console or digital Camcorder. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

col to share functionality

Page 3

LCD TV with Pixel Plus 3 HD

81 cm (32") integrated digital

Specifications

32PFL7433D/12

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 40000:1

• Response time (typical): 3 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix T

TF Panel resolution: 1366 x 768p

•

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Color Enhancement, Color Transient Improvement, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, 100Hz LCD, 1080p 24/25/ 30Hz processing, 1080p 50/60Hz processing, Double frame rate, HD Natural Motion

• Screen enhancement: Anti-Reflection coated

• Color cabinet: High gloss black deco

front with

black cabinet

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz Via HDMI/DVI

inpu

• Video formats

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Volume Leveller, Equaliser

Graphic

• Sound System: Nicam Stereo, Virtual Dolby Digital,

BBE

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming,

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller

), Delt

(AVL

a Volume per preset, Graphical User Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

• Electronic Program Guide: Now + Next EPG, 8 am Gu

day Electronic Progr

ide

• Picture in Picture: Text dual screen

• Remote Control: TV

• Remote control type: RC4452

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Mo

vie expand 16:9, Subtitle

Zoom, Super Zoom, Widescreen

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages,

rmatio

Program info

n Line

• Smart mode: Movie, Standard, Vivid

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ures

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL

SECAM D/K, SECAM L/L', DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial *

D/K, SECAM B/G,

•

Tuner bands: Hyperband, S-Channel, UHF, VHF

•Tuner Display: PLL

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System y

andb

• Front / Side connections: HDMI v1.3, S-video in,

CVBS in, Audio L

/R in, Headphone Out, USB

• Other connections: Analog audio Left/Right out,

o in, S/PDIF out (coaxial), Common

PC Audi Interface

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 140 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 819 x 518 x 95 mm

• Set dimensions with stand (W x H x D):

x 220 mm

x 579

819

• Weight incl. Packaging: 19 kg

• Product weight: 13 kg

• Product weight (+stand): 16 kg

•Box dimensions (W x H x D):

x 629 x 255 mm

• VESA wall mount compatible: 200 x 300 mm

Accessories

• Included accessories: Tabletop swivel stand, Power

cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

SPDIF OUT

SERV. U

AUDIO OUT

AUDIO IN

HDMI 2HDMI 3

Issue date 2012-01-19

Version: 2.0.8

12 NC: 8670 000 40963 EAN: 87 12581 43251 5

EXT 2

EXT 1

EXT 3

(RGB/CVBS)

75X

TV ANTENNA

AUDIO IN:

LEFT / RIGHT

HDMI 1

HDMI 1 / DVI HDMI 2 / DVI HDMI 3 / DVI

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
