Philips 32PFL7406T, 32PFL7476H, 32PFL7486H, 32PFL7496H, 42PFL7406H User Manual

EN User Manual

Register your product and get support at

www.philips.com/welcome

32PFL7406H

42PFL7406H

42PFL7456H

47PFL7456H

32PFL7476H

32PFL7486H

42PFL7486H

32PFL7496H

42PFL7406K

42PFL7456K

47PFL7456K

42PFL7486K

32PFL7406T

42PFL7406T

42PFL7456T

47PFL7456T

Downloaded From TV-Manual.com Manuals

chat

chat

chat

chat

chat

Contact information

België/ Belgique

0800 80 190 Gratis/Gratuit

ß

www.philips.com/support

България

00800 11 544 24

Česká republika

800 142 840 Bezplatný hovor

Danmark

3525 8759 Lokalt opkald

ß

www.philips.com/support

Deutschland

0800 000 7520 (kostenfrei)

ß

www.philips.com/support

Ελλάδα

0 0800 3122 1280

Κλήση χωρίς χρέωση

España

900 800 655 Teléfono local gratuito
solamente para clientes en España

ß

www.philips.com/support

Estonia

8000100288 kohalik kõne tariifi

France

0805 025 510 numéro sans frais

ß

www.philips.com/support

Hrvatska

0800 222778 free

Ireland

South: 1 800 7445477
North: 0 800 331 6015

Italia

800 088774 Numero Verde

Қазақстан

[phone] local

Latvia

80002794 local

Lithuania

880030483 local

Luxemburg/Luxembourg

080026550
Ortsgespräch/Appel local

Magyarország

06 80 018 189 Ingyenes hívás

Nederland

0800 023 0076 Gratis nummer

Norge

22 70 81 11 Lokalsamtale

Österreich

0800 180 016

Polska

00800 3111 318

Portugal

0800 780 902 Chamada Grátis

Россия

[phone]
8800 200 0880

(бесплатный звонок по России)

România

0800-894910 Apel gratuit
0318107125 Apel local

Србија

[phone] Lokalni poziv

Slovensko

0800 004537 Bezplatný hovor

Slovenija

080080254 lokalni klic

Sverige

08 5792 9100 Lokalsamtal

Suisse/Schweiz/Svizzera

0800 002 050
Schweizer Festnetztarif/ Tarif réseau
fixe France

Suomi

09 2311 3415 paikallispuhelu

Türkiye

0800 261 3302 Şehiriçi arama

United Kingdom

0870 911 0036 toll free

Українська

0-800-500-697

This information is correct at the time of print. For updated information, see www.philips.com/support.

Downloaded From TV-Manual.com Manuals

English

Contents

1 Get started 4

TV tour 4
Important 7
Environmental efforts 9
Position the TV 10
Help and support 11

2 Use your TV 12

Controls 12
Watch TV 15
Watch a connected device 18
Ambilight 19
Browse PC through DLNA 20
Browse Net TV 22
Rent online video 24

3 Use more of your TV 26

Enjoy HbbTV 26
Smart USB recording 27
View Teletext 29
Set locks and timers 30
View subtitles 32
View Scenea 32
Set universal access 33
Use EasyLink 34

4 Set up your TV 37

Settings assistant 37
Picture and sound 37
Channels 38
Menu language 42
Other settings 42
Update software 42
Reinstall the TV 43

5 Connect your TV 44

6 Troubleshooting 58

Contact Philips 58
General TV 58
TV channel 58
Picture 59
Sound 59
HDMI 60
USB 60
Network 60

7 Product specifications 61

Power and reception 61
Display and sound 61
Display resolutions 61
Multimedia 62
Connectivity 63

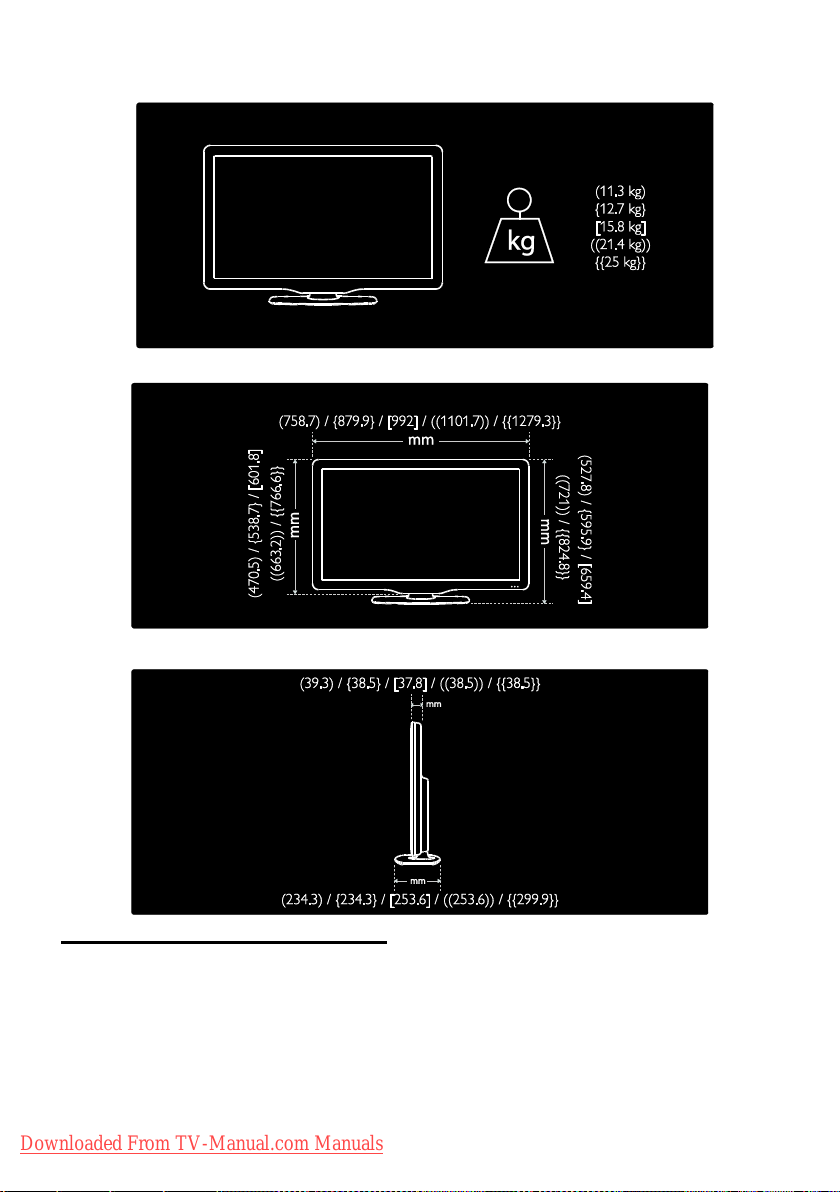

Dimensions 63
Help version 64

8 Index 65

About cables 44
Connect devices 45
Connect more devices 52
Computers and the Internet 53
Common interface 56

Downloaded From TV-Manual.com Manuals

EN 3

1 Get started

TV tour

Remote control

To adjust the volume.

To switch TV channels.

To open or close the Home menu.

In the Home menu, access connected
devices, picture and sound settings, and
other useful features.

To open or close the Find menu.

In the Find menu, access the channel list.

To open or close the Adjust menu.

In the Adjust menu, access a range of
frequently used settings.

To open or close the Text menu.

In the Text menu, access teletext for news
and information.

To open or close the Source menu.

In the Source menu, access connected
devices.

Downloaded From TV-Manual.com Manuals

EN 4

To open or close the Options menu.

Options menus offer convenient settings for
TV channels or programmes.

English

To return to the previous menu page or to
exit from a TV function.

Press and hold to return to watching TV.

To select a red menu option, access digital
Interactive TV services*, or watch TV
demonstration clips.

*Available on certain models only.

To select a green menu option or to access
energy efficient settings.

To select a yellow menu option or to access
the electronic user manual.

Read more about the remote control in Use
your TV > Controls > Remote control
(Page 12).
Alternatively, look at the index in Search
for...

Press to select the next TV tour.

Connect devices

For the best picture and sound quality,
connect a DVD, Blu-ray disc player, or game
console through HDMI (TM).

To watch a non EasyLink compliant device,
add it to the Home menu.

1. Press > [Add your devices].

2. Follow the onscreen instructions.
Note: If you are prompted to select the TV

connection, select the connector that this
device uses. See Connect your TV >
Connect devices (Page 45) for information

on connection.

If an EasyLink or HDMI-Consumer Electronic
Control (HDMI-CEC) compliant device is
connected to the TV, it is automatically
added to the Home menu when both
devices are switched on.

To watch a connected device

1. Press .

2. Select the newly added device icon.

Downloaded From TV-Manual.com Manuals

EN 5

You can learn more on device connections in Connect your TV > Connect devices.

High Definition TV

For high-definition (HD) picture quality,
watch HD programmes.

On standard-definition (SD) programmes,
the picture quality is standard.

You can watch HD video content in these
ways and more:

 a Blu-ray disc player, connected with an

HDMI cable, playing a Blu-ray disc

 an upscaling DVD player, connected

with an HDMI cable, playing a DVD
disc

 an over-the-air HD broadcaster (DVB-

T MPEG4)

 a digital HD receiver, connected with

an HDMI cable, playing HD content
from a cable or satellite operator

 an HD channel on your DVB-C

network

 an HD game console (for example, X-

Box 360 or PlayStation 3), connected
with an HDMI cable, playing an HD
game

HD video clip
To experience the stunning sharpness and
picture quality of HD TV, watch the HD
video clip from the Home menu.

Press > [Setup] > [Watch demos].
Watch Demo is on the second page of the
setup menu.

For more information about the availability
of HD channels in your country, contact
your Philips dealer or visit

www.philips.com/support.

Downloaded From TV-Manual.com Manuals

EN 6

Ambilight

*Available on certain models only.
Ambilight gives a more relaxed viewing

experience. It automatically adjusts the
colour and brightness of the light to match
the TV picture.

Read more in Use your TV > Ambilight
(Page 19).

Network

Connect your TV to your home network to
play music, photos, and videos from a
computer or other media server on the
same network.
Read more in Connect your TV >

Computers and the Internet (Page 53).

Net TV

If your home network is connected to the
Internet, you can connect your TV to Net
TV. Net TV offers movies, pictures, music

and much more.
Read more in Use your TV > Browse Net

TV (Page 22).

English

Important

Safety

Read and understand all instructions before
you use your TV. If damage is caused by
failure to follow instructions, the warranty
does not apply.

Risk of electric shock or fire!

 Never expose the TV to rain or water.

Never place liquid containers, such as
vases, near the TV. If liquids are spilt on
or into the TV, disconnect the TV from
the power outlet immediately. Contact
Philips Consumer Care to have the TV
checked before use.

 Never insert objects into the ventilation

slots or other openings on the TV.

 When the TV is swivelled, ensure that

no strain is exerted on the power cord.
Strain on the power cord can loosen
connections and cause arcing.

 Never place the TV, remote control or

batteries near naked flames or other
heat sources, including direct sunlight.
To prevent the spread of fire, keep
candles or other flames away from the
TV, remote control and batteries at all
times.

Risk of short circuit or fire!

 Never expose the remote control or

batteries to rain, water or excessive
heat.

 Avoid force coming onto power plugs.

Loose power plugs can cause arcing or
fire.

Downloaded From TV-Manual.com Manuals

Risk of injury or damage to the TV!

 Two people are required to lift and

carry a TV that weighs more than 25kg
or 55lbs.

 When stand mounting the TV, use only

the supplied stand. Secure the stand to
the TV tightly. Place the TV on a flat,
level surface that can support the
combined weight of the TV and the
stand.

 When wall mounting the TV, use only a

wall mount that can support the weight
of the TV. Secure the wall mount to a
wall that can support the combined
weight of the TV and wall mount.
Koninklijke Philips Electronics N.V. bears
no responsibility for improper wall
mounting that result in accident, injury
or damage.

 Before you connect the TV to the

power outlet, ensure that the power
voltage matches the value printed on
the back of the TV. Never connect the
TV to the power outlet if the voltage is
different.

 Parts of this product may be made of

glass. Handle with care to avoid injury
and damage.

Risk of injury to children!
Follow these precautions to prevent the TV
from toppling over and causing injury to
children:

 Never place the TV on a surface

covered by a cloth or other material
that can be pulled away.

 Ensure that no part of the TV hangs

over the edge of the surface.

 Never place the TV on tall furniture,

such as a bookcase, without anchoring
both the furniture and TV to the wall
or a suitable support.

 Educate children about the dangers of

climbing on furniture to reach the TV.

Risk of swallowing batteries!

 The product/remote control may

contain a coin-type battery, which can
be swallowed. Keep the battery out of
reach of children at all times!

EN 7

Risk of overheating!

 Never install the TV in a confined

space. Always leave a space of at least 4
inches or 10 cm around the TV for
ventilation. Ensure that curtains or
other objects never cover the
ventilation slots on the TV.

Risk of injury, fire or power cord damage!

 Never place the TV or any objects on

the power cord.

 To easily disconnect the TV power

cord from the power outlet, ensure
that you have full access to the power
cord at all times.

 When you disconnect the power cord,

always pull the plug, never the cable.

 Disconnect the TV from the socket and

aerial before lightning storms. During
lightning storms, never touch any part
of the TV, power cord or aerial cable.

Risk of hearing damage!

 Avoid using earphones or headphones

at high volumes or for prolonged
periods of time.

Low temperatures

 If the TV is transported in temperatures

below 5°C or 41°F, unpack the TV and
wait until the TV temperature matches
room temperature before connecting
the TV to the power outlet.

Screen care

 Risk of damage to the TV screen!

Never touch, push, rub or strike the
screen with any object.

 Unplug the TV before cleaning.
 Clean the TV and frame with a soft

damp cloth. Never use substances such
as alcohol, chemicals or household
cleaners on the TV.

 To avoid deformations and colour

fading, wipe off water drops as soon as
possible.

 Avoid stationary images as much as

possible. Stationary images are images
that remain onscreen for extended
periods of time. Stationary images
include onscreen menus, black bars,
time displays, etc. If you must use
stationary images, reduce screen
contrast and brightness to avoid screen
damage.

Downloaded From TV-Manual.com Manuals

EN 8

English

Environmental efforts

Energy efficiency

Philips continuously focuses on lowering the
environmental impact of our innovative
consumer products. We aim our efforts
towards environmental improvements during
manufacturing, reduction of harmful
substances, energy-efficient use, end-of-life
instructions and product recycling.

To access energy efficient settings:
While you watch TV, press the green button
on the remote control.

These energy-efficient settings include:

 Energy saving picture settings: You can

apply a combination of energy saving
picture settings. While you watch TV,
press the green button and select
[Energy saving].

 Power switch: You can completely cut

off power to the TV with the power
switch. It is located at the base of the
set.

 Screen off: If you only want to listen to

audio from the TV, you can turn off the
TV display. Other functions continue to
operate normally.

 Light sensor: The built-in ambient light

sensor lowers the brightness of the TV
screen when the surrounding light
darkens.

 Low standby power: The advanced

power circuitry brings down the power
consumption of the TV to an extremely
low level, without losing out on the
constant standby functionality.

 Power management: The advanced

power management of this TV ensures
the most efficient use of its energy.
To view how your personalised TV
settings affect the TV's relative power
consumption, press and select

[Setup] > [Watch demos] > [Active
Control].

End of use

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.

When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European
Directive 2002/96/EC. Please inform yourself
about the local separate collection system
for electrical and electronic products.

Please act according to your local rules and
do not dispose of your old products with
your normal household waste. Correct
disposal of your old product helps to
prevent potential negative consequences for
the environment and human health.

Downloaded From TV-Manual.com Manuals

EN 9

Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal
household waste. Please inform yourself
about the local rules on separate collection
of batteries because correct disposal helps to
prevent negative consequences for the
environment and human health.

Position the TV

Placement

 Before you position the TV, read all

safety precautions. See Get Started >
Important > Safety (Page 7).

 Position the TV where light does not

shine directly on the screen.

 The ideal distance from which to watch

TV is three times its diagonal screen
size. For example, if the diagonal screen
size of the TV is 116cm / 46", the ideal
viewing distance is ~3.5m / ~138" from
the front of the screen.

 While seated, your eyes should be level

with the centre of the screen.

Stand mount or wall mount
To apply the best settings for your TV, select
wall mount or stand mount.

1. In the [Preferences] menu, select [TV
placement].

2. Select [On a TV stand] or [Wall
mounted], then press OK.

Downloaded From TV-Manual.com Manuals

EN 10

Wall mount

You can also wall mount your TV on a
compatible TV mount (not supplied). Check
your TV screen size and match it against the
list for the type of wall mount to purchase:

81 cm / 32 inches : 200mm x 200mm, M6
94 cm / 37 inches: 200mm x 200mm, M6
107 cm / 42 inches: 400mm x 400mm, M6
119 cm / 47 inches: 400mm x 400mm, M6
140 cm / 55 inches: 400mm x 400mm, M8

Warning: Follow all instructions provided
with the TV mount. Koninklijke Philips
Electronics N.V. bears no responsibility for
improper TV mounting that results in
accident, injury or damage.

To prevent damage to cables and
connectors, leave a gap of at least 5.5 cm /

2.2 inches from the back of the TV.
For 32-inch to 42-inch TVs:

Before you wall mount the TV, find the
correct length of screw.

To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.

English

For 47 inch to 55 inch TVs:

Before you wall mount the TV, find the
correct length of screw.

To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.

Location

A range of TV settings are applied to suit the
location of the TV.

Shop or home mode
Set the TV location to Home mode to
access all TV settings. In Shop mode, you can
access only a few settings.

1. While you watch TV, press .

2. Select [Setup] > [TV settings] >
[Preferences].

3. Select [Location] > [Home] or [Shop],
then press OK.

4. Restart the TV.

Lock the TV

Your TV is equipped with a Kensington
security slot at the base of the TV. Purchase
a Kensington anti-theft lock (not supplied) to
secure the TV.

Help and support

Use Help

You can access onscreen [Help] from the
Home menu by pressing the Yellow button.

You can also switch between the [Help]
menu and the TV menu by pressing the
Yellow button.

Online support

If you can't find what you need in the
onscreen [Help], consult our online support
at www.philips.com/support.

Follow the website instructions to select
your language, then enter your product
model number.

At our support website, you can also:

 find answers to frequently asked

questions

 download a printable PDF version of

this user manual to read

 email us a specific question
 chat online with one of our support

personnel (available in certain countries
only)

Contact Philips

If you like, you can contact Philips Consumer
Care in your country for support. You can
find the contact number in the leaflet
accompanying the TV.

Before you contact Philips, note down your
TV model and serial number. You can find
this information on the back of your TV or
on its packaging.

Downloaded From TV-Manual.com Manuals

EN 11

2 Use your TV

Controls

TV controls

1. +/-: Increase or decrease volume.

2. AMBILIGHT: Switch Ambilight on or off.

Ambilight is available on certain models only.

3. (Home): Access the Home menu. Press
again to launch an activity in the Home
menu. Confirm an entry or selection.

4. CH +/-: Switch to the next or previous
channel.

5. Power: Switch the TV on or off.

Indicators

1. Ambient sensor / remote control sensor

Ambient sensor is available on certain
models only.

Remote control

1. (Standby): Switch the TV on or to

standby.

2. Play buttons: Control video or music play.

3. Colour buttons: Select tasks or options.

Not supported in MHEG mode.

Downloaded From TV-Manual.com Manuals

EN 12

English

4. (Home): Access the Home menu.

5. (Navigation buttons): Navigate

through menus and select items.

6. CH - / CH + (Previous/Next):
Switch channels, navigate through menu
pages, tracks, albums or folders.

7. OK: Confirm an entry or selection.

8. (Back): Return to the previous menu

page or exit from a TV function.

9. FIND: Access the menu to select TV
channel list.

10. ADJUST: Access the menu to adjust
settings.

11. SOURCE: Select connected devices.

12. OPTIONS: Access options for the

current activity or selection.

13. +/- (Volume): Adjust volume.

14. (Mute): Mute or restore audio.

15.0-9(Numeric buttons): Select channels.

16. TEXT/INFO: Enable or disable teletext.

Press and hold to view more information on
the current activity.

17. SUBTITLE: Enable or disable subtitles.

Downloaded From TV-Manual.com Manuals

Batteries

Warning: Risk of swallowing batteries!

The product/remote control may contain a
coin-type battery, which can be swallowed.
Keep the battery out of reach of children at
all times!

Caution: The battery contains perchlorate
material, handle it with care. For information,
see
www.dtsc.ca.gov/hazardouswaste/perchlorat
e.

If your remote control signal is weak, replace
the batteries:

1. Open the battery cover.

2. Remove the old batteries from the battery
compartment, and replace them with fresh
batteries.
Make sure that the ends of the batteries line
up correctly with the +/- markings in the
battery compartment.

Notes:
Dispose of batteries according to

environmental directives. Read Get started
> Environmental efforts > End of use (Page

9).
Remove batteries from the remote control if
you will not use it for an extended period of
time.

EN 13

The type of battery varies according to RC
model:

For remote control with AAA batteries (end
to end):

For remote control with AAA batteries (side
by side):

For remote control with coin cell batteries:

EasyLink controls

Note: EasyLink controls are available when

the connected device is HDMI-CEC
compliant.

EasyLink allows you to control your TV and
other HDMI-CEC devices with one remote
control.

Access EasyLink controls

1. While you view content from a connected
HDMI-CEC device, press OPTIONS.

2. Select [Show device keys], then press
OK.

3. Select the EasyLink control button, then
press OK.

Read more on EasyLink in Use more of
your TV > Use EasyLink (Page 34).

Downloaded From TV-Manual.com Manuals

EN 14

Smartphone control

Use your iPhone as a secondary remote, and
even as a keyboard. Go to the Apple Apps
store and download the application 'Philips
Wifi TV Remote'. Follow the instructions
provided at the Apps store.

Ensure that your TV is connected to the
same network as your iPhone. Read more
about network connections in Connect your
TV > Computers and the Internet (Page

53).

English

Watch TV

Switch TV on or off

Switch the TV on

 Press the power switch at the base of

the TV to the ON position.

 If the TV is in standby, press on the

remote control.

Note: There is a short delay before the TV
responds.
Tip: If you cannot find your remote control
and want to switch on the TV from standby,
press CH +/- on the front of the TV.

Though your TV consumes very little energy
in standby, it does use some energy. If you
are not going to use the TV for an extended
period of time, switch it off to cut off the
power.

Switch TV to standby
Press on the remote control. The remote
control sensor on the TV switches to red.

Switch off the TV
Press the power switch at the base of the

TV to the OFF position.
The TV no longer consumes energy.

Automatic switch off
This TV is designed with energy efficiency
settings. If there is no user interaction (such
as pressing a remote control button or a
control on the front panel) for four hours,
the TV will automatically switch to standby.

Downloaded From TV-Manual.com Manuals

To disable automatic switch off,
While you watch TV, press the green button

on the remote control. Select [Auto switch
off] and press OK. An on screen message
confirms that automatic switch off is
disabled.

Adjust TV volume

Increase or decrease the TV volume

 Press +/- on the remote control.
 Press +/- on the front of the TV.

Mute or unmute the TV volume

 Press to mute the TV, or
 Press again to restore the volume.

Adjust headphone volume

1. Press > [TV settings] > [Sound].

2. Select [Headphones volume], then press
OK.

EN 15

Switch TV channels

 Press on the remote control.
 Press CH +/- on the TV.
 Press the Numeric buttons to enter a

channel number.

Manage channel lists

You can view all channels, or only your
favourites in the channel list.

Press FIND to access the channel list.
Create a channel list

You can create a channel list that contains
only your favourite channels.

1. Press FIND.

2. Press OPTIONS.

3. Select [Mark as favourite] or [Unmark as

favourite], then press OK.

Select a channels list

1. In the channel list, press OPTIONS.

2. Select [Select list] > [Favourites] to
display channels in the favourite list; or [All]
to display all channels.

3. Press OK to confirm.
View only analogue or digital TV channels

You can filter the channel list to access only
analogue or digital channels.

1. In the channel list, press OPTIONS.

2. Select [Select list] > [Analogue] or
[Digital], then press OK.
Depending on your selection, only analogue
or digital channels are available.

Downloaded From TV-Manual.com Manuals

EN 16

Listen to digital radio

If digital radio channels are available, they are
installed automatically when you install the
TV channels.

1. While you watch TV, press FIND. The
channel list is displayed.

2. Press OPTIONS.

3. Select [Select list] > [Radio], then press
OK.

4. Select a radio channel, then press OK.

View programme guide

The programme guide displays information
about digital TV channels, for example:

 Channel schedules
 Synopsis of programmes

Note: TV programme guides are available in
certain countries only.

Set programme guide

Before you use the programme guide, check
the following settings:

1. Press .

2. Select [Setup] > [TV settings] >
[Preferences].

3. Select [Programme guide] > [From the

broadcaster], then press OK.
Access the TV programme guide

1. Press .

2. Select [Programme guide], then press

OK.
Note: If you are viewing the programme

guide for the first time, select [Update
Programme guide] to update all available

programmes.

English

Use TV programme guide options

You can customise the displayed information
to:

 Remind you when programmes start
 Display only preferred channels

1. In the programme guide, press
OPTIONS.

2. Select one of these settings, then press
OK:

 [Set reminder]: Set programme

reminders.

 [Clear reminder]: Clear programme

reminders.

 [Change day]: Select the day to display.
 [More info]: Display programme

information.

 [Search by genre]: Search TV

programmes by genre.

 [Scheduled reminders]: List

programme reminders.

 [Update Programme guide]: Update

the latest programme information.

Use smart picture settings

Select your preferred picture setting.

1. While you watch TV, press OPTIONS.

2. Select [Smart picture].

3. Select one of the following settings, then
press OK:

 [Personal]: Apply your personalised

picture settings.

 [Vivid]: Rich and dynamic settings, ideal

for daytime viewing.

 [Natural]: Natural picture settings.
 [Cinema]: Ideal settings for movies.
 [Game]: Ideal settings for games.
 [Energy saving]: Settings that conserve

the most energy.

 [Standard]: Default settings that suit

most environments and types of video.

 [Photo]: Ideal settings for photos.
 [Custom]: Customise and store your

own picture settings.

Use smart sound settings

Select your preferred sound setting.

1. While you watch TV, press OPTIONS.

2. Select [Smart sound].

3. Select one of the following settings, then
press OK:

 [Personal]: Apply your preferred setting

in the Sound menu.

 [Standard]: Settings that suit most

environments and types of audio.

 [News]: Ideal settings for spoken audio,

such as the news.

 [Movie]: Ideal settings for movies.
 [Game]: Ideal settings for games.
 [Drama]: Ideal settings for drama

programs.

 [Sports]: Ideal settings for sports.

Change picture format

Change the picture format to suit your
preference.

1. Press ADJUST.

2. Select [Picture format], then press OK.

3. Select a picture format, then press OK to
confirm.

The available picture formats depend on the
video source:

 [Auto fill]: Adjust the picture to fill the

screen (subtitles remain visible).
Recommended for minimal screen
distortion but not for HD or PC.

 [Auto zoom]: Enlarge the picture to fill

the screen. Recommended for minimal
screen distortion but not for HD or PC.

 [Super zoom]: Remove the black bars

on the sides of 4:3 broadcasts. Not
recommended for HD or PC.

 [Movie expand 16:9]: Scale 4:3 format

to 16:9. Not recommended for HD or
PC.

 [Wide screen]: Stretch 4:3 format to

16:9.

 [Unscaled]: Provide maximum detail for

PC. Only available when PC mode is
enabled in the picture menu.

Downloaded From TV-Manual.com Manuals

EN 17

Watch a connected device

Add new device

Notes:

 Before you watch a connected device,

you must add its icon to the Home
menu. See Connect your TV >
Connect device (Page 45).

 If you connect an HDMI-CEC

compliant device to the TV through an
HDMI connector and switch it on, the
device is automatically added to the
Home menu.

1. Connect and switch on the device.

2. Press .

3. Select [Add your devices], then press
OK.

4. Follow the onscreen instructions.

 Select your device.
 Select the connector.

Note: If you are prompted to select the TV
connection, select the connector that this
device uses.

Select a source

From Home menu

After you have added the new device to the
Home menu, select the new device icon to
view its contents.

1. Press .

2. Select the device icon from the Home
menu.

3. Press OK to confirm.
From Source menu

You can also press SOURCE to display a
list of connector names. Select the
connector that connects the device to the
TV.

1. Press SOURCE.

2. Press the Navigation buttons to select a
connector in the list.

3. Press OK to confirm.

Play from USB

If you have photos, videos or music files on a
USB storage device, you can play the files on
TV.

Caution: Philips is not responsible if the USB
storage device is not supported, nor is it
responsible for damage or loss of data in the
device.
Do not overload the USB port. If you
connect an HDD device that consumes
more than 500mA power, make sure that it
is connected to its own external power
supply.

Access the USB content browser as follows:

 While you watch TV, connect the USB

device to the USB connector on the
TV.

 Press , select [Browse USB], then

press OK.

Watch video
Press the Navigation buttons to select a
video file, then press OK.

 Press or to search forward or

backward within a video.

 Press and hold to exit the content

browser.

While you play video, press OPTIONS
to access the following video options:

 [Stop]: Stop playback.
 [Repeat]: Repeat a video.
 [Shuffle on] / [Shuffle off]: Enable or

disable random play of videos.

View picture
Press the Navigation buttons to select a
picture, then press OK.

 To pause or stop play, press OK.
 To skip to the previous or next file,

press or .

 Press and hold to exit content

browser.

Downloaded From TV-Manual.com Manuals

EN 18

English

Press OPTIONS to access or exit the
following picture options:

 [Show info]: Display the file

information.

 [Stop]: Stop slideshow.
 [Rotate]: Rotate the file.
 [Repeat]: Repeat the slideshow.
 [Play once]: Play the file once.
 [Shuffle off] / [Shuffle on]: Enable or

disable random display of pictures in
the slideshow.

 [Slideshow speed]: Set the display time

for each picture in the slideshow.

 [Slideshow transition]: Set the

transition from one picture to the next.

 [Set as Scenea]: Set the selected

picture as wallpaper on TV.

Listen to music
Press the Navigation buttons to select a
music track, then press OK.

 Press / to search forward or

backward within a track.

 Press and hold to exit content

browser.

Press OPTIONS to access or exit the
following music options:

 [Stop]: Stop audio play.
 [Repeat]: Repeat a track or an album.
 [Play once]: Play the track once.
 [Shuffle on] / [Shuffle off]: Enable or

disable random play of tracks.

Ambilight

What you can do

*Available on certain models only.
Ambilight gives a more relaxed viewing

experience. It automatically adjusts the
colour and brightness of the light to match
the TV picture.

What you need

 For the best Ambilight effect, position

the TV 25cm away from the wall.

 Keep the remote control away from

the TV, as it can interfere with the
infrared signals.

 Dim the light in the room.

Downloaded From TV-Manual.com Manuals

EN 19

Switch on

1. Press ADJUST.

2. Select [Ambilight], then press OK.

3. To switch Ambilight on or off, select [On]
or [Off].

You can also press AMBILIGHT on the TV
to switch Ambilight on or off.

Change settings

In the Ambilight menu, you can access more
Ambilight settings.

1. While you watch TV, press > [Setup].

2. Select [TV settings] > [Ambilight].

3. Select a setting to adjust:

 [Dynamic]: Adjust Ambilight between

relaxed and dynamic levels. Available
only if Ambilight [Colour] is set to
[Dynamic].

 [Brightness]: Adjust the brightness of

Ambilight.

 [Colour]: Select a predefined colour.
 [Custom colour]: Set your own

Ambilight colour. To access this option,
set [Ambilight] > [Colour] >
[Custom].

 [Separation]: Adjust the difference in

colour levels on each side of the TV.
Turn off this feature for a dynamic and
uniform Ambilight colour.

 [TV switch off]: Select how Ambilight

switches off when the TV is switched
off.

Downloaded From TV-Manual.com Manuals

EN 20

 [Lounge light mood]: Select a lounge

light mode. The lounge light comes on
when the TV is in standby.

 [Scenea lounge light]: Switch Scenea

lounge light on or off when Scenea is
enabled.

 [Wall colour]: Select the colour of the

wall behind the TV. Ambilight corrects
its colours to suit the colour of the wall.

Use lounge light

When the TV is in standby, press Ambilight
on the front of the TV to create a lounge
light effect in your room.

Note: It may take more than 5 seconds for
the lounge light to switch on.

To select another lounge light colour, see
Use your TV > Ambilight > Setup (Page

20).

Browse PC through DLNA

What you can do

If you have photos, videos or music files
stored on a computer connected through a
home network, you can play the files on
your TV.

What you need

 A wired or wireless home network,

connected with a Universal Plug and
Play (uPnP) router.

 A Philips wireless USB adapter or a

LAN cable that connects your TV to
your home network.

 A media server such as:

PC running Windows Media Player 11
or higher; or

Mac running Twonky Media Server.

 Make sure that your computer firewall

allows you to run the media server
software program.

English

You will also need to set up the network
connection:

 Connect your TV and the computer to

the same home network. See Connect

your TV > Computers and the
Internet (Page 53).

 Switch on your computer and the

router.

Proceed to set up a media sharing server
with Windows Media Player 11 or higher, or
Twonky Media Server.

Note: For help to use other media servers,
such as TVersity, see the web site of the
media server.
If the apparatus does not return to DLNA
mode due to external electrical disturbances
(e.g. electrostatic discharge), user
intervention is required.

Enable sharing on Windows Media
Player 11

1. Start Windows Media Player on your
computer.

2. Select Library > Media Sharing.

 The first time you select Media Sharing,

a pop-up screen appears. Tick the
Share my media box and click OK.

 A device marked as Unknown Device

appears in the Media Sharing screen.
If the unknown device does not appear
after a minute or so, make sure that
your PC firewall is not blocking the
connection.

3. From the Media Sharing screen, select the
unknown device and click Allow.
A green tick appears next to the device.

 By default, Windows Media Player

shares files from these folders: My
Music, My Pictures, and My Videos.

4. If your files are in other folders, select
Library > Add to Library, and then follow

the onscreen instructions to add the folders.

 If necessary, select Advanced options

to display a list of monitored folders.

5. Select Library > Apply Media Information
Changes to activate the changes.

Downloaded From TV-Manual.com Manuals

Enable sharing on Windows Media
Player 12

1. Start Windows Media Player on your
computer.

2. In Windows Media Player, select the

Stream tab, and then select Turn on media
streaming.

The Media streaming options screen
appears.

3. Click Turn on media streaming.
Return to the Windows Media Player screen.

4. Click Stream > More streaming options.

 The Media streaming options screen

appears.

 A media program appears in the local

network screen. If the media
programme does not appear, make
sure that your PC firewall is not
blocking the connection.

5. Select the media programme and click
Allowed.

 A green arrow appears next to the

media programme.

 By default, Windows Media Player

shares files from these folders: My
Music, My Pictures, and My Videos.

6. If your files are in other folders, select

Organize tab and select Manage libraries >
Music.

Follow the onscreen instructions to add the
folders that contain your media files.

Enable sharing on Twonky Media

1. Visit www.twonkymedia.com to purchase
the software, or download a free 30-day trial
to your Macintosh.

2. Start Twonky Media on the Macintosh.

3. In the Twonky Media Server screen,
select Basic Setup and First steps.
The First steps screen appears.

4. Type a name for your media server, and
then click Save changes.

5. Back in the Twonky Media screen, select
Basic Setup > Sharing.

6. Browse and select folders to share, and
then select Save Changes.

Your Macintosh rescans the folders
automatically so that they are ready to share.

EN 21

Play files from computer

Note: Before you play multimedia content

from the computer, make sure that the TV is
connected to the home network, and the
media server software is properly set up.

1. Switch on the computer and the router.

2. Switch on your TV.

3. Press on the remote control.

4. Select [Browse PC], then press OK. If the
network installation starts, follow the
onscreen instructions.

5. If the content browser is displayed, select
a file, then press OK.

The file starts to play.

6. Press the Play buttons on the remote
control to control play.

View pictures

 To play a picture slideshow, select a

photo, then press OK.

 To pause or stop playback, press OK

again.

 To play the previous or next file, press

or .

Press OPTIONS to access one of the
following options:

 [Show info]: Display the file

information.

 [Stop]: Stop slideshow.
 [Rotate]: Rotate the file.
 [Repeat]: Repeat the slideshow.

Downloaded From TV-Manual.com Manuals

EN 22

Browse Net TV

What you can do

Enjoy Internet Applications (Apps), specially
adapted internet websites for your TV. You
can control the Apps with the TV remote
control. For example, you can:

 Read newspaper headlines
 Watch videos
 Check weather forecasts

Use the catch-up TV feature to watch TV
programmes that you missed. Availability of
catch-up TV Apps differ for each country.
To find out which TV programmes are
available, access the Net TV programme
guide.

Find out more on Net TV services at the
Net TV forum website,

www.supportforum.philips.com.

Notes:

 Each country has different Net TV

services.

 Certain websites may not display

completely. Some functions are not
available, for example file download, or
functions that require plug-ins.

 Net TV services are updated

automatically. To view the latest
updates, change All to New in the App
store.

 Net TV displays one page at a time, in

full screen.

 Koninklijke Philips Electronics N.V. bears

no responsibility regarding the content
and the quality of the content provided
by the content service providers.

What you need

To enjoy Net TV, complete these tasks:

1. On your home network, connect the TV
to the Internet

2. On your TV, configure Net TV.

3. On your PC, register with Philips to enjoy
exclusive benefits and receive updates on
product information. You can register now
or later.

English

Notes:

 You can lock Net TV Applications

(Apps) with a 4 digit pin-code. All adult
Apps can be locked as one selection.

 When you lock an adult Application,

the advertisements and Web pages not
adapted for Net TV remain accessible.

Connect the TV to the Internet
On your home network, connect the
following:

1. Connect a router with a high-speed
connection to the Internet.

2. Switch on the router.

3. Install the network. See Connect the TV

> Computers and the Internet (Page 53).

Configure Net TV

1. Press , select [Browse Net TV], and
then press OK to confirm.
The terms and conditions of use are
displayed.

2. To agree to the terms and conditions,
press OK. The registration menu is

displayed.

3. To register with Club Philips, select
[Register], then press OK.

4. Confirm the onscreen message.
A prompt asks if you want to lock adult

services.

5. To lock adult services, select [Lock], then
press OK.
To leave adult services unlocked, select
[Leave unlocked], then press OK.

6. To lock, enter a 4-digit code, then press
OK.

7. Re-enter the 4-digit code, then press OK.
The Net TV start page is displayed.

Access Net TV Applications (Apps)

The first page shown is the Net TV home
page. The icons on this page represent the
applications (Apps).

Downloaded From TV-Manual.com Manuals

 Browse Internet websites with the

Internet Apps.
Press the Navigation buttons to select
an App, then press OK to confirm.

 Read the Net TV quick guide for more

information.

 Access the App Gallery to add more

Apps to your home screen.

 You can change country settings and

select Apps from other countries.

Access website

1. Select an Internet App, then press OK.

2. Use the Numeric buttons on the TV
remote control to enter a web address.

Onscreen keyboard

Select the area to enter the web address,
then press OK.

A keyboard appears on the screen.
Use this to enter a web address.

Clear Net TV memory
Warning: This option resets Net TV

completely.
You can clear the Net TV memory

completely, including your favourites, the
parental control code, passwords, cookies
and history.

1. Press .

2. Select [Setup] > [Network settings].

3. Select [Clear Net TV memory], then
press OK.

Options

Press OPTIONS to select the following:

 Remove App
 Lock App
 Unlock App
 Move App

Show remote control
Keys such as play , rewind and fast

forward can be called up with [Show
remote control].

Press OPTIONS and select [Show
remote control]. Use the onscreen keys to
operate the connected audio or video
player.

Select a key and press OK to carry out its
function. Press to hide the onscreen keys.

EN 23

Select P+ and P- to scroll up and down on a
web page.

Zoom page
To zoom in and out on an Internet page,

press OPTIONS and select [Zoom
page]. Use the slider bar to set the
enlargement.

To scroll through an Internet page, use the
Navigation buttons to jump from highlight

to highlight.
Reload page

If a page does not load correctly, reload it.
Press OPTIONS and select [Reload

page].
Security info

To view security information about a page,
press OPTIONS and select [Security

info].

Rent online video

What you can do

With this TV, you can rent a video from an
online video store.

1. Open a video store. You may need to
register or enter your login.

2. Select a video.

3. Make the online payment.

4. Download a video.

What you need

To rent and download a video, you need a
high-speed Internet connection to the TV.
Read more about network connections in

Connect your TV > Computers and the
Internet (Page 53).

You also need an SD memory card to insert
into the TV SD card slot.

SD memory size
Use a blank SD memory card of type SDHC
class 6, with at least 4 GB of storage
capacity.

For high-definition video, make sure that you
use an SDHC card with at least 8 GB of
storage capacity.

Note: If the write speed is insufficient for
video transfer, the TV rejects the SD card.

Downloaded From TV-Manual.com Manuals

EN 24

Caution: This TV has a standard SD card slot
that can be used only for renting video.

Follow the instructions described here. If you
insert the card incorrectly, you might damage
the card. All existing content on the SD card
is erased before you download rented
videos.

Format an SD card
Before you download rented videos, your
SD card must be formatted.

1. Switch on the TV.

2. As illustrated, insert the SD memory card
into the SD card slot on the side of the TV.
The TV automatically starts formatting the
card.

3. After formatting, leave the SD card in the
slot.

Rent

View a video store

1. Press .

2. Select [Browse Net TV] and press OK.

3. Access the App Gallery to search for
available video stores in your country.

4. Press the Navigation buttons to select a
store, then press OK to confirm.
The icon of the video store is added to the
home page.

5. To view a store, select its icon and press

OK.

English

Rent a video

To rent a video, select its icon on the video
store page and press OK. In most cases you

can rent a video for one day or for a couple
of days or even just 1 hour. The way you
select and rent a video varies from store to
store.

Payment
The store prompts you to log in or to open
a new account if you do not have one. The
login might consist of your email address and
a personal PIN code. When you are logged
in, you can select the payment method, a
credit card, or a value code in most cases.

Consult the video store website for more
information on its payment terms.

 To enter a number code (PIN), use the

Numeric buttons on the remote
control.

 To enter an email address, select the

text field on the page and press OK.
Select a character on the keyboard and

press OK to enter.

Download the video
When you have paid, you can download the
video on to the video memory. During the
download, you can continue to watch a TV
programme until the TV notifies you that the
video is ready to play.

If you cancel a download, you can still
download the video until the rental period
expires.

Watch video

1. Press , select [Browse Net TV].
The installed video stores are displayed.

2. Select the video store where you rented
the video, then press OK.

3. With your log-in information, enter the
online video store.

4. Select the video from the list of
downloaded videos, then press OK to play.

Downloaded From TV-Manual.com Manuals

EN 25

3 Use more of

your TV

Enjoy HbbTV

What you can do

Some broadcasters of digital channels offer
interactive HbbTV (Hybrid Broadcast
Broadband TV).

With HbbTV, broadcasters combine their
normal TV programme with all kinds of
information or entertainment. You can
browse this information interactively. You
can respond to a programme or vote, do
online shopping or pay for a video-on­demand programme.

To fully enjoy HbbTV, you need to connect
your TV to the Internet. Read more about
connecting the TV to the Internet in

Connect your TV > Computers and the
Internet (Page 53).

Note: You cannot download files to your TV

with this feature.

Access HbbTV

When you tune to a TV channel that offers
HbbTV, the interactive pages will open
automatically or, at some point, you will be
invited to open them.

Depending on the broadcaster, you might
need to press the red button or OK on the

remote control to access the page.
To exit the HbbTV pages, select the relevant

button on screen and press OK.

Navigate HbbTV pages

To navigate the HbbTV pages, you can use

the navigation buttons, colour buttons,
number buttons, and the (back) button.

While you watch videos within HbbTV
pages, you can use (play), (pause) and

(stop) buttons.

HbbTV text

Some broadcasters offer HbbTV Text, a
new version of Text. Depending on the
broadcaster, you might need an Internet
connection to view HbbTV Text.

You can use the same remote control
buttons to navigate HbbTV Text as you did
to navigate HbbTV pages.

Block HbbTV

You can block HbbTV completely.
To block HbbTV, press OPTIONS and

select [HbbTV on this channel] > [Off].

Downloaded From TV-Manual.com Manuals

EN 26

English

Smart USB recording

What you can do

With this TV, you can pause a live TV
broadcast from a digital channel. Connect a
USB hard disk to your TV and you can pause
the live broadcast.

If your TV is connected to the Internet, you
can also set a programmed recording of a
digital broadcast.

What you need

Smart USB recording and Pause TV work
only with digital TV channels (DVB broadcast
or similar).

To pause or record a digital broadcast, you
need to connect a USB hard disk. Use a USB

2.0 compatible hard disk with a minimum of
250 GB hard disk space. Ensure that the USB
hard disk supports a minimum transfer speed
of 30MBps.

To record programmes with the USB hard
disk device, ensure your TV is connected to

the Internet. Read more about connecting
the TV to the Internet in (Page 53).

To record programmes with the USB hard
disk device, ensure your TV is connected to

the Internet. Read more about connecting
the TV to the Internet in (Page 53).

If you cannot connect to the Internet, you
can still pause live TV broadcasts. To pause
broadcasts, you need a USB hard disk with a
minimum size of 32 GB hard disk space.

Connect the USB hard disk to the USB
connector on the side of the TV. If you need
extra USB connectors, use a USB hub.

Installation

Caution: Philips is not responsible if the USB

hard disk device is not supported, nor is it
responsible for damage or loss of data in the
device.

Do not overload the USB port. If you
connect an USB device that consumes more
than 500mA power, make sure that it is
connected to its own external power supply.

Once the USB hard disk device is formatted
for this TV, you cannot use the recordings
on another TV. Do not copy or change
recording files on the USB hard disk through
any PC application. This will corrupt your
recordings.

Before you can pause or record a broadcast,
you must format the connected USB hard
disk device.

1. Connect the USB hard disk to one of the
USB connectors on the side of the TV. Do
not connect another USB device in the
other USB connection when you are
formatting the USB hard disk.

2. Switch on the device and the TV.

3. When the TV is tuned to a digital TV
channel, press (pause) to start formatting.
Formatting removes all data from the
connected USB hard disk device. Follow the
instructions on screen.

When the USB hard disk is formatted, keep
the device connected permanently.

Downloaded From TV-Manual.com Manuals

EN 27

Pause live broadcast

While you watch a live TV broadcast on a
digital channel, you can pause the broadcast
and continue watching it later. You can
pause TV to answer an urgent phone call or
have a break without having to wait for the
TV commercials. Meanwhile, the broadcast is
stored on the USB hard disk.

Note: You can pause a broadcast for a
maximum time span of 90 minutes.

 To pause a live TV broadcast, press

(pause). A progress bar appears briefly
on screen.

 To view the progress bar again, press

(pause) again.

 To continue watching, press (play).
 To switch to live TV broadcast again,

press (stop).

Once you switch to a digital channel, the
USB hard disk starts storing the broadcast.

The stored broadcast on the USB hard disk
is cleared when:

 you switch the TV to standby.
 you switch to another channel. The

USB hard disk starts storing the content
on the new channel broadcast.

 you start watching a programme from a

connected device - a Blu-ray disc player
or digital receiver.

While a programme is recording to the USB
hard disk, you cannot pause a live TV
broadcast.

Instant replay
While you watch a live TV broadcast from a
digital channel, you can replay the broadcast
instantly.

To replay the last 10 seconds of a live TV
broadcast, press (pause) and press the left

navigation button on the remote control.

To jump back several steps of 10 seconds,
press the left navigation button repeatedly.

To jump back to the beginning of the TV
broadcast, press the left navigation button

repeatedly until you reach the beginning of
the broadcast storage or the maximum
timespan.

Progress bar
To display the progress bar while you watch
TV, press (pause).

With the progress bar on screen, press
(reverse) or press (forward) to select
from where you want to start viewing the
stored broadcast.

Press these buttons repeatedly to change
their speed.

Start recording

If your TV is connected to the Internet, you
can record a TV programme onto the USB
hard disk. Start and manage the recordings
you make from the programme guide on the
TV.

Press and select [Programme guide]. If
you find a TV Recording button on the
programme guide page, you can access the
programme guide to start and manage
recordings.

If the TV Recording button is not present,
check if the programme guide data is set to
be updated through the network. Select >

[Setup] > [TV settings] > [Preferences] >
[Programme guide] > [From network].

Record now
To record the programme you are
watching, press and select [Programme
guide]. With the current TV programme
highlighted, press OPTIONS and select
Record programme. The USB hard disk

starts recording and stops at the end of the
programme.

To stop recording immediately, access the
[Programme guide] and press
OPTIONS, select Stop recording.

Downloaded From TV-Manual.com Manuals

EN 28

English

Record a programme

You can schedule a recording of an
upcoming programme for today or a few
days from today (maximum of 8 days away).

 To schedule a recording, press and

select [Programme guide].

At the programme guide page, select the
channel and programme you wish to record.
Press the right or left navigation buttons to
shift the list. You can enter the channel
number to select the channel in the list.

 To change the date, select the date at

the top of the page and press OK.
Select the date you want and press

OK.

You can set the schedule to record all future
episodes of a programme or set the
schedule to add 10 minutes of buffer at the
end of the recording. Highlight the
programme, press OPTIONS and select
Record programme.

Select Schedule and press OK. The
programme is scheduled for recording.

A warning displays automatically when
overlapping recordings are scheduled.

If you plan to record a programme during
your absence, remember to switch the TV
to standby and keep the USB hard disk
switched on.

Manage recordings

List of recordings

To view the list of recordings and scheduled
recordings, select the Recordings button

above the programme guide list and press
OK.

On this page with your recordings, you can:

 select a recording to watch,
 remove recorded programmes,
 check the free disk space, or
 schedule a timed recording not linked

to a specific TV programme.

Watch a recording
To watch a recording, select the arrow in

front of the recording and press OK. The
playback of the recording starts. You can use
the (play), (forward), (rewind),
(pause) or (stop) keys on the remote
control to control play.

Downloaded From TV-Manual.com Manuals

Schedule a recording
Set a recording for a programme on a
specific channel by entering its date and time
without selecting a programme from the
electronic programme guide.

Press and select [Programme guide].
Select Schedule and press OK. You need to
set the channel, date and time span in the
following pages.

Remove a scheduled recording
To remove a scheduled recording, select the
red circle in front of the recording and press

OK.
Delete a recording

To remove a recording, select the recording
in the list and press OPTIONS and select

Delete recording.
Programme information

To view more information on a programme,
select the programme in any programme
guide list and press OK. Depending on the
status of this programme, you can start
watching it, schedule its recording, play back
the recording, or delete the recording from
this page.

View Teletext

Select a page

1. Select a channel that has teletext feature,
then press TEXT.

2. Select a page in one of the following ways:

 Enter the page number with the

Numeric buttons.

 Press or to view the next or

previous page.

 Press the Colour buttons to select a

colour coded item.

3. Press to exit.

Teletext options

1. When you view teletext, press
OPTIONS.

2. Select one of the following options:

 [Freeze page] / [Unfreeze page]:

Freeze or unfreeze the current page.

EN 29

 [Dual screen] / [Full screen]: Enable or

disable dual screen teletext. Dual
screen splits the current channel or
source to the left of the screen, with
teletext on the right.

 [T.O.P. overview]: Table Of Pages

(T.O.P.) teletext broadcasts allow you
to jump from one subject to another
without using page numbers.

 [Enlarge] / [Normal view]: Zoom in on

the page. Press the Navigation buttons
to move around the enlarged view.

 [Reveal]: Hide or reveal hidden

information on a page, such as solutions
to riddles or puzzles.

 [Cycle subpages]: If subpages are

available, each is shown automatically.

 [Language]: Switch to a different

language group to display different
character sets correctly.

3. Press OPTIONS to exit.

Teletext language

Some digital TV broadcasters provide several
teletext languages. You can set your primary
and secondary language.

1. Press .

2. Select [Setup] > [Channel settings] or
[Satellite settings].

3. Select [Languages] > [Primary Text] or
[Secondary Text].

4. Select your preferred teletext languages,
then press OK.

Subpages

A teletext page can contain several
subpages. These subpages are shown on a
bar next to the main page number.

If subpages are available on a teletext page,
press or to select them.

Search

1. When you view teletext, press OK to
highlight the first word or number.

2. Press the Navigation buttons to skip to
the word or number to search.

3. Press OK to begin the search.

4. Press until no word or number is
highlighted to exit the search.

Downloaded From TV-Manual.com Manuals

EN 30

Digital teletext

Some digital TV broadcasters offer dedicated
digital text or interactive services on their
digital TV channels, for example, BBC1.

When in digital teletext:

 Press the Navigation buttons to select

or highlight items.

 Press the Colour buttons to select an

option, then press OK to confirm or
activate.

Note: Digital text services are blocked when
subtitles are broadcast and enabled on the

TV. Read Use more of your TV > View

subtitles (Page 32).

Teletext 2.5

Teletext 2.5 offers more colours and better
graphics than normal teletext. If Teletext 2.5
is broadcast by a channel, it is switched on
by default.

To switch Teletext 2.5 on or off

1. Press .

2. Select [Setup] > [TV settings] >
[Preferences].

3. Select [Text 2.5] > [On] or [Off], then
press OK.

Set locks and timers

Clock

You can display a clock on the TV screen.
The clock displays the time that is broadcast
by your TV service operator.

Display the TV clock

1. While you watch TV, press OPTIONS.

2. Select [Status], then press OK.
The clock is displayed on the lower right
hand corner of the TV screen.

English

Change the clock mode

The clock mode is automatically
synchronised to the Coordinated Universal
Time (UTC). If your TV cannot receive UTC
transmissions, change the clock mode to
[Manual].

1. While you watch TV, press .

2. Select [Setup] > [TV settings] >
[Preferences].

3. Select [Clock] > [Auto clock mode].

4. Select [Automatic], [Manual] or [Country

dependent], then press OK.
Enable or disable daylight saving

If clock mode is set to [Country
dependent], you can enable or disable

daylight saving for your time zone.

1. In the [Clock] menu, select [Daylight

saving] > [Daylight saving time] or
[Standard time], then press OK. Daylight

saving is enabled or disabled.
Set the clock manually

If clock mode is set to [Manual], set the date
and time manually.

1. In the [Clock] menu, select [Date] or
[Time], then press OK.

2. Use the Navigation buttons to make your
selection.

3. Select [Done], then press OK.

Sleeptimer

Sleeptimer switches the TV to standby after
a specified time. You can switch off your TV
earlier or reset the sleeptimer during the
countdown.

1. Press .

2. Select [Setup] > [TV settings] >
[Preferences] > [Sleeptimer].

3. Press the Navigation buttons to set the
sleeptimer.
The sleeptimer can be set up to 180
minutes, in steps of five minutes. The
sleeptimer is switched off if it is set to zero
minutes.

4. Press OK to activate the sleep timer. The
TV switches to standby after the specified
time.

Child lock

To protect children from unsuitable TV
programmes, you can lock the TV or block
age rated programmes.

Set or change the child lock code

1. Press .

2. Select [Setup] > [Channel settings] >
[Child lock].

3. Select [Set code], or [Change code].

4. Enter the code with the Numeric

buttons.

Tip: If you forget your code, enter '8888' to

override any existing codes.
Lock or unlock channels

1. In the child lock menu, select [Channel
lock].

2. Enter the child lock code with the
Numeric buttons. The [Channel lock] menu

appears.

3. Select channels to lock or unlock.

Parental rating

Some digital broadcasters rate their
programmes according to age. You can set
your TV to display only programmes with
age ratings lower than your child's age.

1. Press .

2. Select [Setup] > [Channel settings] or
[Satellite settings].

3. Select [Child lock] > [Parental rating].
A message prompts you to enter the child
lock code.

4. Enter the child lock code with the
Numeric buttons.

5. Select an age rating, then press OK.
All programmes above the selected age
rating are blocked.

For information on child lock codes, see Use

more of your TV > Set locks and timers >
Child lock (Page 31).

Downloaded From TV-Manual.com Manuals

EN 31

View subtitles

Analogue channels

1. Switch the TV to an analogue TV channel.

2. Press TEXT.

3. Enter the three-digit page number of the
subtitles page (usually '888').

4. Press to exit teletext.
Subtitles display if available.

Digital channels

1. Press OPTIONS.

2. Select [Subtitles], then press OK.

3. Select [Subtitles off], [Subtitles on] or

[On during mute], then press OK.
Note:

 If MHEG application is activated,

subtitles are not displayed.

 If you select [On during mute],

subtitles are displayed only when you
press to mute the sound.

Subtitle language

You can change the subtitle language on
some digital channels.

1. Press .

2. Select [Setup] > [Channel settings] or
[Satellite settings] > [Subtitle language].

3. Select [Primary subtitles] or [Secondary
subtitles] for the preferred language.

4. Press OK to confirm.

Tip: You can also press OPTIONS >
[Subtitle language].

View Scenea

What you can do

You can display a default picture as the
wallpaper on your TV. You can also load
another picture as the wallpaper.

If the sleeptimer is off, the wallpaper is
displayed for 240 minutes. Otherwise, it is
displayed for the duration of the sleeptimer.

What you need

To use another picture as the wallpaper, you
need a USB storage device that contains a
picture that is less than 1 MB in size.

Switch on

1. Press .

2. Select [Scenea], then press OK.

The default picture is displayed.
Note: The wallpaper is displayed for the

duration of the sleeptimer. For more
information on sleeptimer, see Use more of

your TV > Set locks and timers >
Sleeptimer (Page 31).

Set TV wallpaper

You can load another picture as the
wallpaper.

Note: Loading a new picture overrides the
existing picture.

1. Connect the USB storage device to the
TV.

2. Press .

3. Select [Browse USB], then press OK.

4. Select a picture, then press OPTIONS.

5. Select [Set as Scenea], then press OK.

6. Select [Yes], then press OK.

7. Press any button to exit Scenea.

Downloaded From TV-Manual.com Manuals

EN 32

English

Set Scenea lounge light

When the TV is in standby, you can switch
on Ambilight and create a lounge light effect
with your wallpaper. Ambilight is available on
certain models only.

When the TV is in standby, press

AMBILIGHT on the front of the TV.

Note: It can take more than 5 seconds for

the lounge light to switch on.
To select another colour for the lounge light,

see Use your TV > Ambilight > Setup (Page

20).

Set universal access

Switch on

Some digital TV broadcasters provide special
audio and subtitle features for people who
are hearing or visually impaired.

To enable these features, turn on universal
access in the preference menu.

1. Press .

2. Select [Setup] > [TV settings] >
[Preferences].

3. Select [Universal access] > [On], then
press OK.

Hearing impaired

Tip: To verify whether a hearing impaired

audio language is available, press
OPTIONS and select [Audio language].

Languages with an ear icon support hearing
impaired audio.

To switch on hearing impaired audio and
subtitles

1. While you watch TV, press OPTIONS.

2. Press one of the following buttons to
select an option:

 Red: Switch hearing impaired on or off.
 Green: Switch on hearing impaired

audio and subtitles.

3. Press to exit.

Visually impaired

Tip: To verify whether visually impaired

audio is available, press OPTIONS and
select [Audio language]. Languages with an
eye icon support visually impaired audio.

To switch on visually impaired audio (if
available)

1. While you watch TV, press OPTIONS.

2. Press the green button to select [Visually
impaired].

3. Press one of the following buttons to
select an option:

 Red - [Off]: Turn off visually impaired

audio.

 Yellow - [Headphones]: Hear visually

impaired audio from headphones only.
(if applicable)

 Green - [Speakers]: Hear visually

impaired audio from speakers only.

 Blue - [Speakers + headphones]: Hear

visually impaired audio from speakers
and headphones.

4. Press to exit.
Note: If the EasyLink remote control is

enabled, you cannot select the green or
yellow buttons. To disable, seeUse more of
your TV > Use EasyLink > Switch on. (Page

34)
Adjust volume for the visually impaired

1. In the [Universal access] menu, press the
yellow button to select [Mixed volume].

2. Press the Navigation buttons to move the
slider up or down, then press OK.

3. Press to exit.
Audio feedback for the visually impaired

This feature enables audio feedback when
buttons are pressed on the remote control
or TV.

1. In the [Universal access] menu, press the
blue button to select [Key beep].

2. Press the green button to turn on audio
feedback, or press the red button to turn it
off.

3. Press to exit.

Downloaded From TV-Manual.com Manuals

EN 33

Use EasyLink

What you can do

Get the most out of your HDMI-CEC
compliant devices with Philips EasyLink
enhanced control features. If your HDMI­CEC compliant devices are connected
through HDMI, you can control them at the
same time with your TV remote control .

Note: Other brands describe HDMI-CEC
functionality differently. Some examples are
Anynet (Samsung), Aquos Link (Sharp) or
BRAVIA Sync (Sony). Not all brands are fully
compatible with Philips EasyLink.

After you switch on Philips EasyLink, these
features are available:

One-touch play
When you play an HDMI-CEC compliant
device, the TV switches on from standby,
and switches to the correct source.

One-touch standby
When you press on the TV remote
control, the TV and all HDMI-CEC
compliant devices switch to standby mode.

System audio control
If you connect an HDMI-CEC compliant
device that includes speakers, you can
choose to hear the TV from those speakers
instead of the TV speakers.

For more information about TV audio
output, see Use more of your TV > Use

EasyLink > Select speaker output (Page 35).
EasyLink remote control

You can control multiple HDMI-CEC
compliant devices with your TV remote
control.

To switch on EasyLink Remote Control, see

Use more of your TV > Use EasyLink >
Control devices simultaneously (Page 35).

Retain picture quality

If your TV picture quality is affected by the
picture-processing features of other devices,
switch on Pixel Plus Link.

To switch on Pixel Plus Link, see Use more

of your TV > Use EasyLink > Retain picture
quality (Page 36).

Downloaded From TV-Manual.com Manuals

EN 34

Maximize display for subtitled video
While you view subtitles in a video, you can
maximize the video display area. Some
subtitles can create a separate subtitle bar
under the video, which limits the video
display area. After you switch on auto
subtitle shift, the subtitles display on top of
the video image, which maximizes the video
display area.

To switch on auto subtitle shift, see Use

more of your TV > Use EasyLink >
Maximize display for video with subtitles

(Page 36).
Hear another device at standby

You can hear a connected HDMI-CEC
compliant device through the TV speakers,
even when the TV is in standby.

To switch on, see Use more of your TV >

Use EasyLink > Hear another device at TV
standby (Page 36).

What you need

To benefit from Philips EasyLink advanced
control features, make sure that you do the
following:

 Connect at least two HDMI-CEC

compliant devices through HDMI

 Configure each HDMI-CEC compliant

device properly

 Switch on EasyLink

Switch on

To switch on or off EasyLink

Note: If you do not intend to use Philips

Easylink, switch it off.

1. Press .

2. Select [Setup] > [TV settings] >
[EasyLink].

3. Select [On] or [Off], then press OK.

English

Control devices simultaneously

If you connect multiple HDMI-CEC devices
that support this setting, all the devices
respond to the TV remote control.

Caution: This is an advanced setting. Devices
that do not support this setting will not
respond to the TV remote control.

1. Press .

2. Select [Setup] > [TV settings] >
[EasyLink].

3. Select [EasyLink Remote Control] >
[On] or [Off].

4. Press OK to activate.

 Notes:

To switch back to TV control, press ,
then select [Watch TV].

 To control another device, press ,

then select the device from the Home
menu.

 To exit, press .

EasyLink buttons

Control HDMI-CEC compliant devices with
the following buttons on the TV remote
control.

 OK: Start, pause or resume play on the

connected device, activate a selection,
or access the device menu.

 (Previous) / (Next): Search

backwards and forwards on the
connected device.

 Numeric buttons: Select a title, chapter

or track.

 Play buttons: Control video or music

play.

 Standby: Display the menu of the

connected device.

 : Display the TV menu.
 (Standby): Switch the TV and the

connected device to standby.

Other EasyLink buttons are available through
the On-Screen Remote Control (OSRC).

To access the OSRC

1. While you view content from a connected
device, press OPTIONS.

2. Select [Show device keys], then press
OK.

3. Select an onscreen button, then press OK.

4. Press to exit.

Downloaded From TV-Manual.com Manuals

Select speaker output

If the connected device is HDMI Audio
Return Channel (HDMI ARC) compliant,
you can output TV audio through an HDMI
cable. An additional audio cable is not
required. See Connect your TV > About

cables > HDMI (Page 44).
Configure TV speakers

1. Press .

2. Select [Setup] > [TV settings] >
[EasyLink] > [TV speakers].

3. Select one of the following options, then
press OK:

 [Off]: Switch off TV speakers.
 [On]: Switch on TV speakers.
 [EasyLink]: Stream TV audio through

the connected HDMI-CEC device.
Switch the TV audio to the connected
HDMI-CEC audio device through the
adjust menu.

 [EasyLink autostart]: Turn off TV

speakers automatically and stream TV
audio to the connected HDMI-CEC
audio device.

Select speaker output with Adjust menu
If [EasyLink] or [EasyLink autostart] are
selected, access the adjust menu to switch
the TV audio.

1. While you watch TV, press ADJUST.

2. Select [Speakers], then press OK.

3. Select one of the following, then press
OK:

 [TV]: On by default.

Stream TV audio through the TV and
the connected HDMI-CEC audio
device until the connected device
switches to system audio control. TV
audio is then streamed through the
connected device.

 [Amplifier]: Stream audio through the

connected HDMI-CEC device. If system
audio mode is not enabled on the
device, audio continues to stream from
the TV speakers. If [EasyLink autostart]
was enabled, the TV prompts the
connected device to switch to system
audio mode.

EN 35

Retain picture quality

If your TV picture quality is affected by the
picture-processing features of other devices,
switch on Pixel Plus Link.

To switch on Pixel Plus Link

1. Press .

2. Select [Setup] > [TV settings] >
[EasyLink].

3. Select [Pixel Plus link] > [On], then press

OK.

Maximize video display

Some subtitles can create a separate subtitle
bar under the video, which limits the video
display area. After you switch on auto
subtitle shift, the subtitles display over the
video image, which maximizes the video
display area.

Switch on auto subtitle shift

1. Press .

2. Select [Setup] > [TV settings] >
[EasyLink] > [Auto subtitle shift].

3. Select [On], then press OK to activate.

Note: Make sure that the picture format of
the TV is set to [Auto format] or [Movie

expand 16:9].

Hear another device at TV standby

You can hear a connected HDMI-CEC
compliant device through the TV speakers,
even when the TV is in standby.

1. Press ADJUST to receive audio from
the connected Philips EasyLink device.
If available, audio only mode is enabled.

2. Accept the prompt on the TV to turn off
the TV screen.

3. Control the audio playback with the TV
remote control.

Downloaded From TV-Manual.com Manuals

EN 36

English

4 Set up your TV

Settings assistant

Use the settings assistant to guide you
through the picture and sound settings.

1. While you watch TV, press .

2. Select [Setup] > [Quick picture and
sound settings], then press OK.

3. Select [Start], then press OK.

4. Follow the onscreen instructions to
choose your preferred settings.

Picture and sound

More picture settings

1. Press .

2. Select [Setup] > [TV settings] >
[Picture], then press OK.

3. Select a setting to adjust:

 [Smart picture]: Access predefined

smart picture settings.

 [Reset]: Reset to default settings.
 [Contrast]: Adjust the intensity of the

bright areas, keeping dark areas
unchanged.

 [Brightness]: Adjust the intensity and

details of the dark areas.

 [Colour]: Adjust colour saturation.
 [Hue]: Compensate colour variations in

NTSC encoded transmissions.

 [Sharpness]: Adjust sharpness in the

image.

 [Noise reduction]: Filter and reduce

noise in the image.

 [Tint]: Adjust the colour balance in the

image.

 [Custom tint]: Customise tint setting.
 [Pixel Plus HD]/ [Pixel Precise HD]:

Access advanced settings, including

[HD Natural Motion], *[Perfect
Natural Motion], [100 Hz Clear LCD],
[Super resolution], [Dynamic
contrast], [Dynamic backlight], [MPEG
artefact reduction], [Colour
enhancement], [Gamma].

Downloaded From TV-Manual.com Manuals

*Available on certain models only.

 [PC mode]: Allow picture settings to

be changed when a PC is connected to
the TV through HDMI.
If enabled, you can select [Picture
format] > [Unscaled] which provides
maximum detail for display of PC
content.

 [Light sensor]: Adjust settings

dynamically to match lighting conditions.

 [Picture format]: Change the picture

format.

 [Screen edges]: Change the picture

size.

 [Picture shift]: Adjust the position of

the picture. You cannot select this
setting if the selected picture format is

Auto zoom or Wide screen.

More sound settings

1. Press .

2. Select [Setup] > [TV settings] > [Sound],
then press OK.

3. Select a setting to adjust:

 [Smart sound]: Access predefined

smart sound settings.

 [Reset]: Reset to factory default

settings.

 [Bass]: Adjust the bass level.
 [Treble]: Adjust the treble level.

 [Surround]: Enable spatial sound.
 [Headphones volume]: Adjust

headphone volume.

 [Auto volume leveling]: Automatically

reduce sudden volume changes, for
example when switching channels.

 [Balance]: Adjust the balance of the left

and right speakers.

Audio settings

Select audio language

If the TV channel has multiple or dual sound
broadcast, you can select the preferred
audio language.

While you watch TV, press OPTIONS.

 [Audio language]: Select the audio

language for digital channels.

 [Dual I-II]: Select the audio language for

analogue channels.

EN 37

Digital TV channels can stream several audio
languages. If multiple languages are available,
select the preferred language.

1. Press .

2. Select [Setup] > [Channel settings] or
[Satellite settings] > [Language].

3. Select one of the following settings, then
press OK:

 [Primary audio] / [Secondary audio]:

Select the available audio language.
Set a secondary language in the same
menu. If the primary language is
unavailable, the TV receives this
language.

 [Preferred audio format]: Select to

receive standard audio format (MPEG)
or advanced audio formats (AAC, EAC­3 or AC-3 if available).

 [Mono/Stereo]: Select mono or stereo

audio if stereo broadcasting is available.

4. Press to exit.

Reset to factory settings

You can restore default picture and sound
settings, while the channel installation settings
remain the same.

1. While you watch TV, press .

2. Select [Setup] > [TV settings] > [Factory
settings], then press OK.
TV settings are reset to default.

Channels

Reorder and rename

Reorder channels

After the channels are installed, you can
reorder the channel list to your preference.

1. While you watch TV, press FIND. The
channel list is displayed.

2. Select the channel to reorder and press
OPTIONS.

3. Select [Reorder], then press OK.

4. Press the Navigation buttons to move the

highlighted channel to another location, then
press OK.

5. Select one of the following options, then

press OK.

 [Insert]: Insert the channel into the

desired location.

 [Swap]: Swap location with another

channel.

6. Once complete, press OPTIONS and
select [Exit].

Rename channels

After the channels are installed, you can
rename them to your preference.

1. While you watch TV, press FIND. The
channel list is displayed.

2. Select the channel to rename and press
OPTIONS.

3. Select [Rename], then press OK.

4. In the entry screen, press the Navigation

buttons or Numeric buttons to edit the
name, then press OK.

Tip: You can press OK in the entry screen
to enable the Onscreen Keyboard.

5. Once complete, press the Navigation

buttons to select [Done].

 To clear the entry, select [Clear].
 To cancel, select [Cancel].

6. Press OK to confirm.

7. Press to exit.

Hide or unhide

Hide channels

To prevent unauthorised access to channels,
hide them from the channel list.

1. While you watch TV, press FIND.

2. Select the channel to rename and press
OPTIONS.

3. Select [Hide channel], then press OK.

The channel is hidden.
Unhide channels

1. While you watch TV, press FIND.

2. Press OPTIONS.

3. Select [Show hidden channels], then press

OK.
Hidden channels appear in the channel list,
but the channel information is not displayed.

4. Select a radio channel, then press

OPTIONS.

5. Select [Unhide all], then press OK. All

hidden channels are displayed.

Downloaded From TV-Manual.com Manuals

EN 38

English

Update channel list

When the TV was switched on for the first
time, a full installation of channels was
performed.
You can automatically add or remove digital
channels or manually update channels.

Note: If you are prompted to enter a code,
enter '8888'.

Automatic update
To automatically add or remove digital
channels, leave the TV in standby mode. The
TV updates channels and stores new
channels everyday. Empty channels are
removed from the channel list.

If a channel update is performed, a message
appears at startup.
If you do not want this message to appear

1. Press .

2. Select [Setup] > [Channel settings] or
[Satellite settings].

3. Select [Channel installation] > [Channel
update message].

4. Select [Off], then press OK.
To disable automatic updates

In the [Channel installation] menu, select

[Automatic channel update] > [Off].

Automatic install

When the TV was switched on for the first
time, a full installation of channels was
performed. You can run this full installation
again to set your language, country and install
all available TV channels.

Note:

[Search for satellite] is only available if the

TV supports DVB-S.

1. Press .

2. Select [Setup] > [Search for channels] or
[Search for satellite], then press OK.

3. Follow the onscreen instructions to
complete the channel installation.

4. Once complete, select [Finish], then press

OK.

Tip: Press FIND to see the channel list.

Downloaded From TV-Manual.com Manuals

Notes:

 During installation, leave settings

unchanged unless your digital provider
gives you the specific values to enter.

 When digital TV channels are found,

the list of installed channels may display
empty channel numbers. You can
rename, reorder or uninstall these
channels.

Access DVB-C or DVB-T channels
If you have installed both DVB-C and DVB-T
channels, you have to switch to the
respective network to watch channels on
that network.

1. While you watch TV, press .

2. Select [Setup] > [Channel settings].

3. Select [Channel installation] > [Antenna

or Cable DVB].

4. Select one of the following settings:

 [Antenna (DVB-T)]: Access free-to-air

antenna or digital DVB-T channels.

 [Cable]: Access cable or digital DVB-C

channels.

5. Press OK to confirm.

6. Press to exit.

The TV switches to the selected channel list.
Access DVB-S channels (for certain models

only)
If your satellite is connected to the SAT

connector, you can receive satellite channels.
Press > [Watch satellite] to watch

satellite channels.

Install analogue channels

You can search and store analogue TV
channels manually.

Step 1: Select your system
Note: Skip this step if your system settings

are correct.

1. While you watch TV, press .

2. Select [Setup] > [Channel settings] >

[Channel installation].

3. Select [Analogue: Manual installation] >

[System], then press OK.

4. Select the system for your country or

region, then press OK.

EN 39

Step 2: Search and store new TV channels

1. In the [Analogue: Manual installation]
menu, select [Find channel], then press OK.

2. Select one of the following options:

 Press the Navigation buttons or

Numeric buttons to manually enter the

channel frequency.

 Select [Search] then press OK to

search for the next channel
automatically.

3. When the correct channel frequency is
entered, select [Done], then press OK.

4. Select [Store as new channel], then press

OK to store the new TV channel.

Install digital and satellite channels

Install digital channels

To improve TV reception, reposition the
antenna. You need to know the correct
frequency to tune. For best results, contact
the service provider or get a professional
installer.

1. Press .

2. Select [Setup] > [Channel settings] >
[Channel installation].

3. Select [Digital: Reception test] >
[Search], then press OK.

4. Press the Numeric buttons to enter the
channel frequency.

5. Select [Search], then press OK.

6. When the correct channel is located,
select [Store], then press OK.

7. Press to exit.
Notes

 If the reception is poor, reposition your

antenna and repeat the procedure.

 If you receive the channel with DVB-C,

select [Automatic] in [Symbol rate
mode] unless your cable provider
supplies you with a specific symbol rate
value.

Downloaded From TV-Manual.com Manuals

EN 40

Install satellite channels

Available on certain models only.
If your satellite is connected to the SAT

connector, you can receive satellite channels.

1. While you watch TV, press .

2. Select [Setup] > [Search for satellite] >

[Reinstall channels].

3. Follow the onscreen instructions to

complete the installation.

4. Once complete, select [Finish], and then

press OK.

Fine-tune channels

If the reception of an analogue TV channel is
poor, fine-tune the TV channel.

1. Press .

2. Select [Setup] > [Channel settings] >

[Channel installation].

3. Select [Analogue: Manual installation] >

[Fine tune], and then press OK.

4. Press or to fine-tune the channel.

5. When you have selected the correct

channel frequency, select [Done], and then
press OK.

6. Select one of the following options, then

press OK.

 [Store current channel]: Store the

channel as the current channel number.

 [Store as new channel]: Store the

channel as a new channel number.

English

Reinstall channels

ATTENTION: This feature is intended for

dealers and service personnel.
You can copy channel lists from one Philips

TV to another through a USB storage
device. You do not need to search for
channels or install them again on the second
TV. The channel list file is small enough to fit
on any USB storage device.

What you need
The two Philips TVs must have:

 the same country setting,
 the same year range,
 the same DVB type, as indicated by the

suffix (H, K, T, or D/00) in the model
name,

 the same settings for satellite channels,

including the number of LNB satellites

 the same hardware type, as indicated

by the sticker on the back of the TV,
(for example Qxxx.xx.Lx), and

 compatible software versions.

An onscreen message will notify you if the
channel list cannot be copied to the second
TV.

Note: If you are prompted to enter a code,
enter '8888'.

Copy channel list to USB

1. Connect a USB storage device to the TV
with the channels installed on it.

2. Press .

3. Select [Setup] > [TV settings] >

[Preferences] > [Channel list copy] >
[Copy to USB], then press OK. The channel

list is copied to the USB storage device.

4. Unplug the USB storage device.

Downloaded From TV-Manual.com Manuals

Copy channel list to TV with no channels
installed

1. Switch on the TV with no channels

installed on it to start the initial installation.
Select the language and country. The
country setting must be the same as that of
the TV whose channel list you want to copy.
Skip the search for channels.

2. Connect the USB storage device

containing the channel list to the TV.

3. Press .

4. Select [Setup] > [TV settings] >

[Preferences] > [Channel list copy] >
[Copy to TV], then press OK.The channel

list is copied to the TV.

5. Unplug the USB storage device.

Copy channel list to TV with no channels
installed

1. Switch on the TV on which you want to

copy the channel list.

2. Press .

3. Select [Setup] > [Search for channels] >

[Reinstall channels], then press OK.

You will be prompted to select the country
where the TV was installed. Make a note of
the current setting and press followed by
[Cancel] to exit.

4. If the country setting on the TV is different

from that of the TV whose channel list you
want to copy, reinstall the TV and select the
country setting to match the first TV. See Set
up your TV > Reinstall the TV (Page 43).

5. Connect the USB storage device

containing the channel list to the TV where
you want to copy the channel list.

6. Select [Setup] > [TV settings] >

[Preferences] > [Channel list copy] >
[Copy to TV], then press OK. The channel

list is copied to the TV storage device.

7. Unplug the USB storage device.

EN 41

Menu language

1. While you watch TV, press .

2. Select [Setup] > [TV settings] >
[Preferences] > [Menu language].

3. Select a menu language from the list, then
press OK.

Other settings

TV demo

Start a demo to find out more about your
TV's features.

Note: Demos are not supported on MHEG
channels.

1. While you watch TV, press .

2. Select [Setup] > [Watch demos], then
press OK.

3. Select a demo, then press OK.

4. Press to exit.

Update software

TV software

Check software version

1. Press .

2. Select [Setup] > [Software settings] >
[Current software info], then press OK.

The version of the current software is
displayed.

Caution: Do not install a lower version of
software than the current version installed
on your product. Philips cannot be held
liable or be made responsible for problems
caused by a software downgrade.

Update the software through one of these
options:

 update with USB flash drive
 update from digital broadcast
 update from the Internet

For more information, see the following
pages.

Downloaded From TV-Manual.com Manuals

EN 42

Update with USB

Before performing this procedure, make sure
that you have the following:

 Spare time to complete the entire

update.

 A USB flash drive that has at least

256MB of storage space, is FAT or
DOS formatted, and has its write
protection disabled.

 Access to a computer with a USB port

and internet access.

Note: Do not use a USB hard drive.

1. Press .

2. Select [Setup] > [Update software], then

press OK.
The update assistant starts.

3. Follow the onscreen instructions to start

the update.
Note: The update assistant directs you to

the Philips support website. Refer to the
installation instructions on the website to
complete the update.

Update from the Internet

To update the TV software directly from the
Internet, connect the TV to the Internet
through a router with a high-speed
connection.

1. Press > [Setup] > [Update now], then

press OK.

2. Select [Internet], then press OK.

3. Follow the onscreen instructions to start

the update.
When the update is complete, the TV

switches off and back on again automatically.
Wait for the TV to switch back on. Do not
use the power switch on the TV or the
remote control.

Note: If the TV is connected to the Internet,
the TV displays the availability of new
software at startup.

English

Update from digital broadcast

When available, your TV can receive
software updates through digital broadcasts.
A message appears prompting you to update
the software. We strongly recommend that
you update the software when prompted.

Follow the instructions on screen.
Note: If you choose to update the software

at a later time, select > [Setup] > [Software

settings] > [Local updates].

Onscreen Help

What you need

Before you update the onscreen [Help],
make sure that you have the following:

 A USB storage device that is FAT or

DOS-formatted.

 A PC with Internet access.
 An archive utility that supports the ZIP

file format (for example, WinZip for
Microsoft Windows or Stufflt for

Macintosh).
Note: Do not use a USB hard drive.

Download the latest file

1. Insert a USB storage device into the USB
connector on your PC.

2. Create a folder named ‘upgrades’ in the

root directory of the USB storage device.

3. In your web browser, navigate to
www.philips.com/support.

4. At the Philips Support site, find your
product and locate the [Help] file for your

TV. The file (a *.upg file) is compressed into
a *.zip archive.

5. If the [Help] file is a later version than the
file in your TV, click it.

6. Save it to your PC.

7. Using an archive utility, extract the *.upg
file from the *.zip file.

8. Save the *.upg file to the ‘upgrades’ folder

in the USB storage device.

9. Disconnect the USB storage device from
the PC.

Downloaded From TV-Manual.com Manuals

Update [Help]

 Do not switch off the TV or remove

the USB storage device during the
update.

 If a power failure occurs during the

update, do not remove the USB
storage device from the TV. The TV
continues to update as soon as power
is restored.

 If an error occurs during the update,

retry the procedure. If the error
reoccurs, contact Philips Consumer
Care.

1. Switch on the TV.

2. Disconnect all other USB devices from the
TV.

3. Connect the USB storage device
containing the *.upg file to the USB
connector on the TV.

4. Press .

5. Select [Setup] > [Software settings] >
[Local updates].
The updates screen appears.

6. Select the '*.upg' file and press OK.
A message displays the update status.

7. Follow the onscreen instructions to
complete the update and restart your TV.

Reinstall the TV

Reinstall your TV to reset all picture and
sound settings and reinstall all TV channels.

1. Press .

2. Select [Setup] > [TV settings] >
[Reinstall TV], then press OK.

3. Follow the onscreen instructions.

EN 43

5 Connect your

TV

About cables

Cable quality

Overview

Before you connect devices to the TV, check
the available connectors on the device.
Connect the device to the TV with the
highest quality connection available. Good
quality cables ensure a good transfer of
picture and sound.

The connections shown in this user manual
are recommendations only. Other solutions
are possible.
Tip: If your device only has composite or
RCA connectors, use a SCART-cinch
adapter to connect the device to a SCART
connector on the TV.

HDMI

An HDMI connection has the best picture
and sound quality.

 An HDMI cable combines video and

audio signals. Use HDMI for high-

definition (HD) TV signals, and to

enable EasyLink.

 An HDMI Audio Return Channel

(ARC) connector allows output of TV

audio to an HDMI ARC compliant

device.

 Do not use an HDMI cable longer than

5 meters / 16.4 feet.

Y Pb Pr

Use the Component Video (Y Pb Pr)
connection together with an Audio Left and
Right connection for sound.

Y Pb Pr can handle high-definition (HD) TV
signals.

Match the Y Pb Pr connector colours to the
cable plugs.

Downloaded From TV-Manual.com Manuals

EN 44

English

SCART

A SCART cable combines video and audio
signals.
SCART connectors can handle RGB video
signals but cannot handle high-definition
(HD) TV signals.

VGA

Use this connection to display PC content
on the TV.

For video and sound, use the VGA and
AUDIO IN connectors.

Connect devices

Overview

You can connect your devices to the TV with any of the following options. After connection, press

> [Add your devices].

Downloaded From TV-Manual.com Manuals

EN 45

Blu-ray or DVD disc player

Connect the disc player with an HDMI cable to the TV.

Connect the disc player with a component cable (Y Pb Pr) and an audio L/R cable to the TV.

TV receiver

Connect the satellite or digital TV receiver with an antenna cable to the TV. (SAT is available on
certain models only.)

Downloaded From TV-Manual.com Manuals

EN 46

English

Connect the satellite or digital TV receiver with an HDMI cable to the TV.

Connect the satellite or digital TV receiver with a SCART cable to the TV.

Connect the satellite or digital TV receiver with a component cable (Y Pb Pr) and an audio L/R
cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 47

Recorder

Connect the recorder with an antenna cable to the TV. (SAT is available on certain models only.)

Connect the recorder with a SCART cable to the TV.

Connect the recorder with a component cable (Y Pb Pr) and an audio L/R cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 48

English

Game console

The most practical connectors for a game
console are on the side of the TV. However,
you can also use the connectors at the back
of the TV.

For the best gaming experience, set the TV
to game mode.

1. Press ADJUST.

2. Select [Smart picture] > [Game], then
press OK.

3. To exit, press .

Connect the game console with an HDMI cable to the TV.

Connect the game console with a component cable (Y Pb Pr) and an audio L/R cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 49

Home theatre system

Connect the home theatre with an HDMI cable and an optical or coaxial audio cable to the TV.
(Optical audio output is available on certain models only.)

Connect the home theatre with a SCART cable to the TV.

Connect the home theatre with a component cable (Y Pb Pr) and an audio L/R cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 50

English

Digital camera

Connect the digital camera with a USB cable to the TV.

Digital camcorder

Connect the digital camera with an HDMI cable to the TV.

Connect the digital camcorder with a component cable (Y Pb Pr) and an audio L/R cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 51

Connect more devices

External hard disk

Connect the external hard disk with a USB cable to the TV.

Computer

Connect the computer with an HDMI cable to the TV.

Connect the computer with a DVI-HDMI cable to the TV.

Downloaded From TV-Manual.com Manuals

EN 52

English

Connect the computer with a VGA cable and an audio cable to the TV.

Computers and the
Internet

What you can do

Network benefits

If you connect your TV to a computer
network with storage devices such as
computers, you can play the photos, music
and videos on your devices. See Use your
TV > Browse PC through DLNA (Page 20).

If you connect your TV to a computer
network with Internet access, you can access
Net TV content. For more information
about Net TV, see Use your TV > Browse

Net TV (Page 22).
Note: If the apparatus does not recover in

DLNA mode due to external electrical
disturbances (e.g. electrostatic discharge),
user intervention is required.

What you need

Warning: This TV complies with the EMC
directive only when you use a shielded
Cat5 ethernet cable.

To connect your TV to computers, the
Internet, or both, you need:

 An ethernet cable that is shorter than 3

metres.

 A computer network that includes:

a) A universal plug-and-play (UPnP)
router and
b) A computer with one of these
operating systems: Microsoft Windows
XP, Microsoft Windows Vista, Mac
OSX, or Linux.

 To connect your TV to computers, you

also need media server software that is
set to share files with your TV. See Use
your TV > Browse PC through DLNA

(Page 20).

 To connect your TV to the Internet,

you also need a high-speed connection
to the Internet.

Note: This DLNA1.5 network feature
supports these computer operating systems:
Microsoft Windows XP or Vista, Intel Mac
OSX or Linux.

Downloaded From TV-Manual.com Manuals

EN 53

Connect

1. Switch on the router and switch on its
DHCP setting.

2. With the ethernet cable, connect the
router to the TV.

Alternatively, you can also connect the
router to the TV wirelessly, through a
wireless USB adaptor (not included). See

Connect your TV > Computers and the
Internet > Wireless LAN ready (Page 54).

3. Press , select [Setup] > [Connect to
network], then press OK.

4. Follow the onscreen instructions to install
the network.

5. Wait for the TV to find the network
connection.

6. If you are prompted, agree to the End
User License Agreement.

Wireless LAN ready

This TV is Wireless LAN ready. With the
Wireless LAN adapter PTA01 accessory
(sold separately), you can connect the TV to
your home network wirelessly. You can
enjoy the best of the web from Net TV
services, and sharing of content between
your devices connected to the home
network using Wi-Fi MediaConnect or
DLNA, seamlessly and hassle free.

Note:

 The wireless network operates in the

same 2.4GHz frequency spectrum as
common household devices, such as
Dect phones, microwave ovens or
Bluetooth devices, which can cause Wi­Fi interferences. Move these devices
away from the TV with the connected
Wireless USB adapter.

 You should turn off any unused

network equipment in the home
network as this increases network
traffic.

 Reception quality is dependent on the

location of the wireless router, as well
as the quality of services provided by
the local Internet Service Provider.

 When playing video over your wireless

home network, we recommend that
you use an IEEE 802.11 N router. The
connection speed may differ according
to the operating environment of your
wireless home network.

Make your TV wireless

1. Switch on your wireless network router.

2. Insert the USB adapter PTA01 into the
USB connection at the side of the TV. The
wireless installation starts automatically.

3. Follow the on screen instructions.
WPS - Wi-Fi Protected Setup

If your router supports WPS (Wi-Fi
Protected Setup), press the WPS button on
the router. Return to the TV in 2 minutes,
select [WPS] and press OK. The TV
connects to your network. This takes about
2 minutes. Complete the installation.

Most new wireless routers have the WPS
system and carry the WPS logo. The WPS
system uses WPA security encryption and
cannot be combined with devices on your
network that use the WEP security
encryption. If you still need this WEP device
in your network, install with [Scan] >
[Custom].

Downloaded From TV-Manual.com Manuals

EN 54

English

Scan for routers

If you have several routers in your network,
you can select the network you need. To
select a specific network router, press
[Scan]on the first page of the installation.

The routers with WPS and the strongest
signal are shown first in the list on screen.

Select the router you need. If you are
connecting a WPS router, select [WPS] on

the TV.

 If you have set the PIN code in your

router software, select [WPS pincode:]

and enter the code.

 To enter the encryption key manually,

select [Custom] and enter the key.
PIN code

To set the secured connection with a PIN
code, select the PIN code and press OK.

Write down the 8 digit PIN code shown on
the TV and enter it in the router software
on your PC. See the router manual for
where to enter the PIN code.

Custom

To enter the encryption key (the security
key) manually, select [Custom] and press
OK. If you have WPA security on your

router, enter the passphrase with the
remote control.

To access the on-screen keyboard, select the
text entry field and press OK. If you have

WEP security encryption, the TV asks for the
WEP encryption key in hexadecimal
numbers.

Find this hexadecimal key in the router
software on your PC. Write down the first
key of the WEP keys list and enter it on the
TV with the remote control. If the security
key is accepted, the TV is connected with
the wireless router.

If asked, agree to the End User License
Agreement.

If you are using the Wireless USB adapter,
keep it connected to the USB connector on
the TV.

Wi-Fi MediaConnect

What you can do

With Wi-Fi MediaConnect, you can project
your PC screen on the TV wirelessly. With
the *Wi-Fi MediaConnect CD-ROM, you
can download the software for free. Wi-Fi
MediaConnect is only available for PC.

*The Wi-Fi MediaConnect CD-ROM is
supplied with the Wireless USB adapter,
PTA01.
For Wi-Fi integrated models, the CD-ROM
is supplied with the TV.

What you need
To use Wi-Fi MediaConnect, you need the
following:

 Connect the TV to your home network
 A wireless router
 A wireless USB adapter (only for TVs

which are not Wi-Fi integrated).

For the availability of the wireless USB
adapter, check with your local retailers or
buy online at www.philips.com/tv.

Install Wi-Fi MediaConnect

1. Insert the Wi-Fi MediaConnect CD-ROM
in your PC.

2. Your PC starts your Internet browser and
opens the Wi-Fi MediaConnect download
page - www.philips.com/wifimediaconnect.
On the website, you can check the
necessary PC system requirements.

3. Enter the code printed on the CD-ROM
envelope.

4. Click the 'Download now' button to
download the free Wi-Fi MediaConnect
software.

5. Once downloaded, start the file 'Wi-Fi
MediaConnect_setup.exe'. Follow the
instructions on your PC.

TV network name

If you have more than one TV in your home
network, you can rename this TV. To
rename this TV in the network, press >
[Setup] > [Network settings] and select the
TV network name.

To enter the name, press OK to open the
on-screen keyboard or use the remote
control keypad.

Downloaded From TV-Manual.com Manuals

EN 55

Start projecting

To start projecting the PC screen on the TV,
click on the small TV-like icon in the taskbar
at the bottom right of the PC screen. Your
PC screen appears on your TV screen.

Stop projecting

To stop projecting, click on the TV icon
again.

Project your PC: Help
To read the Wi-Fi MediaConnect Help,
right-click the program icon in the
notification tray of the PC and select Help.

Specifics
You can project high-definition (HD) or
standard-definition (SD) video, depending on
the processing power of your PC.

 Due to output content protection,

certain commercial DVD or Blu-ray

discs may not be projected.

 The TV shows PC media files with a

small delay.

 Wi-Fi MediaConnect is available for PC

only.
Project your PC: PC requirements

Minimum specifications

 Windows XP, Vista, Windows 7 (PC

only)

 Intel Pentium Core 2 Duo 1.8 GHz
 512 MB RAM
 200 MB free hard disk space
 Wi-Fi 802.11g
 Internet connection

Project your PC: PC requirements
Recommended specifications

 Windows XP, Vista, Windows 7 (PC

only)

 Intel Pentium Core 2 Duo 2.1 GHz
 1 GB RAM
 200 MB free hard disk space
 Wi-Fi 802.11n
 Internet connection

Common interface

What you can do

To watch some digital TV programmes, you
need a Conditional Access Module (CAM).

If a CAM is inserted and subscription fees
are paid, you can watch the channel. The
applications, functions, the content and the
onscreen messages vary for each CAM
service.

What you need

Caution: To protect the CAM from damage,

insert the CAM according to these
instructions.

Notes:

 This TV supports CI as well as CI+. CI+

allows service providers to offer
premium HD digital programmes with a
high level of copy protection.

 Refer to the documentation from your

service operator on how to insert a
smart card into the Conditional Access
Module.

Downloaded From TV-Manual.com Manuals

EN 56

English

1. Switch off the TV.

2. Follow the directions printed on the CAM
and insert the CAM into the Common
Interface at the side of the TV.

3. Push the CAM in as far as it will go, then
wait for the CAM to be activated. This takes
a few minutes.
To prevent digital services from being
deactivated, do not remove the CAM from
the slot when it is in use.

Watch CAM services

1. After inserting and activating the CAM,
press OPTIONS.

2. Select [Common interface], then press
OK.

3. Select the CAM provider and press OK.

Downloaded From TV-Manual.com Manuals

EN 57

6 Troubleshooting

Contact Philips

Warning: Do not attempt to repair the TV
yourself. This may cause severe injury,
irreparable damage to your TV or void
your warranty.

If you cannot resolve your problem, refer to
the frequently asked questions (FAQs) for
this TV at www.philips.com/support.

You can also contact Philips Consumer Care
in your country for support. You can find the
contact number in the leaflet that
accompanies the TV.

Take a note of your TV model and serial
number before you contact Philips. These
numbers are printed on the back of the TV
and on the packaging.

General TV

The TV does not switch on:

 Disconnect the power cable from the

power outlet. Wait for one minute

then reconnect it.

 Make sure that the power cable is

securely connected.

 Make sure that the power switch at the

base or back of the TV is switched on.

The TV does not respond to remote
control or front controls when switched
on

The TV requires some time to start up.
During this time, the TV does not respond
to the remote control or front controls. This
is normal behavior.

The standby light on the TV blinks red:
Disconnect the power cable from the power
outlet. Wait until the TV cools down before
you reconnect the power cable. If the
blinking reoccurs, contact Philips Consumer
Care.

You forgot the code to unlock the child
lock feature:

Enter ‘8888’.

The TV menu is in the wrong language:
Change the TV menu to your preferred
language.

For more information, see Set up your TV >

Menu language (Page 42).

When you are turning the TV on, off or to
standby, you hear a creaking sound from
the TV chassis:

No action is required. The creaking sound is
due to the normal expansion and
contraction of the TV as it cools and warms
up. This does not affect performance.

When the TV is in standby, a startup splash
screen is displayed, then returns to standby
mode:

This is normal behavior. When the TV is
disconnected and reconnected to the power
supply, the startup screen is displayed at the
next startup.
To switch on the TV from standby, press
on the remote control or press any key on
the front of the TV.

TV channel

Previously installed channels do not appear
in the channel list:

Make sure that the correct channel list is
selected.

No digital channels were found during the
installation:

 Make sure that the TV supports DVB-T,

DVB-C or DVB-S in your country.

 Make sure that the antenna is properly

connected and the correct network is
selected.

Downloaded From TV-Manual.com Manuals

EN 58

English


The TV is on, but there is no picture or the
picture is distorted:

 Make sure that the antenna is properly

connected to the TV.

 Make sure that the correct device is

selected as the display source.

 Make sure that the external device or

source is properly connected.
There is sound but no picture:

Make sure that the picture settings are set
correctly.

There is poor TV reception from an
antenna connection:

 Make sure that the antenna is properly

connected to the TV.

 Loud speakers, unearthed audio

devices, neon lights, high buildings and

other large objects can influence

reception quality. If possible, try to

improve the reception quality by

changing the antenna direction or

moving devices away from the TV.

 If reception on only one channel is

poor, fine-tune this channel.

There is poor picture quality from
connected devices:

 Make sure that the devices are

connected properly.

 Make sure that the picture settings are

set correctly.
The TV did not save your picture settings:

Make sure that the TV location is set to
Home. You can change and save settings in

this mode.

The picture does not fit the screen; it is
too big or too small:

Try a different picture format.
The picture position is incorrect:

Picture signals from some devices may not fit
the screen correctly. Check the signal output
of the device.

The picture from broadcasts is scrambled:
You may need a Conditional Access Module
to access content. Check with your service
operator.

An "e-sticker" banner displaying
information appears on the TV display:

The TV is in [Shop] mode. To remove the
e-sticker, set the TV to [Home] mode, then
restart the TV. Position the TV > Location
(Page 11).

The computer display on the TV is not
stable:

 Make sure that your PC uses the

supported resolution and refresh rate.
See Product specifications > Display
resolutions (Page 61).

 Set the TV picture format to

[Unscaled].

Sound

There is a picture but sound quality is
poor:

If no audio signal is detected, the TV
automatically switches the audio output off
— this does not indicate malfunction.

 Make sure that all cables are properly

connected.

 Make sure that the volume is not

muted or set to zero.

 Make sure that the TV speakers setting

is selected. Press ADJUST, select
[Speakers], and then select TV.

 Make sure that the TV audio output is

connected to the audio input on the
HDMI-CEC enabled or EasyLink
compliant home theatre device. Sound
should be heard from the home theatre
speakers.

There is a picture but the sound quality is
poor:

Make sure that the sound settings are
correctly set.

There is a picture but sound comes from
one speaker only:

Make sure that sound balance is set to the
centre.

Downloaded From TV-Manual.com Manuals

EN 59

HDMI

There are problems with HDMI devices:

 Note that HDCP (High-bandwidth

Digital Content Protection) support can

delay the time taken for a TV to display

content from a HDMI device.

 If the TV does not recognise the HDMI

device and no picture is displayed,

switch the source from one device to

another and back again.

 If there are intermittent sound

disruptions, make sure that output

settings from the HDMI device are

correct.

 If you use an HDMI-to-DVI adapter or

HDMI to DVI cable, make sure that an

additional audio cable is connected to

AUDIO L/R or AUDIO IN (mini-jack

only).
You cannot use EasyLink features:

Make sure that your HDMI devices are
HDMI-CEC compatible. EasyLink features
only work with devices that are HDMI-CEC
compatible.

If an HDMI-CEC compliant audio device is
connected to the TV and the TV does not
display any mute or volume icon when the
volume is muted, increased or decreased.

This behaviour is normal when an HDMI­CEC audio device is connected.

Audio and picture files do not play or
display smoothly:

The transfer performance of the USB
storage device may limit the data transfer
rate to the TV which causes poor playback.

Network

Net TV does not work

If the connection to the router is properly
set up, check the router connection to the
Internet.

Browse PC or Net TV access is slow.
Refer to your router's user manual for
information on transfer rate and other
factors of signal quality.
You need a high-speed Internet connection
for your router.

Wireless network is distorted or not
found.

 Make sure that the wireless network is

not disturbed by microwave ovens,
DECT phones or other neighbouring
Wi-Fi devices.

 If the wireless network is not working,

try a wired network connection.

 For DLNA connection, click on How

does sharing change firewall settings in

the Media Sharing window for the Help
file.

USB

USB device content is not displayed:

 Make sure that the USB storage device

is set to Mass Storage Class compliant,

as described in the storage device's

documentation.

 Make sure that the USB storage device

is compatible with the TV.

 Make sure that the audio and picture

file formats are supported by the TV.

Downloaded From TV-Manual.com Manuals

EN 60

English

7 Product

specifications

Power and reception

Power

 Mains power : AC 220-240 V~, 50/60

Hz

 Standby power consumption : <0.15 W
 Ambient temperature: 5 to 40 degrees

Celsius

 For power consumption, see the

product specifications at

www.philips.com/support.

Reception

 Antenna input: 75 ohm coaxial (IEC75)
 TV system: DVB COFDM 2K/8 K,
 Video playback: NTSC, PAL, SECAM
 Digital TV: MPEG-4, DVB-T

(Terrestrial), *DVB-T2, DVB-C (Cable),

*DVB-S/S2 (Satellite).

 Tuner bands: VHF, UHF, S-Channel,

Hyperband
*Available on certain models only.

Display and sound

Picture/Display

 Display type: edge LED backlight
 Diagonal size:

- 81 cm/32 inch

- 94 cm/37 inch

- 107 cm/42 inch

- 119 cm / 47 inch

- 140 cm / 55 inch

 Aspect ratio: 16:9 (widescreen)
 Panel resolution: 1920x1080p
 Picture enhancement: Pixel Precise HD/

100 Hz Clear LCD

Picture/Display

 HD Natural Motion - For PFL7x06

series, PFL7466 series and PFL7666
series

 Perfect Natural Motion - For PFL7xx6

series

 Ambilight: Ambilight Spectra 2
 3D: 3D TV (PFL76x6 series only)

Sound

 Output power (RMS):

- For PFL7x06 series: 20 W

- For PFL7xx6 series: 24 W

 Incredible Surround
 Clear Sound
 Dynamic Bass Enhancement
 Mono / Stereo / NICAM

Display resolutions

Computer formats - HDMI
(Resolution - refresh rate)

640 x 480 - 60 Hz
800 x 600 - 60 Hz
1024 x 768 - 60 Hz
1280 x 1024 - 60 Hz
1360 x 768 - 60 Hz
1600 x 1200 - 60 Hz
1920 x 1080 - 60 Hz

Computer formats - VGA
(Resolution - refresh rate)

640 x 480 - 60 Hz
800 x 600 - 60 Hz
1024 x 768 - 60 Hz
1280 x 1024 - 60 Hz
1360 x 768 - 60 Hz
1600 x 1200 - 60 Hz
1920 x 1080 - 60 Hz

Video formats
(Resolution - refresh rate)

480i - 60 Hz
480p - 60 Hz
576i - 50 Hz
576p - 50 Hz
720p - 50Hz, 60 Hz
1080i - 50Hz, 60 Hz
1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60 Hz

Downloaded From TV-Manual.com Manuals

EN 61

Multimedia

Supported multimedia connections

 USB (FAT or DOS-formatted; Mass

Storage Class compliant with 500mA

only)

Supported audio/video files
Multimedia file names must not exceed 128 characters.

Supported audio/video files
Multimedia file names must not exceed 128 characters.

 SD card (Videostore)
 Ethernet LAN RJ-45

Supported image files

 JPEG (*.jpg)

Supported DLNA-compliant media server
software

 Windows Media Player (for Microsoft

Windows)

 Twonky Media (for Microsoft Windows

and Mac OS X)

 Sony Vaio Media Server (for Microsoft

Windows)

 TVersity (for Microsoft Windows)

Downloaded From TV-Manual.com Manuals

EN 62

 Nero MediaHome
 DiXiM (for Microsoft Windows XP)
 Macrovision Network Media Server (for

Microsoft Windows)

 Fuppes (for Linux)
 uShare (for Linux)

English

Connectivity

Rear

 EXT 1: SCART (RGB/CVBS)
 Component and Audio: Y Pb Pr, Audio

L/R

 Service port: SERV.U
 Headphones: stereo 3.5mm mini-jack

Side

 Common Interface: CI
 SD card (Video stores)
 2 x USB
 HDMI

HDMI features

 Audio Return Channel (HDMI 1 only)
 3D

 SAT: F-pin (Satellite). Available on

certain models only.
Bottom

 Ethernet LAN RJ-45
 DIGITAL AUDIO OUT: Optical
 HDMI 1 - 3
 AUDIO IN: DVI/VGA (stereo 3.5mm

mini-jack)

 Antenna: 75 ohm coaxial
 VGA: PC input

Dimensions

Note: Dimensions and weights are

approximate values only. Design and
specifications are subject to change without
notice.

Legend for TV dimensions
The legends used to indicate the TV
dimensions are as follows:

( ) : 81 cm / 32 inch TV
{ } : 94-cm/37-inch TV
[ ] : 107-cm/42-inch TV
(( )) : 119 cm / 47 inch TV
{{ }} : 140 cm / 55 inch TV

Take a note of the legend that corresponds
to your TV. Then, go to the next page to
view the dimensions.

Use your TV legend to note the weight of the TV without the stand.

Downloaded From TV-Manual.com Manuals

EN 63

Use your TV legend to note the weight of the TV with stand.

Use your TV legend to note the dimensions of your TV (with and without the stand).

Use your TV legend to note the thickness of your TV (with and without the stand).

Help version

UMv 3139 137 04512- 20110322

Downloaded From TV-Manual.com Manuals

EN 64

English

8 Index

A

age rating - 31

analogue channels, fine-tune - 40

analogue channels, subtitles - 32

audio language - 37

C

CAM, enable - 57

CAM, insert - 56

CAM, see Conditional Access Module - 56

care - 8

channel list - 16

channels, favourites - 16

channels, fine-tune (analogue) - 40

channels, hide or unhide - 38

channels, install (automatic) - 39

channels, install (manual) - 39

channels, reinstall - 41

channels, rename - 38

channels, reorder - 38

channels, switch - 16

channels, update - 39

child lock - 31

clock - 30

common interface - 56

computer, play files - 22

computer, see PC - 53

Conditional Access Module - 56

connect device - 45

connect, PC - 52

connect, USB - 18

connectors - 5

contact information, on Internet - 11

contact Philips - 11

controls - 12

Downloaded From TV-Manual.com Manuals

D

demo - 42

devices, add - 18

devices, watch - 18

digital channels - 40

digital channels, subtitles - 32

digital radio - 16

dimensions - 63

display - 61

display resolution - 61

DLNA - 20

E

EasyLink, controls - 35

EasyLink, enable - 34

EasyLink, features - 34

EasyLink, RC key forward - 34

EasyLink, TV speakers - 35

Electronic Programme Guide - 16

end of use - 9

environment efforts - 9

environment, recycle - 9

EPG, menu - 16

F

factory settings - 38

favourites list, add - 16

H

HbbTV - 26

HbbTV, block reception - 26

HDMI - 44

HDMI ARC - 44

hearing impaired - 33

help, onscreen - 11

high-definition (HD), content - 6

home menu - 4

EN 65

home mode - 11

I

install channels - 39

install channels (automatic) - 39

install channels (manual) - 39

K

kensington lock - 11

L

language, menu - 42

location, home or shop - 11

M

multimedia - 62

multimedia, play files - 18

mute TV speakers - 35

N

Net TV, browse - 22

O

online video, rent - 24

P

Pause live broadcast - 28

PC, connect - 52

PC, display resolutions - 61

picture format - 37

picture settings - 37

Pixel Plus link - 36

placement, stand or wall mount - 10

position the TV - 10

power - 61

R

recycle - 9

register product - 11

reinstall TV - 43

remote control - 12

remote control, batteries - 13

remote control, onscreen - 35

remote control, overview - 12

rename channels - 38

reorder channels - 38

S

safety - 7

Scenea, enable - 32

Scenea, see screen saver - 32

screen saver - 32

SD card, format - 24

SD card, memory size - 24

settings, assistant - 37

settings, picture - 37

settings, sound - 37

shop mode - 11

sleeptimer - 31

smart sound - 37

Smart USB - 27

software, Internet update - 42

software, version - 42

sound settings - 37

subtitle, analogue - 32

subtitle, digital - 32

subtitle, language - 32

T

teletext 2.5 - 30

teletext, digital text - 30

teletext, dual screen - 29

teletext, enlarge - 29

teletext, language - 30

teletext, search - 30

teletext, subpages - 30

Downloaded From TV-Manual.com Manuals

EN 66

English

U

universal access, enable - 33

universal access, hearing impaired - 33

universal access, visually impaired - 33

USB recording - 28

V

visually impaired - 33

volume - 12

W

wall mount - 10

wallpaper - 32

Wi-Fi MediaConnect - 55

Wireless LAN ready - 54

Downloaded From TV-Manual.com Manuals

EN 67

Notice

2011 © Koninklijke Philips Electronics N.V. All
rights reserved.

Specications are subject to change without

notice. Trademarks are the proper ty of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other than

those specied herein, conrmation of their

validity and suitability must be obtained. Philips
warrants that the material itself does not
infringe any United States patents. No further
warranty is expressed or implied.
Philips cannot be held responsible either for any
errors in the content of this document or for
any problems as a result of the content in this
document. Errors reported to Philips will be
corrected and published on the Philips support
website as soon as possible.

Terms of warranty

• Risk of injury, damage to TV or void of
warranty! Never attempt to repair the
TV yourself.

• Use the TV and accessories only as
intended by the manufacturer.

• The caution sign printed on the back of
the TV indicates risk of electric shock.
Never remove the TV cover. Always
contact Philips Customer Support for
service or repairs.

• Any operation expressly prohibited in
this manual, or any adjustments and
assembly procedures not recommended
or authorised in this manual shall void the
warranty.

Pixel characteristics

This LCD product has a high number of
colour pixels. Although it has effective pixels of

99.999% or more, black dots or bright points of
light (red, green or blue) may appear constantly
on the screen. This is a structural proper ty of
the display (within common industry standards)
and is not a malfunction.

Open source software

Philips Electronics Singapore Pte Ltd hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages
used in this product for which such offer is
requested by the respective licences. This offer
is valid up to three years after product purchase
to anyone in receipt of this information. To
obtain the source code, please contact open.
[email protected]. If you prefer not to use

email or if you do not receive a conrmation

receipt within a week after mailing to this
email address, please write in English to “Open
Source Team, Philips Intellectual Property &
Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands”. If you do not receive timely

conrmation of your letter, please send an

email to the email address above. The texts
of the licences and acknowledgements for
open source software used in this product are

included on a separate leaet.

Compliance with EMF

Koninklijke Philips Electronics N.V. manufactures
and sells many products targeted at consumers
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures for
our products, to comply with all applicable legal
requirements and to stay well within the Electro
Magnetic Field (EMF) standards applicable at the
time of producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health

effects. Philips conrms that if its products are

handled properly for their intended use, they

are safe to use according to scientic evidence

available today.

English

Downloaded From TV-Manual.com Manuals

®

Information about how to
re-tune your TV during the

digital TV switchover.

Info for UK only.

Television in the UK is going digital, bringing us
all more choice and new services. Starting in
late 2007 and ending in 2012, television
services in the UK will go completely digital, TV
region by TV region.

Please see the next page to find out when your
area switches to digital.

Digital UK is the independent, non-profit
organisation leading the process of digital TV
switchover in the UK. Digital UK provides im-
partial information on what people need to do
to prepare for the move to digital, and when
they need to do it.

How the switchover affects
your TV equipment:

Your new TV has a digital tuner built in, which
means it is ready to receive the Freeview signal
by simply plugging it into your aerial socket
(check if you can get digital TV through your
aerial now, or whether you’ll have to wait until
switchover, at www.digitaluk.co.uk).

When the TV switchover happens in your area,
there are at least two occasions when you will
need to re-tune your TV in order to continue
receiving your existing TV channels, and also to
pick up new ones.

Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardisation for early
integration in its products.

EMC regulation

• In order to maintain conformity to the
Electro Magnetic Compatibility (EMC)
directive (2004/108/EC), the mains plug
on this product must not be detached
from the mains cord.

• If the apparatus does not recover in
DLNA /Net TV mode, user intervention
is required.

DLNA , the DLNA Logo and DLNA
CERTIFIED

or certication marks of the Digital Living

Network Alliance.

HDMI, the HDMI logo and High-Denition

Multimedia Inter face are trademarks or
registered trademarks of HDMI licensing LLC
in the United States and other countries.

are trademarks, service marks

Mains fuse (UK only)

This TV is tted with an approved moulded

plug. Should it become necessary to replace
the mains fuse, this must be replaced with a
fuse of the same value as indicated on the plug
(example 10A).

1 Remove fuse cover and fuse.
2 The replacement fuse must comply with

BS 1362 and have the ASTA approval
mark. If the fuse is lost, contact your
dealer in order to verify the correct type.

3 Ret the fuse cover.

Copyright

Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or other
countries.

Manufactured under licence from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

Kensing ton and Micro Saver are registered
US trademarks of ACCO World corporation
with issued registrations and pending
applications in other countries throughout the
world.
All other registered and unregistered
trademarks are the property of their
respective owners.

SDHC Logo is a trademark of SD-3C, LLC.

Declaration of Conformity

Hereby, Philips Innovative Applications N.V.
declares that this television is in compliance
with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
A copy of the Declaration of Conformity is
available at: http://www.philips.com/support

Downloaded From TV-Manual.com Manuals

Info for UK only.

Information about how to
re-tune your TV during the

digital TV switchover.

English

Television in the UK is going digital, bringing us
all more choice and new services. Starting in
late 2007 and ending in 2012, television
services in the UK will go completely digital, TV
region by TV region.

Please see the next page to find out when your
area switches to digital.

Digital UK is the independent, non-profit
organisation leading the process of digital TV
switchover in the UK. Digital UK provides im­partial information on what people need to do
to prepare for the move to digital, and when
they need to do it.

Downloaded From TV-Manual.com Manuals

How the switchover affects
your TV equipment:

Your new TV has a digital tuner built in, which
means it is ready to receive the Freeview signal
by simply plugging it into your aerial socket
(check if you can get digital TV through your
aerial now, or whether you’ll have to wait until
switchover, at www.digitaluk.co.uk).

When the TV switchover happens in your area,
there are at least two occasions when you will
need to re-tune your TV in order to continue
receiving your existing TV channels, and also to
pick up new ones.

E

Digital UK, the body leading the digital TV
switchover, will advise you when you need to
re-tune during the switchover.
If you do not re-tune your channels when
advised to do so by Digital UK, you may lose
some or all of your channels until you do
re-tune. You should re-tune your TV every
few months to check for any new channels.
If you choose to connect your TV to satellite or
cable with a digital box then it will not be
affected by switchover, and you won’t need to
re-tune.

How to re-tune:

1. Press h on the remote control.

2. Select Setup and press OK.

3. Select Search for channels and press OK.

4. Select Reinstall channels and press OK.

5. Select your country (UK) and press OK.

6. Select Antenna DVB-T and press OK.

7. Select Start and press OK.

The installation can take several minutes.

When the installation is complete, press OK.
Your TV is now retuned.

If you have any questions, please contact your
equipment supplier or call Digital UK on …
0845 6 50 50 50 or visit www.digitaluk.co.uk

If you are missing any channels, it may be
that they are not available in your area, or
that your aerial needs upgrading.

When does switchover happen?

*

Copeland switches on October 17, 2007

The exact date you switch
depends on the transmitter
you are served by. To check
when you switch, go to
Digital UK’s postcode
checker on
www.digitaluk.co.uk

Check your ITV news service
or look at Teletext page 106
to see what TV region you’re
in.

Visit us at digitaluk.co.uk
Call us on 0845 6 50 50 50

*

Calls charged at BT rate of 3p per minute daytime and
1p per minute evenings and weekends. Rates may vary
for calls from non-BT lines.

Downloaded From TV-Manual.com Manuals

†

20100422

© 2011 Koninklijke Philips Electronics N.V.

All rights reserved.

Document order number 31391370451 2

Downloaded From TV-Manual.com Manuals
