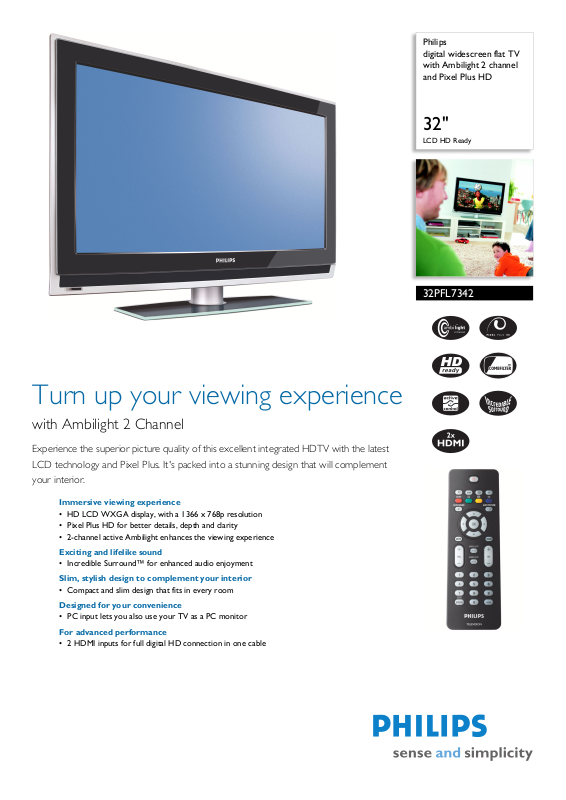

Philips
digital widescreen flat TV
with Ambilight 2 channel
and Pixel Plus HD

32"

LCD HD Ready

32PFL7342

Turn up your viewing experience

with Ambilight 2 Channel

Experience the superior picture quality of this excellent integrated HDTV with the latest
LCD technology and Pixel Plus. It's packed into a stunning design that will complement
your interior.

Immersive viewing experience

• HD LCD WXGA display, with a 1366 x 768p resolution

• Pixel Plus HD for better details, depth and clarity

• 2-channel active Ambilight enhances the viewing experience

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• PC input lets you also use your TV as a PC monitor

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Digital widescreen flat TV with Ambilight 2 channel and Pixel Plus HD

32" LCD HD Ready

Specifications

32PFL7342/78

Picture/Display

• Aspect ratio: Widescreen, 16:9

• Brightness: 500 cd/m²

• Dynamic screen contrast: 5000:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 170 / 170 degree

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix
TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus HD, Dynamic
contrast enhancement, Contrast Plus, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control,
Digital Noise Reduction, Progressive Scan

• Screen enhancement: Anti-Reflection coated
screen

Ambilight

• Ambilight Features: Ambilight 2 Channel

• Preset modes: 4 Active Adaptive modes

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 72, 75, 85Hz
720 x 400 70Hz
1024 x 768 60, 70, 75, 85Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller,
Incredible Surround

• Sound System: Stereo, SAP

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Front Speakers, Dome
tweeter

Convenience

• Child Protection: Child Lock

• Clock: On main display, Sleep Timer, Wake up
Clock

• Ease of Installation: Auto Program Naming,
Autostore, Fine Tuning, Program Name, Sorting

• Ease of Use: 8 channel smart surf list, Auto

Volume Leveller (AVL), AutoPicture, AutoSound,
Program List, Side Control, Closed Captioning
Full Text

• On-Screen Display languages: English, Portuguese,
Spanish

• Remote Control: TV

• Remote control type: RC2023606/01

• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: NTSC, PAL N, PAL M

• Video Playback: NTSC, PAL (all versions)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 125

• Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

• AV 4: HDMI

• AV 5: HDMI

• Number of AV connections: 7

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in

• Other connections: Monitor out, CVBS, L/R
(cinch), PC Audio in, PC-In VGA

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 50/60Hz

• Power consumption: 150 W

• Standby power consumption: <1W

Accessories

• Included Accessories: Tabletop swivel stand,
Power cord, Quick start guide, User Manual,
Registration card, Warranty certificate, Remote
Control, Batteries for remote control

Dimensions

• Color cabinet: Silver Frost Cabinet with Black Hi
Gloss Deco Frame

• Set dimensions (W x H x D):
805

x 547 x 116 mm

• Set dimensions with stand (W x H x D):
805

x 609 x 212 mm

• Product weight: 14.2 kg

• Product weight (+stand): 17 kg

• Box dimensions (W x H x D):
870

x 630 x 290 mm

• Weight incl. Packaging: 23 kg

• VESA wall mount compatible: 200 x 100 mm

•

Digital widescreen flat TV with Ambilight 2 channel and Pixel Plus HD

32" LCD HD Ready

32PFL7342/78

Product highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.

Pixel Plus HD

Pixel Plus HD is a picture processing technology that
enables viewer to watch contents that are vivid, natural
and real. The result is a superbly razor sharp pictures
with incredible details and depth from any HD source.

Ambilight 2 channel

Ambilight makes an impressive contribution to the overall
viewing experience by producing ambient light to
complement the colo rs a nd light in tensit y of t he o n-scr een
image. It adds a new dimension to the viewing
experience, completely immersing you into the content
you are watching. It creates ambiance, stimulates more
relaxed viewing, and improves perceived picture detail,
contrast and color. Ambilight automatically and
independently adapts its colors according to the changing
content on the screen.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

2 HDMI inputs

HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
ou tp ut reso lu tion wit h t he sourc e d evice. T he HDMI inp ut
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.

Issue date 2008-04-07

Version: 3.0.7

12 NC: 8670 000 31883
EAN: 87 12581 34833 5

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

PC input

With PC input you can connect your TV to a computer
and use the TV as a PC monitor.

* For a maximum picture quality without distortion it is

necessary a high quality digital signal in widescreen format or to us e
a signal conversor/decoder.

* Avoid exte nsive us e of the set at a vol ume high er than 85

decibels because this may damage your hearing.
