Page 1

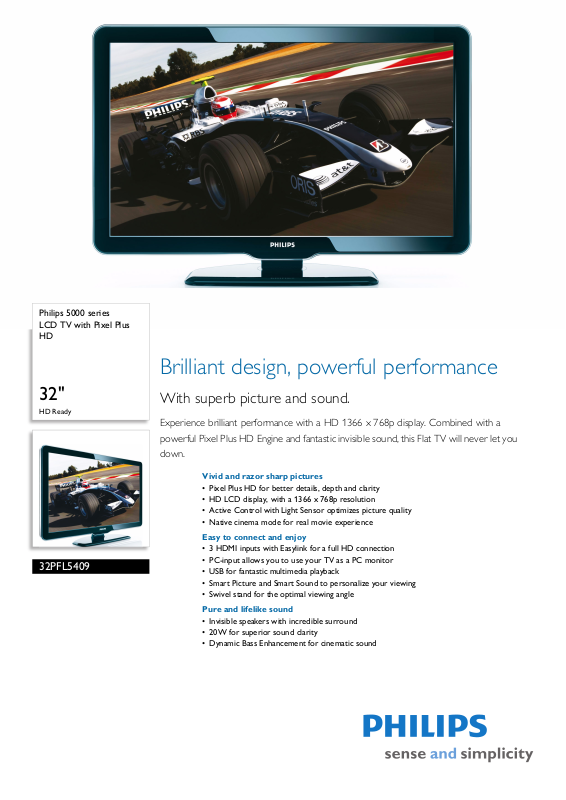

Philips 5000 series LCD TV with Pixel Plus HD

Brilliant design, powerful performance

32"

HD Ready

32PFL5409

With superb picture and sound.

Experience brilliant performance with a HD 1366 x 768p display. Combined with a powerful Pixel Plus HD Engine and fantastic invisible sound, this Flat TV will never let you down.

Vivid and razor sharp pictures

• Pixel Plus HD for better details, depth and clarity

• HD LCD display, with a 1366 x 768p resolution

• Active Control with Light Sensor optimizes picture quality

• Native cinema mode for real movie experience

Easy to connect and enjoy

• 3 HDMI inputs with Easylink for a full HD connection

• PC-input allows you to use your TV as a PC monitor

• USB for fantastic multimedia playback

• Smart Picture and Smart Sound to personalize your viewing

• Swivel stand for the optimal viewing angle

Pure and lifelike sound

• Invisible speakers with incredible surround

• 20W for superior sound clarity

• Dynamic Bass Enhancement for cinematic sound

Page 2

LCD TV with Pixel Plus HD

32" HD Ready

Highlights

32PFL5409/93

Pixel Plus HD

Pixel Plus HD is a picture processing te

chnology that enables viewer to watch contents that are vivid, natural and real. The result is a superbly razor sharp pictures with incredible details and depth from any HD source.

LCD display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

3 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry s

tandard protocol to share functionality between connected devices and the TV. With

Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 2 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

PC input (HDMI+VGA)

With PC input you can use your TV as a PC monit

or either using a HDMI-DVI cable/ converter (for digital signals) or VGA cable (for analog signals).

USB (multimedia)

The USB connector allows access to jpeg ph

otos, mp3 music and video files of most

USB-sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access the multimedia content using the easy on screen content browser. You can now view and share your videos, photos and music.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.

Invisible speakers

An invisible sound system that blends perfectly w

ith the design of the cabinet. The Incredible Surround allows you to experience total surround with greater depth and width of sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

provide you with direct access via

with

Page 3

LCD TV with Pixel Plus HD

32" HD Ready

Specifications

32PFL5409/93

Picture/Display

• Aspect ratio: Widescreen

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA+ Active Matrix T

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus HD, 3/2 - 2/2

tion pull down, 3D Combfilter, Active Control

mo + Light sensor, Color Enhancement, Dynamic contrast enhancement, Jagged Line Suppression, Sharpness Adjustment, Dynamic Noise Reduction, 2D/3D noise reduction, 1080p 24/25/30Hz processing, 1080p 50/60Hz processing

• Screen enhancement: Semi-glare

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz Via HDMI/DVI

inpu

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30, 50, 60Hz

Sound

• Output power (RMS): 20W

• Sound Enhancement: Auto Volume Leveller,

ynamic Bass Enhancement, Incredible Surround,

D Subwoofer, Treble and Bass Control

• Sound System: Mono, Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sle

ep Timer, Wake up

Clock, Wake Up Timer

• Connection Enhancement: Easy link

• Ease of Installation: Autos Digital Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: 4 favorite lists, Auto Volume Leveller (AVL), Gra Display, Side Control, Smart Picture, Smart Sound, EasyLink

• On-Screen Display languages Chinese

• Picture in Picture: Picture in graphics

• Remote Control: TV

• Remote control type: PF02C09B

• Screen Format Adjustments: 4:3, Movie expand 14: Zoom, Widescreen

• Signal strength indication

• Firmware upgradeable: Firmware upgradeable via US

• Multimedia: USB media browser

phical User Interface, On Screen

9, Movie expand 16:9, Subtitle Zoom, Super

tore, Fine Tuning, PLL

: English, Simplified

Multimedia Applications

• Playback Formats: MP3, JPEG Still pictures, MPEG1, MPEG4, RealMedia Video

• Playback enhancement: Pictur

e slideshow

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL B/G, PAL D/K

• Video Playback: NTSC, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 99

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in

•Front / Side connections: HDMI CVBS in, Audio L/R in, Headphone out, USB

• Other connections: Monitor out, CVBS, L/R

inch), PC-in VGA + Audio L/R in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, EasyLink,

mote control pass-through, System audio

Re control, System standby

v1.3, S-video in,

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220-240V; 50-60Hz

• Power consumption: 120 W

• Standby power consumption: (typical) <0.15W

Dimensions

•Set dimensions (W x H x D): 810 x 519 x 95 mm

• Set dimensions with stand (W x H x D): 0 x 570 x 230 mm

• Weight incl. Packaging: 13.5 kg

• Product weight: 10.5

• Product weight (+stand): 12.5 kg

•Box dimensions (W x H x D): 34 x 662 x 246 mm

• VESA wall mount compatible: 200 x 200 mm

Accessories

• Included Accessories: Tabletop swivel stand,

Power cord, Quick start guide, User Manual, Remote Control, 2 x AAA Batteries

• IFU / User Manual: Simplified Chinese

•

Issue date 2009-05-27

Version: 3.5.10

12 NC: 8670 000 49527 EAN: 87 12581 46345 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
