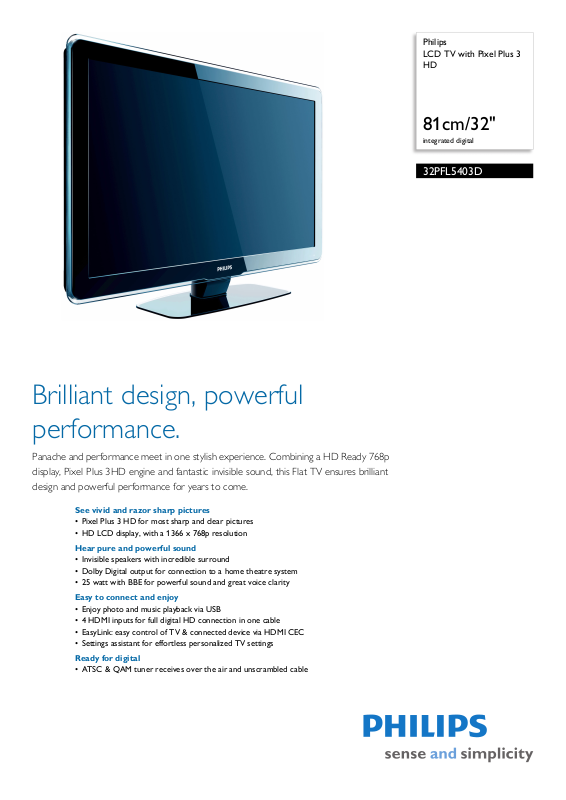

Page 1

Philips LCD TV with Pixel Plus 3 HD

81cm/32"

integrated digital

32PFL5403D

Brilliant design, powerful performance.

Panache and performance meet in one stylish experience. Combining a HD Ready 768p display, Pixel Plus 3HD engine and fantastic invisible sound, this Flat TV ensures brilliant design and powerful performance for years to come.

See vivid and razor sharp pictures

• Pixel Plus 3 HD for most sharp and clear pictures

• HD LCD display, with a 1366 x 768p resolution

Hear pure and powerful sound

• Invisible speakers with incredible surround

• Dolby Digital output for connection to a home theatre system

• 25 watt with BBE for powerful sound and great voice clarity

Easy to connect and enjoy

• Enjoy photo and music playback via USB

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

• ATSC & QAM tuner receives over the air and unscrambled cable

Page 2

LCD TV with Pixel Plus 3 HD

81cm/32" integrated digital

Highlights

32PFL5403D/F7

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

LCD display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Invisible speakers

An invisible sound system that blends perfectly w

ith the design of the cabinet. The Incredible Surround allows you to experience total surround with greater depth and width of

sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

col to share functionality

Page 3

LCD TV with Pixel Plus 3 HD

81cm/32" integrated digital

Specifications

32PFL5403D/F7

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 26000:1

• Response time (typical): 8 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 32 inch / 82 cm

• Visible screen diagonal (inch): 31.5 inch

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2 n pull down, 3D Combfilter, Active Control

tio

mo + Light sensor, Dynamic contrast enhancement, Progressive scan

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60 1280 x 1024 60Hz 1360 x 768 60Hz 1920 x 1080i 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 25W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Au (AVL), Channel list, Settings assistant Wizard, Side Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

Volume Leveller

e expand 14:9, Movie expand 16:9, Super

Mov Zoom, Widescreen

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures

• Playback enhancement: Picture slidesho

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, Power st standby

• Front / Side connections: HDMI, S-video in, CVBS in, Audio L

• Audio Output - Digital: Coaxial (cinch)

stem info (menu language), System

atus, Sy

R in, Headphone Out, USB

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 125 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

32.24 x 20.39 x 3.62 inch

•Set dimensions with stand in inch (W

32.24 x 22.80 x 8.66 inch

• Weight incl. Packaging (lb): 40.45

• Product weight (lb): 33.62 (with stand), 27.01

hout stand)

• Box dimensions in inch (W x H x D):

4 x 24.76 x 10.04 inch

36.1

• VESA wall mount compatible: adjustable 300x300

x H x D):

Accessories

• Included accessories: Tabletop swivel stand, Power

rd, Quick start guide, User Manual, Registration

card, Rem

•

te Control

Issue date 2012-01-20

Version: 4.0.5

12 NC: 8670 000 47388 UPC: 6 09585 16241 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
