Philips 32PFL5322/10B leaflet

Download

Page 1

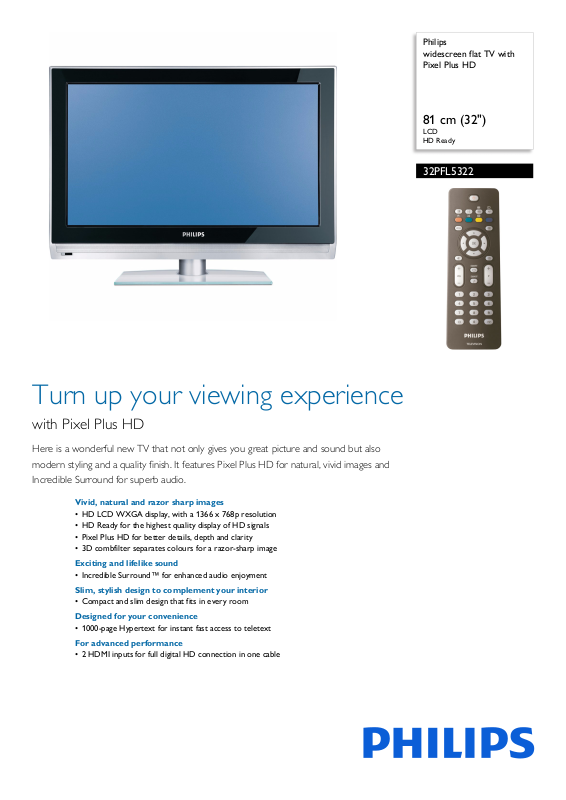

Philips widescreen flat TV with Pixel Plus HD

81 cm (32")

LCD HD Ready

32PFL5322

Turn up your viewing experience

with Pixel Plus HD

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and a quality finish. It features Pixel Plus HD for natural, vivid images and Incredible Surround for superb audio.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Pixel Plus HD for better details, depth and clarity

• 3D combfilter separates colours for a razor-sharp image

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• 1000-page Hypertext for instant fast access to teletext

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

32PFL5322/10

widescreen flat TV

81 cm (32") LCD, HD Ready

Highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer an HD screen that displays the benefits of the resolution and picture quality of a High Definition signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting

HDCP. It can display 720p, and 1080i signals at 50 and 60 Hz.

Pixel Plus HD

Pixel Plus HD is a picture processing te

chnology that enables viewers to watch content that is vivid, natural and real. This results in superb lifelike pictures with incredible details and depth from any HD source.

3D Combfilter

The 3D combfilter separates brightness and c

olour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital combfilter performs field-by-field comparisons of the television image to accurately separate the colour from the black-and-white information and remove both horizontally and vertically

hanging dots, as well as dot crawl. The result is a razor sharp image.

Compact and slim design

This design style emphasises a slim, compact l

ook that saves space and fits in anywhere.

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD set-top box and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

32PFL5322/10

widescreen flat TV

81 cm (32") LCD, HD Ready

Specifications

Picture/Display

• Colour cabinet: Bicolour - Silver and high gloss Black

• Aspect ratio: Widescreen, 16:9

• Brightness: 500 cd/m²

• Dynamic screen contrast: 7500:1

• Response time (typical): 6 ms

• Viewing Angle (H / V): 178 / 178 degree

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix

TF Panel resolution: 1366 x 768p

•

• Picture enhancement: Pixel Plus HD, Luminance

ansient Im

Tr Improvement, Dynamic contrast enhancement, Contrast Plus, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Digital Noise Reduction, Jagged Line Suppression, Progressive scan

• Screen enhancement: Anti-Reflection coated

prover, Colour Transient

Supported Display Resolution

mputer formats

• Co

olution Refresh rate

Res 640 x 480 60, 72, 75, 85 Hz 800 x 600 60, 72, 75, 85 Hz 1024 x 768 60, 70, 75, 85 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 50, 60 Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10 W

• Sound Enhancement: Auto Volume Leveller, credible Surround, Dynamic Bass Enhancement

• Sound System: Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake-up Clock

• Ease of Installation: Auto Programme Naming,

• Ease of Use: Auto Volume Leveller (AVL),

• Remote Control: TV

• Remote control type: RC2023601/01

• Screen Format Adjustments: 4:3, Movie expand

• Picture in Picture: Text dual screen

• Teletext: 1000-page Hypertext

• Teletext enhancements: 4 favourite pages,

• VESA Mount: 200 x 100 mm

tic Channel Install (ACI), Automatic

Automa Tuning System (ATS), Autostore, Fine Tuning, Plug and Play, Programme Name, Sorting

Programme L Smart Sound

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

ramme information Line

Pro

st, Side Control, Smart Picture,

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL SECAM D/K, SECAM L/L'

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Pre-set Channels: 100

•Tuner Display: PLL

D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

•Number of Scarts: 2

• Ext 3: S-video in, CVBS in, Audio L/R in

• Ext 4: YPbPr, Audio L/R in

• Ext 5: HDMI

• Ext 6: HDMI

• Other connections: Headphone out

Power

• Ambient temperature: 5°C to 40°C

• Mains power: 220 - 240 V, 50/60 Hz

• Power consumption: 140 W

• Standby power consumption: < 1 W

Accessories

• Included accessories: Tabletop stand, Power cord, Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

• Optional accessories: Floor stand

Dimensions

• Set dimensions (W x H x D): 805 x 546 x 115 mm

• Set dimensions with stand (W x H x D):

x 609 x 210 mm

805

• Product weight: 15.5 kg

• Product weight (+stand): 17.5 kg

•Box dimensions (W x H x D):

x 641 x 267 mm

• Weight incl. Packaging: 20.5 kg

•

Issue date 2019-06-25

Version: 7.0.11

12 NC: 8670 000 25408 EAN: 87 12581 30272 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
