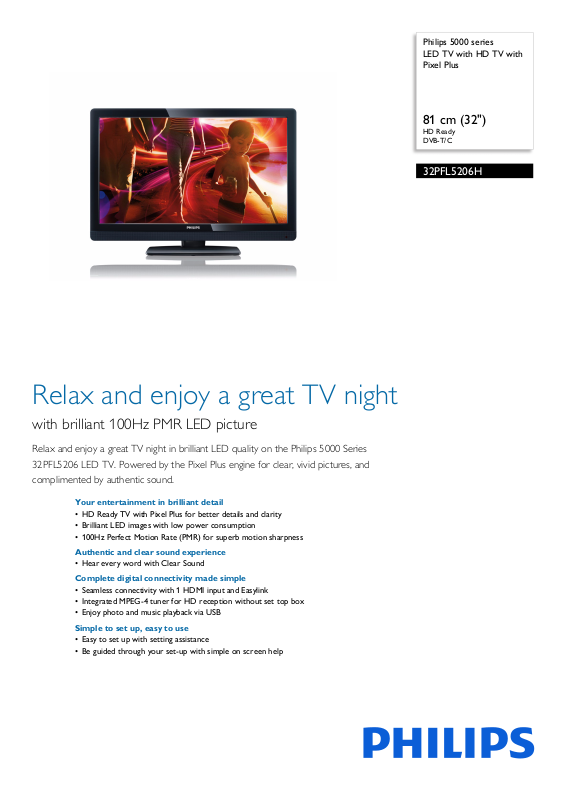

Page 1
Philips 5000 series
LED TV with HD TV with
Pixel Plus
81 cm (32")
HD Ready
DVB-T/C
32PFL5206H
Relax and enjoy a great TV night
with brilliant 100Hz PMR LED picture
Relax and enjoy a great TV night in brilliant LED quality on the Philips 5000 Series
32PFL5206 LED TV. Powered by the Pixel Plus engine for clear, vivid pictures, and
complimented by authentic sound.
Your entertainment in brilliant detail
• HD Ready TV with Pixel Plus for better details and clarity
• Brilliant LED images with low power consumption
• 100Hz Perfect Motion Rate (PMR) for superb motion sharpness
Authentic and clear sound experience
• Hear every word with Clear Sound
Complete digital connectivity made simple
• Seamless connectivity with 1 HDMI input and Easylink
• Integrated MPEG-4 tuner for HD reception without set top box
• Enjoy photo and music playback via USB
Simple to set up, easy to use
• Easy to set up with setting assistance
• Be guided through your set-up with simple on screen help
Page 2
32PFL5206H/60
LED TV
81 cm (32") HD Ready, DVB-T/C
Highlights
HD TV with Pixel Plus
Pixel Plus is a digital picture processing
te
chnology that increases the number of lines
and the number of pixels. The result means
razor sharp pictures with incredible detail and
depth, every time from any source.
LED
The most advanced LED lighting technology in
this TV combines an eye-catching minimalistic
design with stunning image quality as well as
the lowest power consumption in its category.
On top of that, LED lighting technology does
not contain any hazardous materials. Thus,
with LED backlight you can enjoy low power
consumption, high brightness, incredible
contrast, sharpness and vibrant colors.
100Hz Perfect Motion Rate
Clear Sound
Clear Sound is an innovative audio technology
that significantly increases the
comprehensibility of the voice, whether
spoken or sung. It ensures you hear every
word, so you can enjoy what you're watching
to the fullest.
1 HDMI inputs with Easylink
HDMI is a single cable to carry both picture
and audio signals from your devices to your
TV, helping avoid cable clutter. It carries
uncompressed signals, ensuring the highest
quality from source to screen. Together with
Philips Easylink, you need only one remote
control to perform most operations on your
TV, DVD, BluRay, set top box or home theatre
system.
(USB memory-class device). Plug the USB into
the slot at the side of the TV and access the
multimedia content using the easy on screen
content browser. You can now view and share
your photos and music.
Integrated DVB tuner MPEG-4
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
On screen help
The new personalization wizard guides you
through the settings with ease. The TV displays
different picture settings side by side for you to
select your preferred settings. This will help
you to manage your installation in quick easy
steps.
Easy to set up
Combining the refresh rate of the panel and
unique image processing, Perfect Motion Rate
(PMR) creates extreme motion sharpness for
clear and vibrant images even with fast onscreen motion.
USB for photo & music playback
This TV is easy to setup with the step by step
setting assistant. The assistant shows a few
screens with easy to choose options to select
the essential settings. The TV performance is
set to the your personal preference without
difficult terms or settings, and this very quickly.
The USB connector allows access to jpeg
photos and mp3 music of most USB-sticks
Page 3
32PFL5206H/60
LED TV
81 cm (32") HD Ready, DVB-T/C
Specifications
Picture/Display
• Display: LCD HD Ready
• Diagonal screen size: 32 inch / 81 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Peak Luminance ratio: 65 %
• Dynamic screen contrast: 100.000:1
• Response time (typical): 5 ms
• Picture enhancement: Pixel Plus, Digit
al Crystal
Clear, 100 Hz Perfect Motion Rate
Sound
• Output power (RMS): 10W (2 x 5W)
• Sound Enhancement: Auto V
Sound, Incredible Surround, Treble and Bass
Control
olume Leveller, Clear
Connectivity
• Number of HDMI connections: 1
• EasyLink (HDMI-CEC): System standby, One touch
play
• Number of component in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Other connections: Antenna IEC75, Common
nterface Plus (CI+), Digital audio out (coaxial), PC-
I
in VGA + Audio L/R in, Headphone out
Multimedia Applications
• Multimedia connections: USB
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920x1080 @ 60Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to
20x1080p
19
Convenience
• Electronic Program Guide: 8 day Electronic
Program Guide
• Ease of Installation: Channel installation wizard,
Sett
ings assistant wizard
• Ease of Use: One-stop Home button
• Screen Format Adjustments: 4:3, Autofill,
ozoom, Movie expand 14:9, Movie expand
Aut
16:9, Subtitle Zoom, Super Zoom, Widescreen
• Teletext: 1000 page Smart Text
• Firmware upgradeable: Firmware upgradeable via
B
US
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220-240V; 50-60Hz
• Ambient temperature: 5 °C to 40 °C
• Energy Label Class: A
• Eu Energy Label power: 42 W
• Annual energy consumption: 61 kW·h
• Standby power consumption: < 0.3 W
• Power Saving Features: 0 Watt Power-off switch,
o mode, Eco settings menu, Light sensor, Picture
Ec
mute (for radio)
• Presence of lead: Yes*
Dimensions
•Box dimensions (W x H x D):
965 x 590 x 159 mm
•Set dimensions (W x H x D): 771 x 495 x 49 mm
• Set dimensions with stand (W x H x D):
1 x 539 x 179 mm
77
• Product weight: 8.45 kg
• Product weight (+stand): 9 kg
• Compatible wall mount: adjustable 200 x 100mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Table top stand, User
Manual, Quick start guide, Warranty Leaflet
•
Issue date 2019-06-22
Version: 3.1.3
12 NC: 8670 000 85147
EAN: 87 12581 62653 2
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* 8 days EPG, service not available in all countries
* Energy consumption in kWh per year, based on the power
cons
umption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
