Philips 32PFL4505D Specifications

Download

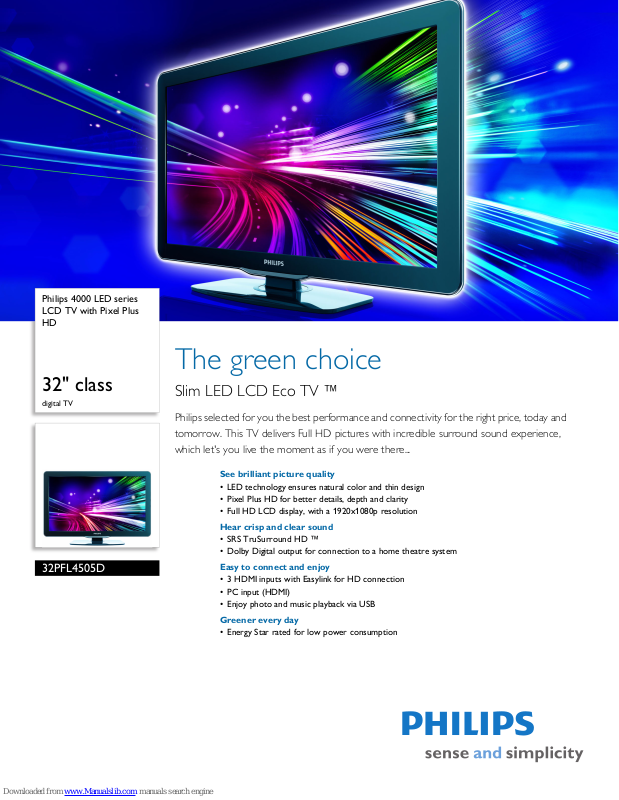

Page 1

Philips 4000 LED series LCD TV with Pixel Plus HD

The green choice

32" class

digital TV

32PFL4505D

Slim LED LCD Eco TV ™

Philips selected for you the best performance and connectivity for the right price, today and tomorrow. This TV delivers Full HD pictures with incredible surround sound experience, which let's you live the moment as if you were there...

See brilliant picture quality

• LED technology ensures natural color and thin design

• Pixel Plus HD for better details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

Hear crisp and clear sound

• SRS TruSurround HD ™

• Dolby Digital output for connection to a home theatre system

Easy to connect and enjoy

• 3 HDMI inputs with Easylink for HD connection

• PC input (HDMI)

• Enjoy photo and music playback via USB

Greener every day

• Energy Star rated for low power consumption

Page 2

LCD TV with Pixel Plus HD

32" class digital TV

Highlights

32PFL4505D/F7

LED

LED lighting technology is the most advanced av

ailable. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as being the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colors.

Pixel Plus HD

Pixel Plus HD is a picture processing technology that enables viewers to watch content that is vivid, natural and real. The result are superbly life-like pictures with incredible details and depth from any HD source.

Full HD LCD display 1920x1080p

resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

SRS TruSurround HD ™

SRS TruSurround HD ™ creates an immersive, feature-rich surround two speakers, complete with rich bass, high frequency detail and clear dialog.

Dolby Digital output

Dolby Digital output for connection to a home t

heatre system

3 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry standard p

rotocol to share functionality between connected devices and the TV. With Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 2 HDMI input on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

sound experience from

USB for photo & music playback

The USB connector allows access to jpeg photos and mp3 music of most USB-sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files using the easy on screen content browser. You can now easily view and share your photos and music.

PC input (HDMI)

With PC input you can use your TV as a PC m

onitor via a HDMI-DVI cable/converter.

Energy Star

Energy Star-labeled home ele are designed to use less energy - saving you money while reducing environmental pollution. In fact, Energy Star-compliant products consume less than 1 watt of power while in standby mode. As an Energy Star partner, Philips develops products that meet the Energy Star guidelines for energy efficiency. This is achieved by having low standby power consumption through innovatively designed standby circuitry and stringent selection of components made with high efficiency materials.

ctrical products

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest

Page 3

LCD TV with Pixel Plus HD

32" class digital TV

Specifications

32PFL4505D/F7

Picture/Display

• Aspect ratio: Widescreen

• Display screen type: LED Full HD Display

• Panel resolution: 1920x1080p

• Brightness: 450 cd/m²

• Response time (typical): 8 ms

• Contrast ratio (typical): 4000:1

• Dynamic screen contrast: 25,000:1

• Diagonal screen size: 32 inch / 81 cm

• Visible screen diagonal (inch): 31.5 inch

• Viewing angle: 170º (H) / 170º (V)

• Picture enhancement: Pixel Digital Noise Reduction, Dynamic contrast enhancement, Progressive scan

Plus HD, 3D Combfilter,

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 720 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz 1920 x 1080 60Hz

deo formats

• Vi Resolution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 60Hz

• Ease of Installation: Autostore

• Ease of Use: Auto Volume Leveller (AVL), AutoPictu Side Control

• Remote Control: TV

•Screen Format Adjustments: 16:9, 4:3, Full, Movie Expand, Wide

• Multimedia: auto slideshow

re, AutoSound, Settings assistant Wizard,

Normal, Zoom,

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: JPEG Still pictures, MP3

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Tuner bands: UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, CVBS in, S-Video

• AV 3: Audio L/R in, CVBS in, S-Video in

• HDMI 1: Analog audio L/R in, HDMI

•HDMI 2: HDMI

•HDMI 3: HDMI

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Analog audio Left/Right out

• USB: USB

• EasyLink (HDMI-CEC): One touch play, Power

atus, System info (menu language), System audio

st control, System standby

• Product weight (+stand) (lb): 20.72

• Box dimensions in inch (W x H x D): .83 x 24.76 x 8.98 inch

• Weight incl. Packaging (lb): 26.01

• VESA wall mount compatible: 200 x 200 mm

Accessories

• Included accessories: Table top stand, Power cord,

Quick start guide, User Manual, Registration card, Remote Control, Batteries for remote control

•

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 3W

• Sound System: SRS TruSurround HD, (AC-3), Stereo, SAP

Dolby Digital

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

Issue date 2010-09-06

Version: 1.1.1

12 NC: 8670 000 63325 UPC: 6 09585 19116 7

Power

• Mains power: 120V/60Hz

• Power consumption: 128 W

• Standby power consumption: < 0.15 W

• Ambient temperature: 5°C to 35°C (41°F to 95°F)

Dimensions

• Set dimensions in inch (W x H x D):

30.91 x 18.98 x 1.93 inch

• Set dimensions with stand in inch (W x H x D):

30.91 x 20.93 x 8.66 inch

• Product weight (lb): 19.18

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.
