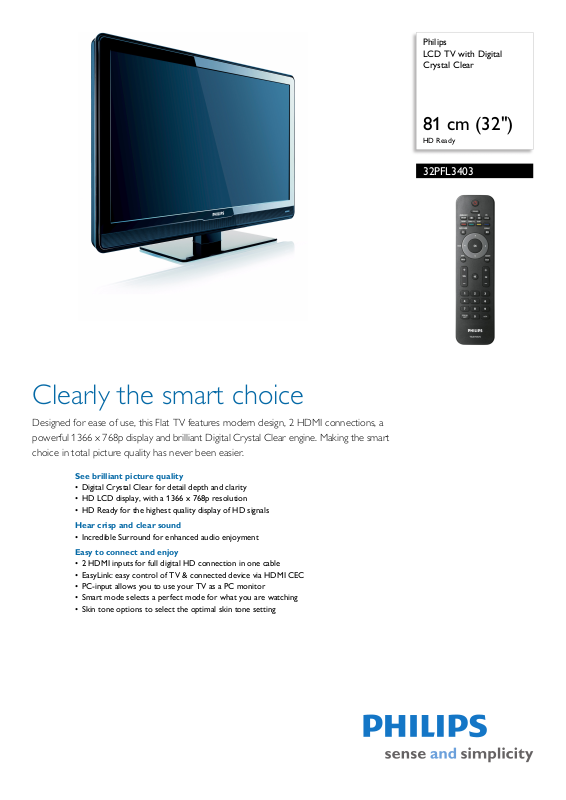

Page 1

Philips LCD TV with Digital Crystal Clear

81 cm (32")

HD Ready

32PFL3403

Clearly the smart choice

Designed for ease of use, this Flat TV features modern design, 2 HDMI connections, a powerful 1366 x 768p display and brilliant Digital Crystal Clear engine. Making the smart choice in total picture quality has never been easier.

See brilliant picture quality

• Digital Crystal Clear for detail depth and clarity

• HD LCD display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

Hear crisp and clear sound

• Incredible Surround for enhanced audio enjoyment

Easy to connect and enjoy

• 2 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• PC-input allows you to use your TV as a PC monitor

• Smart mode selects a perfect mode for what you are watching

• Skin tone options to select the optimal skin tone setting

Page 2

LCD TV with Digital Crystal Clear

81 cm (32") HD Ready

Highlights

32PFL3403/98

Digital Crystal Clear

Digital Crystal Clear is a package of picture in

novations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinemalike images.

LCD display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Incredible Surround

Incredible Surround is an audio technology from Phi

lips that dramatically magnifies the

sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.

2 HDMI inputs

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry s

tandard protocol to share functionality between connected devices and the TV. With EasyLink only one remote control is needed to

operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

PC input (VGA)

With PC input you can connect your TV to a c

omputer by a VGA cable and use the TV as a

PC monitor.

Smart mode

The optimum picture and sound depends on v

arious aspects like the video source, content type, surroundings of the room, type of display device etc. Smart Mode has predefined picture and sound settings conveniently preset by the way you use your TV. The ‘Personal’ setting, allows you to define the picture settings according to your preference, store it and gain easy access for future selection. All these conveniently built into your TV for optimal settings.

Skin tone options

Skin tone settings is an advanced video process t

hat identifies and isolates areas of the picture depicting human skin and provides three presets for applying your choice of three skin color saturation levels -- bright, normal or rich

-- without compromising color saturation level in other areas of the picture.

Page 3

HDMI 1

HDMI 2

AUDIO IN

PC IN

VGA

CVI 1

Pr L

CVI 2

75 Ω

L - AUDIO OUT - R

VIDEO INS-VIDEO L - AUDIO - R

SIDE AV

LCD TV with Digital Crystal Clear

81 cm (32") HD Ready

Specifications

32PFL3403/98

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 24000:1

• Response time (typical): 8 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix T

TF Panel resolution: 1366 x 768p

•

• Picture enhancement: 3/2 - 2/2 motion pull down,

mbfi

3D Co

lter, Digital Crystal Clear, Dynamic

contrast, Progressive scan

• Screen enhancement: Anti-Reflection coated

• Color cabinet: Black Cabinet with

Black Hi Gloss

Deco Frame

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 720 60 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 50, 60Hz

Digital Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Side ntrol

•

Remote Control: TV

• Remote control type: PF03A08B

• Screen Format Adjustments: 4:3, Movie expand 9

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Teletext: 100 page Smart Text

• Smart mode: Game, Movie, Personal, Power saver, n

dard, Vivid

Sta

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, SECAM B/G, SECAM

D/K

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 125

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

(menu language), System standby

inf

• Front / Side connections: S-video in, CVBS in,

R in, Headphone Out

Audio L/

• Other connections: Analog audio Left/Right out,

udio in, PC-In VGA

PC A

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 50/60Hz

• Power consumption: 150 W

• Standby power consumption: < 0.3 W

Accessories

• Included accessories: Table top stand, Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Sound

• Output power (RMS): 2 x 5 W

• Sound Enhancement: Auto Volume Leveller, edible Surround

Incr

• Sound System: Mono, Stereo

Convenience

• Child Protection: Child Lock

• Clock: On main display, Sleep Timer

• Connection Enhancement: Easy link

• Ease of Installation: Autos

ore, Fine Tuning, PLL

Issue date 2012-01-20

Version: 2.0.6

12 NC: 8670 000 35628 EAN: 87 12581 38387 9

Dimensions

•Set dimensions (W x H x D): 809 x 543 x 92 mm

• Set dimensions with stand (W x H x D): 593 x 220 mm

809 x

• Weight incl. Packaging: 16.7 kg

• Product weight: 11

•

Product weight (+stand): 14 kg

•Box dimensions (W x H x D):

x 662 x 250 mm

• VESA wall mount compatible: 400 x 200 mm

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
