Philips 32PFL3403/55 Leaflet

Download

Page 1

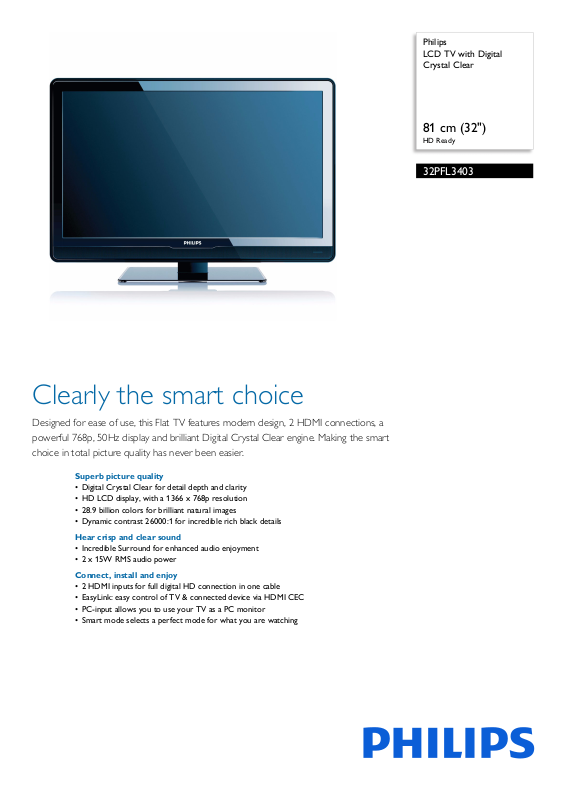

Philips LCD TV with Digital Crystal Clear

81 cm (32")

HD Ready

32PFL3403

Clearly the smart choice

Designed for ease of use, this Flat TV features modern design, 2 HDMI connections, a powerful 768p, 50Hz display and brilliant Digital Crystal Clear engine. Making the smart choice in total picture quality has never been easier.

Superb picture quality

• Digital Crystal Clear for detail depth and clarity

• HD LCD display, with a 1366 x 768p resolution

• 28.9 billion colors for brilliant natural images

• Dynamic contrast 26000:1 for incredible rich black details

Hear crisp and clear sound

• Incredible Surround for enhanced audio enjoyment

• 2 x 15W RMS audio power

Connect, install and enjoy

• 2 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• PC-input allows you to use your TV as a PC monitor

• Smart mode selects a perfect mode for what you are watching

Page 2

32PFL3403/55

LCD TV

81 cm (32") HD Ready

Highlights

Digital Crystal Clear

Digital Crystal Clear is a package of picture in

novations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinemalike images.

LCD display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Dynamic contrast ratio 26000:1

You want the LCD flat display with the highest contrast advanced video processing combined with unique extreme dimming and backlight boosting technology results in vibrant images. Dynamic Contrast will increase the contrast with excellent blacklevel and accurate rendition of dark shades and colors. It gives a bright, lifelike picture with high contrast and vibrant colors.

and most vibrant images. Philips

Incredible Surround

Incredible Surround is an audio technology from Phi sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.

2 HDMI inputs

HDMI makes an uncompressed digital RGB conne eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

lips that dramatically magnifies the

ction from the source to the screen. By

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

PC input (HDMI and VGA)

With PC input you can use your TV as a PC moni

tor either using a HDMI-DVI cable/ converter (for digital signals) or VGA cable (for analog signals).

Smart mode

The optimum picture and sound depends on v

arious aspects like the video source, content type, surroundings of the room, type of display device etc. Smart Mode has predefined picture and sound settings conveniently preset by the way you use your TV. The ‘Personal’ setting, allows you to define the picture settings according to your preference, store it and gain easy access for future selection. All these conveniently built into your TV for optimal settings.

col to share functionality

Page 3

32PFL3403/55

LCD TV

81 cm (32") HD Ready

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 26000:1

• Response time (typical): 8 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD WXGA Active Matrix T

TF Panel resolution: 1366 x 768p

•

• Picture enhancement: 3/2 - 2/2 motion pull down,

mbfi

3D Co Clear, Dynamic contrast enhancement, Jagged Line Suppression, Luminance Transient Improver

• Screen enhancement: Anti-Reflection coated

lter, Contrast Plus, Digital Crystal

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 720 x 400 70Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 X 15W

• Sound Enhancement: Auto Volume Leveller,

• Sound System: Stereo, SAP

Equaliser, Incredible Surround

Graphic

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Tim Timer

• Connection Enhancement: Easy link

• User convenience: Closed Captioning (analog),

hip a

nd parental lock

• Ease of Installation: Auto Program Naming,

store, Fine Tuning, PLL Digital Tuning,

Auto

er, Wake Up

Program Name, Sorting

• Ease of Use: 8 channel smart surf Leveller (AVL), On Screen Display, Program List, Side Control, Closed Captioning Full Text

• On-Screen Display languages: English, Portuguese,

Spani

• Remote Control: TV

• Remote control type: PF04L08B

• Screen Format Adjustments: 4:3, Movie expand

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Signal strength indication

• Smart mode: Game, Movie, Personal, Power saver, Sports, Standard

list, Auto Volume

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: NTSC M, PAL N, PAL M

• Video Playback: NTSC, SECAM, PAL (all versions)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 125

•Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

(menu language), System standby

inf

• Front / Side connections: S-video in, CVBS in,

• Other connections: PC-in VGA + Audio L/R in, S/

R in, Headphone Out

Audio L/

PDIF out (coa

xial)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 50/60Hz

• Power consumption: 130 W

• Standby power consumption: typ. 0.165W

Dimensions

•Set dimensions (W x H x D): 809 x 544 x 92 mm

• Set dimensions with stand (W x H x D):

594 x 220 mm

809 x

• Weight incl. Packaging: 21 kg

• Product weight: 14.5 kg

• Product weight (+stand): 18 kg

•Box dimensions (W x H x D):

6 x

674 x 255 mm

• VESA wall mount compatible: 200 x 300 mm

Accessories

• Included accessories: Power cord, Quick start guide, User Manual, Remote Control, Batteries for remote control

•

Issue date 2019-06-28

Version: 2.0.5

12 NC: 8670 000 37391 EAN: 87 12581 39845 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
