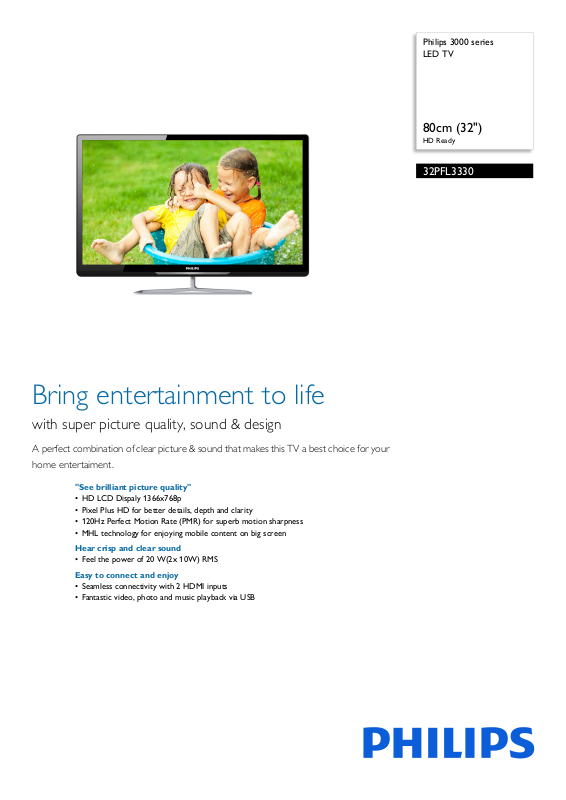

Page 1
Philips 3000 series
LED TV
80cm (32")
HD Ready
32PFL3330
Bring entertainment to life
with super picture quality, sound & design
A perfect combination of clear picture & sound that makes this TV a best choice for your
home entertaiment.
"See brilliant picture quality"
• HD LCD Dispaly 1366x768p
• Pixel Plus HD for better details, depth and clarity
• 120Hz Perfect Motion Rate (PMR) for superb motion sharpness
• MHL technology for enjoying mobile content on big screen
Hear crisp and clear sound
• Feel the power of 20 W(2x 10W) RMS
Easy to connect and enjoy
• Seamless connectivity with 2 HDMI inputs
• Fantastic video, photo and music playback via USB
Page 2
32PFL3330/V7
LED TV
80cm (32") HD Ready
Highlights
HD LCD Dispaly 1366x768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience..
Pixel Plus HD
Pixel Plus HD offers the unique combination of
ultimate sharpness, natural detail, vivid colours
and smooth natural motion on all qualities of
HD, standard TV signals and multimedia
content, for high definition displays. Artefacts
and noise in all sources from multimedia to
standard TV and also in highly compressed HD
are detected and reduced ensuring that the
picture is clear and razor sharp
120Hz Perfect Motion Rate
Combining the refresh rate of the panel and
unique image processing, Perfect Motion Rate
(PMR) creates extreme motion sharpness for
clear and vibrant images even with the fastest
on-screen motion.
Rich & clear sound experience
"Feel the power of the music beat and the
atmosphere of the movies. The powerful 20 W
RMS (2 x 10 W RMS) amplifiers create a lifelike
soundstage. It gives a clear and spacious sound
stage complementary to the rich viewing
experience.."
MHL
high-definition displays/ TVs. An optional MHL
cable allows you to simply connect your MHL
capable mobile device to this large Philips MHL
LED TV, and watch your HD videos come to
life with full digital sound. Now not only you
can enjoy your mobile games, photos, movies,
or other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
USB with Video Playback
The USB connector allows access to jpeg
photos, mp3 music and video files through all
USB drives. Plug the USB into the slot at the
side of the TV and access multimedia content
using the easy on screen content browser.
Now view your videos, photos and music
effortlessly in your TV!
2 HDMI inputs
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
"HDMI makes an uncompressed digital RGB
connection from the source to the screen for
the ultimate picture quality. HDMI uses HDCP
copy protection. With 2 HDMI inputs on the
back of the TV you can connect multiple HD
sources, for instance an HD settop box, a Bluray player, and Game Console or Digital
Camcorder."
Page 3
32PFL3330/V7
LED TV
80cm (32") HD Ready
Specifications
Picture/Display
• Diagonal screen size (inch): 32 inch
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus HD, 3/2 - 2/2
n pull down, 3D Combfilter, Digital Noise
motio
Reduction
Sound
• Output power (RMS): 20W
• Sound Enhancement: Auto Volume Leveller
• Sound System: Stereo
Connectivity
• USB: USB
• Other connections: Antenna F-type, Component
Video (YPbPr) inpu
input, PC-In VGA
• AV 1: Audio L/R in, CVBS in, VGA-in (5x cinch
G
B+H/V), YPbPr
R
• AV output: Composite (CVBS) x1
•HDMI 2: HDMI
t, Composite video (CVBS)
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1024 x 768 60, 70, 75Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
Via HDMI/DVI
t
inpu
12
80 x 1024 60Hz
1280 x 720 60Hz
720 x 480 60Hz
800 x 600 56, 60, 72, 75Hz
deo formats
• Vi
olution Refresh rate
Res
1080i 50, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
Loudspeakers
• Built-in speakers: 2
Power
• Power consumption: 50 W
• Power supply: 100-240VAC, 50/60Hz
• Standby power consumption: Less than 0.5 watt
USB - Container
• Video: ASF, AVI, MKV, MP4, PS
USB - File Extension
• Video: *.avi, *.mkv, *.mov, *.mp4, *.mpeg, *.mpg,
*.wmv
USB - Video Decoder
• Compression Format: H.264, MPEG 1, MPEG 2,
MPEG 4, VC-1
Multimedia Applications
• Music Playback Formats: MP3, WMA (v2 up to
v9.2)
• Picture Playback Formats: JPEG
• Playback Formats: AVI, JPEG Still pictures, MPEG1,
2, MPEG4
MPEG
MPEG-4 AVC, PNG still pictures
, WMA v2 up to v9.2, H.264/
Tuner/Reception/Transmission
• Video Playback: NTSC, PAL, SECAM
• Tuner bands: UHF, VHF
• TV system: PAL B/G
Convenience
• Ease of Installation: Autostore, Fine Tuning
• Ease of Use: Graphical User Interface, On Screen
Display
On-Screen Display languages: English
•
• Child Protection: Child Lock
• Screen Format Adjustments: 16:9
Accessories
• Included accessories: 2 x AAA Batteries, Remote
Control, User Manual, Warranty certificate, Power
cord, Safety/legal instructions, Wall mounting
bracket
• User Manual: English
Dimensions
• Product weight: 5.1 kg
• Product weight (+stand): 5.5 kg
•Set dimensions (W x H x D): 740 x 453 x 88 mm
• Set dimensions with stand (W x H x D):
0 x
512 x 208 mm
74
•
Issue date 2016-05-07
Version: 2.0.1
12 NC: 8670 001 25363
EAN: 87 12581 73265 3
© 2016 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
