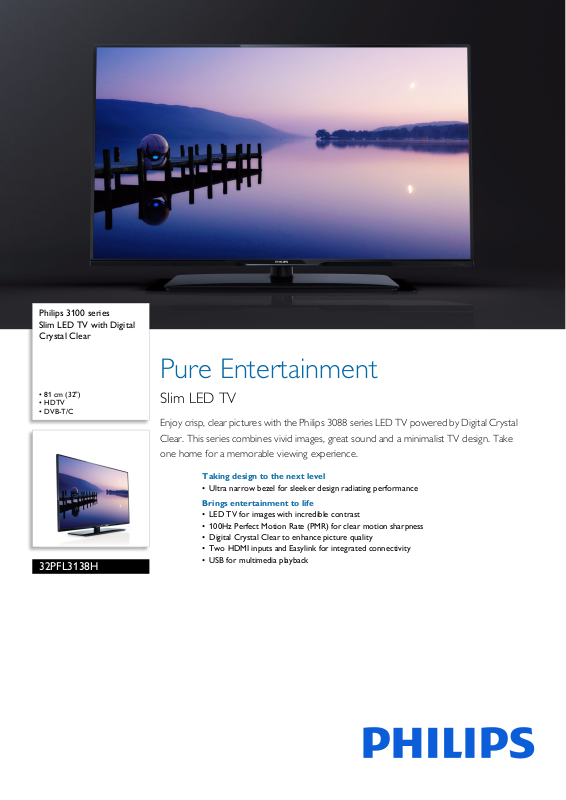

Page 1
Philips 3100 series
Slim LED TV with Digital
Crystal Clear
Pure Entertainment
• 81 cm (32")
•HDTV
• DVB-T/C
32PFL3138H
Slim LED TV
Enjoy crisp, clear pictures with the Philips 3088 series LED TV powered by Digital Crystal
Clear. This series combines vivid images, great sound and a minimalist TV design. Take
one home for a memorable viewing experience.
Taking design to the next level
• Ultra narrow bezel for sleeker design radiating performance
Brings entertainment to life
• LED TV for images with incredible contrast
• 100Hz Perfect Motion Rate (PMR) for clear motion sharpness
• Digital Crystal Clear to enhance picture quality
• Two HDMI inputs and Easylink for integrated connectivity
• USB for multimedia playback
Page 2
Slim LED TV with Digital Crystal Clear
x2
81 cm (32") HDTV, DVB-T/C
Highlights
32PFL3138H/12
Ultra narrow bezel
Good design tells a story. Take for example
th
e precision crafted front panel made from
one piece of polished high gloss. Or the ultrathin bezel designed to create a sleeker profile.
Together these speak volumes about the high
performance and accuracy we deliver—inside
and out.
LED TV
With LED backlight you can enjoy low power
c
onsumption and beautiful lines combined with
high brightness, incredible contrast and vibrant
colors. On top of that, LED lighting technology
does not contain any hazardous materials,
making it a greener choice too.
100Hz PMR
For picture movement that looks precise,
s
mooth and natural, Philips created PMR—our
standard for measuring moving image
sharpness. Perfect Motion Rate is the
combined result of our unique video
processing, number of frames per second and
refresh rate of each frame, perfection in
dimming capabilities, and backlighting
technology. A higher PMR number contributes
to higher contrast and better motion clarity—
which means a superior image for you.
Digital Crystal Clear
Enjoy extremely clear pictures from any
source.
This package of picture innovations
digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels.
Two HDMI inputs with Easylink
Avoid cable clutter with a single cable to carry
b
oth picture and audio signals from your
devices to your TV. HDMI uses uncompressed
signals, ensuring the highest quality from
source to screen. Together with Philips
Easylink, you’ll need only one remote control
to perform most operations on your TV, DVD,
Blu-ray, set top box or home theatre system.
USB (photos, music, video)
Connect your USB memory-stick, digital
c
amera, mp3 player or other multimedia
device to the USB port at the side of your TV
to enjoy photos, videos and music with the
easy to use on screen content browser.
Page 3
Slim LED TV with Digital Crystal Clear
81 cm (32") HDTV, DVB-T/C
Specifications
32PFL3138H/12
Picture/Display
• Display: LED HD TV
• Diagonal screen size: 32 inch / 81 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 16:9
• Brightness: 300 cd/m²
• Picture enhancement: Digital C
Perfect Motion Rate
rystal Clear, 100 Hz
Smart Interaction
• Ease of Use: One-stop Home button
• Firmware upgradeable: Firmware upgradeable via
B
US
• Screen Format Adjustments: 4:3, Autozoom,
vie expand 16:9, Super Zoom, Unscaled,
Mo
Widescreen
• Teletext: 1000 page Smart Text
• Electronic Program Guide*: 8 days Electronic
Program Guid
Sound
• Output power (RMS): 8W
• Sound Enhancement: Auto Volume Leveller,
ncredible Surround, Treble and Bass Control
I
Connectivity
• EasyLink (HDMI-CEC): One touch play, Remote
control pass-through, System audio control,
System standby
• Number of HDMI connections: 2
•Number of scarts (RGB/CVBS): 1
• Number of AV connections: 1
• Number of USBs: 1
• Other connections: Antenna IEC75, Common
nterface Plus (CI+), Digital audio out (optical),
I
Headphone out, Service connector
Multimedia Applications
• Video Playback Formats: Containers: AVI, MKV,
H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920x1080 @ 60Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to
20x1080p
19
Tuner/Reception/Transmission
• Digital TV: DVB-T/C
• MPEG Support: MPEG2, MPEG4
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220 - 240 V 50/60Hz
• Ambient temperature: 5 °C to 35 °C
• Energy Label Class: A++
• Eu Energy Label power: 23 W
• Annual energy consumption: 34 kW·h
• Standby power consumption: <0.15W
• Power Saving Features: Auto
mode, Picture mute (for radio)
• Off mode power consumption: < 0.3 W
switch-off timer, Eco
Dimensions
•Box dimensions (W x H x D):
800 x 510 x 160 mm
•Set dimensions (W x H x D):
6 x 432 x 87.7 mm
72
• Set dimensions with stand (W x H x D):
6 x 489 x 190 mm
72
• Product weight: 4.6 kg
• Product weight (+stand): 5 kg
• Weight incl. Packaging: 6.3 kg
• VESA wall mount compatible: 200 x 200 mm
Accessories
• Included accessories: 2 x AAA Batteries, Table top
stand, Quick start guide, Legal and safety brochure,
Warranty Leaflet, User Manual, Remote Control
•
Issue date 2013-08-17
Version: 2.1.1
12 NC: 8670 001 08673
EAN: 87 12581 70221 2
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* Energy consumption in kWh per year, based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* EPG and actual visibility (up to 8 days) is country and operator
dependent.
