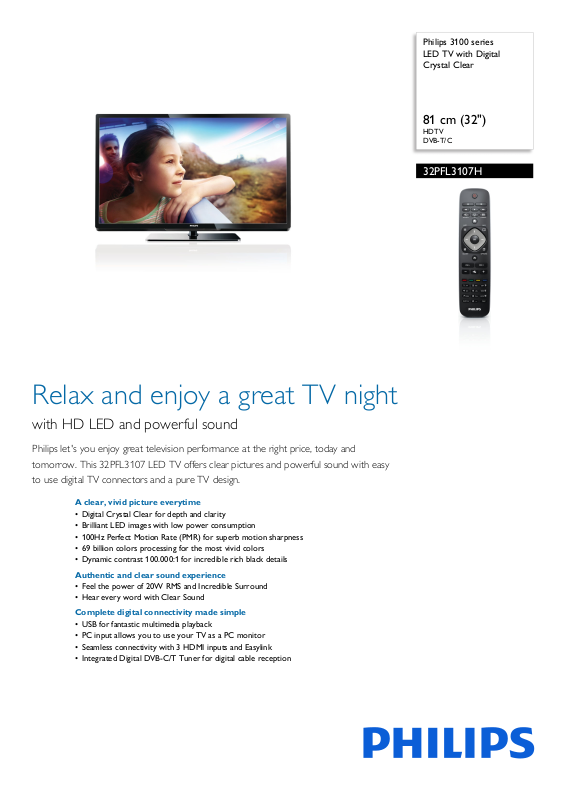

Page 1
Philips 3100 series
LED TV with Digital
Crystal Clear
81 cm (32")
HDTV
DVB-T/C
32PFL3107H
Relax and enjoy a great TV night
with HD LED and powerful sound
Philips let's you enjoy great television performance at the right price, today and
tomorrow. This 32PFL3107 LED TV offers clear pictures and powerful sound with easy
to use digital TV connectors and a pure TV design.
A clear, vivid picture everytime
• Digital Crystal Clear for depth and clarity
• Brilliant LED images with low power consumption
• 100Hz Perfect Motion Rate (PMR) for superb motion sharpness
• 69 billion colors processing for the most vivid colors
• Dynamic contrast 100.000:1 for incredible rich black details
Authentic and clear sound experience
• Feel the power of 20W RMS and Incredible Surround
• Hear every word with Clear Sound
Complete digital connectivity made simple
• USB for fantastic multimedia playback
• PC input allows you to use your TV as a PC monitor
• Seamless connectivity with 3 HDMI inputs and Easylink
• Integrated Digital DVB-C/T Tuner for digital cable reception
Page 2
32PFL3107H/12
LED TV
81 cm (32") HDTV, DVB-T/C
Highlights
Digital Crystal Clear
Digital Crystal Clear is a package of picture
in
novations that digitally adjusts and optimizes
picture quality to optimal contrast, color and
sharpness levels. The result is extremely clear
pictures from any source.
100Hz Perfect Motion Rate
Combining the refresh rate of the panel and
un
ique image processing, Perfect Motion Rate
(PMR) creates extreme motion sharpness for
clear and vibrant images even with fast onscreen motion.
Dynamic contrast 100.000:1
You want the LCD flat display with the highest
contrast
advanced video processing combined with
unique extreme dimming and backlight
boosting technology gives you the best picture
quality. Dynamic Contrast will increase the
contrast with excellent black level and
accurate rendition of dark shades and colors. It
gives a bright, lifelike picture with high contrast
and exciting colors.
20W RMS Incredible Surround
Feel the power of the music beat and the
atmosphere of the
and most vibrant images? Philips
movies. The powerful 20W
RMS (2x10W RMS) amplifiers create a lifelike
sound stage. Incredible Surround allows you to
experience total surround with greater depth
and width of sound complementary to the rich
viewing experience.
Clear Sound
Clear Sound is an innovative audio technology
th
at significantly increases the
comprehensibility of the voice, whether
spoken or sung. It ensures you hear every
word, so you can enjoy what you're watching
to the fullest.
USB (multimedia)
The USB connector allows access to jpeg
photos, mp3 music and video files of most
USB-sticks (USB memory-class device). Plug
the USB into the slot at the side of the TV and
access the multimedia content using the easy
on screen content browser. You can now view
and share your videos, photos and music.
PC Input ( HDMI + VGA )
With PC input you can use your TV as a PC
moni
tor either using a HDMI-DVI cable (for
digital signals) or VGA cable (for analog
signals).
3 HDMI inputs with Easylink
HDMI is a single cable to carry both picture
an
d audio signals from your devices to your
TV, avoiding cable clutter. It carries
uncompressed signals, ensuring the highest
quality from source to screen. Together with
Philips Easylink, you need only one remote
control to perform most operations on your
TV, DVD, BluRay, set top box or home theatre
system.
Page 3
32PFL3107H/12
LED TV
81 cm (32") HDTV, DVB-T/C
Specifications
Picture/Display
• Display: LED HD Ready
• Diagonal screen size: 32 inch / 81 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Dynamic screen contrast: 100.000:1
• Picture enhancement: Digital C
Perfect Motion Rate
rystal Clear, 100 Hz
Sound
• Output power (RMS): 20W (2 x 10W)
• Sound Enhancement: Auto Volume Leveler, Clear
nd, Incredible Surround
Sou
Connectivity
• Number of HDMI connections: 3
• Number of component in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Number of AV connections: 1
• Number of USBs: 1
• Other connections: Antenna IEC75, Common
nterface Plus (CI+), Digital audio out (coaxial), PC-
I
in VGA + Audio L/R in, Headphone out
•HDMI features: Audio R
• EasyLink (HDMI-CEC): Remote control pass-
rough, System audio control, System standby,
th
Pixel Plus link (Philips), One touch play
eturn Channel
Multimedia Applications
• Video Playback Formats: H264/MPEG-4 AVC,
MPEG-1, MPEG-2, MPEG-4
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920x1080 @ 60Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to
20x1080p
19
Convenience
• Ease of Installation: Device connection wizard,
Settings assistant wizard
• Ease of Use: One-stop Home button, Onscreen
Us
ermanual
• Screen Format Adjustments: 4:3, Autofill,
ozoom, Movie expand 14:9, Movie expand
Aut
16:9, Subtitle Zoom, Super Zoom, Unscaled,
Widescreen
• Teletext: 1000 page Smart Text
• Firmware upgradeable: Firmware auto upgrade
d, Firmware upgradeable via USB
wizar
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: 220-240V; 50Hz
• Ambient temperature: 5 °C to 35 °C
• Energy Label Class: A
• Eu Energy Label power: 38 W
• Annual energy consumption: 55 kW·h
• Standby power consumption: <0.3W
• Power Saving Features: Eco mode, Picture mute
(for radio)
Dimensions
•Box dimensions (W x H x D):
920 x 531 x 160 mm
•Set dimensions (W x H x D): 740 x 452 x 78 mm
• Set dimensions with stand (W x H x D):
0 x 492 x 221 mm
74
• Product weight: 6.9 kg
• Product weight (+stand): 8.85 kg
• Weight incl. Packaging: 10.8 kg
• Compatible wall mount: 200 x 200mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Table top stand,
Quick start guide, Legal and safety brochure,
Warranty Leaflet
•
Issue date 2020-05-06
Version: 2.0.4
12 NC: 8670 000 93059
EAN: 87 12581 65418 4
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* Energy consumption in kWh per year, based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
