Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Keys on top or on the right side of the TV . . . . . . . . . . . . . 2

Use of the remote control RC4302 . . . . . . . . . . . . . . . . . . 3

To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Select the menu language . . . . . . . . . . . . . . . . . . . . . . . . . 5

Store TV channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Automatic installation 6 Manual installation 6 Give name 6 Reshuffle the channel list 7 Select Favourite TV channels 7

TV Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

General 8 Source 10

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

TV menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Picture menu 11 Active Control 12 Sound 12 Ambilight 12 Features menu 13

Dual screen / PIP / Multipip . . . . . . . . . . . . . . . . . . . . . . . 14

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switch Teletext on and off 15 Select a Teletext page 15 Previously selected teletext page 15 Select the index teletext page 15 Select subpages 15 Enlarge a Teletext page 15 Picture/Teletext 15 Hypertext 15 Teletext menu 16

Connect Accessory Devices . . . . . . . . . . . . . . . . . . . . . . . 17

Recorder (vcr-dvd+rw) 17 Recorder and other A/V devices 17 DVD Player or other accessory digital source devices 18 Multi channel Surround receiver 18 HDMI (High Definition Multimedia Interface) connector 19 Connect extra subwoofer 19 Side connections 20 To select connected peripherals 20

Record with your recorder . . . . . . . . . . . . . . . . . . . . . . . . 20

Audio- and video equipment keys . . . . . . . . . . . . . . . . . . 21

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

& Wall mounting instructions/Table stand

According to the type of TV you’ve purchased a wall mount bracket and/or stand may be supplied. How to mount the supplied stand and/or wall mount bracket, see the supplied separate leaflet. Make sure that the wall mount is being fixed securely enough so that it meets safety standards. The weight of the TV (excl. packaging) is about 35 kg (42PF9986); 20 kg (32PF9966); 42 kg (42PF9966); 58 kg (50PF9966).

Note: Other (not supplied) stands are optional accessories. Consult your dealer.

é Place or hang the TV wherever you want, but

make sure that air can circulate freely through the ventilation slots. Do not install the TV in a confined space such as a book case or a similar unit.

To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on it.

“ Insert the aerial plug firmly into the aerial

socket x at the bottom of the TV. For best picture quality use the suppressor-aerial cable supplied.

‘ To connect your computer, see p. 19.

To connect other peripherals, see p. 16. In order to obtain the best result, please use only the supplied aerial cable between the TV and recorder, and between recorder and aerial connector.

( Insert the mains cord supplied into the mains

at the bottom of the TV and in the wall socket having a mains voltage of 198-264V. To prevent damaging the power (AC) cord which could cause a fire or electric shock, do not place the TV on the cord.

§ Remote control: Insert the 2 batteries

supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy metals mercury and cadmium. Please check on how to dispose of exhausted batteries according to local regulations.

è Switch the TV on : Press the power switch B

at the top or the right side of the TV. An indicator on the front of the TV lights up and the screen comes on. If the TV is in standby mode, press the

-P+ keys or the B

key on the remote control.

Should your remote be lost or broken you can still change some of the basic settings with the keys on top or on the right side (according to your type of TV set) of your TV.

Press:

• the

- V + key to adjust the volume;

• the

- P/CH + key to select the TV channels or sources.

Press the

MENU key to summon the main menu without

the remote control. Use:

• the

- V + key and the - P/CH + key to select menu

items in the directions as shown;

• the

MENU key to confirm your selection.

Note: When activated via the

MENU key on top or the right side of

the TV, only Exit lets you remove the menu. Navigate to

Exit and press the MENU key.

MENU P/CHV

Setup

Demo

Install

Exit

Picture Sound Ambilight Features

Keys on top or on the right side of the TV

Preparation

B Standby

Press to switch the TV on or off. When switched off, a red indicator on the TV lights up.

x Pixel Plus 2 demo on/off

• Press to switch the Pixel Plus 2 demo on or off. In the right part of the screen Pixel Plus 2 is switched on.

• Press longer to display the list of digital options settings. Use the cursor up/down to select one of the settings. See also Picture menu, Digital options, p. 11.

b Teletext On/Off see p. 15

OK Press this key

• to activate your choice, when in the menus.

• to display the channel list.

Main menu

on/off see p. 5

V To adjust the volume.

¬ Interrupt the sound or restore it.

P Channel selection

To browse through the TV channels and sources stored in the favourite list.

0/9 Digit keys

To select a TV channel. For a two digit programme number, enter the second digit before the dash disappears.To switch immediately to a selected one digit TV channel, keep the digit key pressed a bit longer.

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it. When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after 6 seconds or press

OK to remove immediately.

Remark: in HDMI mode only some keys are valid.

bæ

Select

AMP DVD/R TV SAT AUX

MODEON/OFF

Ambilight

123

456

789

Ò®‡π

†

Active Control

®ºÒ‡π†

Audio and Video equipment keys, see p. 21.

U Time display

The time is displayed on the screen.

Q Surround mode

Incredible surround

With stereo transmission, and when Incredible surround is selected, it seems as though the loudspeakers are spread further apart from one another.

Virtual Dolby surround

Optimal with Dolby surround signals. Enables you to experience the effect of Dolby surround Pro Logic, reproducing a rear sound effect. See Sound menu, 3D effect, p. 12.

Note:You can make the same selection in the Sound menu, surround mode, p. 12.

Ì no function

æ no function

S Freeze

To freeze the picture. Dependent on the input signal, the function may not be possible.

AMP DVD/R TV SAT AUX

See ‘Audio- and Video equipment keys’,p.21.

v Select your peripherals

See p. 20.

Use of the remote control RC4302

i On Screen information

Press to display (when available) information about the selected TV channel and programme.

Menu info

When a menu is on screen, press i to display info on the selected menu item.

0 Smart surf

With this key you can easily switch between 2 up to 9 different TV channels or sources. See General, Smart surf, p. 8. Press the

OK key or wait for the time out to dismiss the Smart surf

display.

b Dual screen / PIP / Multipip see p. 8 and p. 14.

h Active control see p. 12.

q Picture format

Press this key repeatedly or press the cursor up/down to select another picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie Expand 16:9, Subtitle zoom or Wide screen.

Auto format makes the picture fill the screen as much as possible. In case of subtitles in the bottom black bar,Auto format makes the subtitles visible. In case of a broadcaster logo in the corner of the top black bar, the logo disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programmes with minimal distortion.

When in Movie Expand 14:9, Movie Expand 16:9, Super zoom or Subtitle zoom picture format, you can make subtitles visible with the cursor up/down.

Note: With signals via the HDMI connector or HD signals via AV1 or AV2 less picture formats are selectable.

Ambilight see also p. 12.

• ON/OFF Press to switch Ambilight on or off. Keep pressed to cycle through changing brightness settings.

•

MODE Press repeatedly to select one of the predefined ambient

light settings.

Note: When the TV is switched to standby, and you switch Ambilight On, Ambilight will be active. Only then less modes are available.

Auto format Super zoom 4:3 Movie Expand 14:9

Movie Expand 16:9 Subtitle zoom Wide screen

Select

123

456

789

Ò‡ π

†

Active Control

MODEON/OFF

Ambilight

AMP DVD/R TV SAT AUX

& Press the MENU key on the remote control to summon the

main menu.At any moment you can exit the menu by pressing the

MENU key again.

é Use the cursor in the up/down direction to select the TV,

Setup, Demo or Install menu.

Use the cursor left/right to select

Picture, Sound,

Ambilight or Features.

Note: Sometimes not all the menu items are visible on the screen (indicated by a cluster of blue balls). Use the cursor down or right to reveal all items.

“ Use the cursor in the left/right direction to select the menu

item.

‘ Use the cursor up/down again to select the control you

want to select or to adjust.

Note: Items temporary not available or not relevant are displayed in a light grey colour and cannot be selected.

Select

Ò®‡π

†

AMP DVD/R TV SAT AUX

cursor to select adjustments

OK key to

activate

return or switch main menu on/off

& Press the MENU key on the remote control. é Use the cursor down to select Install. “ Use the cursor right to select Language.

Follow the instructions on screen.

‘ Use the cursor up/down to select your preferred language

and press the

OK key to confirm your selection.

( Proceed with the Install menu.

Setup

Demo

Install

Picture Sound Ambilight Features

Install

Language Automatic Manual Give name Reshuffle Favourite

install install channels

The installation menu contains the following items:

Language

English Français Chinese

Install

Press the i key to get information about the selected menu item.

Select the menu language

Installation

To use the menus

It is possible to change the name stored in the memory or to assign a name to a TV channel or external for which a name has not yet been entered.A name with up to 5 letters or numbers can be given to the channel numbers 0 to 99.

& Select Give Name in the Install menu and

press the cursor down.

é Select the channel number.

Note: keep the cursor up/down pressed to scroll through the channel list quickly.

“ Press the cursor right.

A keyboard appears on the screen.

Note: Only European characters are displayed.

Press the cursor right to enter the keyboard. Press the cursor up/down, left/right to select the first character and press

OK. Repeat for

every character you want to enter. Select

Space to enter a space; Delete to erase

the highlighted character in the name entered;

Shift to display upper- or lowercase characters

on the keyboard;

Special to display special

characters on the keyboard. Press

OK to

confirm.

‘ Press the cursor left repeatedly when you have

finished the name giving.

( Select another channel number and repeat

steps “ to ‘.

6

& Select Automatic install in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If requested, enter your code to unlock all channels. (See TV, Features menu, Childlock, p. 13.)

é Press the cursor down.

The autoprogramming option label

Start

appears.

“ Press the cursor right. ‘ The message Searching appears and the

progress of autoprogramming is displayed.

You can change the order of the stored TV channels. You can use Reshuffle to renumber them. See p. 7

Searching for and storing TV channels is done channel by channel.You must go

through every

step

of the Manual Installation menu.

& Select Manual install in the Install menu. é Press the cursor down.

Follow the instructions on screen.

Search or direct selection of a TV channel:

If you know the frequency, enter the 3 or 2 digits of the frequency directly with the digit keys 0 to 9 (e.g. 048).

Repeat to search for another TV channel after you have stored the selected TV channel.

After language is set correctly, you can now search for and store the TV channels in two different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel). Select your choice with the cursor right.

Automatic install

Install Start

Install

Manual install

Install

System

Channel

Search

Fine tune

(Antenna level)

Store

Give name

Install

BBC1

BBC2

CNN

.......

pπ

® Space ® Delete

ABCDEFG 123 HIJKLMN 456 OPQRSTU 789 VWXYZ 0

® Shift ® Special

Give name

Manual installationAutomatic installation

Store TV channels

You can change the order of the stored TV channels.

& Select Reshuffle in the Installation menu.

é Follow the instructions on screen.

& Select Favourite channels in the Install menu.

é Select your channel number with the cursor up/down.

“ Select Ye s or No with the cursor right.

‘ Repeat é and “ for every TV channel or external you want

to make a favourite or a non-favourite TV channel or external.

Reshuffle

Install

BBC1 BBC2 CNN ITV NEWS

Favourite channels

Install

Ye s Ye s No Ye s Ye s No

BBC1 BBC2

CNN

ITV

NEWS

....

Select Favourite TV channels

Reshuffle the channel list

The Setup menu contains items that control the settings of the TV’s functions, features, services and peripherals you may have connected.

The

General menu allows you to change settings that will typically

be accessed only occasionally. The

Source menu allows you to select a source.

General Source

Setup

Demo

Install

General

Menu background

Smart surf PIP format

Factory settings

OSD

Programme title

Teletext 2.5

Auto surround

Subwoofer

(Intelligent lights)

Set/Change code

Colour

PLL

Setup

This menu allows you to change various settings that are presumably adjusted less frequently than most other settings.

Press the i key on the remote control to get information about the selected menu item.

Menu background

Select

Ye s or No to turn the menu background on or off.

Smart surf

& Select Smart surf. é With the cursor left/right, select

•

2 channels if you want the 0 key to toggle between the

current and the previously selected channel,

•

9 channels if you want the 0 key to summon a list of up to 9

channels which can be selected.

To add/remove a channel or source to the 9 channels list:

Tune to the channel or source you wish to add or remove. Press the 0 key and press the cursor right to add or remove.

Note: If there are already 9 channels/sources in the list, the one at the bottom of the list will be removed.

PIP format

This menu allows you to select the preferred format which can then be displayed toggling the b key on and off.

& Select PIP format with the cursor down. é Press the cursor right. “ Select Dual screen, PIP, PIP 3 or PIP 6 with the cursor down.

When Dual screen mode is activated with the remote control b key, and when

•

Dual screen is selected, the TV splits the screen into two

equally sized screens.

•

PIP is selected, the TV shows a full screen of video with a pip

window of video on top if it;

•

PIP3 or PIP6 is selected, the TV will display the main screen

together with 3 or 6 pip screens. See also p. 14.

Factory settings

This resets the picture and sound settings to their predefined factory values, but maintains the channel installation settings.

General

TV Setup

OSD (On Screen Display)

& Select OSD. é Select Normal to activate the continuous

display of the programme number and extended display of TV channel and programme information on screen.

Minimum to activate

the display of reduced channel information.

Note: When subtitles is switched on, see Features, p.13, display of the channel number is not possible

Programme title

Select

Programme title Yes or No.

When selected

Ye s , after the selection of a TV

programme or after pressing the i key on the remote control, a TV channel which broadcasts teletext may transmit the name of the TV channel or the programme title.

Teletext 2.5

Some broadcasters offer the opportunity to see more colours, other background colours and nicer pictures in the teletext pages.

& Select Teletext 2.5. é Press the cursor right to select Teletext 2.5

to take advantage of this feature.

“ Press the cursor right again to select Teletext

2.5 Off

if you like the more neutral teletext

layout. The selection made is valid for all channels which broadcast teletext 2.5.

Note: It may take a few seconds before teletext broadcast switches over to Teletext 2.5.

Auto Surround

Sometimes the broadcaster transmits special signals for Surround Sound encoded programmes. The TV automatically switches to the best surround sound mode when

Auto Surround is

switched

On.

Subwoofer

Select Ye s if you installed an external subwoofer. See Connect Peripheral Equipment, Connect extra subwoofer, p. 20.

Intelligent lights (only with 42PF9986)

Select

Ye s if you want the blue lights in the

keys on top of the TV to illuminate (for a few seconds) when somebody is within 1-1,5 m of the TV.

Note:The functioning of Intelligent lights is based on reflection of moving objects. In this way it will perform differently dependent on the environment and type/colour of clothing worn.

Set/Change code

The Child lock feature (see TV, Features, p. 13) allows you to lock channels to prevent others from watching certain programmes.To watch locked channels, a 4-digit code must be entered.The Set/Change code menu item allows you to create or change a Personal Identification Number (PIN).

& Select Set/Change code. é If no code exists yet, the menu item is set to

Set code.

If a code has previously been entered, the menu item is set to

Change code. Follow the

instructions on screen.

Important:You have forgotten your code !

& Select Change code in the General menu and

press

OK.

é Press the cursor right and enter the overriding

code 8-8-8-8.

“ Press the cursor again and enter a new

personal 4-digit code.The previous code is erased and the new code is stored.0

Colour

Select

Colour and press the cursor right.

Auto is selected, the respective colour

system will be automatically selected according to the transmission system. (If the reception is poor, select another sound system with the cursor up/down.)

PLL

In rare cases certain TV channels may reproduce distorted or unstable pictures. Select

PLL (Phase Locked Loop) to switch to

the setting 2 with the cursor left/right to restore the picture for the respective transmission.

Source

AV1 AV2 HDMI Side Centre input

Setup

The Demo menu allows to demonstrate the TV features separately or in a continuous loop. Toggling through all the Ambilight modes will display each mode for 10 seconds each. Before switching to the next mode the light will first fade to off and then fade up in the next mode.

Auto demo has been selected the demo will automatically

present the features sequentially in a loop. Press one of the cursor keys to stop the Auto demo. If one of the features has been selected, this particular feature demo will run only once, and the Demo menu will reappear. Ambient light (Ambilight) demo however will run continuously until it is stopped by pressing one of the cursor keys or the

key on the remote control.

Note:The Dealer demo is not part of the automatic sequence and can only be activated separately.

Auto demo

......

Dealer demo

- Digital options

- Light sensor

- 3D Y/C Comb filter

Setup

Demo

Install

Demo

This menu allows you to indicate the peripheral you connected to one of the external inputs.

& Press the cursor right to enter the list of types of peripherals

attached to the selected input.

é Select the peripheral device with the cursor up/down.

Once you have selected the source type, e.g. DVD, this source will automatically be selected when your remote control is in DVD mode, see p. 3, and when you press the v key on the remote control.

Centre input

When you have connected a surround receiver to the TV, see p. 19, the loudspeakers of the TV can act as centre speaker, making a separate centre speaker unnecessary. Select

Centre input On.

Source

Press the MENU key on the remote control to summon the main menu.

Note: Dependent on the input signal, one or more menu items may not be selectable.

Press the i key on the remote control to get information about the selected menu item.

Picture Sound Ambilight Features

Smart picture

Contrast

Brightness

Colour

Sharpness

Tint

Digital options

Dynamic contrast

DNR

Colour enhancement

(Hue)

Picture format

& Press the cursor right to select Picture. é Select the menu items in the Picture menu with the cursor

up/down.

“ Adjust the settings with the cursor left/right or enter the list of

submenu items with the cursor right. Select a submenu item with the cursor up/down.

Note:To remove the menu background before adjusting the picture settings, see Select TV setup, General, p. 8.

Smart picture

Select

Smart picture to display a list of predefined picture

settings, each corresponding with specific factory settings.

Personal refers to the personal preference settings of picture in

the picture menu.

Note: this Philips Flat TV has been set at the factor y to look best in bright store environments which use fluorescent lighting. As your home will likely not be as well lit as a store, we recommend that you cycle through the various Smart Picture modes to find the one that best suits your own viewing conditions. Most consumers will find that Natural is the correct choice. In case of weak RF/AV signals, please select Soft.

Digital options

Pixel Plus 2 is the most ideal setting, doubles the horizontal resolution and increases the number of lines by 33%. You may consider to select Movie Plus in case a halo effect should disturb you. Dependent on your own preference, select Progressive scan.

Dynamic contrast

Sets the level at which the TV automatically enhances the details in dark, middle and light areas of the picture.

DNR

This sets the level at which noise is measured and reduced in the picture.

Colour enhancement

This makes the colours more vivid and improves the resolution of details in bright colours.

Hue

This compensates for the colour variations in NTSC encoded transmissions.

Picture format

This will adjust the size of the picture dependent on the broadcast format and your preferred setting.

Picture menu

TV menu

Sound

Smart sound

Equalizer

Volume Balance

Loudness

Headphone volume

Surround mode

(Dual I-II)

(Mono/Stereo)

(Digital/Analogue)

(3D effect)

AVL

Delta volume

The Ambilight menu contains options for controlling the ambient lighting at the rear of the TV. Using ambient light gives a more relaxed viewing experience and improves perceived picture quality. See also the separate supplied brochure on Optimal viewing experience.

& Press the cursor right to select Ambilight. é Select the menu items with the cursor up/down and adjust the

settings with the cursors left/right.

Use the on-screen Menu-Info i for more information about the menu items.

Ambilight

Ambilight mode

Brightness

Modes (Palette) (Saturation)

Ambilight

& Press the cursor right to select Sound. é Select the menu items in the Sound menu with the cursor

up/down and adjust the settings with the cursor left/right.Remember, control settings are at normal mid-range levels when the bar scale is centred.

Smart sound

Select Smart sound to display a list of predefined sound settings, each corresponding with specific factory settings of Treble and Bass.

Personal refers to the personal preference settings of

sound in the sound menu.

Notes:

- Dual X is only available with dual sound transmission.

- Mono/Stereo is only selectable in case of analogue stereo transmission.

- Digital/Analogue is only selectable in case of Digital transmission.

Sound

Active control is a pro-active and automatic system.The TV continuously measures and corrects all incoming signals in order to provide the best picture possible.Thanks to the Ambient Light Sensor which measures the light conditions of the room, the contrast, dynamic contrast, brightness and colour picture settings are adjusted automatically. The light sensor is active when the Active control function is switched to Medium or Maximum. Press the h key repeatedly to select the Active Control values Off, Minimum, Medium (recommended) or Maximum. Off Sharpness and Dynamic Contrast are controlled

automatically.

Minimum Sharpness, Dynamic Contrast and Noise Reduction

are controlled automatically.

Medium Sharpness, Dynamic Contrast, Noise reduction and

Colour are controlled automatically.

Maximum Sharpness, Dynamic Contrast, Noise reduction,

Colour and Contrast are controlled automatically. Press the cursor right to select INFO+. The Active Control demo menu appears. The picture settings are being adapted continuously and automatically. The menu items cannot be selected. The sliders will be moving, showing how the TV is tweaking the current picture. None of the sliders is user controllable. Press the OK key to switch off the Demo.

Active Control

Off On On during mute

Features

Channel list

Subtitle

Sleeptimer

Child lock

On timer

& Press the cursor right to select Features. é Select the menu items with the cursor

up/down and adjust the settings with the cursor left/right.

Use the on-screen Menu-Info i for more information about the menu items.

Channel list

Press the

OK key to switch over to the

selected TV channel or external.

Select subtitles

The subtitle page must be stored for each TV channel: Switch on teletext and select the proper subtitle page from the index. Switch off teletext.

Subtitle On will automatically display them on

the selected TV channels if subtitles are in the transmission.A symbol will indicate that the mode is on. Select

On during mute when you want to

have the subtitles automatically displayed only when the sound has been muted with the ¬ key on the remote control.

Sleeptimer

This sets a time period after which the TV automatically switches to standby.

Child lock

& Select Child lock.

é Press the cursor right to enter the Child lock

menu.You’re summoned to enter your code.

Note:You have to re-enter your code each time you enter the child lock menu.

Important:You have forgotten your code ! See p. 9.

“ Select one of the menu items of the child lock

menu:

•

Lock if you want to lock all channels and

externals.

•

Custom lock and press the cursor right.

Select

Channel lock if you want to lock a

certain TV channel or external;

• Select

Unlock to disable all locks you have set.

On timer

& Select On timer with the cursor down.

é Select On with the cursor right. “ Press the cursor right again to enter the

channel list.

‘ Select the TV channel or external you want

your TV to switch to on a selected time and day.

( Press the cursor right again to select a day of

the week or to select

Daily.

§ Press the cursor right once again to enter the

time with the digit keys or with the cursor up/down and press the

OK key to activate.

è Press the MENU key to turn off the menu.

Note:To check your timer settings, press the i key.

Child lock Channel lock

Lock Custom lock Unlock

VCR1 BBC2 CNN TVE

π.....

Sunday Monday

.......

Daily

15:45

On timer

Off On

Features menu

Press the b key to switch on Dual screen, PIP or one of the PIP modes according to the format selection made in the PIP format list in the General menu. See Setup, General, p. 8. Press the b key again.The screen that has a yellow border will become the full main screen picture.

Notes:

- Continuing to hold the b key down will cycle the TV through the various

formats (Dual screen, PIP, PIP 3 or PIP 6), launching a new format after each second the key is held down. After standby of the TV, the preference as set in the Setup, General menu is used.

- It is not possible to display a HD source in a Dual screen/PIP screen.

- When Dual screen mode is selected, two picture formats are supported: Full screen or 4:3 letterbox picture format (vertical squeeze).

- Audio from the right screen or the PIP plays to the headphones.

Scan PIP3 or PIP 6

Navigate to the lowest PIP and press the cursor down to display a following series of PIP screens.

Define the position and the size of the single PIP screen

& Select a Dual screen mode with a single PIP

screen.

é Press the cursor down to highlight the PIP

screen.A PIP menu appears with which you can define the position and the size of the PIP screen.

Note: When the PIP menu times out, press the

key to make it reappear.

“ Press the cursor down again to select Position

or Size.

‘ Press the OK key or the cursor right to

activate.

( Use the cursor keys to define the position of

the PIP screen. Use the cursor left/right to define the size of the PIP screen.

§ Press the OK key.The PIP menu reappears. è Press the cursor up to the top of the menu to

highlight the main screen again.

! Press the OK key to switch off the menu or

wait until it is timed out.

On-Screen information

The highlighted On-Screen information,which appears when changing channels, always refers to the active screen.

Display options

• Press the cursor right to highlight the right screen.

• Press the cursor down to highlight the single PIP screen.

• Press the cursor right to enter the Multipip screen and then use

the cursor keys to navigate through the PIP screens and to highlight a PIP screen.

Changing TV channels or external sources in left, right, PIP or Multipip screen

• Press the

-P+ keys or the 0 key or the digit keys in order to

change the TV channels or external sources in the highlighted screen.

Dual screen PIP

AUX

PIP 3 PIP 6

PIP1 PIP1

PIP2

PIP3 PIP6

PIP5

PIP4

PIP2

PIP3

Dual screen / PIP / Multipip

AMP DVD/R TV SAT AUX

123

456

789

†

Select

Ò‡ π

Active Control

MODEON/OFF

Ambilight

1515

Most TV channels broadcast information via teletext.This TV has a 1200 pages memory that will store most broadcasted pages and subpages to reduce waiting time. After each programme change, the memory is refreshed.

Switch Teletext on and off

Press b to switch the teletext on.

Select a Teletext page

- Enter the desired page number with the digit keys, the cursor keys up/down, left/right or with the

-P+ key.

- Select the options at the bottom of the screen with the colour keys.

Previously selected teletext page

(Only possible in case there is no list of favourite teletext pages available. See p. 16.)

Press the 0 key.

Select the index teletext page

Press the grey colour key † to display the main index (usually p.100).

Only for T.O.P teletext broadcasts :

Press i. A T.O.P. overview of the teletext subjects available is displayed. Select with the cursor up/down, left/right the desired subject and press the

OK key.

Not all TV channels broadcast T.O.P. teletext.

Select subpages

When a selected teletext page consists of different subpages, a list of available subpages appears on the screen. Press the cursor left or right to select the next or previous subpage.

Enlarge a Teletext page

Press q repeatedly to display the upper teletext part, the lower teletext part and then to return to the normal teletext page size. When the teletext page is enlarged, you can scroll the text, line by line using the cursor up/down.

Picture/Teletext

& Press the b key. Press the b key to show

Teletext on the right of the screen.

é Use the cursor keys to select a TV channel. “ Press the b key to switch off dual screen.

Hypertext

With hypertext you can quickly jump to a pagenumber or search for a specific word shown on the current teletext page.

& Press the OK key to highlight the first word or

a number on the page.

é Use the cursor up/down, left/right to select any

other word or number you want to search for.

“ Press the OK key to confirm.The search starts.

A message appears at the bottom of the screen to indicate the searching, or that the word or page is not found.

‘ Use the cursor up to exit hypertext.

LIONS RECORD ANOTHER WIN 430

Index 100 News 300 BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500 Lottery 230 Travel 550 Finance 240 Subtitling 888 Music 280 TV Listings 600

Red Green Yellow Blue

102 «03 04 05 06 07 08 09 10 11 12»

BBC CEEFAX 102 Mon 05 Feb 16.35.22

BBC CEEFAX

Teletext

1616

Teletext menu

& Press the MENU key to activate the menu. é Press the cursor up/down to select the menu

items.

“ Press the cursor right to activate.

Reveal

Reveals/conceals hidden information on a page, such as solutions to riddles and puzzles. Press the cursor right to activate.

Favourite

You may create a list of eight favourite teletext pages in total, selected from various TV channels.

To add a favourite page to the list:

& Select a favourite teletext page. é Select Favourite in the teletext menu and

press the cursor right to enter the list.

“ Press the cursor right again to add the page. ‘ Press the MENU key to watch the current

page.

To watch a favourite page from the list:

When in Teletext, use the 0 key to browse through the favourite pages of the TV channel actually selected.

Note: only the pages of the current channel can be selected.

Selecting a word

On the keyboard on screen you can type in a random word you want to search for in the teletext pages.Whether upper- or lowercase is used has no influence.

& Press the cursor right to enter the keyboard. é Press the cursor left/right, up/down to select

the characters, words or functions.

Note: Only European characters are displayed.

“ Press the OK key to confirm each character

selected.

‘ Select Cancel to cancel the word; Space to

enter a space;

Delete to delete the last

character selected;

Shift to switch between

lowercase or capital characters;

Special to

display special characters on the keyboard and press the

OK key.

( Press the cursor left repeatedly to return to

the Teletext menu again.

Searching a word

& Type in the word on screen or select a word

from the history list on the right and press

OK.

é Select Accept and press OK again. The

message Searching appears.

“ To cancel the searching or to search for a new

word, select

Keyboard and press OK.

‘ When a word is not found, a message appears.

When the word is found, it is highlighted in the teletext page.To continue the search, press the

OK key.

Cycle subpages (if available)

Makes the subpages cycle automatically. Press the cursor right to activate and to deactivate again.

Timed page

To display a specific page from a selected TV channel at a certain time.

& Press the cursor right and select Ye s or No. é Enter the time and pagenumber with the

cursor keys or the digit keys.

Notes:

- Teletext does not have to remain switched on, but you should watch the TV channel you have selected the specific page from.

- It is not possible to display a timed page when in HDMI mode.

“ Press the cursor left to return to the TV menu

again.

102 mo 08 may 17:08:39

TELETEXT

BBC1

Red Green Yellow Blue

palet

Cancel Accept Space Delete

ABCDEFG 1 2 3

HIJKLMN 4 5 6

OP QRSTU 7 8 9

V W X Y Z 0

Shift Special

WORD NAME FOOTBALL

There is a wide range of audio and video devices that can be connected to your TV. The following connection diagrams show you how to connect them to the TV.

AV1 can handle YPbPr,Y/C and CVBS; AV2 YPbPr (RGB), CVBS and Y/C; HDMI (AV3) ; Side: CVBS and Y/C.

VHY/G

CVBS S-VIDEO

Pr/R

Pb/B

ANT IN

CABLE

RECORDER

OUT IN

OUT

5 6

RECORDER

MONITOR

OUT

AV1AV2

S-VIDEO

Pr/R

Pb/BVH

Y/G Y

VIDEO

L CVBS

ANT IN

CABLE

OUT IN OUT IN

AUDIO

RECEIVER

MONITOR

OUT

AV1 AV3AV2

VHS-VIDEO

S-VIDEO

Y/G

CVBS

Pr/R

Pb/B

RLPrPbY

VIDEORL

CENTRE

SUBW.

HDMI

ANT IN

& Connect the RF antenna cable 1 of the RF IN socket

of your other AV device.

é Connect the RF output of the AV device to the RF input

of the recorder 2.

“ Connect another RF cable 4 from the output OUT of

your recorder to the TV’s input 75 Ohm x jack.

‘ To obtain better picture quality, also connect the Video

or S-Video,Audio left and Audio right cables of both devices to

AV1 (Y or S-VIDEO, AUDIO L and R,) 3

and to

AV2 (CVBS or S-VIDEO, AUDIO L and R) 5.

Notes:

- In case of mono equipment, only the left loudspeaker reproduces sound. Use a mono to stereo adaptor (not supplied) for sound reproduction via all internal loudspeakers.

- When using the

S-VIDEO connector do not connect any

device to the

AV2 CVBS or AV1 Y input.

The

MONITOR OUT

connector can be used for a daisy chaining or to record programmes from your TV

6. Only when a recorder is connected to MONITOR OUT

it is possible to record a programme from other devices connected to the TV. See Record with your recorder, p. 20.

Recorder and other A/V devices

& Connect the RF Antenna cable 1 to the RF IN socket

of your recorder.

é Connect another RF cable 2 from the output OUT of

your recorder to the TV’s input 75 ø x jack.

“ Better playback quality can be obtained if you also

connect the Video,Audio Left and Right (only for stereo devices) AV cables 3 to the

CVBS, AUDIO L and R

input jacks of AV2 .

If your recorder has an S-VHS video jack:

For improved picture quality, connect an S-video cable with the

S-VIDEO input instead of connecting the

recorder to the

CVBS jack of AV 2.

S-Video does not provide audio, so audio cables must still be connected to provide sound.

Recorder (

VCR-DVD +RW)

Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum distance of 0,5 m from the screen.

Connect Accessory Devices

& Connect the audio cable to the multi channel Surround

receiver and to

AUDIO RECEIVER L and R next to the

CENTRE connector of your TV 1.

Note: turn off the TV and your surround receiver before connecting them. Set the Surround receiver’s volume to minimum.

é If you want the loudspeakers of your TV to act as centre

speaker, also connect an audiocable to the multi channel Surround receiver and to the

CENTRE connector of your

TV 2.

“ Select centre Input On in the Source menu. See p. 10.

The loudspeakers of the TV will now only produce centre sound, the loudspeakers connected to the audio receiver will produce Surround Sound.The volume has to be controlled via the multi channel Surround receiver.

Note: No sound will be heard when a TV channel or external source is blocked via the Channel Lock menu (see p. 13).

AUDIO

CENTRE

SUBW.

Notes

- The labels for the component video sockets may differ depending on the DVD player or the device connected. Although the abbreviations may vary, the letters B and R stand for the blue and red component signals, respectively, and Y indicates the luminance signal. Refer to the DVD player’s or devices instructions for use for definitions and connection details.

- This television is designed to accept high definition signal standards 480p, 720p (not with 42PF9966), 1080i and 1152i as specified by the Electronic Industries Association standard EIA770.3. Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

Warning: in case you notice scrolling images, wrong colours or no colour, no picture, or even combinations of

these on your screen, check if the connections are done in the correct way or move your digital device further away from your TV.

AV1AV2

VHS-VIDEO

S-VIDEO

Y/G

CVBS

Pr/R

Pb/B

RLPrPbY

1 2

DVD / Cable Box

Multi channel Surround receiver

Devices with Component Video Output Connectors (YPbPr)

& Connect the three separate component video cables 1

to the device having component video outputs (

YPbPr),

such as DVD-players, laser-disc players, videogame players, satellite receivers or other equipment, and to the

Y, Pb

and Pr jacks of AV 1 or AV 2 on the TV.

é Connect the audio cable to device’s AUDIO L and R 2

jacks and to the

L an R audio jacks of AV1 or AV2.

Devices with RGB output

& Connect the device with RGB output with separate

Horizontal and Vertical sync to the

Pr/R Pb/B Y/G input

1 jacks and to the

H and V jacks of AV2 3.

é Connect the audio cables to the L and R AUDIO jacks of

AV2 .

Devices with an S-Video connector

& Connect an S-Video cable to the AV 1 or AV2 S-VIDEO

input.

Note: When using the

S-VIDEO connector do not connect any

device to the

AV2 CVBS or AV1 Y input.

é Connect the audio cables to the device’s AUDIO L and R

jacks and to the L and R audio AV1 or AV 2 jacks on the TV.

DVD Player or other accessory digital source devices

HDMI

HDMI IN

CENTRE

SUBW.RL

AUDIO

HDMI is the leading new standard for Digital High Definition video and audio interconnection. Eg. with a Digital Set top box, with HDMI-equipped devices like a PC, DVD-R, AV receiver...

Note: the HDMI connector is compatible with DVI-devices and a HDMI to DVI conversion cable is included. (Then also connect the audio cables.)

The

HDMI IN connector allows

- the following TV and monitor display modes: EDTV 640/720 x 480p

720 x 576p

HDTV 1280 x 720p (not with 42PF9966)

1920 x1080i

1152i VGA 640 x 480 60 Hz SVGA 800 x 600 60 Hz XGA 1024 x 768 60 Hz (not with 42PF9966)

- uncompressed HD content

- encrypted or non encrypted signals.

& Connect the digital HDMI output of your HD device (e.g. PC, DVD player, Set Top Box..) 1 to the

HDMI connector of your TV.

é In case a HD-DVI device (and if audio is present) is connected also connect the audio cable 2 to the

AUDIO outputs of your HD device and to the R (right) and L (left) HDMI (AV3) inputs of the panel

of the TV.

Notes:

- Proper working is only guaranteed with HDMI compliant consumer products.

- Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display;

- If the set is cold, there may be a small “flicker” when the set is turned on.This is normal, there is nothing wrong with the set.

- If possible, use the 1024x768@60Hz video mode to obtain the best image quality for your monitor (32PF9966 and 42PF9986).

To enhance the sound reproduction of your TV you can connect an externally powered subwoofer (between 20 and 250 Hz).

& Connect the audio cable of the external subwoofer to

the

SUBWOOFER socket at the bottom of your TV.

é Select Subwoofer in the Settings, General menu, p. 8. “ Adjust the frequency of the external subwoofer to 100-

120 Hz (according to your personal preference) if present on the subwoofer.

‘ Adjust the volume level of the external subwoofer,

presumed this control is present on the subwoofer. See also the instruction manual of the external subwoofer.

Connect extra subwoofer

HDMI (High Definition Multimedia Interface) connector

MONITOR

AUDIO

OUT

VIDEORL

RECEIVER

CENTRE

SUBW.

SUBWOOFER

AV3

HDMI

VID

S•VID

AUD

& Press the v key repeatedly or select Source in the Setup

menu (see p. 10) to select

AV1 , AV2, HDMI (AV3), Side or TV

channels

, according to where you connected your devices.

é Press the cursor up/down. “ Press OK.

Remark: Most equipment (decoder, recorder) carries out the switching itself. This is however never the case with a computer connected to the HDMI input.

Select

Ò®‡π

†

AMP DVD/R TV SAT AUX

Record a TV programme

You can record a TV programme using your recorders tuner without affecting your TV.

& Select the channel number on your recorder. é Set your recorder to record.

See the handbook for your recorder.

Switching channel numbers on your TV does not disturb recording !

Record a programme from

MONITOR OUT

You can record a programme on your recorder from the TV tuner via

MONITOR OUT.

& Switch on the device. é Select the channel or wanted device on your

TV and the correct input on your recorder.

“ Set your recorder to record.

You record the tuner channel of the TV or selected device.

Do not switch channels or turn off your TV when you are recording through

MONITOR OUT.

Record with your recorder

To select connected peripherals

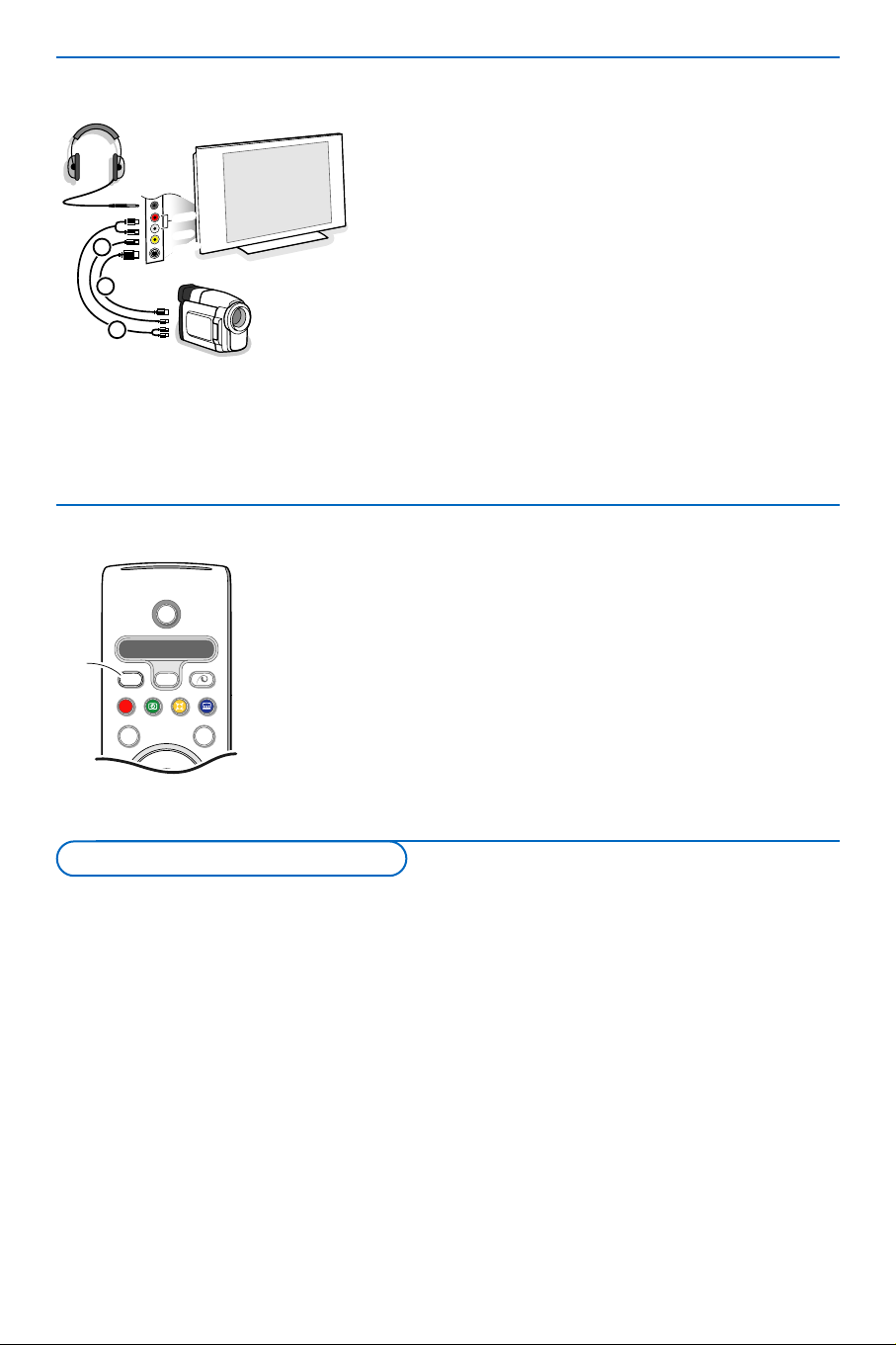

Camera, Game or Camcorder

& Connect your camera, game or camcorder as shown. é Connect to VIDEO 2 and AUDIO L 3 for mono

equipment. For stereo equipment also connect

AUDIO R 3.

S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the

S-VIDEO input

1 and

AUDIO inputs 3.

Do not connect cable 1 and 2 at the same time.This may cause picture distortion !

Headphone

& Insert the plug into the headphone socket L as shown. é Press ¬ on the remote control to switch off the

internal loudspeakers of the TV.

The headphone impedance must be between 8 and 4000 Ohm.The headphone socket has a 3.5 mm jack.

In the Sound menu select

Headphone volume to adjust

the headphone volume.

Side connections

This system remote control operates the following Philips equipment:TV,VCR, DVD, DVD/R, SAT (RC5/RC6), AMP (+TUNER), CD, CD/R.

Press the

Select key to operate any of the equipment indicated in the display

(

AUX = CD; DVD/R = DVD, SAT = SAT (RC5).Another device can be selected by

pressing

Select repeatedly within 2 seconds.The led will blink slowly to indicate

the device. Press one of the keys on the remote control to operate the peripheral equipment. To return to TV mode press

Select while the led is blinking.

When no action is taken within 60 seconds, the remote goes back to

TV mode.

When you do not want the remote to go back to TV mode, and to stay in the mode selected, proceed as follows: Select the desired mode with the

Select key.Wait until no LED is lit. Press the

Select key again simultaneously with the OK key for at least 2 seconds.The remote

will not go back to TV mode from now on and will remain in the mode selected. To go back to the default setting of the remote (TV mode) repeat what is explained above, selecting the TV mode.

Note: When the Select key is pressed and held for more than 2 seconds, the RC5/RC6 system select command is transmitted.

Select

123

456

789

Ò®‡π

†

AMP DVD/R TV SAT AUX

MODEON/OFF

Ambilight

Active Control

B to switch to standby ºæ for pause (

VCR, DVD, CD)

RDS news/TA (AMP); to shuffle play (

CD/R)

® for record Ò for rewind (

VCR, CD);

search down (

DVD , AMP)

‡ for stop π for play † for fast forward (

VCR, CD);

search up (

DVD , AMP)

S for pause (

CD/R)

b RDS display (

AMP);

to select your choice of subtitle language (

DVD );

i display information

MENU to switch the menu on or off

- P + for chapter, channel, track

selection

0 to 9 digit entry 0 tape index (

VCR),

select a DVD title/chapter, select a frequency (

AMP)

U VCR timer

cursor up/down

to select the next or the previous disc (

CD)

cursor left/right

to select the previous or following track (

CD)

search up/down (

AMP)

Additionally the DVD/R, SAT and AUX indicator can be programmed to operate the DVD-R, DVD + receiver, DVD-R + receiver, SAT (RC6), CD-R and VCR instead.

& Select TV with the Select key. é To program

• DVD-R, press the OK key + digit 2;

•

SAT (RC6), press the OK key + digit 4;

•

CD-R, press the OK key + digit 6;

•

DVD + receiver, press the OK key + digit 7;

• DVD-R

+ receiver

, press the OK key + digit 8;

•

VCR, press the OK key + digit 9.

“ Select the corresponding DVD/R, SAT, AUX

indicator.The remote control will operate your DVD-R, DVD or DVD-R in combination with a receiver (

DVD/R), SAT (RC6) (SAT), CD-R or

VCR (

AUX).

Note:To return to the modes programmed in the factory, either remove the batteries for a few minutes, or press the

OK key + digit 1 (DVD

mode); or + digit 3 (SAT-RC5) or + digit 5 (CD mode).

Audio- and video equipment keys

Care of the screen Do not touch, push or rub or strike the screen with anything hard as this may

scratch, mar or damage the screen permanently. And please do not rub with dust clothes with chemical treatment. Do not touch the surface with bare hands or greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before cleaning the screen. When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks. Do not use acetone, toluene and alcohol because they cause chemical damage. Do not use liquid cleaners or aerosol cleaners.Wipe off saliva or water drops as soon as possible.Their long time contact with the screen causes deformations and colour fading.

Poor Picture • Have you selected the correct TV system in the manual installation menu?

• Is your TV or house aerial located too close to loudspeakers, non-earthed audio equipment or neon lights, etc.?

• Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

• Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. See Installation, Manual installation, p. 6.

• Are brightness, sharpness and contrast out of adjustment? Select Factory settings in the Setup, General menu, p. 8.

No Picture • Are the supplied cables connected properly ? (The aerial cable to the TV, the

other aerial to your recorder, the power cables.)

• Has the child lock been switched off ?

• Is your PC switched on ?

• Do you see a black screen and the indicator in front of the TV lights up,

this means that the display mode is not supported. Switch your HDMI-source to a correct mode.

• In case of weak or bad signal, consult your dealer.

Digital distortion The low quality of some digital picture material may be the cause of digital image

distortion. In this case select the Soft setting using the Picture menu, Smart Picture, without changing the picture settings manually.

No sound • No sound on any channel? Check the volume isn’t at minimum.

• Is the sound interrupted with the mute key ¬?

No solution found Switch your TV off and then on again once. Never attempt to repair a defective for your picture or TV yourself. Check with your dealer or call a TV technician. sound problem ?

Remote control

• Check if the remote control is in the correct mode.

• If your TV no longer responds to the remote control, the batteries may be dead.

• You can still use the

MENU key and the -/+ keys on top or the right side

(according to your type of TV set) of your TV.

Standby Your TV consumes energy in the standby mode. Energy consumption contributes

to air and water pollution. Power consumption: 2 W.

No stable or not Check if you have selected the correct VGA mode in your PC. synchronised VGA picture

Miscellaneous

See Extras, Specifications on this CD.

Tips

Warning concerning stationary images on the TV screen

A characteristic of Plasma Display Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen.This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen.

Examples of stationary images (this is not an all-inclusive list, you may encounter others in your viewing):

•

TV menus;

•

Black bars: when black bars appear at the left and right side of the screen, it is recommended

to change to a picture format so that the picture fills the entire screen;

•

TV channel logo: present a problem if they are bright and stationary. Moving or low-contrast

graphics are less likely to cause uneven aging of the screen;

•

Stock market stickers: presented at the bottom of the TV screen;

•

Shopping channel logos and pricing displays: bright and shown constantly or repeatedly in

the same location on the TV screen. Examples of still pictures also include logos, computer images, time display, teletext and images displayed in 4:3 mode, static images or characters, etc.

Notes:

- reduce contrast and brightness when viewing

- once burn-in occurs it will never disappear completely.

Philips 32PF9966 98, 42PF9966 69, 42PF9966 98, 42PF9986 69, 42PF9986 98 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preparation

Select the menu language

Installation

To use the menus

Give name

Manual installationAutomatic installation

Store TV channels

Select Favourite TV channels

Reshuffle the channel list

General

TV Setup

Source

Demo

Picture menu

TV menu

Sound

Ambilight

Active Control

Features menu

Dual screen / PIP / Multipip

Switch Teletext on and off

Select a Teletext page

Select the index teletext page

Select subpages

Enlarge a Teletext page

Picture/Teletext

Hypertext

Teletext

Teletext menu

Recorder and other A/V devices

Connect Accessory Devices

Multi channel Surround receiver

Connect extra subwoofer

Record with your recorder

To select connected peripherals

Side connections

Audio- and video equipment keys

Tips
