Philips 32PF3321/10 Specification Sheet

Download

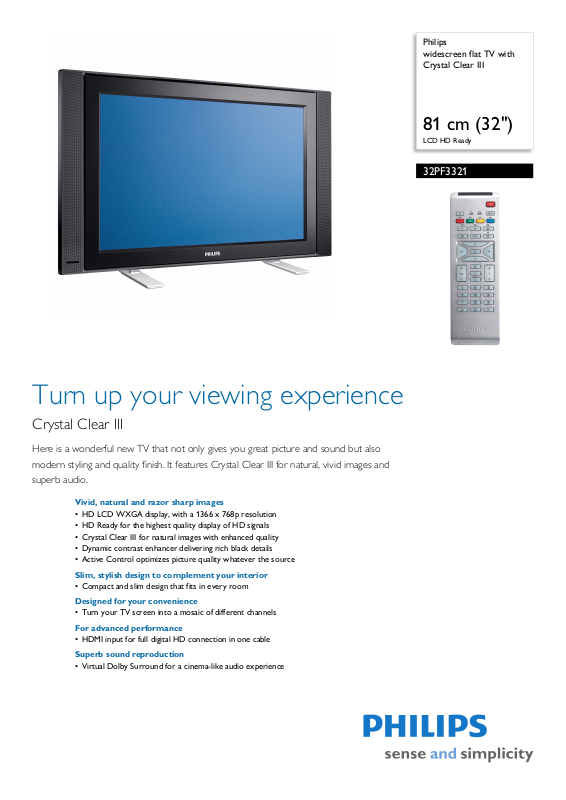

Page 1

Philips widescreen flat TV with Crystal Clear III

81 cm (32")

LCD HD Ready

32PF3321

Turn up your viewing experience

Crystal Clear III

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and quality finish. It features Crystal Clear III for natural, vivid images and superb audio.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Crystal Clear III for natural images with enhanced quality

• Dynamic contrast enhancer delivering rich black details

• Active Control optimizes picture quality whatever the source

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• Turn your TV screen into a mosaic of different channels

For advanced performance

• HDMI input for full digital HD connection in one cable

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Page 2

Widescreen flat TV with Crystal Clear III

81 cm (32") LCD HD Ready

Highlights

32PF3321/10

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Crystal Clear III

Crystal Clear III combines a whole range of e

nhancements to provide a better picture.

They include a 2D Comb filter, Dynamic contrast, Blue stretch and Green enhancement so that you always get the most natural looking colors.

Dynamic contrast enhancer

You want the LCD flat display with the highest contrast viewing angle. The Philips dynamic contrast enhancer uses video processing and unique dimming backlight technology. This delivers deep rich black levels with increased detail. The dimming backlight increases the contrast up to 5 times*, and at the same time improves the viewing angle. It gives a bright, lifelike picture with high contrast and vibrant colors, (* factor between 2 and 5, screen type and picture content dependant).

Active Control

Active Control ensure that noise and sharpness impro made at a rate of 60 times per second. By continually adjusting picture setting over 3,000 times per minute, Active Control Plus ensures that the viewing experience is optimized.

and most vibrant images even at wide

vements are continuously

Multiple PiP Modes

Multiple Picture-in-Picture modes allow you to simu

ltaneously watch two video sources either picture-in-picture, side by side, or in a mosaicview with still images.

HDMI input

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Virtual Dolby Surround

Virtual Dolby Surround is a processing t

echnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Page 3

Widescreen flat TV with Crystal Clear III

81 cm (32") LCD HD Ready

Specifications

32PF3321/10

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix T

•

Picture enhancement: Progressive scan, 3/2 - 2/2 motion pu Line Suppression, Active Control, Contrast Plus, 2D Combfilter, Crystal Clear III

•Color cabinet: Black

• Screen enhancement: Anti-Reflection coated

• Viewing angle (H / V): 178 / 178 degree

• Panel resolution: 1366 x 768p

• Response time (typical): 8 ms

• Dynamic screen contrast: 1600:1

• Contrast ratio (typical): 800:1

ll down, Digital Noise Reduction, Jagged

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60, 70, 75Hz

deo Formats

• Vi

Res

olution Refresh rate 640 x 480p 2Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement, Auto Volume Leveller

• Sound System: Virtual Dolby Surround

• Output power (RMS): 2 x 15 W

• Equalizer: 5-bands

Convenience

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Program st,

Smart Picture, Smart Sound, Side Control

• Remote control type: RCFE06SPS00

• Teletext enhancements: Program information Line,

favo

urite pages

• Picture in Picture: Twin page text

• Remote Control: DVD, TV, Multi-functional

• Screen Format Adjustments: 4:3, Movie expand

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Clock: Sleep Timer, Wake up Clock

• VESA Mount: 200 x 100 mm

• Teletext: 10 page Smart Text

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL B/G, PAL D/K, SECAM B/G,

SECAM D/K, SECAM L/

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: CVBS in/out, S-video in, Audio L/R

•Front / Side connections: CV

Out, S-video in, Audio L/R in

•Number of Scarts: 2

• Ext 4: YPbPr

• Ext 5: HDMI

BS in, Headphone

Power

• Power consumption: 120 W Normal Operation W

• Standby power consumption: 1 W <

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110 - 240V, 50/60Hz

Dimensions

• Product weight: 18.9 kg

• Weight incl. Packaging: 22 kg

• Dimensions (with base) (W x H x D):

550 x 222 mm

924 x

•Box dimensions (W x H x D):

00 x 690 x 240

• Dimensions (without base) (W x H x D): x 507 x 119 mm

924

Accessories

• Included accessories: Power cord, Registration

card, Remote Control, User Manual, Batteries for remote control, Table top stand, Warranty certificate

• Optional accessories: Floor stand

Loudspeakers

• Built-in speakers: 2

•

Issue date 2012-01-20

Version: 9.0.20

12 NC: 8670 000 23916 EAN: 87 10895 94284 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
