Philips 32HFL7382A/10 leaflet

Download

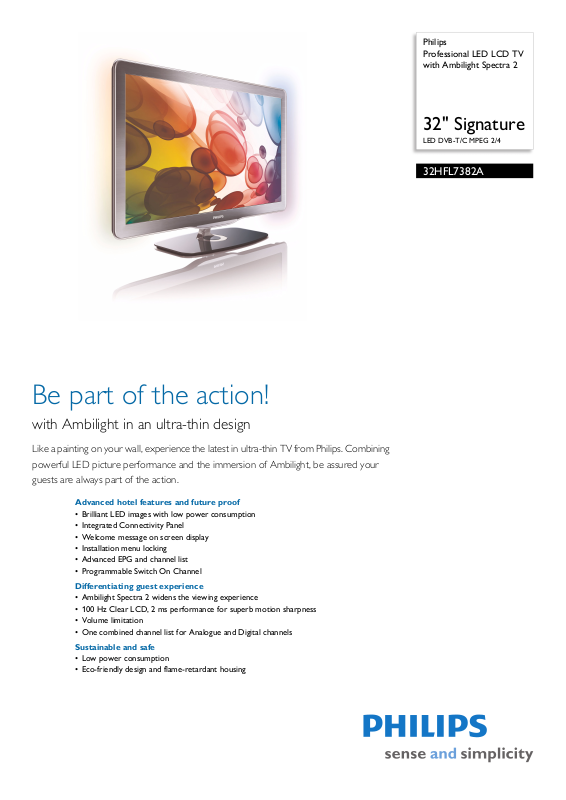

Page 1

Philips Professional LED LCD TV with Ambilight Spectra 2

32" Signature

LED DVB-T/C MPEG 2/4

32HFL7382A

Be part of the action!

with Ambilight in an ultra-thin design

Like a painting on your wall, experience the latest in ultra-thin TV from Philips. Combining powerful LED picture performance and the immersion of Ambilight, be assured your guests are always part of the action.

Advanced hotel features and future proof

• Brilliant LED images with low power consumption

• Integrated Connectivity Panel

• Welcome message on screen display

• Installation menu locking

• Advanced EPG and channel list

• Programmable Switch On Channel

Differentiating guest experience

• Ambilight Spectra 2 widens the viewing experience

• 100 Hz Clear LCD, 2 ms performance for superb motion sharpness

• Volume limitation

• One combined channel list for Analogue and Digital channels

Sustainable and safe

• Low power consumption

• Eco-friendly design and flame-retardant housing

Page 2

Professional LED LCD TV with Ambilight Spectra 2

32" Signature LED DVB-T/C MPEG 2/4

Highlights

32HFL7382A/10

LED

LED lighting technology is the most advanced available. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as having the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colours.

100 Hz Clear LCD (2 ms)

you can enjoy clear images even with fast onscreen motion.

Integrated Connectivity Panel

The Integrated Connectivity Panel allows your gue

sts to seamlessly connect their personal devices to your TV without the need for an external Connectivity Panel.

Low power consumption

Philips TVs are designed to minimise power c

onsumption. This will not only reduce environmental impact but also lower operating costs.

Welcome message

A welcome greeting is displayed each time the T

V set is switched on.

Volume limitation

This feature predefines the volume range w

ithin which the TV set is allowed to operate, preventing excessive volume adjustments and disturbance of neighbouring guests.

Installation menu locking

Prevents unauthorised access to installation and

configuration settings, to ensure maximum guest convenience and avoid unnecessary reprogramming costs.

consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

Programmable Switch On Channel

Perfect for in-house advertising or information c

hannels as it allows a predefined channel to be

shown when the TV is turned on.

Advanced EPG and channel list

The attractive EPG and channel list include i

ntuitive buttons with clear guiding graphics to

easily locate your favourite channels.

One combined channel list

One integrated channel list for digital and an

alogue channels. This allows the guest to flick seamlessly between Analogue and Digital channels.

100 Hz Clear LCD creates extreme motion sharpness. The Double Frame Rate Insertion increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 2 milliseconds. Now

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power

LED lighting technology

LED lighting Technology is the most advanced an consumption in its category.

d has the lowest power

Page 3

Professional LED LCD TV with Ambilight Spectra 2

32" Signature LED DVB-T/C MPEG 2/4

Specifications

32HFL7382A/10

Picture/Display

• Peak Luminance ratio: 65 %

• Diagonal screen size: 32 inch / 81 cm

• Aspect ratio: Widescreen

• Panel resolution: 1920 x 1080p

• Brightness: 450 cd/m²

• Response time (typical): 2 ms

• Picture enhancement: Active Control + Light nsor, Digital Noise Reduction, Luminance

s Transient Improver, Dynamic contrast enhancement, 100 Hz Clear LCD, HD Natural Motion

• Dynamic screen contrast: 500,000:1

• Screen enhancement: Anti-Reflection coated

• Viewing angle: 176º (H)/176º (V)

• Colour processing: 4 trillion colours (14-bit RGB)

• Colour cabinet: Silver-brushed deco-front with

k ca

binet

blac

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G,

SECAM D/K, SECAM L/L', DVB C

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB Terrestrial*, DVB-C MPEG4*,

DVB-T MPEG4

OFDM 2K/8K

Sound

• Output power (RMS): 20 W (2 x 5 W + 10 W)

• Sound System: Mono, Stereo, Nicam Stereo

• Sound Enhancement: Auto Volume Leveller,

namic Bass Enhancement, Incredible Surround,

Dy Treble and Bass Control

Connectivity

• Ext 1 Scart: Audio L/R, RGB

• Ext 2 Scart: Audio L/R, RGB

• Ext 3: Audio L/R in, YPbPr

• Front/Side connections: USB

• HDMI 1: HDMI v1.3

• HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

dby, Remote control pass-through, System

st audio control

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Headphone out, PC Audio in

• HDMI 3: HDMI v1.3

Convenience

• Ease of Installation: Programme Name, Auto Programme Naming, Sorting

• Ease of Use: Smart Picture, Smart Sound

• Comfort: Hotel Guest features, Welcome message, V

• Clock: Sleep Timer

• Multimedia: USB autobreak-in

• Child Protection: Child Lock+Parental Control

• Teletext: 1200-page Hypertext

• Electronic Programme Guid Programme Guide, Now + Next EPG

• Screen Format Adjustments: Movie expand 16:9, Widesc dot), Auto Format

• Firmware upgradeable: Firmware auto upgrade wizar

lume limitation

: 8-day Electronic

reen, Super Zoom, unscaled (1080p dot by

, Firmware upgradeable via USB

Ambilight

• Dimming Function: Manual and via Light Sensor

• Ambilight light system: LED-wide colour

Power

• Off mode power consumption: < 0.01 W

• Presence of lead: Yes*

• Annual energy consumption: 103.66 kW·h

• Mains power: 220 - 240 V, 50/60 Hz

• Power consumption (typical): 71 W

• Standby power consumption: < 0.15 W

• Ambient temperature: 5°C to 40°C

Dimensions

•Set dimensions (W x H x D): 777 x 472 x 42 mm

• Set dimensions with stand (W x H x D):

540 x 221 mm

777 x

•Box dimensions (W x H x D): 950 x

• Product weight: 9.5 kg

• Product weight (+stand): 11.6 kg

• Weight incl. Packaging: 13 kg

• VESA wall mount compatible: 200 x 200 mm

x 158 mm

572

Accessories

• Included accessories: Remote Control, Tabletop swivel stand, Quick start guide, Warranty Leaflet

• Optional accessories: Set up remote 22AV8573/00

•

Issue date 2011-06-21

Version: 3.0.2

12 NC: 8670 000 66475 EAN: 87 12581 55802 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Typical on-mode power consumption measured according to

IEC62087 Ed 2.

* Annual energy consumption is calculated using the typical power

consumption of 4 hours per day, 365 days per year.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.
