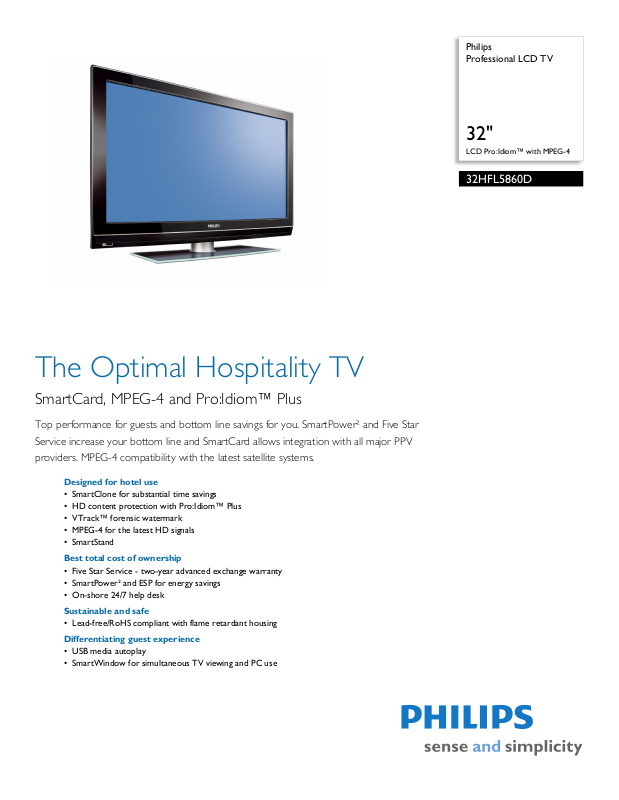

Page 1

Philips Professional LCD TV

32"

LCD Pro:Idiom™ with MPEG-4

32HFL5860D

The Optimal Hospitality TV

SmartCard, MPEG-4 and Pro:Idiom™ Plus

Top performance for guests and bottom line savings for you. SmartPower² and Five Star Service increase your bottom line and SmartCard allows integration with all major PPV providers. MPEG-4 compatibility with the latest satellite systems.

Designed for hotel use

• SmartClone for substantial time savings

• HD content protection with Pro:Idiom™ Plus

• VTrack™ forensic watermark

• MPEG-4 for the latest HD signals

•SmartStand

Best total cost of ownership

• Five Star Service - two-year advanced exchange warranty

• SmartPower² and ESP for energy savings

• On-shore 24/7 help desk

Sustainable and safe

• Lead-free/RoHS compliant with flame retardant housing

Differentiating guest experience

• USB media autoplay

• SmartWindow for simultaneous TV viewing and PC use

Page 2

Professional LCD TV

32" LCD Pro:Idiom™ with MPEG-4

32HFL5860D/27

Specifications Product highlights

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic screen contrast: 9600:1

• Diagonal screen size: 32 inch / 80 cm

• Picture enhancement: Pixel Plus 3 HD, Progressive Scan, 3/2 - 2/2 motion pull down, Active Control, 3D Combfilter, Dynamic contrast enhancement, Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Color Transient Improvement, Automatic skin tone correction, Color Enhancement, Motion adaptive de-interlacing, Picture in Picture

• Screen enhancement: Anti-Reflection coated screen

• Display screen type: LCD WXGA Active Matrix TFT

• Panel resolution: 1366 x 768p

• Response time (typical): 8 ms

• Viewing angle (H / V): 178 / 178 degree

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1366 x 768 60Hz

• Video formats Resolution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz

Sound

• Sound System: Stereo, Dolby Digital (AC-3)

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller, Incredible Surround

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Fine Tuning, PLL Digital Tuning, Program Name, Advanced Hotel Mode, Cloning of TV settings via USB, Keyboard lock-out, Security menu access

• Ease of Use: Auto Volume Leveller (AVL), Smart Picture Control, Smart Sound Control

• Screen Format Adjustments: 4:3, 7 Widescreen Modes

• Comfort: Hotel Guest features, Sleep timer, Switch on channel, Volume limitation, Welcome message

• Other convenience: Kensington lock

• Convenience Enhancements: Closed captioning

Issue date 2008-06-27

Version: 3.0.4

12 NC: 8670 000 37496 UPC: 6 09585 15019 5

(digital), Vchip and parental lock

• Interactive hotel features: Smoovie Pay TV

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: ATSC, NTSC

• Video Playback: NTSC, PAL

• Number of Preset Channels: 250

• Cable: Unscrambled Digital Cable -QAM

• Terrestrial: ATSC (8VSB)

• Aerial Input: 75 ohm F-type

Connectivity

• AV 1: AV In, S-Video Y/C

• AV 2: Audio L/R in, YPbPr

• AV 3: VGA PC-in, Audio-in mini jack 3.5mm

• AV 4: HDMI

• AV 5: HDMI

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Antenna F-type, RS232 Serial

• Connectivity Enhancements: SmartCard Expansion Slot, HM-Link, Extra Power supply 12V/1W, External Loudspeaker connector, USB2.0, RJ12 SmartPlug connector

Power

• Power use SmartPower² = high: < 58 W

• Power use SmartPower² = off: < 135 W

• Standby power consumption: 1.16

• Mains power: 110 - 240V, 50/60Hz

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Color cabinet: Black w/gloss black bezel

• Set dimensions in inch (W x H x D):

31.7

x 21.5 x 4.4 inch

• Set dimensions with stand in inch (W x H x D):

31.7

x 24 x 10.4 inch

• Box dimensions in inch (W x H x D):

34.2

x 24.8 x 13.6 inch

• Product weight (lb): 34.1

• Weight incl. Packaging (lb): 44.5

• VESA wall mount compatible: 200 x 100 mm

Accessories

• Included Accessories: Power cord, Warranty Leaflet, Swivel stand with anti-theft, Quick start guide

• Optional accessories: Set up Remote RC2573GR, Mounting brackets/ stands, Guest remote control

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: JPEG Still pictures, MP3, Slideshow files (.alb)

Green Specifications

• Safety: Flame retardant housing

•SmartPower²

•Eco Designed

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

SmartClone

Philips remains on the forefront of making installation as simple as possible. SmartClone offers USB cloning, or on select models, revolutionary RF cloning, which allows all TV’s on property to be programmed in as little as five minutes. Additional hardware is required to take advantage of RF cloning.

Pro:Idiom™ Plus

Pro:Idiom™ was created for the hospitality industry to protect first run movies and other HD premium content from piracy. Philips Pro:Idiom™ Plus televisions offer secure HD conte nt prot ection not on ly for P PV hote ls, bu t now al so for stand alone properties. (Additional fees may apply for stand alone use) (Pro:Idiom™ is a trademark of the Zenith Corp.)

VTrack™ forensic watermark

Philips VTrack™ watermarking embeds an invisible forensic watermark in the signal, which can be detected via software to trace pirated content back to the source of recording. Philips VTrack™ is the first solution that protects first run movies and other premium content from optical piracy, helping preserve the early release window that hotels have always enjoyed.

MPEG-4 for HD

MPEG-4 (Moving Picture Experts Group H.264) compression technology allows more HD content to be delivered than ever before. Satellite providers are already using MPEG-4 to offer the choice of up to 150 national HD channels and 1,500 local broadcast HD and digital channels. Cable, broadcast, and telecommunications providers are expected to also migrate to the format, but with these Philips TVs you are ready today!

SmartStand

This TV comes with a swivel stand that allows your guests to adjust th e TV up to 180 degree s so that they can watch TV from any position in the room. Equipped with built-in se cur ity, thi s st and can be s ecure d to a t able o r furn iture to deter theft.

Five Star Service

Philips offers unmatched commitment to keeping your guest rooms in working order. Our products are so reliable that we offer a two-year advanced exchange warranty. In the event that something does go wrong, we guarantee to ship a replacement set to you, within 72 hours during the first year.

SmartPower² and ESP

Our second generation power saving technology allows the bac kl ight intensity to be dy namically adjust ed by t he s ys tem to reduce the power consumption by up to 60%, saving substantially on energy costs. In addition, Philips' Energy Savings Programmability (ESP) allows the set to turn itself off when not in use to save even more energy when guests or maids leave televisions on for long periods while the room is vacant.

RoHS & Flame retardant housing

In additon to being lead-free and RoHS compliant, Philips TVs have a special housing of eco-friendly, non-brominated flame-retardant materials. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

USB media autoplay

Philips TVs feature a USB connector that allows the guest to connect USB memory sticks to play music or photos right on the TV.
