Page 1

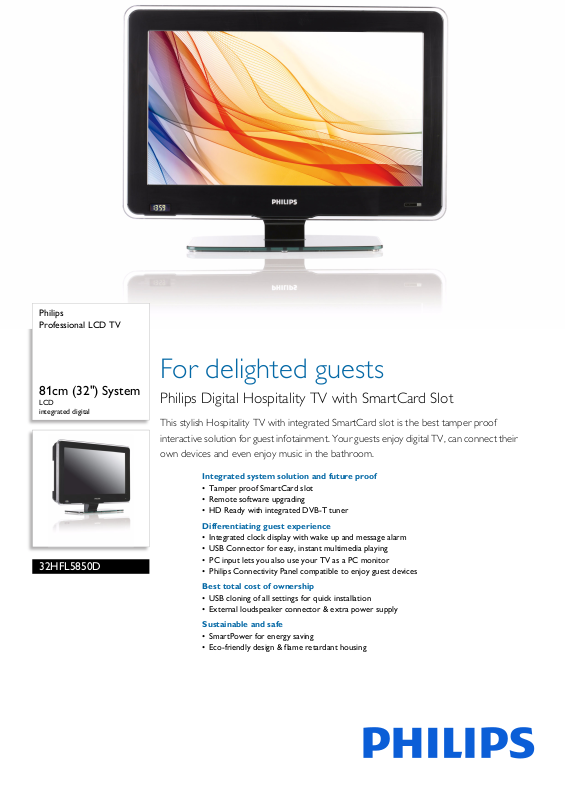

Philips Professional LCD TV

For delighted guests

81cm (32") System

LCD integrated digital

32HFL5850D

Philips Digital Hospitality TV with SmartCard Slot

This stylish Hospitality TV with integrated SmartCard slot is the best tamper proof interactive solution for guest infotainment. Your guests enjoy digital TV, can connect their own devices and even enjoy music in the bathroom.

Integrated system solution and future proof

• Tamper proof SmartCard slot

• Remote software upgrading

• HD Ready with integrated DVB-T tuner

Differentiating guest experience

• Integrated clock display with wake up and message alarm

• USB Connector for easy, instant multimedia playing

• PC input lets you also use your TV as a PC monitor

• Philips Connectivity Panel compatible to enjoy guest devices

Best total cost of ownership

• USB cloning of all settings for quick installation

• External loudspeaker connector & extra power supply

Sustainable and safe

• SmartPower for energy saving

• Eco-friendly design & flame retardant housing

Page 2

Professional LCD TV

81cm (32") System LCD, integrated digital

Highlights

32HFL5850D/10

Integrated SmartCard Slot

The integrated SmartCard slot parties to add new functionality to the TV through application cards, without the need for additional boxes and external connections. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the SerialXpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.

USB Cloning

Provides the ability to easily copy all programming settings from one TV into other TV sets in less than a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.

Remote software upgrading

The TV software that controls hotel-specific features can certified system provider.

Integrated clock display

The built-in clock display, which is also a wakeup

alarm, eliminates the need and investment

and channel programming

be upgraded remotely through a

allows third

for an additional clock with cables and connections in the room.

USB multimedia playing

This Philips TV allows the guest to connect a USB

stick for easy and instant playing of multimedia content. Playback formats supported are MP3, Slideshow files (.alb) and JPEG Still pictures.

PC input

With PC input you can connect your TV to a computer and use th

External loudsp & power supply

The TV is equipped with an amplified audio c

onnector for easy installation of external speakers (like for bathrooms), eliminating the need for investments in external equipment. The extra integrated power supply avoids the need for a separate power supply for an interactive system. In case of stand-alone use, the additional power supply can be switched off to save energy.

Connectivity Panel compatible

This TV work seamlessly with Philips Co

nnectivity Panels. The guest can easily

e TV as a PC monitor.

connect and enjoy media from a PC, MP3 player, DVD player, camcorder and various other devices. With autosensing the Connectivity Panel and the TV will automatically switch to display the content from the connected guest device.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Eco-friendly design

Sustainability is integral to the way Philips does b

usiness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

Page 3

Professional LCD TV

81cm (32") System LCD, integrated digital

Specifications

32HFL5850D/10

Picture/Display

• Diagonal screen size: 32 inch / 81 cm

• Aspect ratio: 16:9, Widescreen

• Display screen type: LCD WXGA Active Matrix TFT Panel resolution: 1366 x 768p

•

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic screen contrast: 30000:1

• Response time (typical): 6 ms

• Viewing angle (H / V): 176 / 176 degree

• Screen enhancement: Anti-Reflection coated

• Picture enhancement: 3/2 - 2/2 motion pull down,

ombfilter, Active Control, Black stretch, Blue

3D C stretch, Color Enhancement, Color Transient Improvement, Digital Noise Reduction, Luminance Transient Improver, Motion adaptive deinterlacing, Progressive scan, Automatic skin tone correction, Dynamic contrast enhancement, White stretch, Green stretch, Pixel Plus HD

•Color cabinet: Black

Supported Display Resolution

• Video formats Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 1080i 50, 60Hz 720p 50, 60Hz

mputer formats

• Co olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Number of Preset Channels: 250

• Tuner bands: Hyperband, S-Channel, UHF, VHF

•Tuner Display: PLL

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G,

SECAM D/K, SECAM L/L',

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB Terrestrial *

DVB C

OFDM 2K/8K

Sound

• Output power (RMS): 2 x 15W

• Sound System: Mono, Stereo, Nicam Stereo, B

Dolby Digital (AC-3), Virtual Dolby Digital

• Sound Enhancement: Auto Volume Leveller,

credible Surround, Smart Sound

• Equalizer: 5-bands

BE,

• Ext 2 Scart: Audio L/R, CVBS in/out

• Ext 3: Audio L/R in, YPbPr

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

•Front / Side connections: Audio Headphone Out, S-video in, USB 2.0, HDMI v1.3

• Other connections: Analog audio Le PDIF out (coaxial), Headphone out, PC-In VGA, Common Interface

• Connectivity Enhancements: Serial Xpress

SmartPlug Xpress Interface, RJ12

interface connector, RJ45 connector, SmartCard Expansion Slot, Fast Infrared loop through, HM-Link, External Loudspeaker connector, Extra Power supply 12V/ 1W, Power on scart, USB2.0

L/R

in, CVBS in,

ft/Right out, S/

Convenience

• Ease of Installation: Advanced Hotel Mode, Fine Tuning, PLL Digital Tuning, Program Name, Cloning of TV settings via USB, Installation menu locking, Security menu access, Keyboard lock-out

• Ease of Use: Auto Volume Leveller (AVL), 1

ann

el list analog/digital, Smart Picture, Smart

ch Sound

• Comfort: Hotel Guest features, Auto power on, Welcome m channel, Volume limitation

• Interactive hotel features: Connectivity panel

mpatible

• Prison mode: Teletext and MHEG disable

• Clock: Integrated LCD Clock Display, Sleep Timer, Wake u

• Clock Enhancements: Synchro Time via TXT/DVB

• Teletext: 1000 page Smart Text

• Teletext languages: Western European, Eastern Euro

• Electronic Program Guide: Now + Next EPG

• Screen Format Adjustments: 4:3, Full screen, Movie exp Widescreen, Subtitle Zoom, Super Zoom, Auto Format

• Firmware upgradeable: Local upgrade total TV

so upgradeable via USB

• Other convenience: Kensington lock

ssage, Message indicator, Switch on

Clock

pean, Cy

rillic

and 1

4:9, Movie expand 16:9,

w., Remote upgrade hotel TV softw, Firmware

Healthcare

• Control: Multi remote control

• Convenience: Headphone out, Independent main speaker mute Safety: Double isolation Class II

•

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, JPEG Still pictures,

eshow files (.alb)

Slid

Power consumption: 130 W

•

• Standby power consumption: <2 W (w. clock)

• Passive stand-by consumption: 1.2 W

• Active stand-by consumption: 20 W

• Ambient temperature: 5 °C to 40 °C

Dimensions

•Set dimensions (W x H x D): 819 x 518 x 92 mm

• Set dimensions with stand (W x H x D): x 579 x 220 mm

819

•Box dimensions (W x H x D): x 629 x 255 mm

918

• Product weight: 13 kg

• Product weight (+stand): 16 kg

• Weight incl. Packaging: 19 kg

• VESA wall mount compatible: 200 x 300 mm

Accessories

• Included accessories: Power cord, Tabletop swivel

stand, Warranty Leaflet

• Optional accessories: Set up Remote RC2573GR,

t remote control 22AV1105, Wallmount (tilt)

Gues 22AV3200/10

•

Loudspeakers

• Built-in speakers: 2

Connectivity

•Number of Scarts: 2

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

Issue date 2014-02-06

Version: 2.2.7

12 NC: 8670 000 40819 EAN: 87 12581 43156 3

Green Specifications

• Safety: Flame retardant housing

•SmartPower

Power

• Mains power: 220V - 240V, 50/60Hz

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* For information on DVB-T enrolled countries please ask your Philips

contact.
