Philips 32HF7965D/27 Leaflet

Download

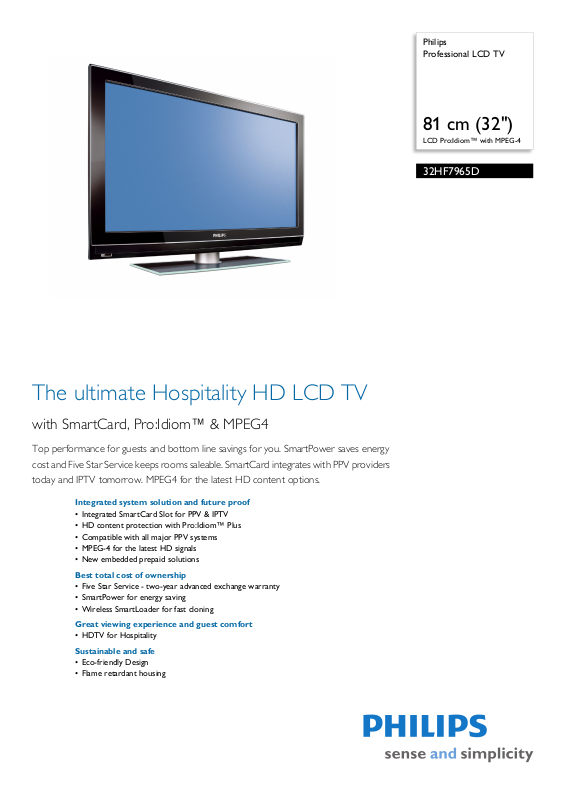

Page 1

Philips Professional LCD TV

81 cm (32")

LCD Pro:Idiom™ with MPEG-4

32HF7965D

The ultimate Hospitality HD LCD TV

with SmartCard, Pro:Idiom™ & MPEG4

Top performance for guests and bottom line savings for you. SmartPower saves energy cost and Five Star Service keeps rooms saleable. SmartCard integrates with PPV providers today and IPTV tomorrow. MPEG4 for the latest HD content options.

Integrated system solution and future proof

• Integrated SmartCard Slot for PPV & IPTV

• HD content protection with Pro:Idiom™ Plus

• Compatible with all major PPV systems

• MPEG-4 for the latest HD signals

• New embedded prepaid solutions

Best total cost of ownership

• Five Star Service - two-year advanced exchange warranty

• SmartPower for energy saving

• Wireless SmartLoader for fast cloning

Great viewing experience and guest comfort

• HDTV for Hospitality

Sustainable and safe

• Eco-friendly Design

• Flame retardant housing

Page 2

Professional LCD TV

81 cm (32") LCD Pro:Idiom™ with MPEG-4

Highlights

32HF7965D/27

Integrated SmartCard Slot

Allows third party decoders and application cards

to interface with the TV, adding functionality to the set without the need for external boxes or cables. In addition, IPTV functionality can be added to this TV by simply slotting in a new card!

Pro:Idiom™ Plus

Pro:Idiom™ was created for the hospitality in

dustry to protect first run movies and other HD premium content from piracy. Philips Pro:Idiom™ Plus televisions offer secure HD content protection not only for PPV hotels, but now also for stand alone properties. (Additional fees may apply for stand alone use) (Pro:Idiom™ is a trademark of the Zenith Corp.)

PPV system compatible

Philips Hospitality sets are designed to be c

ompatible with all major Pay Per View systems, including, but not limited to, LodgeNet, OnCommand, NxTV, GuesTek, nStreams, Hospitality Network, and KoolConnect. This guarantees seamless integration in almost any system configuration.

MPEG-4 for HD

MPEG-4 (Moving Picture Experts Group H.264

) compression technology allows more

HD content to be delivered than ever before.

Satellite providers are already using MPEG-4 to offer the choice of up to 150 national HD channels and 1,500 local broadcast HD and digital channels. Cable, broadcast, and telecommunications providers are expected to also migrate to the format, but with these Philips TVs you are ready today!

New embedded prepaid solutions

Philips Hospitality sets now support S

moovieTV™, a completely new way to offer in room programming optimized for hotels that traditionally have not been able to charge for such amenities due to their size or budget. Simple to use, SmoovieTV™ requires no expensive head end equipment or in-room control boxes.

Five Star Service

Philips offers unmatched commitment to k

eeping your guest rooms in working order. Our products are so reliable that we offer a two-year advanced exchange warranty. In the event that something does go wrong, we guarantee to ship a replacement set to you, within 72 hours during the first year.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Wireless SmartLoader

Provides the ability to copy easy and wireless al

l programmming settings from one TV set into other TV sets in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.

HDTV for Hospitality

There are many ways you may choose to offer HDTV to

your guests, but regardless of the source, Philips Hospitality televisions will always deliver the best viewing experience possible to your guests by utilizing the most advanced FlatTV displays and award winning technologies such as Pixel Plus 3 HD.

Eco-friendly Design

Philips TVs are designed and produced according to our

EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability.

Flame retardant housing

Philips TVs have a special housing of flame retardant material.

Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

MPEG 4 HD

decoder integrated

Page 3

Professional LCD TV

81 cm (32") LCD Pro:Idiom™ with MPEG-4

Specifications

32HF7965D/27

Picture/Display

• Aspect ratio: 16:9, Widescreen

•Color cabinet: Black

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1500:1

• Dynamic screen contrast: 7500:1

• Diagonal screen size: 32 inch / 80 cm

• Picture enhancement: Progressive scan, 3/2 - 2/2 n pull down, Active Control, 3D Combfilter,

tio

mo Dynamic contrast enhancement, Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Color Transient Improvement, Pixel Plus HD

• Screen enhancement: Anti-Reflection coated

• Display screen type: LCD WXGA Active Matrix

TFT Panel resolution: 1366 x 768p

•

• Response time (typical): 8 ms

• Viewing angle (H / V): 178 / 178 degree

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1024 x 768 60, 800 x 600 60, 72, 75, 85Hz 640 x 480 60, 72, 75, 85Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz

70, 75, 85Hz

Sound

• Sound System: Stereo, Dolby Digital (AC-3)

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller, edible Surround

Incr

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Fine Tuning, PLL Digital Tuning,

Wireless Smart Loading, Program Name, Advanced Hotel Mode

• Ease of Use: Auto Volume Leveller (AVL

Picture, Smart Sound

), Smar

• Screen Format Adjustments: 4:3, 7 Widescreen Modes

• Comfort: Hotel Guest features, Sleep timer

• Other convenience: Kensington lock

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: NTSC, ATSC

• Video Playback: NTSC, PAL

• Number of Preset Channels: 125

• Cable: Unscrambled Digital Cable -QAM

• Terrestrial: ATSC (8VSB)

• Aerial Input: 75 ohm F-type

Connectivity

• AV 1: Audio L/R in, CVBS in, S-Video Y/C

• AV 2: Audio L/R in, YPbPr

•AV 3: HDMI

• Connectivity Enhancements: SmartCard Expansion

, RJ12 connector, RJ45 connector, HM-Link,

Slo Extra Power supply 12V/1W, External Loudspeaker connector

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Antenna F-type, PC-In VGA

Power

• Power consumption: 150 W

• Mains power: 110 - 240V, 50/60Hz

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Set dimensions in inch (W x H x D):

31.7 x 21.5 x 4.4 inch

•Set dimensions with stand in inch (W

31.7 x 24 x 10.4 inch

• Product weight (lb): 38.5 (with stand), 32.1

hout stand)

(wit

• Weight incl. Packaging (lb): 51.8

• VESA wall mount compatible: 200 x 100 mm

• Box dimensions in inch (W x H x D):

x 24.8 x 13.6 inch

x H x D):

Accessories

• Included accessories: Power cord, Warranty Leaflet, Quick start guide, User Manual, Tabletop swivel stand

• Optional accessories: Set up Remote RC2573GR,

ting brackets/ stands, Wireless SmartLoader

Mo 22AV1135

•

Issue date 2012-08-08

Version: 1.1.4

12 NC: 8670 000 34115 UPC: 6 09585 14305 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
